Doms PSS 5000 User manual

Date
Document number
January 27, 2017
PSS5000/INGU/805799/04
Doms ApS Formervangen 28
DK-2600 Glostrup
Tel. [phone] [email protected]
www.doms.com

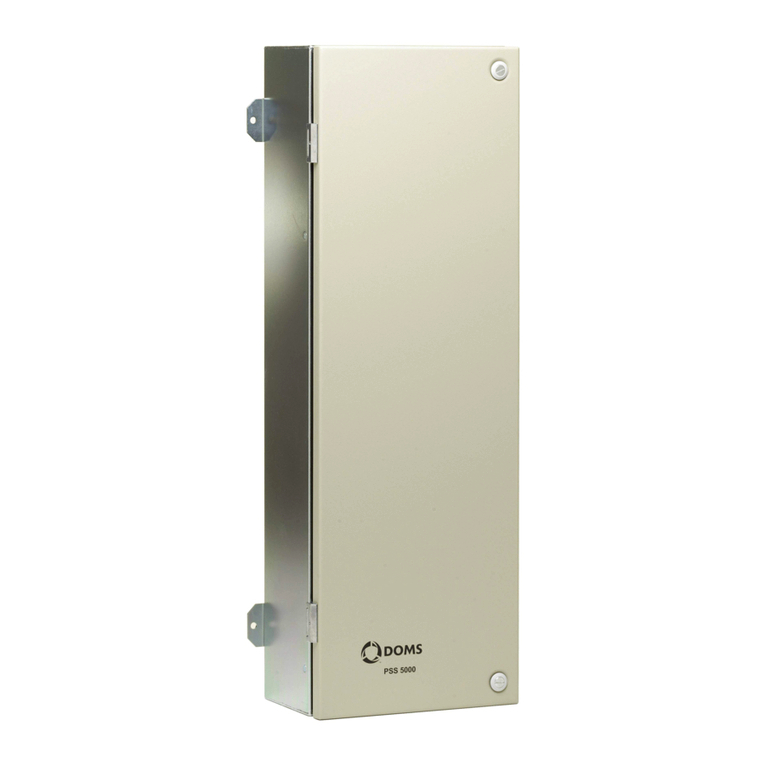

PSS 5000
Installation Guide
For Systems with CPB539
Contains embedded
configuration tool and
online help

2 of 25 PSS5000/INGU/805799/04
PSS 5000 – Installation Guide
Preface
About This Documentation
Purpose
This documentation describes the preparations and installation procedures
for the PSS 5000 Forecourt Controller on an operational site. When you are
finished using this guide the controller will be mounted correctly, connect-
ed to all the necessary devices and relevant equipment, and ready to be
used.
Audience
The content of this documentation is designed for personnel, such as main-
tenance staff or service technicians, who have received the necessary train-
ing and are required to install the controller hardware on a filling station.
Software
Software License
This product contains software that is covered by the GNU General Public
License. A list of the software packages present and copies of the relevant
licenses can be found in 4.1. Software Versions using the FCC Web Appli-
cation on the embedded web server.

PSS5000/INGU/805799/04 3 of 25
PSS 5000 – Installation Guide
Contents
Contents
About This Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1 Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.1 Environmental Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 Installing the PSS 5000 Forecourt Controller . . . . . . . . . . . . . . . . . . . 5
2.1 Mount the Cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.2 Power Up the PSS 5000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.3 Set the IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.4 List the Protocol to Port Assignments . . . . . . . . . . . . . . . . . . . . . . 14
2.5 Cable the Forecourt Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.6 Validate Device Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
3.1 Changing Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
3.2 Changing Hardware Interface Modules (HIMs) . . . . . . . . . . . . . . . 20
4 Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5 Revision Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

4 of 25 PSS5000/INGU/805799/04
PSS 5000 – Installation Guide
1 Environmental Conditions
1 Safety Information
Warnings!
1.1 Environmental Conditions
Fuels and Vapours
Because this equipment is connected to equipment installed in an environ-
ment with fuel and fuel vapours, there is a risk of fire and explosion. Ensure
that safety equipment is installed and adequate precautions are taken to
minimize the risk of injury or death.
Emergency Power Cut-off
Make sure that an emergency power cut-off is installed. This must be ac-
cessible and removes the AC power from all the fuelling devices on site.
Electrical Circuits
Remove the power to the forecourt controller before inserting, connecting
or removing any of the electrical circuits in this equipment.
High Voltage
This equipment uses 230 VAC. Make sure all safety procedures are fol-
lowed. Failure to do this can result in death.
Do not install this equipment in a hazardous area.
Do not install this equipment unless you have the proper
training.
Note:
The CPB has its own UPS. Consequently, the board may be en-
ergized even if it is disconnected from the Mains power source.

PSS5000/INGU/805799/04 5 of 25
PSS 5000 – Installation Guide
2
2 Installing the PSS 5000 Forecourt Controller
Prerequisites
The cabinet must be mounted close to a suitable Mains power supply, an
Ethernet connection, and the ends of the communication cables for both the
forecourt and POS devices.
Installation Process
This process lists the separate stages involved in installing the PSS 5000.
Note: It is assumed that the correct Hardware Interface Modules (HIMs)
are present and the protocols are assigned to the relevant ports.
What’s next!
On completion of the installation process, you are ready to start configuring
the system. The configuration process is described in the Online Help of the
FCC Web Application.
Stage Description
1Mount the Cabinet
2Power Up the PSS 5000
3Set the IP Address
4List the Protocol to Port Assignments
5Cable the Forecourt Devices
6Validate Device Connectivity

6 of 25 PSS5000/INGU/805799/04
PSS 5000 – Installation Guide
2 Mount the Cabinet
2.1 Mount the Cabinet
To mount the PSS 5000 cabinet
This procedure describes how to mount the PSS 5000 cabinet.
Note: Only install the PSS 5000 in the prescribed environment.
1. Find a spot where there is enough space for both the cabinet and the ca-
ble connections located to the right and below the cabinet.
2. Secure the PSS 5000 to the wall using the mounting lugs on the cabinet.
The mounting lugs are located on the sides of the Standard cabinets.
Note: Use screws or bolts that are capable of supporting the weight of
the cabinet and its contents.
You are now ready to continue to the next step in the process.
70 mm
70 mm
170 mm
4 x Ø6 mm

PSS5000/INGU/805799/04 7 of 25
PSS 5000 – Installation Guide
2 Power Up the PSS 5000
2.2 Power Up the PSS 5000
To power up the PSS 5000
This procedure describes how to connect the power cable and LAN Ether-
net connection to the PSS 5000.
1. Locate the power inlet socket on the right-hand side to the cabinet and
insert the power cable provided.
2. Connect the power cable to the Mains supply.
Note: The Mains connection must comply with the local electrical
codes and standards and match the voltage and power rating of
this equipment.
Power Inlet Socket

8 of 25 PSS5000/INGU/805799/04
PSS 5000 – Installation Guide
2 Set the IP Address
3. Locate the external Ethernet port on the right-hand side of the cabinet
and connect an Ethernet cable to the LAN.
You are now ready to continue to the next step in the process.
2.3 Set the IP Address
IP Address Assignments
Port 41 can be assigned the following types of IP addresses:
• Dynamic – assigned by a DHCP server
• Static – assigned manually via the service menus
Note: We recommend using a Static IP address as a dynamic IP address
may make it difficult to access the PSS 5000 remotely.
Note: The IP addresses for Port 41 and Port 42 must belong to separate
subnets. For example:
Port 41 – 192.168.0.x / 255.255.255.0
Port 42 – 192.168.1.x / 255.255.255.0.
External Ethernet Port

PSS5000/INGU/805799/04 9 of 25
PSS 5000 – Installation Guide
2 Set the IP Address
Methods of Setting the IP address of the LAN Port
The IP address for Port 41 on the CPB539 can be set in one of two ways:
•To assign an IP address to Port 41 (via a browser)
•To assign an IP address to Port 41 (via Local Service Panel)
To ensure that the TCP/IP information provided for Port 41 is correct, you
should obtain the necessary details from your System Administrator before
you start.
See Also
•‘IP Address Assignments’ on page 8
To assign an IP address to Port 41 (via a browser)
This procedure describes how to assign an IP address to Port 41 using a
browser and the FCC Web Application.
1. Use standard Windows procedures to set the IP address of the Ethernet
port on your Service PC to 192.168.1.10.
This makes it compatible with the fixed IP address assigned to Port 42.

10 of 25 PSS5000/INGU/805799/04
PSS 5000 – Installation Guide
2 Set the IP Address
2. Locate Port 42 on the CPB and using a suitable Ethernet cable connect
it to your Service PC.
3. Open a standard browser on your Service PC and in the URL field type
in the IP address for Port 42: 192.168.1.2.
The Sign In window for the FCC Web Application appears.
4. Sign in using the default authentication details for the FCC Web Appli-
cation:
• Username: admin
• Password: password
The Forecourt Devices window appears.
5. Select 5. Setup  5.6. Communication  5.6.1. TCP/IP.
The TCP/IP window appears. This shows the current details for both Port
41 and Port 42.
Ethernet Port 42
(IP address:192.168.1.2)

PSS5000/INGU/805799/04 11 of 25
PSS 5000 – Installation Guide
2 Set the IP Address
6. Do one of the following:
•(Recommended) To assign a static IP address, go to step 7.
• To assign a dynamic IP address, select Enable DHCP Client and go to
step 8.
7. Select Port 41 and type in the required values for:
•IP Address
•Subnet Mask
•Default Gateway
Note: Set the IP address so that Port 41 and Port 42 belong to separate
subnets.
To ensure that the information provided here is correct, you should ob-
tain the necessary details from your System Administrator.
8. Click to apply the changes.
After the IP address has been changed, the FCC Web Application is also
accessible from the LAN. You are now ready to proceed to the next step in
the process.
See Also
•‘IP Address Assignments’ on page 8

12 of 25 PSS5000/INGU/805799/04
PSS 5000 – Installation Guide
2 Set the IP Address
To assign an IP address to Port 41 (via Local Service Panel)
This procedure describes how to use the Local Service Panel (LSP) on the
CPB539 to set an IP address for Port 41. This is used to connect the PSS
5000 to the LAN.
Note: This procedure describes how to assign a static IP address. If you
need to use a dynamic address, select "YES" when you see "USE
DHCP?".
1. Obtain a valid IP address for the connected LAN from the System Ad-
ministrator.
2. Locate the local service panel and navigation buttons.
Local Service Panel displ
and Navigation buttons

PSS5000/INGU/805799/04 13 of 25
PSS 5000 – Installation Guide
2 Set the IP Address
3. Use the navigation buttons as shown below to set the IP address and
gateway for Port 41.
Note: Set the IP address so that Port 41 and Port 42 belong to separate
subnets.
The PSS 5000 can be connected to the LAN and you are ready to proceed
to the next step in the process.
See Also
•‘IP Address Assignments’ on page 8

14 of 25 PSS5000/INGU/805799/04
PSS 5000 – Installation Guide
2 List the Protocol to Port Assignments
2.4 List the Protocol to Port Assignments
To view the current protocol to port assignments
This procedure describes how to use the FCC Web Application to view
which protocols are assigned to the individual serial ports on the CPB.
Note: If you have a PC connected to the LAN already, go to step 2.
1. Use an Ethernet cable to connect a PC to the LAN or to Port 42 on the
CPB.
Note: If you are connecting to Port 42, you must set up the Ethernet
port on the PC to match the IP address range used by Port 42.
The default IP address for Port 42 is 192.168.1.2.
2. Open a web browser on the PC and, in the URL field, do one of the fol-
lowing:
• If connected via the LAN, type in the IP address of Port 41.
• If connected via Port 42, type in 192.168.1.2
The Sign In window appears.
3. Sign in to the FCC Web Application using the following authentication
details.
The default sign in details are:
• Username: admin
• Password: password
Recommendation: If you are the System Administrator, change the de-
fault password as soon as possible to help keep your system secure.
Ethernet Port 42

PSS5000/INGU/805799/04 15 of 25
PSS 5000 – Installation Guide
2 Cable the Forecourt Devices
4. Select 5. Setup 5.3. Protocol to Port Assignment.
A list of all the ports and the corresponding protocol to port assignments
appears.
5. Keep this page open and use the protocol to port assignment informa-
tion to assist you in connecting the forecourt devices to the correct
Hardware Interface Modules (HIMs).
2.5 Cable the Forecourt Devices
To connect the cables for the forecourt devices
This procedure describes how to insert the communication cables from the
forecourt devices and prepare them for connection to the Hardware Inter-
face Modules (HIMs).
Note: It is assumed that the relevant HIMs are installed already.

16 of 25 PSS5000/INGU/805799/04
PSS 5000 – Installation Guide
2 Cable the Forecourt Devices
1. Prepare the communication cables by removing the insulation as illus-
trated below.
2. Refer to the Protocol to Port Assignment web service page and insert
each communication cable through the rubber grommet opposite the
relevant HIM.

PSS5000/INGU/805799/04 17 of 25
PSS 5000 – Installation Guide
2 Validate Device Connectivity
3. Secure each cable to the cabinet using the cable clamp provided and
connect the cable to the HIM.
4. Make sure that the shielding on the cable is securely attached at both
ends.
Note: For more information about the cable connections, refer to the
relevant installation drawings.
You are now ready to validate that all the forecourt devices are connected
correctly and communicating with the PSS 5000.
2.6 Validate Device Connectivity
To validate connectivity between the PSS 5000 and the forecourt devices
This procedure describes how to validate that the forecourt devices are
communicating correctly with the PSS 5000.
1. Using a web browser, open the FCC Web Application.

18 of 25 PSS5000/INGU/805799/04
PSS 5000 – Installation Guide
2 Validate Device Connectivity
2. Select 7. Diagnostics  7.1. Online List.
The Online List page appears.
3. Make sure that each forecourt device is listed in the Device Address col-
umn.
If this is not the case, repeat the steps in this section:
• Check that the devices are connected correctly
• All the devices are powered up
• The Protocol to Port Assignments match the device connections and
HIM connections
The installation is now complete and you are ready to configure the PSS ap-
plication. The configuration is achieved using the FCC Web Application.

PSS5000/INGU/805799/04 19 of 25
PSS 5000 – Installation Guide
3 Changing Fuses
3 Maintenance
Maintenance overview
This section is divided in to the following sub-topics:
•‘3.1 Changing Fuses’ on page 19
•‘3.2 Changing Hardware Interface Modules (HIMs)’ on page 20
3.1 Changing Fuses
To replace the fuse
This procedure describes how to remove defective Mains fuses from the
PSS 5000 Forecourt Controller and replace them with new ones.
1. Turn off the power by removing the plug from the power inlet socket.
2. Locate the fuse drawer, which is located at the power inlet socket.
3. Using 2 small flat-blade screwdrivers (max. 2.5 mm), insert the tip of
each screwdriver into the small hole next to the fuse drawer as illustrat-
ed below.
4. Press the handle of the screw drivers carefully towards the box so that
the fuse drawer is pushed outwards.
5. Remove the defective fuse from the fuse drawer.
The fuse drawer is divided into 2 sections. This provides space for a
spare fuse; so use the spare one if available.
6. Make sure that the new fuse has the correct rating and insert it in the
fuse drawer.

20 of 25 PSS5000/INGU/805799/04
PSS 5000 – Installation Guide
3 Changing Hardware Interface Modules (HIMs)
Note: The correct ratings are indicated on the label next to the power
inlet socket.
7. Close the drawer.
Note: Before you reconnect the Mains power, make sure that the reason
for the blown fuse has been eliminated.
3.2 Changing Hardware Interface Modules (HIMs)
To remove a HIM
This procedure describes how to remove a HIM from the PSS 5000 cabinet.
1. Turn off the power by removing the plug from the power inlet socket.
2. Open the front cover by releasing the securing screws (and the lock if
present).
3. Disconnect the cables to the HIM that you want to remove.
4. Insert a flat-blade screwdriver in the groove indicated in drawing (i) be-
low and gently prise the securing clip open by pressing the screwdriver
in the direction indicated by the red arrow in drawing (ii) illustrated be-
low.
5. When the securing clip is free, use your other hand to tip the HIM clear
of the DIN rail and then lift it out of the cabinet.
(i) (ii)
