Donaldson Torit E-100 User manual

This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
This manual is property of the owner. Leave with the collector when set-up and start-up are complete. Donaldson Company reserves the
right to change design and specifications without prior notice.
Illustrations are for reference only as actual product may vary.
Centrifugal Mist Collector
E-100, E-200, E-300, E-500
EA-700, EA-900, and EA-905
Installation and Operation Manual
Installation, Operation, and Service Information
IOM 1B0510107 (ENG)
Revision 3
English
Master Language

Process owners/operators have important responsibilities relating to combustible hazards.
Process owners/operators must determine whether their process creates combustible dust,
fume, or mist. If combustible dust, fume, or mist is generated, process owners/operators should at a
minimum:
• Comply with all applicable codes and standards. Among other considerations, current NFPA standards
require owners/operators whose processes involve potentially combustible materials to have a current
Hazard Analysis, which can serve as the foundation for their process hazard mitigation strategies.
• Prevent all ignition sources from entering any dust collection equipment.
• Design, select, and implement fire and explosion mitigation, suppression, and isolation strategies that
are appropriate for the risks associated with their application.
• Develop and implement maintenance work practices to maintain a safe operating environment, ensuring
that combustible dust, fume, or mist does not accumulate within the plant.
Donaldson recommends process owners/operators consult with experts to insure each of these
responsibilities are met.
As a manufacturer and supplier of Industrial Filtration Products, Donaldson can assist process owners/
operators in the selection of filtration technologies. However, process owners/operators retain all
responsibility for the suitability of fire and explosion hazard mitigation, suppression, and isolation strategies.
Donaldson assumes no responsibility or liability for the suitability of any fire and/or explosion mitigation
strategy, or any items incorporated into a collector as part of an owner/operators hazard mitigation strategy.
Improper operation of a dust control system may contribute to conditions in the work area or facility that
could result in severe personal injury and product or property damage. Check that all collection equipment is
properly selected and sized for the intended use.
DO NOT operate this equipment until you have read and understand the instruction warnings in the
Installation and Operations Manual. For a replacement manual, contact Donaldson Torit.
This manual contains specific precautionary statements relative to worker safety. Read thoroughly and comply
as directed. Discuss the use and application of this equipment with a Donaldson Torit representative. Instruct all
personnel on safe use and maintenance procedures.
Donaldson Company, Inc.

Model Number _____________________________ Serial Number ______________________________
Ship Date _________________________________ Installation Date _____________________________
Customer Name _______________________________________________________________________
Address _____________________________________________________________________________
____________________________________________________________________________________
Filter Type ____________________________________________________________________________
Accessories __________________________________________________________________________
Other________________________________________________________________________________
DANGER indicates a hazardous situation which, if not avoided, will result
in death or serious injury.
WARNING indicates a hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION, used with the safety alert symbol, indicates a hazardous
situation which, if not avoided, could result in minor or moderate injury.
NOTICE is used to address practices not related to personal injury that
may result in damage to equipment.
Centrifugal Mist Collector, E-100 to EA-905
i
Data Sheet
Contents
Description................................................................................1
Purpose and Intended Use ....................................................1
Operation...................................................................................2
Inspection on Arrival...............................................................3
Installation Codes and Procedures ......................................3
Installation.................................................................................3
Foundations or Support Framing .......................................3
Collector Location................................................................4
Site Selection .......................................................................4
Rigging Instructions.................................................................4
Hoisting Information ............................................................4
Electrical Wiring...................................................................5
Standard Equipment................................................................5
Ducts ......................................................................................5
Drain Connection..................................................................6
Electrical Connection ..........................................................7
Preliminary Start-Up Check ...................................................8
Maintenance Information.......................................................9
Operational Checklist ..........................................................9
Disposable Filter Liner Replacement................................9
Primary Filter Replacement................................................9
Secondary Filter Replacement...........................................9
Optional Equipment................................................................10

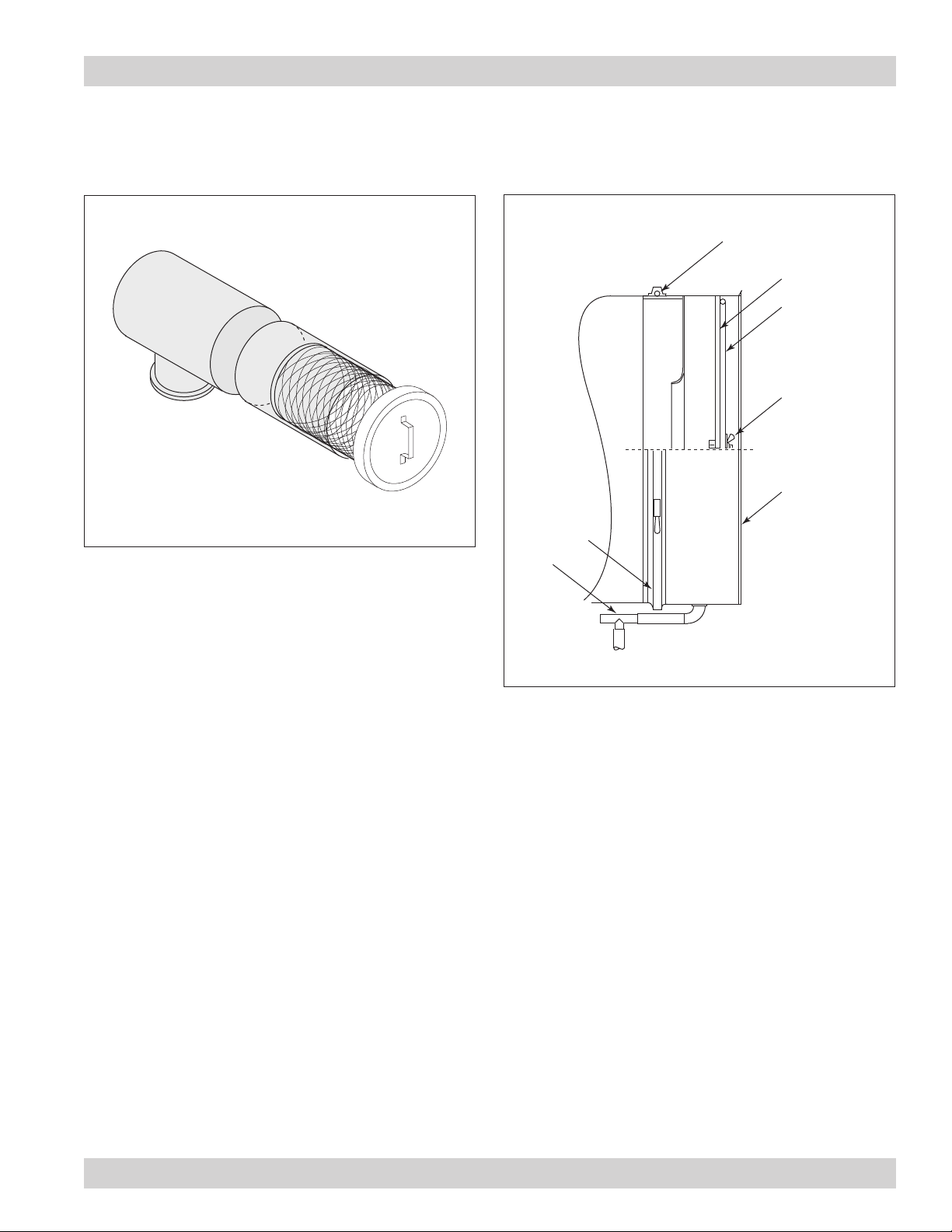

Prefilter Trap .......................................................................10
In-Cover Trap ......................................................................10
In-Cover Impinger ..............................................................11

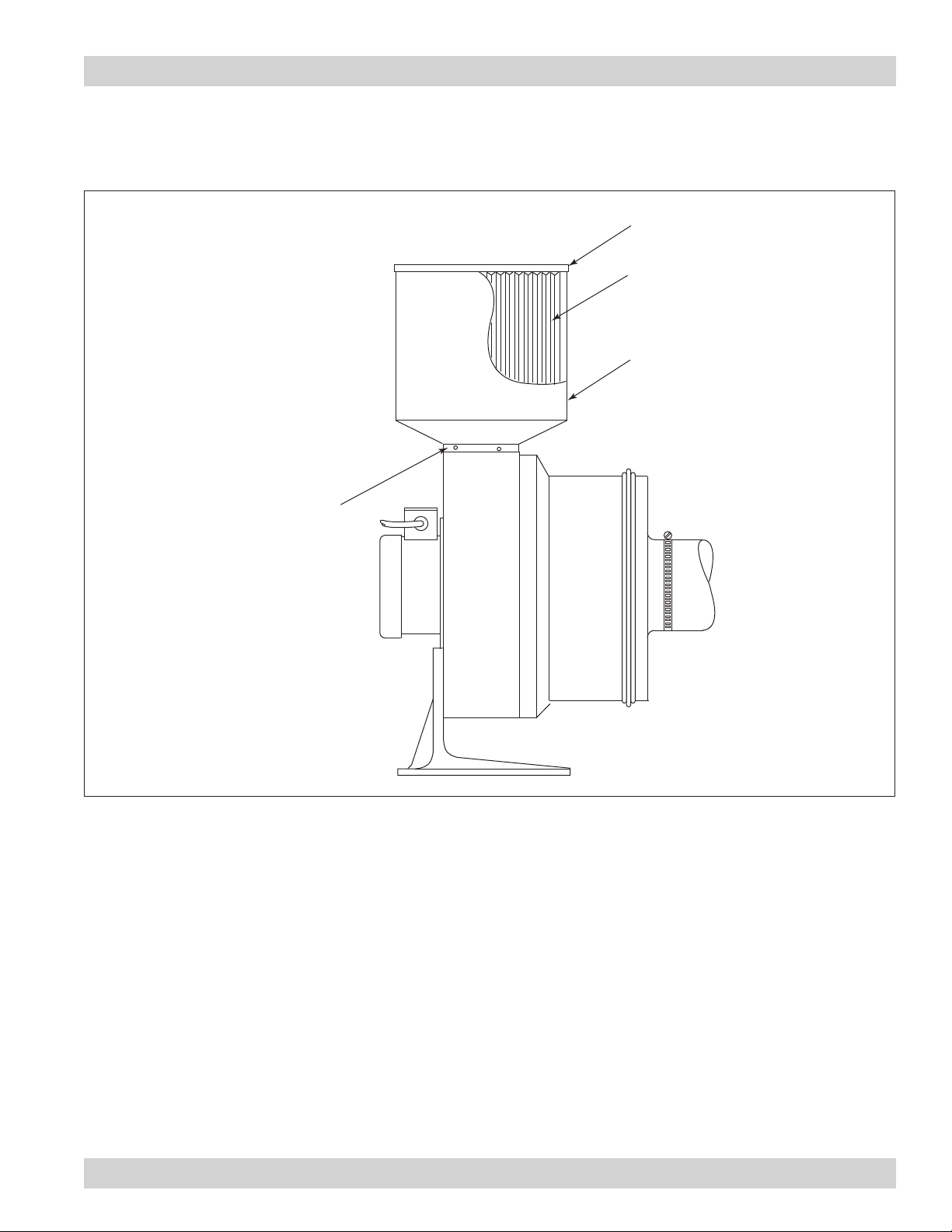

HEPA Filter...........................................................................12
Troubleshooting......................................................................13
Service Notes.........................................................................14

Combustible materials such as buffing lint, paper, wood, metal dusts, weld fume, or flammable
coolants or solvents represent potential fire and/or explosion hazards. Use special care when
selecting, installing, and operating all dust, fume, or mist collection equipment when such combustible
materials may be present in order to protect workers and property from serious injury or damage due to a
fire and/or explosion.
Consult and comply with all National and Local Codes related to fire and/or explosion properties of
combustible materials when determining the location and operation of all dust, fume, or mist collection
equipment.
Standard Donaldson Torit equipment is not equipped with fire extinguishing or explosion protection systems.
1
Donaldson Company, Inc.
Description
Centrifugal Mist Collectors are compact, high efficiency,
centrifugal mist collection systems designed to collect,
filter, and reclaim liquid mist generated in machine tool
or process operations. The compact size allows direct
machine mounting which integrates the collection
system directly to the mist-generating machine or
process. Four stages of filtration provide effective indoor
air pollution control.
Optional prefilters, impingers, and afterfilters provide
additional filtration. Prefilters are used to remove chips
or solid particles before they enter the rotating drum and
impingers remove heavy sprays of raw fluids. Optional
HEPA afterfilters, available in standard and high-capacity
sizes, remove smoke generated in a machine process
while carbon afterfilters remove gas vapor and odors.
Centrifugal Mist Collectors are intended for separation
of various liquid droplets and particulates. It is not a
dust collector and should not be used to filter solid
particulate. The mist collector is designed to filter
mild amounts of smoke of an oily nature or smoke
mixed with oil mist. Typical applications include chip-
generating operations such as screw and bar machines,
CNC turning and milling machines, and applications
using straight oil coolants. Some applications such as
grinding, especially those with heavy metal-removal
rates, can cause a buildup of grinding swarf or other
solid particulate. Using a prefilter trap is strongly
recommended to extend the maintenance cycle of the
mist collector in these operations.
The collector must be sized to the application or filtration
will not be effective. Too little airflow will not draw the
contaminant into the filter and too much airflow may
result in the unit picking up large or heavy solid particles
increasing the frequency of maintenance or filter
replacement.
Purpose and Intended Use
Misuse or modification may result
in severe personal injury and/or
property damage.
Do not misuse or modify.

Centrifugal Mist Collector, E-100 to EA-905
2
mist-laden air
disposable first-stage filter
second-stage primary filter
drum assembly
third-stage secondary filter
exhaust grill
exhaust grill filter
clean-air outlet
Unit Operation
Operation
During normal operation, mist-laden air enters the
collector through a flexible hose. The air passes through
a disposable first-stage filter and into a second-stage
primary filter. Sub-micron mist particles are trapped and
retained as they coalesce and grow to large droplet size.
These filters are housed in a spinning, perforated drum
with internal radial fan blades to promote air movement.
The droplets are spun and thrown from the perforated
drum to the inner wall of the collector housing by
centrifugal force. High velocity air drives the liquid or
oil along the housing walls, through a circumferential
slot, and into a collection chamber where the liquid is
drained. A third-stage, secondary filter catches liquid
that bypasses the slot and drains through the secondary
drain. Clean air is exhausted through the fourth-stage,
exhaust grill filter and returned to the plant environment
while the recycled oil drains from the unit for reuse or
disposal.

3
Donaldson Company, Inc.
Inspection on Arrival
1. Inspect collector upon delivery.
2. Report any damage to the delivery carrier.
3. Request a written inspection report from the Claims
Inspector to substantiate any damage claim.
4. File claims with the delivery carrier.
5. Compare collector received with description of
product ordered.
6. Report incomplete shipments to the delivery carrier
and your Donaldson Torit representative.
7. Remove crates and shipping straps. Remove loose
components and accessory packages before lifting
collector from truck.
8. Check for hardware that may have loosened during
shipping.
9. Use caution removing temporary covers.
Installation Codes and Procedures
Codes may regulate recirculating
filtered air in your facility.
Consult with the appropriate authorities
having jurisdiction to ensure compliance
with all national and local codes regarding
recirculating filtered air.
Safe and efficient operation of the collector depends on
proper installation.
Authorities with jurisdiction should be consulted
before installing to verify local codes and installation
procedures. In the absence of such codes, install
collector according to the National Electric Code,
NFPA No. 70-latest edition and NFPA 91 (NFPA 654 if
combustible dust is present).
A qualified installation and service agent must complete
installation and service of this equipment.
All shipping materials, including shipping covers, must
be removed from the collector prior to or during collector
installation.
Failure to remove shipping
materials from the collector will
compromise collector performance.
Inspect collector to ensure all hardware is properly
installed and tight prior to operating collector.
Installation
Use proper equipment and adopt
all safety precautions needed for
servicing equipment.
Electrical service or maintenance work must
be performed by a qualified electrician and
comply with all applicable national and local
codes.
Turn power off and lock out electrical
power sources before performing service or
maintenance work.
Do not install in classified hazardous
atmospheres without an enclosure rated for
the application.
Site selection must account for
wind, seismic zone, and other
load conditions when selecting the location for
collectors.
Codes may regulate acceptable locations for
installing dust collectors. Consult with the
appropriate authorities having jurisdiction to
ensure compliance with all national and local
codes regarding mist collector installation.
Collectors must be anchored in a manner
consistent with local code requirements.
Anchors must be sufficient to support dead,
live, seismic, and other anticipated loads.
Consult a qualified engineer for final selection
of anchorage.
The collector is suitable for indoor installation. Reference
the Rating and Specification Information.
Foundations or Support Framing
Prepare the ceiling or machine mounting structure in the
selected location. Mounting structure must comply with
local code requirements and may require engineering.
Foundation and support framing must be capable of
supporting dead, live, wind, seismic and other applicable
loads. Consult a qualified engineer for final selection of
foundation or support framing.

Centrifugal Mist Collector, E-100 to EA-905
4
Site Selection
This collector can be located on a foundation or
structural framing.
Provide clearance from heat sources and avoid any
interference with utilities when selecting the location.
Rigging Instructions
Suggested Tools & Equipment
Clevis Pins and Clamps Lifting Slings
Crane or Forklift Pipe Sealant
Drift Pins Pipe Wrenches
Drill and Drill Bits Screwdrivers
End Wrenches Socket Wrenches
Adjustable Wrench Spreader Bars
Torque Wrench (inch/lbs, 9/16-in Socket)
Hoisting Information
Failure to lift the collector
correctly can result in severe
personal injury and/or property damage.
Use appropriate lifting equipment and adopt
all safety precautions needed for moving and
handling the equipment.
A crane or forklift is recommended for
unloading, assembly, and installation of the
collector.
Location must be clear of all obstructions, such
as utility lines or roof overhang.
Collector Location
Donaldson Torit equipment is not
designed to support site installed
ducts, interconnecting piping, or electrical
services. All ducts, piping, or electrical
services must be adequately supported to
prevent severe personal injury and/or property
damage.
When hazardous conditions or materials are
present, consult with local authorities for the
proper location of the collector.
Mist collection equipment may
reach peak sound pressure
levels above 80 dB (A). Noise levels should be
considered when selecting collector location.
Locate the collector to ensure easy access to electrical
connections, to simplify mist collection container
handling and routine maintenance, and to ensure the
straightest inlet and outlet ducts.
Check the Specification Control drawing for weight and
dimensions of the collector and components to ensure
adequate crane capacity.
Allow only qualified crane or forklift operators to lift the
equipment.
Refer to applicable OSHA regulations and local codes
when using cranes, forklifts, and other lifting equipment.
Lift collector and accessories separately and assemble
after collector is in place.
Use drift pins to align holes in section flanges during
assembly.

5
Donaldson Company, Inc.
Standard Equipment
The Centrifugal Mist Collector is normally installed
horizontally; however, it can be installed vertically with
the inlet end down.
1. Remove the inlet cover’s retaining ring and remove
the cover. Discard the cardboard spacers between
the casing and the rotating drum, if installed. The
drum should now rotate freely. Replace the inlet
cover and secure with retaining ring.
2. Remove the carriage bolts or lag screws securing
the collector base to the pallet. Retain the four
washers tied to the pedestal.
3. Secure the base to the mounting surface with
four 1/2-in machine screws. Use the four washers
retained in Step 1 as shims under the mounting bolts
if necessary.
Ducts
1. Attach one end of the flexible hose to the inlet cover
and secure with a hose clamp.
2. Connect the opposite end to the machine hood or
enclosure with a hose clamp. Flange connectors
are available to connect the hose to most hoods or
enclosures.
Keep flexible hose length and
number of bends to a minimum.
Maintain a slope to prevent deposits of oil
from settling at low points and blocking the air
passage.
3. If rigid duct is used, connect an 18-in length of
flexible hose to the unit’s inlet cover for easy cover
removal.
Electrical Wiring
Electrical installation, service,
or maintenance work must
be performed by a qualified electrician and
comply with all applicable national and local
codes.
Turn power off and lock out electrical
power sources before performing service or
maintenance work.
Do not install in classified hazardous
atmospheres without an enclosure rated for
the application.
All electrical wiring and connections, including electrical
grounding, should be made in accordance with the
National Electric Code (NFPA No. 70-latest edition).
Check local ordinances for additional requirements that
apply.
The appropriate wiring schematic and electrical rating
must be used. See collector’s rating plate for required
voltage.
An electric disconnect switch having adequate amp
capacity shall be installed in accordance with Part IX,
Article 430 of the National Electrical Code (NFPA No.
70-latest edition). Check collector’s rating plate for
voltage and amperage ratings.
Refer to the wiring diagram for the number of wires
required for main power wiring and remote wiring.

Centrifugal Mist Collector, E-100 to EA-905
6
Drain Connection
Primary Drain
1. Use 1-in diameter pipe or flexible hose for the drain
connection.
2. Models E-100 and E-200 are equipped with a
1-in NPT male drain fitting and Models E-300 through
EA-900 are equipped with a 1 1/4-in NPT fitting that
connects to the reservoir eliminating the need to
empty containers. A separate container can be
attached to the drain if desired.
Secondary Drain
The secondary drain fitting is a 1/4-in NPT 900 EL fitting
and connects the same way the primary drain connects.
Do not submerge ends of hose. Do
not connect the secondary drain
hose to the primary drain hose.
in-cover trap
drain hose
without
in-cover trap
drain hose
with in-cover
trap
connect with flexible hose or rigid pipe
Drain Connection

7
Donaldson Company, Inc.
1 2
7 8
3
9
4 5 6 1 2 3 4
7
5
8
6
9
to low voltage power supply to high voltage power supply
circled numbers correspond to wire tags located inside the junction box
Typical Wiring Diagram
Electrical Connection
Electrical installation must
be performed by a qualified
electrician and comply with all applicable
national and local codes.
Lock out electrical power sources before
performing service or maintenance work.
Do not install in classified hazardous
atmospheres without an enclosure rated for
the application.
Wire unit according to the wiring diagram located on the
motor conduit box cover.

Centrifugal Mist Collector, E-100 to EA-905
8
Preliminary Start-Up Check
Instruct all personnel on safe use and maintenance
procedures.
Electrical work during
installation, service or
maintenance must be performed by a qualified
electrician and comply with all applicable
national and local codes.
Turn power off and lock out electrical
power sources before performing service or
maintenance work.
Check that the collector is clear and free of all
debris before starting.
Do not install in classified hazardous
atmospheres without an enclosure rated for
the application.
1. Check all electrical connections for tightness and
contact.
2. Check for proper rotation as noted on the fan and/or
hopper discharge device housing.
To reverse rotation, single-phase power supply:
Follow manufacturer’s instructions on the motor’s
nameplate.
To reverse rotation, three-phase power supply:
Switch any two leads on the motor junction box.
Do not look into fan outlet to
determine rotation. View the fan
rotation through the back of the motor.
Check that the exhaust plenum is free of tools
or debris before checking blower/fan rotation.
Stand clear of exhaust to avoid personal injury.
Do not interchange a power lead with the
ground wire. Severe personal injury and/or
property damage may result.
3. Check and remove all loose items in or near the inlet
and outlet of the collector.
4. Check that all remote controls are properly wired
and all service switches are in the OFF position.
5. Check that all optional accessories are installed
properly and secured.
6. Turn power ON at source.
7. Turn fan motor ON.
8. If Centrifugal collector has been sitting stationary
more than one hour, douse drum with original liquid
during startup to prevent vibration from an out of
balance system. If the system has been turned off
long enough for the liquid to congeal, replace the
filter.

9
Donaldson Company, Inc.
Instruct all personnel on safe use and maintenance
procedures.
Use proper equipment and adopt
all safety precautions needed for
servicing equipment.
Use appropriate access equipment and
procedures. Note the standard collector is not
equipped with access platforms unless noted
on the specification drawings.
Electrical service or maintenance work must
be performed by a qualified electrician and
comply with all applicable national and local
codes.
Turn power off and lock out electrical
power sources before performing service or
maintenance work.
Do not install in classified hazardous
atmospheres without an enclosure rated for
the application.
Operational Checklist
1. Monitor the physical condition of the collector and
repair or replace any damaged components.
Routine inspections will minimize downtime and
maintain optimum system performance. This
is particularly important on continuous-duty
applications.
2. Monitor exhaust.
Disposable Filter Liner Replacement
Turn unit OFF and check that drum
has stopped before removing the
cover.
1. Using a felt tip marker or scribe, mark the location of
the liner ends on the face of the drum.
2. Remove and discard disposable liner.
3. Starting at the mark made in Step 1, slide the
replacement liner under each blade until the ends
come together.
Do not trim the filter if it seems too
long. Work the excess filter liner
around the drum evenly.
4. Replace the cover and clamping ring, turn power ON
and allow unit to reach full speed.
5. Turn unit OFF and allow drum to stop. Remove the
inlet cover and inspect liner. It should be smoothly
seated and the butt joint flat. If liner overlaps at the
seam or wrinkles are present, smooth troublesome
areas by hand and repeat Steps 4 and 5.
If unit runs rough after filter liner
replacement, shift the liner seam
a few inches to the right or left of the reference
mark.
Primary Filter Replacement
Under normal operating conditions and scheduled filter
liner replacement, the primary filter will not require
replacement. It is strongly recommended that this filter is
not removed. The dynamic balance of the drum assembly
will be affected.
Delayed maintenance or accidental damage can make
replacement necessary. Follow the same procedure used
for replacing the disposable filter. Trial and error shifting
of the seam will be necessary to minimize vibration. If the
drum is distorted, it may be necessary to re-balance the
unit.
Secondary Filter Replacement
The third stage secondary-filter replacement requires
the removal of the rotating drum.
Maintenance Information

Centrifugal Mist Collector, E-100 to EA-905
10
Optional Equipment
Prefilter Trap
in-cover trap
retainer
filter
o-ring
v-ring
tee
1/2-in flexible tube
wing nut
lock washer
flat washer
hex nut
Prefilter Trap
In-Cover Trap
In-Cover Trap

11
Donaldson Company, Inc.
1/2 x 1/2 x 1/2-in
barbed nylon tee
1/2-in flexible tube
V-ring
in-cover housing
impinger
O-ring
hex nut
lock washer
In-Cover Impinger
In-Cover Impinger

Centrifugal Mist Collector, E-100 to EA-905
12
HEPA Filter
cover
HEPA filter
HEPA filter housing
#10 x 1-in
self-tapping screw
silicone sealant
HEPA Filter

13
Donaldson Company, Inc.
Troubleshooting
Problem Probable Cause Remedy
Collector will not start Improper motor wire size Rewire using the correct wire gauge as specified by
national and local codes.
Not wired correctly Check and correct motor wiring for supply voltage.
See motor manufacturer's wiring diagram. Follow
wiring diagram and the National Electric Code.
Unit not wired for available
voltage
Correct wiring for proper supply voltage.
Input circuit down Check power supply to motor circuit on all leads.
Electrical supply circuit down Check power supply circuit for proper voltage.
Check for fuse or circuit breaker fault. Replace as
necessary.
Fuse blown Check and replace as necessary.
Junction box not wired correctly Check wiring in junction box for tightness and
contact.
Defective motor Replace motor.
Collector runs slow Incorrect voltage Check power supply circuit for proper voltage.
Junction box not wired correctly Check that the junction box is wired according to the
wiring diagram.
Single phase disconnected Check that the junction box is wired according to the
wiring diagram.
Obstruction between drum
and housing
Remove inlet cover. Remove obstruction.
Clean-air outlet
discharging mist
Disposable filter liner dirty See Disposable Filter Liner Replacement section.
Undersized collector Collector must be sized for the application. Contact
Donaldson for assistance.
Excess Vibration Mounting bolts loose Tighten bolts.
Foreign object in drum Check and remove obstruction.
Disposable filter liner dirty See Disposable Filter Liner Replacement section.
Drum assembly distorted Rebalance drum assembly. Contact Donaldson for
assistance.

Centrifugal Mist Collector, E-100 to EA-905
14
Service Notes
Date Service Performed Notes

15
Donaldson Company, Inc.
Service Notes
Date Service Performed Notes

Donaldson Company, Inc. is the leading designer and manufacturer of dust, mist, and fume collection
equipment used to control industrial-air pollutants. Our equipment is designed to help reduce
occupational hazards, lengthen machine life, reduce in-plant maintenance requirements, and
improve product quality.
Parts and Service
For genuine Donaldson replacement filters and parts, call the Parts Express Line. For faster service,
have unit’s model and serial number, quantity, part number, and description available.
Donaldson Company, Inc.
Torit
PO Box 1299
Minneapolis, MN 55440-1299
U.S.A.
The Donaldson Torit Warranty
Donaldson warrants to the original purchaser that the major structural components of the goods will be free
from defects in materials and workmanship for ten (10) years from the date of shipment, if properly installed,
maintained and operated under normal conditions. Donaldson warrants all other Donaldson built components
and accessories including Donaldson Airlocks, TBI Fans, TRB Fans, Fume Collector products and Donaldson built
Afterfilters for twelve (12) months from date of shipment. Donaldson warrants Donaldson built filter elements to
be free from defects in materials and workmanship for eighteen (18) months from date of shipment. Donaldson
does not warrant against damages due to corrosion, abrasion, normal wear and tear, product modification,
or product misapplication. Donaldson also makes no warranty whatsoever as to any goods manufactured or
supplied by others including electric motors, fans and control components. After Donaldson has been given
adequate opportunity to remedy any defects in material or workmanship, Donaldson retains the sole option to
accept return of the goods, with freight paid by the purchaser, and to refund the purchase price for the goods
after confirming the goods are returned undamaged and in usable condition. Such a refund will be in the full
extent of Donaldson’s liability. Donaldson shall not be liable for any other costs, expenses or damages whether
direct, indirect, special, incidental, consequential or otherwise. The terms of this warranty may be modified
only by a special warranty document signed by a Director, General Manager or Vice President of Donaldson.
To ensure proper operational performance of the equipment, use only genuine Donaldson replacement parts.
THERE EXIST NO OTHER REPRESENTATIONS, WARRANTIES OR GUARANTEES EXCEPT AS STATED IN THIS
PARAGRAPH AND ALL OTHER WARRANTIES INCLUDING MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, WHETHER EXPRESS OR IMPLIED ARE HEREBY EXPRESSLY EXCLUDED AND DISCLAIMED.
800-365-1331 USA
800-343-3639 within Mexico
[phone] Latin America
donaldsontor[email protected]
donaldsontorit.com
© 2002 Donaldson Company, Inc. IOM 1B0510107 (ENG), Revision 3
Printed in USA March 2017
