1. INTRODUCTION
Item No.
PH-LT-SLV-05
Dimension
154*68*78mm
Material
Zinc Alloy
Weight
2.3Kgs
1-1 . Standard Single latch :
Latch length can be adjusted as 60mm or 70mm
Technical Specification
Communication mode
Bluetooth 4.0ble

Door$Guard$Pty$Ltd$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$3
$
For$more$information$please$visit$:$www.doorguard.com.au$
For$Help$and$Support$please$send$an$email$to$:$sup[email protected]$
Unlocking way
Bluetooth, Code, Mechanical key
Support System
Android 4.3 / IOS 7.0 above
Unlock time
≈ 1.5 sec
Power supply
4pcs AA batteries
Static current
≤30uA
Working current
≤200mA

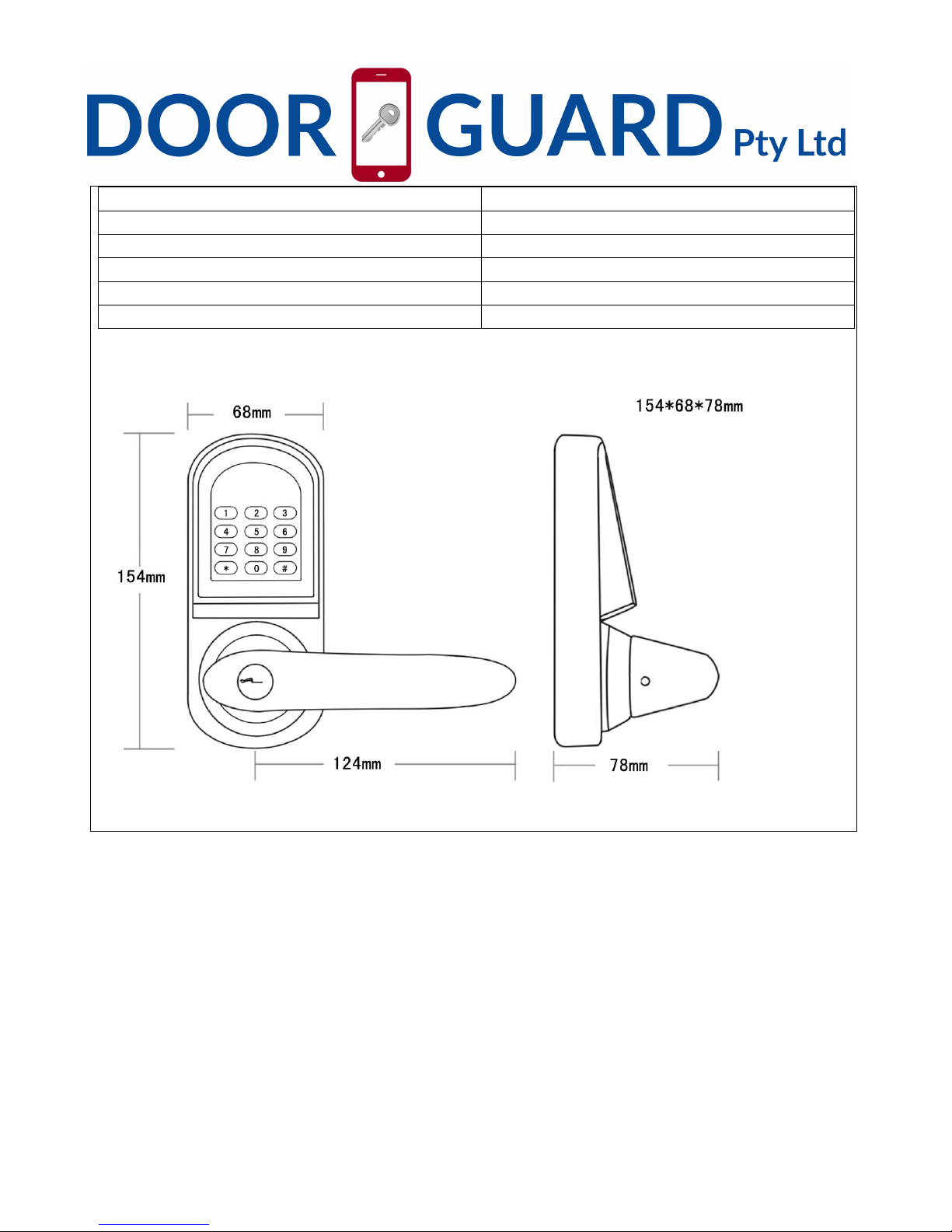

1-2. Item Dimension:

Door$Guard$Pty$Ltd$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$4
$
For$more$information$please$visit$:$www.doorguard.com.au$
For$Help$and$Support$please$send$an$email$to$:$sup[email protected]$
2. INSTALLATION GUIDE

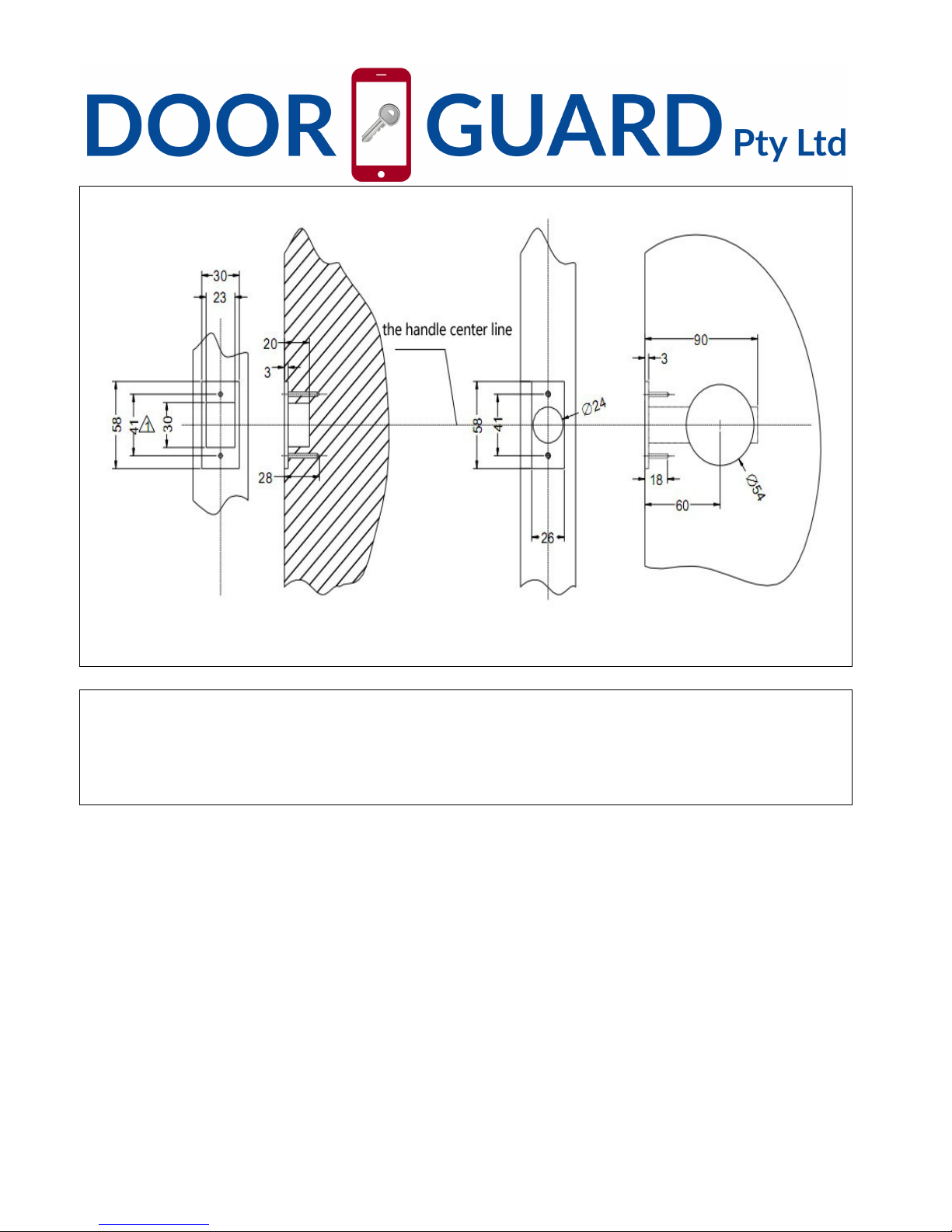

2-1. Installation condition
●Door frame≧110mm
●Door thickness: 38-50mm

Door$Guard$Pty$Ltd$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$5
$
For$more$information$please$visit$:$www.doorguard.com.au$
For$Help$and$Support$please$send$an$email$to$:$sup[email protected]$

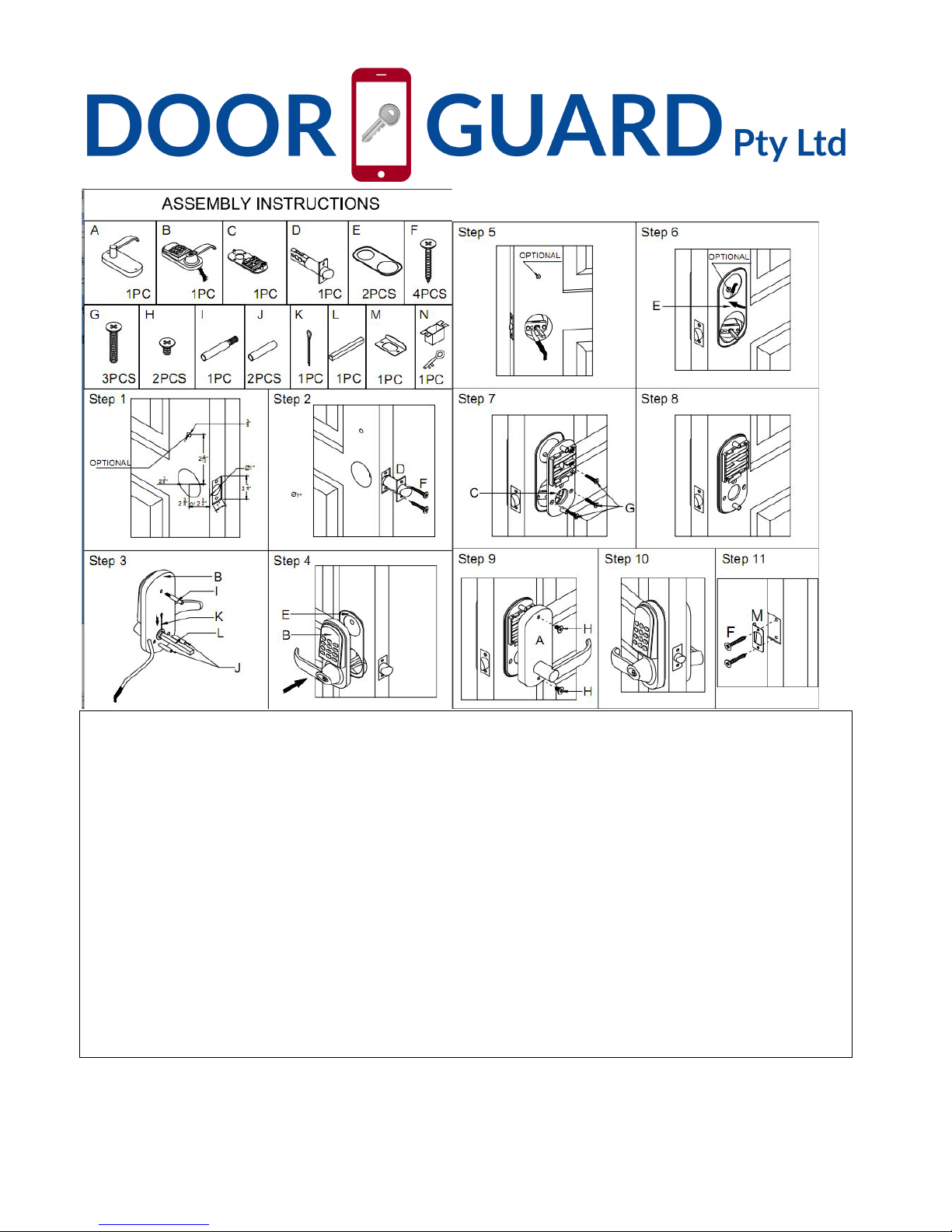

2-2. Installation instructions step by step

Door$Guard$Pty$Ltd$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$6
$
For$more$information$please$visit$:$www.doorguard.com.au$
For$Help$and$Support$please$send$an$email$to$:$sup[email protected]$
3. FEATURES
（
PS: A mobile phone can be connected to more than a smart lock at the same time,when you need to
manage a lock,you should click on the app to enter the door lock device
，
then proceed with the next operation )
Admin Bluetooth key: Mobile phone and door lock connected,the Bluetooth lock unlocks with Bluetooth via the
app.
Admin Password:Mobile phone and door lock connected,the Bluetooth lock unlocks with a permanent Master
code.
Bluetooth key remote authorization: The Admin can instantly send Bluetooth keys to other people's mobile
phone APP，It can limit the use time of the Bluetooth key, and can immediately freeze, thaw and delete the
electronic key.
Password remote authorization: The door lock can send a permanent password and a limited time password
in the absence of networking。
Password protection: The smart lock will automatically locked for 5 minutes when the wrong password is
entered 5 times；You can enter any number of digits before the correct password, make sure the last few digits
are the correct password can be unlocked.
Automatically locked
：
Can be set to automatically locked between 5 to 120 seconds after unlocking。
General lock: Press and hold”#”about 5seconds。
Lower Battery Consumption: 4pcs AA batteries can provide 5000 openings (approx. 6 months)

Door$Guard$Pty$Ltd$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$7
$
For$more$information$please$visit$:$www.doorguard.com.au$
For$Help$and$Support$please$send$an$email$to$:$sup[email protected]$
Lower Battery Indicator: When battery power is low, the Bluetooth lock will emit low battery warning sound.
The battery level will also be updated on the app during Bluetooth unlock. If battery power runs out, use 9V
backup battery or mechanical key.
Real time monitoring: When users use app or password to unlock，the Admin can find unlock records on APP.
Real-time reminder: Mobile phone and door lock connected，click “ “on the upper right corner of the
interface，you can query the record of received Bluetooth key and more user information.
4. PROGRAMMING
4-1. Paring lock to the phone

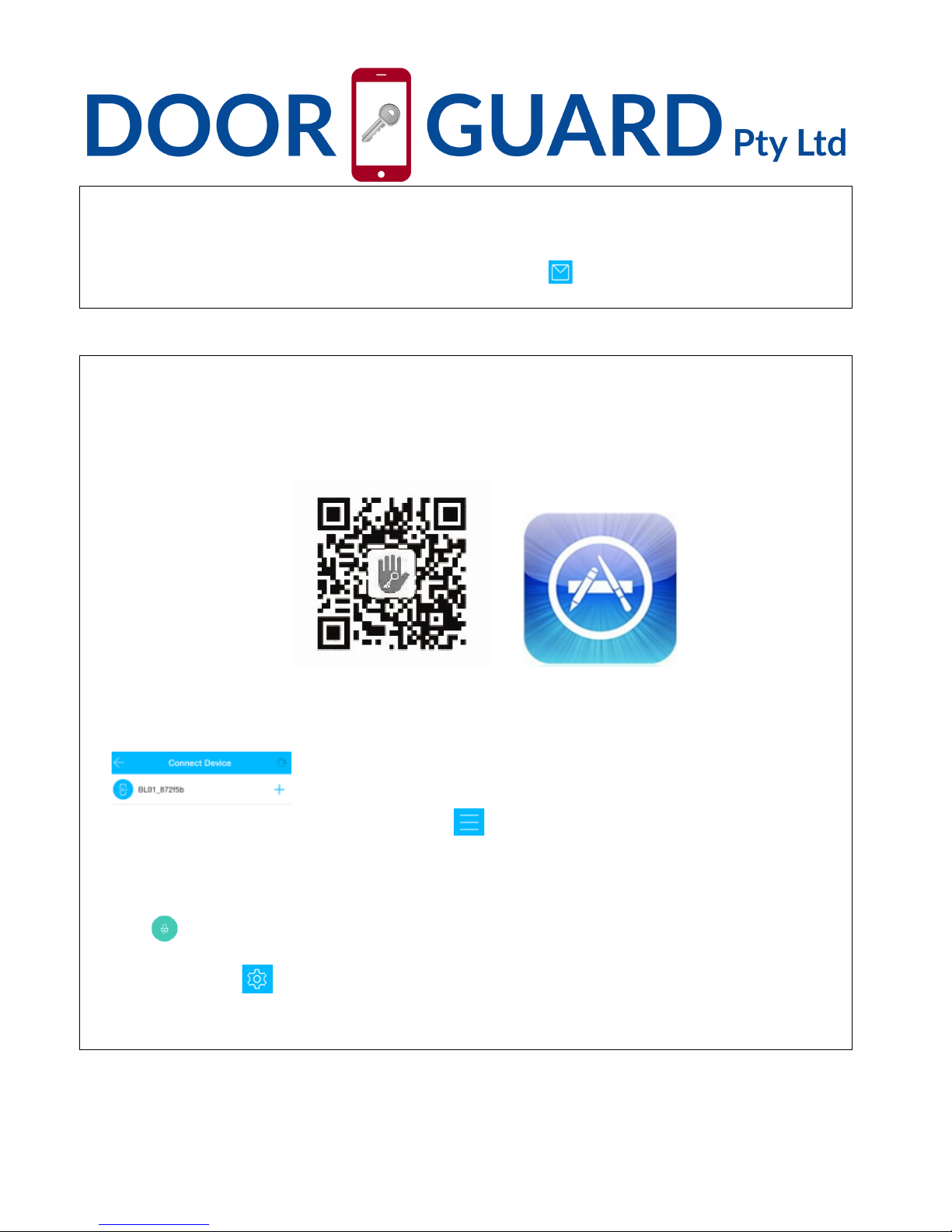

1) Android mobile phone, please scan the QR code as below.
2) Apple mobile phone, please search “TTlock” from App Store.
2. Register a new account (phone number or email) or login with an existing account.
3. Turn on Bluetooth and network，login APP，click”+”---”look”.（Let the APP interface remain in this state and
then operate the next step）
4. Remove 1pc of battery--touch keyboard a few seconds--put back the battery--press”#” immediately--you will
see” ”---press”+”---set name for the lock---press “ok”.
5. After mobile phone and door lock connected，click ” ” on the upper left corner of the interface then there
have more functional operations can be performed.
4-2. Unlock(The Admin unlock)
1. After mobile phone and door lock connected，turn on Bluetooth and network--click the connected door lock
device---"" to unlock. (The phone is within 5 meters from the door lock)
2. The Admin password unlock,after mobile phone and door lock connected, open the APP---click connected
door lock device--click “ ” on the upper right corner of the interface---see Admin passcode--input passcode ---
"#"to unlock.
3. Mechanical key unlock, use a screwdriver to open the round keyhole cover on the front panel, then use
mechanical key unlock.

Door$Guard$Pty$Ltd$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$8
$
For$more$information$please$visit$:$www.doorguard.com.au$
For$Help$and$Support$please$send$an$email$to$:$sup[email protected]$
4. When you are in the room, use thumb-turn on back panel to unlock.
4-3. Lock
1.Press and hold"#"about 5seconds to lock.
2.Set auto lock, click the connected door lock device--click " " on the upper right corner of the interface---auto
lock--choose set time 5s – 120s---OK.（ps：This operation must be near the door lock and need to be
connected to Bluetooth）
3.Mechanical key lock door, use a screwdriver to open the round keyhole cover on front panel, then use
mechanical key lock the door.
4.When you are in the room, use thumb-turn on back panel to lock door.
4-4. Modify the Admin password
Click the connected door lock device---click “" on the upper right corner of the interface---Admin passcode-
-input the APP account login password---input the new Admin password（7-8digits）--- save.（ps
：
This
operation must be near the door lock and need to be connected to Bluetooth）
4-5.Modify the Admin
A door lock can only have one Admin at the same time，you need to delete the original Admin first if you want to
modify the Admin. find the door lock device that you want to modify the Admin---slide to the left---delete---click it--
-input the APP account login password--- ok.（ps
：
This operation must be near the door lock and need to be
connected to Bluetooth）
4-6. Bluetooth key remote authorization(Admin’ s phone can remotely send electronic keys to other users to
unlock)
Click the connected door lock device---”eKey” on the bottom of the interface---choose“Permanent”or”Timed”---
input the receiver’s APP account（the receiver must be download the APP and register an account）--- “send” .
（ps
：
This operation need to be connected to Bluetooth and network）
4-7. The Admin’ s phone has the right to freeze, delete, authorize, and rename for the electronic key
that has been sent
Click the connected door lock device---”User” on the bottom of the interface---”eKey”---” ” on the upper right
corner of the interface---choose”Clear ekeys” or ”Reset ekeys”or”ekey”according to your needs. If you only need
to manage some of the keys, Click the electronic key that you want to manage, according to your needs to
choose”Freeze”or”Delete”or”Authorize”or”Rename”; also you can click ” ”on the upper right corner of the
interface to change the validity of the electronic key that has been sent.（ps
：
This operation need to be
connected to Bluetooth and network)

Door$Guard$Pty$Ltd$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$9
$
For$more$information$please$visit$:$www.doorguard.com.au$
For$Help$and$Support$please$send$an$email$to$:$sup[email protected]$
4-8. Password remote authorization
（
Admin’ s phone can remotely send password to other users to unlock
）
Click the connected door lock device---”Passcode” on the bottom of the interface--- choose”Permanent”or
“Timed” or “Cyclic” or “One-time” according to your needs---edit the active time---”Generate”---”Send by Wechat”
or “Send by Msg.’ （ps
：
This operation need to be connected to network）
4-9. The Admin’ s phone has the right to rename, delete the password that has been sent
Click the connected door lock device---”User” on the bottom of the interface---”passcode”---” ”on the upper right
corner of the interface---choose”Reset passcode”or ”Passcode” according to your needs，If you only need to
manage some of the password, click the password that you want to manage, choose”Rename”or “Delete”
according to your needs.（ps
：
This operation must be near the door lock and need to be connected to
Bluetooth）
5. Changing batteries
To open the battery compartment, unscrew the back panel and put 4pcs AA batteries.(It is recommended to use
a better battery, 4 batteries using the same brand).
For Installation Video please visit :
http://www.doorguard.com.au/videos
