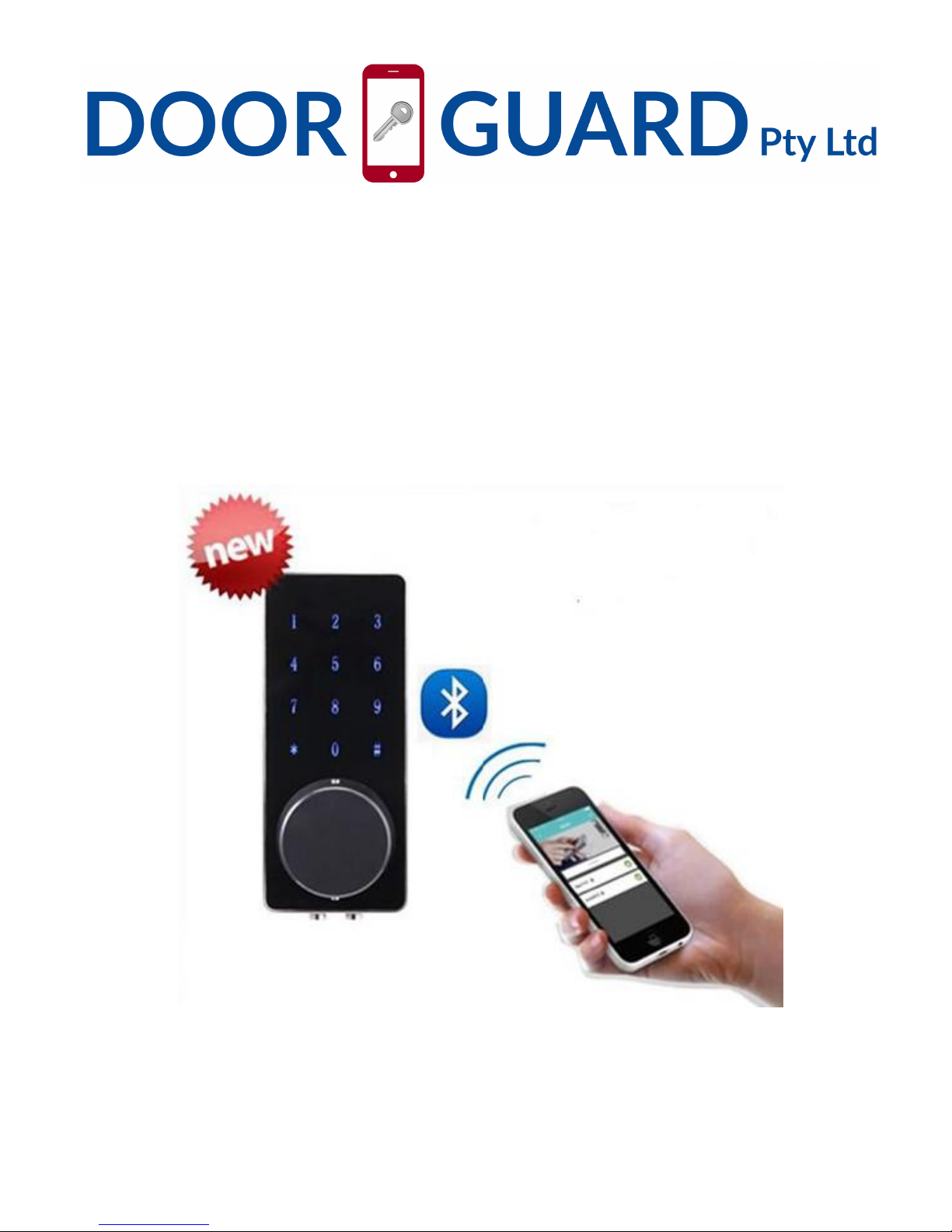

Installation and User Manual
Model : TS-DB-SLV-05
TS-DB-BLK-05

Door$Guard$Pty$Ltd$
For$more$information$please$visit$:$www.doorguard.com.au$
For$Help$and$Support$please$send$an$email$to$:$sup[email protected]$
2
Item no.
TS-DB-SLV-05 / TS-DB-BLK-05
Dimension
137*60*12mm
Material
Zinc Alloy
Weight
1.3 kg
Specifications
Communication mode
Bluetooth 4.0ble
Unlocking way
Bluetooth, Code, Mechanical key
Support System
Android 4.3 / IOS 7.0 above
Unlock time
≈ 1.5 sec
Power supply
4pcs AA batteries
Static current
≤30uA
Working current
≤200mA

Door$Guard$Pty$Ltd$
For$more$information$please$visit$:$www.doorguard.com.au$
For$Help$and$Support$please$send$an$email$to$:$sup[email protected]$
3
Door template

Door$Guard$Pty$Ltd$
For$more$information$please$visit$:$www.doorguard.com.au$
For$Help$and$Support$please$send$an$email$to$:$sup[email protected]$
4
Installation Guide
●Door frame≧110mm
●Door thickness: 38-48mm
●To install the lock for right side handling, ensure the toggle button on the back assembly is set to L.
●To install the lock for left side handling, ensure the toggle button on the back assembly is set to R.

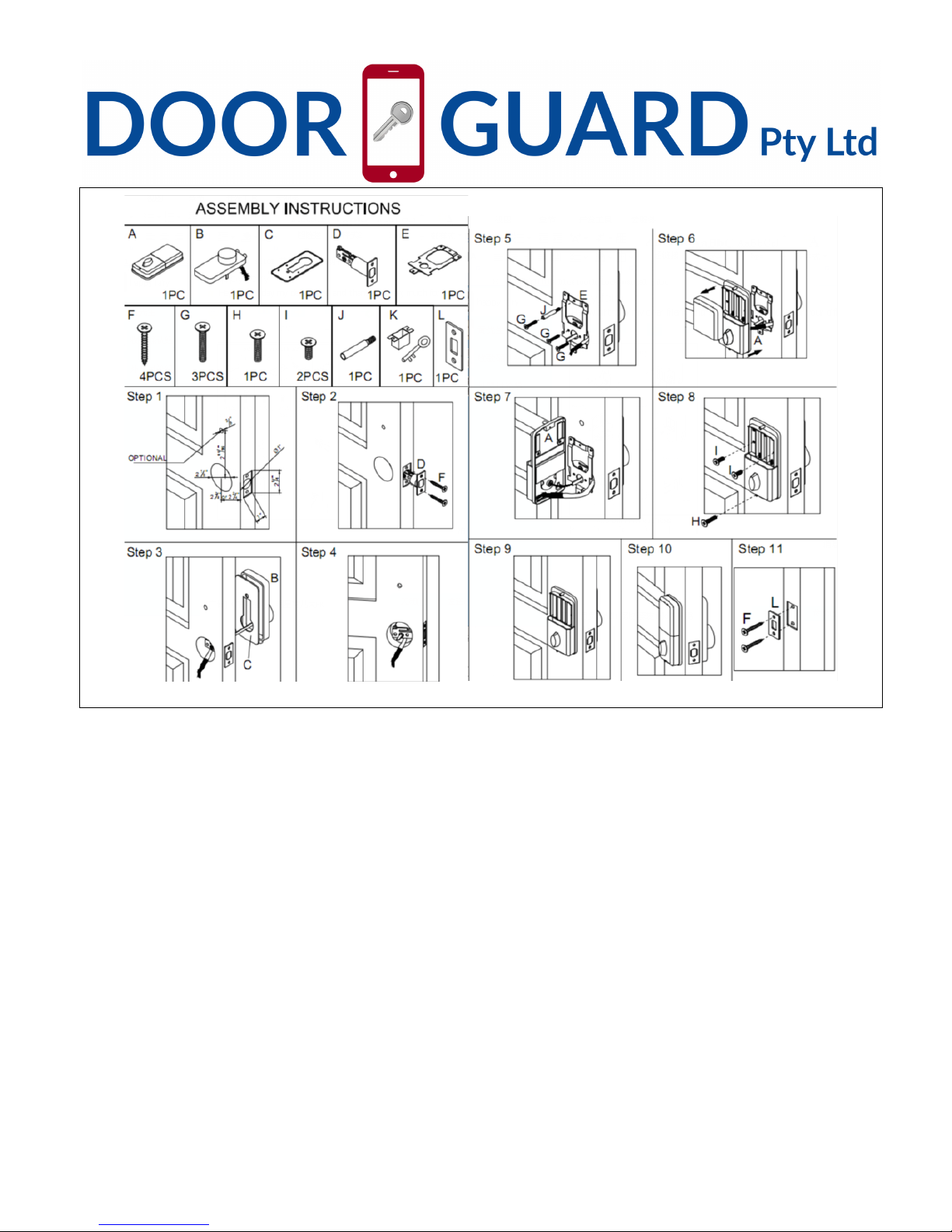

Installation instructions follow the steps in order

Door$Guard$Pty$Ltd$
For$more$information$please$visit$:$www.doorguard.com.au$
For$Help$and$Support$please$send$an$email$to$:$sup[email protected]$
5

Door$Guard$Pty$Ltd$
For$more$information$please$visit$:$www.doorguard.com.au$
For$Help$and$Support$please$send$an$email$to$:$sup[email protected]$
6
Important Note : The Long Metal Bar shown in the Third Picture on the Top Row should be in the
VERTICAL position during installation (while inserting into the cross on the Dead bolt). If it is not
then you wont be able to operate the lock.
FEATURES
Note ： A mobile phone can be connected to more than one smart lock at the same time, when you want
to operate a lock, you should start the app and select the appropriate door lock ， then proceed with the

Door$Guard$Pty$Ltd$
For$more$information$please$visit$:$www.doorguard.com.au$
For$Help$and$Support$please$send$an$email$to$:$sup[email protected]$
7
next steps
Unlock Door
Bluetooth and App
Please ensure your Mobile phone and door lock are connected and press the Lock icon on your Mobile
Phone. This will unlock the door via Bluetooth.
Admin Password
Key in the Password on the Lock Keypad and press # to unlock the Door.
Bluetooth key remote authorization
The Admin can instantly send Bluetooth keys to other people's mobile phone APP，you can also limit
the use time of the Bluetooth key, and can immediately freeze, thaw and delete the electronic key.
Password remote authorization
The Admin can send a permanent password and a limited time password to any user via SMS or
WeChat.
Password protection
The smart lock will automatically lock out for 5 minutes when the wrong password is entered 5 times；
You can enter any number of digits before the correct password, make sure the last few digits are the
correct password to unlock the door
Auto lock
Can be set to automatically lock the door between 5 to 120 seconds after unlocking
Manual lock
Press and hold ”#” on the door lock for approx 5 seconds to manually lock the door
Battery Life
4pcs AA batteries can provide approx. 5000 openings
Lower Battery Indicator

Door$Guard$Pty$Ltd$
For$more$information$please$visit$:$www.doorguard.com.au$
For$Help$and$Support$please$send$an$email$to$:$sup[email protected]$
8
When battery power is low, the Bluetooth lock will emit low battery warning sound. The battery level
will also be updated on the app while operating the lock using Bluetooth. If battery power runs out, use
9V backup battery to unlock the door and replace battery or use the mechanical key
Monitoring
When users use app or password to unlock，the Admin can review the Unlocking Logs on phone. The
Unlock logs for Passwords will be updated while operating the lock using Bluetooth.
Reminder
When the Mobile phone and door lock and connected via the APP，click on the upper right
corner of the interface to query the record of received Bluetooth key and more user information
Privacy Button
There is a Privacy button below the lock/Unlock snitch on the Internal Panel. When you press this for
3-5 seconds you ACTIVATE the Privacy feature. When it is activated no one can enter from the
outside using PassCode or Bluetooth (Keys will work). Press the Button again for 3-5 seconds to De-
Activate Privacy.
PROGRAMMING
Note the App’s get updated from time to time and so the below instructions / menu items may change
(in terms of placement and appearance). The logic and functionality still remain the same.
Paring lock to the phone
1) Android mobile phone, please scan the QR code as below or search for TTlock in the Play store.
2) Apple mobile phone, please search “TTlock” from App Store.
2. Register a new account (phone number or email) or login with an existing account

Door$Guard$Pty$Ltd$
For$more$information$please$visit$:$www.doorguard.com.au$
For$Help$and$Support$please$send$an$email$to$:$sup[email protected]$
9
3. If the lock is not correctly installed You will hear a sound “Di Di” Please read the installation
instructions and ensure the front panel is flush to the door (The white button on the back of the Front
Panel should be “pressed” against the door frame
4. Turn on Bluetooth and 3G/4G or Wifi, login to APP，click ”+” - this will put the lock in discovery
mode.（Let the APP interface remain in this state and then operate the next step）
5. Remove 1pc of battery--touch keyboard a few seconds--put back the battery—press ”#”
immediately--you will see” ”---press ”+”---set name for the lock---press “ok”.
6. After mobile phone and door lock are connected, click ” ”on the upper left corner of the interface.
There you will see more functions which can be performed.
Unlock the door
Using Mobile Phone
After mobile phone and door lock connected, turn on Bluetooth and 3G/4G or Wifi and select the
appropriate lock, then press to unlock the door. (The phone should be within 5 meters from the
door lock)
Configuring the Admin Password
Ensure mobile phone and door lock are connected, open the APP and select the appropriate door lock
and click ” ” on upper right corner of the interface---you will notice the Admin passcode option--input
passcode you want to configure.
To Unlock the door using a Password, first “wakup the lock” (touch the lock and ensure the numbers
on the touch screen are lit up) Key in password using the TouchScreen Keypad and press #
Using Mechanical Key
Use a pointed object to open the round keyhole cover on the front panel, then use mechanical key to
unlock.
From inside the house
When you are inside the house, use thumb-turn on back panel to unlock.
Lock
Manual Locking

Door$Guard$Pty$Ltd$
For$more$information$please$visit$:$www.doorguard.com.au$
For$Help$and$Support$please$send$an$email$to$:$sup[email protected]$
10
Press and hold ”#” about 5 seconds to lock.
Auto Locking
To configure Auto lock, select the appropriate lock —click” ” on the upper right corner of the
interface---auto lock--choose set time 5s – 120s---OK.（ps：This operation must be near the door lock
and need to be connected to Bluetooth）
3. Mechanical key lock door, use a screwdriver to open the round keyhole cover on the front panel,
then use the mechanical key lock the door.
4. When you are in the room, use thumb-turn on back panel to lock door.
Modify the Admin password
Click the connected door lock device---click “ ” on the upper right corner of the interface---Admin
passcode--input the APP account login password---input the new Admin password（7-8digits）---
save. （ps
：
This operation must be near the door lock and need to be connected to Bluetooth）
Modify the Admin
A door lock can only have one Admin at the same time, you need to delete the original Admin first if
you want to modify the Admin. find the door lock device that you want to modify the Admin---slide to
the left---delete---click it---input the APP account login password--- ok.（ps
：
This operation must be
near the door lock and need to be connected to Bluetooth）
Bluetooth key remote authorization (Admin’ s phone can remotely send electronic keys to other
users to unlock)
Click the connected door lock device---”eKey” on the bottom of the interface---choose ”Permanent” or
“Timed” ---input the receiver’s APP account（the receiver must downloa the APP and register for an
account）--- “send” （ps
：
This operation need to be connected to Bluetooth and network)
The Admin’ s phone has the right to freeze, delete, authorize, and rename for the electronic key
that has been sent
Click the connected door lock device---”User” on the bottom of the interface---”eKey”---“ ” on the
upper right corner of the interface---choose “Clear ekeys” or “Reset ekeys” or “ekey” according to your
needs. If you only need to manage some of the keys, Click the electronic key that you want to manage,
according to your needs to choose “Freeze” or “Delete” or “Authorize” or “Rename”; also you can

Door$Guard$Pty$Ltd$
For$more$information$please$visit$:$www.doorguard.com.au$
For$Help$and$Support$please$send$an$email$to$:$sup[email protected]$
11
click ” ” on the upper right corner of the interface to change the validity of the electronic key that has
been sent. （ps
：
This operation need to be connected to Bluetooth and network)
Password remote authorization (Admin’ s phone can remotely send password to other users to
unlock)
Click the connected door lock device---”Passcode” on the bottom of the interface---
choose ”Permanent” or “Timed” or “Cyclic” or “One-time” according to your needs---edit the active
time---”Generate”---”Send by Wechat” or “Send by Msg.’.（ps
：
This operation need to be connected
to network）
The Admin’ s phone has the right to rename, delete the password that has been sent
Click the connected door lock device---”User” on the bottom of the interface---”passcode”---” ” on the
upper right corner of the interface---choose “Reset passcode” or “Passcode” according to your
needs，If you only need to manage some of the password, click the password that you want to
manage, choose ”Rename” or “Delete” according to your needs.（ps
：
This operation must be near
the door lock and need to be connected to Bluetooth）
Changing batteries
To open the battery compartment, slide the cover upwards and put 4pcs AA batteries.(It is
recommended to use lithium battery of the same brand).
To see Installation Videos please visit :
www.doorguard.com.au/videos
For Support please send us an email to :
[email protected]
