Dorel Asia DA1010-6MOV User manual

DA1010-6MOV (WHITE)
DOREL ASIA
Model No:
5-Drawer Chest UPC CODE:
0-65857-17155-6
NOTE:
THIS INSTRUCTION BOOKLET
CONTAINS IMPORTANT SAFETY
Date of purchase:
_______ / _______ / _______
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
Lot number:
(TAKEN FROM CARTON)
_____________________________________
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our
customer service department. We will replace the
part FREE of charge.
Tel #: [phone]
E-Mail: [email protected]
Fax #: [phone]
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
DO NOT RETURN PRODUCT TO STORE
E-MAIL:[e-mail]

Dust regularly with a soft, lint-free cloth to prevent soil build-up. A damp cloth may be used
occasionally to clean surface. Dry immediately. Do not use any abrasives that may damage
finish. Excessive exposure to sunlight and extreme changes in temperature and moisture
can damage wood furniture.
MAINTENANCE
Check bolts/screws periodically and tighten them if necessary.
LIMITED WARRANTY
Dorel warrants its product to be free from defects in material and workmanship and agrees
to remedy any such defect. This warranty covers 1 year from the date of original purchase.
This warranty is valid only upon presentation of proof of purchase. This is solely limited to
the repair or replacement of defective furniture components and no assembly labor is
included. This warranty does not apply to any product which has been improperly
assembled, subjected to misuse or abuse or which has been altered or repaired in any way.
This warranty gives you specific legal rights and you may also have other rights which vary
from State to State.
WARNING: Should this product become damaged, and/or
components are broken or missing, DO NOT USE.
* Unless specifically designed to accommodate, do not set TVs or other heavy objects on
top of this product.
* Never allow children to climb or hang on drawers, doors or shelves.
* Never open more than one drawer at a time.
* Do not defeat or remove the drawer interlock system.
* Use of tipover restraints may only reduce, but not eliminate, the risk of tipover.
CARE AND CLEANING
* To avoid unnecessary damage, when levelers have been extended, DO NOT drag across
surface when moving. Be sure to lift and carry the item to its location.
* Estimated assembly time: 60 minutes.
WARNING
Serious or fatal crushing injuries can occur from furniture tipover. To help prevent
tipover:
* Install tipover restraint provided.
* Place heaviest items in the lower drawers.
* Assemble on a soft, smooth surface to prevent damage to the product finish.
* Use the wall safety strap provided to secure the unit to the wall.
* A Phillips head screw driver is not included.
* DO NOT use power tools.
* CAUTION: Adult assembly required.
* Assembly will require two people.
12345 Albert-Hudon Boulevard, Suite 100
Montreal, Quebec
Canada H1G 3L1
E-MAIL: [email protected]
NOTES
* Ensure all parts and components are present before beginning assembly.
CUSTOMER SERVICE
If you have any questions about this product, contact our customer service representative
first!
CALL 1-800-295-1980
You can also order parts by writing to the address listed below. Please include the product
model number, color and a detailed description of the part.
Customer Service Department No. 413

HARDWARE LIST
1 2 3
4 5 6
7 8 9
10 11
5-Drawer Chest
DA1010-6MOV
Ø8 X 30 mm Ø6 X 20 mm Ø15 X 11 mm
LARGE WOOD DOWEL
14 PCS SMALL WOOD DOWEL 18 PCS LARGE CAM LOCK 14 PCS
Ø7 X 36 mm Ø13 X 10 mm Ø7 X 28 mm
LARGE CAM BOLT
14 PCS SMALL CAM LOCK 20 PCS SMALL CAM BOLT 20 PCS
Ø3 X 15 mm Ø4 X 25 mm
ROUND HEAD SCREW
20 PCS FLAT HEAD SCREW 22 PCS KNOB 10 PCS
Ø5/32" X 7/8"
SMALL BOLT
10 PCS SAFETY STRAP 2 KIT

PARTS LIST
A B C
D E F
G H I
J K L
5-Drawer Chest
TOP PANEL
1 PC LEFT SIDE FRAME 1 PC RIGHT SIDE FRAME 1 PC
FRONT TOP RAIL
1 PC BACK TOP RAIL 1 PC FRONT BOTTOM RAIL 1 PC
BACK BOTTOM PANEL
1 PC SMALL DRAWER LEFT SIDE 1 PC SMALL DRAWER RIGHTSIDE 1 PC
SMALL DRAWER BACK
1 PC LARGE DRAWER LEFT SIDE 4 PCS LARGE DRAWER RIGHT SIDE 4 PCS
DA1010-6MOV

PARTS LIST
M N O
P Q R
S
5-Drawer Chest
DRAWER BOTTOM
5 PCS LARGE DRAWER BACK 4 PCS TOP DRAWER FRONT 1 PC
BACK PANEL
1 PC
SECOND DRAWER FRONT
1 PC MIDDLE DRAWER FRONT 2 PCS BOTTOM DRAWER FRONT 1 PC
DA1010-6MOV

STEP 1
5-Drawer Chest
Insert large cam bolts (4) into the left side frame (B) and right side frame (C) as shown.
DA1010-6MOV

STEP 2
5-Drawer Chest

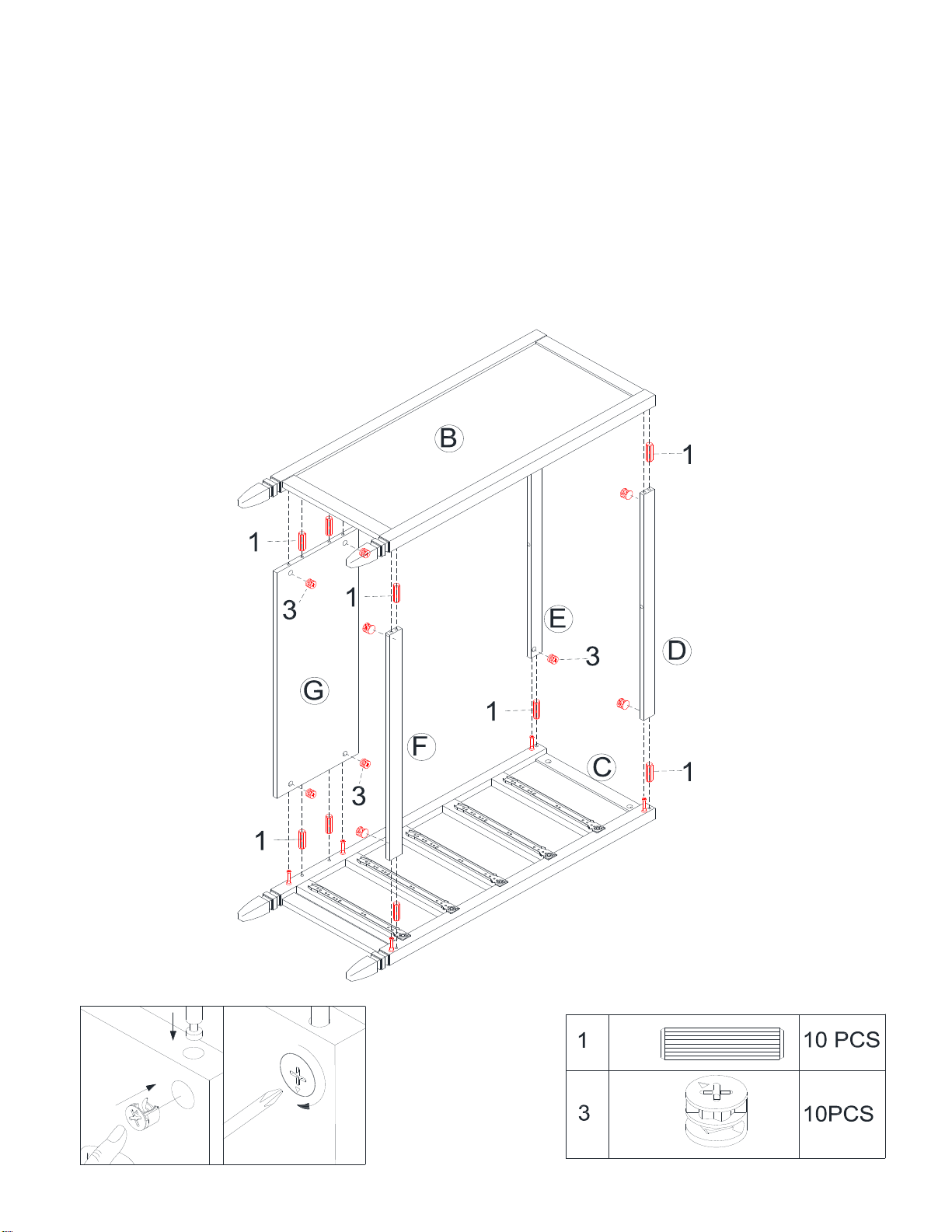

Insert large cam locks (3) into the rails (D, E & F) and back bottom rail (G).
Insert large wood dowels (1) into the left side frame (B) and right side frame (C).
Secure rails (D, E & F) and back bottom panel (G) to the left side frame (B) and right side
frame (C) by rotating the large cam locks (3) 1/2 turn clockwise using a Phillips head
screwdriver (not included).
DA1010-6MOV

STEP 3
5-Drawer Chest
Insert large cam bolts (4) into the top panel (A).
DA1010-6MOV

STEP 4
5-Drawer Chest
Insert large wood dowels (1) into the left side frame (B) and right side frame (C).
Insert large cam locks (3) into the left side frame (B) and right side frame (C).
Place the top panel (A) on the assembled unit.
Rotate large cam locks (3) on the side panels (B & C) 1/2-turn clockwise to secure the
top panel (A).
Further secure top panel (A) with screws (8) through rails (E & D). Use a Phillips head
screwdriver (not included) to tighten the screws.
DA1010-6MOV

STEP 5
5-Drawer Chest
Attach back panel (S) to the assembled frame with round head screws (7).
Use a Phillips head screwdriver (not included) to tighten the screws.
DA1010-6MOV

STEP 6
5-Drawer Chest
Insert small cam bolts (6) and small wood dowels (2) into the top drawer front (O).
Insert small cam locks (5) into the top left drawer side (H) and top right drawer side (I).
Attach drawer sides (H & I) to the top drawer front (O). Secure the drawer sides by rotating
small cam locks (5) 1/2-turn clockwise using a Phillips head screwdriver (not included).
Slide the drawer bottom (M) into the grooves of drawer sides (H & I) and top drawer front
(O).
DA1010-6MOV

STEP 7
5-Drawer Chest
Attach drawer back (J) to drawer sides (H & I) with flat head screws (8).
Use a Phillips head screwdriver (not included) to tighten the screws.
Attach knobs (9) to top drawer front (O) with small bolts (10).
Use a Phillips head screwdriver (not included) to tighten bolts.
DA1010-6MOV

STEP 8
5-Drawer Chest
Insert small cam bolts (6) and small wood dowels (2) into second drawer front (P).
Insert small cam locks (5) into left drawer side (K) and right drawer side (L).
Attach drawer sides (K & L) to second drawer front (P). Secure the drawer sides by rotating
small cam locks (5) 1/2-turn clockwise using a Phillips head screwdriver (not included).
Slide the drawer bottom (M) into the grooves of drawer sides (K & L) and second drawer
front (P).
DA1010-6MOV

STEP 9
5-Drawer Chest
Attach drawer back (N) to the drawer sides (K & L) with flat head screws (8).
Use a Phillips head screwdriver (not included) to tighten the screws.
Attach knobs (9) to second drawer front (P) with small bolts (10).
Use a Phillips head screwdriver (not included) to tighten the bolts.
Repeat steps 8 and 9 to assemble the other drawers using drawer fronts (Q & R).
DA1010-6MOV

STEP 10
5-Drawer Chest

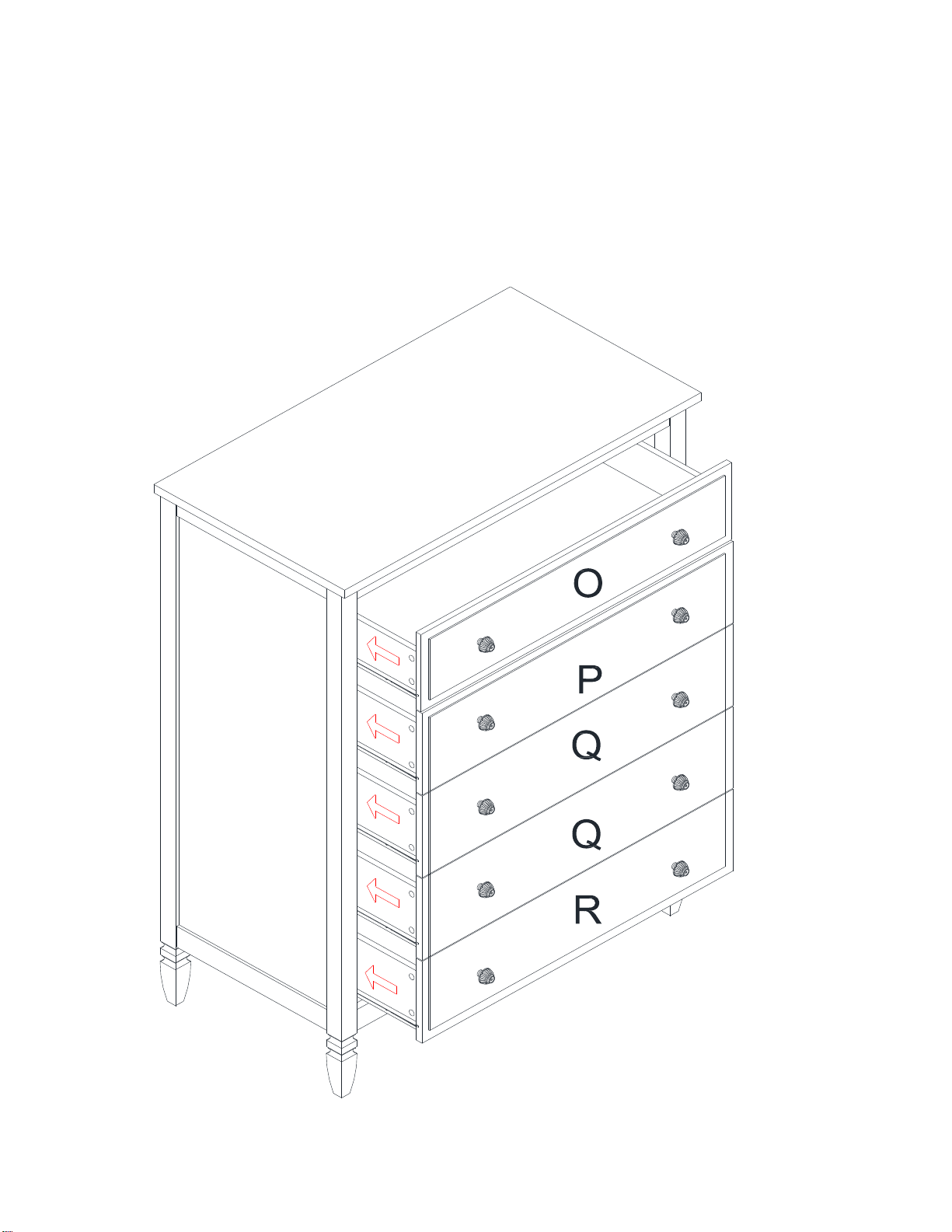

Insert all drawers into the assembled unit as shown.
DA1010-6MOV

That's it! You've finished assembling your chest!
5-Drawer Chest
CAUTION: This unit is intended for use only with the
products and/or maximum weights indicated. Use with other
products and/or products heavier than the maximum weights
indicated may result in instability or cause possible injury.
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
Tel #: [phone]
E-Mail: [e-mail]
Fax #: [phone]
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
DO NOT RETURN PRODUCT TO STORE
E-MAIL:[e-mail]
DA1010-6MOV

Furniture Wall Safety Strap
A B C D
TOOLS NECESSARY: RUBBER MALLET AND PHILLIPS SCREW DRIVER ARE NOT INCLUDED.
NOTE: 3/8" DRILL BIT AND ELECTRIC DRILL ARE NOT PROVIDED.
PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE
USING THIS PRODUCT AND KEEP THESE INSTRUCTIONS FOR
FUTURE REFERENCE. IF YOU HAVE ANY QUESTIONS, PLEASE
CALL OUR CUSTOMER SERVICE NUMBER: 1-800-295-1980.
MOUNTING BRACKET
4 PCS
SAFETY WALL STRAP
2 PCS
LONG SCREW
2 PCS
SHORT SCREW
2 PCS
WARNING: WHEN UPRIGHT, IT IS POSSIBLE THAT THE
FURNITURE MAY TIP OVER. PLEASE INSTALL THE SAFETY
WALL STRAP BEHIND THE FURNITURE TO ENSURE SAFETY.
Step 1:
ATTACH A MOUNTING BRACKET (A) SECURELY TO THE BACK EDGE OF THE FURNITURE USING THE
SHORT SCREW (D), THROUGH THE SMALLER HOLE
Step 2:
LOCATE THE OTHER MOUNTING BRACKET (A) ON THE WALL OVER A WALL STUD AND 2 INCHES BELOW
THE MOUNTING BRACKET SECURED TO THE BACK OF YOUR UNIT. ATTACH TO THE WALL STUD USING
THE LONG SCREW (C) PROVIDED, THROUGH THE SMALLER HOLE.
Step 3:
PLACE THE FURNITURE INTO POSITION SO BOTH MOUNTING BRACKETS ARE VERTICALLY IN LINE. LACE
THE END OF THE SAFETY WALL STRAP (B) THROUGH THE LARGER HOLE IN EACH MOUNTING BRACKET
(A). BRING BOTH ENDS TOGETHER AND SLIDE THE FLAT END THROUGH THE LOCKING END AND DRAW IT
THROUGH UNTIL ALL SLACK IS REMOVED.
Step 4:
CONFIRM THAT THE STRAP IS SECURELY LACED AND LOCKED.
TO MOVE THE FURNITURE AFTER THE SAFETY WALL STRAP HAS BEEN INSTALLED, SIMPLY
REMOVE THE SCREW FROM THE WALL TO LOOSEN THE SAFETY WALL STRAP.
AB
Email:[e-mail]
AB

MODEL #: DA1010-6MOV
PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE
PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING
NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S).
Customer Service Fax Number 514-353-7819
Request Date:
Name:
Shipping Address:
Street & Number:
City & State:
Zip Code:
Day Time Phone Number:
(including area code)
Date & Place of Purchase:
Part(s) description and quantity (Please be sure to list model number or SKN number):
Customer Service
Customer Service Phone Number 1-800-295-1980 Email: [e-mail]
Customer Service Representative Mailing Address:
Customer Service Department No. 413, 12345 Albert-Hudon Boulevard, Suite 100, Montreal, QC, Canada, H1G 3L1
C
B
D
E
A
B
B
B
C
B
D
E
A
B
B
B

ESTE MANUEL DE INSTRUCCIONES
CONTIENE INFORMACIÓN DE
SEGURIDAD IMPORTANTE.
POR FAVOR LÉALO Y CONSÉRVELO
PARA REFERENCIA FUTURA.
DOREL ASIA
Nodelo No:
DA1010-6MOV
Cómoda de 5 Cajones
CODIGO UPC:
0-65857-17155-6
_______ / _______ / _______
NOTA
Numero de lote:
(TOMADO DEL CARTON)
_____________________________________
Fecha de compra:
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
DO NOT RETURN PRODUCT TO STORE
E-MAIL:[e-mail]
NO DEVUELVA EL PRODUCTO A LA TIENDA.
Si falta una pieza o está dañada, contacte nuestro departamento de
servicio a la clientela. Reemplazaremos la pieza SIN cargo.
Tel #: [phone]
Correo electrónico: [email protected]
Fax #: [phone]

* El destornillador en cruz no está incluido.
* El armado y la manipulación pueden requerir dos personas.
* El tiempo de armado se estima en 60 minutos.
GARANTÍA LIMITADA
Dorel garantiza que este producto está libre de defectos de material y mano de obra y se compromete a remediar cualquiera de esos
defectos. Esta garantía cubre 1 año a partir de la fecha de compra original. Esta garantía es válida únicamente si se presenta una prueba
de compra. Esto se limita solamente a la reparación o reemplazo de componentes defectuosos de los muebles y no incluye el trabajo de
armado. Esta garantía no se aplica a ningún producto que haya sido armado de manera inadecuada, sujeto a un mal uso o abuso o que
haya sufrido cualquier tipo de alteración o reparación. Esta garantía le da las derechas legales específicas y usted puede también tener
otras derechas que varíen de estado al estado.
ADVERTENCIA: Si este producto se ha dañado, y/o sus
componentes están rotos o faltan, NO LO USE.
* El uso de la sujeción provista reduce el riesgo de que el mueble se vuelque, pero no lo elimina totalmente.
CUIDADO Y LIMPIEZA
Límpiela regularmente con un paño suave para evitar la acumulación de suciedad. Ocasionalmente se puede usar un paño húmedo para
limpiar la superficie. Séquela inmediatamente. No utilice productos abrasivos que puedan dañar la terminación. Una exposición excesiva
a la luz del sol y a cambios extremos de temperatura y humedad puede dañar los muebles de madera.
MANTENIMIENTO
Verifique las arandelas/tornillos periódicamente y ajústelos si es necesario.
* Instalar la sujeción provista.
* Colocar los artículos más pesados en los cajones más bajos.
* No colocar aparatos de TV u otros objetos pesados sobre este producto, a menos que esté
específicamente diseñado para ese uso.
* Nunca permitir que los niños trepen sobre los cajones, puertas o estantes o se cuelguen de ellos.
* Nunca abrir más de un cajón a la vez.
* No eliminar o retirar el dispositivo que asegura los cajones.
* Utilice la correa de seguridad provista para fijar el mueble a la pared.
* No use herramientas eléctricas.
* PRECAUCIÓN: Requiere ser armado por un adulto.
* Para evitar dañar la superficie, una vez instalados los niveladores, NO arrastrar el mueble para desplazarlo.
Asegúrese de levantarlo.
ADVERTENCIA:
Pueden producirse lesiones graves o fatales si el mueble se vuelca. Para prevenirlo:
Montreal, Quebec
Canadá H1G 3L1
Correo electrónico: [email protected]
NOTA
* Para evitar que se raye, por favor retire todo el embalaje y ármelo sobre una superficie limpia y suave.
* Ensamble sobre una superficie suave, lisa para evitar daños en el acabado del producto.
SERVICIO A LA CLIENTELA
Si faltan piezas o tiene alguna pregunta sobre este producto, ¡primero contacte nuestro representante de servicio a la
clientela!
LLAME AL 1-800-295-1980
También puede pedir piezas escribiendo a la dirección indicada abajo. Por favor incluya el número de modelo, color y una
descripción detallada de la pieza.
Departamento de Servicio a la Clientela No. 413
12345 Albert-Hudon Boulevard, Suite 100
