Dorel WM7891-1 User manual

Model Number: UPC Code: Color:
WM7891-1
0-65857-18612-3 Mocha
WM7891
0-65857-18612-3 Mocha
WM7891W-1
0-65857-18662-8 White
WM7891W
0-65857-18665-9 White
Date of Purchase: _____ / _____ / _____ Lot Number:
(taken from carton)
TWIN BUNKBED
DO NOT RETURN PRODUCT TO THE STORE. If a part is missing or damaged, contact our
customer service department. We will replace the part FREE of charge.
NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Customer satisfaction is important to us at Dorel Asia. Our agents are available Monday to
Friday 8am to 5pm (EST) to answer any question you may have. For faster service, always
have the model number ready when calling our toll free number 1-800-295-1980 or emailing
us at [email protected] .
ATTENTION
USE THIS
MANUAL TO
ASSEMBLE THE
TWIN BUNK BED

*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
STRANGULATION HAZARD - NEVER ATTACH OR HANG ITEMS TO ANY PART BUNK BED THAT ARE
NOT DESIGNED FOR USE WITH THE BED; FOR EXAMPLE, BUT NOT LIMITED TO HOOKS, BELTS AND
JUMP ROPES.
FOLLOW THE INFORMATION ON THE WARNINGS APPEARING ON THE UPPER BUNK END
STRUCTURE AND ON THE CARTON. DO NOT REMOVE WARNING LABEL FROM BED.
CUSTOMER SERVICE
If you are missing parts or have any questions about this product, contact our customer
service representative first!
CALL 1-800-295-1980
You can also order parts by writing to the address listed below. Please include the
product model number, color and a detailed description of the part.
Customer Service Department No. 413
12345 Albert-Hudon Boulevard, Suite 100
Montreal, Quebec
Canada, H1G 3L1
WARNING
THE USE OF WATER OR SLEEP FLOTATION MATTRESSES IS PROHIBITED.
ALWAYS USE THE LADDER FOR ENTERING AND LEAVING THE UPPER BUNK.
THE MATTRESS PLATFORM IS DESIGNED TO SUPPORT A MATTRESS WITHOUT THE NEED FOR A
POSTURE BOARD OR BOX SPRING.
ALWAYS USE THE RECOMMENDED SIZE MATTRESS OR MATTRESS SUPPORT, OR BOTH, TO HELP
PREVENT THE LIKELIHOOD OF ENTRAPMENT OR FALLS.
USE ONLY COIL SPRING MATTRESSES ON BOTH THE UPPER AND LOWER BUNKS. FAILURE TO DO SO
CAN RESULT IN INJURY.
USE ONLY MATTRESSES WHICH ARE 74"-75" LONG AND 37 1/2" - 38 1/2" WIDE ON UPPER AND ON
LOWER BUNKS. ENSURE THICKNESS OF MATTRESS DOES NOT EXCEED 6". SURFACE OF MATTRESS
MUST BE AT LEAST 5" (127MM) BELOW THE UPPER EDGE OF GUARDRAILS.
DO NOT ALLOW CHILDREN UNDER 6 YEARS OF AGE TO USE THE UPPER BUNK.
ALWAYS USE GUARDRAILS ON BOTH LONG SIDES OF THE UPPER BUNK. IF THE BUNK BEDWILL BE
PLACED NEXT TO THE WALL, THE GUARDRAIL THAT RUNS THE FULL LENGTH OF THE BED SHOULD BE
PLACED AGAINST THE WALL TO PREVENT ENTRAPMENT BETWEEN THE BED AND WALL (APPLICABLE
FOR BUNK BEDS WITH FULL LENGTH GUARDRAILS ON ONE SIDE).
PERIODICALLY CHECK AND ENSURE THAT THE GUARDRAIL, LADDER AND OTHER COMPONENTS
ARE IN THEIR PROPER POSITION, FREE FROM DAMAGE, AND THAT ALL CONNECTORS ARE TIGHT.
DO NOT ALLOW HORSEPLAY ON OR UNDER THE BED AND PROHIBIT JUMPING ON THE BED.
DO NOT USE SUBSTITUTE PARTS. CONTACT CUSTOMER SERVICE FOR REPLACEMENT PARTS.
USE OF A NIGHT LIGHT MAY PROVIDE ADDED SAFETY PRECAUTION FOR A CHILD USING THE
UPPER BUNK.
PROHIBIT MORE THAN ONE PERSON ON UPPER BUNK.

*
*
*
*
*
*
*
*
*
*
CAUTION: ADULT ASSEMBLY REQUIRED
MAKE SURE ALL PARTS ARE INCLUDED. WORK IN SPACIOUS AREA, PREFERABLY ON A SMOOTH
SOFT SURFACE.
KEEP THESE INSTRUCTIONS FOR FUTURE USE.
NOTES
READ EACH STEP CAREFULLY BEFORE STARTING. IT IS VERY IMPORTANT THAT EACH STEP OF
INSTRUCTION IS PERFORMED IN THE CORRECT ORDER. IF THESE STEPS ARE NOT FOLLOWED IN
SEQUENCE, ASSEMBLY DIFFICULTIES WILL OCCUR AND CAN RESULT IN INJURY.
CAUTION: ADULT ASSEMBLY REQUIRED. ASSEMBLY WILL REQUIRE 2 PEOPLE. ESTIMATED
ASSEMBLY TIME 45 MINUTES.
ASSEMBLY WILL REQUIRE TWO PEOPLE.
MOST BOARD PARTS ARE LABELED OR STAMPED ON THE RAW EDGE.
PHILLIPS SCREWDRIVER (NOT INCLUDED) IS REQUIRED.
A RUBBER MALLET (NOT INCLUDED) IS RECOMMENDED TO FACILITATE ASSEMBLY.
BED IS DESIGNED FOR CHILDREN RANGING FROM 6 YEARS OF AGE TO YOUNG TEENAGERS.
WARNING: Should this product become damaged,
and/or components are broken or missing, DO NOT USE.
CARE AND CLEANING
Dust regularly with a soft, dry cloth. We do not recommend the use of chemical
cleaners or wax on our lacquered furniture as it may damage the finish. Keep
solvents, alcohol, nail polish and polish removers away from your hardwood
furniture surfaces.
MAINTENANCE
Check bolts/screws periodically and tighten them if necessary.
LIMITED WARRANTY
DOREL warrants its product to be free from defects in material and workmanship and
agrees to remedy any such defect. This warranty covers 1 year from the date of
original purchase. This warranty is valid only upon presentation of proof of purchase.
This is solely limited to the repair or replacement of defective furniture components and
no assembly labor is included. This warranty does not apply to any product which has
been improperly assembled, subjected to misuse or abuse or which has been altered
or repaired in any way. This warranty gives you specific legal rights and you may also
have other rights which vary from State to State

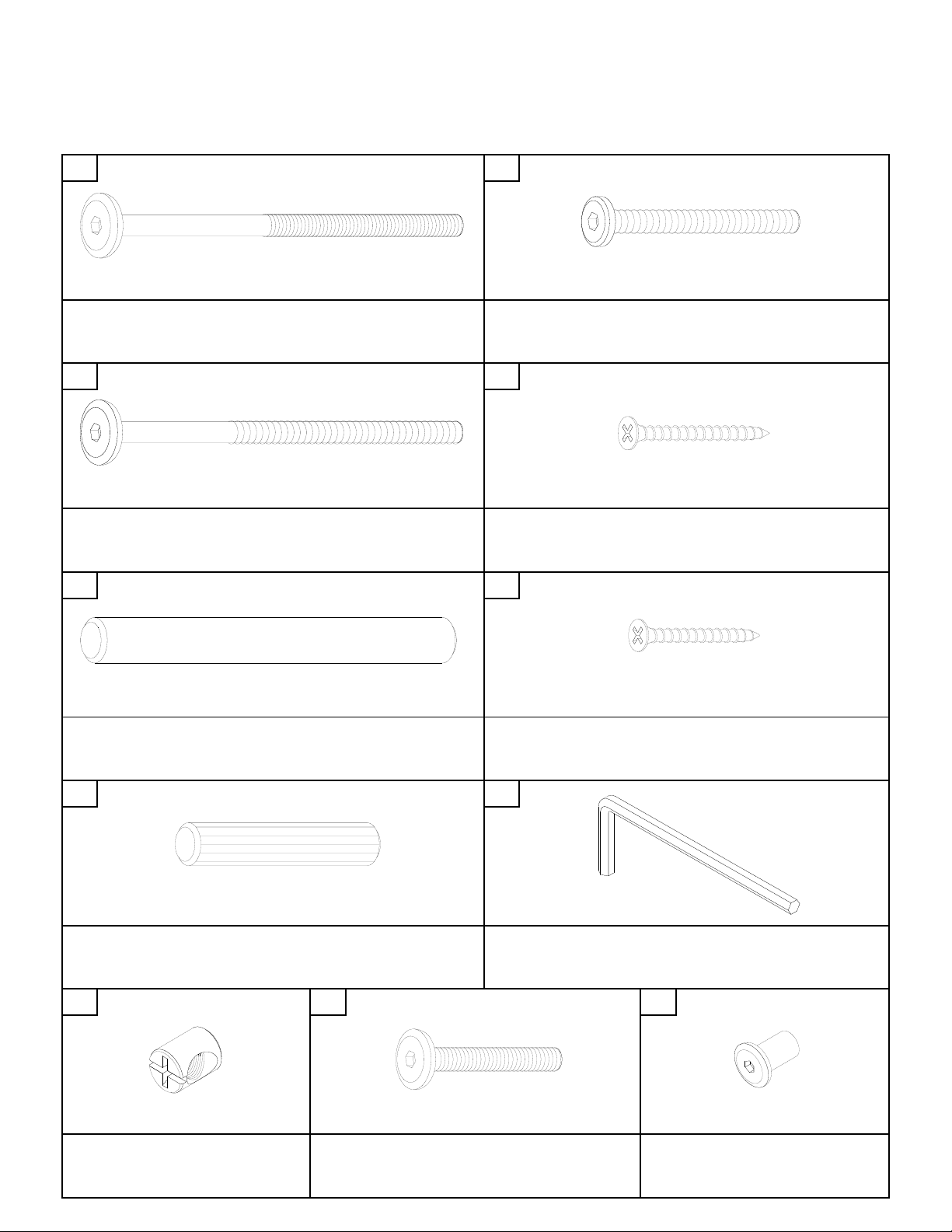

HARDWARE LIST
1 2
3 4
5 6
7 8
910 11
Φ 11.8mm x 15mm
Φ 1/4" x 32mm
Φ 9mm x 17mm
Φ 10mm x 50mm
WOOD DOWEL
62 PCS
ALLEN KEY
1 PC
JOINT CONNECTOR (4mm HEX HEAD)
16 PCS
WOOD JOINT CONNECTOR (4mm HEX HEAD)
10 PCS
TWIN BUNK BED
Φ 1/4" x 100mm
Φ 6.5mm x 48mm
Φ 6.5mm x 100mm
Φ 4mm x 35mm
Φ 10mm x 100mm
Φ 4mm x 30mm
WOOD JOINT CONNECTOR (4mm HEX HEAD)
24 PCS
FLAT HEAD SCREW
24 PCS
METAL DOWEL
4 PCS
FLAT HEAD SCREW
6 PCS
16 PCS
2 PCS
2 PCS
HEX CAP
JOINT CONNECTOR (4mm HEX HEAD)
BARREL NUT

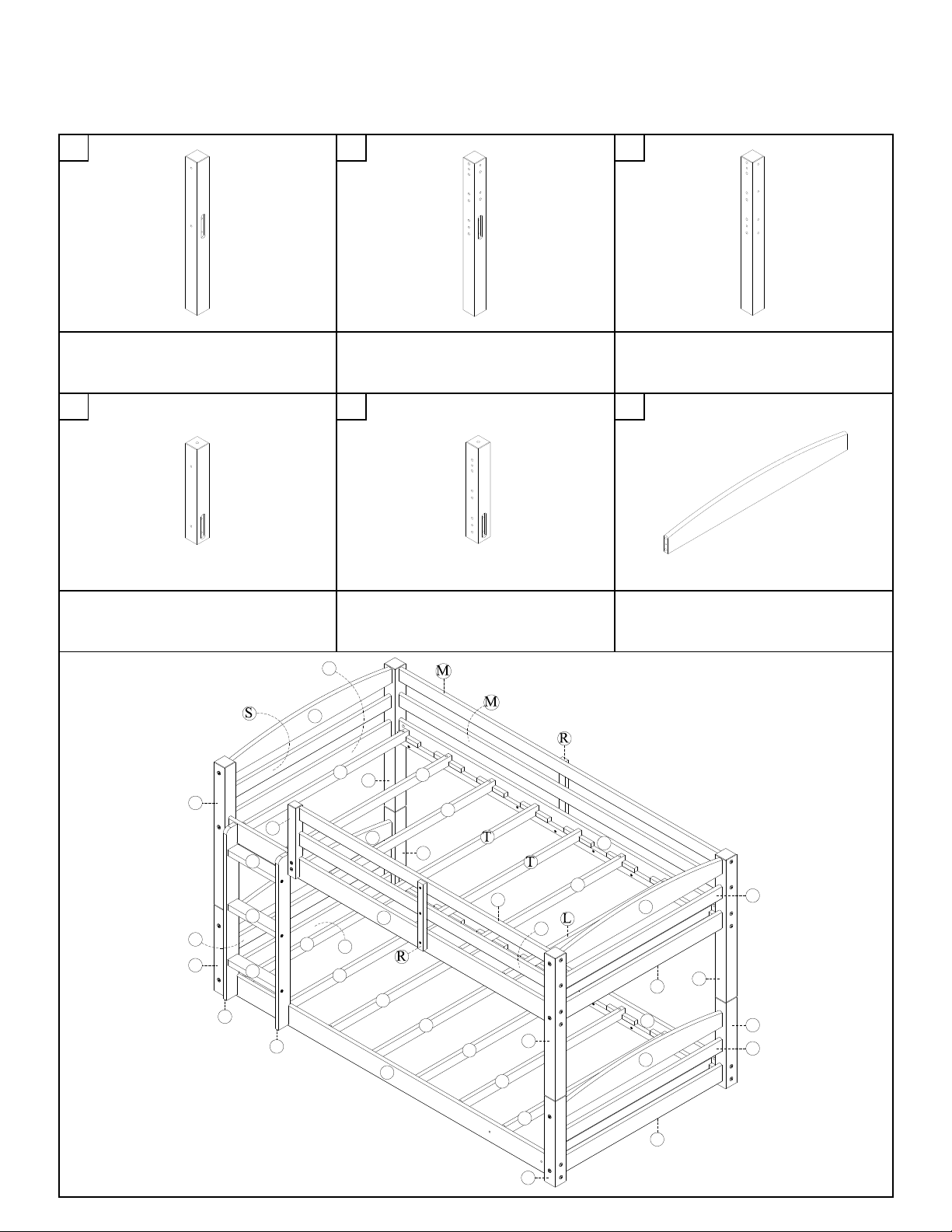

PARTS LIST
A B C
D E F
2 PCS
TOP POST
1 PC
BOTTOM POST
BOTTOM POST
TWIN BUNK BED
HEADBOARD TOP CROSS
2 PCS
2 PCS
4 PCS
TOP POST
1 PC
TOP POST
A
B
B
C
D
D
E
E
F
F
F
F
G
G
G
H
I
J
K
G
L
L
L
L
L
L
L
L
L
N
N
O
P
Q
Q
Q
S
S
S
T
T
U

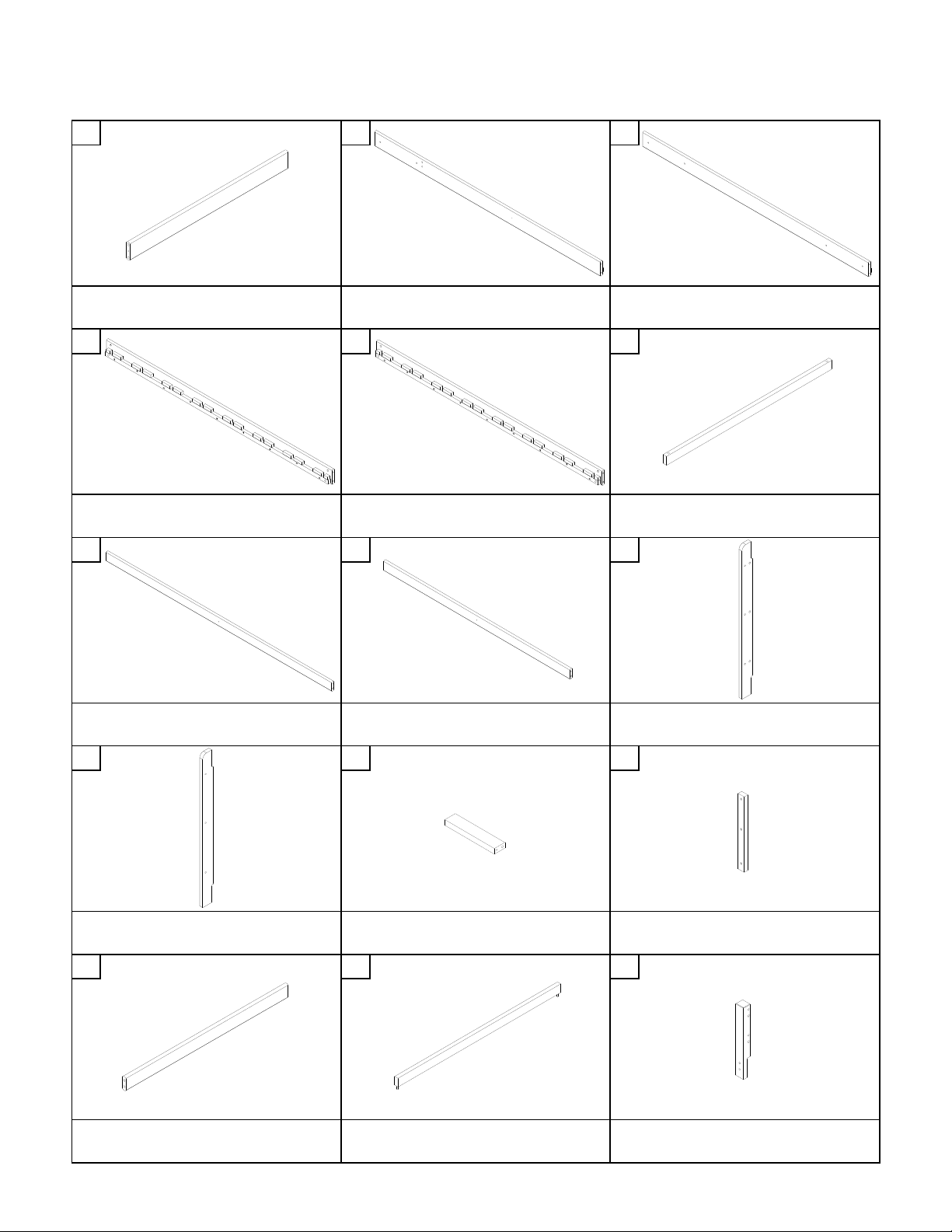

PARTS LIST
G H I
J K L
M N O
P Q R
S T U
TWIN BUNK BED
LONG GUARDRAIL
SHORT GUARDRAIL
LEFT LADDER END
BOTTOM FRONT SIDE RAIL
1 PC
1 PC
1 PC
12 PCS
1 PC
HEADBOARD BOTTOM CROSS
4 PCS
TOP FRONT SIDE RAIL
1 PC
SLAT WITHOUT WOOD DOWEL
BACK SIDE RAIL
BOTTOM BACK SIDE RAIL
2 PCS
2 PCS
RIGHT LADDER END
LADDER STEP
GUARDRAIL LEG
1 PC
3 PCS
2 PCS
HEADBOARD CENTER CROSS
SLAT WITH WOOD DOWEL
GUARDRAIL POST
4 PCS
4 PCS
1 PC

NOTE: Be sure to use headboard top cross (F) with warning label attached to it is between
top posts (A) and (B). See the above illustration for label orientation.
Repeat this previous step to assemble the other headboard using posts (B & C).
TWIN BUNK BED
STEP 1
Insert wood dowels (7) into the ends of headboard top cross (F), headboard bottom cross
(G) and headboard center cross (S). Attach them to top posts (A & B) using wood joint
connectors (3) as shown. Tighten the wood joint connectors (3) with the Allen key (8).
NOTES: Headboard top crosses (F, G& S) may require that they be pulled closer together or
further apart in order to allow wood dowels (7) to align with holes in top posts (A & B).
3
A
7
7
7
7
7
7
7
7
C
7
7
7
7
7
7
7
7

TWIN BUNK BED
STEP 2
Insert wood dowels (7) into the ends of headboard top cross (F), headboard bottom
cross (G) and headboard center cross (S) and attach them to bottom posts (D) & (E)
using wood joint connectors (3) as shown. Tighten the wood joint connectors (3) with
the Allen key (8).
D
E
7
7
7
7
7
7
7
7
D
E
7
7
7
7
7
7
7
7
3

TWIN BUNK BED
Note: This is the lower bunk.
Attach the two headboards with bottom posts (D & E) to bottom front side rail (I) and
bottom back side rail (K) using joint connectors (1) and barrel nuts (9) as shown.
Tighten the joint connectors (1) with the Allen key (8).
STEP 3
K
I

STEP 4
TWIN BUNK BED

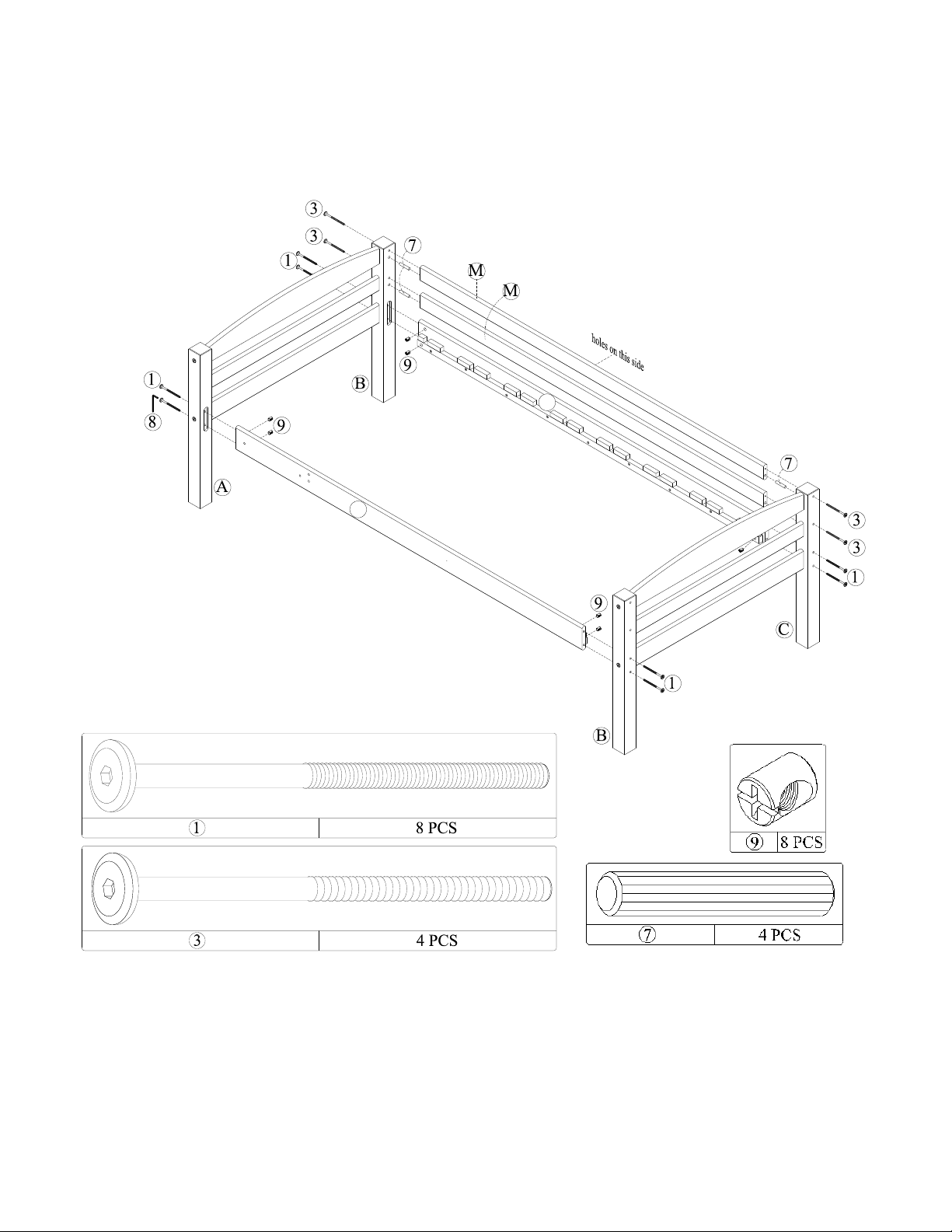

Insert wood dowels (7) into each end of the long guardrails (M).
Attach two long guardrails (M) and two top side rails (H & J) to top posts (A & B) and
(C & B) as shown.
Fasten top side rails (H & J) with joint connectors (1) and barrel nuts (9). Fasten long
guardrails (M) with wood joint connectors (3).
Tighten the joint connectors (1) and wood joint connectors (3) with the Allen key (8).
J
H

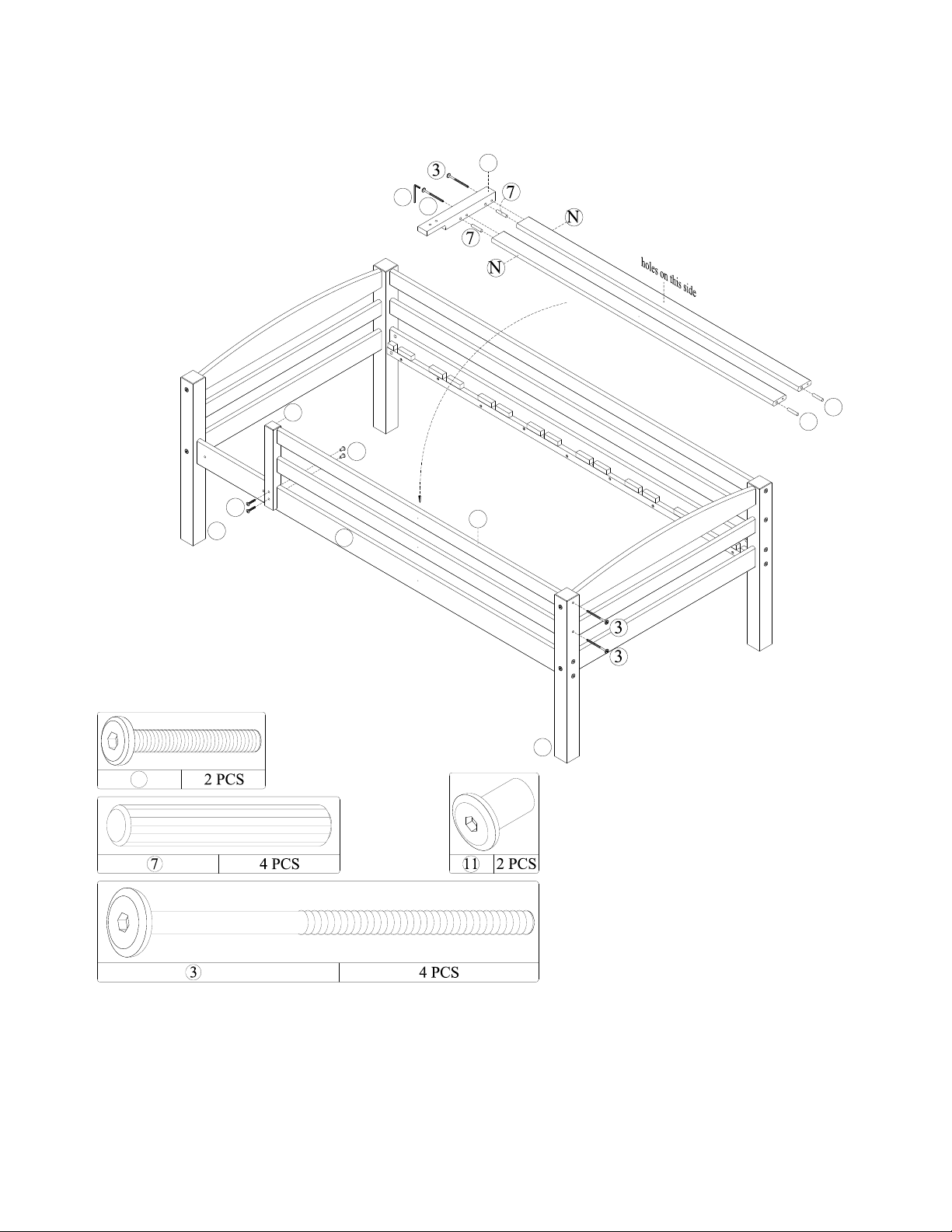

STEP 5
Fasten the short guardrails (N) to top post (B) with wood joint connectors (3). Fasten
the guardrail post (U) to top front side rail (H) with joint connectors (10) and hex cap
(11) as shown.
TWIN BUNK BED
Insert wood dowels (7) into short guardrails (N). Attach short guardrails (N) to
guardrail post (U) with wood joint connectors (3) as shown.
77
U
83
10
11
N
U
H
A
B
10

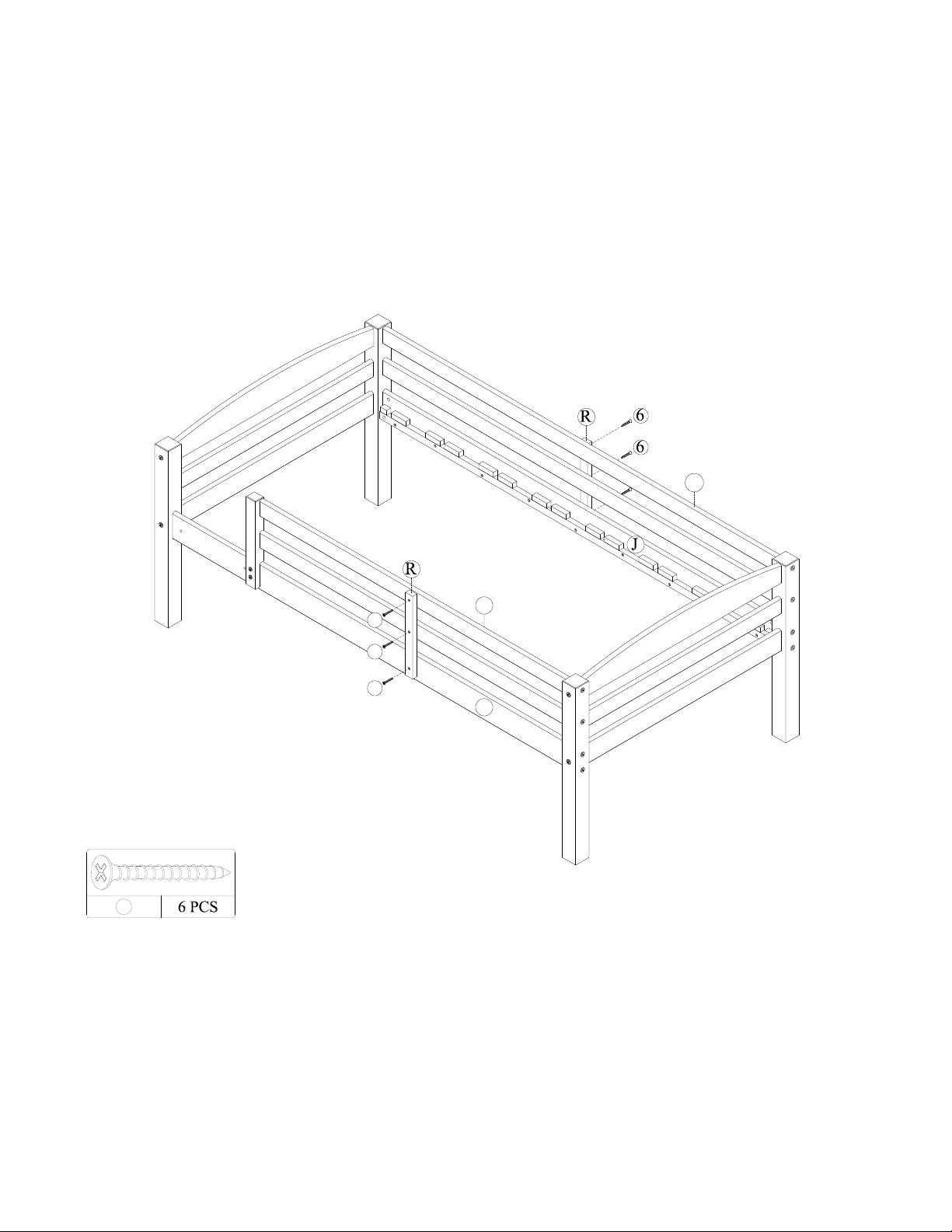

STEP 6
TWIN BUNK BED
Attach the guardrail leg (R) to the short guardrails (N) and top front side rail (H) with
flat head screws (6). Attach the other guardrail leg (R) (on the other side of the bed)
to long guardrails (M) and top back side rail (J) with flat head screws (6) as shown.
Use a Phillips head screwdriver (not included) to tighten the flat head screws.
6
6
6N
M
H
6

STEP 7
TWIN BUNK BED
Insert wood dowels (7) into the end of the ladder steps (Q). Attach left ladder end
(O) and right ladder end (P) to ladder steps (Q) with wood joint connectors (2).
Tighten the wood joint connectors (2) with the Allen key (8).
O
P

STEP 8
TWIN BUNK BED

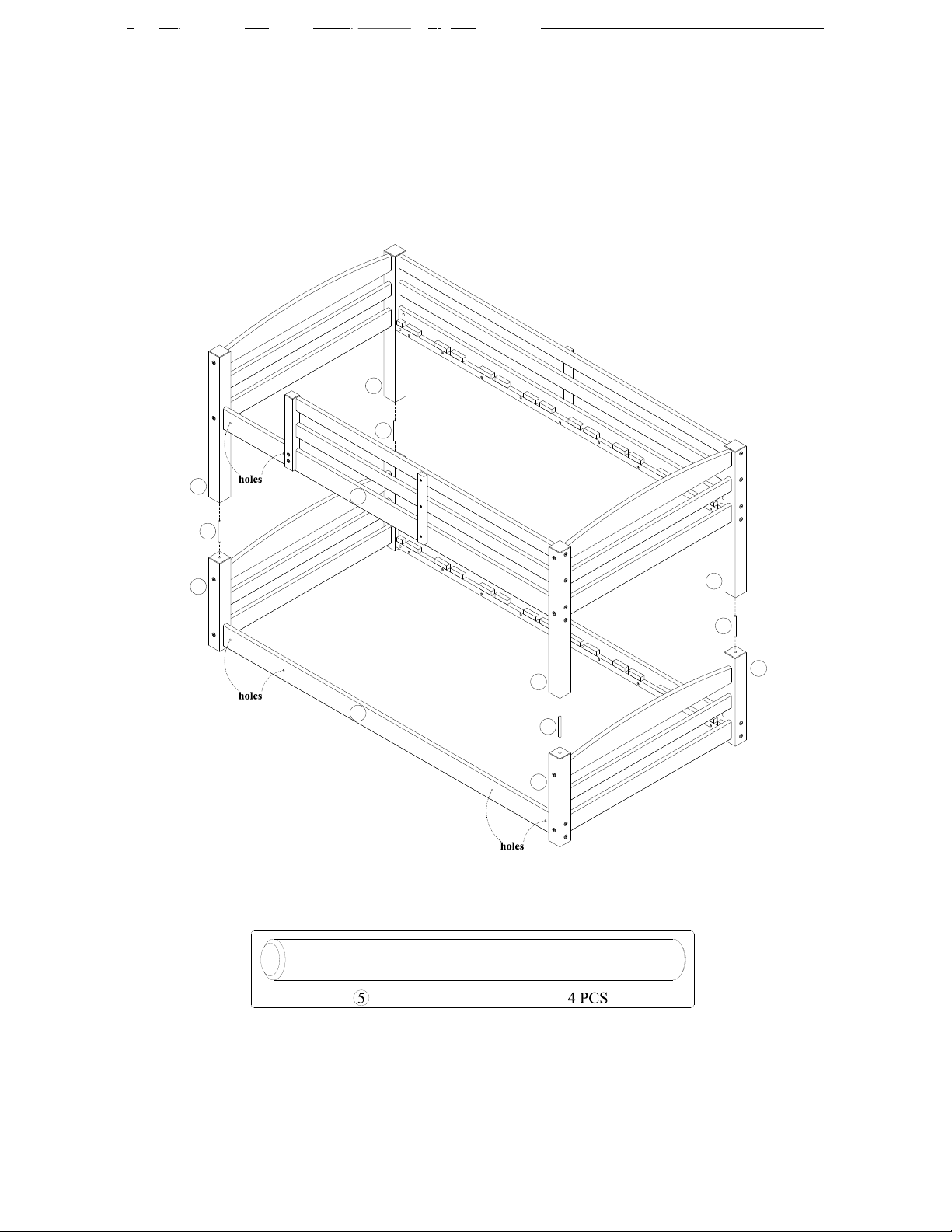

insert the metal dowels (5) into the holes in the bottom posts (D and E). Stack the
top bunk onto the bottom bunk with the help of another person.
5
5
5
5
A
B
B
C
E
D
D
H
I

STEP 9
TWIN BUNK BED
Attach the ladder to the top front side rail (H) and bottom front side rail (I) with
wood joint connectors (2) as shown. Use Allen key (8) to tighten the joint
connectors.
A
H
I
O
P
D
N
U
A
D
PO
H
I
NU
8
2
2
2
2
back view
2
2

STEP 10
TWIN BUNK BED

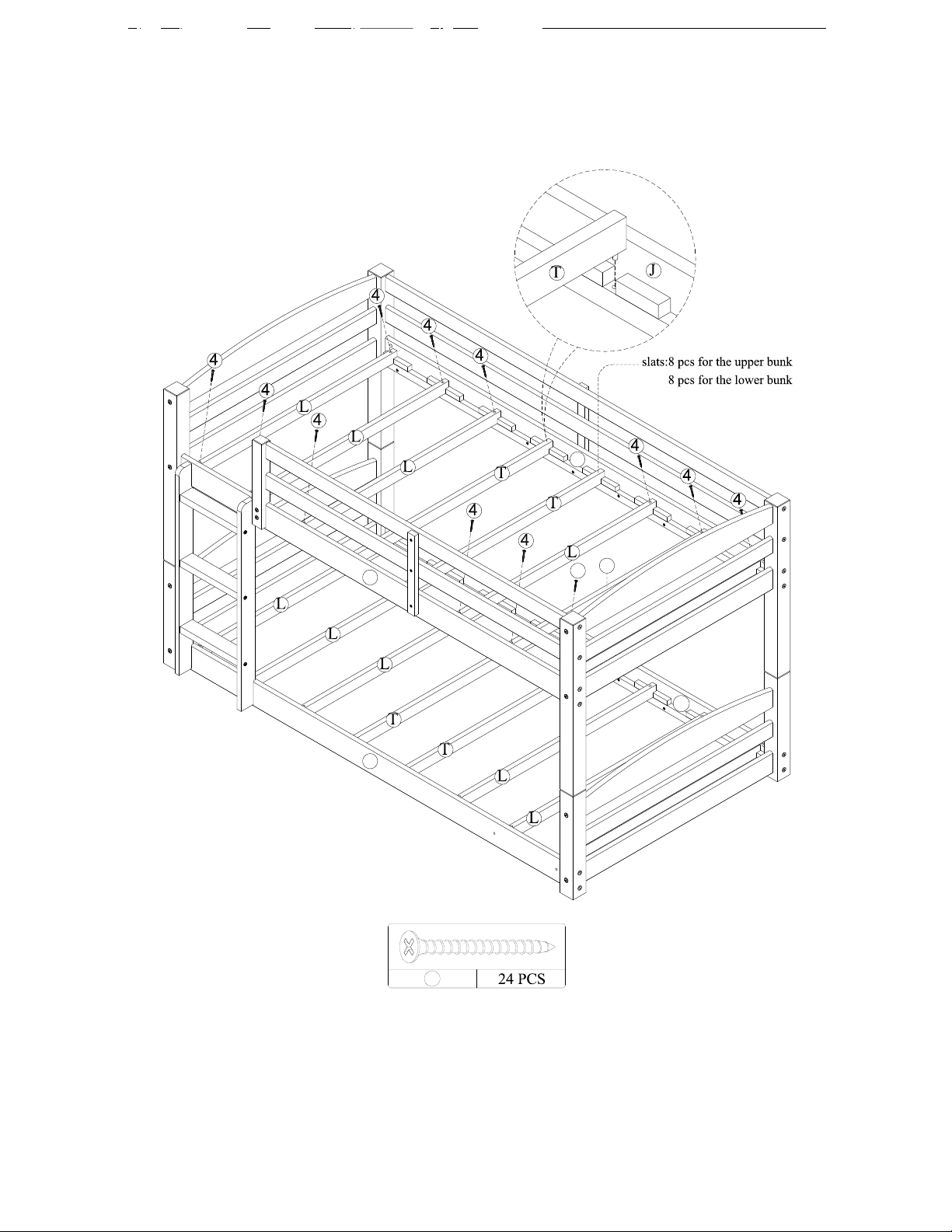

Repeat this process for the bottom bunk.
Insert two slats with wood dowel (T) into the center slots of the top side rails (H &J)
of the upper bunk as shown.
Attach slats without wood dowel (L) onto top side rails (H &J) of the upper bunk
with flat head screws (4) as shown. Use Phillips screwdriver (not included) to tighten
flat head screws (4).
4
4L
H
I
J
K

TWIN BUNK BED

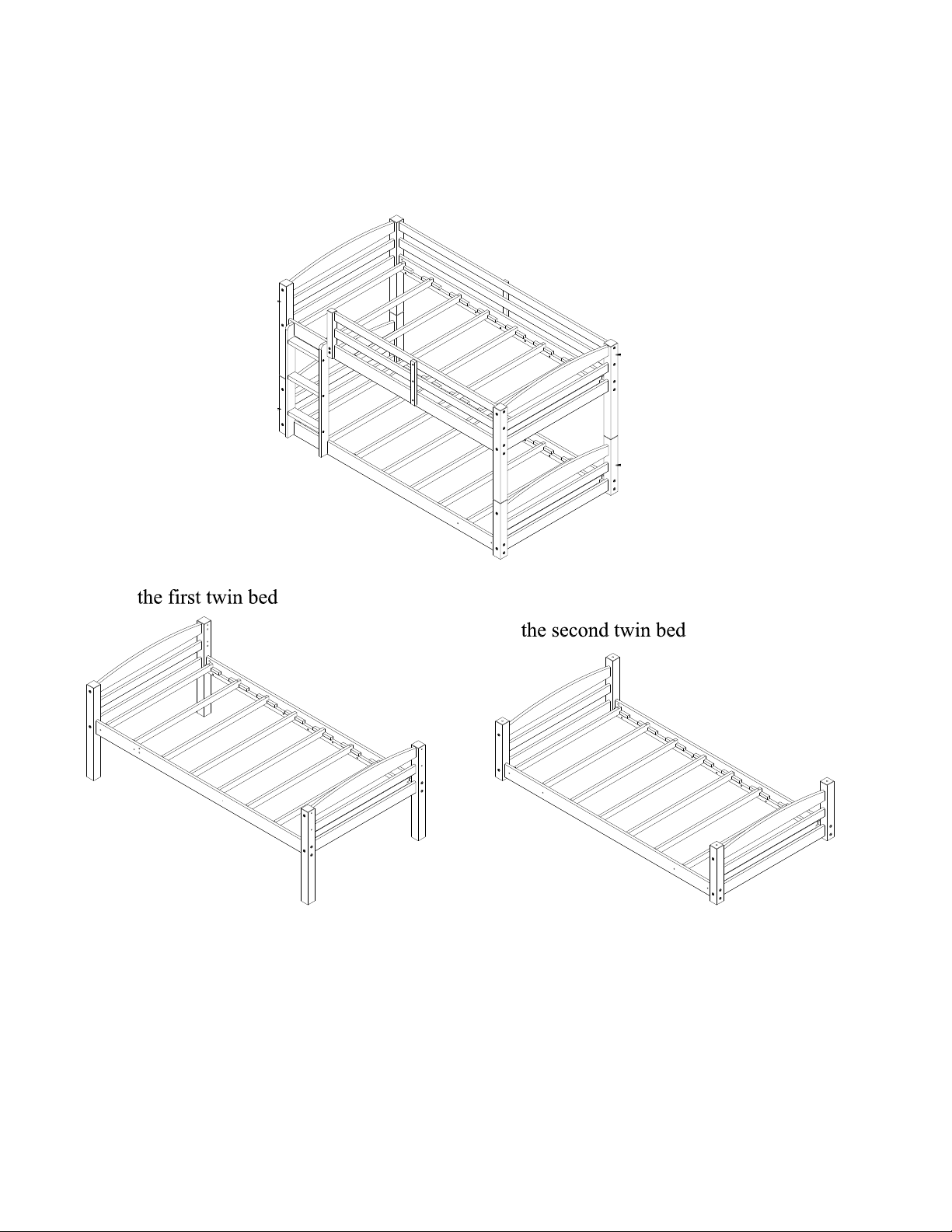

To convert your bunk bed into two separate beds, remove the
ladder and all the guardrails. With the help of another person,
unstack the top bunk from the lower bunk.

That's it! You've finished assembling your twin bunk bed.
TWIN BUNK BED

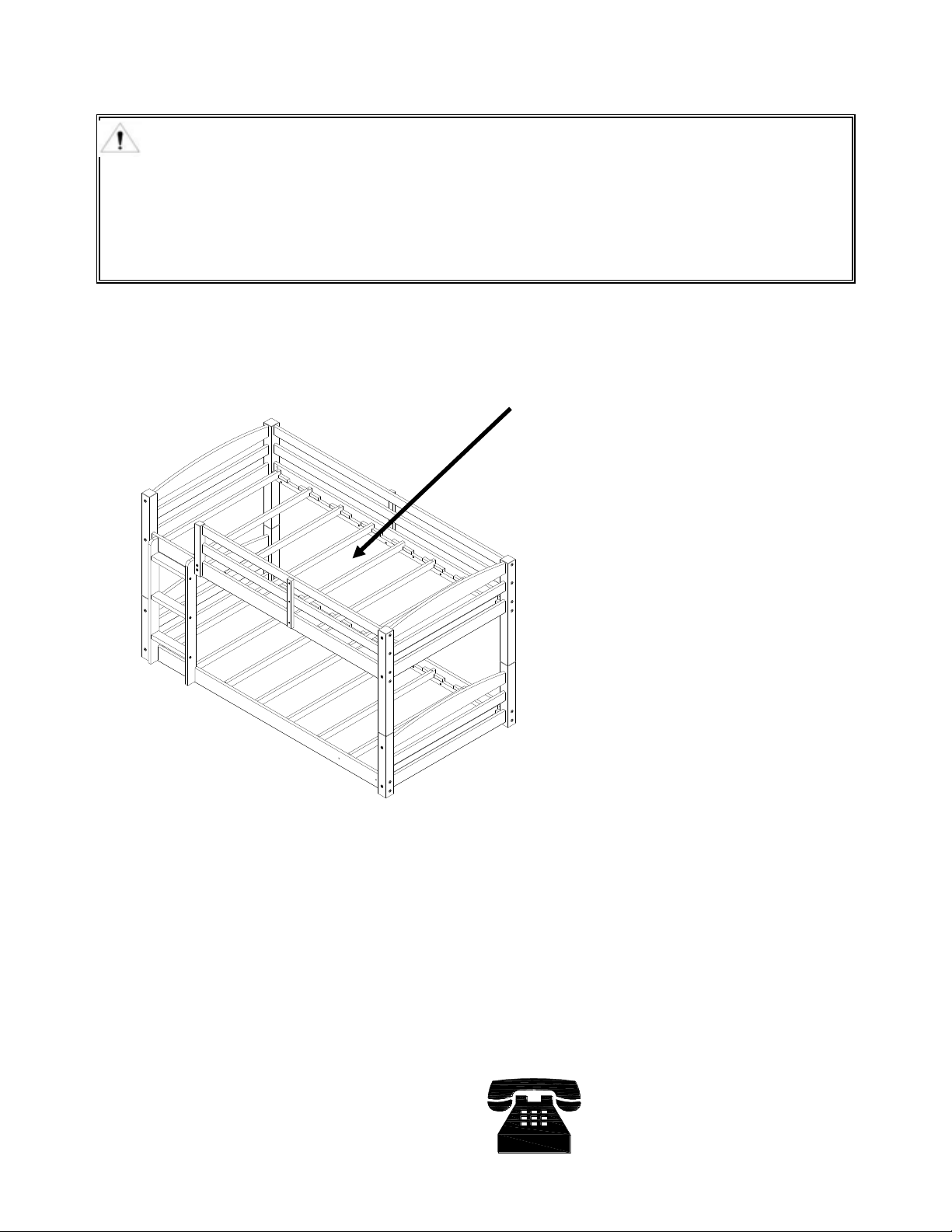

CAUTION: This unit is intended for use only with the
products and/or maximum weights indicated. Use with
other products and/or products heavier than the maximum
weights indicated may result in instability or cause possible
injury.
USE ONLY COIL SPRING
MATTRESSES ON BOTH THE UPPER
AND LOWER BUNKS. FAILURE TO
DO SO CAN RESULT IN INJURY.
USE ONLY MATTRESSES WHICH ARE 74"-75" LONG AND 37 1/2" -38 1/2" WIDE ON UPPER AND
ON LOWER BUNKS. ENSURE THICKNESS OF MATTRESS DOES NOT EXCEED 6".
DO NOT ALLOW CHILDREN UNDER 6 YEARS
OF AGE TO USE THE UPPER BUNK. BED IS
DESIGNED FOR CHILDREN RANGING FROM 6
YEARS OF AGE TO YOUNG TEENAGERS.
DO NOT ALLOW HORSEPLAY
ON OR UNDER THE BED AND
PROHIBIT JUMPING ON THE
BED.
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer
service department. We will replace the part FREE of
charge.
Tel #: [phone]
E-Mail: [email protected]
Fax #: [phone]
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
DO NOT RETURN PRODUCT TO STORE
E-MAIL:[e-mail]

Modelo No: CODIGO UPC: Color:
WM7891-1
0-65857-18612-3 MOCA
WM7891
0-65857-18612-3 MOCA
WM7891W-1
0-65857-18662-8 BLANCO
WM7891W
0-65857-18665-9 BLANCO
Fecha de compra: _____ / _____ / _____ Número de lote:
(en la caja)
NOTA: ESTE MANUAL DE INSTRUCCIONES CONTIENE INFORMACIÓN DE SEGURIDAD IMPORTANTE.
POR FAVOR, LÉALO Y CONSÉRVELO PARA CONSULTARLO EN EL FUTURO.
ADVERTENCIA
UTILICE ESTE
MANUAL PARA
ENSAMBLAR LA
CAMAS
CUCHETAS
SIMPLES
CAMAS CUCHETAS SIMPLES
¡Le damos mucha importancia a la satisfacción de nuestros clientes. Nuestros representantes
están disponibles de lunes a viernes de 8 h a 17 h (hora del este) para responder a todas sus
preguntas. Con el fin de acelerar el servicio, por favor tenga a mano el número de modelo
cuando llame a nuestro número sin coste 1-800-295-1980 o por correo electrónico a
[email protected].
NO DEVUELVA EL PRODUCTO A LA TIENDA. Si falta una pieza o está dañada, contacte nuestro
departamento de servicio a la clientela. Reemplazaremos la pieza SIN cargo.

*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
SERVICIO AL CLIENTE
Si faltan piezas o si tiene alguna pregunta sobre este producto, ¡comuníquese con nuestro representante de
servicio!
LLAME AL 1-800-295-1980
También puede pedir piezas escribiendo a la siguiente dirección. Por favor incluya el número de
modelo, color y una descripción detallada de la pieza.
Departamento de Servicio al Cliente No. 413
12345 Albert-Hudon Boulevard, Suite 100
Montreal, Quebec
Canada, H1G 3L1
ADVERTENCIAS
PELIGRO DE ESTRANGULAMIENTO - NUNCA CUELGUE O ATE EN LA CAMA ARTÍCULOS QUE NO ESTÉN
DISEÑADOS PARA USARLOS CON LA CAMA; POR EJEMPLO, PERO NO LIMITADO A ESTO, GANCHOS,
CINTURONES Y CUERDAS DE SALTAR.
SIGA LA INFORMACIÓN DE LAS ADVERTENCIAS INSCRITAS EN LA ESTRUCTURA DE LA CUCHETA
SUPERIOR Y EN EL CARTÓN. NO RETIRE LA ETIQUETA DE ADVERTENCIAS DE LA CAMA.
LA BASE DEL COLCHÓN ESTÁ DISEÑADA PARA SOPORTAR UN COLCHÓN SIN NECESIDAD DE USAR
UNA TABLA PARA MANTENER LA POSICIÓN O UN SOPORTE CON RESORTES.
SIEMPRE UTILICE EL TAMAÑO DE COLCHÓN O DE SOPORTE DE COLCHÓN RECOMENDADO, O LOS
DOS, PARA EVITAR LA POSIBILIDAD DE CAÍDAS O QUE EL NIÑO QUEDE ATRAPADO.
UTILICE SOLAMENTE COLCHONES CON RESORTES EN ESPIRAL EN LAS DOS CUCHETAS. EL NO RESPETAR
ESTO PUEDE CAUSAR LESIONES.
UTILIZAR ÚNICAMENTE COLCHONES DE 74"-75" DE LARGO Y DE 37 1/2" - 38 1/2" DE ANCHO EN LA
LITERA SUPERIOR Y EN LA LITERA INFERIOR. ASEGÚRESE DE QUE EL ESPESOR DE LOS COLCHONES NO
SUPERE 6". LA SUPERFICIE DEL COLCHÓN DEBE QUEDAR POR LO MENOS 5" (127MM) POR DEBAJO
DEL BORDE SUPERIOR DEL MARCO DE LAS CUCHETAS.
NO PERMITA QUE NIÑOS MENORES DE 6 AÑOS DUERMAN EN LA CUCHETA SUPERIOR.
PESO MÁXIMO: 165 LBS (75 KGS) POR NIVEL.
SIEMPRE UTILICE LAS BARANDAS EN LOS DOS LADOS DE LA CUCHETA SUPERIOR. SI LA CUCHETA
ESTÁ COLOCADA CERCA DE UNA PARED, LA BARANDA QUE CUBRE EL LADO LARGO DE LA
CUCHETA DEBE SER COLOCADA CONTRA LA PARED PARA EVITAR QUE EL NIÑO QUEDE ATRAPADO
ENTRE LA CAMA Y LA PARED (ESTO SE APLICA A LAS CUCHETAS CON BARANDA LARGA DE UN
SOLO LADO).
VERIFIQUE LA CAMA PERIÓDICAMENTE Y ASEGÚRESE DE QUE EL CUADRO, LA ESCALERILLA Y OTROS
COMPONENTES ESTÉN EN LA POSICIÓN CORRECTA, NO ESTÉN DAÑADOS Y TODAS LAS UNIONES
ESTÉN BIEN AJUSTADAS.
NO PERMITA QUE LOS NIÑOS HAGAN PAYASADAS SOBRE O DEBAJO DE LA CAMA Y PROHIBA QUE
SALTEN SOBRE ELLA.
NO UTILICE PIEZAS DE SUSTITUCIÓN. CONTACTE EL SERVICIO AL CLIENTE PARA OBTENER PIEZAS
PARA REMPLAZAR.
EL USO DE UNA VELADORA SIRVE COMO MEDIDA DE PRECAUCIÓN PARA EL NIÑO QUE UTILIZA LA
CUCHETA SUPERIOR.
SE PROHIBE EL USO DE COLCHONES DE AGUA O COLCHONETAS DE FLOTACIÓN.
SIEMPRE UTILICE LA ESCALERILLA PARA SUBIR A LA CUCHETA SUPERIOR O BAJAR DE ELLA.
PROHIBA QUE MÁS DE UN NIÑO SUBA A LA CUCHETA SUPERIOR.
