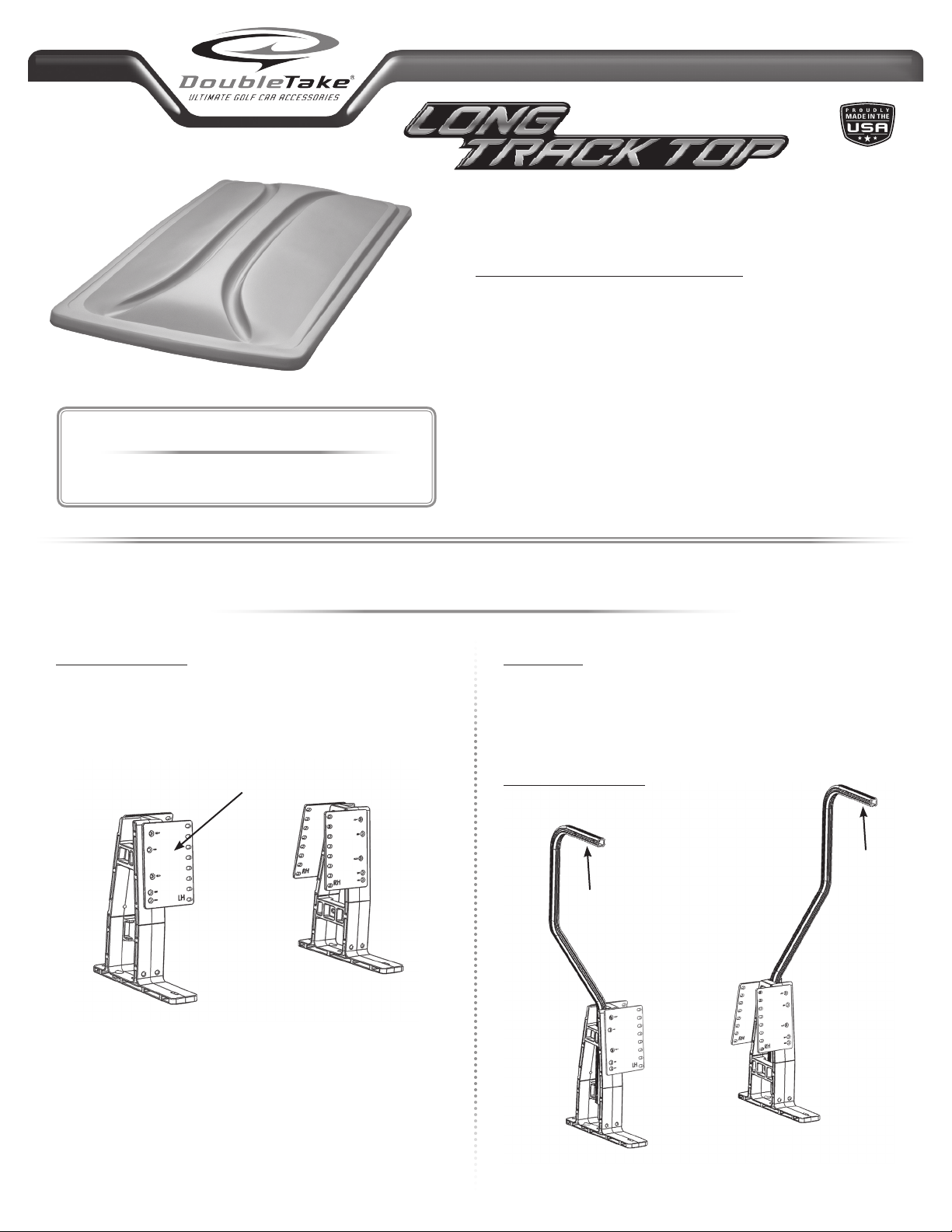

DoubleTake LONG TRACK TOP User manual

CAT-8: Long Track Top Installation / May 20, 2016 / Manufactured By Custom Golf Car Supply, Inc. www.DoubleTakeGolfCar.com
TABLE OF CONTENTS:
Step 1 - Install Front Frame Brackets
Step 2 - Install Rear Frames
Step 3 - Install Top
IMPORTANT: Do not fully tighten hardware until instructed.
Read through all instructions before beginning installation.
REAR FRAME INSTALLATION
PREPARE CAR FOR INSTALLATION:
Remove the following:
• Factory Top • Top Supports/Drain Tubes
• Bench Back Cushion • Bag Rack Assembly
NOTE: Save original hardware for later use.
NOTE: Kits include Rear Frames and Front Frame Brackets where applicable.
4–PASSENGER TOP KITS
TM
Universal Seat Plates Rear Frames
For ease of installation install Universal Seat Plates onto Seat Back Supports
before installing Rear Frames. See the Seat Plate Kit Instructions for
mounting to Seat Back Supports.
See Seat Plate Kit Instructions for mounting to Seat Back Supports. Mount
the Rear Frames, to the Seat Back Supports, with the top bent legs facing to
the rear of the car.
NOTE: Fully tighten Bolts.
INSTALL REAR FRAMES
STEP 2
Shown on Club Car Precedent
Facing
Rear of
Car
Facing
Rear of
Car
INSTALL FRONT FRAME BRACKETS
STEP 1
(SEE INSTRUCTIONS INCLUDED WITH FRONT FRAME BRACKET KIT.)
Universal Seat Plates
(Provided with DoubleTake Rear Seat Kits)

Long Track Top / pg 2
Rest the Top on Front and Rear Frames, attach Front Frames with provided
hardware as shown.
NOTE: Do not fully tighten Bolts. Rest the Top on Front and Rear Frames, attach Front Frames with provided
hardware.
NOTE: Do not fully tighten hardware.
INSTALL TOP
STEP 3
Mounting Front Brackets
Mounting Rear Frames
Mounting Single Front Bracket
Mounting G14-22
TXT RXV
1/8” Spacer
*If installing to TXT Bracket, insert 1/8” Spacer between Top Frame
and Bracket.
Follow the Hole Diagram below for positioning. Align Rear Frames with
selected holes in Top Frame and mount with provided hardware.
NOTE: Fully tighten all hardware.
Top Front
Club Car
Top Frame mounts to
front side of RXV Bracket.
Top Frame mounts to
inside of TXT Bracket
Club Car DS
& Precedent
EZGO TXT & RXV
Yamaha G22 & Drive
Top Rear
Top Rear - Driver Side
EZGO / Yamaha
Top Rear - Driver Side
Top Front - Driver Side
Top Front - Driver Side
G14-19
(No Bracket)
G22
