INSTALLATIEVOORSCHRIFTEN EN GEBRUIKSAANWIJZING HOUTKACHEL
INSTALLATION INSTRUCTIONS AND OPERATING MANUAL WOOD STOVE
INSTALLATION ET MODE D’EMPLOI POELE A BOIS
EINBAUANLEITUNG UND GEBRAUCHSANWEISUNG HOLZ-FEUERSTÄTTE
INSTRUCCIONES DE INSTALACIÓN Y USO ESTUFA DE LEÑA
REQUISITI PER L'INSTALLAZIONE E ISTRUZIONI PER L'USO STUFA A LEGNA
MONTERINGS- OG BRUKSANVISNING PEISOVN
ASTRO 3CBP PEGASUS
ASTRO 3CBWB PEGASUS
ASTRO 4CBP LEON
ASTRO 4CBWB LEON
03.27661.300 - 10/2012

Table of contents
Introduction 2
Declaration of conformity 2
Safety 3
Installation requirements 3
General 3
Chimney (flue) 3
Ventilation of the area 4
Floors and walls 5
Product description 5
Installation 5
General preparation 5
Preparing the outside air connection 8
Installing and connecting 10
Use 10
First use 10
Fuel 10
Lighting 10
Burning wood 11
Controlling combustion air 12
Extinguishing the fire 13
Removing ashes 13
Fog and mist 13
Solving problems 14
Maintenance 14
Chimney 14
Cleaning and other regular maintenance
activities 14
Appendix 1: Technical Data 16
Appendix 2: Measurements 17
Appendix 3: Distance from combustible
material 21
Appendix 4: Diagnostic diagram 24
Index 25
Subject to change because of technical improvements 1

Introduction
Dear user,
In buying this DOVRE heating appliance, you have
chosen a high quality product. This product is part of a
new generation of energy-efficient and
environmentally-friendly heating appliances. These
appliances make optimum use of convection heat as
well as thermal radiation (radiant heat).
Your DOVRE appliance has been manufactured
with state-of-the-art production equipment. In the
unlikely event of a malfunction, you can always
rely on DOVRE for support and service.
The appliance should not be modified; please
always use original parts.
The appliance is intended for use in a living room. It
should be connected hermetically to a well-
functioning chimney.
We advise you have the appliance installed by an
authorized and competent installer.
DOVRE cannot be held liable for any problems or
damage resulting from incorrect installation.
Observe the following safety regulations when
installing and using the appliance.
In this manual, you can read how the DOVRE heating
appliance can be installed, used and maintained
safely. Should you require additional information or
technical data, or should you experience an
installation problem, please first contact your supplier.
© 2012 DOVRE NV
Declaration of
conformity
Notified body: 1625
The undersigned
Dovre nv, Nijverheidsstraat 18 B-2381 Weelde hereby
declares
that houtkachel Astro 3CBP, Astro 3CBWB, Astro
4CBP en Astro 4CBWB have been produced in
accordance with EN 13240.
Weelde 19-01-2011
Due to continuous product improvement, the supplied
appliance specifications may vary from the
description in this brochure without prior notice.
DOVRE N.V.
Nijverheidsstraat 18 Tel: [phone]
B-2381 Weelde Fax: [phone]
Belgium E-mail : [e-mail]
2Subject to change because of technical improvements

Safety
Please note: All safety regulations must be
complied with strictly.
Please read carefully the instructions supplied
with the appliance for installation, use and
maintenance, before using the appliance.
The appliance must be installed in accordance
with the laws and requirements of your
country.
All local regulations and the regulations relating
to national and European standards must be
observed when installing the appliance.
The appliance should preferably be installed by
an authorized installer. Installers will be aware
of the applicable regulations and requirements.
The appliance is designed for heating
purposes. All surfaces, including the glass and
connecting tube, can get very hot (over 100°C)!
For operation, use a so-called "cold hand" or an
oven glove.
Safety distances from flammable materials
must be adhered to strictly.
Don't place any curtains, clothes, laundry or
other combustible materials on or near the
appliance.
Don't use flammable or explosive substances
near the appliance when it is in use.
Avoid a chimney fire by having the chimney
swept regularly. Never burn wood with the door
open.
In the case of a chimney fire: close all air inlets
of the appliance and alert the fire brigade.
If the glass in the appliance is broken or
cracked, it must be replaced before you can
use the appliance again.
Make sure there is adequate ventilation in the
room where the appliance is installed. If
ventilation is insufficient, combustion will be
incomplete resulting in toxic gases being
produced and spread through the room. See
the chapter "Installation requirements" for more
information on ventilation.
Installation requirements
General
The appliance must be connected tightly to a well-
functioning chimney.
For the connection measurements: see the
appendix "Technical data".
Ask the fire brigade and/or your insurance
company about any specific requirements and
regulations.
Chimney (flue)
The flue or chimney is needed for:
Removal of combustion gases via natural draught.
As the warm air in the flue or chimney is lighter
than the outside air, it rises.
Air intake, needed for the combustion of fuel in the
appliance.
A poorly-functioning flue or chimney can cause smoke
to escape into the room when the door is opened.
Damage caused by smoke emissions into the room is
not covered by the warranty.
Do not connect multiple appliances (such as a
boiler for central heating) to the same flue,
unless local or national regulations allow this.
In the event of two connections ensure that the
difference in height between the connections is
no less than 200 mm.
Ask your installer for advice regarding the flue. Refer
to the European norm EN13384 for a correct
calculations for the flue.
The flue must satisfy the following requirements:
The flue or chimney must be made of fire-resistant
material, preferably ceramics or stainless steel.
The flue or chimney must be airtight and well-
cleaned and guarantee sufficient draught.
A draught/vacuum of 15-20Pa during normal
operation is ideal.
Starting from the flue spigot, the flue must run as
vertically as possible. Changes in direction and
Subject to change because of technical improvements 3

horizontal pieces disrupt the outward flow of
combustion gases and may cause soot deposits.
To prevent combustion gases from cooling down
too much, which reduces the draught, ensure that
the interior diameter is not too big.
The flue or chimney should ideally have the same
diameter as the connection collar.
For the nominal diameter: see the appendix
"Technical data". If the smoke channel is well
insulated, the diameter may be slightly bigger
(up to 2x the section of the connection collar).
The section (area ) of the smoke channel must be
constant. Wider segments and (in particular)
narrower segments disrupt the outward flow of
combustion gases.
When using a cover plate or exhaust hood : make
sure that the cover does not restrict the flue outlet
and that the cap does not impede the outward flow
of combustion gases.
The flue must end in a zone that is not affected by
surrounding buildings, trees or other obstacles.
The flue outside the house must be insulated.
The chimney must be at least 4metres high.
As a rule of thumb: 60cm above the ridge of the
roof.
If the ridge of the roof is more than 3metres away
from the flue: stick to the measurements in the
following figure. A = the highest point of the roof
within a distance of 3metres.
Ventilation of the area
For good combustion, the stove needs air (oxygen).
This air is supplied via adjustable air inlets from the
area in which the stove is installed.
The combustion will be incomplete in case of
insufficient ventilation, which results in toxic
gases being produced and spread through the
area.
As a rule of thumb, the air supply should be
5,5cm²/kW. Extra ventilation is needed when:
The stove is in an area that is well-insulated.
There is mechanical ventilation, for example a
central extraction system or an extraction hood in
an open kitchen.
You can provide extra ventilation by having a
ventilation louvre fitted on the outside wall.
Make sure that other air consuming appliances (such
as tumble-driers, other heating appliances or a
bathroom fan) have their own supply of outside air, or
are switched off when you use the appliance.
You can also connect the appliance to an
outside air supply. This makes additional
ventilation unnecessary.
4Subject to change because of technical improvements

Floors and walls
The floor on which the appliance is placed must have
sufficient bearing capacity. For the weight of the
appliance, see the appendix "Technical data".
Protect flammable flooring from heat radiation
by means of a fireproof protective plate. See
the appendix "Distance from combustible
material".
Remove combustible material such as
linoleum, carpets/rugs and similar materials
below the fireproof protective plate.
Keep sufficient distance between the
appliance and combustible materials such as
wooden walls and furniture.
The connecting tube also radiates heat. Ensure
that there is sufficient distance or a shield
between the connecting tube and combustible
material.
The rule of thumb for a single-walled tube is a
distance of 3x the diameter. If a lining shell is
fitted around the tube, a distance of 1x the
diameter is permissible.
Carpets and rugs must be at least 80cm away
from the fire.
Use a fireproof floor plate to protect a
flammable floor from any ash which may fall in
front of the stove. The protective plate must
comply with national standards.
For the dimensions of the fireproof protective
plate: see the appendix "Distance from
combustible material".
For further requirements in connection with fire
safety: see the appendix "Distance from
combustible material".
Product description
1. Bottom of the fire compartment
2. Door
3. Primary air slide
4. Door latch
5. Secondary air slide
Installation
General preparation
Please check the appliance immediately after
delivery for damage caused during transport or any
other damage or defects. The appliance is attached
to the pallet with screws at the bottom.
Subject to change because of technical improvements 5

If you detect damage caused during transport
or any other damage or defects, do not use the
appliance and notify the supplier.
Remove the removable parts (fire-resistant inner
plates, fire grate, top plate, ash pan) from the
appliance before you start installing the appliance.
It is easier to move the appliance and to avoid
damage if the removable parts have been
removed.
Note the location of the removable parts, so
that you can re-position the parts in the correct
place later on.
1. Open the door; see the following figure.
2. Remove the fire-resistant inner plates; see the
following figure.
Vermiculite inner plates are light and tend to be
ochrous in colour on delivery. They insulate the
combustion chamber to boost combustion.
Cast iron inner plates protect the combustion
chamber and dissipate heat to the
surroundings.
Removable internal sections
astro3 series
1 03.77091.002 Fire basket front
2 03.77092.002 Fire basket left
3 03.77093.002 Fire basket right
4 03.77378.100 Vermiculite inner plate
5 03.05404.020 Ash removal port
6 03.66531.100 Bottom of the fire compartment
astro4 series
1 03.77091.002 Fire basket front
2 03.77095.102 Fire basket left
3 03.77096.102 Fire basket right
4 03.77378.100 Vermiculite inner plate
5 03.05404.020 Ash removal port
6 03.66531.100 Bottom of the fire compartment
7 03.35210.000 Corner piece
4. Remove the ash pan; see the following figure.
6Subject to change because of technical improvements

(missing or bad snippet)
1 Connection - top
2 Connection - rear
Connect to top
1. Remove the top plate.
The top plate can be taken off the appliance
just like that.
2. At the outlet at the top, apply sealant to the
contact surface where the connection collar will be
positioned.
3. Install the connection collar with the materials.
4. At the outlet at the rear, apply sealant to the
contact surface where the cover will be
positioned.
5. Install the cover using the materials.
Subject to change because of technical improvements 7

Connecting to the rear
1. Remove the top plate.
The top plate can be taken off the appliance
just like that.
2. At the outlet at the top, apply sealant to the
contact surface where the cover will be
positioned.
3. Install the cover using the materials.
4. At the rear, apply sealant to the contact surface
where the connection collar will be positioned.
5. Install the connection collar with the materials.
Preparing the outside air
connection
If the appliance is installed in a room without sufficient
ventilation, you can install the connecting kit on the
appliance for the outside air supply. Some of the air
inlets on the appliance must then be plugged with the
blanking material provided. We recommend applying a
connection set that has a valve you can close when
the stove is not in use.
The air supply tube is 100 mm in diameter. If the tube
is smooth, it may be no longer than 12 metres. If
accessories such as bends are used, the maximum
length (12 m) must be reduced by 1 m for each
accessory used.
1. Close the air inlet in the bottom plate with the
small cast-iron cover plates (1) and screws (2);
see following figure.
By closing the air inlet in the bottom plate you
prevent air being used for combustion from an
insufficiently ventilated space.

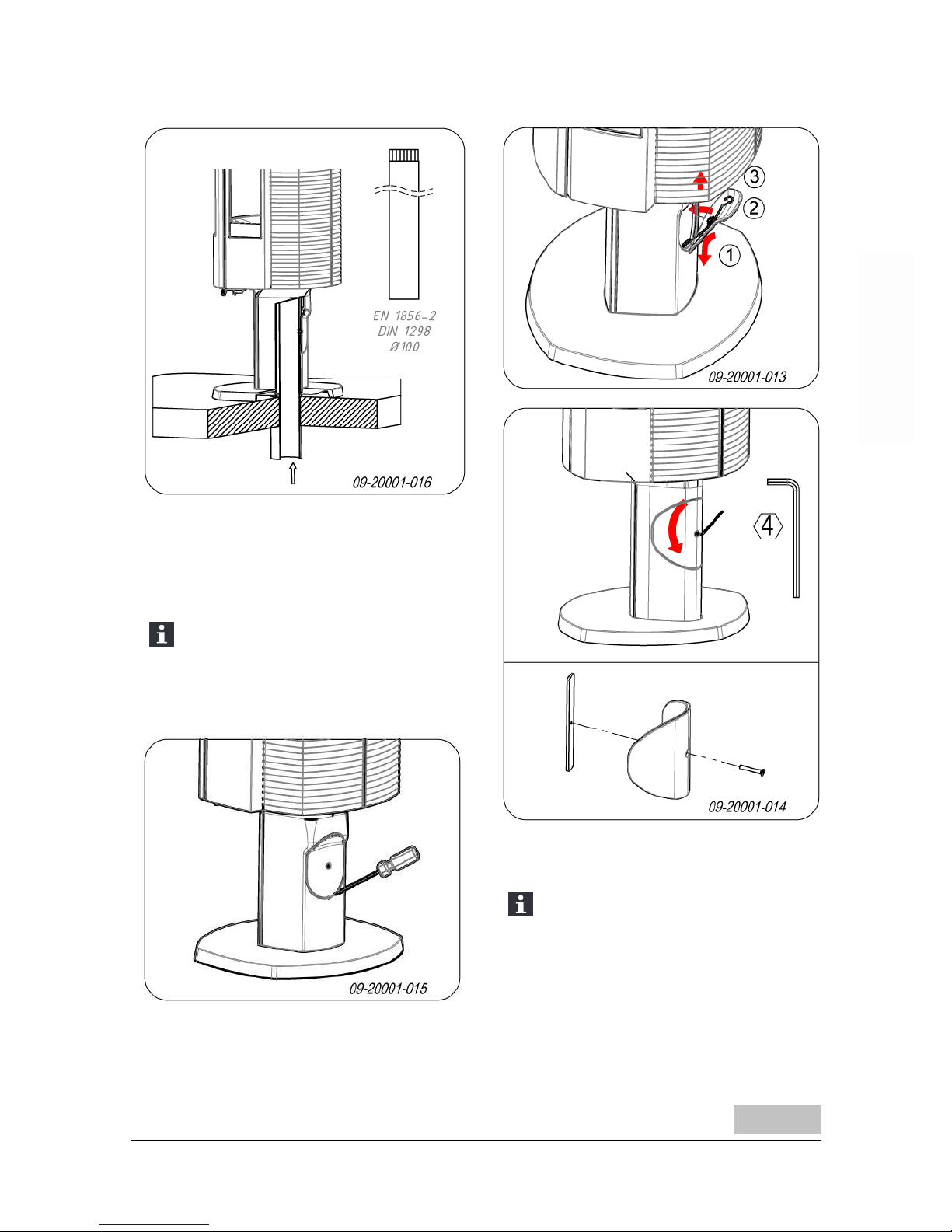

2. For connection to outside air via the floor:
a. Make an opening in the floor; see 'Appendix 2,
Measurements' for the correct position of the
opening.
b. Connect the foot hermetically to the floor using
a rubber seal.
c. Slide a straight air supply tube onto the
connection collar of the stove, so that it cannot
move; see following figure .
8Subject to change because of technical improvements

3. For connection to outside air via the rear of the
appliance:
a. Create an opening in the base or the log
compartment by removing the panel at the
back of the base or the log compartment; see
following figures.
Depending on the version of the stove the
cover plate is affixed either with springy
clips or with a washer plate. In case of a
spring fixing use a screwdriver to lift the
cover plate out of its groove.
b. Connect a so-called 'elbow' hermetically to the
opening in the base or the log compartment so
that it cannot move; see following figure.
The height for the connection through the
wall may vary depending on the elbow
type.
Subject to change because of technical improvements 9

EN 1856-2
DIN 1298
Ø100 - 90°
09-20001-017
Installing and connecting
1. Position the stove in the correct place, and make
sure it is level.
2. Connect the appliance airtight to the flue
(chimney).
3. In the case of connection to outside air: connect
the outside air supply to the connection collar
within the base or log compartment of the stove or
to the fitted elbow.
4. Re-position all removed parts in the correct places
in the stove.
Never light a fire in the appliance without the
fireproof inner plates.
The appliance is now ready for use.
Use
First use
When you use the stove for the first time, make an
intense fire and keep it going for a good few hours.
This will cure the heat-resistant paint finish. This may
result in some smoke and odours. You could open
windows and doors for a while in the area in which the
stove is located.
Fuel
This stove is only suitable for burning natural wood;
sawn and chopped wood that is sufficiently dry.
Do not use other fuels, as they can cause serious
damage to the stove.
You are not allowed to use the following fuels, as they
pollute the environment and because they heavily soil
the appliance and flue, which may lead to a chimney
fire:
Treated wood, such as scrap wood, painted wood,
impregnated wood, preserved wood, plywood and
chipboard.
Plastics, scrap paper and domestic waste.
for example the drain connector or the connections for
temperature sensors.
Wood
Hardwood, such as oak, beech, birch and fruit tree
wood is the ideal fuel for your stove. This type of
wood burns slowly with calm flames. Softwood
contains more resins, burns faster and sparks
more.
Use seasoned wood that contains no more than
20% moisture. The wood should have been
seasoned for at least 2 years.
Saw the wood to size and split it while it is still
fresh. Fresh wood is easier to split, and split wood
dries more easily. Store the wood under a roof
where the wind has free access.
Do not use damp wood. Damp logs do not produce
heat as all the energy is used in the evaporation of
moisture. This will result in a lot of smoke and soot
deposits on the stove door and in the chimney. The
water vapour will condense in the stove and can
leak away through chinks in the stove, causing
black stains on the floor. It may also condense in
the chimney and form creosote. Creosote is a
highly flammable compound and may cause a
chimney fire.
Lighting
You can check whether the flue has sufficient draught
by lighting a ball of paper above the baffle plate. A cold
flue often has insufficient draught and consequently,
some smoke may escape into the room instead of up
the chimney. You can avoid this problem by lighting
the fire as described below.
10 Subject to change because of technical improvements

1. Stack two layers of medium sized logs crosswise.
2. Stack two layers of kindling crosswise on top of
the logs.
3. Place a firelighter cube in the lower layer of
kindling and light the cube according to the
instructions on the packaging.
4. Close the door of the appliance and open the
primary air inlet and open the secondary air inlet of
the appliance; see 'Controlling air combustion'.
5. Allow the fire develop into a good blaze until there
is glowing bed of charcoal. You can then add fuel
and adjust the appliance, see the chapter "Stoking
with wood".
Burning wood
After you have followed the instructions for lighting :
1. Slowly open the stove door.
2. Spread the charcoal evenly across the bottom of
the stove base.
3. Stack a few logs on the charcoal.
Open stacking
If the logs are stacked openly, the wood will burn
quickly as the oxygen can reach each log easily. If
you want to use the stove for a short while, make an
open stack.
Compact stacking
If the logs are stacked tightly, the wood will burn more
slowly as the oxygen can only reach some logs
easily. If you want to burn wood for a longer period,
make a compact stack.
4. Close the door of the appliance.
5. Close the primary air inlet and leave the secondary
air inlet open.
Fill the appliance up to one third capacity.
Subject to change because of technical improvements 11

Controlling combustion air
The appliance has various features for air control; see
following figure.
1. The primary air slide is open in pulled out
position and closed in pushed back position.
2. The secondary air slide is open in pulled out
position and closed in pushed back position.
The primary air slide controls the air flow under the
grille (1);see following figure.
The secondary air slide controls the air flow for the
glass and the vents in the back wall (2).
The baffle plate has permanent vents (3) that allow for
post-combustion. Advice
Never burn wood with an open door.
Regularly burn wood with intense roaring fires.
If you frequently have low intensity fires, tar
and creosote may be deposited in the chimney
. Tar and creosote are highly combustible
substances. Thicker layers of these
substances may catch fire if the temperature in
the chimney increases suddenly. By allowing
the fire to burn very intensely regularly, layers
of tar and creosote will disappear.
Low intensity fires also cause tar deposits on
the stove window and door.
When the outside temperature is not very low,
it is better to burn wood intensely for a few
hours instead of having a low intensity fire for a
long period of time.
12 Subject to change because of technical improvements

Control the air supply with the secondary air inlet.
The secondary air inlet not only supplies air to
the fire but to the glass as well, so that it does
not quickly become dirty.
Open the primary air inlet for the time being if the air
supply by the secondary air inlet is inadequate or if
you want to fan the fire.
It is better to add a small amount of logs regularly
than to add many logs at the same time.
Extinguishing the fire
Do not add fuel and just let the fire go out. If a fire is
damped down by reducing the air supply, harmful
substances will be released. For this reason, the fire
should be allowed to go out naturally. Keep an eye on
the fire until it has gone out. All air inlets can be closed
once the fire has died completely.
Removing ashes
After the wood has been burnt, a relatively small
amount of ashes is left over. This bed of ashes is a
good insulating layer for the stove base plate and
improves combustion. It is good to leave a thin layer
of ashes on the stove base plate.
The flow of air through the fire plate must not be
obstructed, however, and no ash may be allowed to
accumulate behind a cast-iron inner plate. Remove
the excess ash regularly.
1. Open the appliance door and use the scraper to
open the ash removal port in the bottom of the fire
compartment.
2. Using the scraper, sweep the excess ashes
through the ash removal port into the ash pan
underneath.
3. Close the ash removal port.
4. Remove the ashtray (see next figure) using the
glove provided and empty the ashtray.
5. Replace the ash pan and close the stove door.
Fog and mist
Fog and mist hinder the flow of flue gases through the
flue. Smoke can blow back and cause a stench. If it is
not strictly necessary, it is better not to use the stove
in foggy and misty weather.
Subject to change because of technical improvements 13

Solving problems
Refer to the appendix "Diagnostic diagram" to resolve
any problems in using the stove.
To reach the nominal output, approximately 2
kg of fuel needs to be burnt every 45 minutes.
Maintenance
Follow the maintenance instructions in this chapter to
keep the stove in good condition.
Chimney
In many countries, you are required by law to have
your chimney checked and maintained.
At the beginning of the heating season: have the
chimney swept by an expert.
During the heating season and after the chimney
has not been used for a long time: have the
chimney checked for soot deposits.
After the heating season: seal off the chimney with
a ball of paper.
Cleaning and other regular
maintenance activities
Do not clean the stove when it is still warm.
Clean the exterior of the stove with a dry lint-free
cloth.
You can clean the stove interior thoroughly at the end
of the heating season:
If necessary, first remove the fire-resistant inner
plates. See the chapter "Installation" for
instructions on removing and installing the inner
plates.
If necessary, clean the air supply ducts. Remove
the top plate to this end. The top plate lies loosely
on the appliance.
If required, remove the baffle plate at the top of the
appliance and clean it.
Remove and install baffle plate
Unscrew the clamping plate on the front of the baffle
plate. Lift the baffle plate from the support and tilt the
baffle plate out of the appliance. Please ensure that
the rear of the baffle plate properly connects to the air
tunnel at the back of the appliance when reinstalling.
Checking fire-resistant inner plates
The fire-resistant inner plates are consumables and
subject to wear . Check the fire-resistant inner plates
frequently and replace them when necessary.
See the chapter "Installation" for instructions on
removing and installing the inner plates.
The insulating vermiculite or chamotte inner
plates may develop hairline cracks, but this
does not affect their performance adversely.
Cast-iron inner plates last a long time if you
remove frequently the ash that can accumulate
behind them. If accumulated ash behind the
cast-iron plate is not removed, the plate will no
longer be able to dissipate the heat to the
surroundings and this may cause the plate to
warp or crack.
Never use the stove without the fire-resistant
inner plates.
Cleaning glass
Dirt clings less easily to well-cleaned glass. Proceed
as follows:
14 Subject to change because of technical improvements

1. Remove dust and loose soot with a dry cloth.
2. Clean the glass with stove glass cleaner:
a. Apply stove glass cleaner to a kitchen sponge,
rub down the entire glass surface and give the
cleaning agent time to react.
b. Remove the dirt with a moist cloth or kitchen
tissue.
3. Clean the glass again with a normal glass cleaning
product.
4. Rub the glass clean with a dry cloth or kitchen
tissue.
Do not use abrasive or aggressive products to
clean the glass.
Wear household gloves to protect your hands.
If the glass in the appliance is broken or
cracked, it must be replaced before you can
use the appliance again.
Make sure that no stove window cleaner runs
between the glass and the cast-iron door.
Lubrication
Although cast-iron is slightly self-lubricating, you will
still need to lubricate moving parts frequently.
Lubricate the moving parts (such as guide
systems,hinge pins, latches and air slides) with
heat resistant grease that is available in the
specialist trade.
Touching-up the paint finish
Small areas of damaged paint finish can be touched-
up with a spray can of special heat-resistant paint,
available from your supplier.
Areas of damaged enamel can be touched up with a
special heat-resistant paint finish that is available
from your supplier.
Checking the seal
Check whether the door sealing rope is still in good
condition and works well. The sealing rope is
subject to wear and will need to be replaced over
time.
Check the appliance for air leaks. Close any
chinks with stove sealant.
Allow the sealant to harden fully before lighting
the stove, as any moisture in the sealant will
form bubbles, resulting in a new air leak.
Subject to change because of technical improvements 15

Appendix 1: Technical Data
Model / Modèle / Modell Astro 3 / Astro 4
Nominaal vermogen / Puissance nominale /
Nominal heat output / Nominalleistung 8 kW
Schoorsteenaansluiting (diameter) /
Raccordement cheminée (diamètre) / Connection
to chimney (diameter) / Schornsteinanschluss
(Diameter)
150 mm
Gewicht / Poids / Weight +/- 140 kg
Aanbevolen brandstof / Combustible conseillés /
Recommended fuel / Empfohlene Brennstoffe Hout / Bois / Wood / Holz
Kenmerk brandstof / caractéristique combustible /
Fuel property / Kennzeichen Brennstoffe maximum length 25 cm
Massadebiet van rookgassen / Débit des fumées
/ Flue gas mass flow / Abgasstutzentemperatuur 7.5 g/s
Rookgastemperatuur gemeten in de meetsectie /
Température des fumées au niveau du tronçon de
mesure / Flue gas temperature measured in the
test measurement section / Abgas-temperatur
gemessen in der Messstrecke
299 °C
Temperatuur gemeten aan de uitgang van het
toestel / température en aval de la buse /
Temperature directly downstream flue spigot /
Abgastemperatur gemessen im Abgasstutzen
367 °C
Minimum trek / Dépression minimal / Minimum
draught / Mindesförderdruck 12 Pa
% CO (13% O2) 0.09 %
% NOx (13% O2) 160 mg/Nm³
CnHm (13% O2) 70 mg/Nm³
Stof-emissie/ articulate-emission / Particulate
emission / Staub Emission 23 mg/Nm³
Stof-emissie volgens NS3058-NS3059 /
émissions selon la norme NS3058-NS3059 /
Particulate emission according to NS3058-
NS3059 / Staub Emission gemessen nach
NS3058-NS3059
2.7 g/kg
Rendement / Rendement / Efficiency /
Wirkungsgrad 76.4 %
16 Subject to change because of technical improvements

Appendix 2: Measurements
ASTRO 3CBP
Subject to change because of technical improvements 17

ASTRO 3CBWB
18 Subject to change because of technical improvements

ASTRO 4CBP
Subject to change because of technical improvements 19
