Draper PT142K User manual

INSTRUCTIONS FOR
135W 230
V
Multi-Tool Ki
t
with Flexible Drive Shaf
t
Stock No.53111 Part No.PT142
K
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND
EFFECTIVE USE OF THIS PRODUCT.
GENERAL INFORMATION
These instructions accompanying the product are the original instructions. This document is part of the product, keep it
for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed, and
contains all the necessary information to ensure its correct and safe use. By following all the general safety instructions
contained in this manual, it will ensure both product and operator safety, together with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.

1. TITLE PAGE
1.1 INTRODUCTION:
USER MANUAL FOR:
135W 230V MULTI-TOOL KIT WITH FLEXIBLE DRIVE SHAFT
Stock no. 53111
Part no. PT142K
1.2 REVISIONS:
As our user manuals are continually updated, users should make sure that they use the very
latest version.
Downloads are available from: http://www.drapertools.com/b2c/b2cmanuals.pgm
DRAPER TOOLS LIMITED WEBSITE: www.drapertools.com
HURSLEY ROAD PRODUCT HELPLINE: [phone]
CHANDLER’S FORD GENERAL FAX: [phone]
EASTLEIGH
HAMPSHIRE
SO53 1YFUK
1.3 UNDERSTANDING THIS MANUALS SAFETY CONTENT:
WARNING! Information that draws attention to the risk of injury or death.
CAUTION! Information that draws attention to the risk of damage to the product or
surroundings.
1.4 COPYRIGHT © NOTICE:
Copyright © Draper Tools Limited.
Permission is granted to reproduce this publication for personal & educational use only.
Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in any other
form or means without written permission from Draper Tools Limited.
In all cases this copyright notice must remain intact.
Date first published May 2014

2. CONTENTS
3
2.1 CONTENTS
Page content Page
1 TITLE PAGE
1.1 INTRODUCTION ............................................................................................... 2
1.2 REVISION HISTORY........................................................................................... 2
1.3 UNDERSTANDING THIS MANUAL ................................................................... 2
1.4 COPYRIGHT NOTICE......................................................................................... 2
2 CONTENTS
2.1 CONTENTS ........................................................................................................ 3
3 GUARANTEE
3.1 GUARANTEE ..................................................................................................... 4
4 INTRODUCTION
4.1 SCOPE ............................................................................................................... 5
4.2 SPECIFICATION ................................................................................................. 5
4.3 HANDLING & STORAGE ................................................................................... 5
5 HEALTH & SAFETY INFORMATION
5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE ............................ 6
5.2 ADDITIONAL SAFETY INSTRUCTIONS.............................................................. 7A
5.3 CONNECTION TO THE POWER SUPPLY ........................................................... 7A
6 TECHNICAL DESCRIPTION
6.1 IDENTIFICATION ............................................................................................... 8B
7 UNPACKING & CHECKING
7.1 PACKAGING...................................................................................................... 8A
7.2 WHAT’S IN THE BOX ........................................................................................ 8A
8 BASIC MULTI-TOOL OPERATIONS
8.1 ACCESSORY INSTALLATION/REPLACEMENT ................................................... 9
8.2 FITTING FLEXIBLE DRIVE SHAFT ...................................................................... 9
8.3 ON AND OFF SWITCH....................................................................................... 9
9 BASIC MULTI-TOOL OPERATIONS
9.1 APPLICATIONS.................................................................................................. 10
9.2 HOLDING THE TOOLS....................................................................................... 10
9.3 FITTING A CUTTING/SANDING DISC ................................................................ 10
9.4 FITTING THE SANDING DRUMS ....................................................................... 10
10 MAINTENANCE
10.1 .......................................................................................................................... 11
11 OPTIONAL ACCESSORIES.................................................................................................... 12
12 EXPLANATION OF SYMBOLS
12.1 EXPLANATION OF SYMBOLS ........................................................................... 13
13 DISPOSAL
13.1 DISPOSAL ......................................................................................................... 14
DECLARATION OF CONFORMITY .....................................................................................ENCLOSED

4
3. GUARANTEE
3.1 GUARANTEE
Draper tools have been carefully tested and inspected before shipment and are guaranteed
to be free from defective materials and workmanship.
Should the tool develop a fault, please return the complete tool to your nearest distributor
or contact Draper Tools Limited, Chandler's Ford, Eastleigh, Hampshire, SO53 1YF. England.
Telephone: [phone].
A proof of purchase must be provided with the tool.
If upon inspection it is found that the fault occurring is due to defective materials or
workmanship, repairs will be carried out free of charge. This guarantee period covering
parts/labour is 12 months from the date of purchase. The guarantee is extended to 24
months for parts only. This guarantee does not apply to normal wear and tear, nor does it
cover any damage caused by misuse, careless or unsafe handling, alterations, accidents, or
repairs attempted or made by any personnel other than the authorised Draper warranty
repair agent.
Note: If the tool is found not to be within the Terms of Warranty, repair and carriage charges
will be quoted and made accordingly.
This guarantee applies in lieu of any other guarantee expressed or implied and variations of
its terms are not authorised.
Your Draper guarantee is not effective unless you can produce upon request a dated receipt
or invoice to verify your proof of purchase within the guarantee period.
Please note that this guarantee is an additional benefit and does not affect your statutory
rights.
Draper Tools Limited.
Note: This tool is intended for domestic use only.

5
4. INTRODUCTION
4.1 SCOPE
Ideal for hobby work-tasks such as drilling, milling, grinding, engraving, cutting, polishing,
sharpening, buffing and removing rust.
4.2 SPECIFICATION
Stock No...............................................................................................................................53111
Part No. ............................................................................................................................. PT142K
Rated voltage .............................................................................................................230V~50Hz
Rated input.......................................................................................................................... 135W
Speed (no load) ............................................................................................. 10,000-35,000min-1
Collet capacity ..........................................................................................3(2.0, 2.4, and 3.0mm)
Sound pressure level ....................................................................................................... 77dB(A)
Sound power level .......................................................................................................... 88dB(A)
Vibration level...................................................................................................................2.3m/s2
Weight (Excluding Accessories)............................................................................................700g
4.3 HANDLING & STORAGE
Take care when handling and lifting. Do not drop this machine.
Store in a dry location out of the reach of children.

5.1 GENERAL POWER TOOL SAFETY
WARNINGS
WARNING: Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result
in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your
mains operated (corded) power tool or battery-operated
(cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
b) Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords
increase the risk of electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of
electric shock.
f) If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk
of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the influence of drugs, alcohol or medication. A
moment of inattention while operating power
tools may result in serious personal injury.
b) Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will
reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch
is in the off position before connecting to power
source and/or battery pack, picking up or
carrying the tool. Carrying power tools with your
finger on the switch or energising power tools
that have the switch on invites accidents.
d) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
e) Do not overreach. Keep proper footing and
balance at all times. This enables better control of
the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewellery
or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust
extraction and collection facilities, ensure these
are connected and properly used. Use of these
devices can reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
b) Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must
be repaired.
c) Disconnect the plug from the power source
and/or battery pack from the power tool before
making any adjustments, changing accessories,
or storing power tools. Such preventive safety
measures reduce the risk of starting the power
tool accidentally.
d) Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are
dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and
any other condition that may affect the power
tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are
caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting
edges are less likely to bind and are easier
to control.
g) Use the power tool, accessories and tool
bits etc. in accordance with these
instructions, taking into account the
working conditions and the work to be
performed. Use of the power tool for
operations different from those intended
could result in a hazardous situation.
5) Service
a) Have your power tool serviced by a
qualified repair person using only identical
replacement parts. This will ensure that the
safety of the power tool is maintained.
5. HEALTH & SAFETY INFORMATION
6

5.2 ADDITIONAL SAFETY INSTRUCTIONS
- Wear ear protectors with impact drills. Exposure to noise can cause hearing loss.
- Use auxiliary handles supplied with the tool. Loss of control can cause personal injury.
- Wear eye protection.
- Wear dust mask.
5.3 CONNECTION TO THE POWER SUPPLY
Make sure the power supply information on the machine’s rating plate are compatible
with the power supply you intend to connect it to.
This drill comes supplied with a UK standard 3 pin plug fitted. It is designed for connection
to a domestic power supply rated at 230V AC.
It is a Class 2 machine (double insulated); is designed for connection to a power supply
matching that detailed on the rating label and compatible with the plug fitted.
If an extension lead is required, use an approved and compatible lead rated for this
appliance. Follow all the instruction supplied with the extension lead.
This product requires no earth connection as supplementary insulation is applied to the
basic insulation to protect against electric shock in the event of failure of the basic
insulation.
Apart from replacing the fuse in the plug, no other electrical work is recommended on this
drill.
10
5. HEALTH & SAFETY INFORMATION
7A
9. BASIC MULTI-TOOL OPERATIONS
8.4 APPLICATIONS:
Your multi-tool can be used for drilling, grinding,
polishing, milling and brushing. Other jobs like
engraving, cutting and removing rust are also possible. It
can be used on most wood, metal, glass and ceramics.
It is a good idea to practice on a scrap piece of material.
Best results are achieved by an even speed and pressure
(not too hard). Use lower speeds for larger tools and
higher speeds for smaller tools.
WARNING: Excessive force on this machine will cause
the motor to overheat and fail. This is not covered by
the guarantee.
8.5 HOLDING THE TOOL - FIGS. 5 - 6
For jobs such as milling or engraving where precision is
required, hold the multi-tool like a pen.
Care should be taken not to fully cover exhaust vents.
Covering the vents will cause the machine to overheat
and fail.
For heavier work like cutting or grinding hold the
multi-tool in the palm of your hand.
8.5 FITTING A CUTTING/SANDING DISC - FIG. 7
With the disc holder  in the chuck, remove the screw
using the plain slot screwdriver (incorporated in the
spanner handle tip). Remove one of the spacing washers
from the end. Insert the screw through the cutting disc,
the washer and secure into the holder (Do not over
tighten).
8.6 FITTING THE SANDING DRUMS - FIG. 8
To fit a drum , firstly loosen the small screw in the
top of the holder . This will allow the rubber to
relax. Slide the sanding drum onto the holder. To secure
simply tighten the screw and the rubber drum will swell,
gripping the drum. (Do not over tighten).
FIG.7

FIG.8 

FIG.5
FIG.6

7B
- Blank page -





 
 







 
7. UNPACKING & CHECKING
9
7.1 PACKAGING
Carefully remove the multi-tool from the packaging and examine it for any sign of damage
that may have happened during shipping. Lay the contents out and check them against the
parts shown below. If any part is damaged or missing; please contact the Draper Helpline
(the telephone number appears on the Title page) and do not attempt to use the product.
The packaging material should be retained at least during the guarantee period: in case the
machine needs to be returned for repair.
Warning! Some of the packaging materials used may be harmful to children. Do not leave
any of these materials in the reach of children.
If any of the packaging is to be thrown away, make sure they are disposed of correctly;
according to local regulations.
7.2 WHAT´S IN THE BOX?
As well as the multi-tool; there are several parts not fitted or attached to it.
8. BASIC MULTI-TOOL OPERATIONS
8A
 Flexible shaft
 Collets x3
 Collet spanner/ plain slot
screwdriver
Bristle brush
 Holder for
cutting/sanding/grinding
discs
 Holder for felt polishing
wheels.
 Diamond grinding point x3
 Holder for large sanding
drum
 Holder for small sanding
drum
 HSS drill bits (2.0, 2.4 &
3.0mm) x3
 Brass wheel
 Large felt polishing wheel x5
Small felt polishing wheel x5
 Cut off wheel (Ø 22mm x 1mm) x25
Fine polishing disc (600 Grit-green) x12
Sanding disc (180 Grit-red) x10
Large sanding drum (120 Grit) x8
Small sanding drum (120 Grit) x8
Aluminium oxide grinding point x10
Sharpening stone
NOTE: To ensure safe use do not use the polishing wheels faster than 25,000rpm:
When you purchase additional accessories check the safe working speed is compatible with
the tool.
8.1 ACCESSORY INSTALLATION/ REPLACEMENT
- FIG. 1
This Multi-Tool is designed for use with 1.9, 2.3 & 3.0mm
shank accessories only.
WARNING: Use bits of the correct shank diameter suitable
for the speed of the tool.
Selection of the correct accessory, suitable for the
intended application is vital. Seek guidance if uncertain of
selection.
Press the spindle lock button  and unscrew the collet
nut  using the spanner supplied.
Choose from the collets provided, the appropriate size for
the accessory shank. If the size is not known insert the bit
into the collet. The collet which offers a machine fit to the
shank is the correct one to use. Do not force the bit into
the collet.
Place the collet into the spindle before loosely replacing
the collet nut .
Slide the accessory in as far as possible before tightening
the collet nut. Press the spindle lock button  and
tighten the collet nut with the spanner provided to lock
the bit in place. If the accessory seems loose, reduce the
collet size to ensure the bit is secured correctly.
NOTE: Do not overtighten the collet nut
To lock the spindle inside the flexible shaft , pull back
on the colar .
8.2 FITTING FLEXIBLE DRIVE SHAFT -
FIGS. 2 - 3
Remove collar . Depressing spindle lock button  and
loosen the collet nut. Install the 3.0mm collet and loosely
replace the collet nut.
Insert the flexible drive shaft rod  into the collet
chuck and lock. Screw the drive shaft collar  onto
housing.
8.3 SWITCHING ON AND OFF - FIG. 4
Press switch  into the 'I' position. This will start the
machine. Press switch to the 'O' position - this will stop the
machine.
Using the variable speed dial  will enable you to alter
the speed of the collet chuck:
Position 1 - SLOW
Position 3 - MEDIUM
Position 6 - FAST
Select the correct speed for the work and type of bit you
are using.
FIG.1
FIG.2
FIG.3








FIG.4
- Collets x5 changed to Collets x3 29/07/14 AN

6. TECHNICAL DESCRIPTION
8B
6.1 IDENTIFICATION







 Hook
 On/Off Switch
 Spindle Lock
 Collar
 Collet nut
 Variable Speed Dial
 Moulded Plug and Cable
Manufacture change





 
 







 
7. UNPACKING & CHECKING
9
7.1 PACKAGING
Carefully remove the multi-tool from the packaging and examine it for any sign of damage
that may have happened during shipping. Lay the contents out and check them against the
parts shown below. If any part is damaged or missing; please contact the Draper Helpline
(the telephone number appears on the Title page) and do not attempt to use the product.
The packaging material should be retained at least during the guarantee period: in case the
machine needs to be returned for repair.
Warning! Some of the packaging materials used may be harmful to children. Do not leave
any of these materials in the reach of children.
If any of the packaging is to be thrown away, make sure they are disposed of correctly;
according to local regulations.
7.2 WHAT´S IN THE BOX?
As well as the multi-tool; there are several parts not fitted or attached to it.
8. BASIC MULTI-TOOL OPERATIONS
8A
 Flexible shaft
 Collets x3
 Collet spanner/ plain slot
screwdriver
Bristle brush
 Holder for
cutting/sanding/grinding
discs
 Holder for felt polishing
wheels.
 Diamond grinding point x3
 Holder for large sanding
drum
 Holder for small sanding
drum
 HSS drill bits (2.0, 2.4 &
3.0mm) x3
 Brass wheel
 Large felt polishing wheel x5
Small felt polishing wheel x5
 Cut off wheel (Ø 22mm x 1mm) x25
Fine polishing disc (600 Grit-green) x12
Sanding disc (180 Grit-red) x10
Large sanding drum (120 Grit) x8
Small sanding drum (120 Grit) x8
Aluminium oxide grinding point x10
Sharpening stone
NOTE: To ensure safe use do not use the polishing wheels faster than 25,000rpm:
When you purchase additional accessories check the safe working speed is compatible with
the tool.
8.1 ACCESSORY INSTALLATION/ REPLACEMENT
- FIG. 1
This Multi-Tool is designed for use with 1.9, 2.3 & 3.0mm
shank accessories only.
WARNING: Use bits of the correct shank diameter suitable
for the speed of the tool.
Selection of the correct accessory, suitable for the
intended application is vital. Seek guidance if uncertain of
selection.
Press the spindle lock button  and unscrew the collet
nut  using the spanner supplied.
Choose from the collets provided, the appropriate size for
the accessory shank. If the size is not known insert the bit
into the collet. The collet which offers a machine fit to the
shank is the correct one to use. Do not force the bit into
the collet.
Place the collet into the spindle before loosely replacing
the collet nut .
Slide the accessory in as far as possible before tightening
the collet nut. Press the spindle lock button  and
tighten the collet nut with the spanner provided to lock
the bit in place. If the accessory seems loose, reduce the
collet size to ensure the bit is secured correctly.
NOTE: Do not overtighten the collet nut
To lock the spindle inside the flexible shaft , pull back
on the colar .
8.2 FITTING FLEXIBLE DRIVE SHAFT -
FIGS. 2 - 3
Remove collar . Depressing spindle lock button  and
loosen the collet nut. Install the 3.0mm collet and loosely
replace the collet nut.
Insert the flexible drive shaft rod  into the collet
chuck and lock. Screw the drive shaft collar  onto
housing.
8.3 SWITCHING ON AND OFF - FIG. 4
Press switch  into the 'I' position. This will start the
machine. Press switch to the 'O' position - this will stop the
machine.
Using the variable speed dial  will enable you to alter
the speed of the collet chuck:
Position 1 - SLOW
Position 3 - MEDIUM
Position 6 - FAST
Select the correct speed for the work and type of bit you
are using.
FIG.1
FIG.2
FIG.3








FIG.4
- Collets x5 changed to Collets x3 29/07/14 AN

5.2 ADDITIONAL SAFETY INSTRUCTIONS
- Wear ear protectors with impact drills. Exposure to noise can cause hearing loss.
- Use auxiliary handles supplied with the tool. Loss of control can cause personal injury.
- Wear eye protection.
- Wear dust mask.
5.3 CONNECTION TO THE POWER SUPPLY
Make sure the power supply information on the machine’s rating plate are compatible
with the power supply you intend to connect it to.
This drill comes supplied with a UK standard 3 pin plug fitted. It is designed for connection
to a domestic power supply rated at 230V AC.
It is a Class 2 machine (double insulated); is designed for connection to a power supply
matching that detailed on the rating label and compatible with the plug fitted.
If an extension lead is required, use an approved and compatible lead rated for this
appliance. Follow all the instruction supplied with the extension lead.
This product requires no earth connection as supplementary insulation is applied to the
basic insulation to protect against electric shock in the event of failure of the basic
insulation.
Apart from replacing the fuse in the plug, no other electrical work is recommended on this
drill.
10
5. HEALTH & SAFETY INFORMATION
7A
9. BASIC MULTI-TOOL OPERATIONS
8.4 APPLICATIONS:
Your multi-tool can be used for drilling, grinding,
polishing, milling and brushing. Other jobs like
engraving, cutting and removing rust are also possible. It
can be used on most wood, metal, glass and ceramics.
It is a good idea to practice on a scrap piece of material.
Best results are achieved by an even speed and pressure
(not too hard). Use lower speeds for larger tools and
higher speeds for smaller tools.
WARNING: Excessive force on this machine will cause
the motor to overheat and fail. This is not covered by
the guarantee.
8.5 HOLDING THE TOOL - FIGS. 5 - 6
For jobs such as milling or engraving where precision is
required, hold the multi-tool like a pen.
Care should be taken not to fully cover exhaust vents.
Covering the vents will cause the machine to overheat
and fail.
For heavier work like cutting or grinding hold the
multi-tool in the palm of your hand.
8.5 FITTING A CUTTING/SANDING DISC - FIG. 7
With the disc holder  in the chuck, remove the screw
using the plain slot screwdriver (incorporated in the
spanner handle tip). Remove one of the spacing washers
from the end. Insert the screw through the cutting disc,
the washer and secure into the holder (Do not over
tighten).
8.6 FITTING THE SANDING DRUMS - FIG. 8
To fit a drum , firstly loosen the small screw in the
top of the holder . This will allow the rubber to
relax. Slide the sanding drum onto the holder. To secure
simply tighten the screw and the rubber drum will swell,
gripping the drum. (Do not over tighten).
FIG.7

FIG.8 

FIG.5
FIG.6

10. MAINTENANCE
10.1 MAINTENANCE
NOTE: Remove the plug from the socket before carrying out adjustment, servicing or
maintenance.
The Multi-Tool does not require any special maintenance. Regularly clean/vacuum the
ventilation slots. Use only a mild cleaner and a damp cloth to clean the tool.
11

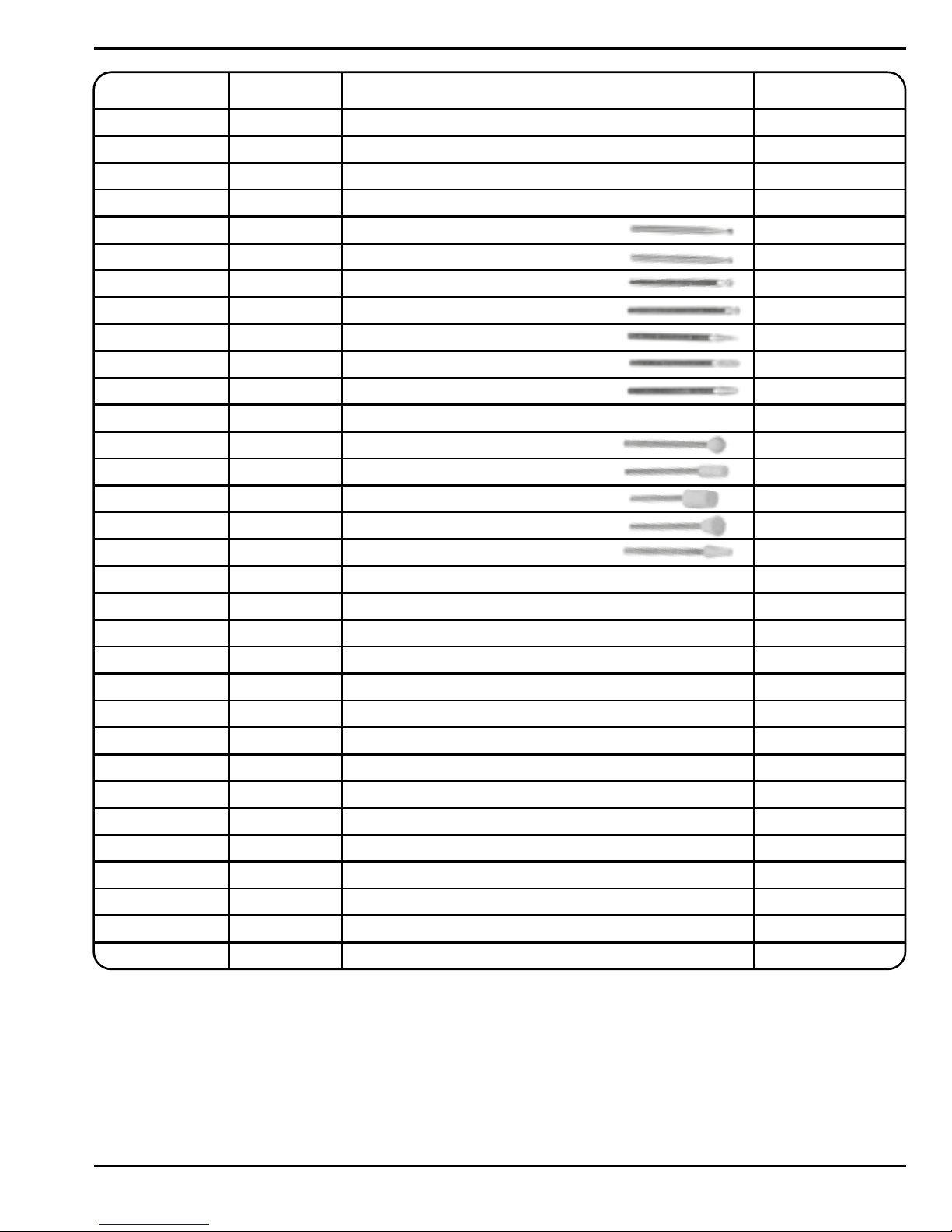

Stock No. Part No. Description Packed Qty
44479 APT41A Wire Brush 1
44480 APT42A Bristle Brush 1
44460 APT43A Holder for Cutting/Sanding/Grinding Disc 1
44473 APT44A Holder for Felt Wheels 1
44475 APT46A Milling Point 1
44476 APT47A Milling Point 1
44467 APT48A Diamond Grinding Point 1
44471 APT49A Diamond Grinding Point 1
44469 APT50A Diamond Grinding Point 1
44466 APT51A Diamond Grinding Point 1
44470 APT52A Diamond Grinding Point 1
63073 APT57 HSS Drill Bit 2.0mm 1
44465 APT59A Grinding Point 80 Grit 1
44461 APT60A Grinding Point 80 Grit 1
44462 APT61A Grinding Point 80 Grit 1
44463 APT62A Grinding Point 80 Grit 1
44464 APT63A Grinding Point 80 Grit 1
44456 APT66A Cutting Disc 120 Grit 0.64mm 30
44472 APT67A Felt Polishing Wheel 24mmØ 3
44475 APT68A Cloth Polishing Wheel 1
44454 APT69A Grinding Wheel 80 Grit 6
44477 APT71A Brass Wheel 1
44478 APT72A Bristle Wheel 1
86847 APT94 Sanding Drum 80 Grit (Large) 6
87366 APT102 Sanding Drum 150 Grit (Large) 6
86850 APT95 Holder for Sanding Drums (Large) 1
86851 APT96 1.6mm Collet 1
86852 APT97 2.0mm Collet 1
86853 APT98 2.4mm Collet 1
86854 APT99 3.0mm Collet 1
86855 APT100 3.2mm Collet 1
86856 APT101 Spanner/Plain Slot screwdriver 1
11. OPTIONAL ACCESSORIES
12

12. EXPLANATION OF SYMBOLS
13
11.1 EXPLANATION OF SYMBOLS
WEEE
Do not dispose of Waste Electrical
& Electronic Equipment in with
domestic rubbish
Class II construction
(Double insulated)
Warning!
Read the instruction manual
Warning!
Wear ear defenders (During grinding
operations).
Warning!
Wear suitable respiratory protection.
Warning!
Wear suitable respiratory protection.

14
13. DISPOSAL
13.1 DISPOSAL
- At the end of the machine’s working life, or when it can no longer be repaired, ensure
that it is disposed of according to national regulations.
- Contact your local authority for details of collection schemes in your area.
In all circumstances:
• Do not dispose of power tools with domestic waste.
• Do not incinerate.
• Do not abandon in the environment.
• Do not dispose of WEEE*
as unsorted municipal waste.
* Waste Electrical & Electronic Equipment.

1
5
NOTES

CONTACTS
- DRAPER TOOLS LIMITED,
Hursley Road, Chandler's Ford,
Eastleigh, Hampshire. SO53 1YF. U.K.
- Helpline: [phone]
- Sales Desk: [phone]
- Internet: www.drapertools.com
- E-mail: [email protected]
- Sales Fax: [phone]
- General Enquiries: [phone]
- Service/Warranty Repair Agent
For aftersales servicing or warranty repairs, please
contact the Draper Tools Helpline for details of an
agent in your local area.
YOUR DRAPER STOCKIST
RDKC170614
