Dreame VTT1 User manual

Dreame
Cordless Vacuum Cleaner
User Manual

THANK YOU
FOR PURCHASING THIS DREAME
VACUUM CLEANER.
With it you are obtaining a high quality product that is engineered for
optimal performance. If you have any questions on the product, please
contact us: [e-mail].
Registration Quick Start
Welcome to register a Dreame account
by scanning the QR code.
You are available for the User Manual
and Special Ofers.

User Manual
Benutzerhandbuch
Manuel d'utilisation
Manuale utente
Manual de usuario
Руководство пользователя
Instrukcja Obsługi
1
27
55
82
108
136
165
191
216
EN
IT
DE
ES
SA
FR
RU
PL
HE
دختسم يد
שמתשמל ךירדמ

1
Saety Instructions
Warning
• This product can be used by children aged rom 8 years and above and persons
with physical, sensory, intellectual deiciencies, or limited experience or knowledge
under the supervision o a parent or guardian to ensure sae operation and to
avoid any risk o hazards. Cleaning and maintenance shall not be made by children
without supervision.
• The vacuum is not a toy. Children shall not play with or operate this product. Please
exercise caution when using the vacuum near children. Do not allow children to
clean or maintain the vacuum unless supervised by a parent or guardian.
• Do not use the vacuum outdoors or on wet suraces. Only use the vacuum on dry
indoor suraces. Do not touch the plug or any part o the vacuum with wet hands.
• To reduce the risk o ire, explosion, or injury, check to make sure the lithium
battery and charging adapter are undamaged beore use. Do not use the vacuum i
either the lithium battery or charger is damaged.
• The smart multi-brush bar, mini electric brush, battery, carbon iber rod, and
vacuum are electrically conductive and should not be immersed in water or other
liquid. Make sure to dry all ilters ater cleaning.
• Prevent injury caused by moving parts. Turn o the vacuum beore cleaning the
smart multi-brush bar. The smart multi-brush bar, dust cup and ilter must all be
properly installed beore using the vacuum.
• Only use the original charging adapter. Never use an unoriginal adapter, as this
may cause the lithium battery to catch ire.
• Do not use the vacuum to pick up lammable or combustible liquids, such as
gasoline, or bleach, ammonia, drain cleaners or other liquids.
• Do not use the vacuum to pick up sharp or hard objects, such as glass, nails,
screws, or coins, which may damage the machine. Do not use the vacuum to pick
up drywall particles, ashes like ireplace ash, or smoking or burning materials such
as coal, cigarette butts, or matches.
• Check the area to be cleaned beore use. To prevent the openings rom being
blocked, clear the larger paper, spitball, plastic cloth or sharp objects (such as
glass, nails, screws, coins, etc.) and any object which is larger than openings.
• Keep hair, loose clothing, ingers and other parts o the body away rom the
vacuum's openings and moving parts. Do not point the hose, wand or tools at your
eyes or ears or put them in your mouth.
• Do not put any object into the vacuum's openings. Do not use the vacuum with
any opening blocked. Keep ree o dust, lint, hair, or other items which may reduce
airlow.
• Do not rest the vacuum against a chair, table, or other unstable surace, as this may
cause damage to the machine or personal injury.
To prevent accidents including electric shock or ire caused by improper use, please
read this manual careully beore use and retain it or uture reerence.
EN

2
• I the vacuum becomes damaged or is otherwise malunctioning, please contact
our authorized service department. Never attempt to disassemble the device on
your own.
• All instructions in the manual or recharging the battery must be strictly ollowed.
Failure to properly charge the battery within the speciied temperature range could
damage the battery.
• Make sure the vacuum is unplugged when not used or extended periods as well as
prior to perorming any maintenance or repairs.
• Please be extra careul when using the vacuum to clean stairs.
• Do not install, charge, or use this product outdoors, in bathrooms, or around a
pool.
• Fire Hazard Warning: Do not apply any type o ragrance to the vacuum's ilter.
These types o products are known to contain lammable chemicals which may
cause the vacuum to catch ire.
• Only use the original charger (Model ZD024M340090EU/ZD024M340090AU).
• Only use the approved battery type (Model P2033-8S1P-PAA).
• Do not use and store in extremely hot or cold environments (below 0℃ /32°F or
above 40℃/104°F). Please charge the cordless vacuum in temperature above 0℃
/32° F and below 40℃/104°F.
• This product is designed or home use only.
We Dreame Trading (Tianjin) Co., Ltd., hereby, declares that this equipment is in
compliance with the applicable Directives and European Norms, and amendments.
The ull text o the EU declaration o conormity is available at the ollowing internet
address: www.dreame-technology.com
For detailed e-manual, please go to https://www.dreame-technology.com/pages/
user-manuals-and-aqs
EN

3
Product Overview
Accessories
Note: The images in this manual are or illustrative purposes only. The actual product may
dier.
2-in-1 Charging
& Storage Mount
(Including screws ×2,
wall plugs ×2, and
mounting template
sticker )
Smart Multi-Brush BarCharger
LED Crevice NozzleCarbon Fiber Rod
Extension Hose
2-in-1 Brush NozzleFlexible Adapter Mini Electric BrushSot Dusting Brush
EN

4
Product Overview
Component Names
Display Screen
Antistatic Contact
Carbon Fiber Rod
Release Button
Brushbar Head Release
Button
Carbon Fiber Rod
Smart Multi-
Brush Bar
Charging Port
Dust Cup
LED Battery Status Indicator
On/O Switch
• Press to turn on
• Release to turn o
Battery Release Button
Dust Cup Bottom Cover
Release Button
EN

5
Product Overview
• The color o dust level indicator changes with the amount o inhaled dust.
• Residual time is or reerence only and it may be dierent rom the actual time.
Note:
Switching Suction Level
Press briely to switch the
suction level
Lock Status
Dust Level Indicator
Suction Level Status
Residual Running-Time
Dust Level Monitoring Curve
The color o curve changes
with the amount o dust in
real time
• Red: High
• Orange: Med
• Green: Low
Electronic Lock/Reset Filter
• Press briely to enter/exit
lock
• Press and hold or 1.5
seconds to enter the ilter
reset interace

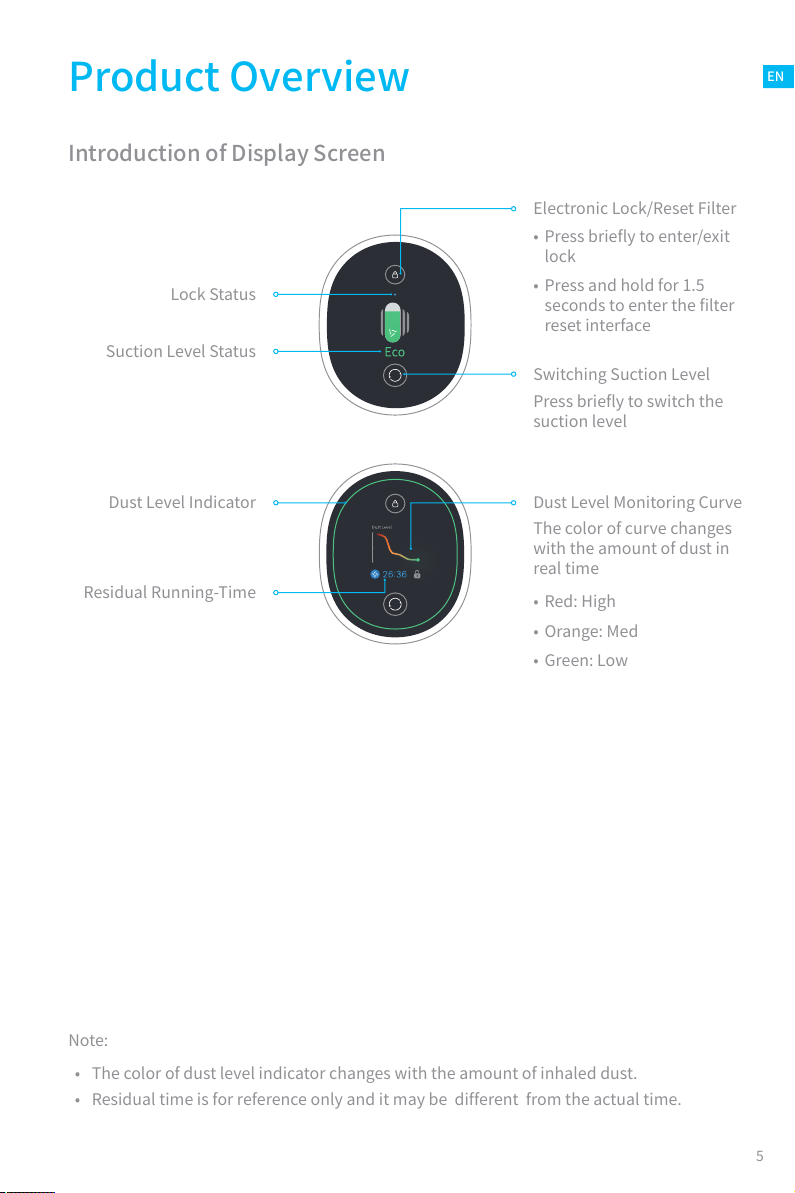

Introduction o Display Screen
EN

6
Installation
Vacuum Installation
Diagram
Click
Click
EN

7
Installation
Accessory Installation
Diagram
Click
Click
EN

8
Click Click
Click
Accessory Installation Diagram
Installation
EN

9
2-in-1 Charging & Storage Mount Installation Diagram
The 2-in-1 charging & storage mount is an optional accessory. You can install it based on
your needs.
*30 cm: Leave enough space just in case
you may need to purchase the replaceable
battery in the uture.
1. The bottom o the mounting template sticker should be level and at least 103 cm rom
the ground. The top should have at least 30 cm* o clearance above it.
2. Use a power drill with an 8 mm drill bit to drill a hole into each marker on the mounting
template sticker, then insert a wall plug into each hole.
3. Align the locating holes on the mount with the holes on the wall. Fasten it to the wall
with the included screws.
Note: The 2-in-1 charging & storage mount should be installed in a cool, dry place with
an electrical outlet nearby. Prior to installing, ensure that there are no electrical wires or
pipes in the space directly behind where the mount will be installed.
Installation
103 cm
30 cm
EN

10

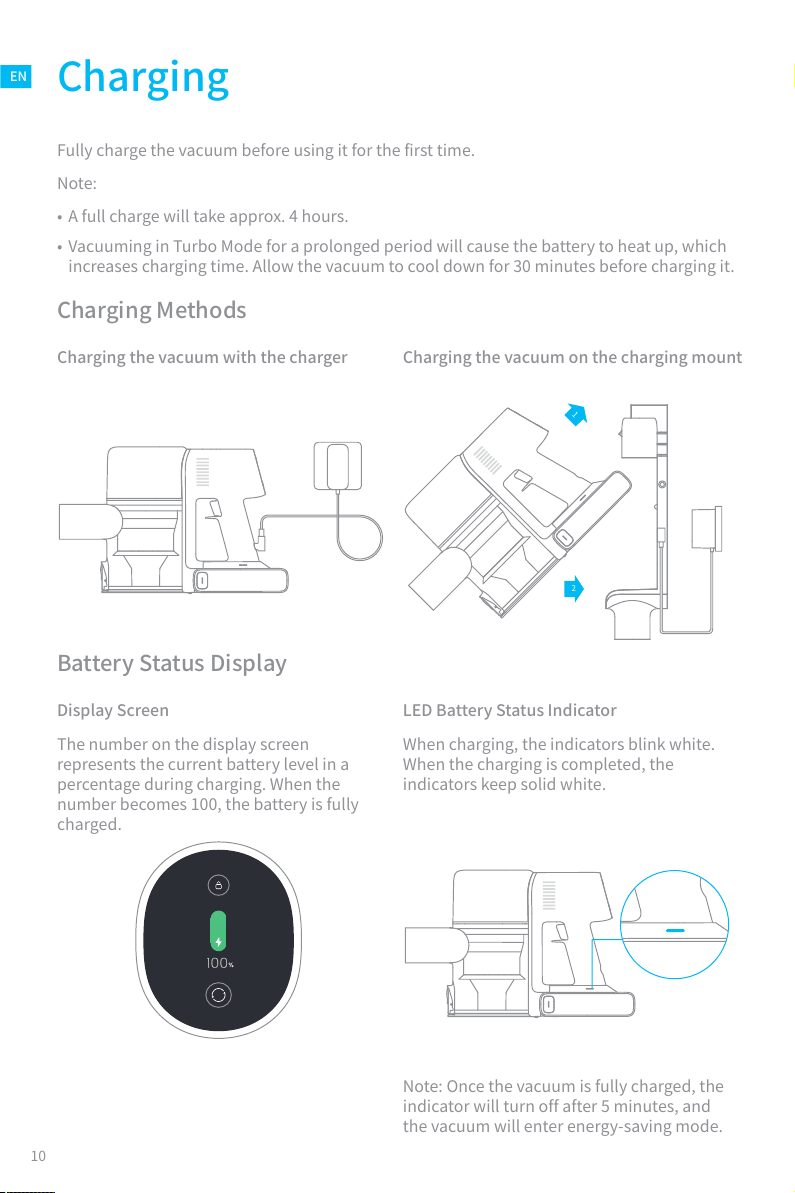

Charging
Note: Once the vacuum is ully charged, the
indicator will turn o ater 5 minutes, and
the vacuum will enter energy-saving mode.
Charging the vacuum with the charger Charging the vacuum on the charging mount
Charging Methods
1
2
LED Battery Status IndicatorDisplay Screen
Battery Status Display
When charging, the indicators blink white.
When the charging is completed, the
indicators keep solid white.
The number on the display screen
represents the current battery level in a
percentage during charging. When the
number becomes 100, the battery is ully
charged.
Fully charge the vacuum beore using it or the irst time.
• A ull charge will take approx. 4 hours.
• Vacuuming in Turbo Mode or a prolonged period will cause the battery to heat up, which
increases charging time. Allow the vacuum to cool down or 30 minutes beore charging it.
Note:
EN

11
How to Use
Setting Language
Note: Stop the vacuum at any time while cleaning. It will continue to use the last selected
suction level when starting again.
Switching Suction Level
Press the button to switch between our suction levels o auto, eco, med and turbo. The
corresponding suction level will be highlighted on the display screen.
The color o dust level indicator changes with the amount o inhaled dust. When the
smart multi-brush bar is attached, the vacuum will automatically switch the suction level
between the loor/tile and the carpet.
Press and hold the button or 3 seconds to enter the menu interace. Click the button
to switch to "Language". Press the button or 1 second to enter the language selection
interace. Click to scroll through the language list, select a language, and then press
and hold or 3 seconds to save your setting.
Cleaning Record
Press and hold the button or 3 seconds to enter the menu interace. Click the button
to switch to "Cleaning Record" and press the button or 1 second to enter the cleaning
record interace. Then you will see the cleaning record o the last 7 days.
• The display screen will return to the main page i there is no operation or more than 15 seconds.
• To exit the menu interace, click the button to select "Exit".
Note:
EN

12
How to Use
Working Methods
Note:
• In this mode, briely press the on/o switch to suspend the operation or start again and
the working mode o the vacuum will not change.
• Click the electronic lock again to quit Continuous Cleaning Mode.
Select rom two working methods or the vacuum, which can be selected based on your
own needs.
When the vacuum is running, it will monitor the amount o inhaled dust within 1 second.
The amount o dust will be displayed by the color o dust level monitoring curve on the
screen in real time.
Method 1: Discontinuous Cleaning Mode
Press and hold the switch o the vacuum to enable this mode, and release it to stop
immediately.
Method 2: Continuous Cleaning Mode (Electronic Lock)
Click the electronic lock key to switch to Continuous Cleaning Mode, and then briely
press the on/o switch to keep the vacuum in Continuous Cleaning Mode.
Use the electronic lock to ree your ingers rom atigue caused by holding the switch.
EN

13
Using Dierent Accessories
Smart Multi-Brush Bar
For cleaning loors such as marble, tile,
and low pile carpet. When Auto Mode is
activated, the vacuum will automatically
adjust its suction level depending on the
surace type.
Note: The smart multi-brush bar can be
attached directly to the vacuum.
Mini Electric Brush
For vacuuming dirt, pet hair, and other
stubborn debris rom soas, bedding, and
other abric suraces.
Note: It is not recommended to vacuum
on ragile suraces, such as silk.
How to Use
2-in-1 Brush Nozzle Sot Dusting Brush
For vacuuming dust rom curtains,
keyboards, ceilings, soas, vehicle
interiors, coee tables, etc.
Suitable or vacuuming on LCDs, keyboards,
lampshades, curtains, shutters and other
suraces o ragile objects.
EN

14
How to Use
Note:
• I any rotating part becomes stuck, the vacuum may shut o automatically. Remove any
trapped objects so the device can unction normally.
• When the battery becomes overheated, the vacuum will automatically shut o. Wait until
the battery temperature returns to normal, then the vacuum will work normally.
Extension Hose
It is suitable or vacuuming the corners that are not easily accessible such as drawers, cars
interior, and in the bottom o soa when used with sot dusting brush or 2-in-1 brush nozzle.
Flexible Adapter LED Crevice Nozzle
Bending and extending the rod with one
click can easily reach under low-lying
urniture, such as bed and soa.
The nozzle is equipped with a thin suction
opening and LED light. It is suitable or
vacuuming the debris in the narrow places.
EN

16
Care & Maintenance
3. Remove the pre-ilter irst, then lit the handle o the cyclone assembly and turn it
counterclockwise until it stops, then pull to lit out the cyclone assembly.
Note: It is recommended to clean the pre-ilter at least once every 3 months and the
cyclone system at least once every 6 months.
1
2
3
Pre-FilterCyclone Assembly
4. Wipe the dust cup with a sot wet cloth. Pay attention to wring out the dishcloth beore
using.
5. Rinse the cyclone assembly and pre-ilter until they are clean. Ater washing, air dry or
at least 24 hours .
12
6
111
57
210
48
39 24 hrs
To reduce the risk
o electric shock, do
not rinse the dust
cup with water.
EN
