Drew & Cole Barista Frothiere User manual

User Manual
Barista Frothiere
Barista Frothiere Manual.indd 1 17/11/2020 18:04

2SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY
Quick Start Guide
Preparing
Wash the lid and whisks
in hot soapy water then
rinse and dry.
Wash the inside of the jug in
hot soapy water.
IMPORTANT: Do not
immerse in water.
Wipe the outside of the jug
and power base with a damp
cloth and then dry.
Fitting the whisk
Whisk types
Slot the end of the whisk
onto the whisk shaft and
push down until it locks
in place.
Slide the whisk up the
shaft as far as it will go.
The whisk is now ready
for use.
Removing the whisk
Grip the metal shaft of the
whisk and lift upwards to
remove.
Frothing whisk
Use to froth hot
or cold milk.
Velvetiser whisk
Use to stir drinks for
a smoother texture.
IMPORTANT: Please read the Important Safeguards before using your appliance.
CAUTION: None of the parts of your Barista Frothiere are dishwasher safe. All parts
must be hand washed. NEVER immerse the jug or power base in any liquid.
Barista Frothiere Manual.indd 2 17/11/2020 18:04

3
SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY
Using your Barista Frothiere
Place your Barista
Frothiere on a stable
level heat resistant
surface.
Remove the jug from the
power base and lift the
lid off the jug.
Fill the jug with enough
liquid to go above the
Min line but not above
the Max line (200ml).
Place the lid back onto
the jug. Place the jug
back onto the power
base.
Select the required
mode (see below).
Check the recipes on
pages 15,16 & 17.
Press the start button
to begin the mode. The
start button will then
turn red.
Modes
Once the cycle has finished three audible
beeps will be heard and the start button
will go back to blue. Lift the jug off the
power base then remove the lid and pour
into a cup immediately.
Cold: Liquid is not heated.
Hot froth: Liquid is heated to
60ºC.
Hot chocolate: Liquid is heated
to 70ºC
Matcha: Liquid is heated to 80ºC
Barista Frothiere Manual.indd 3 17/11/2020 18:04

4SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY
Index
Important safeguards 05
Box contents 08
Parts of your Barista Frothiere 08
Preparing your Barista Frothiere 09
Fitting the whisk 10
Using your Barista Frothiere 11
Cleaning your Barista Frothiere 14
Recipes 15
Technical data 19
Topic
Barista Frothiere Manual.indd 4 17/11/2020 18:04

5
SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY
• Read all instructions
before using this
product.
• When using any
electrical appliance,
basic safety precautions
should always be
followed including the
following:
• Check that the voltage
of the main circuit
corresponds with the
rating of the appliance
before operating.
• Please ensure that the
appliance is used on a
stable, level, and heat
resistant surface.
• DO NOT immerse cords,
plugs or any part of the
appliance in water or any
other liquid.
• DO NOT leave the
appliance unattended
while it is operating.
• Close supervision is
necessary when any
appliance is used by or
near children or pets.
• This appliance can be
used by children aged
from 8 years and above
if they have been given
supervision or instruction
concerning use of the
appliance in a safe way
and if they understand
the hazards involved.
Cleaning and user
maintenance shall not be
made by children unless
they are older than 8
and supervised. Keep
the appliance and its
cord out of the reach of
children aged less than 8
years.
• Appliances can be used
by persons with reduced
physical, sensory or
mental capabilities or
When using electrical appliances, basic safety precautions should always be
followed including the following:
Important Safeguards
Barista Frothiere Manual.indd 5 17/11/2020 18:04

SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY
6
Important Safeguards (cont...)
lack of experience and
knowledge if they have
been given supervision
or instruction concerning
use of the appliance in a
safe way and understand
the hazards involved.
• Children shall not play
with the appliance.
• Switch off at the wall
socket then remove the
plug from the socket
when not in use or
before cleaning.
• If the supply cord is
damaged, it must
be replaced by the
manufacturer, its service
agent or similarly
qualified persons in
order to avoid a hazard.
• If the supply cord or
appliance is damaged,
stop using the
appliance immediately
and seek advice from
the manufacturer or
its service agent or
a similarly qualified
person.
• DO NOT let the cord
hang over the edge of a
table or counter or let it
come into contact with
any hot surfaces.
• The use of accessory
attachments is not
recommended by the
appliance manufacturer,
apart from those
supplied with this
product.
• DO NOT pull the plug
out by the cord as this
may damage the plug
and/or the cable.
• DO NOT use this
product for anything
other than its intended
use.
• This appliance is for
household use only.
• DO NOT carry the
appliance by the power
cord.
Barista Frothiere Manual.indd 6 17/11/2020 18:04

SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY 7
Important Safeguards (cont...)
• DO NOT use the
appliance outdoors.
• Do not install or store
the appliance close to
sources of heat.
• In the unlikely event
the appliance develops
a fault, stop using
it immediately and
seek advice from the
Customer Support Team.
• When the appliance
is working, hot steam
may come out of the
appliance. Please, always
ensure the lid is correctly
fitted.
• DO NOT touch the hot
parts of the appliance
like the spout as they
can cause burns.
• Do not fit or remove the
lid while the appliance is
operating.
• The heating element
surface is subject to
residual heat after
use.
• WARNING: Potential
injury from misuse.
• WARNING: Avoid
spillage on the
connector.
• WARNING: To prevent
overheating, do not
run for more than four
continuous cycles and
always clean after each
use.
Need help? We’re here for you.
Please contact our Customer Services Team on:
Phone: [phone] (UK) / 0412 132 998 (Ireland)
Email: customercar[email protected]
Visit: drewandcole.com/support for FAQ’s
Barista Frothiere Manual.indd 7 17/11/2020 18:04

SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY
8
Box Contents
Power base
Lid Frothing
whisk
Velvetiser
whisk
Jug
Parts of Your Barista Frothiere
Lid Spout
Jug
Power base
Plug
Control panel
Handle
Power cable
Lid seal
Start
button
Barista Frothiere Manual.indd 8 17/11/2020 18:04

SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY 9
Preparing Your Barista Frothiere
IMPORTANT: Before using your Barista Frothiere, you must ensure all parts of
it have been cleaned.
CAUTION: Never immerse the jug and power base in water. No parts of your
Barista Frothiere are dishwasher safe.
Wipe the outside of the jug and the
power base with a damp cloth and
then dry with a soft cloth.
IMPORTANT: Do not clean the outside
of the jug or power base with abrasive
cleaning agents or chemical cleaners.
Wash the inside of the jug in warm
water and a mild detergent, then rinse
and dry with a soft cloth.
NEVER wash the outside of the jug
under running water.
Wash the lid and whisks in hot water
and a mild detergent, then rinse under
running water and dry with a soft cloth.
Barista Frothiere Manual.indd 9 17/11/2020 18:04

SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY
10
Fitting The Whisks
Your Barista Frothiere comes with two
different types of whisks.
Frothing whisk: This is used to mainly
froth hot and cold milk.
Velvetiser whisk: This is used to stir
drinks for a smooth texture.

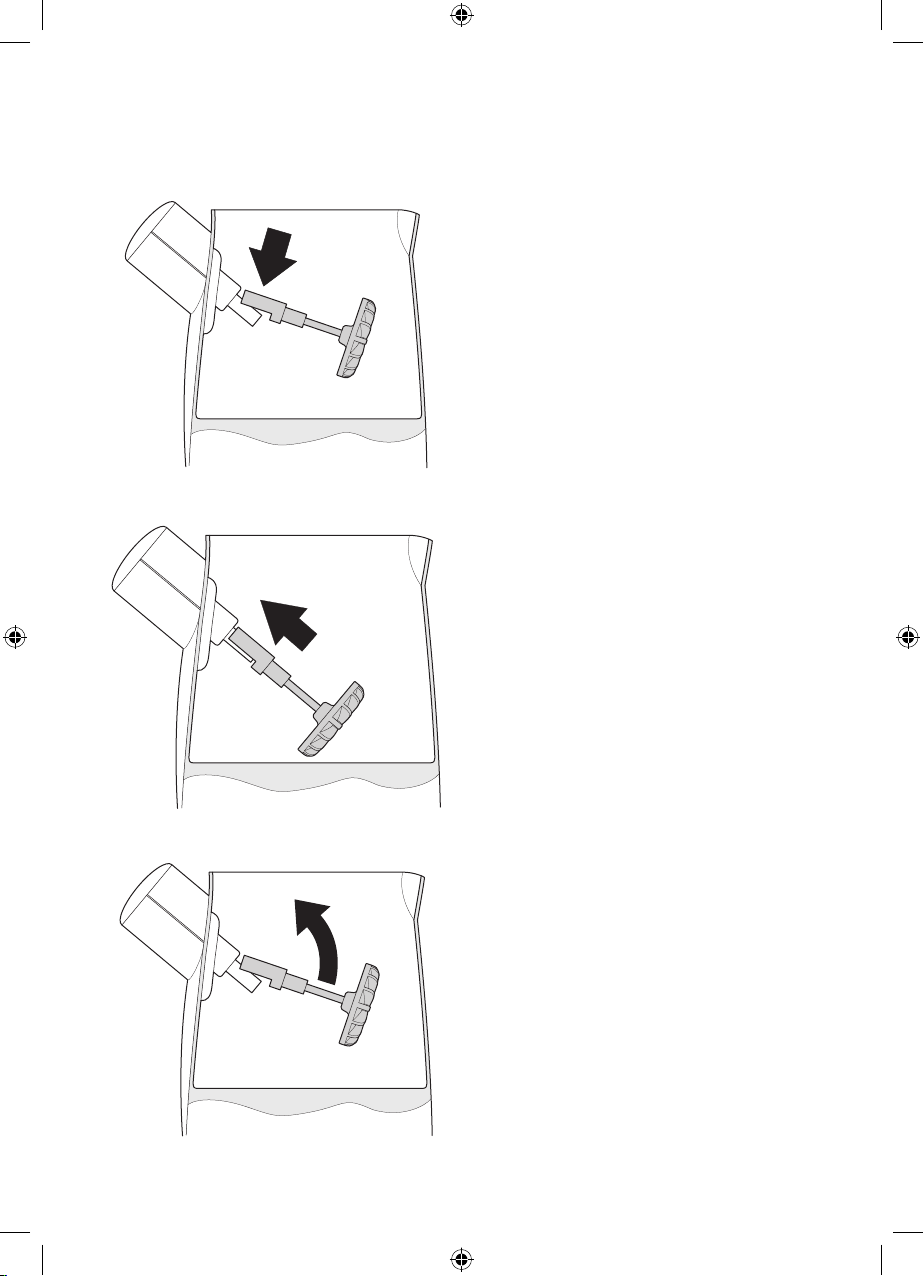

Slot the end of the whisk onto the
whisk shaft, then push down until it
locks fully over the shaft.
Slide the whisk along the whisk shaft as
far as it will go.
The whisk is now fitted and ready for
use.
Removing the whisk
Grip the metal shaft of the whisk and
rotate upwards until the whisk comes
off.
Always rinse the whisk after use under
running hot water.
Barista Frothiere Manual.indd 10 17/11/2020 18:04

SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY 11
Place your Barista Frothiere on a flat,
stable heat resistant surface close to
a mains socket that is easy to access
when in use.
Lift the jug off the power base and
place on the work surface.
Lift the lid off the top of the jug.
Fill the jug with the required amount of
milk or desired liquid and ingredients,
see the recipes on pages 15, 16 & 17
for some suggestions.
Ensure the liquid is above the Min
(minimum) mark on the inside front of
the jug, but NOT over the Max (200ml)
mark.
Important: Never use hot milk in your
Barista Frothiere.
Using Your Barista Frothiere
Barista Frothiere Manual.indd 11 17/11/2020 18:04

SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY
12
Using Your Barista Frothiere (cont...)
Slot the lid back onto the top of the
jug and push down.
Place the jug back onto the power
base and slot the plug into the mains
socket and turn the power on if
required.
Important: Never use your Barista
Frothiere without the lid being fitted.
Selecting a Mode
Your Barista Frothiere has four settings
that can be chosen by pressing the
raised arrows on the ends of the
control panel.
Press the arrow on the left to move the
selection left or press the right arrow to
move the selection right.
Modes
Cold: Liquid is not heated.
Hot chocolate: Liquid heated to 70ºC.
Hot froth: Liquid heated to 60ºC.
Matcha: Liquid heated to 80ºC.
Barista Frothiere Manual.indd 12 17/11/2020 18:04

SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY 13
Using Your Barista Frothiere (cont...)
Ensure the lid is correctly fitted then
press the start button on the top of the
handle.
Press the start button to begin the
mode. The start button will then turn
red.
Important: You can turn the jug off at
any time by pressing the start button
again.
Once the cycle has finished three
audible beeps will be heard and the
start button will go back to blue.
Lift the jug off the power base.
Carefully remove the lid from the top
of the jug. If you have used a heating
mode, remove the lid using a cloth as
the lid will be warm.
For best results pour the contents of
the jug into your cup immediately.
Important: Rinse the inside of the
jug and the whisk and lid in warm
water every time you use your Barista
Frothiere.
Barista Frothiere Manual.indd 13 17/11/2020 18:04

SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY
14
Cleaning your Barista Frothiere
Clean all of the components of your
Barista Frothiere as shown on page 11.
Important: Always clean your Barista
Frothiere after you have used it.
Cleaning the lids silicon seal
From time to time you will need to
clean behind the silicon seal and the
seal on the lid.
To remove the seal, run your fingers
along the seal and pinch it to form a
raised section.
Slide the seal off the lid.
Wash the lid and seal in hot soapy
water and then rinse.
Replace the seal back onto the lid.
Ensure the raised section on the seal is
at the bottom of the lid when fitted.
Barista Frothiere Manual.indd 14 17/11/2020 18:04

SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY 15
Recipes
Cold Frappuccino Coffee
• Attach the frothing whisk
• Add 200ml of milk
• Add coffee
• Fit the lid and place on the power base
• Select the cold mode
• Press start
Optional Toppings: Whipped cream and chocolate syrup
Cold Smooth Frappé
• Attach the velvetiser whisk
• Add 200ml of milk
• Add coffee
• Fit the lid and place on the power base
• Select the cold mode
• Press start
Optional Toppings: Whipped cream and chocolate syrup
Hot Cappuccino Coffee
• Attach the frothing whisk
• Add 200ml of milk
• Fit the lid and place on the power base
• Select the hot froth mode
• Press start
• Add frothy milk to hot coffee shot
Optional toppings: Cocoa powder
Barista Frothiere Manual.indd 15 17/11/2020 18:04

SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY
16
Recipes (cont...)
Hot Latte
• Attach the velvetiser whisk
• Add 200ml of milk
• Add coffee
• Fit the lid and place on the power base
• Select the hot froth mode
• Press start
Frothy Hot Chocolate
• Attach the frothing whisk
• Add 200ml of milk
• Add chocolate shavings
• Fit the lid and place on the power base
• Select the hot chocolate mode
• Press start
Optional toppings: Whipped cream, marshmallows and cocoa powder
Silky Smooth Hot Chocolate
• Attach the velvetiser whisk
• Add 200ml of milk
• Add chocolate shavings
• Fit the lid and place on the power base
• Select the hot chocolate mode
• Press start
Optional toppings: Whipped cream, marshmallows and cocoa powder
Barista Frothiere Manual.indd 16 17/11/2020 18:04

SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY 17
Recipes (cont...)
Hot Matcha Latte
• Mix green matcha tea with 80°C hot water and whisk by hand in a separate
cup
• Attach the frothing whisk
• Add 200ml of milk
• Fit the lid and place on the power base
• Select the hot froth mode
• Press start
• Add the hot matcha green tea to the frothed milk
Hot Matcha Tea
• Attach the frothing whisk
• Add 200ml of cold water
• Add green matcha powder
• Fit the lid and place on the power base
• Select the matcha mode
• Press start
Barista Frothiere Manual.indd 17 17/11/2020 18:04

SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY
18
Your Recipes
Barista Frothiere Manual.indd 18 17/11/2020 18:04

SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY 19
Technical data
Rated voltage 220~240 V
Hertz
Power
50Hz
500W
Liquid capacity Min 150ml – Max 200ml
The product and its packaging have been manufactured from valuable materials that can be
recycled. Recycling reduces the amount of refuse and helps to preserve the environment.
Dispose of the packaging at a recycling point that sorts materials by type. Make use of the local
facilities provided for collecting paper, cardboard and light weight packaging.
Appliances marked with this symbol must not be disposed of along with normal household
waste!
You are legally obliged to dispose of old appliances separately from household waste.
Information about collection points where old appliances can be disposed of free of
charge is available from your local authorities.
Barista Frothiere Manual.indd 19 17/11/2020 18:04

Search: ‘Barista Frothiere’
to keep up to date with all
the latest news, recipes
and inspiration.
Distributed by:
HSTV Corby
PO Box 7903
CORBY
NN17 9HY
Model number: BA002R
V1-10/20
Please recycle our product and
packaging where facilities exist.
Check with your Local Authority
or retailer for recycling in your
country.
Barista Frothiere Manual.indd 20 17/11/2020 18:04
