DRIFTON 206-DAB Series User manual

Drifton A/S
Avedoereholmen 84, 2650 Hvidovre, Denmark
TEL: [phone], FAX: [phone]
Website: www.drifton.eu / www.drifton.d E-mail: [email protected]
Drifton Double Syring Liquid Dispenser
Operation Manual (GB)
Drifton 206-DAB
Drifton 206-DAB-ES 1201 (1:1)
Drifton 206-DAB-ES 1202 (2:1)
Drifton 206-DAB-ES 1203 (4:1)
Drifton 206-DAB-ES 1204 (10:1)

2
Introduction
You have selected a reliable, high quality double syringe liquid dispenser from Drifton A/S. The dispenser
will provide you with years of trouble-free, productive service. This operation manual will help you
maximize the usefulness of your new dispenser.
Please spend a few minutes to become familiar with the controls and features. Follow our recommended
testing procedures. Review the helpful information we have included, which is based on more years of
industrial dispensing experience.
Most questions you will have are answered in this Operation Manual. However, if you need assistance,
please do not hesitate to contact Drifton A/S at telephone [phone] or [e-mail] or an
authorized distributor
Our goal is to build not only the finest equipment and components, but also to build long-term customer
relationships founded on superb quality, service, value and trust.
Drifton A/S
The science of dispensing

3
Contents
Introduction ....................................................................................................................................................... 2
Product Safety Statement .................................................................................................................................. 4
Intended Use.................................................................................................................................................. 4
Regulations and Approvals............................................................................................................................ 4
Qualified Personnel....................................................................................................................................... 4
Personal Safety.............................................................................................................................................. 4
Started................................................................................................................................................................ 5
Principles........................................................................................................................................................... 5
Dispenser Hookup............................................................................................................................................. 6
Drifton 206-DAB Double Syringe Dispenser ................................................................................................... 7
Specifications ................................................................................................................................................ 7
Connections drawing..................................................................................................................................... 7
Controls Panel ............................................................................................................................................... 8
Valve ............................................................................................................................................................. 8
Setup for Testing ............................................................................................................................................... 9
Suggestions on Settings..................................................................................................................................... 9
Troubleshooting Guide.................................................................................................................................... 10
Guarantee......................................................................................................................................................... 11

4
Product Safety Statement
Intended Use
Use of Drifton equipment in ways other than those described in the documentation supplied with the
equipment may result in injury to persons or damage to property. Some examples of unintended use of
equipment include:
Using incompatible materials
Making unauthorized modifications
Removing or bypassing safety guards or interlocks
Using incompatible or damaged parts
Using unapproved auxiliary equipment
Operating equipment in excess of maximum ratings
Operating equipment in an explosive atmosphere
Regulations and Approvals
Make sure all equipment is rated and approved for the environment in which it is used. Any approvals
obtained for Drifton equipment will be voided if instructions for installation, operation and service are not
followed.
Qualified Personnel
Equipment owners are responsible for making sure that Drifton equipment is installed, operated and serviced
by qualified personnel. Qualified personnel are those employees or contractors who are trained to safely
perform their assigned tasks. They are familiar with all relevant safety rules and regulations and are
physically capable of performing their assigned tasks.
Personal Safety
To prevent injury, follow these instructions:
Do not operate or service equipment unless you are qualified
Keep clear of moving equipment. Before adjusting or servicing moving equipment, shut off the
power supply and wait until the equipment comes to a complete stop. Lock out power and secure the
equipment to prevent unexpected movement.
Make sure dispensing areas and other work areas are adequately ventilated.
Know where emergency stop buttons, shutoff valves and fire extinguishers are located.
Clean –Remove all electrical and mechanical connections to unit. Apply a small amount of light
detergent onto a moist cloth and wipe surface of unit lightly, cleaning any stains or spilled adhesive.
Maintain –Only use clean dry air and regulated power supply to unit. Equipment does not require
any other regular maintenance.
Test –Verify operation of features and performance of equipment using the ‘Testing and
installation’ sections within this Operation manual. If necessary, refer to the ‘Trouble Shooting
Guide’ elsewhere in this user guide. A faulty or defective unit should be returned to Drifton or
representative for refurbishment.
Caution: Use replacement parts that are designed for use with original equipment, so that our dispenser will
work according to specifications.

5
Started
First: Unpack and see the packlist enclosed with the Dispenser, then check all items. If there is any
discrepancy, please call us immediately.
a. Controller 1pcs
b. Drifton-ES 120x valve 1pcs (x = type of valve, see front page)
c. Foot pedal 1pcs
d. Plug 1pcs
e: Air tube 2pcs
f. Double barrel with piston 3set
g. Mixer nozzle (short) 2pcs
Second: Power and compressed plant air should be available where the dispenser is to be set up. Be certain
your plant air is properly filtered and dry and a regulated, constant air pressure is supplied to the dispenser.
We have organized this operation manual to provide setup and testing procedures for the double syringe
dispensers.
Please see different content for the different dispensers
Next: We will tell you how to dispense low viscosity fluid using the vacuum control and how to dispense
high viscosity liquid.
Principles
Drifton double liquid dispenser series quotes air pressure to control liquid fluid dispensing through high-
precision timing of pressure pulse control, which ensures that the correct amount of fluid is applied every
time, on every part, to every item. Time is more precise quantitative and will also be more prospective. A
Solenoid Valve provides higher response rate, and dispensing speed will be soon.
Drifton dispenser components:
Barrel, pistons, nozzle, high-precision tip, 1000J valve adapter, high precision controller (timing, pressure), it
is easy to operate and has a small volume. Only uses a little electricity and pressure. Maximum pressure is
7bar. It can be used for fluid materials of different viscosities. It has vacuum suction to prevent of liquid
down flow.

6
Dispenser Hookup
1. Connect the air input hose to a plant air source. Set plant air supply within 80 to 100 psi.
2. Attach the air input hose coupling to the dispenser.
3. Plug in the polarized foot pedal connector. Connect the foot pedal to the back of the dispenser
4. Check the voltage label on the input voltage selector cartridge. Connect the power cord into the back
of the dispenser. Connect the power cord into your local power source (AC110V-220V / 50Hz).
5. Insert the tube end of the valve to the dispenser. The other tube assembly into the front of the
dispenser.
6. Take the liquid material and fill the barrel. Insert the piston down into the barrel.
7. Take the barrel and attach the valve, fixate it, and then attach the mixing Nozzle. If you want to have
a small volume, you can connect the needle.
8. Note: Always use the lowest possible pressure and the largest possible tip size. The combination of
the lowest possible output pressure + largest possible tip size + longest possible dispense duration =
most consistent and accurate deposits.
9. During the initial testing, you will not use the vacuum control. Keep this control shut off (turned
completely clockwise—do not force).

7
Drifton 206-DAB Double Syringe Dispenser
Specifications
Liquid ratio: 1:1 - 10:1
Mixing way: Static mixer
Dispensing time: 0.01S - 1S, 0.1S - 10S, 0.2S - 20S
Air Input: 7 KgF/cm2Dry air without lubrication
Air Output: 0.1–7KgF/cm2
Repeatability tolerance: ± 0.5%
Min depot: 0.05ml
Input Voltage: 110V/220V ± 10% 50Hz
Output Voltage: 24V
Power: < 15W

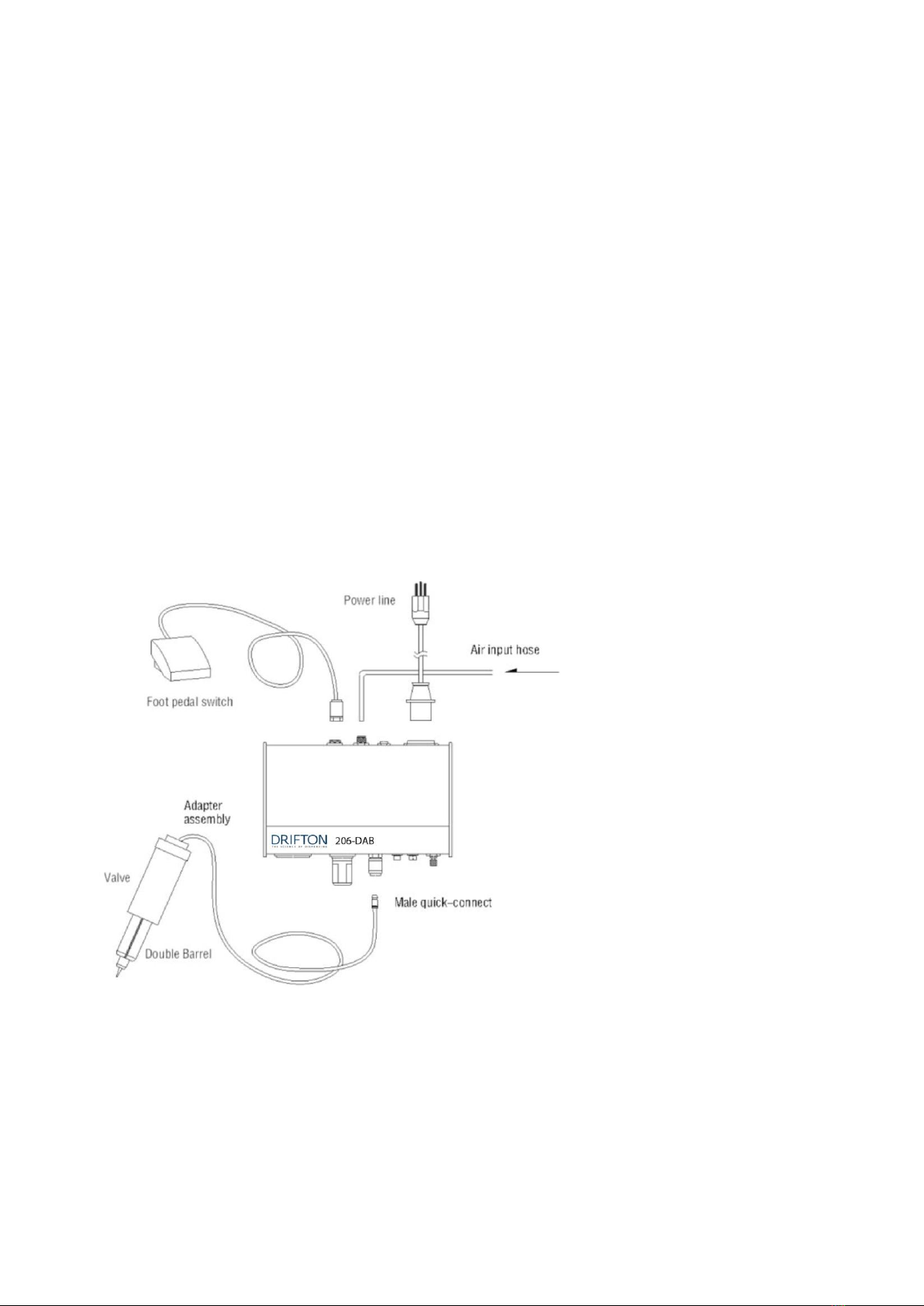

Connections drawing
①Foot pedal switch ②Power line ③Air input hose
④Adapter assembly ⑤Male quick-connect ⑥Valve (1000J)
⑦Double barrel

8
Controls Panel
①Pressure gauge ②Pressure regulator ③Timer
④Barrel connector ⑤Time switch ⑥Hand switch
⑦Power switch ⑧Vacuum regulator
①Power input receptacle ②Air input connector
③Foot pedal switch/finger switch ④Air exhaust port
Valve
Installation of the double barrel
Using the vacuum suction function recover the piston rod-cylinder, loosen the
fixing screws and unloaded ring, put the double barrel into the ring, and then
insert the valve, tightening the screws with fix.
Bar
Fixing screw

9
Setup for Testing
When you begin testing, the Power switch should be off.
The amount of material dispensed in each cycle depends on the combination of air pressure, time of air
pulse, viscosity of material and dispensing tip size.
The first step is to remove the tip cap from the prefilled barrel of test material, Replace it with a 14 gauge
tapered dispensing tip. Press the tip on and twist clockwise to lock.
Second: Pull out air pressure regulator knob until it "clicks" into the unlocked position. Turn clockwise to
adjust the air pressure to 30 psi (2.1 bar) for the initial tests.
Always set the pressure desired by turning the air regulator knob clockwise. To reduce the pressure, turn the
knob counterclockwise until the gauge reads a lower pressure than desired. Then increase and stop at desired
pressure. Push knob in to lock.
Pressure regulator:
Turn clockwise –increase pressure
Turn counterclockwise –decrease pressure
Third: Press power switch to turn on the dispenser.
Fourth: Press the “Auto/Man” button to choose the “Man”, then set the dispensing time at “0000S”. Step on
the foot pedal switch and liquid will flow out. When you stop stepping on the foot pedal, it will stop
dispensing glue.
Fifth: Press the “Auto” button, Turn the Timer knob clockwise, Adjusting range: 0.01~1.00s.0.1-10s, 0.2s-
20s
Sixth: Be sure barrel vacuum control is turned off. The vacuum volume should be “0” when testing.
If you want to test vacuum suction, take some water in the barrel first and fasten the tip, then adjust the
vacuum regulator. When your turn it counterclockwise, you will find that the water does not drip. If the
vacuum suction is too high, the water will rise into the barrel.
Suggestions on Settings
1. To ensure smooth fluid flow and to make consistent deposits, keep the dispense tip at a 45° angle to
the work surface.
2. To reduce air pressure, turn the knob counterclockwise until the display reads at a lower-than –
needed pressure setting. Then turn clockwise to increase pressure until you reach the correct setting.
3. Avoid high pressure settings with very small deposit settings. The ideal setup matches air pressure
and tip size to create a “workable” flow rate – no splashing, but not too slow either.
4. There are three core variables to the dispenser: dispense time, pressure and vacuum. Adjust just one
of these at a time, in small increments, to achieve the correct deposit.

10
Troubleshooting Guide
A Drifton Customer Service or Technical Services representative is always available to assist you with any
question you may have about your Dispensing System. Please feel free to call or email us at the addresses on
the front cover of this manual book.
Trouble
Solution
No fluid being
dispensed
Check the power supply connection and DC power supply to the
unit.
Check the main air supply and primary regulator.
Check to make sure that the main air supply is connected to the back
of the unit and has not come loose.
Check to make sure that the regulator is turned off (fully
counterclockwise)
If dispensing high viscosity materials, try increasing output air
pressure slightly.
Vacuum level is set to high.
Barrel adapter safety clip may be clamped shut.
Inconsistent
dispense output
Check the dispensing tip, barrel and material for possible
contamination or clogs.
Note: Dispensing System Components are disposable. Do not
attempt to reuse.
Check for air supply pressure fluctuation.
Air bubbles in the fluid path and entrapped air within the fluid may
cause inconsistency. For best dispensing results, remove all
entrapped air before dispensing.
Vacuum level is set to high.
Barrel adapter safety clip may be clamped shut.
Material suck-back
Always use an appropriate piston to prevent material from being
drawn back into the dispenser.

11
Guarantee
Thank you for selecting a Drifton dispenser.
Warranty
1. Warranty duration: 1 year from the date of purchasing (Doesn’t include the free items and
consumables)
2. Warranty cards should be filled and sealed by the sales agent.
3. Sales agent should perform the obligations of warranty and maintenance.
In no event shall any liability or obligation of Drifton arising from this warranty exceed the purchase price of
the equipment. Before using, user shall determine the suitability of the product for its intended use, and user
assumes all risk and liability whatsoever in connection therewith.
Drifton makes no warranty whatsoever of merchantability or fitness for a particular purpose. In no event
shall Drifton be liable for incidental or consequential damages
The following situations are not in the scope of warranty; users should pay the maintenance costs:
1. The mistake of operation or transport causes damage to the machine by the user;
2. Replace the components or repair the machine by a repairer which is not designated by the
manufacturer or sales agent.
3. The machine is damaged by lightning, flood, fires and other natural disasters;
4. Beyond the warranty time;
5. The machine is damaged by the stability of voltage;
6. Users connect the dispenser with inferior power devices.
Maintain Card
Item
NO:
Company
name
Invoice NO:
Sales unit
(stamp)
Date
Repair records
Date
Detail of the problem
checker
Note
Note: The information contained in this manual is subject to change without notice.
