Drill Master 91062 Installation manual
3-1/4” ELECTRIC
PLANER
Model
91062
SET UP AND OPERATING INSTRUCTIONS
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright©2003 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork
contained herein may be reproduced in any shape or form without the express written consent of
Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for
assembly and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
Manual Revised 12d
Page 2 For technical questions, please call 1-800-444-3353. SKU 91062
SAVE THIS MANUAL
Keep this manual for the safety warnings
and precautions, assembly, operating,
inspection, maintenance and cleaning
procedures. Write the product’s serial number
in the back of the manual near the assembly
diagram (or month and year of purchase if
product has no number). Keep this manual
and the receipt in a safe and dry place for
future reference.
IMPORTANT SAFETY
INFORMATION
In this manual, on the labeling, and
all other information provided with
this product:
This is the safety alert
symbol. It is used to alert
you to potential personal
injury hazards. Obey all
safety messages that follow
this symbol to avoid possible
injury or death.
DANGER indicates a
hazardous situation
which, if not avoided, will result
in death or serious injury.
WARNING indicates a
hazardous situation
which, if not avoided, could
result in death or serious injury.
CAUTION, used with
the safety alert
symbol, indicates a hazardous
situation which, if not avoided,
could result in minor or moderate
injury.
NOTICE is used to
address practices not
related to personal injury.
CAUTION, without the
safety alert symbol, is
used to address practices not
related to personal injury.
General Power Tool Safety Warnings
WARNING Read all safety warnings
and instructions. Failure to follow the
warnings and instructions may result
in electric shock, re and/or serious
injury.
Save all warnings and instructions
for future reference.
The term ″power tool″ in the warnings
refers to your mains-operated (corded)
power tool or battery-operated
(cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b. Do not operate power tools in
explosive atmospheres, such as in
the presence of ammable liquids,
gases or dust. Power tools create
sparks which may ignite the dust or
fumes.
c. Keep children and bystanders
away while operating a power tool.
Distractions can cause you to lose
control.
2. Electrical safety
a. Power tool plugs must match the
outlet. Never modify the plug in
any way. Do not use any adapter
plugs with grounded power tools.
Unmodied plugs and matching outlets
will reduce risk of electric shock.
b. Avoid body contact with grounded
surfaces such as pipes, radiators,
Page 3For technical questions, please call 1-800-444-3353.SKU 91062
ranges and refrigerators. There is an
increased risk of electric shock if your
body is grounded.
c. Do not expose power tools to rain
or wet conditions. Water entering
a power tool will increase the risk of
electric shock.
d. Do not abuse the cord. Never use
the cord for carrying, pulling or
unplugging the power tool. Keep
cord away from heat, oil, sharp
edges or moving parts. Damaged
or entangled cords increase the risk of
electric shock.
e. When operating a power tool
outdoors, use an extension cord
suitable for outdoor use. Use of a
cord suitable for outdoor use reduces
the risk of electric shock.
f. If operating a power tool in a damp
location is unavoidable, use a
Ground Fault Circuit Interrupter
(GFCI) protected supply. Use of a
GFCI reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are
doing and use common sense when
operating a power tool. Do not use
a power tool while you are tired or
under the inuence of drugs, alcohol
or medication. A moment of inattention
while operating power tools may result
in serious personal injury.
b. Use personal protective equipment.
Always wear eye protection. Safety
equipment such as dust mask, non-
skid safety shoes, hard hat, or hearing
protection used for appropriate
conditions will reduce personal injuries.
c. Prevent unintentional starting.
Ensure the switch is in the off-
position before connecting to power
source and/or battery pack, picking
up or carrying the tool. Carrying
power tools with your nger on the
switch or energizing power tools that
have the switch on invites accidents.
d. Remove any adjusting key or wrench
before turning the power tool on.
A wrench or a key left attached to a
rotating part of the power tool may result
in personal injury.
e. Do not overreach. Keep proper
footing and balance at all times. This
enables better control of the power tool
in unexpected situations.
f. Dress properly. Do not wear loose
clothing or jewelry. Keep your hair,
clothing and gloves away from
moving parts. Loose clothes, jewelry
or long hair can be caught in moving
parts.
g. If devices are provided for the
connection of dust extraction and
collection facilities, ensure these are
connected and properly used. Use of
these devices can reduce dust-related
hazards.
h. Only use safety equipment that has
been approved by an appropriate
standards agency. Unapproved
safety equipment may not provide
adequate protection. Eye protection
must be ANSI-approved and breathing
protection must be NIOSH-approved for
the specic hazards in the work area.
4. Power tool use and care
a. Do not force the power tool. Use
the correct power tool for your
application. The correct power tool will
do the job better and safer at the rate
for which it was designed.
b. Do not use the power tool if the
switch does not turn it on and off.
Any power tool that cannot be controlled
Page 4 For technical questions, please call 1-800-444-3353. SKU 91062
with the switch is dangerous and must
be repaired.
c. Disconnect the plug from the power
source and/or the battery pack from
the power tool before making any
adjustments, changing accessories,
or storing power tools. Such
preventive safety measures reduce
the risk of starting the power tool
accidentally.
d. Store idle power tools out of the
reach of children and do not allow
persons unfamiliar with the power
tool or these instructions to operate
the power tool. Power tools are
dangerous in the hands of untrained
users.
e. Maintain power tools. Check for
misalignment or binding of moving
parts, breakage of parts and any
other condition that may affect the
power tool’s operation. If damaged,
have the power tool repaired before
use. Many accidents are caused by
poorly maintained power tools.
f. Keep cutting tools sharp and clean.
Properly maintained cutting tools with
sharp cutting edges are less likely to
bind and are easier to control.
g. Use the power tool, accessories
and tool bits etc. in accordance
with these instructions, taking into
account the working conditions and
the work to be performed. Use of
the power tool for operations different
from those intended could result in a
hazardous situation.
5. Service
a. Have your power tool serviced by a
qualied repair person using only
identical replacement parts. This will
ensure that the safety of the power tool
is maintained.
Planer Safety Warnings
1. Wait for the cutter to stop before
setting the tool down. An exposed
cutter may engage the surface leading
to possible loss of control and serious
injury.
2. Use clamps or another practical way
to secure and support the work piece
to a stable platform. Holding the work
by hand or against your body leaves it
unstable and may lead to loss of control.
3. Maintain labels and nameplates on
the tool. These carry important safety
information. If unreadable or missing,
contact Harbor Freight Tools for a
replacement.
4. Avoid unintentional starting. Prepare to
begin work before turning on the tool.
5. Do not lay the tool down until it has come
to a complete stop. Moving parts can
grab the surface and pull the tool out of
your control.
6. Do not depress the spindle lock when
starting or during operation.
7. Do not leave the tool unattended when
it is plugged into an electrical outlet.
Turn off the tool, and unplug it from its
electrical outlet before leaving.
8. This product is not a toy. Keep it out of
reach of children.
9. People with pacemakers should
consult their physician(s) before use.
to heart pacemaker could cause
pacemaker interference or pacemaker
failure. In addition, people with
pacemakers should:
on.
Page 5For technical questions, please call 1-800-444-3353.SKU 91062
electrical shock.
grounded. Ground Fault Circuit
Interrupter (GFCI) should also be
implemented – it prevents sustained
electrical shock.
10. WARNING: Some dust created by power
sanding, sawing, grinding, drilling, and
other construction activities, contains
chemicals known [to the State of
California] to cause cancer, birth defects
or other reproductive harm. Some
examples of these chemicals are:
cement or other masonry products
treated lumber
Your risk from these exposures varies,
depending on how often you do this type
of work. To reduce your exposure to
these chemicals: work in a well ventilated
area, and work with approved safety
equipment, such as those dust masks
microscopic particles. (California Health
& Safety Code § 25249.5, et seq.)
11. WARNING: Handling the cord on this
product will expose you to lead, a
chemical known to the State of California
to cause cancer, and birth defects or
other reproductive harm. Wash hands
after handling. (California Health &
Safety Code § 25249.5, et seq.)
12. The warnings, precautions, and
instructions discussed in this instruction
manual cannot cover all possible
conditions and situations that may occur.
It must be understood by the operator
that common sense and caution are
factors which cannot be built into this
product, but must be supplied by the
operator.
Vibration Safety
This tool vibrates during use. Repeated
cause temporary or permanent physical
injury, particularly to the hands, arms
and shoulders. To reduce the risk of
1. Anyone using vibrating tools regularly
be examined by a doctor and then have
medical problems are not being caused
or worsened from use. Pregnant
women or people who have impaired
blood circulation to the hand, past hand
injuries, nervous system disorders,
diabetes, or Raynaud’s Disease
should not use this tool. If you feel any
symptoms related to vibration (such as
tingling, numbness, and white or blue
possible.
2. Do not smoke during use. Nicotine
reduces the blood supply to the hands
3. Wear suitable gloves to reduce the
vibration effects on the user.
4. Use tools with the lowest vibration when
there is a choice.
5.
of work.
6. Grip tool as lightly as possible (while still
do the work.
7. To reduce vibration, maintain the tool
as explained in this manual. If any
abnormal vibration occurs, stop use
immediately.
Page 6 For technical questions, please call 1-800-444-3353. SKU 91062
SAVE THESE
INSTRUCTIONS.

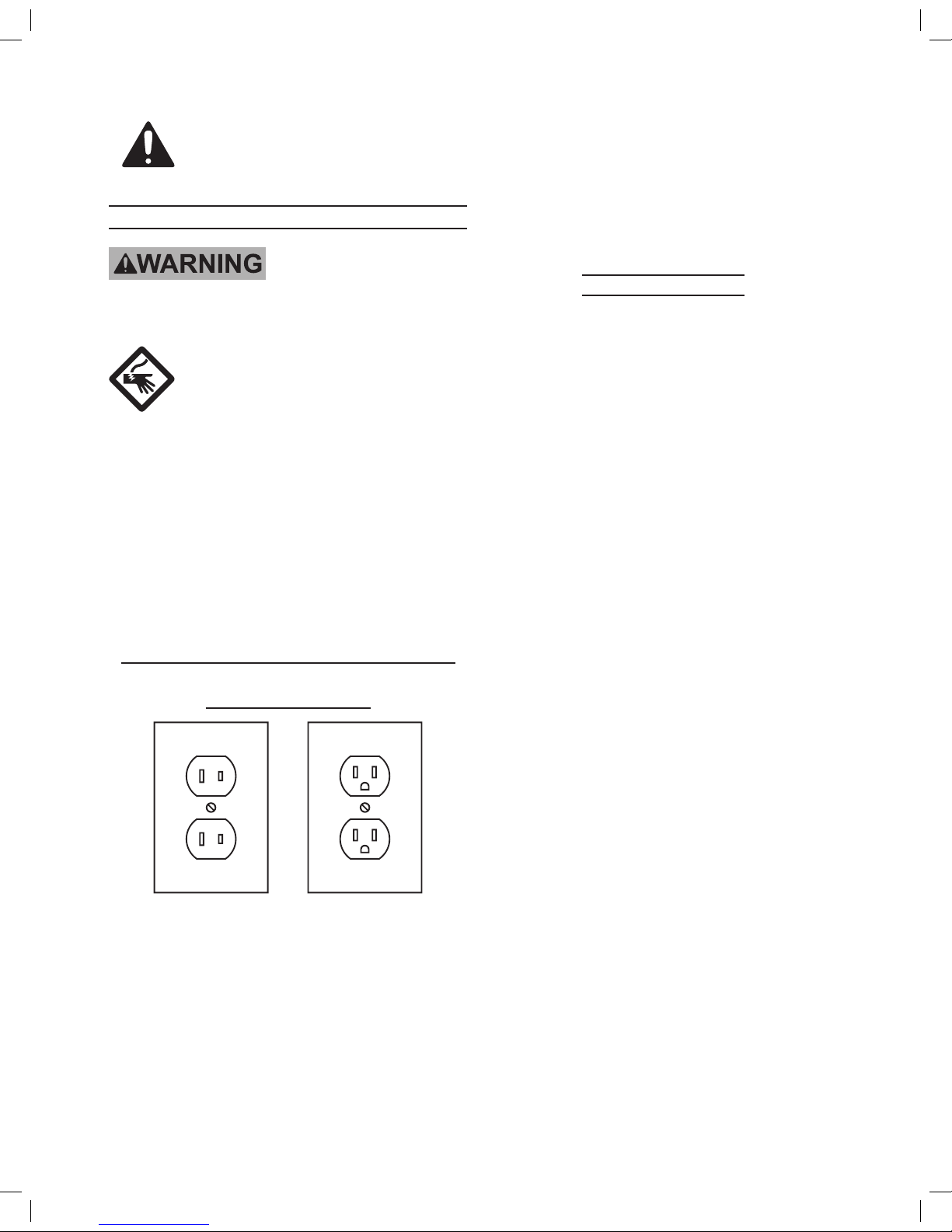

GROUNDING
TO PREVENT
ELECTRIC SHOCK
AND DEATH FROM INCORRECT
GROUNDING WIRE
CONNECTION:
Check with a qualied electrician
if you are in doubt as to whether
the outlet is properly grounded.
Do not modify the power cord
plug provided with the tool.
Never remove the grounding
prong from the plug. Do not use
the tool if the power cord or plug
is damaged. If damaged, have it
repaired by a service facility
before use. If the plug will not t
the outlet, have a proper outlet
installed by a qualied
electrician.
Double Insulated Tools: Tools with
Two Prong Plugs
Outlets for 2-Prong Plug
1. Tools marked “Double Insulated” do not
require grounding. They have a special
OSHA requirements and complies with
the applicable standards of Underwriters
Standard Association, and the National
Electrical Code.
2. Double insulated tools may be used in
either of the 120 volt outlets shown in the
preceding illustration. (See Outlets for
2-Prong Plug.)
Extension Cords
1. Grounded tools require a three wire
extension cord. Double Insulated
tools can use either a two or three wire
extension cord.
2. As the distance from the supply outlet
increases, you must use a heavier gauge
extension cord. Using extension cords
with inadequately sized wire causes a
serious drop in voltage, resulting in loss
of power and possible tool damage.
(See Table A.)
3. The smaller the gauge number of the
wire, the greater the capacity of the cord.
For example, a 14 gauge cord can carry
a higher current than a 16 gauge cord.
(See Table A.)
4. When using more than one extension
cord to make up the total length, make
sure each cord contains at least the
minimum wire size required. (See Table
A.)
5. If you are using one extension cord for
more than one tool, add the nameplate
amperes and use the sum to determine
the required minimum cord size. (See
Table A.)
6. If you are using an extension cord
outdoors, make sure it is marked with the
is acceptable for outdoor use.
7. Make sure the extension cord is properly
wired and in good electrical condition.
Always replace a damaged extension
Page 7For technical questions, please call 1-800-444-3353.SKU 91062
electrician before using it.
8. Protect the extension cords from sharp
objects, excessive heat, and damp or
wet areas.
RECOMMENDED MINIMUM WIRE GAUGE
FOR EXTENSION CORDS* (120/240 VOLT)
NAMEPLATE
AMPERES
(at full load)
EXTENSION CORD
LENGTH
25’ 50’ 75’ 100’ 150’
0 – 2.0 18 18 18 18 16
2.1 – 3.4 18 18 18 16 14
3.5 – 5.0 18 18 16 14 12
5.1 – 7.0 18 16 14 12 12
7.1 – 12.0 18 14 12 10
12.1 – 16.0 14 12 10
16.1 – 20.0 12 10
TABLE A
* Based on limiting the line volt-
age drop to ve volts at 150% of
the rated amperes.
Symbology
Double Insulated
Canadian Standards Association
V~ Volts Alternating Current
AAmperes
n0xxxx/min.
(RPM)
Page 8 For technical questions, please call 1-800-444-3353. SKU 91062

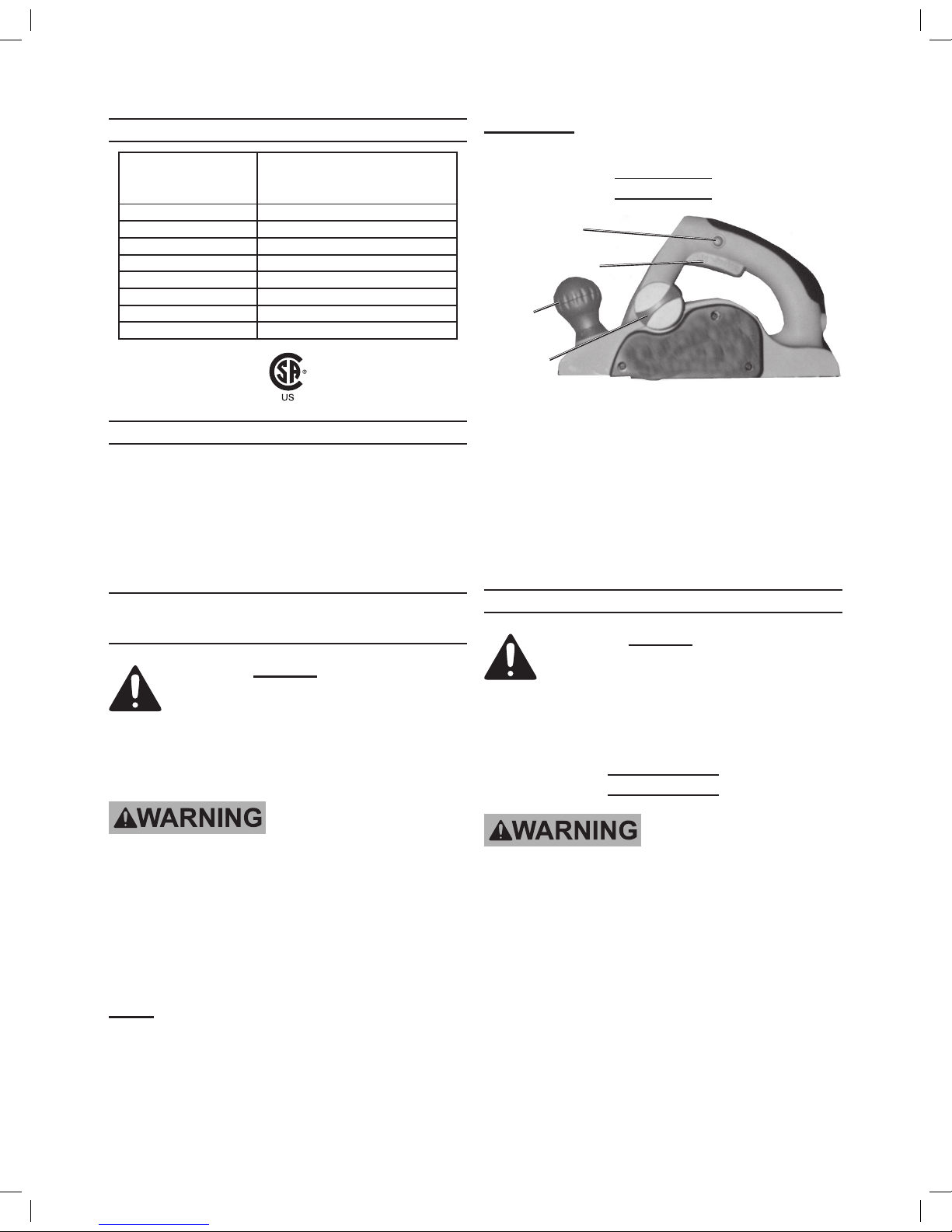

SPECIFICATIONS
Electrical
Requirements
120V / 60 Hz / 6 A
16,000 Motor RPM
33,000 Cuts Per Minute
Max. Planing Width
Max. Planing Depth 1/16” Per Pass (Adjustable)
Dust Chute Dim.
Blade Dimensions
Number of Blades 2
Blade Composition 65 Manganese Alloy Steel
Shoe Plate Dim.
Guide Dim.
225428
UNPACKING
When unpacking, make sure that the
item is intact and undamaged. If any parts
are missing or broken, please call Harbor
possible.
INSTRUCTIONS FOR PUTTING
INTO USE
Read the ENTIRE IMPORTANT
SAFETY INFORMATION
section at the beginning of this
manual including all text under
subheadings therein before set up
or use of this product.
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
OPERATION:
Turn the Power Switch of the tool
off and unplug the tool from its
electrical outlet before
assembling or making any
adjustments to the tool.
Note: For additional information regarding the
parts listed in the following pages, refer
to the Assembly Diagram near the end of
this manual.
WARNING: CHECK BLADE SETTING AND
TIGHTNESS BEFORE INITIAL USE.
Functions
TRIGGER (16)
SAFETY LOCK
BUTTON (17)
DEPTH
KNOB
(48)
DIAL (51)
The Trigger (16) of the Planer features
accidental starting of the tool. To start
Squeeze the Trigger, and release
stop the tool, release pressure on the
Trigger.
OPERATING INSTRUCTIONS
Read the ENTIRE IMPORTANT
SAFETY INFORMATION
section at the beginning of this
manual including all text under
subheadings therein before set up
or use of this product.
Tool Set Up
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
OPERATION:
Turn the Power Switch of the tool
off and unplug the tool from its
electrical outlet before adjusting
tool or installing accessories.
1. The Planer may be adjusted to cut to a
depth of up to 1/16” per pass along the
wood stock. To increase the depth of
cut, turn the Depth Knob (48) clockwise.
REV 04b; 07c; 11a; 12d
Page 9For technical questions, please call 1-800-444-3353.SKU 91062
To decrease the depth of cut, turn the
Depth Knob counterclockwise. Always
return the Depth Knob to read 0on the
NOTE: Use a deeper cut, but never to
exceed 1/16”, for a rough cut piece
of wood stock. Once planed smooth,
it is recommended to take a number
of smaller cuts to acquire the desired
depth.

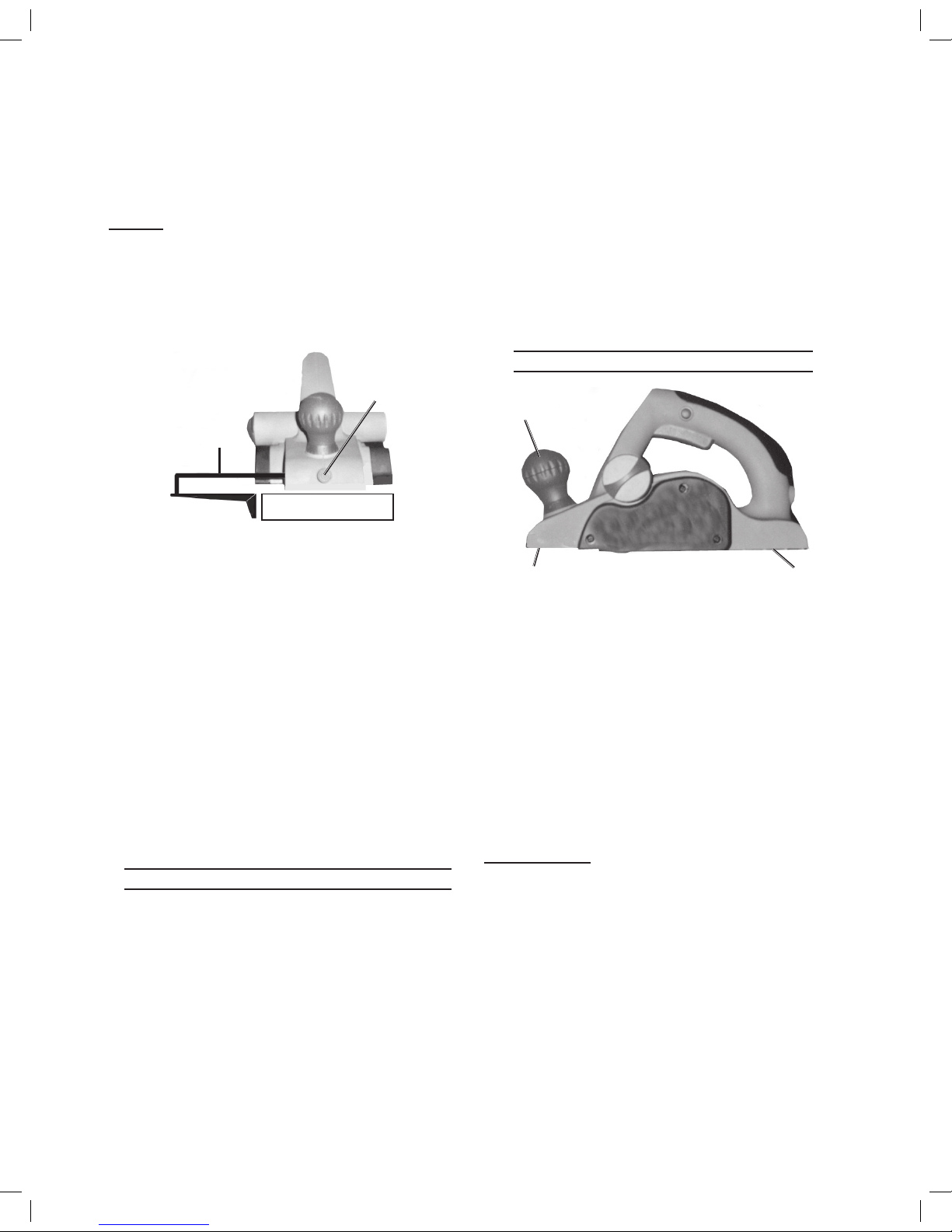

2.
GUIDE
(64)
SCREW
(47)
WOOD STOCK
The Guide (64) can be used to adjust
the width of cut, support the Planer, and
keep the Planer from drifting away from
the cut line (i.e., the edge of a door).
The Guide may be attached either to
the right side of the Planer or on its left
side. To do so, position the Planer on
the Screw (47) located at the front of
the Planer. Insert the Guide into the
mounting hole located on either side
toward the front of the Planer. Slide the
Guide in until it contacts the edge of the
wood stock. Then, lock the Guide in
place by retightening the Screw.
Work Piece and Work Area Set Up
1. Designate a work area that is clean and
access by children or pets to prevent
distraction and injury.
2. Route the power cord along a safe
route to reach the work area without
creating a tripping hazard or exposing
the power cord to possible damage. The
power cord must reach the work area
with enough extra length to allow free
movement while working.
3. Secure loose work pieces using a vise
or clamps (not included) to prevent
movement while working.
4. There must not be objects, such as utility
lines, nearby that will present a hazard
while working.
General Operating Instructions
1.
FRONT BASE
PLATE (54)
REAR BASE
PLATE (61)
DEPTH
KNOB (48)
While standing to the side of the wood
hand on the handle portion of the
Housing (15, 45), and the other hand on
the Depth Knob (48).
2. Set the Front Base Plate (54) of the
Planer on the front edge of the wood
Button (17) and squeeze the Trigger (16)
to start the Planer.
IMPORTANT: Do not allow the Blades (57) of
the Planer to contact the wood stock until
the Blades are spinning at full speed.
3. While placing pressure on the Front
Base Plate (54) to control the depth of
cut, and while placing pressure on the
Guide (64) against the wood stock to
control the width of cut, feed the Planer
slowly until the Rear Base Plate (61)
contacts the wood stock. Then, transfer
pressure to the Rear Base Plate, and
Page 10 For technical questions, please call 1-800-444-3353. SKU 91062
continue planing slowly to the end of the
cut. Do not pull the Planer back over the
surface already cut.
4. If necessary, repeat Step #5, using
progressively deeper cuts until you near
the desired depth. Then, readjust the
Depth Knob (48) to make a light cut for
NOTE: The Planer’s Motor may stall if the
tool is improperly used. If the Motor
begins to stall, reduce the feed speed
at which you are making the cut and/or
reduce the depth of the cut.
5.
on the Trigger (16) and the Planer will
automatically stop. Wait until Planer
blade comes to a complete stop.
6. To prevent accidents, turn off the tool
and disconnect its power supply after
use. Clean, then store the tool indoors
out of children’s reach.
Page 11For technical questions, please call 1-800-444-3353.SKU 91062
MAINTENANCE AND
SERVICING
Procedures not specically
explained in this manual must
be performed only by a qualied
technician.
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
OPERATION:
Turn the Power Switch of the tool
off and unplug the tool from its
electrical outlet before
performing any inspection,
maintenance, or cleaning
procedures.
TO PREVENT SERIOUS INJURY
FROM TOOL FAILURE:
Do not use damaged equipment.
If abnormal noise or vibration
occurs, have the problem
corrected before further use.
Cleaning, Maintenance, and
Lubrication
1. BEFORE EACH USE, inspect the
general condition of the tool. Check for
loose hardware, misalignment or binding
of moving parts, cracked or broken parts,
damaged electrical wiring, and any
other condition that may affect its safe
operation.
2. To clean the outer body of the Planer,
use a shop vacuum or compressed air.
Do not immerse any part of this Planer in
liquid.
3. To replace the Motor Carbon Brushes:
It may become necessary at sometime to
replace or clean the two Carbon Brushes
(36) when the Motor performance
decreases, or stops working completely.
The Carbon Brushes are located on the
side of the Right Motor Housing (45). To
do so:
a. Remove the two Carbon Brush Caps
(35).
b. Then, remove the two Carbon Brushes
from the Brush Holders (38).
c. If a Carbon Brush is worn down more
than 1/2 of its original length, replace
both Carbon Brushes. If, however,
the Carbon Brushes are just dirty they
may be cleaned by rubbing them with a
pencil eraser.
d. When installing the Carbon Brushes,
make sure the carbon portion of the
Carbon Brushes contact the Motor
Armature, and that the springs face
away from the Motor. Also, make sure
the springs operate freely.
e. After cleaning or replacement, replace
the Carbon Brush Caps with a
CAUTION! Use caution as blades are very
sharp.
WARNING! Only straight blades can be used
with this planer.
4. To reverse or replace the Blades: The
Planer is equipped with two reversible
Blades (57). Do not attempt to sharpen
the Blades. Always reverse or replace
the Blades as a set in order to avoid an
imbalance of the Blade Holder (59). To
reverse or replace the Blades:
Page 12 For technical questions, please call 1-800-444-3353. SKU 91062
a.
(BOTTOM VIEW)
HEX HEAD
SCREW (60)
that secure the Blades, Press Blade
Plate (56), and Blade Holder to the
Blade Shaft (63).
b. Slide the Blades lengthwise out of the
Blade Shaft, using a piece of wood to
c.
HEX HEAD SCREW (60)
BLADE (57)
BLADE HOLDER (59)
PRESS BLADE PLATE (56)
BLADE SHAFT (63)
Once the Blades have been removed,
clean the Blades, Press Blade Plate,
Blade Holder, and the Blade Shaft
thoroughly before installing the reversed
or new Blades to allow for a more
accurate Blade setting.
d. When installing the reversed or new
Blades, it is important that they be
properly adjusted so that they align
evenly with the Front Base Plate (54)
and Rear Base Plate (61). Slide the
Blades lengthwise into the Blade Shaft,
using a piece of wood.
e.
(BOTTOM VIEW)
ALIGN
BLADES
USING
PIECE
OF WOOD
Place a straight edge or piece of wood
along the side surfaces of the Front
Base Plate and Rear Base Plate. Then,
slide the Blades against the straight
edge or piece of wood.
f. Finally, use an open end wrench to
retighten the three Hex Head Screws
that secure the Blades, Press Blade
Plate, and Blade Holder to the Blade
Shaft.
5. WARNING! If the supply cord of
this power tool is damaged, it must be
replaced only by a qualied service
technician.
Page 13For technical questions, please call 1-800-444-3353.SKU 91062
Troubleshooting
Problem Possible Causes Likely Solutions
Tool will not start. 1. Cord not connected.
2. No power at outlet.
3. Tool’s thermal reset breaker
tripped (if equipped).
4. Internal damage or wear.
(Carbon brushes or switch, for
example.)
1. Check that cord is plugged in.
2. Check power at outlet. If outlet is unpowered,
turn off tool and check circuit breaker. If breaker
is tripped, make sure circuit is right capacity for
tool and circuit has no other loads.
3. Turn off tool and allow to cool. Press reset button
on tool.
4. Have technician service tool.
Tool operates slowly. Extension cord too long or wire size
too small.
Eliminate use of extension cord. If an extension
cord is needed, use shorter/heavier gauge cord.
See Extension Cords in GROUNDING section.
Performance
decreases over time.
1. Accessory dull or damaged.
2. Carbon brushes worn or
damaged.
1. Keep cutting accessories sharp. Replace as
needed.
2.
Excessive noise or
rattling.
Internal damage or wear. (Carbon
brushes or bearings, for example.)
Have technician service tool.
Overheating. 1. Forcing tool to work too fast.
2. Accessory misaligned.
3. Accessory dull or damaged.
4. Blocked motor housing vents.
5. Motor being strained by long or
small diameter extension cord.
1. Allow tool to work at its own rate.
2. Check and correct accessory to fence and/or
table alignment.
3. Keep cutting accessories sharp. Replace as
needed.
4.
approved dust mask/respirator while blowing dust
out of motor using compressed air.
5. Eliminate use of extension cord. If an extension
cord is needed, use one with the proper diameter
for its length and load. See Extension Cords in
GROUNDING section.
Follow all safety precautions whenever diagnosing or servicing the tool.
Disconnect power supply before service.
Page 14 For technical questions, please call 1-800-444-3353. SKU 91062
Part Description Qty.
1 Name Plate 1
2 3
3 Cover 1
4 Belt 1
5 Bearing Sleeve 1
6 1
7 Press Board 1
8 2
9 1
10 Small Belt Wheel 1
11 2
12 Press Board 1
13 1
14 Bearing Sleeve 1
15 1
16 Trigger 1
17 1
18 Power Switch 1
19 Handle Cover 1
20 2
21 Power Cord 1
22 Spring 1
23 Stator 1
24 2
25 Armature 1
26 Wind Shield 1
27 1
28 Bearing Sleeve 1
29 2
30 Press Cord Board 1
31 Press Cord Shield 1
32 Screw Arbor 1
Part Description Qty.
33 Screw Arbor 1
34 Spring 1
35 Carbon Brush Cap 2
36 Carbon Brush 2
37 Carbon Brush Sleeve 2
38 Carbon Brush Holder 2
39 Rear Cover 1
40 Stopper 1
41 Cover 1
42 3
43 1
44 9
45 Right Motor Housing 1
46 Nut (M5) 4
47 Screw 1
48 Depth Knob 1
49 1
50 Plug Cock 1
51 Dial 1
52 Adjustable Nut 1
53 Adjustable Spring 1
54 Front Base Plate 1
55 Cylinder Pin 1
56 Press Blade Plate 2
57 Blade 2
58 Socket Head Cap Screw 4
59 Blade Holder 2
60 Hex Head Screw 6
61 Rear Base Plate 1
62 1
63 Blade Shaft 1
64 Guide (Not Shown) 1
PLEASE READ THE FOLLOWING CAREFULLY
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE
PARTS LIST
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not available
individually as replacement parts.
Page 15For technical questions, please call 1-800-444-3353.SKU 91062
ASSEMBLY DIAGRAM
17 16
18
68: GUIDE NOT SHOWN.
Page 16 For technical questions, please call 1-800-444-3353. SKU 91062
LIMITED 90 DAY WARRANTY
Harbor Freight Tools Co. makes every
effort to assure that its products meet
high quality and durability standards, and
warrants to the original purchaser that this
product is free from defects in materials and
workmanship for the period of 90 days from
the date of purchase. This warranty does not
apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents,
repairs or alterations outside our facilities,
criminal activity, improper installation, normal
wear and tear, or to lack of maintenance. We
shall in no event be liable for death, injuries
to persons or property, or for incidental,
contingent, special or consequential damages
arising from the use of our product. Some
states do not allow the exclusion or limitation
of incidental or consequential damages,
so the above limitation of exclusion may
not apply to you. THIS WARRANTY IS
To take advantage of this warranty,
the product or part must be returned to us
with transportation charges prepaid. Proof
of purchase date and an explanation of the
complaint must accompany the merchandise.
will either repair or replace the product at
our election or we may elect to refund the
purchase price if we cannot readily and
quickly provide you with a replacement. We
will return repaired products at our expense,
but if we determine there is no defect, or that
the defect resulted from causes not within the
scope of our warranty, then you must bear the
cost of returning the product.
rights and you may also have other rights
which vary from state to state.
3491 Mission Oaks Blvd. • PO Box 6009
Camarillo, CA 93011 • (800) 444-3353
