Preface
Please read this owner’s manual before using the powerchair. Improper use of the powerchair could
result in harm, injury or traffic accidents.
This owner’s handbook includes operation instructions for every aspect of the power powerchair,
assembly instructions, as well as instructions for how to deal with possible accidents.
The symbols used in this manual are explained below. Read carefully, especially the parts marked with
these symbols:
Caution
Improper usage could lead to death or serious injury, or
damage to your powerchair.
Suggestion
Follow these instructions to keep the status of the power
powerchair working well and ease your operation.
This document includes the repair and maintenance record chart and warranty. Please keep it in a safe
place or on the powerchair.
If someone else uses the powerchair, please be sure to give the instruction manual to him orher.
As designs change, some illustrations and pictures in the manual may not correspond to the powerchair
that you purchased. We reserve the right to make design modifications.
The manufacturer disclaims all responsibilities for any personal injury or property damage which may
occur as a result of improper or unsafe use of its products.

Page 3
Titan LTE Owners Handbook (Issued 07/17)
Safety Notices
1. Always fully charge your powerchair before operating.
2. Always make sure the power is off when getting in and out of the powerchair.
3. Always make sure the clutch levers are engaged (parallel to the wheels) before getting in or out of
the powerchair. Engage the levers by pressing them downwards.
4. To prolong the life of the battery, it is suggested you charge the battery after every trip. If you do
not drive it for long periods of time, it recommended to charge the batteries once per week.
5. If the battery gauge goes to RED, charge the battery as soon as possible. If the battery is totally
discharged, it could be damaged, and/or its life could be shortened.
6. As the battery ages and deteriorates, the battery power will decrease faster.
7. In cold weather, the battery capacity will be less.
8. Avoid unnecessarily moving of the powerchair.
9. Please fasten the seat belt, if included, when operating the powerchair and check the proper
position of the anti-tip wheel.
10. Our products function best at temperatures between 32-122ºF (0-50ºC).
11. Disassembling of controller, motor or charger by end user is prohibited; the dealer will not take
any responsibility on these kinds of situations.
12. Prevent the controller, charger and battery from getting wet; this can cause a malfunction.
13. To ensure the user’s familiarity with the powerchair’s operation, the new driver should practice
driving in a spacious area, traveling forward, backward, left, right, using the brakes, and going
both up and down slopes.
14. Please turn off the powerchair when the chair is not is use and before charging the batteries.
15. The following areas and conditions can be dangerous and should be avoided; darkness, dim
lighting, steep slopes, rain, snow, shoulder of the road, slippery areas, etc.
16. Please do not drive your powerchair at night without proper lighting.
17. Please do not lower the footplate to less than 2” above the ground, because accidents may occur
due to insufficient ground clearance.
18. Keep your feet on the footplate at all times during operation and do not stand on the footplate. If
your feet are in the improper position, you can be seriously injured.
19. When the power does not come on, recheck all connections and recharge if necessary.
20. Please check the screws under the joystick periodically and make sure they are not loose, and
tighten them if needed.

Page 4
Titan LTE Owners Handbook (Issued 07/17)
Electromagnetic Interference
Power mobility products may be susceptible to electromagnetic interference (EMI), which is interfering
energy emitted from sources such as:
 Cellular phones
 Wireless computer links
 Two-way radios
 Radio stations
 TV stations
 Amateur radio (HAM) transmitters
 Microwave signals
 Medium-range mobile transceivers used by emergency vehicles
This interference can cause the powered mobility product to release its brakes, move by itself, or move
in unintended directions. It can also permanently damage the power mobility product’s control system.
Every electronically-powered mobility powerchair has a resistance to EMI –the higher the immunity
level, the greater the resistance to EMI. Your power mobility product has been laboratory tested and is
immune to EMI up to a level of 20 V/M.
Warning!
Following the warnings listed below should reduce the chance of unintended brake
release or powered mobility product movement which could result in serious injuries.
1. Do not operate hand-held transceivers-receivers, such as citizens band (CB)
radios, or turn ON personal communication devices, such as cellular phones, while
the mobility product is turned ON.
2. Be aware of nearby transmitters, such as radio or TV stations, and try to avoid
getting close to them.
3. If unintended movement or brake release occurs, turn the powered mobility
product OFF as soon as it is safe.
4. Be aware that adding accessories or components, or modifying the power mobility
product, may make it more susceptible to EMI.
5. Report all incidents of unintended movement or brake release to Drive DeVilbiss,
and note whether there were sources of EMI nearby.

Page 5
Titan LTE Owners Handbook (Issued 07/17)

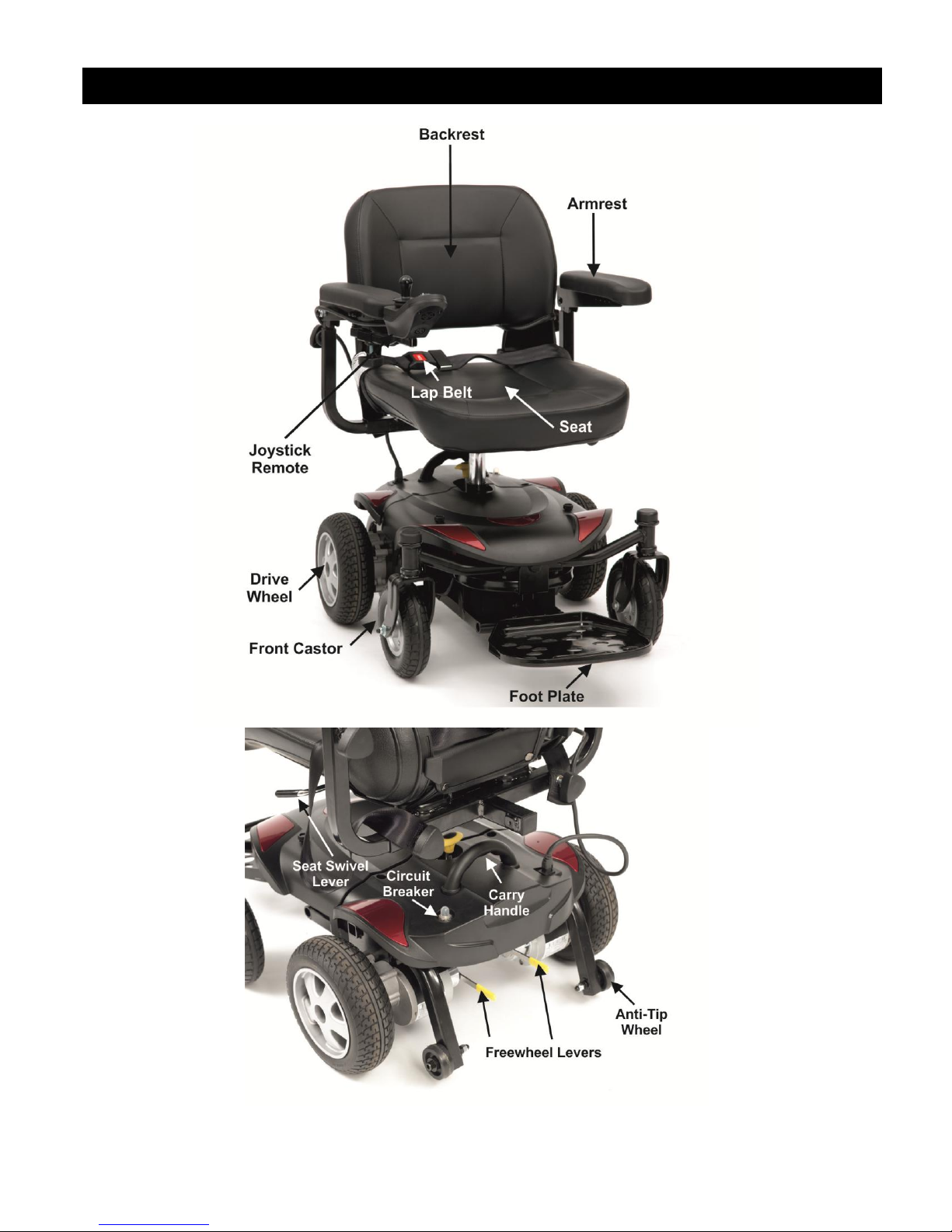

Parts

Page 6
Titan LTE Owners Handbook (Issued 07/17)

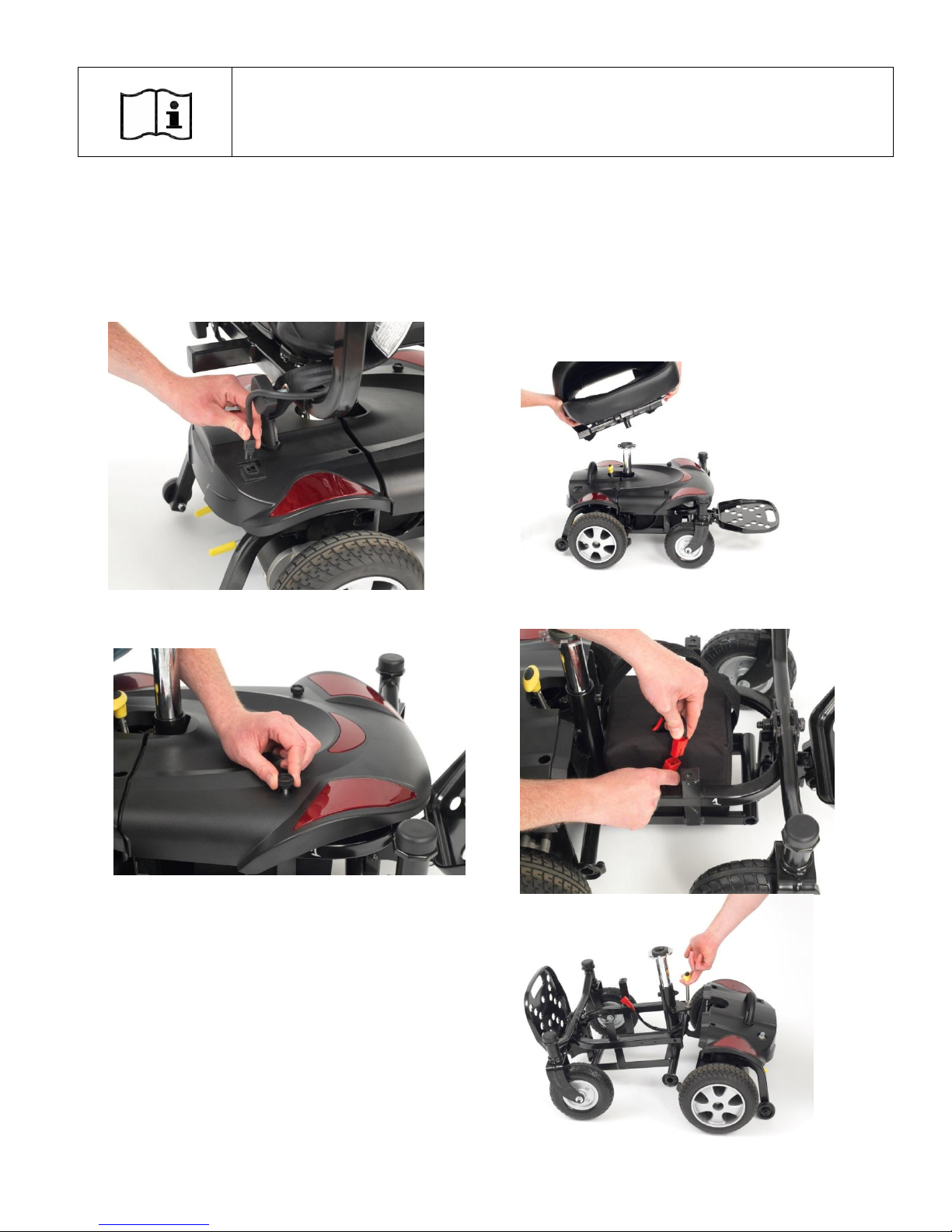

INITIAL ASSEMBLY (this is also applicable after disassembly for transport)
1. Loosen and remove the two knobs on the
shroud. Lift up the front shroud to remove. Lift
up the front shroud to remove.
2. Connect the battery pack.
3. Insert the seat in to the seat post. Lift up the
swivel lever and rotate the seat until it locks in
position.
4. Insert the arms in to the seat.
5. Set the arms to the required width then secure
by turning the armrest knobs clockwise.
6. Plug the cable from the joystick remote in to
the port at the back of the powerchair base.
Assembly

Page 7
Titan LTE Owners Handbook (Issued 07/17)
Suggestion
Fully charge the battery for 12 hours before use. Failure to do so could impair the
battery performance and may permanently reduce the battery’s longevity.
DISASSEMBLY FOR TRANSPORT
The powerchair can be quickly and easily separated into 4 sections: seat assembly, front section, and
rear section (with or without batteries) and the battery pack.
1. Unplug the joystick from the rear of the
powerchair.
2. Swivel the seat using the lever whilst lifting up
the seat to remove. The chassis can now be
split. If you need to remove the batteries follow
steps 3 and 4, otherwise proceed to step 5.
3. Loosen and remove the two knobs on the
shroud. Lift up the front shroud to remove. Lift
up the front shroud to remove.
4. Disconnect the batteries and lift up the
battery pack to remove.
5. Lift up the yellow handle to separate the
chassis. This can be done with or without
the batteries installed.

Page 8
Titan LTE Owners Handbook (Issued 07/17)
Comfort Adjustments
SEAT SWIVEL
The seat can be swivelled left or
right to make getting on or off the
seat more convenient.
Lift up on the handle on the left
side of the seat and then rotate
the seat. Release the handle and
carry on rotating the seat until it
locks in position.
JOYSTICK POSITION
The position of the controller can be
adjusted by loosening the bolt on
the underside of the controller arm
and sliding the arm forward or
backward to the desired position.
Once the desired position is
reached, retighten the bolt to
secure the joystick in position.

Page 9
Titan LTE Owners Handbook (Issued 07/17)
ARMREST WIDTH
The width of armrests can be adjusted by
loosening the bolts on the underside of the
seat and sliding the armrests inward or
outward to the desired width.
Once the desired position is reached,
retighten the bolt to secure the armrest in
position.

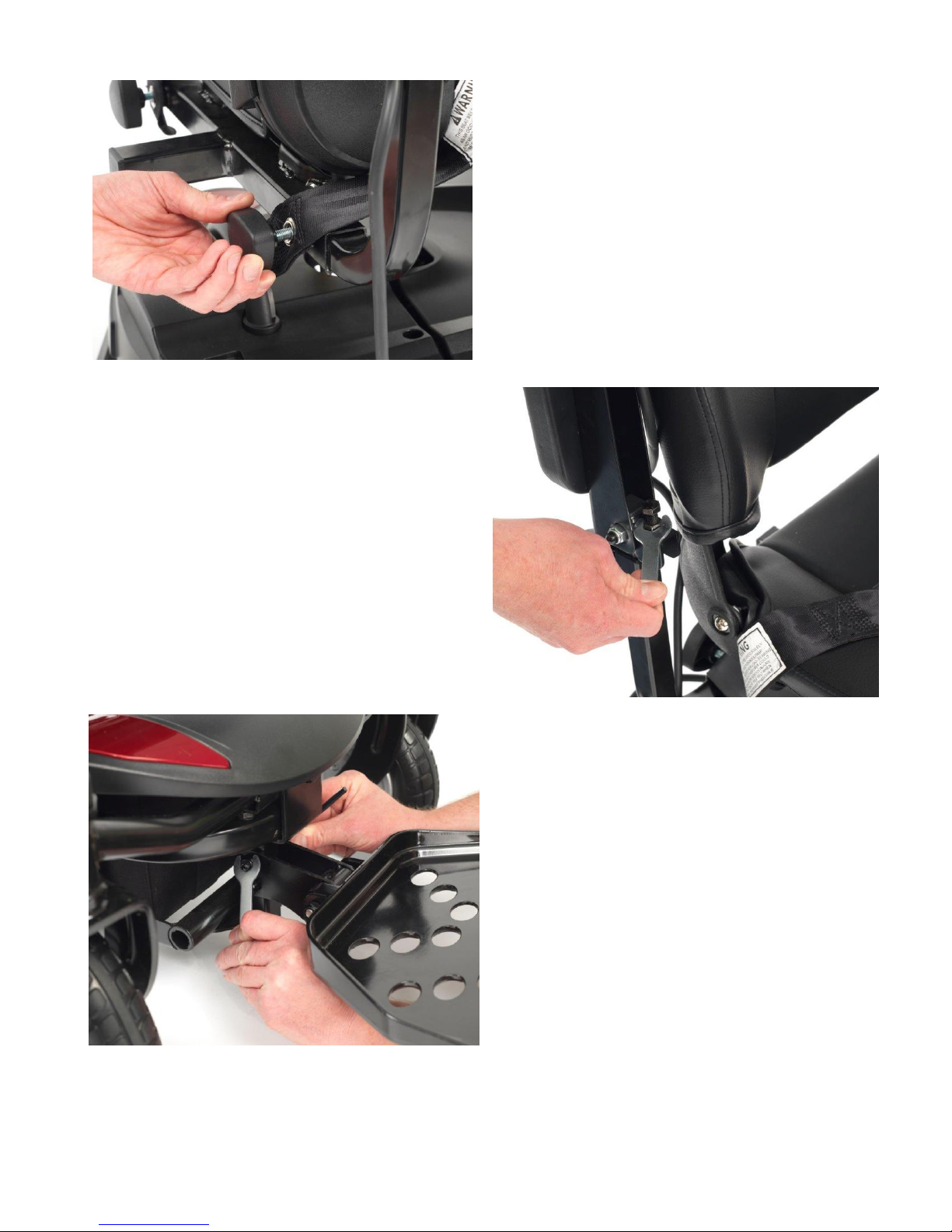

ARMPAD ANGLE
Adjust the angle of the arm pad be altering the
position of the screw and nut with a spanner (as
shown in the photograph).
To raise the angle, first turn the screw
anticlockwise then turn the nut clockwise.
To lower the angle, first turn the nut anticlockwise
and then turn the screw clockwise.
FOOTPLATE HEIGHT
Remove the two sets of fasteners attaching the
footplate as shown in the photograph.
Reposition the footplate to the required height,
then reattach the fasteners to secure.

Page 10
Titan LTE Owners Handbook (Issued 07/17)
Operation
GENERAL INFORMATION

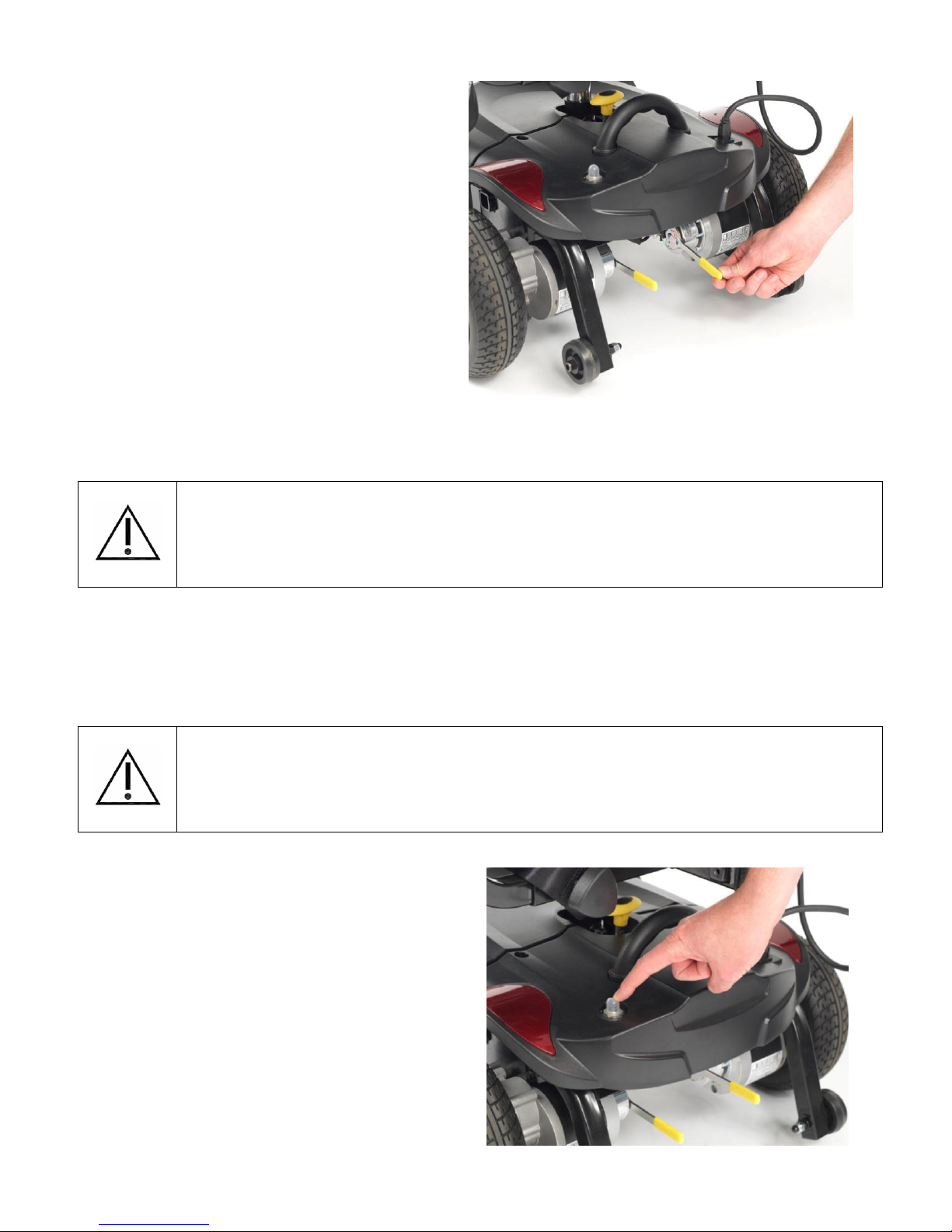

1. Make sure that the motor levers are in engaged mode by pressing down on the levers. (Parallel to the
wheels)
2. Once seated on the powerchair, turn on the power (Press the power button). The battery gauge
will turn on.
3. We suggest the new users and the disabled operate the chair in low speed until comfortable with
the chair and its use.
4. Start to steer, moving the joystick to drive forward, backward, left or right. If you want to stop the
powerchair, release the joystick—it will automatically return to the centre position to stop the chair.
5. When driving the chair on a slope, push the joystick forward to keep the chair continuously
climbing until you reach the top of the slope. While the chair is climbing a steep slope, position
your body forward to prevent the front wheels from lifting.
6. When driving the chair down a slope, drive slowly and prepare for an emergency stop if you feel it
difficult to control the chair. If the speed increases, release the joystick to slow down or to stop,
then start again at a slower speed.
JOYSTICK
Power On / Off and Status Indicator
Press the power button to switch the powerchair on. If the system is functioning correctly, then the
power button will light up green and the battery gauge will display the power remaining in the battery.
If the system detects a fault when powering up, then the power button will indicate the fault with a
series of red flashes and prevent the system from driving. The battery gauge will flash continuously.
Press the power button again to switch the powerchair off.
See the Troubleshooting section for more information on fault statuses.

Page 11
Titan LTE Owners Handbook (Issued 07/17)
Battery Gauge
When the battery is fully charged then all 5 LEDs on the battery gauge will be lit constantly (i.e. not
flashing). The number of LEDs lit will decrease as the battery power decreases.
When only 2 LEDs are lit you should consider charging the battery.
If only 1 LED is lit then you should recharge the battery immediately.
If the joystick is pressed during start-up then the system will display a fault by flashing all the battery
gauge LEDs. If the joystick is released within 5 seconds then the error will clear. Otherwise, release the
joystick and restart the powerchair.
If 3 LEDs are flashing then the powerchair is locked (see below).
Lock Function
The powerchair can be locked to prevent unintended operation.
To lock the system, press and hold the Power button for 4
seconds. When the powerchair is locked, the 1st, 3rd and 5th
LEDs on the battery gauge will flash (as shown left)
To unlock the system, press the Power button once and then
press the Horn button twice within 10 seconds.
Note: the lock function is not programmed on all powerchairs.
Check with your dealer that your powerchair has this function
programmed.
Emergency Stop
If the user needs to stop quickly press the power button to perform an emergency stop.
Under normal operation the user should release the joystick to bring the powerchair to a halt.
Joystick Operation
Push the joystick in the required direction of travel to operate the powerchair.
The further the joystick is pushed, the faster the powerchair will travel.
Releasing the joystick will stop the motors and apply the electromagnetic brakes.
Speed Dial
Use the speed dial to determine the powerchairs maximum speed.
Turn the dial clockwise to increase the maximum speed.
Turn the dial anticlockwise to decrease the maximum speed.
Horn
Press the horn button to sound the horn. Release the button to stop the horn from sounding.

Page 12
Titan LTE Owners Handbook (Issued 07/17)
FREEWHEEL MODE
Your power powerchair is equipped with
two freewheel levers. These levers allow
you to disengage the drive motors and
maneuver the chair manually.
Press the yellow levers (shown in
photograph) up to engage freewheel
mode.
Press the levers down to engage drive
mode.
Caution
DO NOT use your powerchair while the drive motors are disengaged unless someone is
there to push you. The chair could roll on its own causing injury!
To engage or disengage the freewheel feature:
1. Pull the freewheel levers upward to disengage the drive motors.
2. Push the freewheel levers downward, to engage the drive motors.
Caution
It is important to remember that when your power powerchair is in freewheel mode, the
braking system is disengaged.
CIRCUIT BREAKER
If the powerchair is overloaded (from use on a
gradient for example), then circuit breaker will
activate to protect the powerchair from damage.
If the circuit breaker activates, then the
powerchair will be unresponsive.
Press the circuit breaker to reset, as shown in
the photograph.

Page 13
Titan LTE Owners Handbook (Issued 07/17)
TRANSPORTING YOUR CHAIR
If you will be traveling with your powerchair, you may find it necessary to use a lift/elevation product or
portable ramp to aid in transportation. Drive DeVilbiss suggests you closely review the instructions,
specifications, and safety information included with the lift/elevation product before using that product.
Caution
Never sit on your powerchair when it is being used in connection with any type of
lift/elevation product or portable ramp. Your powerchair was not designed with such use
in mind and any damage or injury incurred from such use is not the responsibility of Drive
DeVilbiss.
It is important that you do not remain seated in your powerchair while traveling in a motor vehicle. The
powerchair should be stowed in the trunk of a car or in the back of a truck or van with batteries
removed and properly secured.
Caution
Do not sit on your powerchair while it is in a moving vehicle.
Caution
Always be sure your powerchair and its batteries are properly secured when it is being
transported. Batteries should be secured in an upright position and protective caps
should be installed on the battery terminals. Batteries should not be transported with any
flammable or combustible items.
POSITIONING BELTS
Your authorized Drive DeVilbiss Provider, therapist(s), and other healthcare professionals are
responsible for determining your requirement for a positioning belt in order to operate your powerchair
safely.
Caution
If you require a positioning belt to safely operate your powerchair, make sure it is
fastened securely in order to reduce the possibility of a fall from your powerchair.
Caution
The positioning belt is not designed for use as a seat belt in a motor vehicle. Nor is
your powerchair suitable for use as a seat in any vehicle.

Page 14
Titan LTE Owners Handbook (Issued 07/17)
USE ON INCLINES
Many buildings have powerchair-accessible ramps with specified degrees of incline, designed for easy
and safe access. Some ramps may have turning switchbacks (180º turns) that require you to have good
cornering skills on your powerchair. Proceed with extreme caution as you approach the downgrade of a
ramp or other incline. DO NOT use on inclines greater than 6°. Take wide swings with your powerchair’s
front wheels around any tight corners. If you do that, the powerchair’s rear wheels will follow a wide arc,
not cut the corner short, and not bump into or get hung up on any railing corners.
When driving down a ramp, keep the powerchair’s speed adjustment set to the slowest speed setting to
ensure a safely controlled descent. Avoid sudden stops and starts. When climbing an incline, try to keep
your powerchair moving. If you must stop, start up again slowly and then accelerate cautiously. When
driving down an incline, set your powerchair to the slowest speed setting and drive in the forward
direction only. If your powerchair starts to move down the incline faster than you anticipated or desired,
allow it to come to a complete stop by releasing the joystick, then push the joystick forward slightly to
ensure a safely controlled descent.
Caution
When on any sort of an incline or decline, never place the powerchair in freewheel
mode while seated on it or standing next to it.
Caution
When climbing an incline, do not zigzag or drive at an angle up the face of the incline.
Drive your powerchair straight up the incline. This greatly reduces the possibility of a tip or
a fall. Always exercise extreme caution when negotiating an incline.
Caution
You should not travel up or down a potentially hazardous incline (i.e., areas covered
with snow, ice, cut grass, or wet leaves).
Caution
Never travel down an incline backward. Doing so may cause the powerchair to tip.
Always exercise extreme caution when negotiating an incline.
Excessively high cornering speeds can create the possibility of tipping. Factors which affect the
possibility of tipping include, but are not limited to: cornering speed, steering angle (how sharply you are
turning), uneven road surfaces, inclined road surfaces, riding from an area of low traction to an area of
high traction (such as passing from a grassy area to a paved area –especially at high speed while
turning), and abrupt directional changes. High cornering speeds are not recommended. If you feel that
you may tip over in a corner, reduce your speed and steering angle (i.e., lessen the sharpness of the
turn) to prevent your powerchair from tipping.

Page 15
Titan LTE Owners Handbook (Issued 07/17)
Caution
When cornering sharply, reduce your speed and maintain a stable center of gravity.
This greatly reduces the possibility of a tip or fall.
BATTERY
Please charge the batteries after long distance driving to prolong the battery. If you don’t drive the chair
for a long period of time, then charge the batteries every week. Please use a maintenance/water-free
battery to avoid trouble.
MOTOR
The carbon brush connector & brakes should be serviced regularly (at least once per year).
ELECTRICAL BRAKES
Testing of the electrical brakes should be carried out on a level floor with at least three feet of clearance
space around the powerchair.
Power-on the controller, and push the joystick forward slowly until you hear the electrical brake working.
The power powerchair may start to move. Immediately release the joystick, you must be able to hear
each electrical brake within a few seconds. Repeat the test three times, pushing the joystick backward,
left and right respectively.
TYRES
Check front/rear tyres regularly and replace them when worn out.
Suggestion
Follow these instructions to keep the status of the power powerchair working well and ease
your operation.

Page 16
Titan LTE Owners Handbook (Issued 07/17)
TROUBLESHOOTING
The powerchair will diagnose faults that arise with the powerchair. The power button / status indicator
will flash red a number of times in a series to indicate the fault. The flash sequences are described
below.
Flash Code
Description
Recommended Action
1
Remote / Joystick error
Release the joystick and restart the powerchair if
required.
2
Configuration error
Unplug the charger from the powerchair.
Recharge the battery.
Check cables, connectors and charger.
3
Left Motor error
Check the cables and connectors
4
Right Motor error
Check the cables and connectors
5
Left Brake error
Check the powerchair is in Drive mode
Check the cables and connectors
6
Powerchair Brake error
Check the powerchair is in Drive mode
Check the cables and connectors
7
Module error
Check the cables and connectors
All faults disable the controller and require the controller to be turned off then on again once the source
of the fault is removed. If errors persist and/or the above actions do not resolve the fault, then contact
your dealer.

Page 17
Titan LTE Owners Handbook (Issued 07/17)
Batteries & Charging
Before using your power mobility product for the first time, you will need to charge your batteries for 8
–10 hours to ensure that they are fully charged.
Suggestion
Drive DeVilbiss recommends that frequent users of their power mobility products
charge their batteries overnight, 8 –10 hours, to make certain they have a full charge
each day.
Suggestion
Drive DeVilbiss recommends that infrequent users of their power mobility product
charge their batteries once a week for 8 –10 hours.
Drive DeVilbiss’s battery chargers, specific to our product, are designed to not overcharge the
batteries. You may leave your power mobility product plugged into the charger for longer than 8 –10
hours without causing damage to the batteries.
In some instances Drive DeVilbiss’s battery charger may show two green lights indicating that the
batteries are fully charged—this is not always the case. A good rule of thumb is to charge your
batteries 8 –10 hours before each use to ensure that your power mobility product has a full charge.
CHARGER FEATURES
1. Ensures the battery connection automatically.
2. Monitoring all procedures until the battery is fully charged.
3. For protecting exhausted batteries, slow charge starts in the beginning then fast charge until it
goes up to the normal voltage.
4. Compact, portable and light-weight.
5. Approvals: UL, CSA, CE, TUV, JAPAN (T-mark)

Page 18
Titan LTE Owners Handbook (Issued 07/17)
CHARGER OPERATION INSTRUCTIONS
Please follow these steps:
1. Only use the charger to recharge lead-acid batteries.
2. Keep the AC power switched off until the battery and charger
have been connected.
3. Insert the end connector of the charger in to the socket on
the front of the joystick.
4. Switch the AC power on. The LED will turn red to show that it is
charging the batteries.
5. When the LED turns from Red to Green this indicates that the
batteries are charged.
Note: the LED will also illuminate Green if the batteries are not
connected. In the event of the LED not turning red on start up
check the connection.
CHARGER USAGE ENVIRONMENT
1. Please keep the charger at least 2 inches away from other objects when charging.
2. Do not use it on wet and dirty surfaces.
3. Do not place the charger on the battery.
NOTES
1. Ensure the output-DC voltage corresponds to the battery type and voltage. Otherwise it may cause
an explosion.
2. Switch off the charger before connecting the charger and battery.
3. Do not expose the charge to the rain, water or near flammable materials. Do not store the charger
in humid places or in an enclosed area.
4. The warranty is given for use within normal operating conditions; it does not cover accidental
damage, or problems cause by use error or neglect.

Page 19
Titan LTE Owners Handbook (Issued 07/17)
Max. Weight Capacity
115kg (18 stone)
Maximum Speed
4mph (6.4kph)
Estimated Range
6.5 mile (10.6 km)
Maximum Grade/Incline
6º
Turning Radius
70cm (27½”)
Ground Clearance
5cm (2”)
Powerchair
Length
86cm (34”)
Width
60cm (24”)
Height
87cm (34¼”)
Height with Back Folded (car boot)
70cm (27½”)
Seat
Width
45cm (18”)
Depth
45cm (18”)
Back
35cm (14”)
Armrest to Seat
73cm (29”)
Motor
Motor
24V DC 250W x 2
Controller
Dynamics Linx 40A
Batteries
12V 20Ah x 2
Battery Charger
24V 2A
Wheels
Front Castors:
20cm x 5.5cm puncture proof
Rear Drive Wheels:
22.5cm x 7.5cm punct. proof
Weight without Seat and Batteries
29.4kg
Total Weight
54.0kg
Heaviest Piece Weight (front section
w/ batteries)
15.2kg
User’s weight, road conditions, battery charge, etc. will influence performance.
Drive DeVilbiss reserves the right to modify the specifications if necessary. The final specifications are
subject to the individual power powerchair your purchase from your dealer.
Specifications
