Drive Medical Geo User manual

POWER CHAIR
Geo
(Item #’s S35001696, S35001697, S35002696, S35002697)
OWNER’S MANUAL
1

TABLE OF CONTENTS
1. PREFACE AND INTRODUCTION ……..…………………………………… 3
2. SAFETY NOTICE………..…………………….................……… ………….
Before driving
While driving
Labeling
4
3.
4.
EMI……………………………………………..………………………………..
PARTS INTRODUCTION……………………………………………..……….
10
11
5. OPERATION…………………………………………………………………....

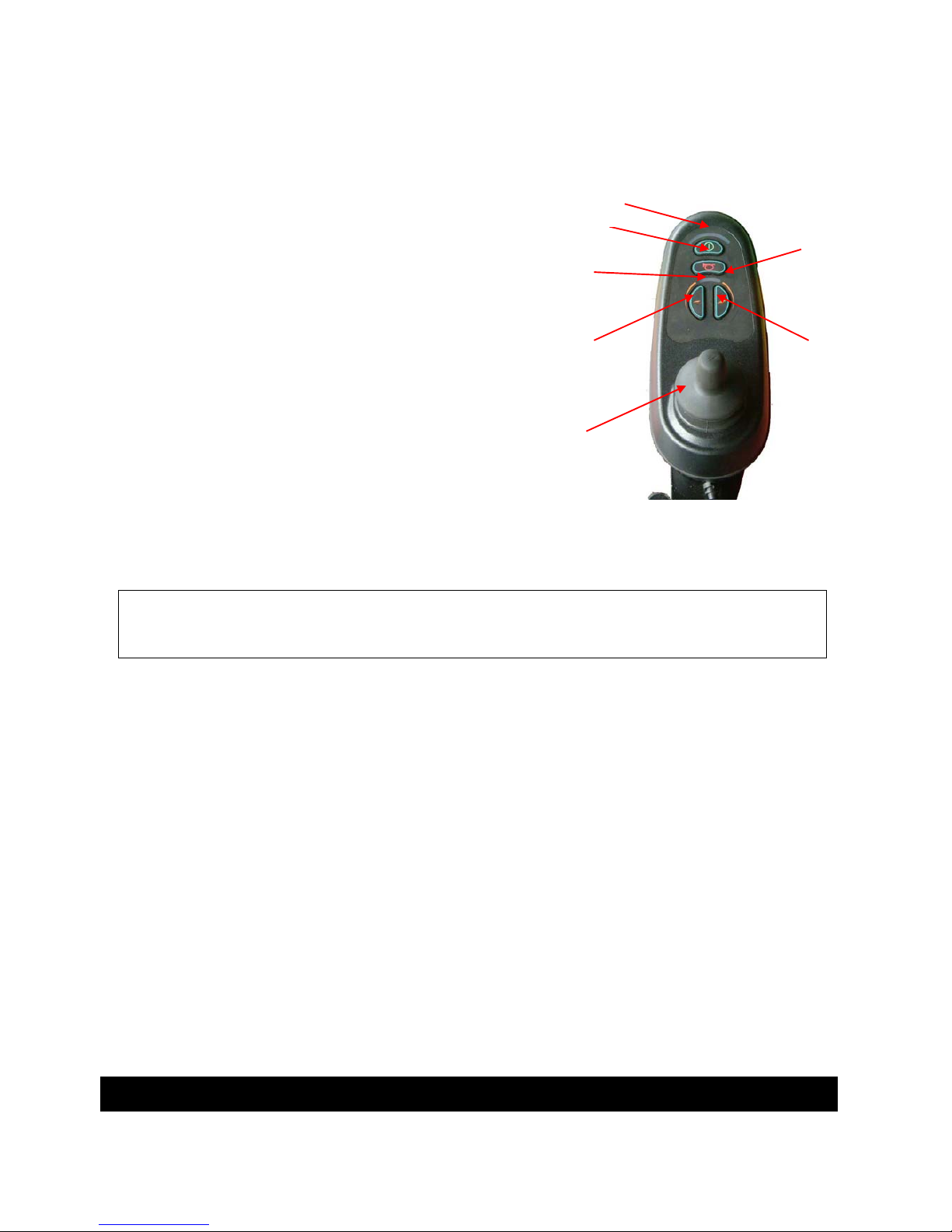

Control panel
How to operate your power chair
How to set to freewheel mode
12
6. BATTERY CHARGINGAND CARE……………………………………….....
Charging the battery -
Battery

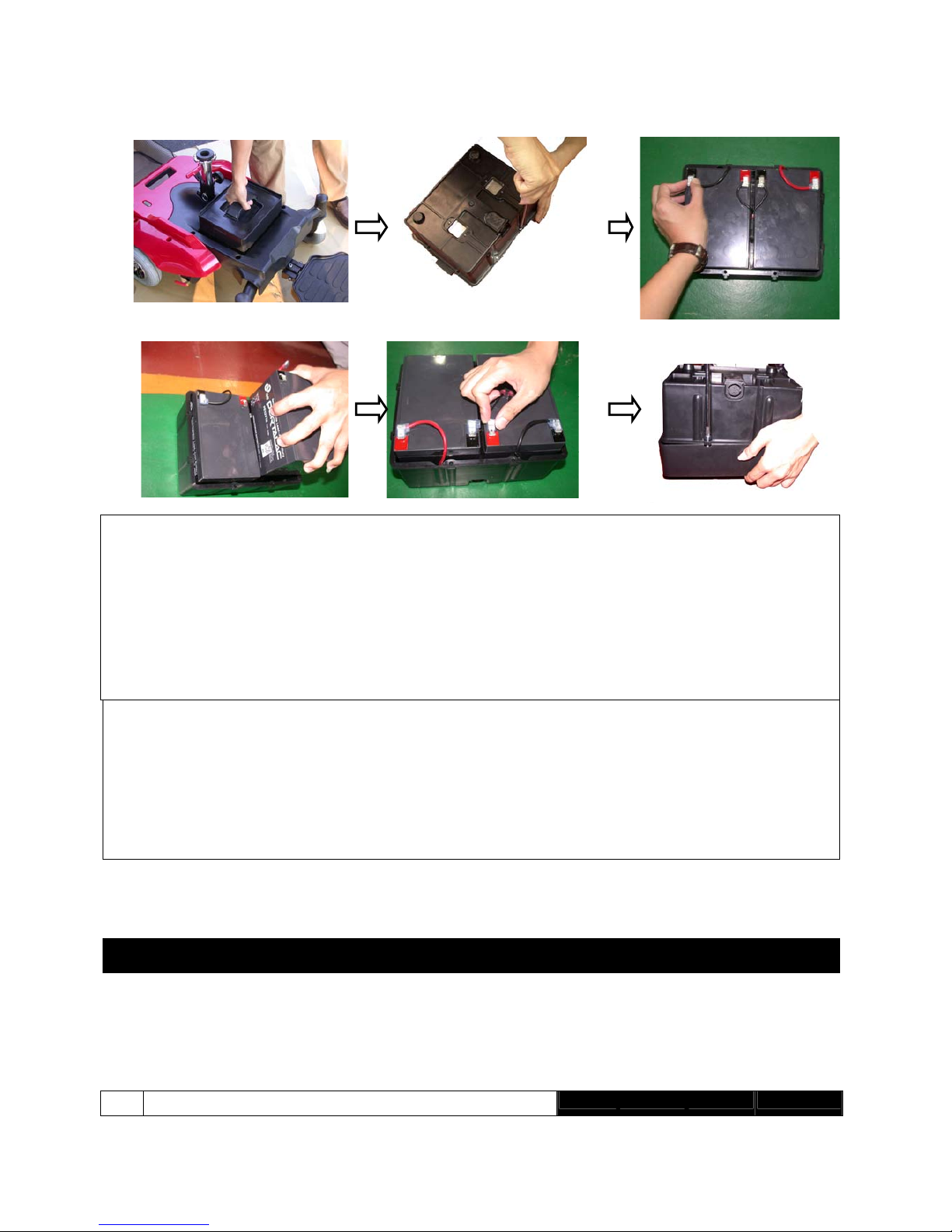

Replacing Geo batteries / charger
18
7.
INSPECTION AND MAINTENANCE……………………………………..….
Inspection
Regular checking record
Battery, fuse and tire
Storage
21
8. TROUBLE SHOOTINGAND SPECIFICATION…………….……………… 25
9. WARRANTY………………………………………………………………….....
28
2

1. PREFACE AND INTRODUCTION
Please carefully read this owner’s manual before using the power chair. Improper use of the power chair
could result in, injury.
This owner’s manual includes operating instructions for every aspect of the power chair, including
assembly instructions and how to deal with possible accidents.
◆ The symbols used in this manual are explained below:
Read carefully the notes marked with these symbols:
1Warning Improper usage could result in serious injury or death
)Attention Improper usage could lead to injury and/or damage to your power chair.
Suggestion Follow these instructions to keep your power chair in a good operating order.
◆ This manual includes a copy of repair and maintenance record chart and warranty information. Please
keep it in a safe place.
◆ If someone else uses the power chair, please make sure that you provide them with the instruction
manual for his or her consideration.
◆ We reserve the right to make design modifications. As designs change some illustrations and pictures in
the manual may not correspond to the power chair that you have purchased.
“Caution: Federal law restricts this device to sale by or on the order of a
practitioner licensed by the law of the State in which he/she practices.”
3

4
2. SAFETY NOTICE
2.1 BEFORE DRIVING
The user should become familiar with the usage and operation of this power chair before driving.
Therefore, please always keep the following safety notices in mind.
■ For your safety, please follow these guidelines.
◆ Drive on the pavement, or pedestrian areas only.
◆ Do not drive your power chair after consuming alcohol or when tired.
◆ Please be careful when driving your power chair in low light. It has not been designed for use at
night.
◆ The power chair has been designed to operate on pavement for speeds up to 3.5mph.
■ Practice operating your power chair
Before using the power chair, familiarize yourself with the operation of your power chair.
◆ Turn the speed dial to value 1 for your initial practice.
◆ Be sure someone accompanies you for safety when operating you power chair for the first time.
◆ Only use higher speed setting when you are confident that you can easily operate and control your
power chair.
■ The Geo power Chair is only to be used by one person at a time
Do not carry passengers on your power chair. (including children)
■ Do not use this power chair to carry or haul goods
◆ The maximum weight with occupant is 250 lbs.
2.2 WHILE DRIVING
■ Carry out daily inspections. Refer to the section “titled” “DAILY CHECKING”
■ Do not move your body out of the power chair while moving
◆ Such action may cause you to lose balance and risk injury from falling.
◆ Pay attention that your clothes do not tangle in the wheels.

5
2. SAFETY NOTICE
■ Do not use your power chair under any of the conditions.
◆ On roads with heavy traffic or roads that are operate, snow-covered, or icy.
◆ Do not drive at night. Do not drive in rain or snow.
◆ Do not drive your power chair in an “S” pattern or make erratic turns.
◆ Do not take the power chair onto escalators.
◆ UNDER NO CIRCUMSTANCES SHOULD THE POWER CHAIR BE USED AS A SEAT IN
ANOTHER VEHICLE (CARS, BUSES, TRAINS, ETC).
■ About Mobile Phones and other electrical equipment
◆ Do not use a mobile phone or other wireless communication device while driving.
◆ Always switch off the power chair and remove the ignition key before using a mobile phone.
◆ Do not charge the mobile phone or any other electrical device from the power chair battery.
■ Automatic Power Shut Down
In order to avoid accidental battery run down, your power chair is equipped with an automatic power
shut down. If the power chair is turned on, it will automatically turn off after remaining undisturbed for
a period of thirty minutes. When this situation occurs, simply switch your power chair off and back on
and it will be ready to use once again.
■ Ramps, inclines and drops
◆ Do not drive onto ramps that are steeper than the specified gradient. Refer to the section entitled
“CLIMBING ANGLE” in “8. SPECIFICATION”
◆ Always use a low speed setting when ascending or descending a gradient.
◆ Do not drive on roads with large drops or potholes. Refer to the section entitled “MAX. GROUND
CLEARANCE” in “8. SPECIFICATION”.
◆ Operate when driving on roads with inclines.
◆ Do not make sudden turns when driving on gravel roads or ramps.
◆ Always lean forward when climbing a steep gradient.
■ Starting and Driving
1. Make sure the seat is installed properly.
2. Fold down the armrests so that you can rest your arms.
3. Turn the power switch to “ON”.
4. Check battery indicator to ensure proper power as necessary, Recharge the batteries.
5. Set the speed dial to a safe and comfortable speed.
2. SAFETY NOTICE

6
6. Check the joystick lever to ensure it operates correctly.
7. Make sure the electromagnetic brake works correctly.
1Warning!
◆ Do not set in the freewheel mode when driving on a gradient.
◆ Always re-engage the anti-freewheel device before use. Fail to do so may result in injury.
◆ To protect your safety, the power will automatically cut off and electromagnetic brake system will
activate while driving down a steep gradient. This will limit the speed to a safe level. Turn the power
on again to re-start your power chair.
◆ Maximum User Weight Limit
Refer to section titled “MAX. LOAD WEIGHT in “8. SPECIFICATION ”. Overloading past
The weight limit may lead to damage of your power chair or cause it to malfunction and will
endanger your own safety. The warranty does not cover this type of damage.
)Attention
1. Avoid putting all of your weight on the footrest. This may cause the power chair to tip. Possibly
resulting in injury.
2. Do not turn the power switch to OFF while driving as this will lead to an emergency stop and possible
risk of accident and injury.
3. Do not set to the higher speeds while driving indoors.
4. Do not adjust the speed dial while driving; a sudden change in speed may cause danger to you and
others, and may damage your power chair.
5. Do not place magnetic devices near the area of the controller as this could affect the safe operation of
your power chair.
6. Demons while driving in heavy traffic or in crowded areas.
7. While backing up the power wheelchair, be aware of people or objects behind you.
■ Stopping
◆ Release the joystick control lever completely. The power chair will come to a stop.
◆ Turn the power switch to (OFF). Remove the key.
■ Driving on the pavement
◆ Ensure the speed limit switch is set to the slowest setting when using the power chair. This will limit
the power wheelchair to a maximum speed of 3.5mph.
2. SAFETY NOTICE

◆ The speed switch can be set to the fastest setting for use on the road or on private ground.
Attention: When going up an incline, do not zigzag or drive at an angle. Drive straight up the inclined
surface.
Always drive your power chair straight up the incline. This greatly reduces the possibility
of a tip or a fall. Always exercise extreme caution when negotiating an incline.
Do not drive your power chair on an inclined surface if it is covered in ice or snow.
■Inclines and uneven terrain
When climbing an incline, try to keep your power chair moving. If you must stop, start up again slowly
and then accelerate cautiously. When driving down an incline, do so slowly and in the forward direction
only. If your power chair starts to move faster than you anticipated or desired it would, allow the chair to
come to a complete stop by releasing the joystick. Push the joystick slightly forward and continue
traveling slowly down the incline.
■Maximum recommended incline
The Geo Power chair has undergone extensive incline testing. Our results show that the maximum incline
your Geo can safely climb is six degrees at maximum weight capacity. Six degrees is the angle of most
handicap access ramps. Any attempt to climb a steeper slope may put your scooter into an unstable
position.
2. SAFETY NOTICE
7

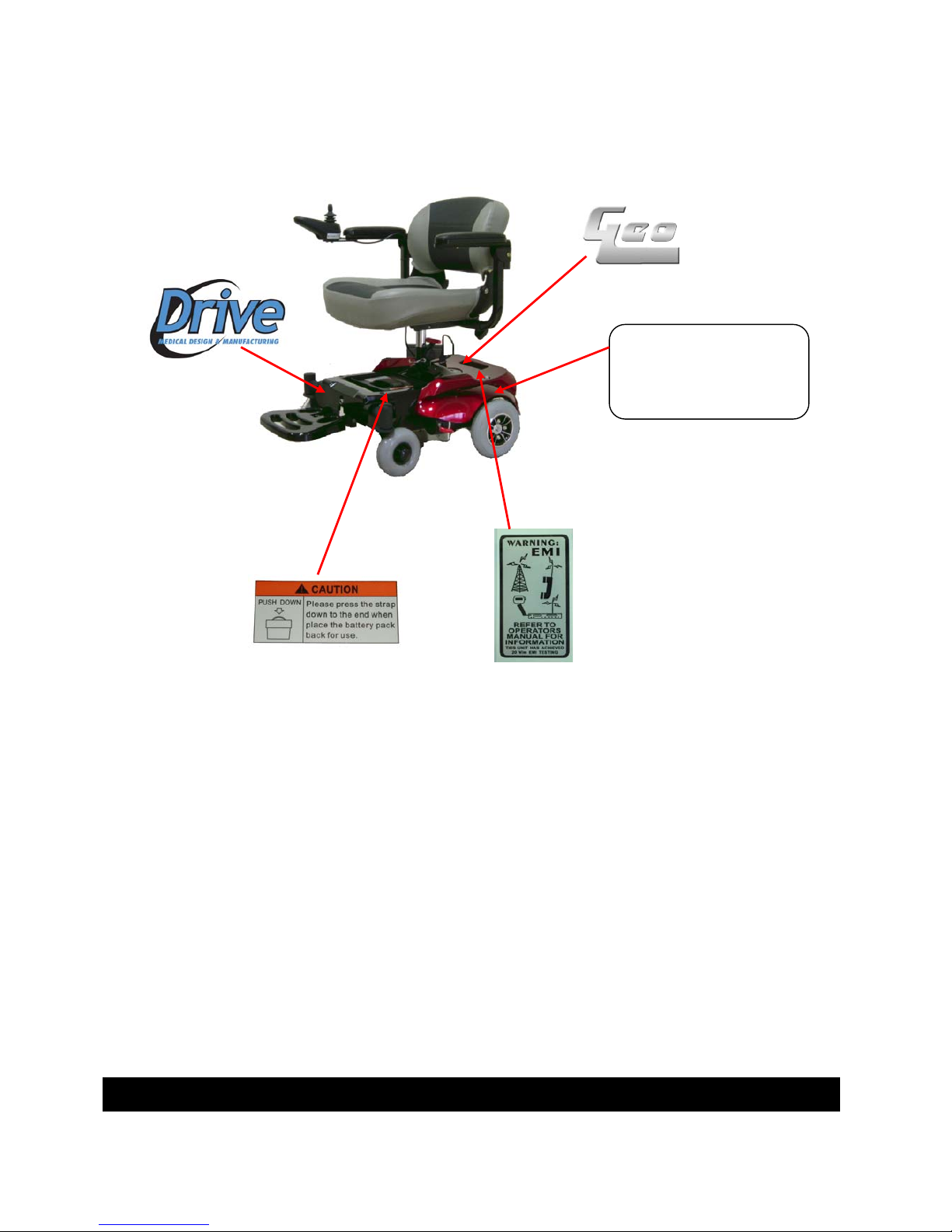

Labeling
Carefully read all the labeling on the power chair before driving it. Do not remove any
labels from the power chair.
8
NEVER LIFT POWER
CHAIR BY THE FRONT
OR REAR SHROUD
2. SAFETY NOTICE

9
This section provides the user with basic information that describes the problems with electromagnetic
interference (EMI), known sources of EMI, protective measure to either lessen the possibility or
exposure or to minimize the degree of exposure, and suggested action should unexpected or erratic
movement occur.
Attention: It is very important that you read this information regarding the possible effects o
f
electromagnetic interference on your Geo power chair.
■ ELECTROMAGNETIC INTERFERENCE (EMI) FROM RADIO WAVE
SOURCES
Powered chairs may be susceptible to electromagnetic interference (EMI), which is interfering
electromagnetic energy (EM) emitted from sources such as radio stations, TV stations, amateur radio
(HAM) transmitters, two-way radios, and cellular phones. The interference (from radio wave sources)
can cause the power chair to release its brakes, move by itself, or move in unintended directions. It can
also permanently damage the powered wheelchair’s control system. The intensity of the interfering EM
energy can be measured in volts per meter (V/m). Each power chair can resist EMI up to certain
intensity; this is called its “immunity level”. The higher the immunity level, the greater the protection.
At this time, current technology is capable of achieving at least a 20 V/m immunity level, which would
provide useful protection from the more common sources of radiated EMI. This power chair model has
as shipped as with no further modification an immunity level of 20 V/m without any accessories.
There are a number of sources of relatively intense electromagnetic fields in the everyday environment.
Some of these sources are obvious and easy to avoid. Others are not apparent and exposure is
unavoidable. However, we believe that by following the warning listed below, your risk to EMI will be
minimized.
The sources of radiated EMI can be broadly classified into three types:
1. Hand-held portable transceivers ( transmitter-receivers with the antenna mounted directly on the
Transmitting unit. Examples include: citizens band (CB) radios, “walkie talkie”, security, fire, and
police transceivers, cellular telephones and other personal communication devices.
Attention: Some cellular telephones and similar transmit signal while they are ON, even when not
being used.
2. Medium-range mobile transceivers, such as those used in police cars, fire trucks, ambulances and
taxis.
3. Long-range transmitters and transceivers, such as commercial broadcast transmitters (radio and TV
broadcast antenna towers) and amateur (HAM) radios.
3. EMI

1
0
Attention: Other types of hand-held devices, such as cordless phones, laptop computers, AM/FM
radios, TV sets, CD players, cassette and small appliances such as electric shavers and hair dryers
are not , likely to cause EMI problems to your powered power chair .
■ POWERED POWER CHAIR ELECTROMAGNETIC INTERFERENCE (EMI)
Because EM energy rapidly becomes more intense as one moves closer to the transmitting antenna
(source), the EM fields from hand-held radio wave sources (transceivers) are of special concern. It is
possible to unintentionally bring high levels of EM energy very closer to the powered s control system
of power chair while using these devices. This can affect powered power chair movement and
braking. Therefore, the warnings listed below are recommended to prevent possible interference with
the control system of the powered power wheelchair.
■ WARNINGS
Electromagnetic interference (EMI) from sources such as radio and TV stations, amateur radio
(HAM) transmitters, two-way radios, and cellular phones can affect powered power chair and
motorized power chair. Following the warnings listed below should reduce the chance of unintended
brake release or powered power chair movement which could result in serious injury.
1. Do not operate hand-held transceivers-receivers, such as citizens band (CB) radios, or turn ON
personal communication devices such as cellular phones, while the powered power chair is turned
ON.
2. Be aware of nearby transmitters such as radio or TV stations, and try to avoid coming close to
them.
3. If unintended movement or brake release occurs, turn the powered power chair OFF as soon as it is
safe;
4. Be aware that adding accessories or components, or modifying the powered power chair, may
make it more susceptible to EMI (Note: There is no easy way to evaluate their effect on the overall
immunity of the powered power chair).
5. Report all incidents of unintended movement or brake release to the powered power wheelchair
manufacturer, and note whether there is a source of EMI nearby.
■ IMPORTANT INFORMATION
1. 20 Volts per meter (V/m) is a generally achievable and useful immunity level against EMI ( the higher
the level, the greater the protection);
2. This product has an immunity level of 20 V/m without any accessories and connected to it.
4. PARTS INTRODUCTION

PARTS DESCRIPTION
1﹒Controller
1
1
1
2
3
2﹒Armrest
3﹒Seatback
4﹒Seat
5﹒Drive Wheel
6﹒Caster Wheel
7﹒Footrest
4
8﹒Battery Pack
7
8
6
1
5
5. OPERATION

JOYSTICK AND CONTROLLER
Your power wheelchair is operated by a joystick and controller. The Geo is currently available with P&G
VR 2 controller.
1
2
VSI Series CONTROL FUNCTIONS
1. ON/OFF Button 2. Battery Gauge 3. Joystick
4. Maximum Speed / Profile Indicator
1
4
7
5
6
2
5. Speed / Profile Decrease Button 6. Horn
7. Speed / Profile Increase Button
3
■HOW TO OPERATE YOUR Geo
◆ ON/OFF Button
The ON/OFF button applies power to the control system
electronics, which in turn supply power to the power chairs
motor. Do not use the ON/OFF button to stop the power chair
unless there is an emergency.
Attention:
If you use the ON/OFF button to stop the power chair, it may shorten the life of the drive components
◆ Bold
The battery gauge shows you that the power chair is switched on. It also indicates the operating status of
the power chair.
◆ Joystick
The primary function of the joystick is to control the speed and direction of the power chair. The further
you push the joystick from the center position the faster the power chair will move. When you release
the joystick the brakes are automatically applied.
◆ Maximum Speed / Profile Indicator
This gauge shows the maximum speed setting of the power chair.
There are five speed settings step 1 is the lowest speed and step 5 is the highest speed.
5. OPERATION

1
3
◆ Speed / Profile Decrease Button
This button decreases the maximum speed setting or, if the control system is programmed for drive
profile operation, selects a lower drive profile.
◆ Horn Button
Press the button to sound the horn.
◆ Speed / Profile Increase Button
This button increases the maximum speed setting or, if the control system is programmed for drive
profile operation, selects a faster drive profile.
◆ Lock/Unlock Power Chair
‧To lock the power chair.
1. While the control system is switched on, depress and hold the on/off button.
2. After 1 second the control system will beep. Now release the on/off button.
3. Deflect the joystick forwards until the control system beeps.
4. Deflect the joystick in reverse until the control system beeps.
5. Release the joystick, there will be a long beep.
6. The power chair is now locked.
‧To unlock the power chair.
1. Use the on / off button to switch the control system on. The maximum speed / profile indicator
will be rippling up and down.
2. Deflect the joystick forward until the control system beeps.
3. Deflect the joystick in reverse until the control system beeps.
4. Release the joystick, there will be a long beep.
5. The power chair is now unlocked.
Attention:
This feature is disabled by default; if required, it must be enabled by programming.
5. OPERATION

Suggestion
1. You should recharge the batteries after each time the power chair is used to ensure maximum range.
The batteries should be charged at least once a week, even if the power chair is not used.
2. After charging or replacing a new battery, drive the power chair for 2-3 minutes to make sure the
battery capacity is sufficient.
3. In cold weather, the battery may respond more slowly and the battery range may be reduced.
4. When driving on a gradient, the battery indicator light may move up and down. This is a normal
phenomenon and should not cause concern.
5. Even with proper care and use of the battery it is natural for the battery’s capacity to reduce with time.
Therefore, the battery’s range is about 50% of the range when the batteries were new; it is time for it to
be replaced. Please contact your dealer about replacement batteries. If an old battery is used, it can lead
to a rapid decline in performance.
6. The battery range will be reduced when driving frequently, on a slope or on rough terrain, as this
requires a greater consumption of power.
7. The batteries have a six-month warranty covering manufacturing defect. This warranty does not cover
faults due to incorrect battery recharging.
■ BRAKING
Electro-magnetic brake: Release the speed control lever completely, the electromagnetic brake will be
activated automatically and the power chair will stop.
Warning
When on a gradient, NEVER switch the power chair to the freewheel mode. The electromagnetic brakes
will not be applied and this may result in injury.
▇ To adjust the armrest width
◆ Loosen the knobs
◆ Slide the armrests in or out to the desired width .
◆ Tighten the knobs.
Knob
1
4

5. OPERATION
▇To remove the seat
1. Turn the power OFF.
2. Make sure the Geo is not in freewheel mode.
3. Pull the seat rotate lever while pulling up on the seat to remove.
▇ To change the seat height
1. Remove seat (See “To remove the Seat”)
2. Remove the shroud.
3. Disengage and remove the seat height adjustment pin from the seat post.
4. Remove the height adjustment pin.
5. Raise or lower the post to the desired position.
6. Reinstall the seat height adjustment pin through the seat post and armrest post. (Bend the end of the
pin lock and position it over the end the pin.)
7. Reinstall the shroud.
8. Reinstall the seat.
HOW TO ADJUST THE FOOTREST
▇ To adjust the footrest angle
You can adjust the angle of the footrest with a hex wrench (M6).
◆ Turn the setscrew clockwise to raise the front of the footrest.
◆ Turn the setscrew clockwise to lower the front of the footrest.

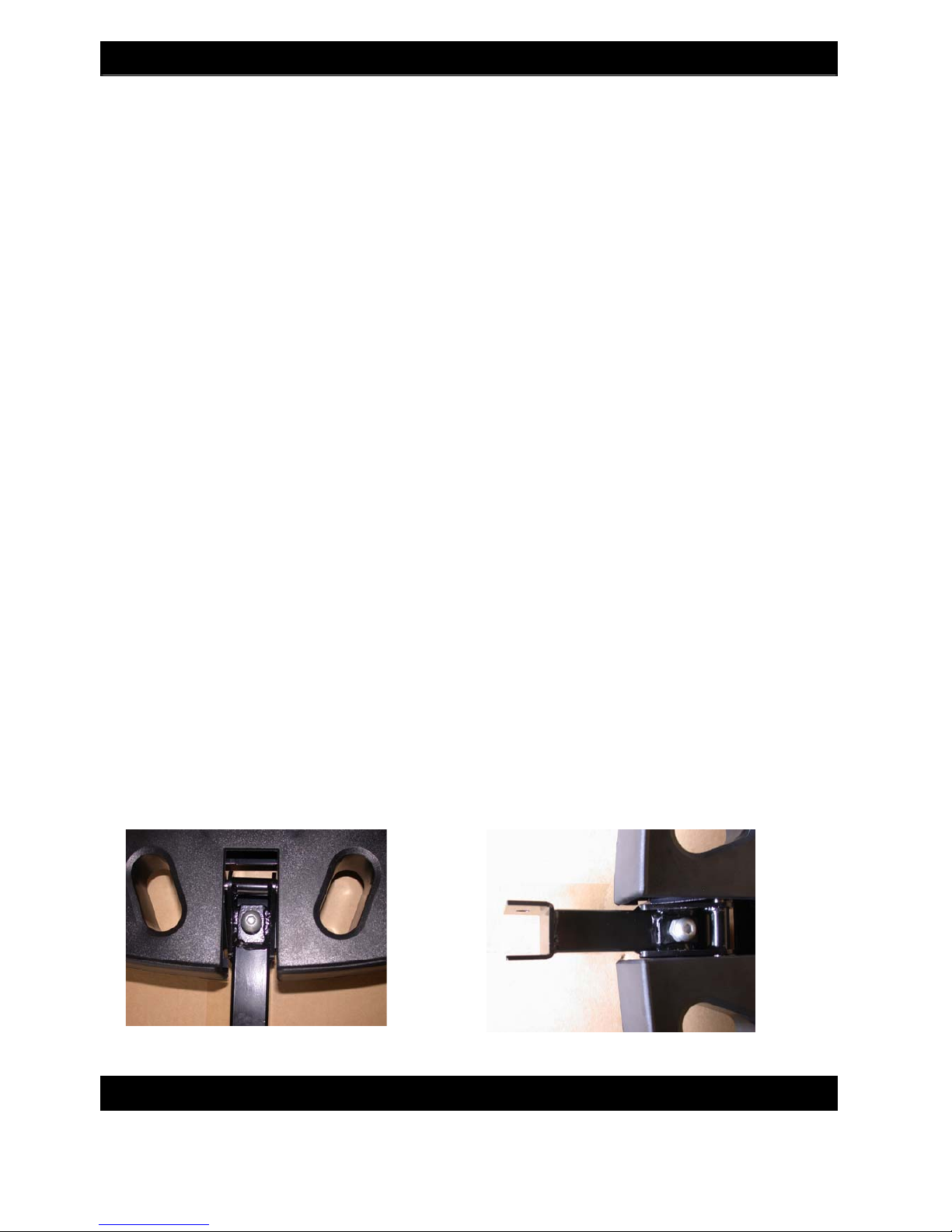

▇ To adjust the footrest height
◆ Remove the quick release pin.
◆ Adjust footboard to one(1) of three (3) mounting positions.
◆ Install the quick release pin. Make sure the detent ball is engaged with the outer edge of the tube.
5. OPERATION
1
5

HOW TO SET TO FREEWHEEL MODE
For your convenience, the Geo is equipped with a freewheel level. This level allows you to disengage
the drive motors and maneuver the chair manually.
▇ To engage the drive and take power chair out of freewheel
◆ Pull the freewheel lever to “DRIVE” position (left and right).
◆ Activation of the joystick automatically releases the brake so the powered Geo can be
driven.
▇ To disengage the drive and place power chair in freewheel
◆ Push the freewheel lever to “NEUTRAL” position (left and right).
1Warning
Do not use your Geo Power Chair while the drive motors are disengaged unless you are in the presence
of an attendant! Do not disengage the drive motors when on an incline as the power chair may roll down,
causing injury!
Suggestion
If a lever is difficult to move in either direction, gently rock the power chair back and front; the lever
should then move to the desired position.
CIRCUIT BREAKERS
The Geo Power Chair has a circuit breaker protruding through the shroud cover at the right of the power
chair.
◆ In the unlikely event of a short circuit or heavy overload, all power to the power chair will be shut
off.
◆ To reset, depress the circuit breaker button. Wait A few minutes for the circuit breaker.
1
6
5. OPERATION

HOW TO ADJUST THE SEAT
1
7
Above: Seat shown in the four possible “ENGAGED” positions
Below: Seat shown in the four possible “REMOVABLE” positions
6. BATTERY CHARGING AND CARE
BATTERIES
◆ The Geo Power Chair uses two long- lasting, 12 volt, deep-cycle batteries. These batteries are sealed
and maintenance free. Since they are sealed, there is no need to check the electrolyte (fluid) level.

Deep-cycle batteries are designed to handle a longer and deeper discharge. Though they are similar
in appearance to automotive batteries, they are not interchangeable. Automotive batteries are not
designed to handle a long, deep discharge and are unsafe for use in powered chairs.
◆ These batteries are maintenance free and there is no need to refill with water.
◆ Do not expose the battery to temperatures below 50°F or above 122°F when charging or storing
the power chair. If a battery is used in a lower temperature than stated above, then there is a risk of
causing damage or shortening the life of the battery.
1Warning
Battery posts, terminals and related accessories contain lead and lead compounds. Wash hands after
handling!
▇ Use proper batteries
◆ Your power chair operates on two 12 volt batteries.
◆ They should be 12 ampere hour rating . Only deep cycle sealed case construction batteries should be
used in the power chair.
◆ When you buy a replacement, insist on a deep cycle sealed case. Do not use any other type.
▇ To charge the batteries using the off-board charger
◆ Position the power chair next to a standard wall outlet.
◆ Be certain the controller power is turned off .
◆ Open the charging socket cap on the rear shroud .Then connect the charging cable into the charging
◆ Plug the charging cable into the wall outlet.
◆ We also recommended that the batteries are not charged for more then 24 hours.
◆ When your Geo batteries are fully charged, unplug the charging cable from the wall outlet.
◆ Disconnect the charging cable from the Geo.
Charging
Option #1
1
8
Charger
Power pack
Charging
Option #2
6. BATTERY CHARGING AND CARE
1Warning
1. Keep away from flammable objects while charging as it may lead to fire or explosion of battery.

2. Do not smoke while charging as the battery may release hydrogen gas. Always charge the battery in a
well-ventilated space.
3. Avoid electric shock! Never connect or disconnect the plug or cord with wet hands while charging. Do
not connect or disconnect the plug or cord when they are wet.
6.BATT6. BATTERY CHARGING AND CARE CHA
)Attention - Follow these safety rules below to avoid accidents while charging.
1. Use the manufacturer’s supplied charger only, and recharge the battery to its full capacity
Every time. You may damage the battery and power chair if you use a charger which is not
correctly specified.
2. Charge in a well-ventilated space not directly exposed to sunlight. Do not charge in areas
that are humid or exposed to rain, mist or dew.
3. Do not charge in temperatures -50°F or higher than 122°F as the charger may cause battery
damage.
Suggestion – How to maximize your battery’s efficiency and service life
1. Fully charge any new battery before its initial use.
2. Be sure to charge the battery after each use. Battery power will be reduced if the battery is used
without being fully charged.
3. If the power chair is not used for an extended period, batteries should be charged at least weekly.
4. The ambient temperature affects charging time, it will be longer in the cold temperatures.
5. After charging, do not leave the charger socket plugged in.
■ Cleaning the battery
If the batteries are contaminated by water, battery acid, dust or other substances, they will discharge
quickly. The batteries supplied with the power chair are sealed and as such are maintenance free with no
risk of battery leakage. Please follow the steps below to clean the battery.
1. Turn the Geo power switch to OFF.
Power Pack
2. Remove the seat.
3. Open the battery pack then disconnect the cables from the four battery terminals.
4. Use a clean cloth to wipe off the soiled area.
5. Wipe with a clean cloth. If the terminal is covered with white powder, wipe it clean using warm water.
6. BATTERY CHARGING AND CARE
■ Batteries replacement
Follow the procedure below step by step to replace the batteries:
1. Remove the battery pack from the Geo.
2. Open the battery pack then disconnect the cables from the four battery terminals.
3. Remove the batteries from the battery pack.
4. Place new batteries inside the pack.
1
9

5. Connect the red cable to the positive (+) battery terminal and black cable to the negative (-) on the
other battery.
2
0
6. Connect up the fused cable between the two batteries and close the battery pack...
1Warning
1. The wiring system and charger are well situated in the battery pack while being assembled in
plant. Do not attempt to re-locate the wiring system by yourself. The improper layout of wiring
system may result in the wires pinched by battery box, which might result in the electronic
system failure.
2. Be sure the battery wires are connected to their right battery terminal.
Suggestions
1. Make sure the terminals are installed properly and replace the cover.
2. Battery efficiency will vary with outside conditions- driving range will be reduced in cold
Weather If the power chair is not used for a long time; charge the battery at least once a week.
3. Replace both batteries together.
7. INSPECTION AND MAINTENANCE
INSPECTION
Initial adjustments should be made to suit personal body structure and preference. Be sure to; follow
these checks and maintenance procedures.
NO. Item initially weekly monthly periodically
