Drive Deluxe steel drop arm commode User manual

deluxe steel
drop arm commode
www.drivemedical.com
lifetime limited
warranty
Your Drive brand product is warranted to be free
of defects in materials and workmanship for the
lifetime of the original consumer purchaser.
This device was built to exacting standards
and carefully inspected prior to shipment. This
Lifetime Limited Warranty is an expression of our
confidence in the materials and workmanship of
our products and our assurance to the consumer
of years of dependable service.
In the event of a defect covered by this
warranty, we will, at our option, repair or replace
the device.
This warranty does not cover device failure
due to owner misuse or negligence, or normal
wear and tear. The warranty does not extend to
non-durable components, such as rubber
accessories, casters, and grips, which are subject
to normal wear and need periodic replacement.
If you have a question about your Drive device or
this warranty, please contact an authorized Drive
dealer.
© 2006 Medical Depot, Inc. All rights reserved.
Drive is a trademark of Medical Depot, Inc.
Port Washington N.Y. 11050 USA Made in China
www.drivemedical.com
EU Authorized Representative
Drive Medical LTD
Ainley’s Industrial Estate
Elland, West Yorkshire,
United Kingdom HX5 9JP

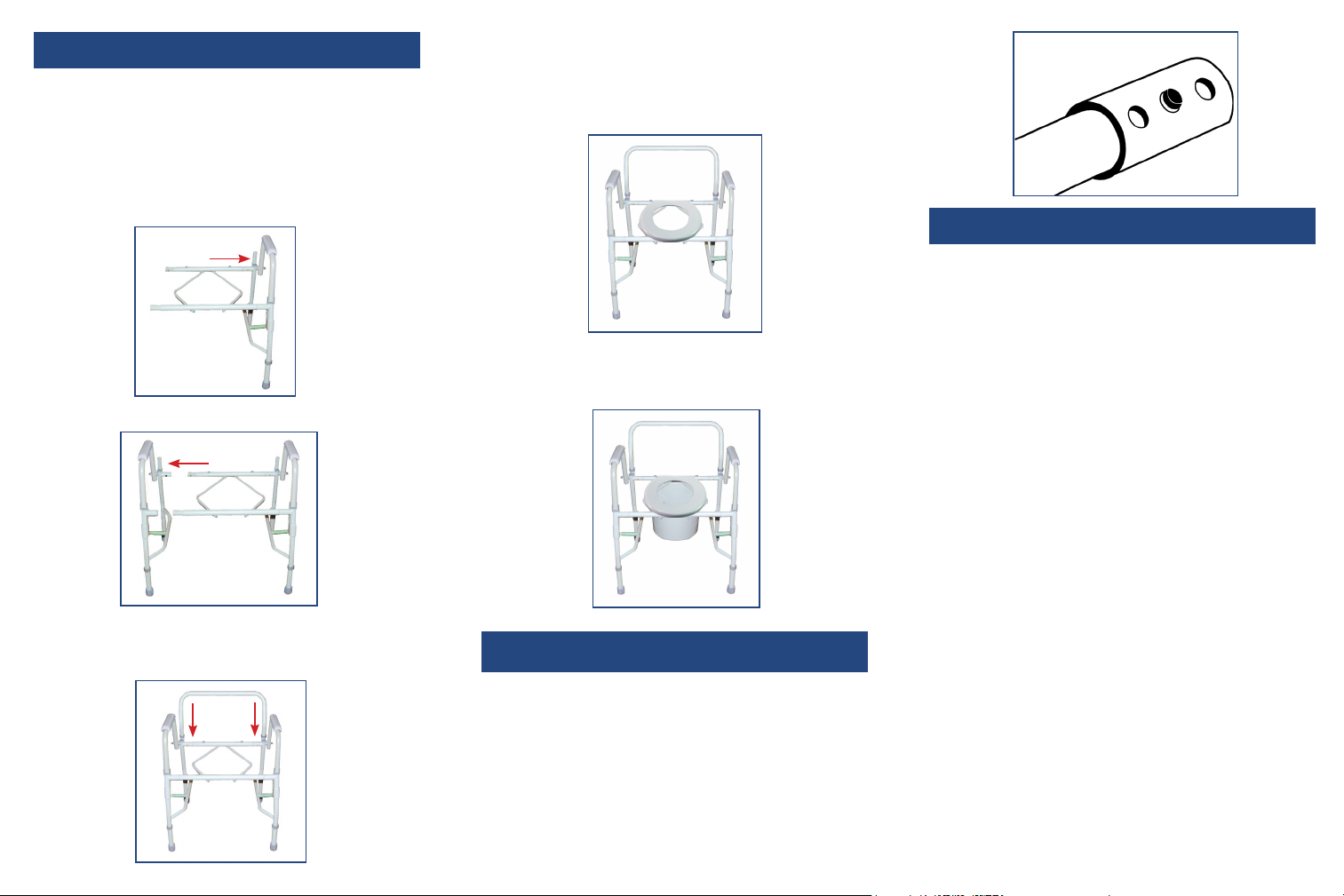

commode assembly
1. Remove contents from box. Depress brass push
pins and insert bucket frame section into first arm.
The push pins will snap into place when frame in
securely in place.
Note: Make sure the back of the bucket frame (the side
with the back rest receptacles) corresponds to the back
of the armrest section.
2. Repeat for second arm section.
3. Insert backrest into backrest receptacles in
commode bucket frame. The brass push pins will
snap into place when secure.
4. Align the toilet seat clamps onto the back frame rail.
(Both clamps should sit outside the pail brackets).
Push down on seat until clamps snap firmly into
place. To remove, grasp the back of the seat and lift.
5. Install commode bucket by dropping into bucket
frame. Reverse to remove.
adjusting leg height
1. Before use, adjust height of each leg to your specific
needs, making sure all legs are at the same height.
When desired height is reached, lock legs into place
by aligning buttons into proper holes, per illustration
above.
2. To be sure legs are locked into place by pushing
down on or by pulling legs.
additional precautions
1. Toilet seat must be in down position before use.
Failure to do so may result in breakage of commode
and possible injury.
2. Do NOT install commode without first reading and
understanding this assembly and instruction sheet.
If you can not understand these instructions, contact
a healthcare, dealer or technical professional before
attempting to install. Otherwise, injury or damage
may occur.
3. Inspect all parts for shipping damage before
assembly. If there is shipping damage -
DO NOT USE. Contact dealer/carrier for further
instructions.
4. Make certain that the height adjusting snap buttons
fully protrude through the same respective hole of
each leg extension. This will ensure that the leg
extensions are securely locked in position and an
even height is achieved (see Figure 1).
5. Ensure ALL screws, nuts and/or bolts are tightened.
6. Check the rubber tips on the leg extensions for rips,
wear or if they are are missing. Immediately replace
any or all if any of these imperfections exist.
7. All four leg extensions with rubber tips MUST touch
the floor simultaneously at all times.
8. Users with limited physical strength should be
supervised or assisted while using commode.
9. To operate the drop arm, push the lever forward to
release and drop the arm. To return the arm rest to
the upright position, pull the arm up until the lever
latch clicks into place. Caution, do not lean or push
down on the arm rest until the latch has been
checked to insure the latch is in place and will hold
weight.
