USER'S MANUAL DK-GL1-HDS Camera with hidden video recorder
DSE srl - Digital Surveillance Equipment - www.dse.eu
DK-GL1-HDS
Camera with WiFi DVR
Product description
DK-GL1-HDS is a video recorder equipped with a camera
integrated in an elegant pair of glasses.

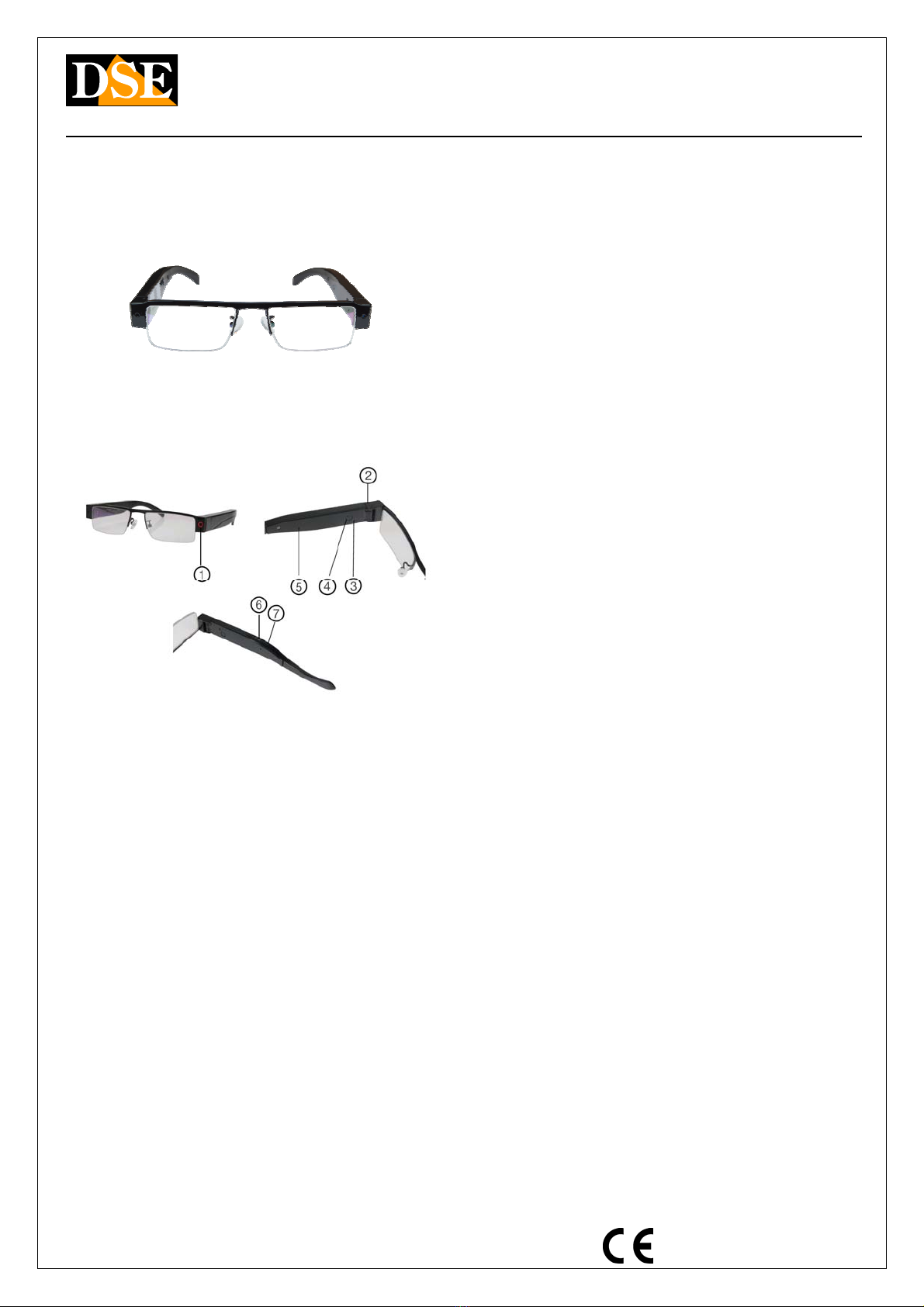

1. Target
2. Micro SD card slot by folding the temple
3. LED indicator
4. On / off button
5. Microphone
6. USB port
7. Reset button
Supply
The camera is able to operate with the power supply of its
own internal 220mAh battery which allows about 40
minutes of autonomy. The battery is recharged by
connecting a power supply to the USB socket (not
included).
The LED (3) lights up during charging
Movie storage
The video files are stored on a micro SD card (not
supplied). The movies have Full HD 1920x1080 resolution
at 25 f / sec. And they are saved in MP4 format with H264
compression
It is possible to use micro SD cards of any brand up to
128 GB of capacity.
1 hour of recording takes up 180MB on average, so over
700 hours of recording can be stored on a 128GB SD card.
Once the memory has run out, the DVR will automatically
overwrite the oldest files if programmed in this way in the
configuration.
The duration of the individual files is also programmable in
the configuration.
Inserting the micro SD card
The first thing to do, if you want to make recordings, is to
insert the micro SD card into the slot in the DVR (2) which
is revealed by bending the temple.
It is possible to use micro SD cards with capacities up to
128 GB in CLASS 10 or higher.
A class 10 SD card has a write speed of 10 MB / s. Do not
use SD cards with slower speed as they will lead to
malfunctions.
Pay attention to the direction of insertion of the SD card
which will slide into its seat only with the gold contacts
facing the inside of the temple. The slot does not have a
clip so it is sufficient to push the SD card all the way down
and pull it out.
No micro SD card is included in the package.
Charging the battery
Before using the device it is advisable to fully charge the
battery. To do this, connect the USB port of the DVR to
the computer or to a USB charger with the supplied cable.
Full charging takes about 2 hours depending on the initial
charge state.
Next to the USB socket there is a green LED that lights up
during charging.
Turn on the device
DK-GL1-HDS is equipped with a power switch located near
the USB (4). When powered on, the DVR does not emit
any visible signals except a blue / red flashing LED. The
LED is placed in such a position that it is visible only to
the wearer of the glasses.
To switch off, press and hold the button for 3 seconds.
To use the product you need to use a smartphone or
tablet with the HDSmartIPC app.
Download HDSmartIPC and configuration
DK-GL1-HDS has been developed to be remotely
controlled via wifi with a mobile phone or tablet.
It is not necessary to have a wifi network to use the DK-
GL1-HDS as the device comes from the factory in
ACCCESS POINT mode and itself generates a wifi network
to which you can connect with Android / iOS portable
devices.
First you need to download the HDSmartIPC application
from Google Play or Apple Store, available for free for
Android and iOS.
To use the program see the specific manual.
Once logged in with the app, you can intervene in the
configuration and possibly connect the DVR to your wifi
network or to the wifi network of the mobile phone in
hotspot mode.
All these operations are explained in the HDSmartIPC
application manual that you can download from the site.
Audio
DK-GL1-HDS is equipped with a microphone for ambient
listening.
Reset the DVR
If necessary, a RESET can be carried out by pressing the
reset button (7) for 10 seconds with a deformed paper clip
or other thin object. After rebooting the DVR will return to
the factory Access Point mode.
Movie playback on PC
A computer and SD card reader (included) is required to
review and manage the files recorded by the DVR.
You have to turn off the DVR with the ON / OFF switch.
remove the micro SD card and insert it into a computer
SD card reader.

Document: DK-GL1-HDS 2I0
Page: 2
USER'S MANUAL DK-GL1-HDS Camera with hidden video recorder
DSE srl - Digital Surveillance Equipment - www.dse.eu
It is possible to copy the videos to the PC and play them
with any video player (VLC - VideoLan recommended).
ATTENTION: It is not possible to download files via the
USB cable of the DVR because this is used only for
recharging / powering the device.
Main technical features
Sensor CMOS
Maximum resolution FullHD 1080p (1920x1080)
Frame rate 30 f / sec
Video format MP4 (H264 compression)
Overlay Date time (not excludable)
Functions Continuous recording
Motion recording
Timer recording
Live viewing only
WiFi control Range 10 m.
Audio microphone Incorporated
Video storage About 700 hours on 128GB at
1080P
Operating
temperature -5 ° + 40 ° C
Memory MicroSD Class 10 or higher
Memory capacity 4..128 GB
