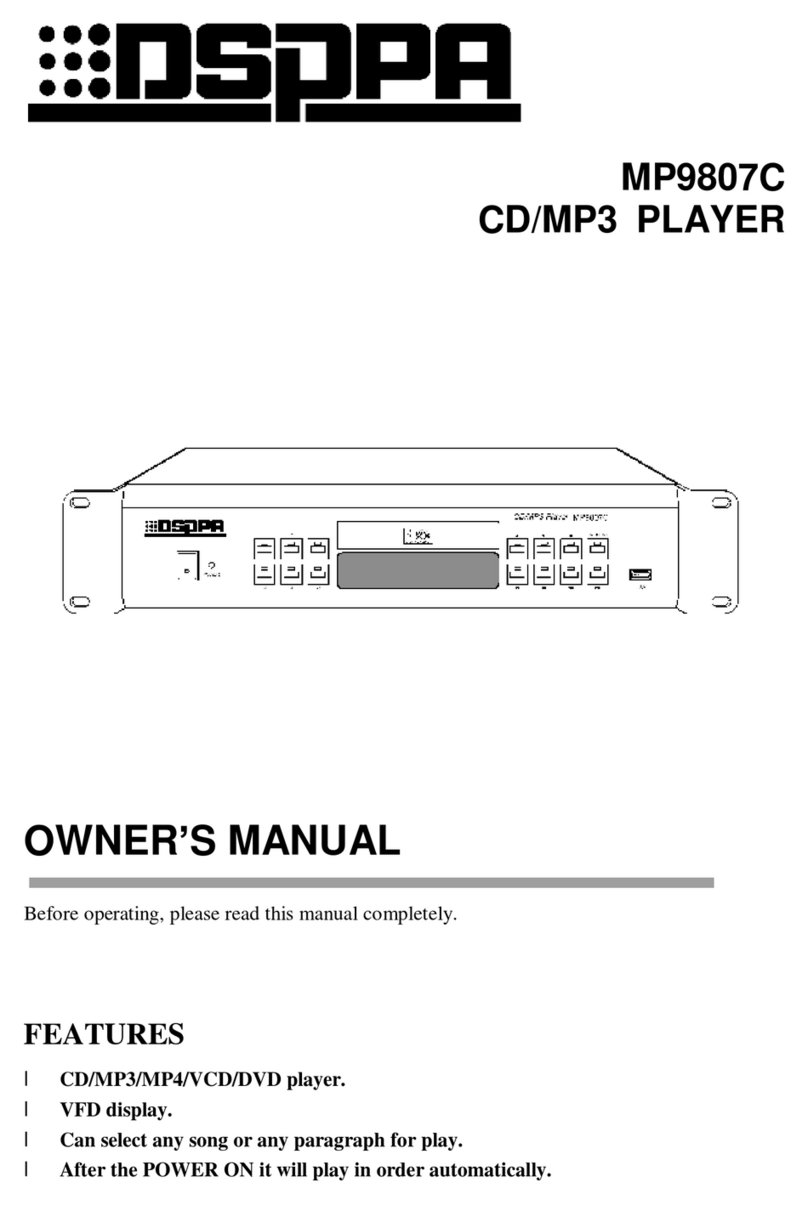

DSPPA MP9807C User manual

CD/MP3 PLAYER
MP9807C
Operation Instructions
Welcome to use the public address system manufactured by DSPPA Company. For the better
application of this equipment, please read the operation instruction carefully prior to use.
G u a n gz h o u D S P P A A u d i o C o . , Lt d .
http：//www.DSPPA.com
CD/MP3 PLAYER MP9807C
REPEAT
3
21
+55
4USB
POWER
电源

* * DC/MP3 player
MP9807C
1
FEATURES
CD/MP3/MP4/VCD/DVD/WAV player.
VFD display.
Can select any song or any paragraph for play.
After the POWER ON it will play in order automatically.
FRONT PANEL
1 Power switch(1 is power on and the “power LED” is on ) 8 Stop keys
2 Power indicator 9 Repeat keys
3 1 to +5 keys 10 Song fast back
4 Disc door 11 Song fast forward
5 Display screen 12 Last song
6 Open keys 13 Next song
7 Play/pause keys 14 USB jack
REAR PANEL
1 AC fuse 3 Output jack
2 AC power cord
Notice：DVD part of the machine can only output audio signal and has not video frequency broadcasting
function.
POWER
CD/MP3 PLAYER MP9807C
REPEAT
3
21
+55
4USB
电源
1 2 3 510 11 12 13 14
9
8
7
6
4

* * DC/MP3 player
MP9807C
2
OPERATION
The setup can play CMF format such as CD、MP3、VCD、DVD、WAV,etc. In this equipment .the
mode to provide CMF for setup has CD、MP3、VCD、DVD、WAV dishware and mobile hard disk which
connected with USB jack, etc . When this two supply modes concurrence in equipment , the equipment will
read and play the CMF on dish first; when the dish is taken out from dish storehouse , the equipment will
read and play the MP3 CMF which connected with USB port again; while setup is playing MP3 CMF on the
mobile hard disk now. At this moment if another dish is put in the dish storehouse, the equipment will read
and play the CMF on dish once again.
Press the “POWER” and turn on the equipment, if there is a dish in storehouse or have a USB disk
inserted into the USB port , it can search automatically and play the CMF from them; If there is no seemly
play music file in the memory ,then, if you press whichever operation button of MP3,the display screen will
display “NO DISC ”.
When some CMF format is playing, this format will be lit on the display screen to show the carry . For
example : The setup is now playing the MP3 format CMF,“MP3”will be lit on the display screen.
1. Disk Load / Unload Press key to open the CD deck, put in or take out a disk and then press
key again for resetting the deck.
2. Play or Pause After the deck reset it will play in order automatic ally .Press key while
playing for pause, Press the key again for releasing.
3. Option Play Press or and or while playing, we can fast forward and fast
back.
4. Play Repeatedly When the equipment play the song sequentially, Press REPEAT
key once, it will get into the function of repeat mode selecting, and no change have been taken place
on the screen. Press REPEAT key once again, it will start the function of the single track and
current track play, and “ ” icon will be displayed on the screen. Press REPEAT key for the
3rd time, it will play the whole disc repeatedly, If there is folder exist on the disc, after press
REPEAT key the 3rd time, equipment will play the current folder repeatedly and “ALL”icon will
be displayed on the screen, and if press REPEAT key for the fourth time at the time, it will play the
whole disc repeatedly and“ALL ”icon will be displayed on the screen, and if press REPEAT
key for the fifth time, it will abolish the setting and cancel the repeated mode. If there is no folder
on the disc, after press REPEAT key for the fourth time, it will abolish the setting and cancel the
repeated mode.
5. Stop Press key to stop in any time.

* * CD/MP3 播放器
MP9807C
3
SPECIFICATIONS
Frequency response
20Hz-20kHz(±3dB)
Signal to Noise Ratio
90dB
Dynamic range
90dB
THD
0.005%
Wow & Flutter
Under the limited level
Output level
0dBV
Protection
AC fuse
Power Requirement
AC230V/50Hz
Outer Packing Size (L×W×H mm)
530×440×195
Unit Size (L×W×H mm)
484×365×88
Gross weight
8.7kg
Net weight
6.9kg
Specifications are subject to be changed without notice.
Guangzhou DSPPA Audio Co., Ltd.
CAUTION
Do not put the vase full of water and similar things on the machine. Please pull out the plug from the
outlet when the machine is OFF state.
To reduce the risk of electric shock, do not remove the unit’s cover.
No user parts are inside. For services, refer to a qualified service person.
The symbol on rear panel indicates hazardous live. The connection of these terminals must be operated
by the instructed person.
The unit connect to the mains by the plug. Pull out the plug when the unit is in fault or danger status. So the
socket for the unit plugging must be set in the place can be easy to plug into and pull out the plug.
