Duco DucoBox Eco Boiler Control User manual

1
ENGLISH
L2000022-C 19.07.2019 Installation guide DucoBox Eco Boiler Control
Installation guide
ENGLISH
Boiler Control
Step by step
instructions
duco.tv
L2000022-installatiehandleiding-Boiler-Control-(en)-DRUK
installation-guide-Boiler-Control-(en)
L2000022 (Revision C | 19.07.2019)

2
ENGLISH
L2000022-C 19.07.2019 Installation guide DucoBox Eco Boiler Control
Table of contents
01 Introduction...........................................................3
01.A Operation.......................................................3
01.B Scope of supply............................................4
01.C Dimensions...................................................5
02 Regulations and safety instructions ............6
03 Fitting/assembly .................................................7
03.A General guidelines.....................................7

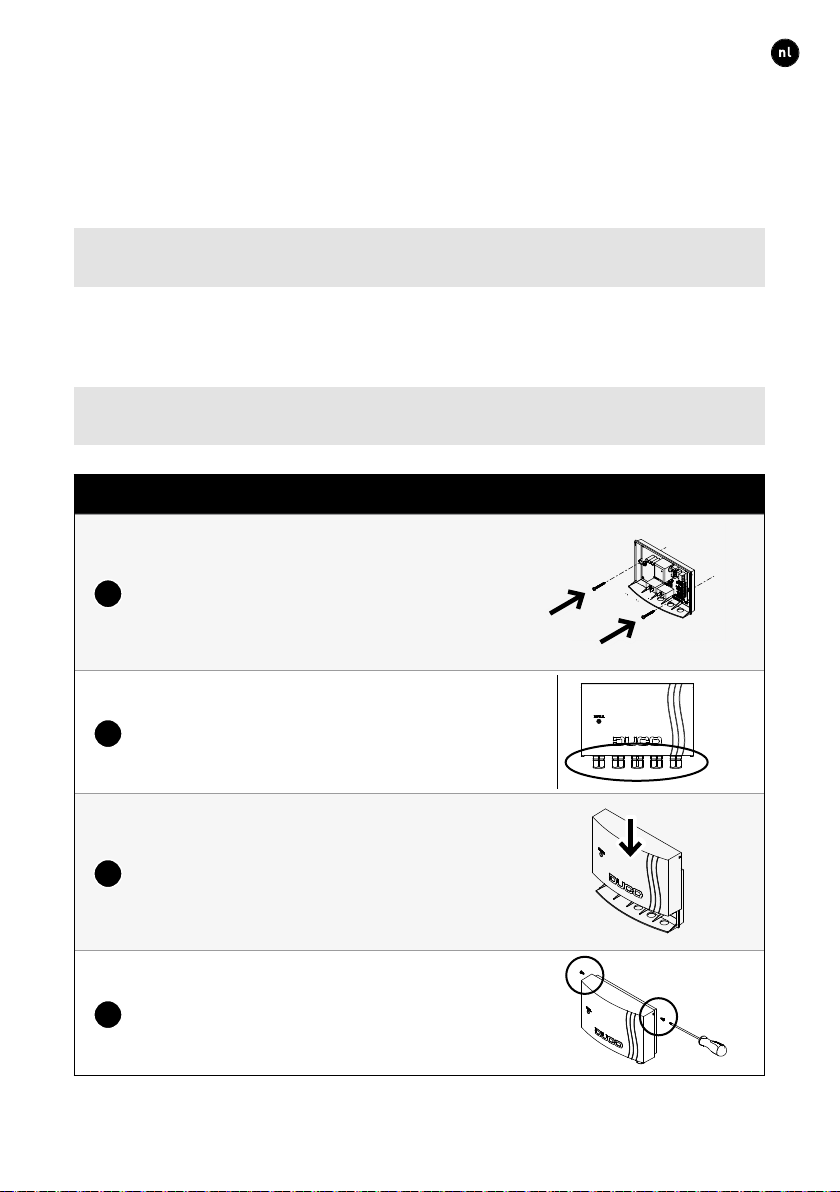

03.B Fixing...............................................................7
04 Wiring......................................................................8
04.A Associated connecting cables ................8

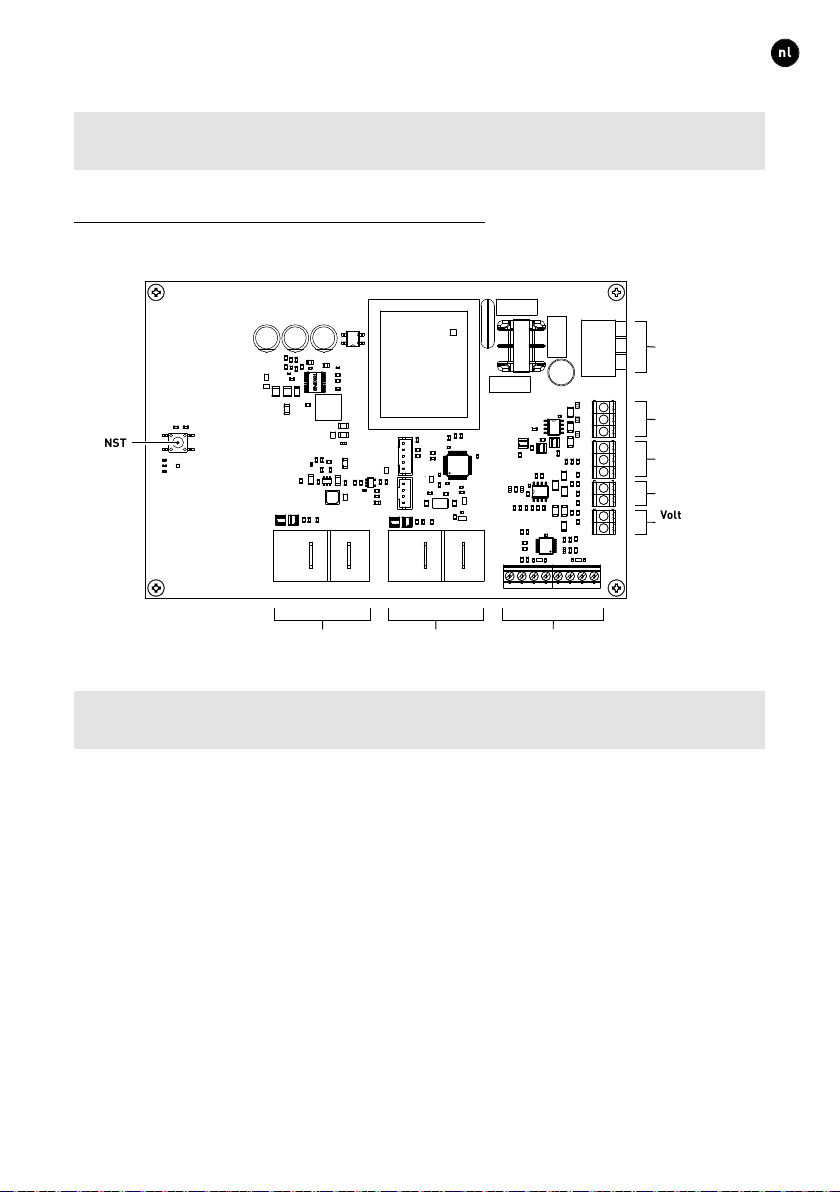

04.B Connections..................................................9
04.C Cabling diagram..........................................9
05 Commissioning ................................................. 10

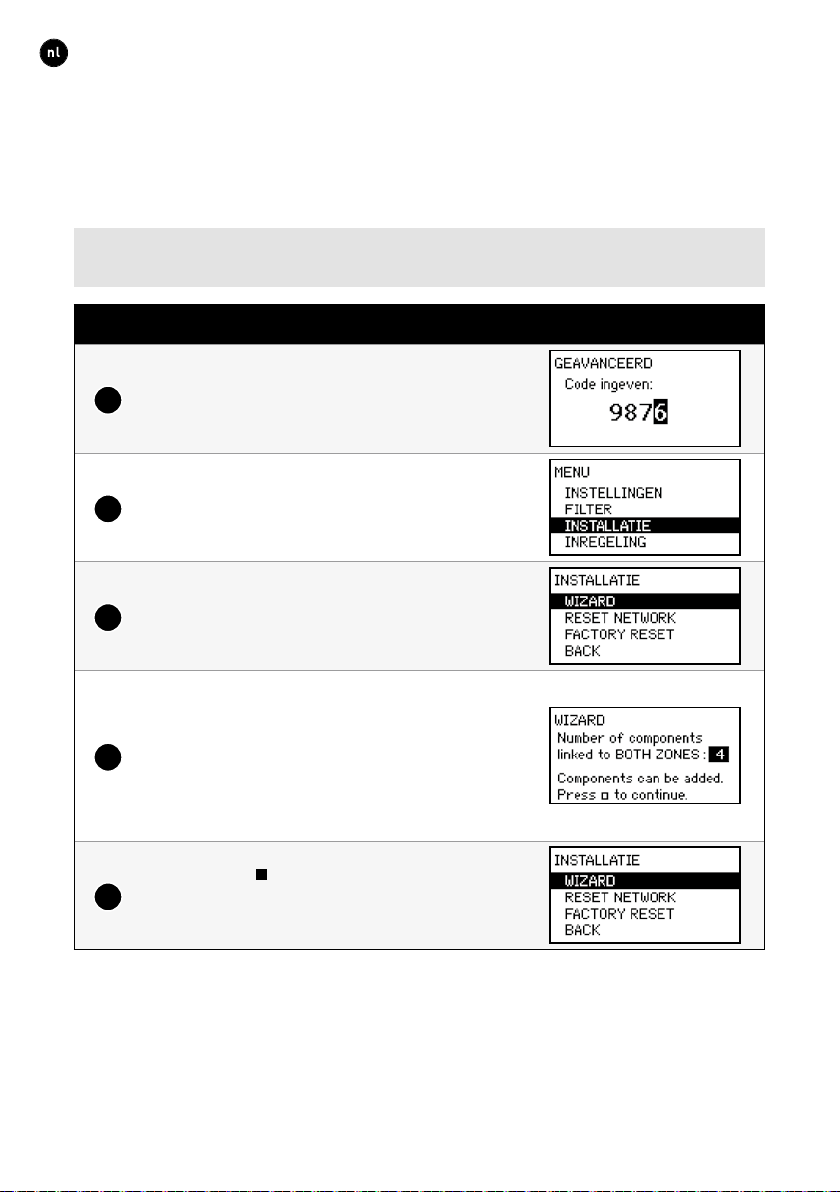

05.A Pairing in the network ........................... 10
05.B Removing and replacing........................ 11
English
Vero Duco - Handelsstraat 19 - 8630 Veurne - Belgium
tel [phone] - fax [phone] - [e-mail] - www.duco.eu
DUCO, HANDELSSTRAAT 19
VEURNE, B8630
09
Translation of the original instructions
See www.duco.eu for information regarding warranty, maintenance, technical data, EC declaration of
conformity etc.
Installation, connection, maintenance and repairs are to be carried out by an accredited installer. The
electronic components of this product may be live. Avoid contact with water.

2 3
ENGLISH
L2000022-C 19.07.2019 Installation guide DucoBox Eco Boiler Control
01 Introduction
Congratulations on your purchase of a new Boiler Control. We welcome you into the
DUCO family as a valued customer. We hope that you will have many years of enjoying
the use of our product.
01.A Operation
The Boiler control is a control, device which will allow the ventilation heat pump to
generate as much heat as possible. If the temperature sensors at the Boiler Control
register too low a temperature, the Boiler Control will activate the secondary heat
sources in order to bring the buffer tank up to temperature. This will enable you to get
the most from your ventilation heat pump and make the biggest savings on your energy
bill.
See www.duco.eu for a full list of recognised products.
A system with a Boiler Control consists of:
• DucoBox Eco as the primary heat source
• Secondary heat source
• Boiler Control
• DucoBox Eco temperature sensors
• Buffer tank
• System cable between DucoBox Eco and Boiler Control

4
ENGLISH
L2000022-C 19.07.2019 Installation guide DucoBox Eco Boiler Control

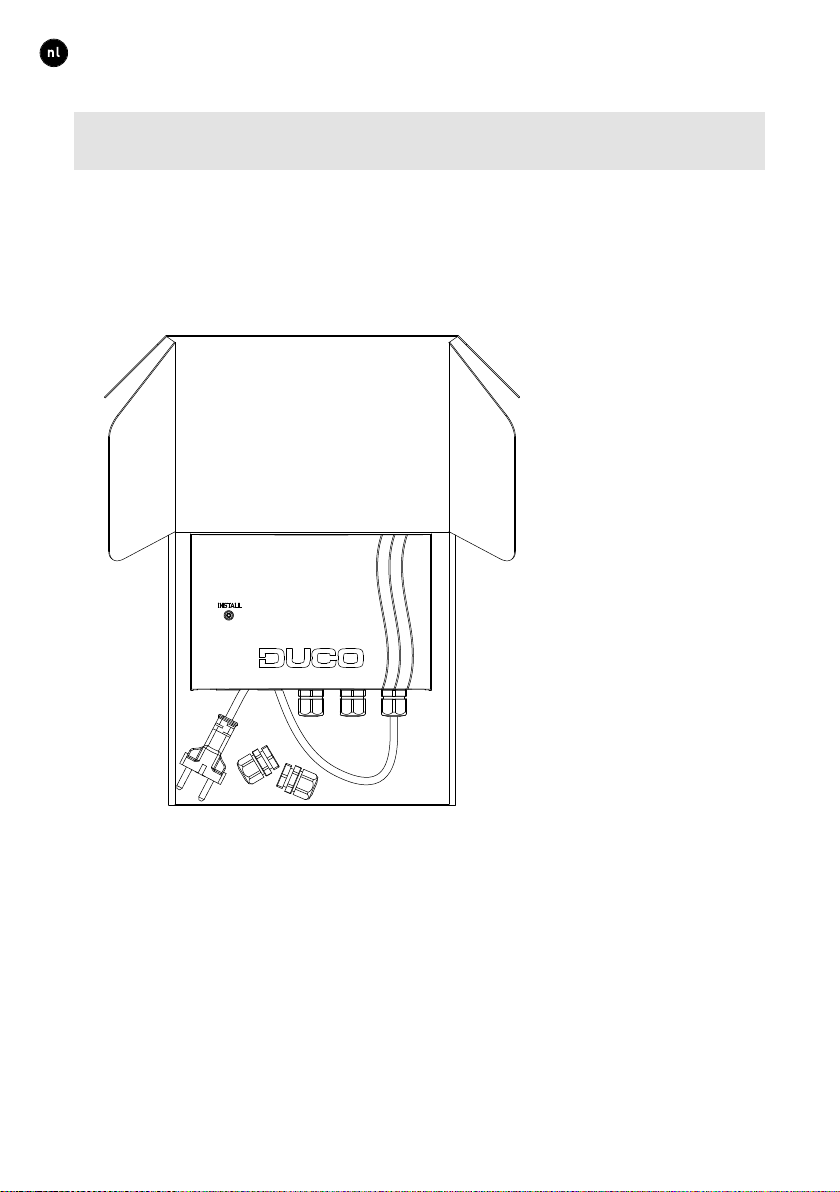

01.B Scope of supply
Before starting to install the DucoBox Boiler Control, check to ensure it is complete
and undamaged. The kit (23cm x 22cm x 8cm) comprises the following components:
• 1 x Boiler Control device: printed circuit board with housing
• 5 x cable glands
• 1 x 230 V mains lead
• 1 x installation guide
Index tekeningnr. Aantal Beschrijving
1 A1025445 5 Kabelwartel - M16 Gatdiam., 4-8mm kabel
2 A1025446 5 Sluitmoer Kabelwartel M16
3 A1025450 1 Powercord 3x2.5mm², 2m, CEE 7/7 plug
4 A1025512 1 Heaterboard behuizing top

4 5
ENGLISH
L2000022-C 19.07.2019 Installation guide DucoBox Eco Boiler Control

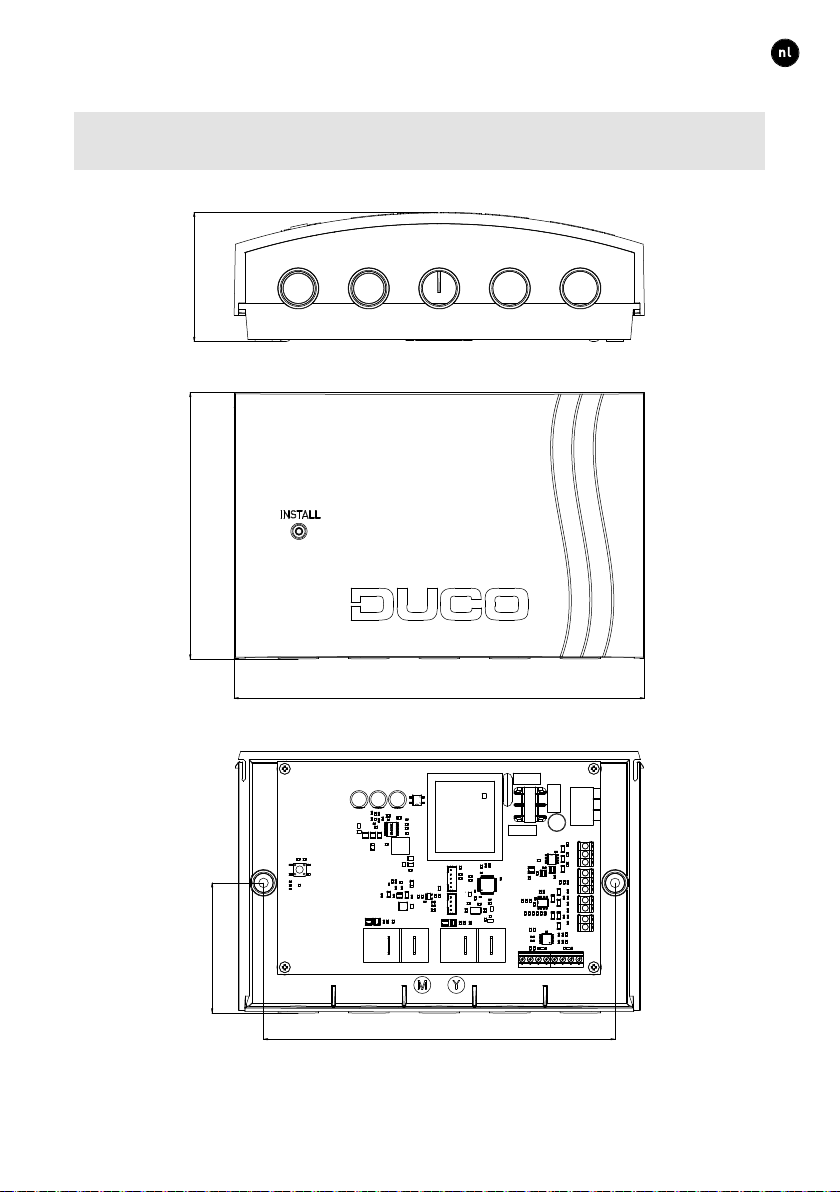

01.C Dimensions
125
193
61
125
193
61
165
61
