Bryan Boilers CFS-15-20-20D User manual

BRYAN STEAM
Compact Boiler Feed Systems
Capacities from 20 to 80 boiler HP for 15 through 150 PSI boilers
Form No. 5510
(1/01)

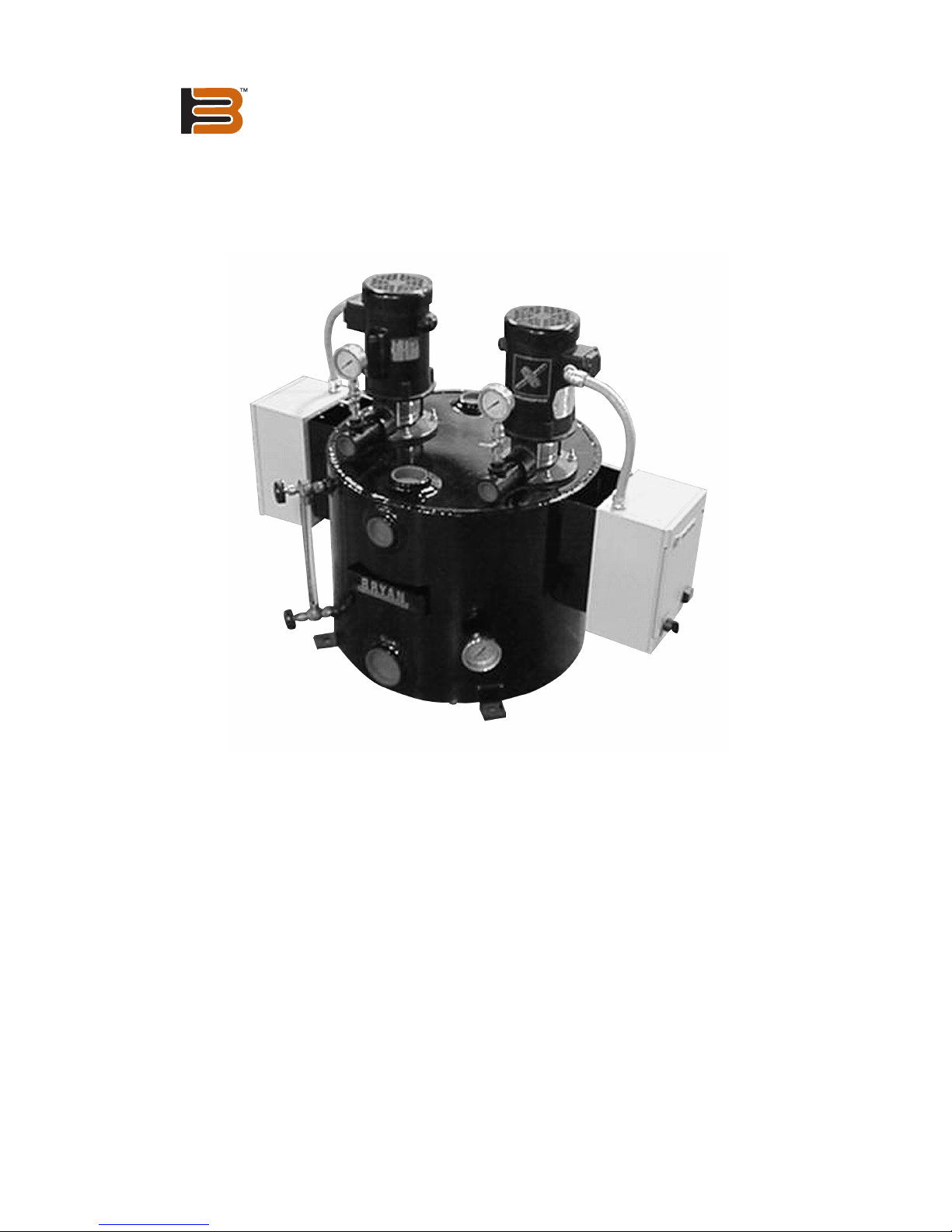

Duplex model
CFS-15-20-20D
shown
The Bryan compact boiler feed system requires a minimal
amount of boiler room space while providing many of the same
rugged features as competitive stand-mounted feed systems.
Performance Features
• Designed to feed 15 through 150
PSI design boilers
• Atmospheric tank built from heavy
1/4" minimum steel thickness
• Tank sizes from 20 to 80 gallons
• Designed to feed 20 through 80
HP boilers
• Easily maintained
• Factory packaged unit for ease
of installation
Construction Features
• Available with simplex or duplex pumps
• Top mounted pumps for ease of
maintenance and replacement
• TEFC pump motors are standard
• Pump discharge pressure gauges
and tank thermometer are standard
• All units designed to fit through
standard 36" doorway
• Optional electrical accessories
are available

©2001 Bryan Steam LLC 11-3168
Bryan Steam LLC —Leaders Since 1916
783 N. Chili Ave., Peru, Indiana 46970 U.S.A.
Phone:[phone] • Internet:www.bryanboilers.com
Fax: [phone] • E-mail: [email protected]
Dimensions are for reference only and may change without notice. Consult factory for certified dimensions.
Model Capacity in gallons (liters) Dimensions in inches (cm)
Simplex Duplex Nominal Flooded Overflow WH
Storage Overall width Overall height
CFS-✶-20-20S CFS-✶-20-20D 20 (75) 37 (140) 31 (117) 24 (61) 19 (48)
CFS-✶-40-40S CFS-✶-40-40D 40 (151) 51 (193) 45 (170) 24 (61) 26 (66)
CFS-✶-60-60S CFS-✶-60-60D 60 (227) 75 (284) 63 (238) 34 (86) 19 (48)
CFS-✶-80-80S CFS-✶-80-80D 80 (302) 103 (390) 91 (344) 34 (86) 26 (66)
Bryan Compact Feed Systems
1. Vent connection
2. Make-up water
connection
3. Spare connection
4. Condensate return
connection
5. Overflow connection
6. Drain and clean-out
connection
7. Temperature gauge
connection
8. Make-up control float
assembly
9. Gauge glass
10. Boiler feed pump
11. Pump discharge
connection
CFS -✶-✶-✶-✶
Specifications
Model Designation
Compact
Feed System
Boiler relief
valve setting
15, 80, 100, 125
or 150
Boiler
horsepower
20, 40, 60 or 80
S= Simplex
D= Duplex
Nominal storage
capacity (gallons)
20, 40, 60 or 80
