Dukane ImagePro 8102 User manual

8102
Education. Presentation. Inspiration.
T H E A L L N E W
ImagePro 8102 Ultra Short Throw LCD Projector
e ImagePro 8102 features a short throw
distance to allow placement where user
shadow does not affect image viewing
www.dukcorp.com/av
• Ultra short 4 to 31 inch throw
• Monitor Loopthrough
• Built-in Anti-theft security
• Dynamic room-filling sound
from 7-watt speaker
• No shadow/No glare
• Hybrid 2000 hour filter
• 2000 Lumens Brightness
• XGA Resolution
• Large filter with side access
CEILING MOUNT
FLOOR MOUNT
Screen
Throw
distance
is measured
from
projector
edge to
screen
surface
FEATURES
Convey by Dukane delivers control of classroom audio visual
assets in sync with our Student Response System.
Experience tomorrow's classroom today with Convey.
Visit www.conveyclassrooms.com. Call Dukane: 866.280.4298

Audio
In 1
Component
Video
(RCAx3)
Control
RS-232
Computer
RGB in 2
Kensington
Lock Slot
Computer
RGB in 1
Monitor
Out
Audio
In 2
Audio
Out
Audio
In 3
Video
Specifications 8102
Image Element 0.63” polysilicon active-matrix TFT x3
Brightness 2000 ANSI lumens, Whisper Mode
(2500 lumens in Bright Mode)
Resolution 1024 x 768 pixels (H X V), XGA
Contrast 500:1
Scanning Frequency fh 15 -106 kHz, fv 50-120 Hz
Lens Fixed
Lens Throw Ratio SEE TABLE THIS PAGE
Keystone Correction Digital, vertical +/-5 deg
Aspect Ratio 4:3, 16:9 selectable
Computer SVGA, VGA, XGA, SXGA, UXGA
Compatibility MAC13” and MAC16”
Video Compatibility NTSC, NTSC4.43, PAL, SECAM,
PAL-M, PAL-N, HDTV (1080i, 720p,
576i, 480i/p)
Image Control Freeze function, electronic
magnification and pan
Closed Caption CC1, CC2, CC3, CC4, TI, T2, T3, T4
Projection Modes Front/rear/ceiling
Color Reproduction 24 bit (16.7 million)
Lamp 220W UHB
Lamp Life 2000 hours (typical) 3000 hours
(whisper mode)
Audio 1 speaker 7 watt
Throw Distance 4” to 31”
Screen Size, diagonal 60” to 150”
Inputs, Video (1) Component, RCA x 3
(1) S-video, Mini DIN 4-pin
(1) Composite video, RCA x 1
Inputs, Computer (2) RGB, 15 pin D-sub
Inputs, Audio (2) Stereo mini jack: for PC/Access.
(1) RCA x 2 (for video)
Outputs, Audio (1) Stereo mini jack, adjustable
Outputs, Monitor RGB, 15 pin D-sub
Outputs, Control RS-232, 9 pin D-sub
Security Kensington lock slot & Security Bar
Fan Level 33dB, ultra quiet; 28dB Whisper Mode
Operating Temperature 41-95 deg F
Power AC 100-120V, AC 220-240V
50/60 Hz, 340 watt
Size (WxHxD) 15.6” x 5.2” x 14.0”
Weight 12.8 lbs.
CARTON (WxHxD) 22" X 9.5" X 19"
Shipping Weight 24 lbs.
Accessories Included Remote control, batteries, power
cord,
RGB cable, RCA video cable and
operators manual.
Safety UL/C-UL, FCC Class B
Optional Accessories Lamp 456-8101H
Wall; 8100WALLARM
Ceiling Mount, Universal; RPM-U
Filter; UX35381

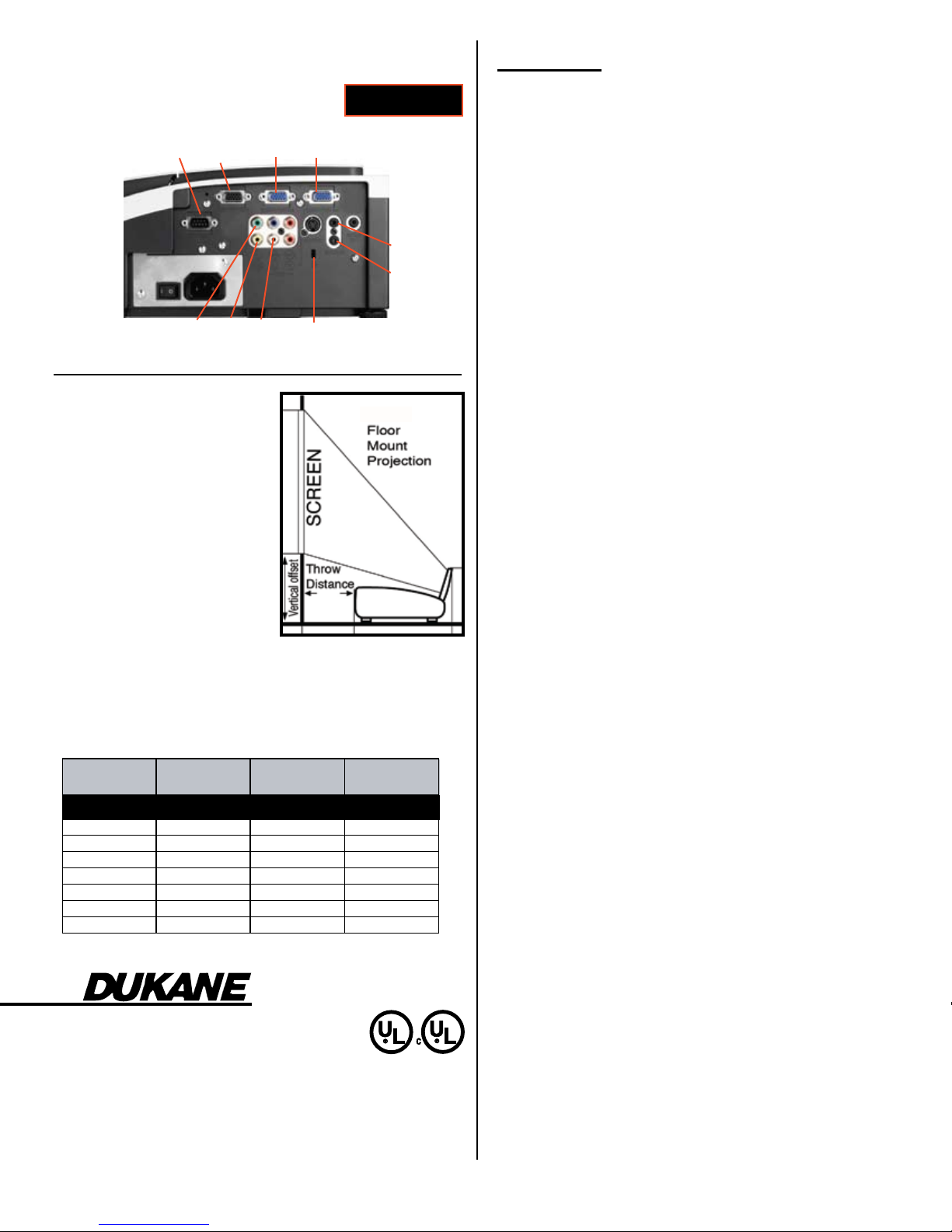

Connections
Back Panel
ImagePro is a registered trademark of Dukane Corporation
#09081.1
IMAGEPRO 8102
ULTRA SHORT THROW
LCD PROJECTOR
DIAGONAL WIDTH
THROW
DISTANCE
VERTICAL
OFFSET
INCHES INCHES
INCHES INCHES
60 48 4 11
70 8 7 13
80 64 10 14
90 72 13 15.5
100 80 16 17
120 96 22 20
150 120 31 24
FEATURES
• Ultra Short (4 to 31 inch)
throw distance
• XGA (1024 x 768)
resolution
• 2500 ANSI lumens
of brightness
• Large hybrid filter, 2000 hours
• Monitor Loopthrough
• Built-In Anti-theft security
• Room-filling sound
from 7W speaker
• Ceiling or floor mount
• No shadow /No glare
Dukane Corporation
Audio Visual Products Division
2900 Dukane Drive
St. Charles, Illinois 60174
866-280-4298 toll-free
630-584-5156 fax
[email protected] e-mail
www.dukcorp.com/av
5YR
Five (5) year limited warranty on parts and labor in North America, lamp excluded
(for other locations, local warranties apply).Includes Dukane’s FREE 1 year Peace-of-
Mind Loaner Program.
