Duncan SM-1 Quick start guide

5427 hollister avenue, santa barbara, ca 93111
tel 805.964.9610 fax 805.964.9749
www.seymourduncan.com
Wiring Diagram for
Pickup Models:
SM-1 Vintage Mini-Humbucker
SM-2 Custom Mini-Humbucker
SM-3 Seymourized Mini-Humbucker
The basic steps for installation include:
1. Remove the strings from your guitar.
2. Remove the back plate and flip it over.
3. De-solder the original pickup’s wires from the controls and make sure to
remember where they were connected.
4. Remove the original pickup from the guitar.
5. Put the Seymour Duncan pickup into the guitar.
6. Tin the wires from the Seymour Duncan pickup, and then solder them into place
(See Fig. 1).
7. Replace the back plate.
8. Re-string your guitar and adjust the pickup height so that your new pickup is
set between 1/8” and 1/16” from the strings (when they are pressed down at the
highest fret on the neck).
Congratulations on your purchase of a fine, hand-built, Seymour Duncan electric guitar pickup! Installing
this pickup in your guitar isn’t rocket science. And, if you’re already handy with tools, it’ll be a snap for
you–and fun too! But if you have no experience handling red-hot soldering irons, you’d be well advised
to take your new pickup and your trusty guitar to a qualified guitar tech.
Fig. 1
P/N 501005-105 Rev. C
We’re not just pickups anymore. Seymour Duncan also makes super cool stomp boxes.
And our sister company, D-TAR, is turning out some really hip products for
serious acoustic guitarists (d-tar.com).
Visit seymourduncan.com for additional wiring diagrams.
Series/Parallel (with push/pull)
Series/Split/Parallel (with on/on/on mini-toggle)
Coil Splitting
Out of Phase Wiring
Additional Wiring Options

This manual suits for next models

2

Other Duncan Accessories For Musical Instruments manuals

Duncan SLS-1 Quick start guide

Duncan

Duncan SLS-1 Quick start guide

Duncan BLACKOUTS AHB-2 User manual

Duncan

Duncan BLACKOUTS AHB-2 User manual

Duncan SH-8n Invader Quick start guide

Duncan

Duncan SH-8n Invader Quick start guide

Duncan JB Jr. SJBJ-1 Quick start guide

Duncan

Duncan JB Jr. SJBJ-1 Quick start guide

Duncan Vapor Trail Deluxe User manual

Duncan

Duncan Vapor Trail Deluxe User manual

Duncan BLACKOUTS AHB-1 Quick start guide

Duncan

Duncan BLACKOUTS AHB-1 Quick start guide

Duncan Vintage for Jazzmaster SJM-1 Quick start guide

Duncan

Duncan Vintage for Jazzmaster SJM-1 Quick start guide

Duncan Jimi Hendrix Signature Loaded Pickguard Quick start guide

Duncan

Duncan Jimi Hendrix Signature Loaded Pickguard Quick start guide

Duncan Apollo Jazz Bass - neck Manual

Duncan

Duncan Apollo Jazz Bass - neck Manual

Duncan HyperSwitch User manual

Duncan

Duncan HyperSwitch User manual

Duncan STL-1b Quick start guide

Duncan

Duncan STL-1b Quick start guide

Popular Accessories For Musical Instruments manuals by other brands

Roland V-Drums MDS-25 owner's manual

Roland

Roland V-Drums MDS-25 owner's manual

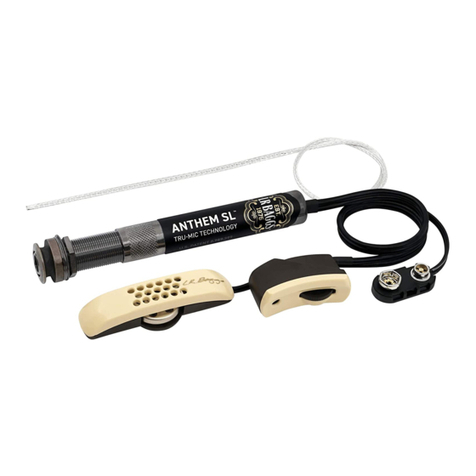

L.R. Baggs ANTHEM-SL installation manual

L.R. Baggs

L.R. Baggs ANTHEM-SL installation manual

Giannini TRUSS ROD Adjust tutorial

Giannini

Giannini TRUSS ROD Adjust tutorial

Kinman P-90 Mounting Plate Installing

Kinman

Kinman P-90 Mounting Plate Installing

Fishman TriplePlay manual

Fishman

Fishman TriplePlay manual

Göldo EL900 instructions

Göldo

Göldo EL900 instructions

Fishman ACOUSTIC MATRIX NATURAL I installation guide

Fishman

Fishman ACOUSTIC MATRIX NATURAL I installation guide

Fishman SONITONE installation guide

Fishman

Fishman SONITONE installation guide

EMG 91 Installation information

EMG

EMG 91 Installation information

Brenner Guitar Products Piezo-one P1-1 Operation and installation guide

Brenner Guitar Products

Brenner Guitar Products Piezo-one P1-1 Operation and installation guide

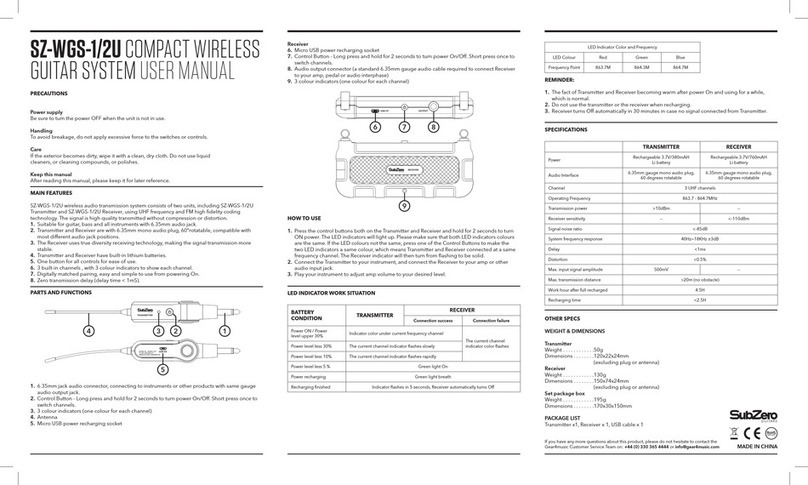

Subzero SZ-WGS-1/2U user manual
