Dune HD TV-101 User manual

English
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762;
6,226,616; 6,487,535; 7,212,872; 7,333,929 & other U.S. and worldwide patents isasued & pending.
DTS and the Symbol are registered trademarks, & DTS-HD, DTS-HD High Resolution Audio and the
DTS logos are trademarks of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.
Quick Start Guide ●Guide de démarrage rapide ●Anweisung für einen schnellen Start ●Snel Start Gids
Guía de instalación rápida ●Краткое руководство ●Короткий посібник ●Instrukcja Szybki Start

2
Dune HD TV-101 Quick Start Guide

3
English
Table of Contents
Quick Start Guide
Guide de démarrage rapide
Anweisung für einen schnellen Start
Snel Start Gids
Guía de instalación rápida
Краткое руководство
Короткий посібник
Instrukcja Szybki Start
English
Français
Deutsch
Nederlands
Español
Русский
Українська
Polski
4
16
28
40
52
64
76
88
Table of Contents

4
Dune HD TV-101 Quick Start Guide
Introduction
Dune HD TV-101 is an all-in-one solution for up to Full HD (1080p) video playback.
Key Features
●The newest Sigma Designs 8670/8671 media processor: enjoy excellent playback and performance of interactive
features.
●HDD player: connect an HDD to the player and play content directly from the HDD.
●Network player: connect the player to a local network and play content directly from PC or NAS (UPnP, SMB, NFS).
●MKV player: play HD and SD video in a popular MKV format and other modern video file formats, including top
quality HD video with very high bitrate.
●USB port: conveniently connect HDDs, USB flash drives, USB card readers and other USB storage devices.
●HDMI 1.3: ensure the best possible quality of HD video and HD audio.
●Video output flexibility: output video in any resolution and format (from SD to 1080p, 24p/PAL/NTSC).
●Upscaling: high quality upscaling of DVD and any other SD video content to Full HD (1080p) or other HD resolution.
●File browser: convenient file browser with powerful file management (copy, move, delete, rename, organize, sort).

5
English
Extra Functions
●High-quality music playback: play very high-quality (up to 192 Khz / 24-bit) music files in various formats (FLAC,
Monkey’s Audio APE, WAV/PCM, DTS, etc).
●Playlists: build playlists from your folders, use your own playlists, use repeat and shuffle functions.
●NAS function: access files on storage devices (HDD, optical drive, etc) attached to the player from the local
network (using SMB or FTP).
●BitTorrent: use built-in BitTorrent client to download files from P2P networks.
●Customizable user interface: work with media collections using cover art and icon browsing (with Full HD graphics).
●Internet radio: playback and record various Internet radio stations (HTTP/MP3 and other formats).
●IPTV: playback and record IPTV streams (multicast UDP/RTP) from your Internet provider*.
●Digital TV option: playback and record Digital TV channels using an optional Digital TV USB dongle**.
* Check availability of multicast UDP/RTP streams with your Internet provider.
** Digital TV USB dongle is not included; this option can be purchased separately.

6
Dune HD TV-101 Quick Start Guide

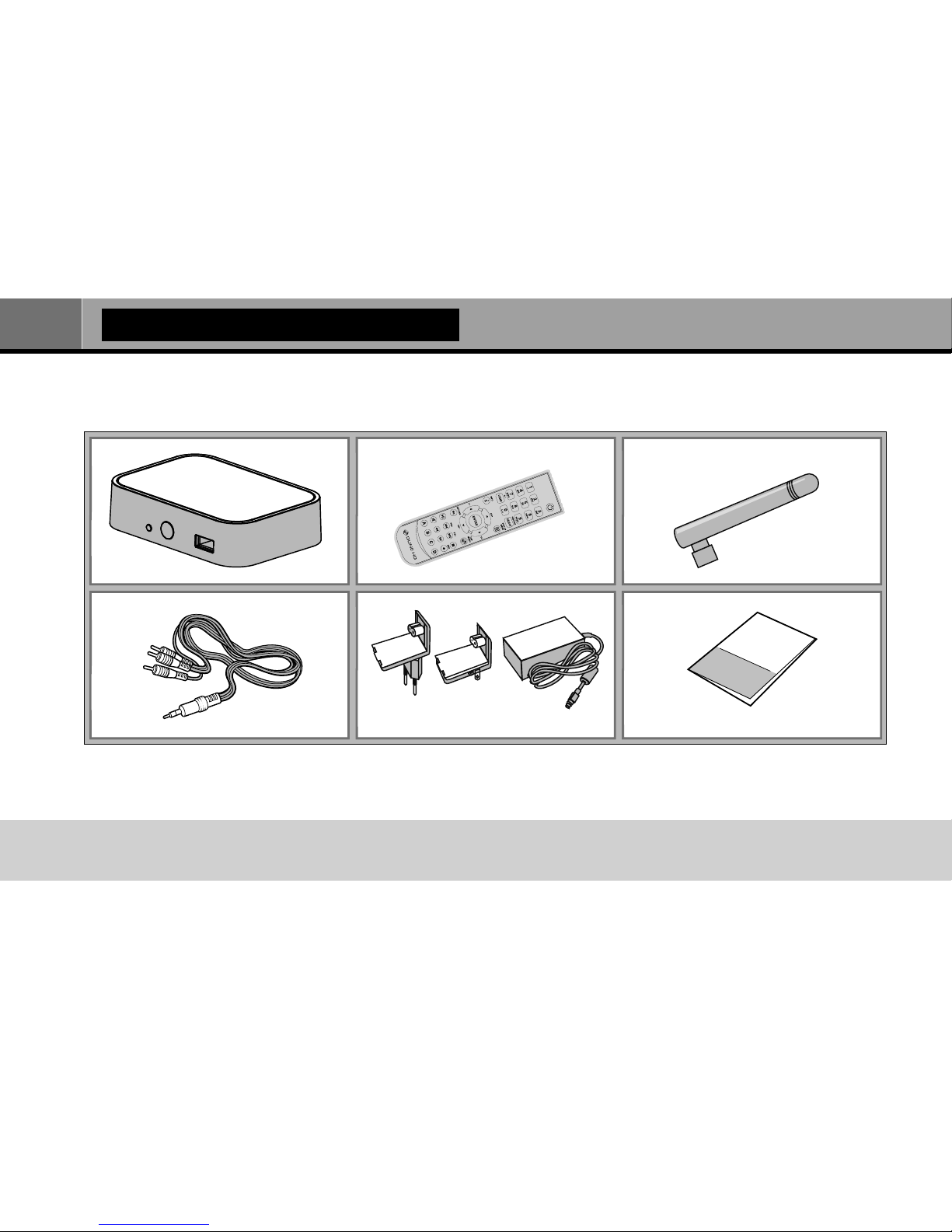

Package Contents
1. Dune HD TV-101 media player
2. Remote control (batteries may not
be included)
3. Wi-Fi antenna (optional)
4. AV cable (3.5mm minijack to 3xRCA)
5. External power supply
6. Quick start guide
NOTE: Additional items (optional) may be included into the package, depending on player configuration, region, and
distributor.
1
4
2
65
3

7
English

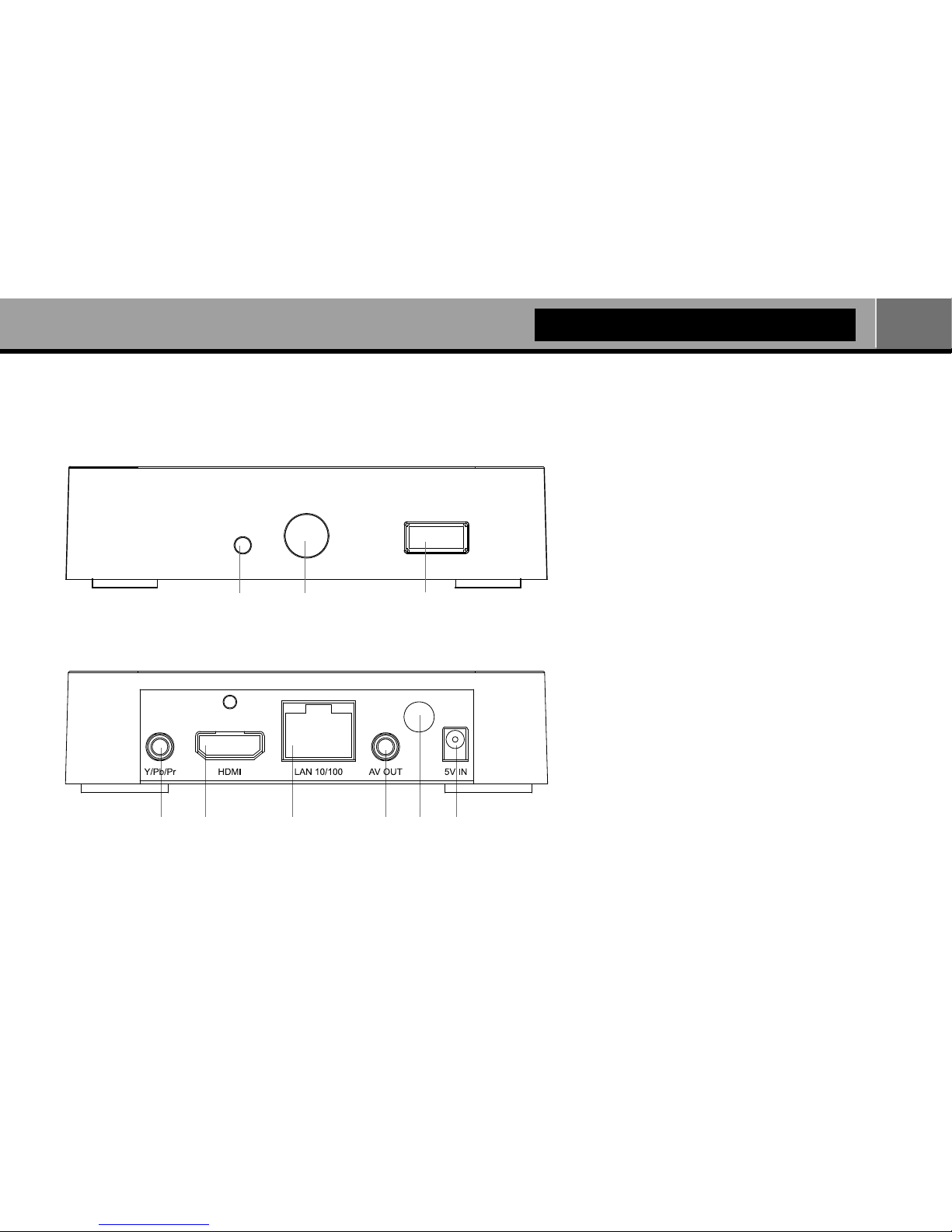

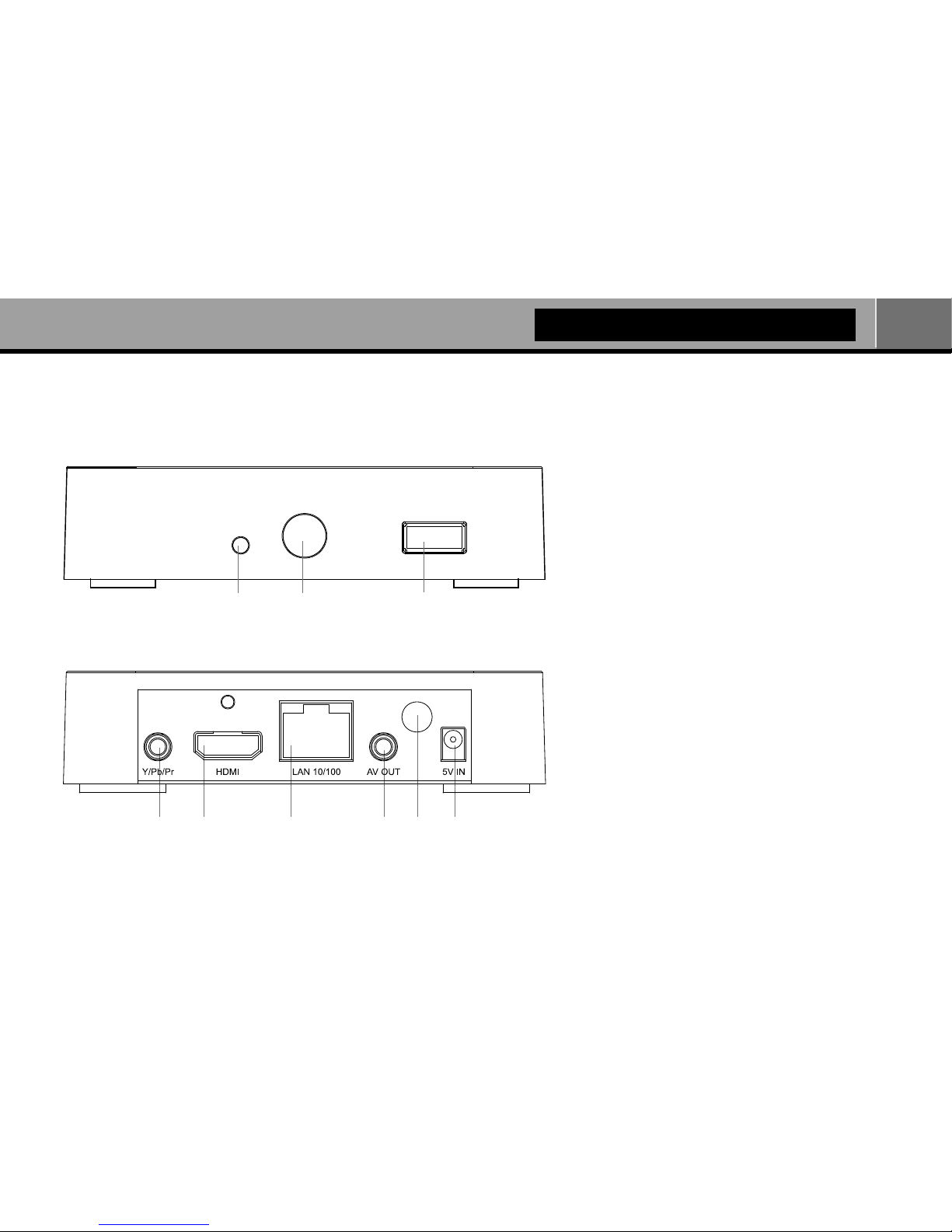

Front view
Exterior
1. LED indicator
2. IR eye
3. USB 2.0 host
213
1. Component output
2. HDMI 1.3
3. LAN
4. 3.5mm minijack AV out
5. Wi-Fi antenna (optional)
6. DC power 5V
Rear view
213456

8
Dune HD TV-101 Quick Start Guide
Remote Control
1
2
3
4
5
67
8
10
11
12
13
9
1. POWER — toggle the standby mode.
2. 0–9 — enter numbers and text, switch TV channels during TV watching.
3. CLEAR — delete entered data, delete selected items.
4. SELECT (cap/num) — switch text input modes, select several items, control some
other player functions.
5. RIGHT/LEFT (V+/V-) — navigate through the menu, adjust the volume during playback.
6. UP/DOWN (CH+/CH-) — navigate through the menu, switch TV channels during TV
watching.
7. ENTER — open/use the selected item, confirm the input, show OSD menu during play-
back, show TV channels menu and Electronic Program Guide during TV watching.
8. RETURN — go back, cancel the action.
9. INFO — show information about the selected item or the current player state.
10. POP UP MENU — show a menu with possible actions for the selected item or the
current player state.
11. TOP MENU — navigate to the top menu of the player, control some other player func-
tions.
12.PLAY/PAUSE, STOP, PREV, NEXT, REW, FWD, REC, MUTE — control the playback
and some other player functions.
13. A (Red), B (Green), C (Yellow), D (Blue) — control various player functions (depend-
ing on the context).

9
English
NOTES:
●Use alkaline AAA batteries.
●Observe polarity when inserting batteries.
●Direct the remote control to the player. There must be no
obstacles between the RC and the player.
●If RC functions only at short distances or stops functioning, make sure to replace the batteries.
●Some RC buttons may have several functions depending on the current player mode.
●Some RC buttons may be available only in certain player modes or only during playback of a certain content.

10
Dune HD TV-101 Quick Start Guide
Getting Started
Ensure there is enough space around the player for proper cooling. The space at each side should be not less than
10 cm.
Ensure the RC has batteries installed.
Connect the player to your TV and to other A/V equipment in an appropriate way. Use HDMI connection to get the
best possible quality of video and audio. Make sure to switch off the player and all relevant A/V equipment before
connecting them. Ensure your TV and other A/V equipment are configured to use proper inputs.
Switch on the player. The player will perform its initial loading procedure, which may take up to about 1 minute. During
the loading procedure, "DUNE" logo is shown on the TV.
●If you do not see "DUNE" logo on the TV when you switch on the player, it may mean some problem with the
connection between the player and the TV or that a wrong video input is chosen in the TV or A/V receiver/switch. In
such a case, recheck the cables and the settings of the TV or A/V receiver/switch, or try to use different cables or a
different way of connecting the player to the TV.
●If you see "DUNE" logo on the TV when you switch on the player, but then the picture disappears and no other
picture appears during at least 10 seconds, it may mean that a wrong video output mode is configured in the player.
In such a case, press the "REC" RC button, and then press one of the RC buttons "1", "2", "3", "4" or "5" to switch
to a different video output mode (see "Quick Setting of Video Output Mode").
Finally, you should see the main screen of the player menu. The main screen shows items allowing to use different
player functions and access all storage devices and network drives connected to the player.
Adjust the player settings as needed using "SETUP" item on the main screen of the player menu. In particular, you may
want to adjust video settings, audio settings, and network settings.
To choose the language of the player menu, use “Setup / General / Interface language” setting.

11
English
Use the RC buttons "LEFT", "RIGHT", "UP", "DOWN", "ENTER", "RETURN" to navigate through the player menu.
Use the "POP UP MENU" RC button to show the list of available commands. Use the "INFO" RC button to show the
information about the selected item.
Quick Setting of Video Output Mode
The “REC” RC button allows quick setting of video output mode without entering the player setup
menu. This way of video output configuration may be required if you see no picture on the screen after
connecting your player to a TV.
Press the “REC” RC button and then one of the RC buttons “1”, “2”, “3”, “4”, or “5” to switch to one of the following
video output modes respectively:
1. Composite PAL
2. Composite NTSC
3. HDMI, 480i, 60 Hz
4. HDMI, 720p, 60 Hz
5. HDMI, 1080i, 60 Hz
After you see a picture on the TV, press the “ENTER” RC button, and then go to the player setup menu to perform a
more precise configuration of the video output mode if needed.
NOTE: The procedure of quick setting of video output mode can not be used during playback and in some other
cases. To ensure this procedure can be used, switch the player off, then switch the player on, and the wait about 1
minute to ensure the player loading is finished. After that press «STOP» RC button to ensure playback is stopped.
Then use «REC» RC button.

12
Dune HD TV-101 Quick Start Guide
Connecting USB Drives
To connect a USB drive, ensure you are on the main screen of the player menu and connect the USB drive to an USB
port of the player. The player will recognize the USB drive, and will show an item corresponding to the USB drive on
the main screen.
When connecting a USB drive requiring significant power (such as USB HDD), use an external power supply for the
USB drive. Power provided by the USB ports of the player may not be enough for correct functioning of the USB drive.
Do not disconnect or switch off the USB drive when some write operation is in progress.
Accessing Network Drives
To connect a network drive using SMB or NFS protocol, ensure you are on the main screen of the player menu, press the
“MENU” RC button, and choose “Create Network Folder”, then fill the parameters of the network drive as needed. The
player will show an item corresponding to the configured network drive on the main screen.
To browse the list of network resources accessible via SMB or UPnP protocols, use “Network Browser” item on the
main screen of the player menu.
NOTE: If some network resources are not shown by the player, you may need to wait some minutes and then retry (or
press the “MENU” RC button and choose “Refresh” command).
Formatting HDD
To format a HDD attached to the player, select the HDD item on the main screen of the player menu, press
the “INFO” RC button and choose “Format Disk” (to format the entire disk) or “Format Partition” (or to
format an already existing disk partition only). The player will format the disk. To format an unformatted HDD, just
press the “ENTER” RC button on the HDD item.
NOTE: To use disks formatted by the player on a Windows PC, you may need to install additional software on the PC,
such as “EXT2FSD” (http://www.ext2fsd.com/).

13
English
Switching the Player On and Off
To put the player into the standby mode, press the «POWER» RC button. To exit the standby mode, press this buttons
again.
Depending on the player settings (see the player setup menu), the «hardware standby» or «software standby» mode
may be used. In the «hardware standby» mode, almost complete power-off takes place and the player consumes
almost no power. In the «software standby» mode, the player produces no signal on the video output, but is still
functioning. For example, if you have some storage devices connected to the player, you may still access them from
network («NAS» function of the player). Exiting the «software standby» mode takes just a few seconds. When the
player is in the «software standby» mode, it still consumes significant power. It is not recommended to keep the player
in the «software standby» mode for a while if you do not need it.
To switch the player off completely, disconnect the power plug.
NOTE: After switching off the player completely or putting the player into the «hardware standby» mode, it is
recommended to wait about 1 minute before switching it on again.
NAS (Network Attached Storage)
You can access storage devices connected to the player from the local network using FTP and SMB protocols. On a
Windows PC, just type «ftp://ip_address» or «\\ip_address» in the Windows explorer, where «ip_address» is the IP
address of the player.
WiFi
If you player does not include a built-in WiFi adapter, you can use a USB WiFi adapter to connect the player to the
local network via WiFi.
Please see here for the information on supported USB WiFi adapters: http://dune-hd.com/support/hw_compat/

14
Dune HD TV-101 Quick Start Guide
Limitations
Compatibility of the player with a particular hardware (A/V equipment, network equipment, disk drives, etc) may
depend on various factors (particular hardware model, specifics of hardware installation and usage, configuration of
the player and the hardware, etc). If the player does not correctly work with a particular hardware, try to adjust the
configuration of the player or hardware, try to use the hardware in a different way, or try to use some other hardware.
Compatibility of the player with a particular media content (files, discs, etc) may depend on various factors (specifics of
media content encoding, specifics of the configuration of the player, etc). If the player does not play correctly a particu-
lar media content, try to adjust the configuration of the player, or try to use media content encoded in a different way.
Updating Your Player and Getting More Information
Please check here for updated versions of player firmware (which may improve player functioning and extend player
possibilities):
http://dune-hd.com/firmware/
(Note: You can also connect the player to Internet and use the online firmware upgrade function, see Setup / Misc /
Firmware Upgrade.)
Please check here for more detailed and up-to-date documentation and information on player usage:
http://dune-hd.com/manuals/
http://dune-hd.com/support/

15
English

16
Dune HD TV-101 Guide de démarrage rapide
Introduction
Le Dune HD TV-101 est une solution tout en un pour la lecture vidéo en Full HD (1080p).
Fonctions clés
●Nouvelle puce Sigma Designs 8670/8671: profitez de puissantes performances pour une excellente qualité
de lecture et de contenus interactifs.
●Lecteur de disques durs: connectez un disque dur au lecteur pour lire des contenus directement depuis le
disque dur.
●Lecteur réseau: connectez le lecteur à votre réseau local et lisez vos contenus multimédia directement depuis
votre ordinateur ou NAS (UPnP, SMB, NFS).
●Lecteur MKV: Lisez vos vidéo HD et SD encapsulées en format MKV ou tout autre format vidéo récent, avec
un très haut débit.
●Port USB: connectez facilement vos disques durs, clés USB, lecteurs de cartes mémoires et autres
périphériques USB.
●HDMI 1.3: permet la meilleure qualité d’affichage vidéo HD et lecture audio HD possible.
●Polyvalence d’affichage vidéo: sortie vidéo dans n’importe quelle résolution et format (SD à HD 1080p, 24p/
PAL/NTSC).
●Upscaling: mise à l’échelle haute qualité des DVD ou toute autre source SD en Full HD (1080p) ou toute autre
résolution HD.
●Navigateur de fichiers: explorateur de fichiers simple et pratique avec puissante gestion de fichiers (copier,
déplacer, supprimer, renommer, organiser, trier).

17
English
Fonctions complémentaires
●Lecture de musique haute qualité: lecture en qualité audiophile (jusqu’à 192 kHz / 24 bits) des fichiers musicaux
dans la plupart des formats (FLAC, APE audio singe, WAV / PCM, DTS, etc.)
●Playlists: créez des listes de lecture à partir de vos dossiers, utilisez vos propres listes de lecture et profitez des
fonctions de répétition et de lecture aléatoire.
●Fonction NAS: accédez aux fichiers stockés sur divers périphériques de stockage (disque dur, lecteur optique, etc)
reliés au lecteur à partir du réseau local (via SMB ou FTP).
●BitTorrent: profitez du client BitTorrent intégré pour télécharger des fichiers depuis un réseau P2P.
●Interface graphique personalisable: explorez vos collections multimédia en navigation par jaquettes (avec des
graphismes en Full HD).
●Radios Internet: lecture et enregistrement de stations radio Internet (formats HTTP/MP3 et autres).
●IPTV: lecture et enregistrement de flux IPTV (multicast UDP / RTP) provenant de votre fournisseur d’accès Internet*.
●TNT HD: lecture et enregistrement des chaînes de la TNT (SD et HD) via le tuner TNT optionnel (dongle USB) **.
* Vérifiez la disponibilité de multicast UDP / RTP avec votre fournisseur d’accès Internet.
** Tuner TNT HD sur clef USB non inclue et vendue séparément.
Français

18
Contenu de la boîte
1. Lecteur Dune HD TV-101
2. Télécommande (les piles peuvent ne pas être inclues)
3. Antenne Wi-Fi (optionnel)
4. Câble AV (mini-jack 3.5mm vers 3xRCA)
5. Bloc alimentation
6. Guide de démarrage rapide
NOTE: Des accessoires supplémentaires (optionnels) peuvent être inclus dans la boîte en fonction du pays, du
distributeur et de la configuration du lecteur.
1
4
2
65
3
Dune HD TV-101 Guide de démarrage rapide

19
English
Panneau frontal
Vue Extérieure
1. Indicateur LED
2. Récepteur IR
3. Port USB 2.0 host
213
1. Sortie vidéo composante (Y/Pb/Pr)
2. HDMI 1.3
3. LAN (Ethernet)
1. 3.5mm mini-jack AV out
4. Antenne Wi-Fi (optionnel)
5. Connecteur d’alimentation 5V
Panneau arrière
213456
Français

20
Télécommande
1
2
3
4
5
67
8
10
11
12
13
9
1. POWER — bouton marche/arrêt (mise en veille)
2. 0–9 — saisie alpha/numérique, accès aux chaînes TV, raccourcis d’accès par pour-
centage.
3. CLEAR — suppression de données saisies, suppression des articles sélectionnés.
4. SELECT (cap/num) — changement du mode de saisie de texte, sélection de divers
éléments, peut s’appliquer à d’autres fonctions du lecteur.
5. RIGHT/LEFT (V+/V-) — navigation dans les menus, ajustement du volume pendant la
lecture.
6. UP/DOWN (CH+/CH-) — navigation dans les menus, changement de chaînes TV
pendant le visionnage de chaînes TV.
7. ENTER — ouverture/utilisation de l’élément sélectionné, validation de l’option sélec-
tionnée, affichage de l’OSD pendant la lecture, affichage des chaînes TV et de l’EPG
pendant le visionnage de chaînes TV.
8. RETURN — retour à l’écran précédent, annule une commande.
9. INFO — affiche les informations sur l’élément sélectionné ou sur l’état général du
lecteur.
10. POP UP MENU — affiche un menu détaillant les actions possible sur l’élément sélec-
tionné ou sur l’état général du lecteur.
11. TOP MENU — navigation vers le menu principal du lecteur, peut s’appliquer à
d’autres fonctions du lecteur.
Dune HD TV-101 Guide de démarrage rapide
