Duratool D01843 User manual

1
48W Soldering Station
Model: D01843

2
IMPORTANT SAFETY INFORMATION
Please read these instructions carefully before use and retain for future reference.
• When using electrical appliances basic safety precautions should always be
followed.
• Check that the voltage indicated on the rating plate corresponds with that of the
local network before connecting the appliance to the mains power supply.
• This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualied persons in order to avoid a hazard.
• Do not leave the soldering station unattended, while it is powered on.
• Never touch the soldering tip or the surrounding metallic parts before the soldering
tip has cooled down completely.
• Do not use the product near ammable items.
• Turn the power off when this product is not in use.
• The soldering iron must be placed on its stand when not in use.
• Before storage, turn the power off and allow the product to cool down to room
temperature.
• Do not use this product for anything else other than that for which it is designed.
• Do not use this appliance with wet hands.
• Do not expose the soldering station to rain or moisture.
• Ensure there is sufcient space and ventilation around the appliance to allow the
escape of heat and/or fumes.
• This appliance must be earthed.
WHAT’S INCLUDED?
• 1 Control Station with power cord and tip cleaning sponge
• 1 Integrated Soldering Iron
• 1 Iron Holder
• 1 User Manual
OVERVIEW
Soldering Iron
Temperature Control
Power Switch
Sponge
Iron Holder
Soldering Station

3
APPLICATION & OPERATION
Note: The rst time you use the soldering iron, it may smoke slightly as the heating
element dries out. This is normal and should only last for a few minutes.
ONLY USE FOR ELECTRICAL WORK - Acidic solder will damage the iron tip.
• Connect the mains plug and turn on the power using the switch on the station. The
switch will illuminate when the power is on.
• Before using the soldering iron for the rst time, dampen the cleaning sponge and
place it in the iron holder tray. Keep it damp during use.
• Regulate the temperature of the iron using the rotary control.
• The coloured areas correspond to the following temperatures:
Yellow - approx 150oC
Orange - approx 150 to 270oC
Red - approx 270 to 450oC
• It is recommended to use the lower part of the rst red sector for lead solder and
for silver solder use the lower end of the second red sector.
• Between use (or during breaks), always put the soldering iron in the holder.
• Lower the temperature during breaks as this extends the life of the tip.
• When the soldering work is done, adjust the temperature to 270oC or switch off the
power rst, clean the tip and tin with fresh solder to protect it from oxidation.

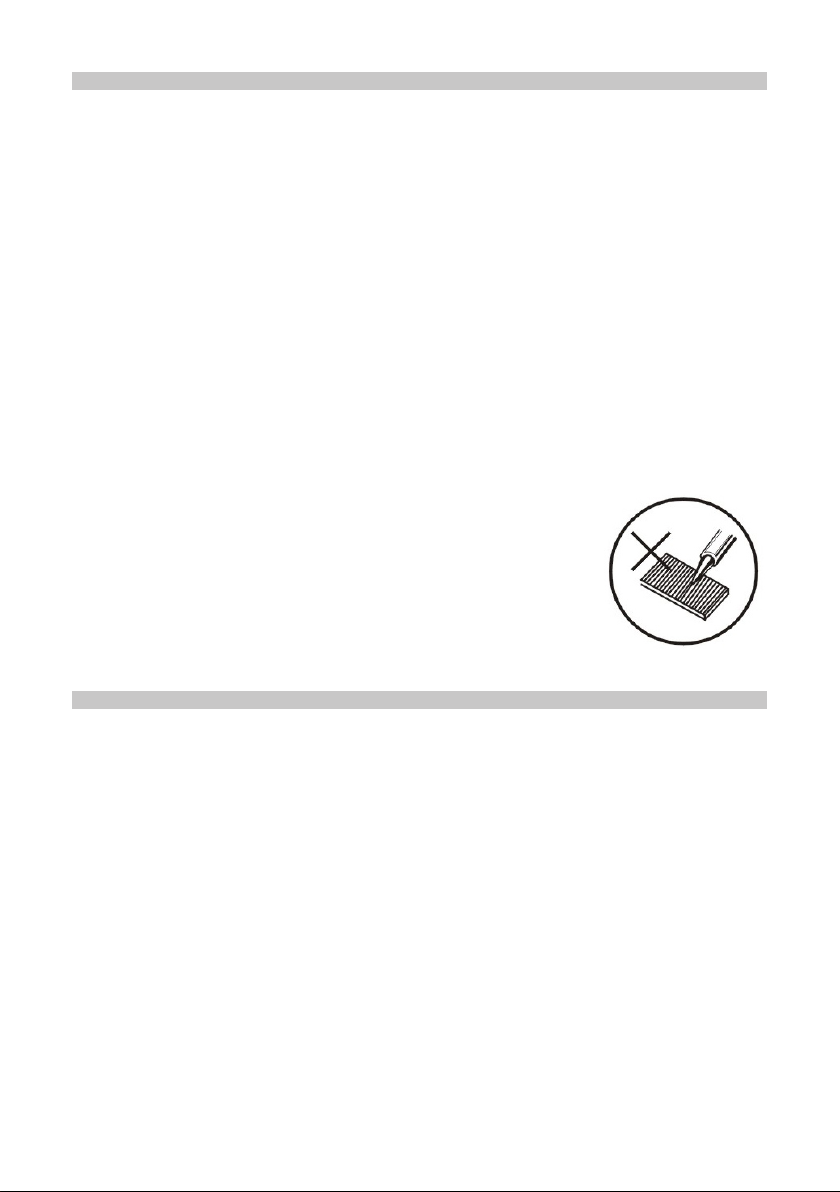

• Never le down the tips or attempt to clean using abrasives.
• Replacement tips are available for this iron. See our web
pages or catalogue.
TIP REPLACEMENT
• Replacing the tip should only be done when the iron is switched off and at room
temperature.
• The tip can be changed or replaced by unscrewing the knurled nut barrel.
• It is imperative that the iron is switched off, unplugged and allowed to cool before
and after tip replacement.
Caution: Damage could occur if the iron is left on without the tip inserted.
• After removing the tip, blow out any remaining oxide dust that may have formed in
the tip retaining area of the barrel.
Warning: Care should be taken to avoid getting dust in your eyes.
• Replace the tip and tighten the knurled nut barrel assembly with your ngers.
• Pliers should only be used to tighten the nut if loosening occurs when the iron is
hot.
• Do not over tighten the nut as the element could be damaged.

4
INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF ELECTRICAL &
ELECTRONIC EQUIPMENT.
When this product has reached the end of its life it must be treated as Waste
Electrical & Electronics Equipment (WEEE). Any WEEE marked products must
not be mixed with general household waste, but kept separate for the treatment,
recovery and recycling of the materials used. Contact your local authority for details
of recycling schemes in your area.
Made in China. PR2 9PP
Man Rev 1.0
SPECIFICATIONS
Power Consumption 48W
Input Voltage 220-240V~50Hz
Temperature Range 150-450°C
Box Dimensions (L x W x H) 115 x 85 x 140mm
Weight 0.6kg
• Tip heats intermittently - Mains cord damaged or a loose connection.
• Tip will not reach set temperature - Defective heating element
• Solder will not wet the tip - Tip temperature is too high.
Tip is badly oxidized and requires cleaning.
• Increased resistance between
tip and ground - Check the tip attachment is tightened.
TROUBLESHOOTING
CLEANING
• Cleaning should only be done when the iron is switched off and at room
temperature.
• The iron may be cleaned with a damp cloth and a small amount of liquid detergent
if necessary.
• Never submerse the soldering iron in liquid or allow any liquid to enter the case.
• Do not use any chemicals, abrasives or solvents that could damage the soldering
iron.
