Durite 0-776-07 User manual

Overdoor Camera for Durite CCTV
12 volt
Part 0-776-07
0-776-07-LEAF
www.durite.co.uk
WARNINGS
Before using this unit please read these instructions carefully. Take special care to follow the warn-
ings and safety suggestions listed below. Keep these instructions for future reference.
There are no user-serviceable parts within the unit, refer servicing to qualified service personnel.
PRECAUTIONS
• Please ensure you are familiar and comply with local traffic and driving regulations.
• Connection - The camera should only be connected to a Durite cctv system.
• Heat - Do not install the camera near heat sources.
• Mounting - Ensure the camera is facing the desired direction before fixing the camera base. If
fixing to isolated return chassis the camera bracket should be isolated from the vehicle chassis.
• Service - The user should not attempt to service these units beyond that described in these instruc-
tions. All
other servicing should be referred to an authorised service technician.
GENERAL
The camera has a CCD image sensor which gives a high quality picture and its solid state circuitry
provides extremely long life. Compact size and single connection make it easy to install. Automat-
ic gain control (AGC) provides a clear image in both strong sunlight and low light conditions, if
lighting conditions fall below a set level the Infra-red LEDs will illuminate.It is recommended that all
camera lead connections are additionally sealed by either wrapping with a suitable tape or applica-
tion of heat shrink sleeving. It is recommend to connect the system and test before fixing to ensure
the correct field of view is displayed.

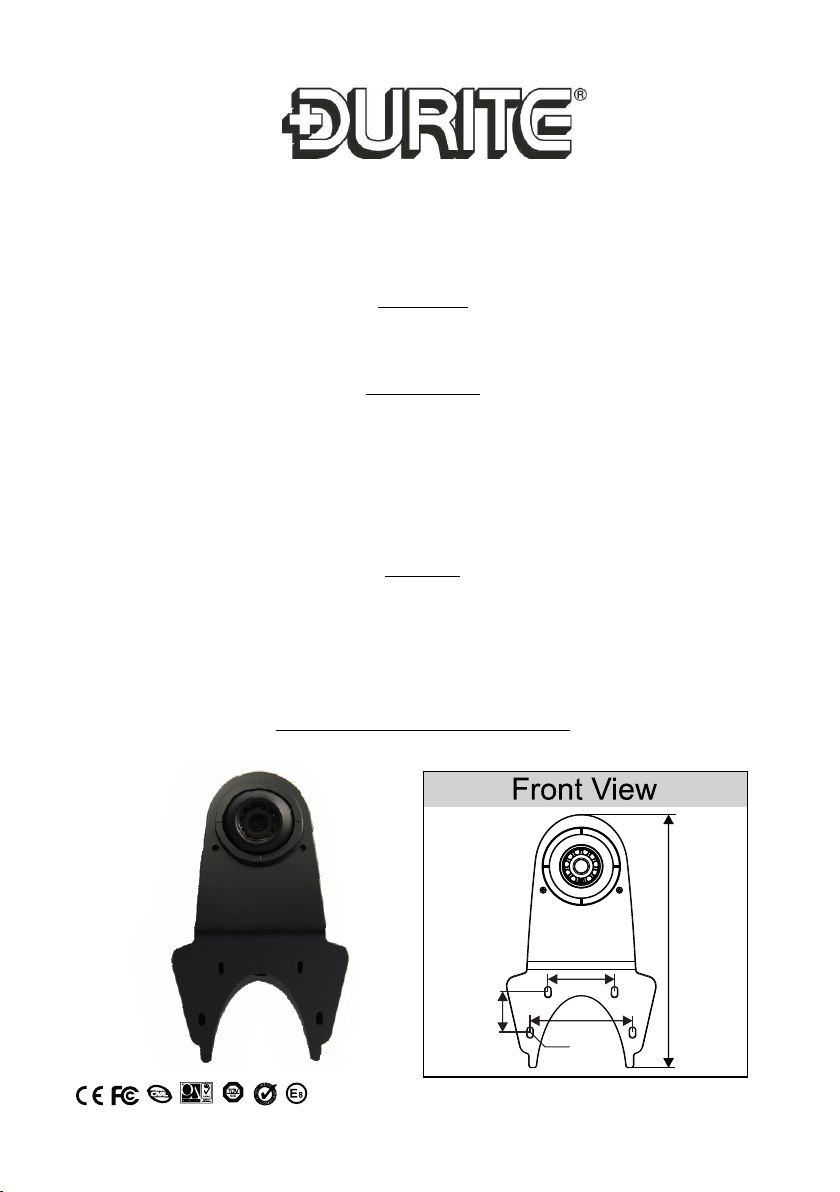

PRODUCT & DIMENSIONAL DRAWING
212
R4
85
40
55
IS O 9001: 2008
SUD
ISO /TS 169 49
No. L05 31 E- mark 0-776-07-LEAF

PIN LAYOUT
SPECIFICATIONS
Model............................................................0-776-07 (Over Door Camera)
Extension Bracket........................................0-776-77 (To extend bracket over door)
Image pick-up Device..................................1/3” Sharp Colour CCD
CCD Total Pixels............................................PAL: 752(H) x 582(V); NTSC: 768(H) x 494(V)
Lens Mount...................................................2.9mm/120°
Horizontal Resolution..................................600 TV Lines
Sync System.................................................Internal Synchronization
Usable Illumination......................................0Lux at night (IR LED ON)
IR Power On..................................................CDS Auto Control, Under 10Lux by CDS (<10Lux CDS on)
IR Distance Lens Mount...............................5M/2.9mm
S/N Ratio.......................................................>48dB (AGC Off)
Video Output................................................1.0Vp-p 75 ohm
IP Rating........................................................IP69K
Operation Temperature...............................-20°C - +50°C RH95% Max
Storage Temperature...................................-20°C - +60°C RH95% Max
Power Supply...............................................12V DC
Power Consumption....................................In Work: 80mA (0.96W) IR On: 190mA (2.3W)
Dimensions...................................................(L*W*H) 212mm x 125mm x 84mm
Weight...........................................................300g
Approval........................................................E Marked, CE
www.durite.co.uk
IS O 9001: 2008
SUD
ISO /TS 169 49
No. L05 31 E- mark 0-776-07-LEAF
4
3
2
1

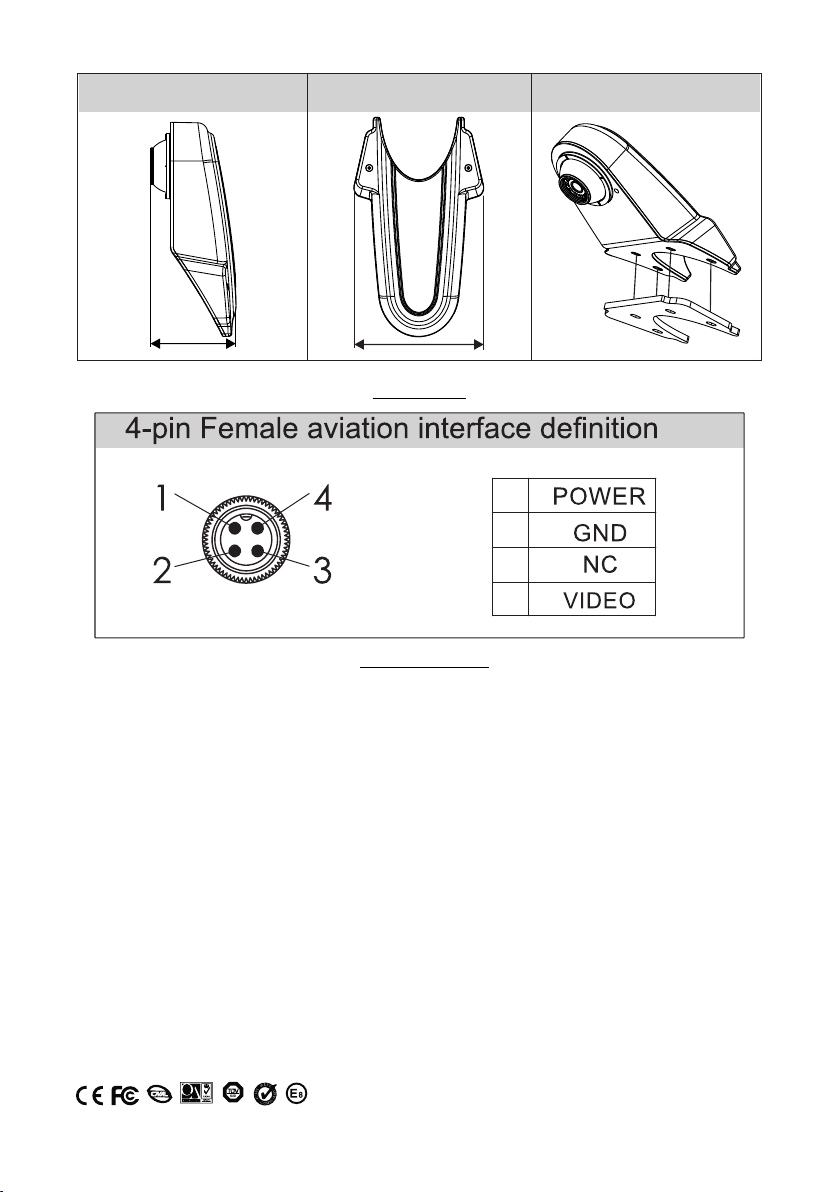

Support drawing
Side View Side View
125
84
