Dust Free BIO-FIGHTER Nomad 9D User manual

FUSE
©2021 Dust Free®. • All rights reserved. • 210757-00 Rev. 5C 2/21

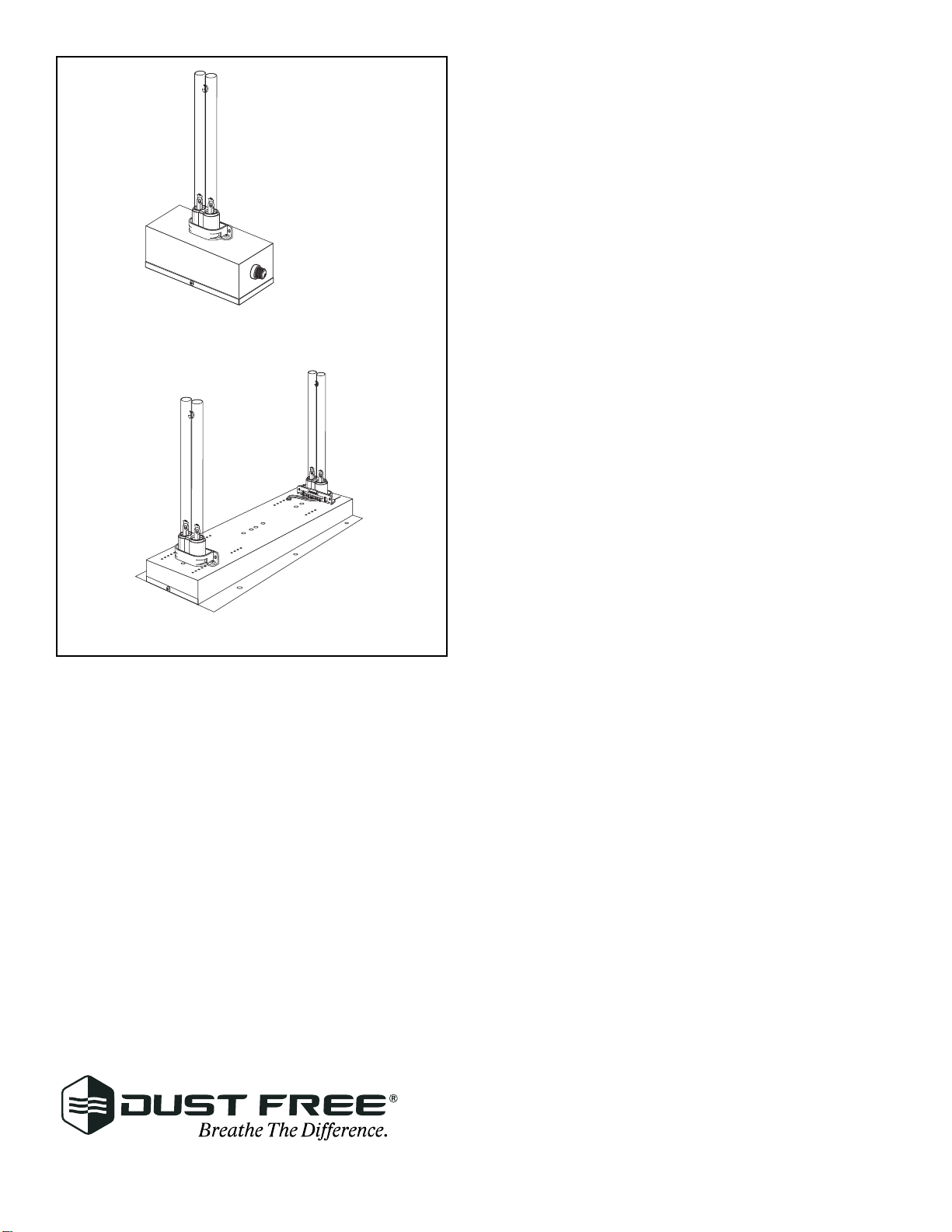

BIO-FIGHTER
Nomad & Nomad 2
Ultraviolet Light Systems
w/Standard w/Whip-type
Power Cord Power Cord
Nomad 9D #04400MV #06304
Nomad 16D #04401MV #06305
w/Standard w/Whip-type
Power Cord Power Cord
Nomad 2D9 #04966MV #06306
Nomad 2D16 #04967MV #06307
®
GENERAL
This product is designed to help disinfect the
internal surfaces of heating, ventilation, and air
conditioning systems where the light shines.
Bacteria and viruses that are in the air stream that
pass through the system can also be reduced. The
result is an improved level of indoor air quality for
occupants and improved system hygiene.
The Bio-Fighter® emits ultraviolet(UV-C) radiation at
a frequency of 254 nanometers, which has been
proven effective in damaging the DNA of
microorganisms such as viruses, bacteria,
yeast and molds. This process either destroys
the microorganism or neutralizes its ability to
reproduce.
FEATURES
•Reduces or prevents mold growth on HVAC coils,
allowing them to operate at peak efficiency where
the light shines. Also significantly reduces
bacteria, viruses, fungi, and yeasts on surfaces
exposed to the UV-C energy.
• High output, long life UV-C lamps.
• Low maintenance and reduced costs.
• Multi-voltage electronic ballast.
INCLUDED INSIDE BOX
• Germicidal ultraviolet light system
• UV lamp(s)
• Mounting brackets (Nomad only)
• 3/8" mounting screws (Nomad only)
• 1" mounting screws
•1.5" mounting screws (Nomad 2 only)
• Mounting spacers (Nomad 2 only)
• Viewport(s)
• Installation & operation manual
• UV-C warning label for duct
• Registration card
TOOLS REQUIRED FOR INSTALLATION
• Electric drill
• Phillips screw bit or screwdriver
• 1/2" drill bit
• 3" Holecutter (Insert-mount installation only)
• Eye protection
BEFORE INSTALLING
• Read all instructions carefully. Failure to do
so could damage the equipment or cause
harm to yourself or others.
• Acknowledge all warnings.
• Only qualified technicians should perform
the installation.
Installation & Operation Manual

BIO-FIGHTER®NOMAD, NOMAD 2 INSTALLATION & OPERATION MANUAL
2
Weight:
Nomad 9D - 2 1/4 lbs.
Nomad 16D - 3 3/4 lbs.
Nomad 2D9 - 5 1/3 lbs.
Nomad 2D16 - 7 5/8 lbs.
Electrical:
120V-240V, 50/60Hz, 1PH. 3 amp-250v fuse.
Accessories:
Remote safety interlock (#06150).
U.S. Patent Nos. 5,334,347, 5,817,276, 6,245,293, 6,267,924,
6,280,686, 6,313,470, 6,627,000, 6,539,727, 6,932,494, 6,550,257.
Specifications subject to change without notice.
NOMAD 2
NOMAD
SPECIFICATIONS
MODEL DIM. A DIM. B DIM. C DIM. D
Nomad 9D 3.125" 7" 3.5" 9"
Nomad 16D 3.125" 7" 3.5" 16"
Nomad 2D9 1.5" 17" 5.93" 9"
Nomad 2D16 1.5" 17" 5.93" 16"
Base Dimensions
ETL LISTED
CONFORMS TO
UL STD 1598
CERTIFIED TO
CSA STD C22.2 NO. 250.0
2002554
EPA Device Manufacturer Establishment No. 73316-TX-1
The product and technologies described are not medical devices, and are
not intended to diagnose, treat, cure, or prevent any disease or illness.

BIO-FIGHTER®NOMAD, NOMAD 2 INSTALLATION & OPERATION MANUAL
3
IMPORTANT:
The device must be installed in compliance
with all national and local electrical and
mechanical codes. Failure to do so will void
ETL safety listing and Dust Free® warranty.
Nomad/Nomad 2 Mounting Options (Fig.1)
The Nomad/Nomad 2 is suitable for installa-
tion inside or outside the air handling system
or ductwork. For HVAC applications only.
The Nomad/Nomad 2 may be installed as a
parallel mount, perpendicular mount, or as an
insert mount depending on your requirements.
The included brackets and screws allow the
device to be mounted in any of these orienta-
tions.
Note: For insert-mount applications a 3" hole must be
cut into the duct to allow for the insertion of the lamp
and connector.
Fig. 1 Device may be mounted in a variety of orientations.
Sharp Edge Hazard.
Be careful of sharp edges on device and HVAC equip-
ment while installing the device. Personal injury may
result.
CAUTION
Perpendicular
Mount
Parallel
Mount
Insert
Mount
(Nomad Only)
SPECIAL INSTALLATION NOTES
• Do not install in closet return grille applications.
• Do not in outdoor applications.
• Do not expose wiring or plastic parts to UV-C light.
• Do not install where UV-C light can be seen
after installation.
• Do not install beneath a humidifier.
•If the UV device is installed on the inlet side
(return air side) of a coil, make sure that the
HVAC system is configured such that the
blower is located between the return air filter
and the inlet side (return air side) of the coil,
such as would be found in a traditional up-
flow, or horizontal furnace with the coil
placed after the heat exchanger.
• If the UV device is installed near an air filter,
check with filter manufacturer for UV-C
resistance properties.
• If the desired UV installation location is
intended to irradiate an air filter, to neutralize
the microbiological matter on the air filter
surface, such as would be found in the
return air drop of a basement application or
in the return plenum of a horizontal system
in an attic; take precautions as described in
note above, and make sure the UV fixture is
placed on the return side of the filter. DO
NOT INSTALL THE UV FIXTURE ON EITHER
SIDE OF THE FILTER IN HALL / CLOSET
RETURN AIR APPLICATIONS. (See ATTEN-
TION! Warning sheet #212945-00).

BIO-FIGHTER®NOMAD, NOMAD 2 INSTALLATION & OPERATION MANUAL
4
INSTALLING THE NOMAD
Perpendicular/Parallel Mount (Fig.3)
With the brackets attached, place the Nomad
at the desired installation location/orientation
and secure the brackets to the duct using the
1" mounting screws.
ADJUSTING THE LAMPS (Nomad 2 Only)
The Nomad 2 may have its lamp centers
adjusted over a range of 7"-17.5" to fit your
application. The Nomad 2 comes from the fac-
tory with its lamps set at 14.5" centers.
To adjust lamp centers remove the screws
securing the lamp to the chassis and reposi-
tion in any of the adjustment holes. If shorten-
ing the centers from the factory setting, the
lamps will have to be pivoted around to the
inside set of adjustment holes to clear the
lamp wires.
Fig. 3 Mount the Nomad to the duct using the 1" mounting
screws.
FUSE
Sharp Edge Hazard.
Be careful of sharp edges on device and HVAC equip-
ment while installing the device. Personal injury may
result.
CAUTION
Insert Mount
If installing the Nomad as an insert-mount:
1. Make a 3" diameter lamp hole in the duct.
2. Install lamp as shown on page 5.
3. Insert the Nomad lamp through the holes
and secure brackets to the duct using the pro-
vided 1" mounting screws.
Fig. 2 Mount the brackets to the Nomad using the 3/8" mounting
screws. Illustration shows perpendicular mounting.
FUSE
Attach bracket here
for insert-mount
Attach bracket at
these locations for
parallel-mount.
Attach Mounting Brackets (Nomad Only)(Fig.2)
Attach brackets to the side of the Nomad
chassis with the 3/8" mounting screws.
Choose the set of bracket holes appropriate
for your installation. Be sure bracket is flush
then install the Nomad inside the HVAC sys-
tem in the desired location and orientation.
UV-C Light Hazard.
UV-C light can cause temporary or permanent loss of
vision, and sunburn. Take precautions to protect eyes
and skin from direct exposure.
WARNING

BIO-FIGHTER®NOMAD, NOMAD 2 INSTALLATION & OPERATION MANUAL
5
UV-C Light Hazard.
UV-C light can cause temporary or permanent loss of
vision, and sunburn. Take precautions to protect eyes
and skin from direct exposure.
WARNING
INSTALLING THE LAMP (Fig. 5)
To maximize the efficiency and life of the UV-C
lamp, clean each lamp prior to installation.
Use isopropyl alcohol and cotton cloth to wipe
dust and fingerprints from the lamp.
Attach lamp to connector by inserting the front
of the lamp into the connector first then gently
snap the back of the lamp in place.
Fig. 5 Attach lamp to connector by inserting the front of the lamp
first then snapping the back of the lamp into place.
Clean lamp(s) prior to installation.
Failure to remove dirt and fingerprints from the
lamp(s) could shorten their lifespan.
CAUTION
Mercury Hazard. Do Not Break.
Each UV-C lamp contains a small amount of Mercury.
May cause redness or irritation. Use proper disposal
techniques in case of breakage. See page 6.
WARNING
Insert Mount
If installing the Nomad 2 as an insert-mount:
1. Make two 3" diameter lamp holes in the
ductwork.
2. Install lamps as shown on page 5.
3. Remove the retaining screws and bottom
cover of the Nomad 2.
4. Insert the Nomad 2 lamps through the holes
and secure chassis to duct using the provided
1" mounting screws. Any of the holes in the
cover may be used for mounting.
Fig. 4 Mount the Nomad to the duct using the 1" mounting
screws.
Lamp repositioning holes.
INSTALLING THE NOMAD 2
Perpendicular Mount (Fig.4)
Place the Nomad 2 at the desired installation
location/orientation and secure to duct with
the included 1" mounting screws.
Optional spacers are provided to help prevent
"sweating" where insulation is compacted.
When using spacers use the 1.5" mounting
screws included with the Nomad 2.

BIO-FIGHTER®NOMAD, NOMAD 2 INSTALLATION & OPERATION MANUAL
6
Burn Hazard.
During replacement, allow lamps to cool 10 minutes
before removing them. Personal injury may result.
WARNING
Mercury Hazard. Do Not Break.
Each UV-C lamp contains a small amount of Mercury.
May cause redness or irritation. Use proper disposal
techniques in case of breakage.
WARNING
CONNECTING TO POWER
With the Nomad/Nomad 2 installed, connect
power cord to proper power. If installing model
with whip-type power cord see Fig. 6 below for
power connection. Use the viewport to verify
lamp operation. A blue light should be seen.
INSTALLING THE VIEWPORT
The Nomad/Nomad 2 comes with a UV-C safe
viewport(s) that must be installed separately.
To install the viewport, select a location near
the Nomad/Nomad 2 installation and drill a
1/2" hole in the duct. Then press the viewport
into the hole. For a Nomad 2 installation, make
sure each viewport is positioned near each
lamp location.
OPERATION
The Nomad/Nomad 2 should be operated
continuously to extend the life of the lamp(s),
and to increase the effectiveness in disinfect-
ing the location selected.
INSTALL REMOTE DOOR INTERLOCK SWITCH
(Optional accessory #06150.)
Mount the remote door interlock switch so that
power to the device is automatically discon-
nected anytime the air handler access panel is
opened.
1. Remove the black remote interlock hole cap
from the side of the Nomad/Nomad 2.
2. Insert remote door interlock switch wire through
hole. Secure with strain relief. Install male and
female connector to remote door interlock switch
wires and connect to UV-C light.
3. Mount remote door interlock switch and actua-
tor to access panel opening.
4. Check operation. Device should turn off when
access panel is opened.
Note: Remote door interlock switch includes 5 ft(1.5m)
120V power cord with custom connectors. If device is
installed more than 5 ft(1.5m) away from remote door
interlock switch, field wiring will be required in accor-
dance with national and local codes.
Connect green wire
to ground.
Whip-type
power cord
Connect black
and white wires
to proper power.
Fig. 6 Power connection for models with whip-type power cord.
UV-C Light Hazard.
UV-C light can cause temporary or permanent loss of
vision, and sunburn. Take precautions to protect eyes
and skin from direct exposure.
WARNING
Clean lamp(s) prior to installation.
Failure to remove dirt and fingerprints from the
lamp(s) could shorten their lifespan.
CAUTION

BIO-FIGHTER®NOMAD, NOMAD 2 INSTALLATION & OPERATION MANUAL
7
PROPER CLEAN-UP TECHNIQUE IN CASE OF
LAMP BREAKAGE
●Wear protective gloves, eyewear and mask.
●Sweep the broken glass and debris into a plastic
bag, seal the bag, and dispose of properly.
Contact your local waste management office for
proper disposal.
●Do not use a vacuum cleaner. Do not
incinerate.
LAMP DISPOSAL
Dispose of your spent UV-C lamps at your
local recycling center. You may also send your
spent lamps in the same container you
received your replacement lamps to:
Dust Free® Lamp Reclamation
1112 Industrial Drive
Royse City, TX 75189
Replacement Parts Part No.
UV-C Lamp - 9" 06035
UV-C Lamp - 16" 06036
Ballast - Nomad - 9"/16”, Nomad II - 9” 06149
Ballast - Nomad II - 16" 06167
Remote Safety Interlock 06150
Fuseholder 212225-00
Fuse 750-0108-001
Lighted On/Off Switch Nomad II 120V/230V 750-0026-002
For information on the dealer in your area call: 1-972-635-9565.
Visit us at http://www.dustfree.com
Mercury Hazard. Do Not Break.
Each UV-C lamp contains a small amount of Mercury.
May cause redness or irritation. Use proper disposal
techniques in case of breakage.
WARNING
LAMP REPLACEMENT(Annually)
The lamp should be replaced annually even if
it appears to be operating normally. UV-C
energy production diminishes over time.
1. Obtain the correct replacement lamp for
your model.
2. Disconnect power to the equipment. Allow
lamp to cool 10 minutes before touching.
3. Remove old lamp and install new lamp.
See page 5.
4. Reconnect power. For Nomad 2 make sure
power switch is in the "ON" position.
5. Use viewport to verify operation.
FUSE REPLACEMENT
1. Disconnect power.
2. Unscrew the knob marked "Fuse" and
remove fuse.
3. Install new fuse and screw knob back in
place. Only use a 250V/3 amp fuse.
4. Reconnect power.
Burn Hazard.
During replacement, allow lamps to cool 10 minutes
before removing them. Personal injury may result.
WARNING
TROUBLESHOOTING
Maintenance and troubleshooting should be
performed by a qualified technician.
Device fails to operate.
1. Check that device is connected to proper
power.
2. Check that fuse is in good working order.
Replace with fuse if necessary.
3. Check that ballast is receiving correct
power. Replace ballast if necessary.
4. Check continuity of lamp filaments.
(Replace lamp if necessary.)
5. Check that wires are properly connected to
lamp and ballast.
6. Check that lamp is properly connected to
lamp receptacle.

BIO-FIGHTER®NOMAD, NOMAD 2 INSTALLATION & OPERATION MANUAL
8
LIMITED LIFETIME WARRANTY
Dust Free, LP warrants this Bio-Fighter UV Light to be free from defects in materials and workmanship
under normal use and service, for as long as it is owned by the original purchaser. This warranty does not
cover UV-C lamp(s), which carry a one (1) year warranty from the date of installation, or the ballast(s)
which carry(s) a five (5) year warranty.
This warranty does not cover cosmetic damage, damage due to acts of God, damage as a result of han-
dling or shipment, negligence, misuse, connection to improper voltage, improper maintenance, or abuse.
This warranty is void if defect(s) result from failure to have this unit installed by a qualified, properly
licensed, heating and air conditioning contractor in compliance with all local building and construction
codes.
Dust Free, LP's exclusive obligation under this warranty shall be to supply, without charge, a replacement
for any covered component of the Bio-Fighter UV Light which is found to be defective within the parame-
ters defined herein. Dust Free, LP reserves the right to replace or repair the defective part or component.
DUST FREE, LP SHALL NOT BE LIABLE FOR ANY LOSS OR DAMAGE OF ANY KIND, INCLUDING ANY
INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING, DIRECTLY OR INDIRECTLY, FROM ANY
BREACH OF WARRANTY, EXPRESS OR IMPLIED, OR ANY OTHER FAILURE OF THIS PRODUCT. (Some
states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation
may not apply to you.) THE WARRANTIES SET FORTH HEREIN ARE EXCLUSIVE AND DUST FREE, LP
EXPRESSLY DISCLAIMS ALL OTHER WARRANTIES, WHETHER WRITTEN OR ORAL, IMPLIED OR
STATUTORY, INCLUDING BUT NOT LIMITED TO ANY WARRANTIES OF MERCHANTABILITY, WORKMAN-
SHIP, OR FITNESS FOR A PARTICULAR USE. If the limited warranty is void due to failure to use a quali-
fied contractor all disclaimers of implied warranties shall be effective upon installation.
How to make a warranty claim or have questions answered:
Should you have a warranty claim or questions about the warranty policy, contact the distributor or dealer
from which you purchased the product. Proof of original purchase and proof of identity that the original
purchasing party is filing the claim is required in order to initiate a warranty claim. Defective parts must be
returned no later than thirty (30) days after the failure to the installing contractor together with the model
number, serial number, and date of installation. All service and removal must be performed by a licensed
HVAC contractor. You must pay shipping charges and all other costs of warranty service. Warranty is only
valid the United States and Canada.
THIS WARRANTY SHALL NOT OBLIGATE THE MANUFACTURER FOR ANY LABOR COSTS AND SHALL
NOT APPLY TO DEFECTS IN WORKMANSHIP OR MATERIALS FURNISHED BY THE INSTALLING CON-
TRACTOR AS CONTRASTED TO DEFECTS IN THE GERMICIDAL LIGHT ITSELF.
NOTE: Do not return any products or parts to the factory without a factory issued Return Authorization
number issued by the Dust Free, LP customer service department.
In the event you have any questions concerning the use and care of this product or this warranty which
have not been answered to your satisfaction by the distributor or dealer, please call or write the factory.
Dust Free®
PO Box 519
1112 Industrial Drive
Royse City, TX 75189
1-972-635-9565
