DUYAR FGE-01 User manual

INSTALLATION, MAINTENANCE and OPERATION GUIDE
FREQUENCY CONTROL PANELS

www.duyarpompa.com
Control panels, to get the best results this manual
information must read carefully. This manual,
all your problems can help solve.

MONTAJ, İŞLETME, BAKIM ve KULLANIM KILAVUZU TABLE OF CONTENTS
PURPOSE OF USER MANUAL.............................................................................2
SAFETYSIGNS.....................................................................................................................2
GENERAL INSTRUCTIONS......................................................................................2
SAFETY INSTRUCTIONS...........................................................................................2
1- TRANSPORT / STORAGE / MONTAGE.................................................3
1.1-Transfer............................................................................................................................3
1.1- Transport.......................................................................................................................3
1.3-Storage.............................................................................................................................3
1.4-Montage..........................................................................................................................3
2-OPERATING......................................................................................................................3
3- MAINTENANCE............................................................................................................3
3.1- Monthly Maintenance.....................................................................................3
4- FGE SERIES PANEL GENERAL INFORMATION.........................4
4.1- General Specifications of the Product.........................................4
4.2- Technical Specifications of the Product....................................4
5- FGE SERIES PANEL TECHNICAL TABLES AND VISUALS..........5
6- FLK SERIES PANEL GENERAL INFORMATION......................11
6.1- General Specifications of the Product.....................................11
6.2- Technical Specifications of the Product................................11
7- FLK SERIES PANEL TECHNICAL TABLES AND VISUALS.......12
8- FREQUENCY CONTROLLED PANEL WORKING PRINCIPLE....17
9-PANEL POWER & CURRENT TABLE...................................................18
10- CABLE SECTION SELECTION CHART..........................................19
11-WARRANTY...............................................................................................................20

2
FREQUENCY CONTROL
PANELS
INSTALLATION, MAINTENANCE and OPERATION GUIDE
PURPOSE OF USER MANUAL
●To convey the instructions regarding the pump's
installation, maintenance, and repair.
●To explain the pump's starting, operating, and
stopping methods.
SAFETY SIGNS
GENERAL INSTRUCTIONS
●Control panels read the instructions before using.
●Especially obey the safety instructions.
●Control panels all transactions must be done by
qualified personnel in accordance with the user
guide instructions.
●All repair and processing warranty made by
unauthorized persons terminates.
Within Easy Reach Of The Clipboard User Guide
Near And Place Should Be
PLEASE REMEMBER TO STORAGE
SAFETY INSTRUCTIONS
●Read instructions carefully before starting the
clipboard.
●Follow the instructions in the user guide.
●The front panel be careful. The front panel fragile gets
hit.
●Do not install where water can take directly to the
clipboard. Any water in the cabinet and Do not spill
liquid. Disconnect power the main fuse in the case
of water in panel contact the please institutions and
authorized person.
●Do not operate if any foreign substance enters into
the panel. This may cause electric shock or damage
to the panel. Entrust panel control by authorized
personnel.
●Fire risk avoid naked flame keep away from
flammable liquids and materials.
●Electrical connection as shown in the user's guide
input must be connected to the fuse. Otherwise
you may cause serious injury or death as a result of
electric shock.
●The power cord is damaged, replace the original
with the appropriate new cable through authorized
service.
●Do not use electrical connection cable damaged
and torn. Do not place heavy objects on the power
cord, and do not make an operation on the cable or
injure. Cables may be damaged and may cause a fire
or electric shock. In such cases, please contact the
authorized person or institutions.
●See the troubleshooting section in Troubleshooting
and fault finding practice immediately and call
service if necessary. Never attempt to repair this
dashboard.
●Do not dispose of together with general household
waste your clipboard. Please observe local laws and
regulations for disposal.
Failure to follow the safety instructions,
will void the product warranty.
Situations That May Be Harmful For Human And
Environmental Health Warnings
Installation, commissioning and service procedures
performed by qualified personnel as long as the board
is does not constitute a security risk to any.
●Burns, electric shock, and death may result.
●Disconnect the electrical connections to the
panel before working on them.
●Please do the clipboard the grounding
connection.
●Relaxation of the electrical connections and
electrical leakage may cause injury.
●Panel manual starting and stopping methods have
been described. During the re-commissioning of the
panel, the departments should operate on.
●"Leakage Relay" Should be, possible water leaks and
splashes clipboard against must installed.
●All electrical wiring must be connected to the clipboard
using the protective cover.
Unacceptable Actions
●On the control panel of design changes must be with
made not only the permission of the manufacturer.
●Control panels are used on the other parts, the
manufacturer is not responsible for the consequences
of changes.
Safety measures that can cause
life-threatening if not implemented
Warnings on electric current
Safety instructions, which, if not followed,
may damage the machine and its operation.

FREQUENCY CONTROL
PANELS
INSTALLATION, MAINTENANCE and OPERATION GUIDE
3
On The Control Panel The Speclal Securlty Equlpment
And Recommendations
May result in electrical shock or death.
In the wrong intervention to the control panel
may cause damage to the panel.
●Control panel electronic card in order to protect from
extemal factors is made of plexiglass with a specially
designed insulation protection is available.
●This protection panels and electronic card intervene
must not removed by unauthorized persons.
Efficient Use of Energy Saving Information
●Pumps and motors energy-consuming products.
Personal causes and is extremely important for the
national economy.
●Control panel suitable motor and pumps be used.
●All electrical connections to the instructions by
providing appropriate and accurate; Be provided to
prevent any loss and leakage of electricity.
Usage Life
The product is determined by the Ministry of Industry
and declared usage life (time required to carry out the
functions of the appliance spare parts) 10 years.
1. TRANSPORT / STORAGE / MONTAGE
1.1 Transfer
●Handle carefully control panels.
●Appropriate size of the control panels are shipped in
cardboard boxes.
●Do not remove the cardboard box inside the control
panels during transport.
1.2 Transport
●Measure damage to the panel, and bad weather
conditions during transport should be taken to avoid
exposure.
●Received by the panel in order to comply with the
model and should be checked for any damage during
transport.
●If the clipboard contains a damaged or missing
damage assessment report should be given written
information to the shipping company our company.
1.3 Storage
●Control panels of instead of immediately montage if not ;
●Do not store in damp environments.
●Do not put weight on the control panels.
●Protect from direct sunlight at the control panels.
●Keep out of the control panels watertight.
1.4 Montage
●When performing mounting, follow the
Instructions otherwise It may be damaged
panels.
●Montage are not observed instructions
during the that as a result of electric shock,
serious injury or death may result.
●While mounting nuts at the rear of the control panel
should be mounted with suitable screws.
●Do not mount the back of the board is drilled
with another screw. This may cause damage to the
electronic card.
●Control panel electrical connection must be carried
out only by qualified personnel necessary safety
precautions.
2. OPERATING
●Control panel electrical connections should be
checked.
●The control panel should be checked that the cover is
closed.
●There is power cut, the phases should be checked to
be complete.
●Control panel settings to be used should be based
on pump or motor. Introduction to the settings
menu, you will find that you are using the appropriate
settings to the clipboard
3. MAINTENANCE
3.1 Monthly Maintenance
●Disconnect electrical power before
maintenance operations.
●Control panel electrical connections should be
checked relaxation. The grounding line of the control
panel should be checked.
●Electric cables, abrasion, puncture should be
examined for color change and warming.

4
FREQUENCY CONTROL
PANELS
INSTALLATION, MAINTENANCE and OPERATION GUIDE

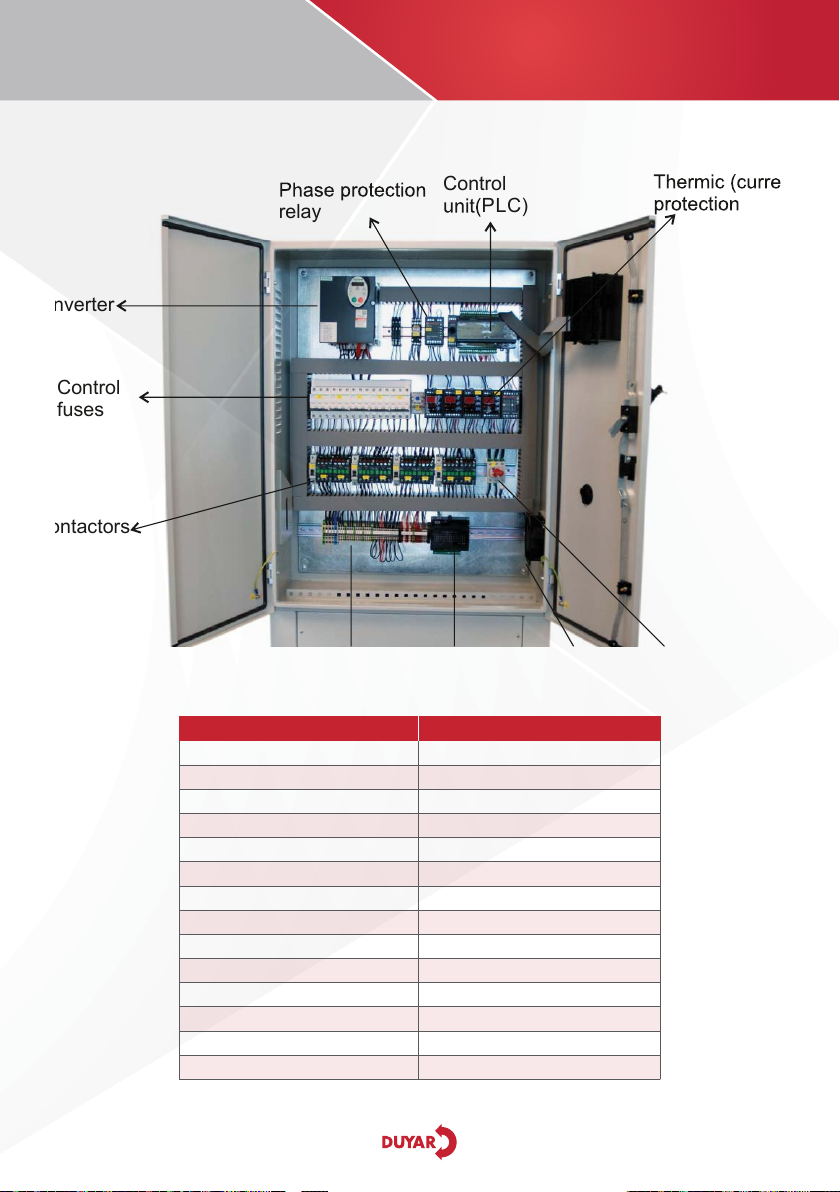

4. FGE SERIES PANEL GENERAL INFORMATION
4.1 General Specifications of the Product
FGE series control panel activates the pumps with the
frequency converter.specially for the purpose of taking
and removing and protecting was designed.
The control panel has automatic - manual operation
selection. Man-auto switch in the panel for manual
operation The switch must be set to the man position.
Manual pumps pressurelt is activated and deactivated
with the information received from the switches.
Received via system pressure transmitter for automatic
operationIt activates and deactivates the pumps
according to the analog information. A specially
designed PLC is used to perform these operations.
System pressure and active on the PLC unit screen
on the front panel pumps can be monitored. All fault
information is shown on the PLC screen. Set pressure
value and pump numbers can be adjusted via PLC.Up
to 4 pumps can be controlled.
In order for a three-phase asynchronous motor to
rotate at various speeds or at the same speed in
different conditions, a frequency inverter is needed to
be used. There are some advantages of using frequency
inverters to control the speed of asynchronous motors.
Big, strong motors consume high energy. Therefore, to
prevent this high energy consumption and to make
the motors rotate at desired speed in every condition,
panels with frequency inverters that generate various
frequencies and make the motor work at a stable
speed are produced. These panels work by adjusting
the speed at optimum conditions as the load requires.
Even the tiniest change in the speed can decrease
energy consumption at significant levels. The pump
runs at maximum speed at every condition when a
motor driver is not used. How ever, when a panel with
frequency control is used, energy can be saved by
decreasing the speed of the pump motor in the case
of water and need is decreased.
4.2 Technical Specifications of the Product
●Microprocessor based design.
●48Mhz operating frequency.
●64 Kb Program memory.
●3936 byte SRAM.
●1024 byte EEPROM.
●1.000.000 read / write data capacity.
●100 years data storage life.
●Design with nanowatt technology.
●PWM module controlled PID.
●PID speed adjust slow-normal-fast mode.
●Hydrophore - Circulation - Heating - Cooling operating
mode selection.
●To avoid indecisiveness in the transition to sleep
automatic sleep transition by raising the frequency.
●Phase sequence error protection.
●Ability to set high pressure protection value.
●Ability to see the pump current values.
●Ability to set high current protection value.
●Possibility to set error delay time.
●Auto Manual selection switch.
●Protection with floater water
●Ability to see all error states on the screen.
●Reporting fault conditions by relay contact.
●5 isolated digital inputs.
●3 Analog inputs.
●2X16 character LCD display.
●Turkish-English language support.
●Ability to monitor pump operating hours on the screen.

FREQUENCY CONTROL
PANELS
INSTALLATION, MAINTENANCE and OPERATION GUIDE
5
5. FGE SERIES PANEL TECHNICAL TABLES AND VISUALS
W
V
U
TANK
FLOATER
34 5 21
CONTROL PANEL
UV W
X Y Z
PRESSURE
SWITCH
L1
L2
L3
Network
380V AC
50-60Hz.
N
89
DC+
7
6
MANUEL REMOTE START
AUTO
REMOTE
START
B1
PRESSURE
SENSOR
PLC Control
Breaker
Thermostat Fuses Phase Protect
Relay
Contactors
T
Man - Oto
Fan
Figure 1: Panel Inside View
Figure 2: FGE-01 Panel Connection Diagram

6
FREQUENCY CONTROL
PANELS
INSTALLATION, MAINTENANCE and OPERATION GUIDE
10 11
W
V
U
321
FGE-02 CONTROL PANEL
UV W
X Y Z
W
V
U
L1
L2
L3
380V AC
50-60Hz.
N
UV W
X Y Z
4 5 89
DC+
7
6
B1
TANK
PRESSURE
Network
MANUEL
REMOTE
START
AUTO
REMOTE
START
PRESSURE
SENSOR
FLOATER
Table 1
Operating Voltage (Un)
Operating Frequency
Working Power
Operating Temperature
Voltage Measurement Range
Measurement Accuracy
Delay Time Setting
Indicator
Connection Style
Ignition
Connection Insulation
Assembly
Protection Class
Working Altitude
PART NAME
230 V - 380 VAC
50 / 60Hz
<6VA
-20°C to 55°C
10 - 500 V AC
%±1
1-30 sec.
2 X 16 LCD Screen and Leds
Terminal Connection
5 A / 250 VAC Resistive Load
2.5 kV
On the Pump or On The Wall
Ip55
<2000 meter
TECHNICAL DETAILS
Figure 3: FGE-01 Panel Connection Diagram

FREQUENCY CONTROL
PANELS
INSTALLATION, MAINTENANCE and OPERATION GUIDE
7
Table 2
A
B
C
F1
T1
SRC P1
1F1
R1
1K1 1K2
Q
Frequency Control Panel
IP-55
DİKKAT ! TO PRAKLAM A BAĞLAN TISI M UTLAKA YAP ILMALI DIR.
ATTENTIO N ! MUS T BE CO NNE CTED TO T H E GRO UNDS.
FGE Ser es
Control Un t
G
E
R
N
E
C
M
Y
E
Figure-4: FGE-01 Panel Outer View Figure-5: FGE-01 Panel Inside View
POWER
FGE-01 PANEL DIMENSIONS
A B C
0,75kW
1,5kW
2,2kW
3kW
4kW
5,5kW
7,5kW
11kW
500 mm
500 mm
500 mm
500 mm
500 mm
500 mm
500 mm
500 mm
700 mm
700 mm
700 mm
700 mm
700 mm
700 mm
700 mm
700 mm
220 mm
220 mm
220 mm
220 mm
220 mm
220 mm
220 mm
220 mm

8
FREQUENCY CONTROL
PANELS
INSTALLATION, MAINTENANCE and OPERATION GUIDE
Table 3
A
B
C
Frequency Control Panel
IP-55
DİKKAT ! TO PRAKLAM A BAĞLAN TISI M UTLAKA YAP ILMALI DIR.
ATTENTIO N ! MUS T BE CO NNE CTED TO T H E GRO UNDS.
FGE Ser es
Control Un t
G
E
R
N
E
C
M
Y
E
F1
T1
SRC P1 P2
1F1 2F1 R1
1K1 1K2 2K1 2K2
Q
Figure-6: FGE-02 Panel Outer View Figure-7: FGE-02 Panel Inside View
POWER
FGE-02 PANEL DIMENSIONS
A B C
0,75kW
1,5kW
2,2kW
3kW
4kW
5,5kW
7,5kW
11kW
500 mm
500 mm
500 mm
500 mm
500 mm
500 mm
500 mm
500 mm
700 mm
700 mm
700 mm
700 mm
700 mm
700 mm
700 mm
700 mm
220 mm
220 mm
220 mm
220 mm
220 mm
220 mm
220 mm
220 mm

FREQUENCY CONTROL
PANELS
INSTALLATION, MAINTENANCE and OPERATION GUIDE
9
Table 4
A
B
C
Frequency Control Panel
IP-55
DİKKAT ! TO PRAKLAM A BAĞLAN TISI M UTLAKA YAP ILMALI DIR.
ATTENTIO N ! MUS T BE CO NNE CTED TO T H E GRO UNDS.
FGE Ser es
Control Un t
G
E
R
N
E
C
M
Y
E
F1
T1
SRC P1 P2 P3
1F1 2F1 3F1 R1
1K1 1K2 2K1 2K2 3K1 3K2
Q

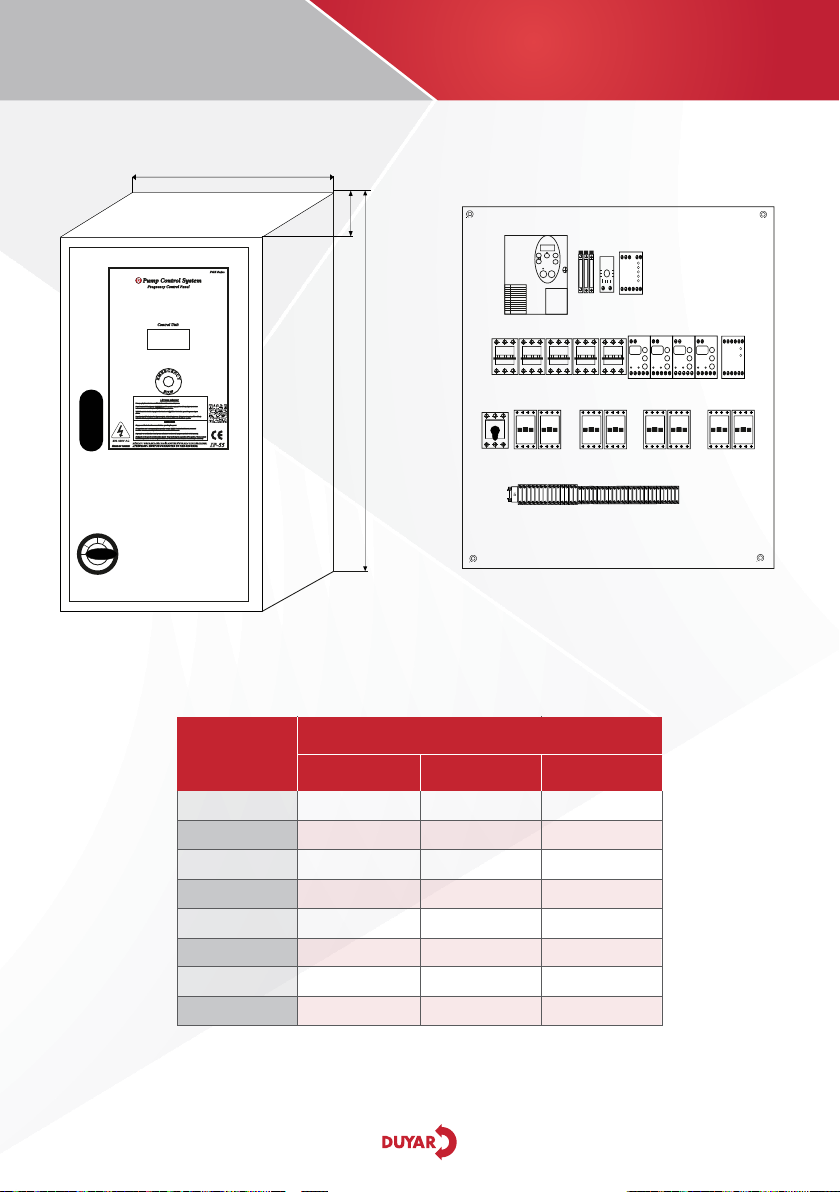

Figure-8: FGE-03 Panel Outer View Figure-9: FGE-03 Panel Inside View
POWER
FGE-03 PANEL DIMENSIONS
A B C
0,75kW
1,5kW
2,2kW
3kW
4kW
5,5kW
7,5kW
11kW
550 mm
550 mm
550 mm
550 mm
550 mm
550 mm
700 mm
700 mm
750 mm
750 mm
750 mm
750 mm
750 mm
750 mm
1000 mm
1000 mm
280 mm
280 mm
280 mm
280 mm
280 mm
280 mm
320 mm
320 mm

10
FREQUENCY CONTROL
PANELS
INSTALLATION, MAINTENANCE and OPERATION GUIDE
Table 5
A
B
C
Frequency Control Panel
IP-55
DİKKAT ! TO PRAKLAM A BAĞLAN TISI M UTLAKA YAP ILMALI DIR.
ATTENTIO N ! MUS T BE CO NNE CTED TO T H E GRO UNDS.
FGE Ser es
Control Un t
G
E
R
N
E
C
M
Y
E
F1
T1
SRC P1 P2 P3
1F1 2F1 3F1 R1
4F1
P4
1K1 1K2 2K1 2K2 3K1 3K2
Q4K1 4K2
Figure-10: FGE-04 Panel Outer View Figure-11: FGE-04 Panel Inside View
POWER
FGE-04 PANEL DIMENSIONS
A B C
0,75kW
1,5kW
2,2kW
3kW
4kW
5,5kW
7,5kW
11kW
700 mm
700 mm
700 mm
700 mm
700 mm
700 mm
700 mm
700 mm
1000 mm
1000 mm
1000 mm
1000 mm
1000 mm
1000 mm
1000 mm
1000 mm
320 mm
320 mm
320 mm
320 mm
320 mm
320 mm
320 mm
320 mm

FREQUENCY CONTROL
PANELS
INSTALLATION, MAINTENANCE and OPERATION GUIDE
11
6. FLK SERIES PANEL GENERAL INFORMATION
4.1 General Specifications of the Product
Activate the pumps with the frequency converter of
the FLK series control panel.specially for the purpose
of taking and removing and protectingwas designed.
The control panel has automatic - manual operation
selection. Man-auto switch in the panel for manual
operation The switch must be set to the man position.
Manual pumps pressurelt is activated and deactivated
with the information received from the switches.
Received via system pressure transmitter for automatic
operation't activates and deactivates the pumps
according to the analog information.
A specially designed PLC is used to perform these
operations. System pressure and active on the PLC unit
screen on the front panel pumps can be monitored.
All fault information is shown on the PLC screen. Set
pressure value and pump numbers can be adjusted via
PLC. Up to 4 pumps with standard I/O cards for up to 8
pumps control can be made.
4.2 Technical Specifications of the Product
●RS485 MODBUS RTU communication.
●13 piece isolated inputs.
●4 piece Analog input.
●3 piece Analog output.
●25 piece relay output.
●Real time dating
●Soft work. Engagement with each pump driver.
●Remote set switching feature.
●Remote on-off digital input.
●Auto Test Settings.
●Reel Time Clock.
●Ability to set 2 different working times during the day.
●Pump acive - passive selection.
●Pump backup. Number of pumps + Incorporation of
spare pump with maximum pump selection.
●Automatic deactivition of the system from the network
in the event of a drive failure. Continue by set pressure.
●Encrypted Access to Menus.
●PID control.
●Hydrofor + Circulation + Heating + Cooling operation
mode selection.
●Over Pressure Low Pressure Protection.
●BMS dry contact working status information.
●3,1 inç (128x64 pixel) Graphic Screen.
●Real time and dated fault information.
●Operation and Fault Conditions on the Screen
●Monitoring the operation, standby, breakdown and
cancellation of the pumps in the simulation position
on the screen.
●Monitoring of set pressure and working pressure on
the screen
●Pump running time monitoring.
●Pump transition time settings can be set.
●Sleep active passive option and sleep time
adjustment.
●Turkish-English leanguage Select.
●Providing sleep transition by increasing frequency to
prevent constant pressure instability in sleep.
●Control panel temperature with thermostatic fan.
●Operation and Fault Conditions with LED.
●Phase sequence protection.
●Being able to see the pump current values.
●Possibility to set error delay time.
●Auto Manual selection switch.

12
FREQUENCY CONTROL
PANELS
INSTALLATION, MAINTENANCE and OPERATION GUIDE
7. FLK SERIES PANEL TECHNICAL TABLES AND VISUALS
Inverter
Control
PLC)
relay
Control
fuses
Fan
BMS control
Contactors
Figure 12: Panel Inside View
Table 6
Operating Voltage (Un)
Operating Frequency
Working Power
Operating Temperature
Voltage Measurement Range
Measurement Accuracy
Delay Time Setting
Indicator
Connection Style
Ignition
Connection Insulation
Assembly
Protection Class
Working Altitude
PART NAME
230 V - 380 VAC
50 / 60Hz
<10 VA
-20°C to 55°C
10 - 500 V AC
%±1
1-30 sec.
2 X 16 LCD and Leds
Terminal Connection
5 A / 250 VAC Resistive Load
2.5 kV
On the Pump or On The Wall
Ip55
<2000 meter
TECHNICAL DETAILS

FREQUENCY CONTROL
PANELS
INSTALLATION, MAINTENANCE and OPERATION GUIDE
13
AUTO
MANUEL
15
15
AUTO
MANUEL
A
B
C
SRC P1
1F1
Frequency Control Panel
IP-55
DİKKAT ! TO PRAKLA MA BAĞLAN TISI M UTLAKA YAP ILMALI DIR.
ATTENTIO N ! MU ST BE C ON NECT ED TO T HE G ROU NDS.
FLK Ser es
G
E
R
N
E
C
M
Y
E
Table 7
Table 8
Figure-13: FLK-01 Panel Outer View Figure-14: FLK-01 Panel Inside View
POWER
FLK-01 PANEL DIMENSIONS
A B C
0,75kW
1,5kW
2,2kW
3kW
4kW
5,5kW
7,5kW
11kW
550 mm
550 mm
550 mm
550 mm
550 mm
550 mm
550 mm
550 mm
750 mm
750 mm
750 mm
750 mm
750 mm
750 mm
750 mm
750 mm
280 mm
280 mm
280 mm
280 mm
280 mm
280 mm
280 mm
280 mm
POWER
FLK-01 PANEL DIMENSIONS
A B C
15kW
18kW
22kW
30kW
37kW
45kW
55kW
75kW
90kW
110kW
132kW
700 mm
700 mm
700 mm
700 mm
1000 mm
1000 mm
1000 mm
1000 mm
1000 mm
1000 mm
1000 mm
1000 mm
1000 mm
1000 mm
1000 mm
1300 mm
1300 mm
1300 mm
1300 mm
1300 mm
1300 mm
1300 mm
320 mm
320 mm
320 mm
320 mm
380 mm
380 mm
380 mm
380 mm
380 mm
380 mm
380 mm

14
FREQUENCY CONTROL
PANELS
INSTALLATION, MAINTENANCE and OPERATION GUIDE
A
B
C
Frequency Control Panel
IP-55
DİKKAT ! TO PRAKLA MA BAĞLAN TISI M UTLAKA YAP ILMALI DIR.
ATTENTIO N ! MUST BE C ONNECT ED TO THE G ROUNDS.
FLK Ser es
G
E
R
N
E
C
M
Y
E
AUTO
AUTO
MANUEL
MANUEL
15
15
AUTO
AUTO
MANUEL
MANUEL
SRC T1
P2
FKR
P1
1F1 2F1
1K1 1K2
Q
2K1 2K2
R1
Table 9 Table 10
Figure-15: FLK-02 Panel Outer View Figure-16: FLK-02 Panel Inside View
POWER
FLK-02 PANEL DIMENSIONS
A B C
0,75kW
1,5kW
2,2kW
3kW
4kW
5,5kW
7,5kW
11kW
550 mm
550 mm
550 mm
550 mm
550 mm
550 mm
550 mm
550 mm
750 mm
750 mm
750 mm
750 mm
750 mm
750 mm
750 mm
750 mm
280 mm
280 mm
280 mm
280 mm
280 mm
280 mm
280 mm
280 mm
POWER
FLK-02 PANEL DIMENSIONS
A B C
15kW
18kW
22kW
30kW
37kW
45kW
55kW
75kW
700 mm
700 mm
700 mm
700 mm
1000 mm
1000 mm
1000 mm
1000 mm
1000 mm
1000 mm
1000 mm
1000 mm
1300 mm
1300 mm
1300 mm
1300 mm
320 mm
320 mm
320 mm
320 mm
380 mm
380 mm
380 mm
380 mm

FREQUENCY CONTROL
PANELS
INSTALLATION, MAINTENANCE and OPERATION GUIDE
15
A
B
C
Frequency Control Panel
IP-55
DİKKAT ! TO PRAKLA MA BAĞLAN TISI M UTLAKA YAP ILMALI DIR.
ATTENTIO N ! MUST BE C ONNECT ED TO THE G ROUNDS.
FLK Ser es
G
E
R
N
E
C
M
Y
E
15
15
AUTO
AUTO
MANUEL
MANUEL
AUTO
MANUEL
SRC P1 P2 P3
T1
1F1 2F1 3F1 F1
1K1 1K2 2K1 2K2 3K1 3K2
R1
Q
Table 11
Table 12
Figure-17: FLK-03 Panel Outer View Figure-18: FLK-03 Panel Inside View
POWER
FLK-03 PANEL DIMENSIONS
A B C
0,75kW
1,5kW
2,2kW
3kW
4kW
5,5kW
7,5kW
11kW
550 mm
550 mm
550 mm
550 mm
550 mm
700 mm
700 mm
700 mm
750 mm
750 mm
750 mm
750 mm
750 mm
1000 mm
1000 mm
1000 mm
280 mm
280 mm
280 mm
280 mm
280 mm
320 mm
320 mm
320 mm
POWER
FLK-03 PANEL DIMENSIONS
A B C
15kW
18kW
22kW
30kW
37kW
1000 mm
1000 mm
1000 mm
1000 mm
1000 mm
1300 mm
1300 mm
1300 mm
1300 mm
1300 mm
380 mm
380 mm
380 mm
380 mm
380 mm

16
FREQUENCY CONTROL
PANELS
INSTALLATION, MAINTENANCE and OPERATION GUIDE
A
B
C
Frequency Control Panel
IP-55
DİKKAT ! TO PRAKLA MA BAĞLA NTISI M UTLAK A YAPILMALI DIR.
ATTENTIO N ! M UST B E CO NNE CTED TO T HE G ROUN DS.
FLK Ser es
G
E
R
N
E
C
M
Y
E
F1
T1
SRC P1 P2 P3
1F1 2F1 3F1 R1
4F1
P4
AUTO
AUTO
MANUEL
MANUEL
AUTO
MANUEL
1K1 1K2 2K1 2K2 3K1 3K2 Q
AUTO
MANUEL
4K1 4K2
15
15
Table 13
Table 14
Figure-19: FLK-04 Panel Outer View
Figure-20: FLK-04 Panel Inside View
POWER
FLK-04 PANEL DIMENSIONS
A B C
0,75kW
1,5kW
2,2kW
3kW
4kW
5,5kW
7,5kW
11kW
700 mm
700 mm
700 mm
700 mm
700 mm
700 mm
700 mm
700 mm
1000 mm
1000 mm
1000 mm
1000 mm
1000 mm
1000 mm
1000 mm
1000 mm
320 mm
320 mm
320 mm
320 mm
320 mm
320 mm
320 mm
320 mm
POWER
FLK-04 PANEL DIMENSIONS
A B C
15kW
18kW
22kW
30kW
1000 mm
1000 mm
1000 mm
1000 mm
1300 mm
1300 mm
1300 mm
1300 mm
380 mm
380 mm
380 mm
380 mm

FREQUENCY CONTROL
PANELS
INSTALLATION, MAINTENANCE and OPERATION GUIDE
17
It is the process for the rotor speed of the motor to
reach its rated speed from zero. The stator of the motor
at stand stillWhen voltage is applied to its windings,
the induced back emf is zero. Because the rotor is
stationary. The current drawn at the first moment
is shortis the circuit current and this current is very
high. The force created by this current in the rotor
windings and the starting momentproduced and the
rotor starts to rotate with the effect of this moment.
The short-circuit current drawn over time causes the
motor to rotate.gets smaller as it starts. The opposite
of the machine or system connected to the shaft of
the engine and driven by the engine. When the torque
is equal to the torque produced by the motor, the
motor and the motor drive this system at constant
speed.continues to rotate. This operation is called
starting operation. Starting methods create a starting
torque, which is applied to the motor in order to bring
the motor to its speed at rated load. used to provide
sufficient current. Advantages and disadvantages of
each methodare available. Among them, frequency
converters provide the greatest energy savings.
The speed of a motor is directly proportional to the
frequency of the AC mains. Possible to adjust the
frequency of the network If it were possible, it would be
possible to control the speed of the engine. Frequency
converter to control the speed of the motorIt is a
method used for giving way. Frequency converters
include the input of fixed frequency AC power, variable
frequencylt is electronic devices that converts the
alternating current to an output by controlling the
frequency of the electrical power supplied to the
motor. They are used to control the rotating speed,
thus the speed of the engine.
In order for a three-phase asynchronous motor to
rotate at various speeds or at the same speed in
different conditions, a frequency inverter is needed to
be used. There are some advantages of using frequency
inverters to control the speed of asynchronous motors.
Big, strong motors consume high energy. Therefore, to
prevent this high energy consumption and to make
the motors rotate at desired speed in every condition,
panels with frequency inverters that generate various
frequencies and make the motor work at a stable
speed are produced. These panels work by adjusting
the speed at optimum conditions as the load requires.
Even the tiniest change in the speed can decrease
energy consumption at significant levels. The pump
runs at maximum speed at every condition when a
motor driver is not used. How ever, when a panel with
frequency control is used, energy can be saved by
decreasing the speed of the pump motor in the case
of water and need is decreased.
8. FREQUENCY CONTROLLED PANEL WORKING PRINCIPLE

18
FREQUENCY CONTROL
PANELS
INSTALLATION, MAINTENANCE and OPERATION GUIDE
9. PANEL POWER & CURRENT TABLE
Table 15
2,3 A
4,1 A
5,5 A
7,1 A
8,9 A
12,1 A
16,0 A
22,8 A
30 A
36 A
43 A
66 A
74,5 A
88 A
106 A
145 A
173 A
211 A
250 A
302 A
357 A
444 A
555 A
Direct / Inverter
Direct / Inverter
Direct / Inverter
Direct / Inverter
Direct / Inverter
Direct / Inverter
Direct / Inverter
Direct / Inverter
S-D / Inverter
S-D / Inverter
S-D / Inverter
S-D / Inverter
S-D / Inverter
S-D / Inverter
S-D / Inverter
S-D / Inverter
S-D / Inverter
S-D / Inverter
S-D / Inverter
S-D / Inverter
S-D / Inverter
S-D / Inverter
S-D / Inverter
380 / 220V AC
380 / 220V AC
380 / 220V AC
380 / 220V AC
380 / 220V AC
380 / 220V AC
380 / 220V AC
380 / 220V AC
380 / 220V AC
380 / 220V AC
380 / 220V AC
380 / 220V AC
380 / 220V AC
380 / 220V AC
380 / 220V AC
380 / 220V AC
380 / 220V AC
380 / 220V AC
380 / 220V AC
380 / 220V AC
380 / 220V AC
380 / 220V AC
380 / 220V AC
0,75
1,5
2,2
3
4
5,5
7,5
11
15
18,5
22
30
37
45
55
75
90
110
132
160
200
250
315
1
2
3
4
5,5
7,5
10
15
20
25
30
40
50
60
75
100
125
150
180
220
250
340
430
POWER
HP KW
OPERATING
VOLTAGE
STARTING
TYPE
RATED
CURRENT
