DVB CCT3-01 User manual

6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
PRODUCT
INSTALLATION MANUAL

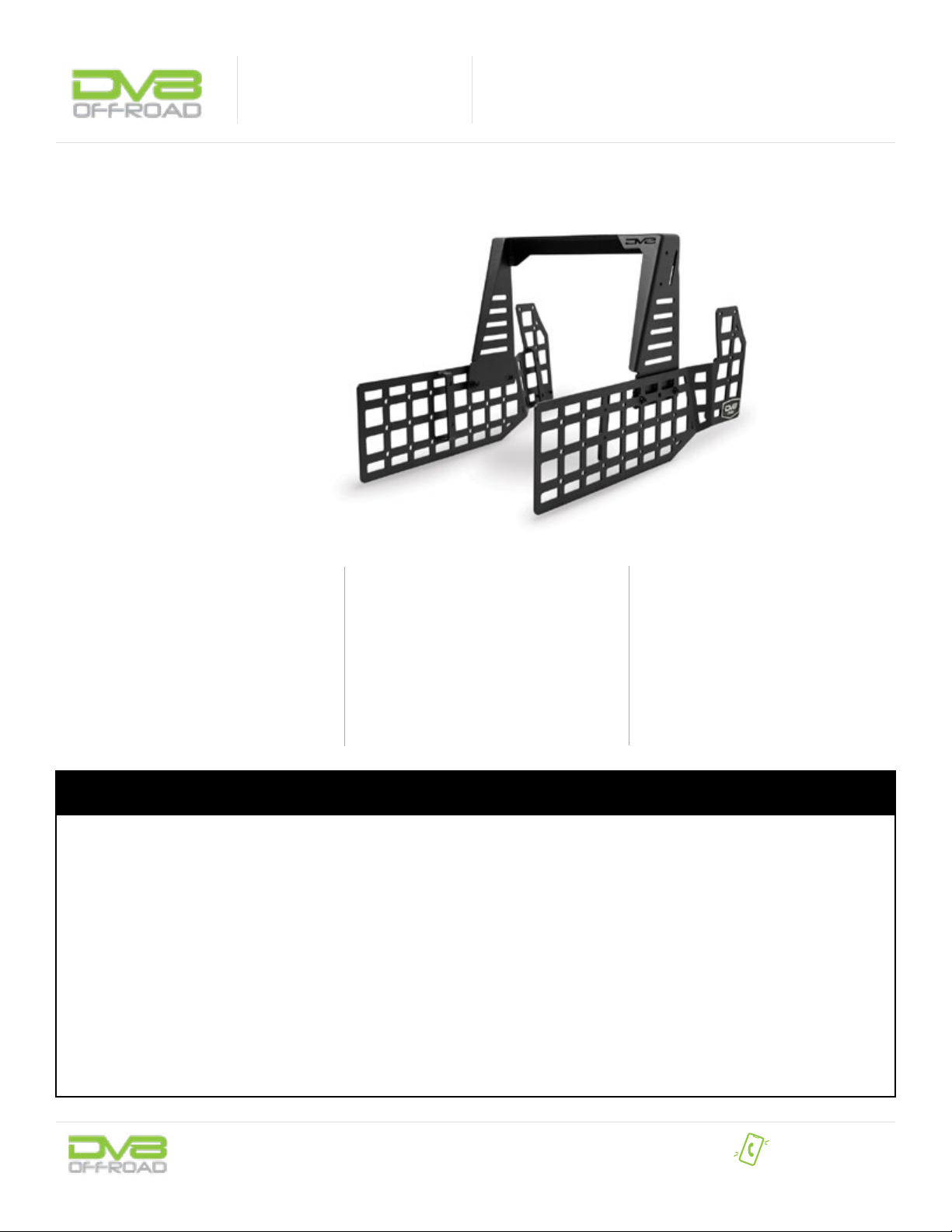

4RUNNER CENTER CONSOLE
AND BRIDGE
2010+ (5TH GEN) TOYOTA 4RUNNER
CCT3-01
TOOLS REQUIRED SKILL LEVEL TIME REQUIRED
-10mm Socket/Wrench
-#4 Allen Bit
-11/32” Drill Bit/Step Bit
-Drill
-Short Phillips Head Screw Driver
-Plastic Trim Tool
Before you install this kit — Read and understand all
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner’s manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
- Novice/Intermediate
- 1 (you) to 2 persons
Little skill level required, you can
easily install it by yourself however,
additional help will be useful
- 2 Hours
Time to install this should only
take about an two hours
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
855-680-9595
NEED HELP?

INSTALLATION MANUAL
NEED HELP? 855-680-9595
STEP 1 | Place the driver and
passenger side mounts into place and
line them up with the top of the center
console trim.
Mark the mounting holes with a sharpie,
once aligned.
Begin by unpacking all items and
inspecting for missing pieces or damage. If
you have any concerns, please contact the
company the product was purchased from.
(12) M6x15mm Bolts
(20) M6 Flat Washers
(8) M6 Serrated Nuts
HARDWARE INCLUDED

INSTALLATION MANUAL
NEED HELP? 855-680-9595
STEP 2 | Release the center console
trim to access the wiring harnesses
underneath.
Pull up on the center console on both
sides to release the clips holding it in
place. Use a trim piece removal tool if
necessary.
Note: If you have a knob for the 4wd shifter,
unscrew the handle by turning it counter
clockwise to remove.
STEP 3 | Disconnect the two wiring
harnesses under the center console by
pressing on the release clips.
If you have a knob for the 4wd shifter
instead of a dial there should only be one
disconnection to make.

INSTALLATION MANUAL
NEED HELP? 855-680-9595
STEP 4 | Remove trim surrounding
the heater and volume controls by pulling
towards the rear of the vehicle to release
the clips. Use a trim clip removal tool if
necessary.
The vehicle we used has two different trim
pieces, but some models have one large
trim piece.

INSTALLATION MANUAL
NEED HELP? 855-680-9595
STEP 5 | Use a 10mm wrench to
remove the two bolts located on each side
of the transmission shift knob.
STEP 6 | Use a phillips head
screwdriver to remove the four screws
located in front of the transmission shift
knob, on both sides of the center console.
Lift the sides of the center console over
the guide pin to remove.

INSTALLATION MANUAL
NEED HELP? 855-680-9595
STEP 7 | Use a stepped drill bit to
drill out the marked holes for installation.
We recommend a stepped drill bit so that
you do not drill into the rear air conditioning
tubing under the center console on the drivers
side and due to the angle of drilling for the
rear mounts.
Drill accurately and carefully to avoid
scufng the trim unnecessarily.
STEP 8 | Install both mounts using
the provided M6 hardware with a 4mm
allen bit. Reach back and apply pressure
on the nut with your hand until “catches”
and is secure. Use a 10mm wrench if
necessary.
STEP 9 | Install factory bolts on both
sides of transmission shift knob using a
10mm wrench and the factory hardware.

INSTALLATION MANUAL
NEED HELP? 855-680-9595
STEP 10 | Lift the sides of the center
console over the guide pin and install
factory hardware using a short philips
head screwdriver.
STEP 11 | Install trim pieces on the
dash by applying pressure until the clips
are secure.
STEP 12 | Reconnect the wiring
harnesses to the center console.
Install center console by applying
pressure until the clips are secure. Ensure
wiring will not be pinched during install.

INSTALLATION MANUAL
NEED HELP? 855-680-9595
STEP 13 | Install the bridge using
the provided M6 hardware with a 4mm
allen bit.

INSTALLATION MANUAL
NEED HELP? 855-680-9595
STEP 14 | Double check all hardware
is secure and in place. Congratulations,
you are done with the install of your
Center Console and Bridge.
