SAF-HOLLAND Yard Spotter Series User manual

Group
Owners Manual
Yard Spotter Series
XA-351-03505 & XA-351-UB
Fifth Wheels
SH-65 0819
• Operation
• Maintenance Procedures
• Comprehensive Warranty

2 | SH-65 0819 Amendments and errors reserved. © SAF-HOLLAND (Aust.) Pty. Ltd.
GENERAL SAFETY INFORMATION
Notes, Cautions, and Warnings
You must read and understand all of the safety procedures presented in this manual before starting any work on
the SAF-HOLLAND product.
Proper tools must be used to perform the maintenance and repair procedures described in this manual. Many of
these procedures require special tools.
Throughout this manual, you will notice the terms “NOTE”, “IMPORTANT”, “CAUTION”, and “WARNING”
followed by important product information. So that you may better understand the manual, those terms are as
follows:
NOTE:
Used without the safety alert symbol, indicates a potentially hazardous situation which, if not
avoided, may result in property damage.
Indicates a potentially hazardous situation which, if not avoided, may result in minor or
moderate injury.
Indicates a potentially hazardous situation which, if not avoided, could result in death or
serious injury.
Check Equipment Prior to Use
1. Make sure the fifth wheel is properly lubricated.
2. Make sure the secondary lock is disengaged. (See Figure 1).
3. Make sure the fifth wheel locks are open.
4. Make sure the fifth wheel ramps are tilted down as shown in Figure 2.
Manual
secondary
lock handle
Insert hairpin
clip here
Secondary lock
disengaged
Fifth wheel locks open
FIGURE 1
Initial contact of trailer with fifth
wheel at this point
FIFTH WHEEL
MUST LIFT
TRAILER
USE LOW GEAR
FIFTH WHEEL TILTED DOWN
100 - 150 mm
Includes additional information to enable accurate and easy performance of procedure.
Includes additional information that if not followed could lead to hindered product
performance.
IMPORTANT:
FIGURE 2

SH-65 0819 Amendments and errors reserved. © SAF-HOLLAND (Aust.) Pty. Ltd. | 1

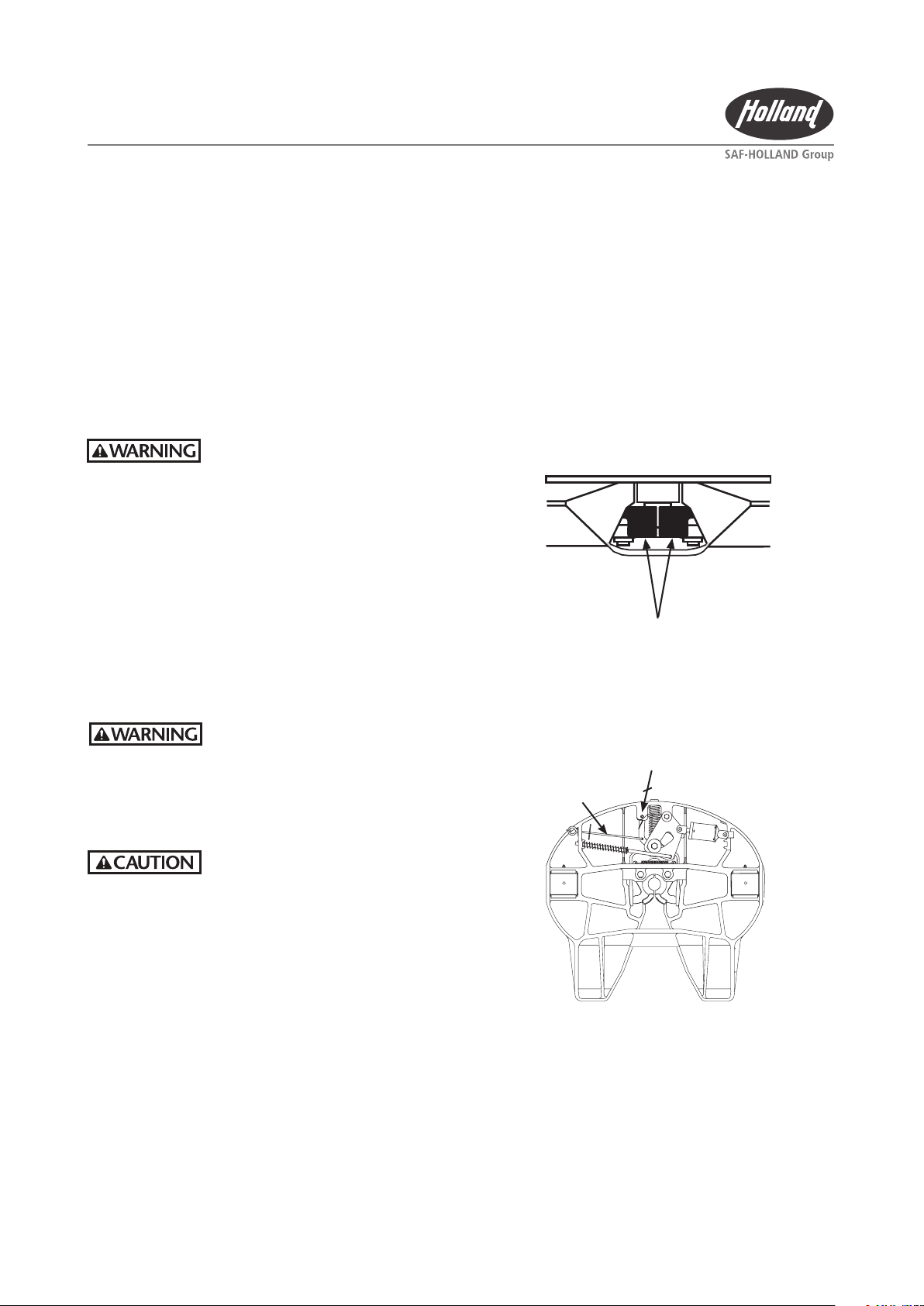

FIGURE 3
Coupling
1. Back up closer to the trailer, centering the kingpin on the throat of the fifth wheel.
STOP. Set vehicle brakes.
2. Check to see that the trailer is at the proper height for coupling. (The front of the skid plate should contact
the fifth wheel approximately 100 - 150 mm behind the fifth wheel’s pivot point. If not, raise or lower the
fifth wheel and if necessary, the trailer landing gear, to obtain this position.)
3. Back under the trailer and engage the fifth wheel locks with the trailer kingpin. Ensure the landing legs have
lifted clear off the ground. Pull forward to test the completeness of the coupling as an INITIAL check. Set
vehicle brakes. Next, visually inspect the fifth wheel, as shown in Figure 3, to verify that it is properly locked.
Failure to verify a proper couple
can result in tractor and trailer
separation, causing death or
serious injury to you or other (see
Figure 3).
5. If required, the manual secondary lock should be
engaged. To engage the secondary lock, remove
the hairpin clip on the secondary lock handle
allowing the secondary lock to pivot behind the
locking yoke as shown in Figure 4.
6. Connect air lines. Release trailer and vehicle
brakes. Raise trailer to desired height and move
trailer.
Elevating fifth wheels in the
elevated position are less stable
than standard fifth wheels. To
avoid rollovers, do not travel at
excessive speeds, and do not make
sudden turns or maneuvers.
This unit is not recommended
for operation on public streets
and highways and does not have
required CRN approvals.
View looking into
throat of fifth wheel
Bolster plate
flush with
fifth wheel
LOCKS COMPLETELY CLOSED
AROUND KINGPIN
Manual
secondary
lock handle
Secondary lock engaged
Fifth wheel locks closed
FIGURE 4
OPERATION INSTRUCTIONS

2 | SH-65 0819 Amendments and errors reserved. © SAF-HOLLAND (Aust.) Pty. Ltd.
Uncoupling
1. Position yard spotter vehicle and trailer on firm, level ground clear of obstructions and people.
2. Release trailer brakes, lower fifth wheel until the trailer landing gear touch the ground. Set vehicle brakes.
3. Disconnect trailer air supply and electrical connection.
4. If the manual secondary lock was engaged, remove the hairpin clip on the secondary lock handle, pull the
secondary lock handle outward to disengage the secondary lock. While holding the handle out, re-insert the
hairpin clip into the hole in the handle. (See Figure 5.)
5. Actuate the fifth wheel control valve and hold it in to open the locks.
6. While holding the lock control valve in, slowly pull out from the trailer.
7. After driving completely free of the kingpin, release the lock control valve.
OPERATION INSTRUCTIONS
Insert hairpin
clip here
Manual
secondary
lock handle
Secondary lock
disengaged
Fifth wheel locks open

SH-65 0819 Amendments and errors reserved. © SAF-HOLLAND (Aust.) Pty. Ltd. | 3

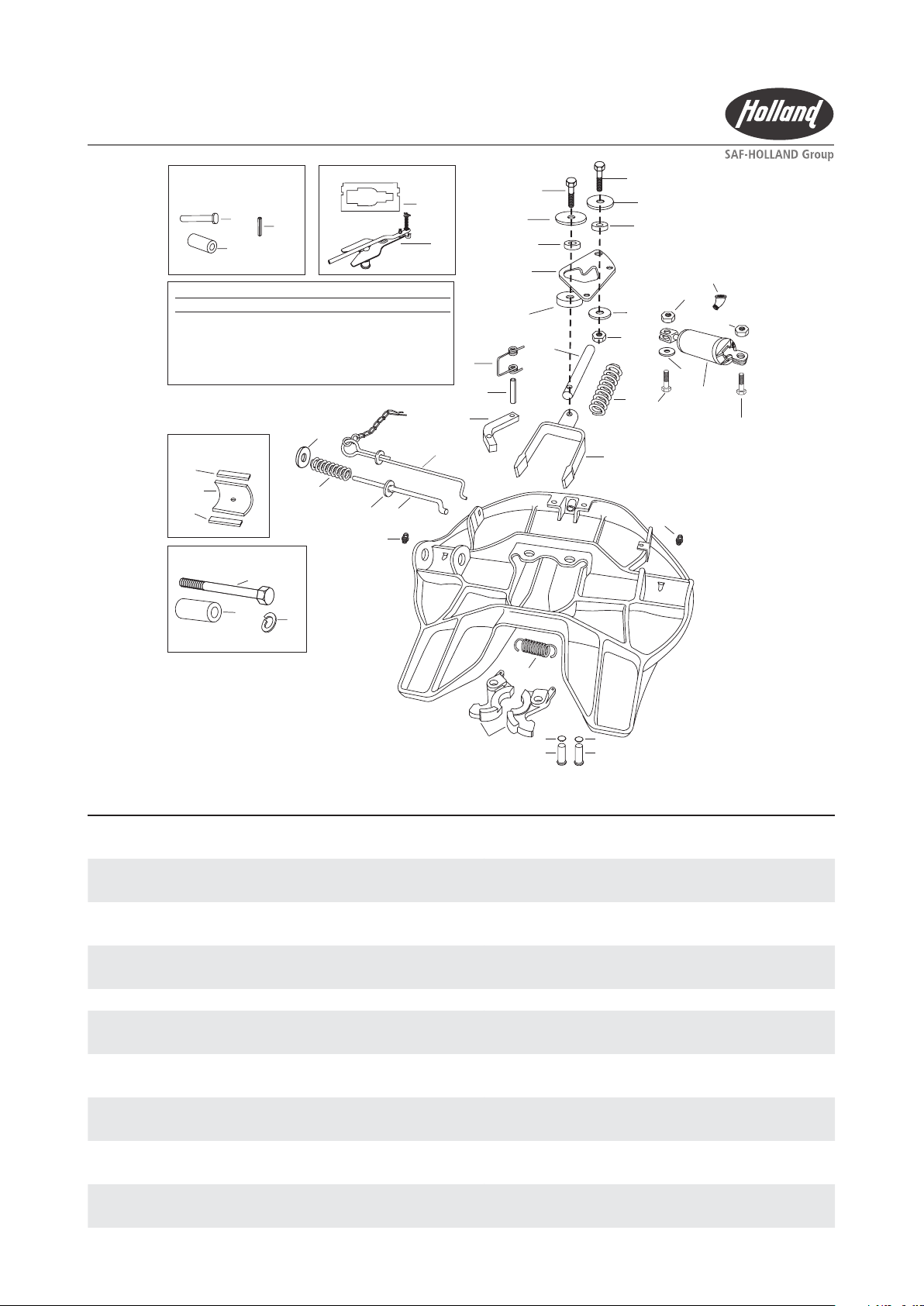

PARTS BREAKDOWN
ITEM
NO. PART NO. REQ’D. PART NAME
1 XA-07292-1 2 Lock pin
2 XB-07398 2 Retaining ring
3 XA-08332-1 1 Lock jaw set
4 XB-07628 1 Extension spring
5 XB-10035 1 Hex head cap screw 5/8˝-18 x 2˝
6 XB-07431 1 Washer 5/8˝ I.D. x 2 5/8˝ O.D.
7 XA-1507-1 1 Roller 5/8˝ I.D.
8 XA-08988 1 Cam plate
9 XB-2083 1 Hex head cap screw 1/2˝-20 x 1-3/4˝
10 XB-08559 2 Washer 1/2˝ I.D. x 1-3/4˝ O.D.
11 XA-1029 1 Roller 1/2˝ I.D.
12 XB-T-69-A 3 Locknut 1/2˝-20 (2 add’l req. for brackets)
13 XB-1505 1 Yoke spring
14 XA-1706-1 1 Yoke shaft
15 XA-07295 1 Yoke
16 XA-09040 1 Cam spacer
17 XB-2149 1 Torsion spring
18 XB-21-S-500-2750 1 Roll pin 1/2˝ x 2-3/4˝
19 XA-3528 1 Secondary lock
20 XB-698 1 45° street elbow
ITEM
NO. PART NO. REQ’D. PART NAME
21 XB-T-89-5 2 HHCS 1/2˝-20 x 1-3/4˝LG
22A* XA-2524-R-13-1 1 Air cylinder
22B* XA-2524-R-13-2 1 Air cylinder
22C* XA-2524-R-13-3 1 Air cylinder
23 XA-3546 1 Secondary lock handle
24 XA-09041 1 Release handle
25 XB-PW-1732-1-116 2 Washer 1/2˝ I.D. x 1˝ O.D.
26 XB-07291 1 Compression spring
27 XA-03423 2 Bracket bearing
28 XA-0268 4 Bearing stop block
29 XB-H-38 2 Grease fitting
30 XA-2016 2 Bracket pin
31 XB-21-S-375-1750 2 Roll pin 3/8˝ x 1-3/4˝
32 XB-0011 2 Rubber bushing
33 TF-0110 1 Kingpin gage
34 TF-TLN-5001 1 Kingpin lock tester
35 XB-BR-118-C-7 2 HHCS 1-1/8˝-7 x 7˝
36 XB-E-536 2 Washer, lock 1-1/8˝
37 XB-1604-5 2 Rubber Bushing
38 XB-1030 1 Washer, 1/2˝ I.D. x 2-1/4˝ O.D.
28
27
28
XA-351-03505
Series ONLY 23
38
26
24
10
25
11
29
29
4
3
35
37
Bracket Components
XA-351-UB Series
(2 of each required)
36
12
12
21
21
25
20
22A
22B
5
6
8
16 10
14
7
13
9
12
15
Air Cylinder Table
XA-351-03505 .......................................Items 20 and 22A
XA-351-03505-2 ....................................Items 20 and 22A
XA-351-03505-3 ....................................Item 22C, omit item 20
XA-351-03505-4 ....................................Items 20 and 22B
Top Plate Assembly
XA-351-UB.............................................Items 20 and 22A
Air Cylinder Components
Accessories
33
34
30
(2 of each required)
Bracket Components
XA-351-03505 Series
(RK-04413-1)
31
17
18
19
32
1 1
2 2

MAINTENANCE PROCEDURES
PERIODIC MAINTENANCE OF XA-351-UB AND
XA-351-03505 FIFTH WHEEL TOP PLATES

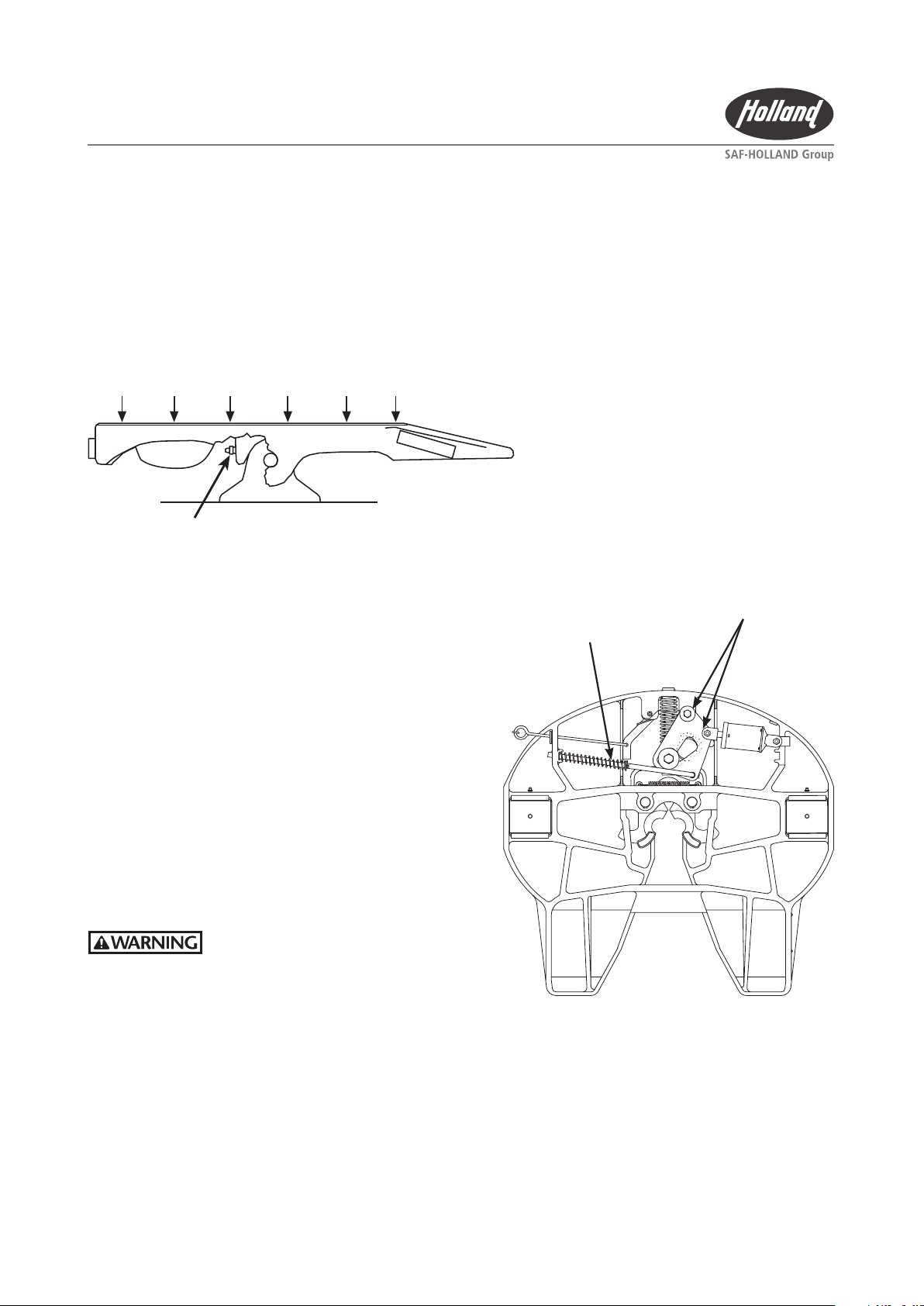

WEEKLY
1. Apply grease to the bracket supports through the grease fittings as shown below.
2. Be sure the fifth wheel top plate is lubricated.
3. Check operation of the fifth wheel locking mechanism.
GREASE THE TRAILER
CONTACT SURFACE
GREASE BRACKET SUPPORTS
THROUGH FITTINGS
USE WATER
RESISTANT
LITHIUM-BASE
GREASE OR
SAF-HOLLAND
LiLube MOS²
Lubricate spring and rod
Lubricate cam pivot
and travel path
MONTHLY
1. Steam clean the entire top plate thoroughly.
2. Inspect the fifth wheel top plate assembly.
• Check for — and replace — any bent, worn, or
broken parts.
• Check for cracks in the top plate casting or any
component part.
Replace as required using only genuine HOLLAND parts.
3. Check the fifth wheel locking mechanism for proper
operation using a HOLLAND TF-TLN-1000 or TF-
TLN-5001 Lock Tester. When checking, move the lock
tester fore and aft when closed in the locks. If play
exceeds 10 mm, rebuild or replace the top plate.
See your Holland Distributor for parts and ordering
information.
4 | SH-65 0819 Amendments and errors reserved. © SAF-HOLLAND (Aust.) Pty. Ltd.
Using a fifth wheel that does not
lock properly can result in trailer
separation, causing death or
serious injury.
4. Relubricate the entire fifth wheel as shown above.

WARRANTY
SH-65 0819 Amendments and errors reserved. © SAF-HOLLAND (Aust.) Pty. Ltd. | 5
W-1d
SAF-HOLLAND warrants Fifth Wheel, Landing Gear and Kingpin Commercial Products (products other than those normally used for personal, family or house hold purposes) manufactured by it, when properly installed, to be free from defects in material and workmanship under normal use and service for a period of one (1) year from the date of manufacture, with the exception of the FW351, FW331 and FW342 that have 3 years (not including attached Bases and Ballraces) FW70, FW72, G36, G37 and G38 Series fifth wheels that have 2 years (not including attached Bases and Ballraces) and the elevating fifth wheels for which the warranty period is ninety (90) days. The warranty is void with respect to any product which has been altered in any way from its manufactured condition, such as intentional modification, accident, corrosion, misuse failure to provide necessary and reasonable maintenance and is exclusive of normal wear. The sole responsibility of SAF-HOLLAND under this warranty is limited to repairing or replacing at the factory any part or parts which are returned, with transportation charges prepaid, and are found to be defective to the satisfaction of SAF-HOLLAND. Written authorization from SAF-HOLLAND must be obtained prior to returning any part or parts. No charges for transportation or for labour performed on SAF-HOLLAND products by unauthorized persons will be allowed under this warranty. SAF-HOLLAND shall not be liable, in any event, for proximate, incidental, consequential or other damages, including but not limited to damages for loss of production or injury to persons or property arising out of any breach of this warranty. THERE ARE NO WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING THE WARRANTY OF MERCHANTABILITY OR A WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE EXTENDING BEYOND THAT SET FORTH ABOVE. SAF-HOLLAND reserves the right, without prior notice, to change specifications and dimensions as designs are altered and/or improved. Options and features other than those shown may be provided.
WARRANTY
COMMERCIAL PRODUCTS WARRANTY

IMPORTANT:
Failure to properly install, operate, or
maintain this fifth wheel could result in
tractor and trailer separation causing death
or serious injury to others.
Enclosed is important information for the
installation, operation, and maintenance of this
product. Read and understand this information.
WARNING
