OWNER’S MANUAL
DUAL OUTPUT HIGH-DEFINITION VIDEO PROCESSOR
75-0300-01
iScan DUO MANUAL COVER_092509.indd 2-3 9/29/09 11:45 AM

DVDO BY ANCHOR BAY TECHNOLOGIES, INC.
LIMITED WARRANTY
WARRANTY VALID ONLY IN THE U.S.A.
WARRANTY
DVDO by Anchor Bay Technologies, Inc. (DVDO) warrants that products distributed in the U.S.A. that fail to function properly under normal use due to a
manufacturing defect when installed and operated according to the owner’s manual enclosed with the unit will be repaired or replaced with a unit of com-
parable value, at the option of DVDO, without charge to you for parts or actual repair work. Parts supplied under this warranty may be new or rebuilt at the
option of DVDO.
THIS LIMITED WARRANTY APPLIES TO THE ORIGINAL OWNER OF THIS DVDO PRODUCT DURING THE WARRANTY PERIOD
PROVIDED THE PRODUCT WAS PURCHASED FROM AN AUTHORIZED DVDO DISTRIBUTOR/DEALER IN THE U.S.A. YOU WILL BE
REQUIRED TO PROVIDE A SALES RECEIPT OR OTHER VALID PROOF OF PURCHASE SHOWING THE DATE OF ORIGINAL PURCHASE.
IN THE EVENT SERVICE IS REQUIRED, THE PRODUCT MUST BE DELIVERED WITHIN THE WARRANTY PERIOD, TRANSPORTATION
PREPAID, ONLY FROM WITHIN THE U.S.A. AS EXPLAINED IN THIS DOCUMENT. YOU WILL BE RESPONSIBLE FOR REMOVAL AND
INSTALLATION OF THE PRODUCT. DVDO WILL PAY TO RETURN THE REPAIRED OR REPLACEMENT PRODUCT TO YOU WITHIN THE U.S.A.
PRODUCT WARRANTY PERIOD Parts Labor
iScan Video Processors .................................................................................................................... 1 Year 1 Year
Shorter periods may apply to some products. Please refer to the limited warranty document enclosed with your specifi c product for a defi nitive statement of the warranty period.
The warranty period for retail customers who rent the product commences upon the date product is fi rst put into use (a) during the rental period or (b) retail sale, whichever occurs fi rst.
WHAT IS NOT COVERED
IF THIS PRODUCT WAS PURCHASED FROM AN UNAUTHORIZED DEALER OR DISTRIBUTOR, THERE ARE NO WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR
PURPOSE AND THIS PRODUCT IS SOLD STRICTLY “AS IS” AND “WITH ALL FAULTS”.
DVDO SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL AND/OR INCIDENTAL DAMAGES.
THIS WARRANTY DOES NOT APPLY IF THE PRODUCT HAS BEEN SUBJECTED TO POWER IN EXCESS OF ITS PUBLISHED POWER RATING.
THIS WARRANTY DOES NOT COVER THE CABINET OR ANY APPEARANCE ITEM, ANY DAMAGE TO RECORDING TAPES OR DISCS, TELEVISION
OR DISPLAY SCREENS DAMAGED BY STATIC, NON-MOVING, IMAGES APPLIED FOR LENGTHY PERIODS (BURN-IN), ANY DAMAGE TO THE
PRODUCT RESULTING FROM ALTERATIONS, MODIFICATIONS NOT AUTHORIZED IN WRITING BY DVDO, ACCIDENT, MISUSE OR ABUSE,
DAMAGE DUE TO LIGHTNING OR TO POWER SURGES, SUBSEQUENT DAMAGE FROM LEAKING, DAMAGE FROM INOPERATIVE BATTERIES, OR
THE USE OF BATTERIES NOT CONFORMING TO THOSE SPECIFIED IN THE OWNER’S MANUAL.
THIS WARRANTY DOES NOT COVER THE COST OF PARTS OR LABOR WHICH WOULD BE OTHERWISE PROVIDED WITHOUT CHARGE UNDER
THIS WARRANTY OBTAINED FROM ANY SOURCE OTHER THAN A DVDO AUTHORIZED SERVICE COMPANY OR OTHER DESIGNATED LOCATION.
THIS WARRANTY DOES NOT COVER DEFECTS OR DAMAGE CAUSED BY THE USE OF UNAUTHORIZED PARTS OR LABOR OR FROM IMPROPER
MAINTENANCE.
ALTERED, DEFACED, OR REMOVED SERIAL NUMBERS VOID THIS ENTIRE WARRANTY.
NO OTHER WARRANTIES
DVDO LIMITS ITS OBLIGATIONS UNDER ANY IMPLIED WARRANTIES INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, TO A PERIOD NOT TO EXCEED THE WARRANTY PERIOD. NO WARRANTIES SHALL
APPLY AFTER THE WARRANTY PERIOD. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS AND SOME
STATES DO NOT ALLOW THE EXCLUSIONS OR LIMITATIONS OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR
EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY HAVE OTHER RIGHTS WHICH MAY
VARY FROM STATE TO STATE.
TO OBTAIN SERVICE
DVDO has appointed a number of Authorized Service Companies throughout the U.S.A. should your product require service. To receive warranty service you
need to present your sales receipt or, if rented, your rental contract showing place and date of original owner’s transaction. If shipping the unit you will need
to package it carefully and send it, transportation prepaid by a traceable, insured method, to the Authorized Service Company. Package the product using
adequate padding material to prevent damage in transit. The original container is ideal for this purpose. Include your name, address and telephone number
where you can be reached during business hours.
On all complaints and concerns in the USA call Customer Support at 1-866-423-3836.
For hook-up and operation of your unit or to locate an Authorized Service Company, please call or write:
TECHNICAL SUPPORT DEPARTMENT
DVDO BY ANCHOR BAY TECHNOLOGIES, INC.
300 Orchard City Drive, M/S 131
Campbell, CA 95008
1-866-423-3836
http://www.DVDO.com
DISPUTE RESOLUTION
Following our response to any initial request to Customer Support, should a dispute arise between you and DVDO, DVDO makes available its Complaint
Resolution Program to resolve the dispute. The Complaint Resolution Program is available to you without charge. You are required to use the Complaint
Resolution Program before you exercise any rights under, or seek any remedies, created by Title I of the Magnuson-Moss Warranty-Federal Trade Commission
Improvement Act, 15 U.S.C. 2301 et seq.
To use the Complaint Resolution Program call 1-866-423-3836 and explain to the customer service representative the problem you are experiencing, steps
you have taken to have the product repaired during the warranty period and the name of the authorized Distributor/Dealer from whom the DVDO product
was purchased. After the complaint has been explained to the representative, a resolution number will be issued. Within 40 days of receiving your complaint,
DVDO will investigate the dispute and will either:
(1) respond to your complaint in writing informing you what action DVDO will take, and in what time period, to resolve the dispute; or (2) respond to your
complaint in writing informing you why it will not take any action.
RECORD THE PLACE AND DATE OF PURCHASE FOR FUTURE REFERENCE
Model No. ____________________________________________ Serial No. ___________________________________________ Purchase Date _______________________
Purchased From ______________________________________________________________________________________________________________
KEEP THIS INFORMATION AND YOUR SALES RECEIPT IN A SAFE PLACE
iScan DUO MANUAL COVER_092509.indd 4-5 9/29/09 11:45 AM

1
TABLE OF CONTENTS
SECTION 1 – GETTING STARTED 2
Introduction 2
Unpacking and Inspection 2
Display Compatibility Requirements 3
Document Conventions and Menu Navigation 3
Menu Navigation 3
Remote Control Battery Installation 4
Remote Control Overview 4
Installation Guidelines 6
SECTION 2 – BASIC OPERATION 7

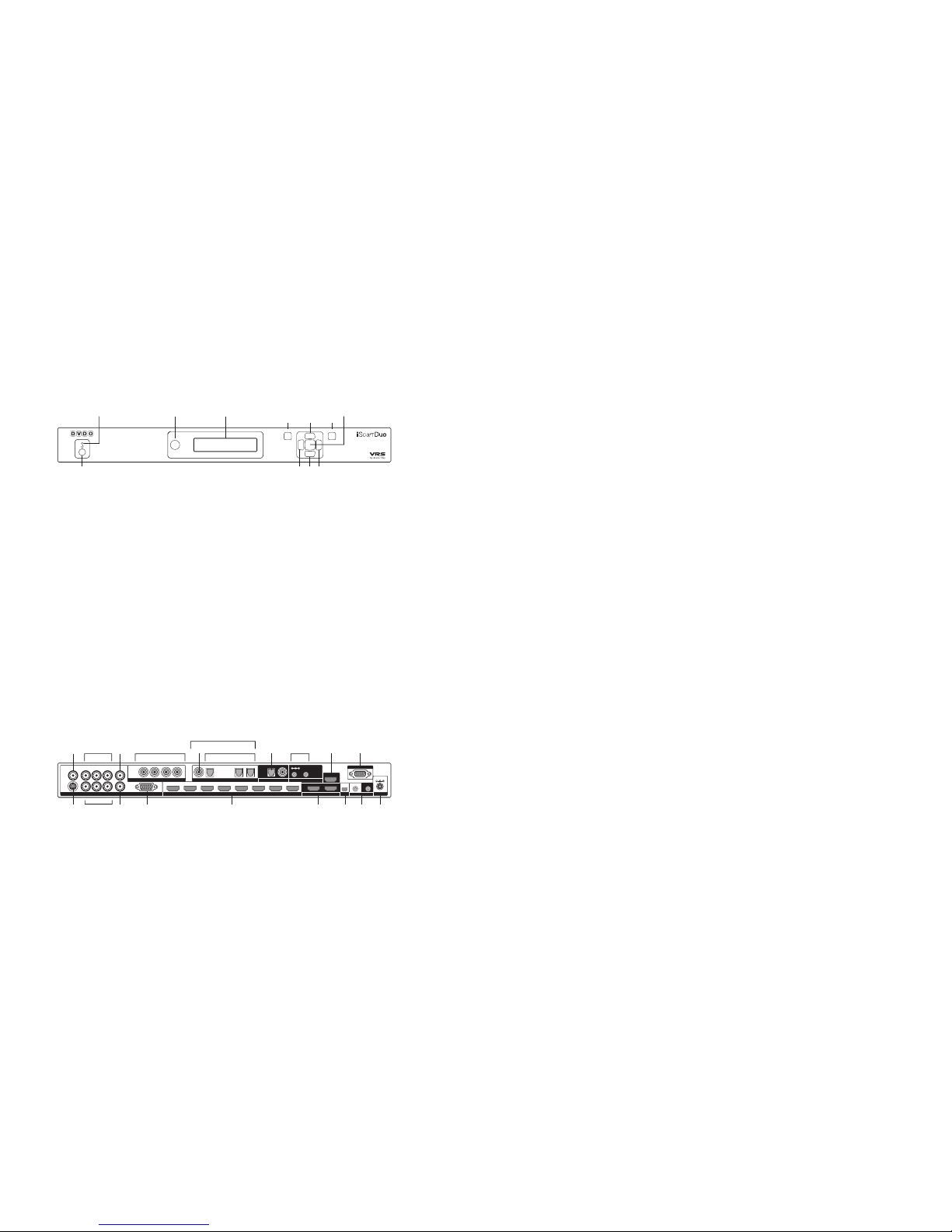

Front Panel Overview 7
Back Panel Overview 7
Video Inputs 8
Video Outputs 8
Audio Inputs 8
Audio Outputs 9
12V Trigger Outputs 9
RS232 Serial Connection 9
Power Supply Input 9
Mini USB Port 9
IR Remote Control Jacks 9
SECTION 3 – INITIAL SETUP 10
Initial Setup 10
STEP 1 - Power Up 10
STEP 2 - Connect the iScan Duo to the Display 10
STEP 3 - Connecting the Sources to the iScan Duo 11
STEP 4 - Conguring the Input Sources
to get Maximum Performance 11
SECTION 4 – MENU OPTIONS 12
Input Select 12
Output Select 12
Input Aspect Ratio 12

Picture (Aspect Ratio) 12
Active (Aspect Ratio) 13
Stretch 13
Shift 13
Auto AR 13
Zoom 13
Presets 14
Input Adjust 14
PReP™, Progressive ReProcessing 14
Deinterlacer 14
Game Mode 15
Deep Color 15
Video Level 15
Hot-Plug Source 16
Audio Input 16
Audio Delay 16
Picture Controls 16
Brightness 17
Contrast 17
Color Saturation 17
Hue (Tint) 17
Detail Enhancement 17
Edge Enhancement 17
Mosquito NR 17
Output Setup 18
Test Patterns 18
Video Format 18
Underscan 18
1:1 Frame Rate 19
Frame Lock 19
Aspect Ratio 19
Color Space 19
Colorimetry 19
Video Level 20
Deep Color 20
Audio Output 20
Conguration 20
Input Priority 20
Rename Inputs 21
Auto Wake Up 21
Auto Standby 21
Component Inputs 21
Select RGBS 22
LED Brightness 22
Factory Defaults 22
Update Firmware 22
Serial Port Rate 23
Wizard Launch 23
Display Wizard 23
Input Wizard 24

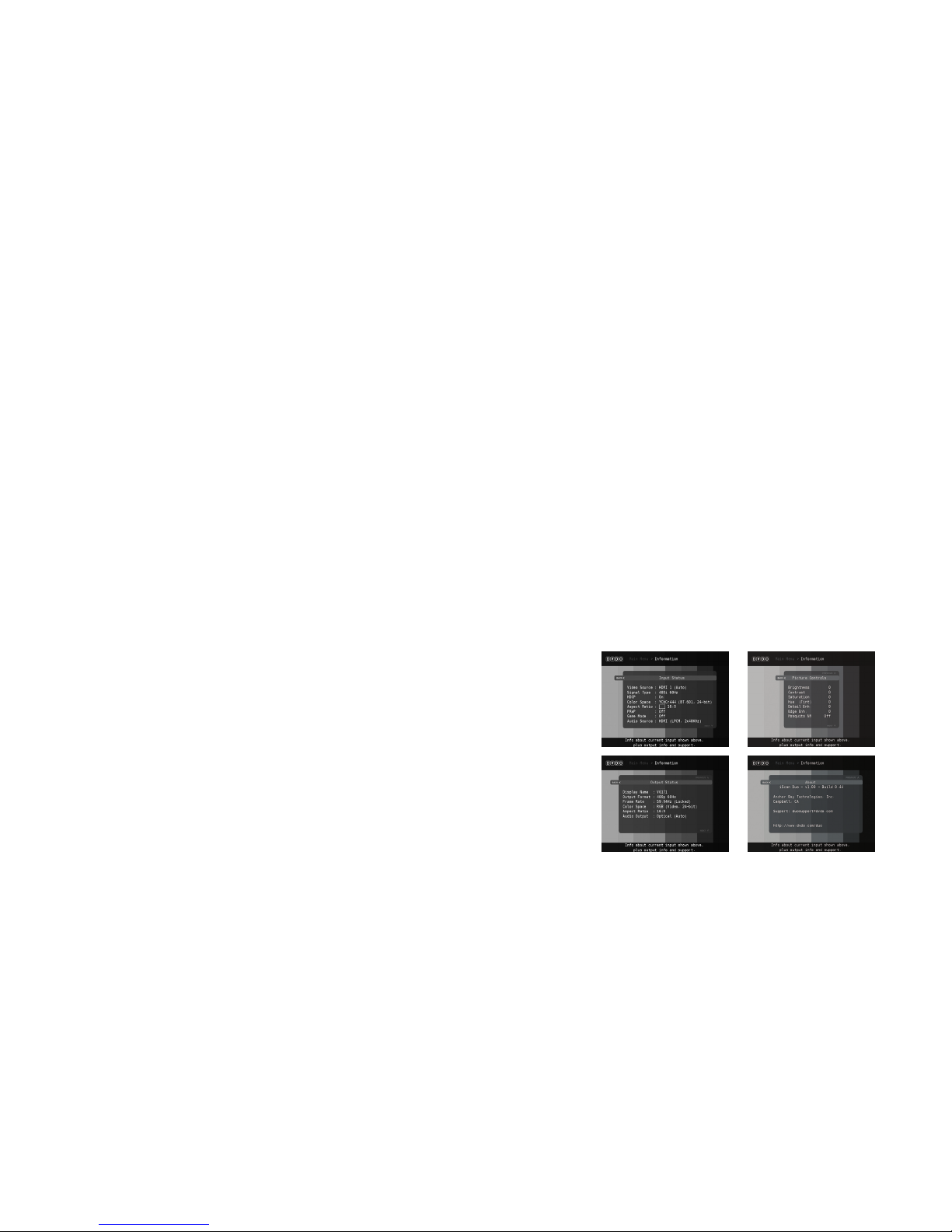

Information 24
T A B L E O F C O N T E N T Si S C A N D u o

2
SECTION 1 – GETTING STARTED
Introduction
The iScan™ Duo high-denition video processor is Anchor Bay’s rst dual-output video processor.
It allows a convenient connection to two displays, for example a projector and an LCD TV. Further-
more the iScan Duo is an intelligent central switching hub which connects all of your audio/video
source devices to your displays and A/V receiver. The iScan Duo features a full-suite of Anchor
Bay’s award winning VRS™ Video Reference Series technologies including:
• 10-bit Precision Deinterlacing™ of 480i/576i/1080i
• 10-bit Precision Video Scaling™ up to 1080p
• PReP™, Progressive ReProcessing of 480p/576p/1080p
• Mosquito Noise Reduction
• Fine Detail Enhancement
• Edge Enhancement
• Precision A/V LipSync™
• Progressive Cadence Detection™ of 480p/576p/720p/1080p
• Rightrate™ High Performance Frame Rate Conversion
The iScan Duo also offers a number of innovative features, including:
• 8 HDMI 1.3 (High Denition Multimedia Interface) Inputs
• 2 HDMI 1.3 Outputs
• 1 HDMI 1.3 Audio Output for direct connection to an A/V Receiver
• Multi-standard high denition analog video decoder with 3D comb lter
• 2 Programmable 12V Triggers to control other devices
This Owner’s Manual will help you set up your iScan Duo, and provide the necessary information
required to get the best picture quality to your displays and A/V receiver. It will also show you
how to properly use it with the other components in your system.
Unpacking and Inspection
Please verify that your iScan Duo carton contains the following items:
• iScan Duo Video Processor
• Universal 12V@5A AC-to-DC Power Converter
• US IEC Power Cord (International Customers, consult your local authorized
DVDO reseller)
• Remote Control
• iScan Duo Owner’s Manual
• iScan Duo Quick Start Guide
• Serial Cable for Automation
• Rack Mount Kit
• Std-A to Mini-B plug 5-pin USB cable
If you are missing any items, please contact your dealer or the DVDO Support Team.
Additional cables or adapters are required to connect the iScan Duo to your source(s) and
display(s). Both input and output cables can be supplied by your Authorized DVDO Reseller. To
nd your nearest Authorized DVDO Reseller, visit www.dvdo.com.

34
Display Compatibility Requirements
The iScan Duo is compatible with a wide range of displays including digital TVs, projectors and
monitors. Your display is compatible with the iScan Duo if it has an HDMI or DVI input. The iScan
Duo is not compatible with displays with analog inputs.
Note: If your display has a DVI input, verify that it is HDCP-compliant. If your display is not HDCP-
compliant you will need to use the component or other analog connections from your source.
Document Conventions and Menu Navigation
Text that is in bold refers to a button on the remote control or on the front panel.
Text that is in italic refers to an item that is in the On Screen Display (OSD).
The t,u,q, and p symbols refer to the navigational buttons on the remote control and the front
panel.
In this Owner’s Manual, an action that requires navigating the iScan Duo’s menu system is referred
to in the following abbreviated form:
Picture Controls _Brightness _0
In the example above, press MENU to access the iScan Duo main menu. Press q button to select
Picture Controls. Press ENTER or u button to access the menu under Picture Controls. Press q
button to select Brightness followed by ENTER or u button to control Brightness. Use q or p button
to adjust brightness. Press EXIT to exit the menu system.

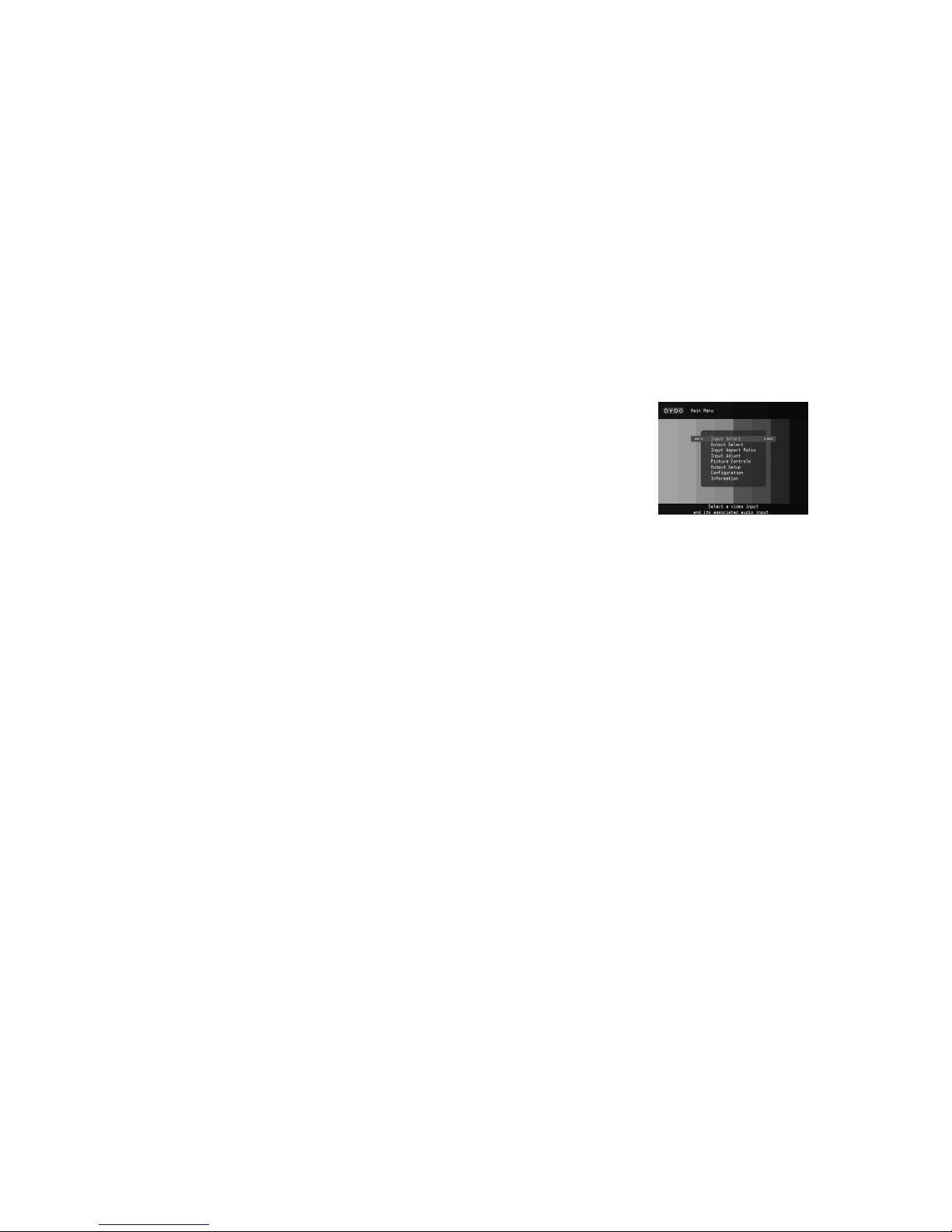

Menu Navigation
The iScan Duo can be controlled using one of the following ways:
• The front panel controls
• The remote control
• A programmed universal remote control
• The serial connection on the back panel
The menu navigation controls on the remote control are duplicated on the iScan Duo front panel.
To navigate the menu:
1. Press the MENU button.
2. Use the navigation buttons (t,p,q,u) to highlight the parameter you want to change.
3. Press the ENTER or u button to select the parameter and the pand q buttons to change
the chosen parameter. Press the t button to stop adjusting a parameter and to return
to navigating the OSD.
4. Press the EXIT button to exit out of the menu/OSD.
Remote Control Battery Installation
The remote control uses two AAA batteries (included), which should be replaced as needed.
To install the remote control batteries:
1. Locate the battery compartment on the back of the remote control.
2. Remove the cover from the back. To do this, push the cover in the direction indicated.
3. Remove the old batteries (if applicable).
4. Insert two new AAA batteries in the compartment as shown on the inside of the battery
compartment. Make sure the batteries are correctly inserted, observing the proper polarity.
5. After installation, replace the cover and recycle the old batteries (if applicable).

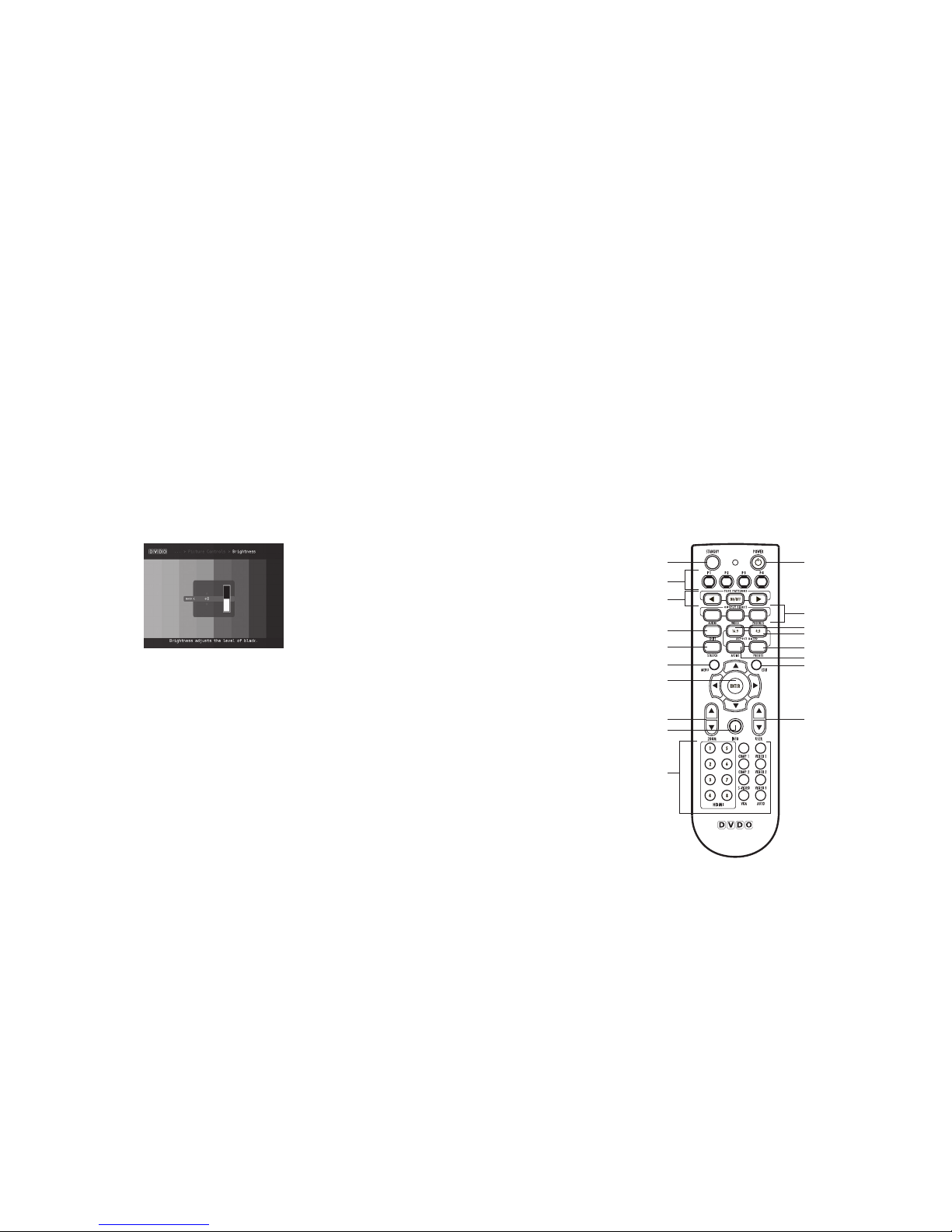

Remote Control
The supplied remote control is used to operate the iScan Duo. The table below describes the function
of the remote control buttons.
1
5
8
9
11
13
17
10
2
6
7
12
14
15
16
18
3
4

56
[1] POWER Always turns on the iScan Duo
[2] STANDBY Always puts the iScan Duo in standby mode
[3] P1-P4 Reserved for future use
[4] TEST PATTERNS ON/OFF : Turns Test Patterns On or Off
u : Selects the next test pattern
t : Selects the previous test pattern
[5] OUTPUT SELECT AUDIO : Selects iScan Duo audio output (HMDI Video, HDMI Audio, Optical/Coax)
VIDEO : Selects iScan Duo video output (HDMI1, HDMI2)
PROFILES : Reserved for future use
[6] SHIFT Press this button followed by t u pq buttons to move the input image
[7] STRETCH Press this button followed by navigation t u buttons to stretch the input
image horizontally or pq buttons is to stretch the input image vertically
[8] 16:9 Sets the aspect ratio of the input image to 16:9 (Full Frame)
[9] 4:3 Sets the aspect ratio of the input image to 4:3 (Full Frame)
[10] ACTIVE Selects active format aspect ratio i.e. the actual aspect ratio of the
content. For example, typical movie aspect ratios are 1.85:1 or 2.35:1
[11] PRESETS Selects preset aspect ratios including 16:9 (Full Frame), 4:3 (Full Frame),
4:3 Letterbox and Panorama
[12] MENU Use this button to access the on-screen main menu
[13] EXIT Use this button to exit the current menu or the exit the on-screen menu
[14] t u pqENTER Menu Navigation buttons. Press ENTER to conrm a selection or to
enter a new menu
[15] ZOOM pq Use these buttons to magnify an input image while maintaining its
aspect ratio
[16] INFO Use this button and the navigation t u pq buttons to display useful
information about the iScan Duo’s status and settings
[17] USER pq Reserved for future use
[18] Input Select buttons These buttons directly select the input on the iScan Duo.
Note: VIDEO 1 and VIDEO 2 are multi-function buttons. They select
Video 1 and Video 2 inputs respectively by default. However, if RGBS
is selected through the on-screen menu, the video input function is
disabled and the input becomes the sync (S) input for RGBS.
AUTO automatically selects an active input based on priority set by
the user. See Conguration Section under Input Priority on page 20.
Installation Guidelines
The iScan Duo installation guidelines below ensure optimal performance.
Do . . .
• Install the iScan Duo on a solid, at, level surface such as a table or shelf. You can also
install the iScan Duo in a standard 19” equipment rack using the supplied rack-mount kit.
• Select a dry, well-ventilated location.
• Use only the included external power supply.
• Avoid excessive humidity, sudden temperature changes or temperature extremes.
• Use only accessories recommended by the manufacturer to avoid re, shock or other hazards.
• Unplug your Duo before cleaning. Use a damp cloth for cleaning.
Don’t . . .
• Stack the iScan Duo directly above heat-producing equipment such as power
ampliers or other components that generate heat during use.
• Expose the iScan Duo to high temperatures, humidity, steam, smoke, dampness,
or excessive dust. Avoid installing the iScan Duo near radiators and other heat
producing appliances.
• Install the iScan Duo near unshielded TV or FM antennas, cable TV decoders, and
other RF -emitting devices that might cause interference.
• Place the iScan Duo on a thick rug or carpet or cover the iScan Duo with cloth.
This might prevent proper cooling.
• Attempt to service this unit. Instead, disconnect it and contact your Authorized DVDO
Reseller or contact DVDO directly.
• Open or remove unit panels or make any adjustments not described in this manual.
Attempting to do so could expose you to dangerous electrical shock or other hazards.
It may also cause damage to your iScan Duo.

78
SECTION 2 – BASIC OPERATION
Front Panel Overview
Status LED – This displays the current state of the iScan Duo
Off = The unit is in standby mode
Red = No signal detected
Blue = The unit is processing the signal
Blinking Blue = There is a problem with HDCP authentication
Green = The unit detects an unsupported signal
Power Button – This toggles unit power between On and Standby.
IR Window – This is where all IR commands are received by the iScan. Do not obstruct this window.
Front Panel Display (FPD) – This is where all information from the on screen display (OSD) is
duplicated to assist in the setup of your iScan.
NOTE: When navigating the Menu, the Front Panel Display (FPD) always shows the current selec-
tion on the bottom line and the menu/submenu item on the top line. When you change a value of a
setting, the value is on the bottom line and the title of the parameter is on the top line.
Navigation Buttons – These buttons are available on both the front panel and the remote control.
Back Panel Overview
Video Inputs
The iScan Duo has fteen (15) video inputs. Most popular formats are supported on each input.
The formats, colorspace and bit-depth that the inputs support are as follows:
• Video 1, Video 2 and Video 3
— Formats: NTSC, PAL, PAL-M and SECAM
• S-Video
— Formats: NTSC, PAL, PAL-M and SECAM
• Component/RGBS 1 and Component/RGBS 2
— Formats: 480i/p-60, 576i/p-50, 720p-50/60, 1080i-50/60, 1080p-50/60
— Colorspace: YPbPr and RGB
— In RGBS mode Video 1, Video 2 inputs are used as syncs
• VGA
— Formats: VGA/SVGA/XGA/SXGA-60
— Colorspace: RGBHV
• HDMI 1–8
— Formats: 480i/p-60, 576i/p-50, 720p-50/60, 1080i-50/60, 1080p-24/25/30/50/60,
VGA-60, SVGA-60, XGA-60, SXGA-60
— Colorspace RGB/YCbCr 4:4:4/YCbCr 4:2:2
— Bit-Depth: 8/10/12-bit processed
Video Outputs
The iScan Duo has two HDMI video outputs. The default output is HDMI 1. Select HDMI 2 output
using VIDEO output button or the on-screen menu:
The HDMI digital video output can output the following signal types:
• RGB 4:4:4
• YCbCr 4:2:2
• YCbCr 4:4:4
To connect the iScan Duo to a display that has a DVI input, use either an HDMI-to-DVI cable or an
adapter.
Audio Inputs
There are fourteen (14) audio inputs on the iScan Duo:
• Three (3) Optical Digital inputs
• One (1) Coaxial Digital inputs
• Two (2) Analog (L/R) inputs
• Eight (8) HDMI 1.3 inputs
While the digital and analog audio inputs can be assigned to any one of the video inputs, the HDMI
audio inputs are tied directly to the HDMI video signal connected on the same input.
The iScan Duo accepts digital audio sourced from DVD players, satellite receivers, digital set top
boxes, HD-DVD players, Blu-ray players, game consoles, and other video components with digital
audio. These inputs are compatible with most consumer digital audio formats, including CD-Audio
(44.1kHz/16 bit LPCM), Dolby Digital, and DTS. The coaxial digital audio inputs are compatible with
any format with a sampling frequency between 24kHz and 192kHz, and with a data word structure
up to 24 bits in length. The optical digital audio inputs are compatible with any format with a sam-
pling frequency between 24kHz and 96kHz and with a data word structure up to 24 bits in length.
The HDMI audio inputs are compatible with all of the HDMI 1.3 audio formats.
t,p,q,u
MENU EXIT
H DM I
1 2 3 4
INPUT
OUTPUT
1
3
2
4
SERIAL PORT
ANALOG AUD IO INPUT
Y(G) Pb (B) Pr (R) H V
DC In
Y(G) Pb (B) Pr (R)
1
2
1
2
1
2
1
2
L R
ANALOG VIDEO
I
N
P
U
T
S
I
N
P
U
T
O
U
T
P
U
T
Front Panel Display (FPD) Navigation Buttons
Up
Power Left Down Right
Menu Exit
Power
Video 1
Video2
Optical
Digital
Output
Coaxial
Digital
Output
Optical
Digital Input
1 & 2
Coaxial
Digital Input
3 & 4
Serial Port
S-Video1
S-Video2
Component/RGBS 2
Component/RGBS 1
RGBHV/Component
Output
HDMI Inputs
1– 4
HDMI Output
Analog Audio
Input
D I G I TA L A U D I OS-VI DEO VID EOSYNCPOWER
HD-SDI Inputs (Optional)
1 &2
RGBHV/Component
Input
IR WindowStatus LED Enter
COMPONENT
12V Triggers
1 &2
MENU EXIT
Front Panel Display (FPD) Navigation Keys
Up
On/Standby Left Down Right
Menu Exit
IR WindowStatus LED Enter
1 2 3 4 5 6 7 8
VGA
SERIAL PORT
VIDEO 3
Y(G) Pb (B) Pr (R) VIDEO/S
12VD C 5A
1
2
1
2
1 2 1 2 3
L R L R
D I G I TA L A U D I O IN P U T S AU D I O O UT TR IGGE R OU TA N A L O G A U D I O I N P U T S
12VDC 50 mA MAX
1 2
1 2 IN
OU T
S-VIDEO
AUDIO
A N A L O G V I D E O I N P U T S H D M I I N P U T S H DM I O U TP U TS USB POWER IR
HDMI Inputs
1– 8
HDMI Outputs
1– 2
PowerRemote
Control
Jacks
Mini USB
Port
S-Video
Optical Digital
Output
Optical
1 – 3
12V Triggers
1 & 2
Analog Audio Inputs
1 & 2 Serial Port
HDMI Audio
Output
Coaxial
Video 3 Component 1
Component 2 VGA PortVideo 2
Video 1
Digital Audio Inputs
MENU EXIT
H DM I
1 2 3 4
INPUT
OUTPUT
1
3
2
4
SERIAL PORT
ANALOG AUD IO INPUT
Y(G) Pb (B) Pr (R) H V
DC In
Y(G) Pb (B) Pr (R)
1
2
1
2
1
2
1
2
L R
ANALOG VIDEO
I
N
P
U
T
S
I
N
P
U
T
O
U
T
P
U
T
Front Panel Display (FPD) Navigation Buttons
Up
Power Left Down Right
Menu Exit
Power
Video 1
Video2
Optical
Digital
Output
Coaxial
Digital
Output
Optical
Digital Input
1 & 2
Coaxial
Digital Input
3 & 4
Serial Port
S-Video1
S-Video2
Component/RGBS 2
Component/RGBS 1
RGBHV/Component
Output
HDMI Inputs
1– 4
HDMI Output
Analog Audio
Input
D I G I TA L A U D I OS-VI DEO VID EOSYNCPOWER
HD-SDI Inputs (Optional)
1 &2
RGBHV/Component
Input
IR WindowStatus LED Enter
COMPONENT
12V Triggers
1 &2
MENU EXIT
Front Panel Display (FPD) Navigation Keys
Up
On/Standby Left Down Right
Menu Exit
IR WindowStatus LED Enter
1 2 3 4 5 6 7 8
VGA
SERIAL PORT
VIDEO 3
Y(G) Pb (B) Pr (R) VIDEO/S
12VD C 5A
1
2
1
2
1 2 1 2 3
L R L R
D I G I TA L A U D I O IN P U T S AU D I O O UT TR IGGE R OU TA N A L O G A U D I O I N P U T S
12VDC 50 mA MAX
1 2
1 2 IN
OU T
S-VIDEO
AUDIO
A N A L O G V I D E O I N P U T S H D M I I N P U T S H DM I O U TP U TS USB POWER IR
HDMI Inputs
1– 8
HDMI Outputs
1– 2
PowerRemote
Control
Jacks
Mini USB
Port
S-Video
Optical Digital
Output
Optical
1 – 3
12V Triggers
1 & 2
Analog Audio Inputs
1 & 2 Serial Port
HDMI Audio
Output
Coaxial
Video 3 Component 1
Component 2 VGA PortVideo 2
Video 1
Digital Audio Inputs

910
Audio Outputs
The iScan Duo has 3 types of audio outputs.
• There are two discrete digital audio outputs, one coaxial and one optical.
Both are active at the same time, with the selected input audio stream.
• The HDMI 1.3 audio only output for connection to an A/V Receiver.
• The HDMI 1.3 audio and video outputs for connection to displays.
12V Trigger Outputs
There are two 12-volt trigger ports each capable of supplying 50mA.
RS232 Serial Connection
This connection is used as an interface to control the iScan Duo with an automation system.
Power Supply Input
The iScan Duo comes with a 12V@5A AC-to-DC converter power supply, which accepts 100-240 VAC
at 50/60Hz.
Mini USB Port
This connector is used for software updates using the supplied USB cable.
The most current software version is available at www.dvdo.com/duo.
IR Remote Control Jacks
The IR Remote input and output jacks are used with an IR repeater.
SECTION 3 – INITIAL SETUP
Initial Setup
STEP 1 - Power Up
1. Attach the power cord to the external power supply.
2. Plug the power cord into a wall outlet or power conditioner, if applicable.
3. Plug the small connector attached to the cable that comes out of the power supply
into the iScan. The iScan should power on and display ‘iScan Duo / DVDO’ on the
Front Panel Display (FPD). If this does not happen, check all connections and verify
that the power outlet does supply power with another device.
IMPORTANT: Use only the power supply that comes with your iScan Duo, or a
replacement procured directly from Anchor Bay.
STEP 2 - Connect the iScan Duo to the Display
Connect an iScan to a display with an HDMI or DVI input. The iScan Duo defaults to ‘Auto Select’
mode which automatically detects and outputs the display’s preferred format.
Some displays may not indicate their native resolution as the preferred format.
To manually change the Output Resolution, press the MENU button on the remote and use the on-screen
menu as shown.
Output Setup _Video Format _(Make Selection)
Useful Test Patterns:
Use the Test Patterns ( ON/OFF, tand u ) buttons on the remote for relevant test patterns below.
Frame Geometry (Adjusting for Overscan)
When this test pattern is displayed correctly, there should be a one-pixel wide white border around
the edge of the screen: otherwise, the display is overscanning the signal from the iScan Duo. This
is very common and is known for cutting off sports scores at the bottom of the screen. Use the
‘Underscan’ control to shrink the size of the output image so that you can see the white border. Press
MENU button and use the on-screen menu as shown.
Output Setup _Underscan _(Adjust Value)
Checkerboard (Verifying if Display’s Processing Can Be Bypassed)
When the checkerboard test pattern is displayed correctly, you should be able to see a 1-pixel checker-
board close-up. At the proper viewing distance the image should appear as an even gray. Otherwise,
the resulting image does not look like a ne checkerboard and may have irregular patterns.
When this is the case, the chosen output resolution may not be the native resolution of the display
or the display may scale all input signals even if the input resolution is already at native resolution.
1. Verify that the iScan Duo’s output resolution matches the display’s preferred format.
2. Check to make sure that the display is in the correct Aspect Ratio mode, which may be
causing the display to do additional unnecessary scaling. The correct mode may be
called ‘Native’, ‘Dot-by-Dot’ or ‘Full’.
NOTE: If this test pattern does not appear as it should, and you have chosen the native resolution
of the display, you may not be able to bypass the internal processing on the display. In these cases
select the closest output format to the display’s native resolution.

11 12
Vertical Lines
The ‘Vertical Lines’ test pattern should appear as one pixel wide black and white columns. If you see
any irregular pattern(s) in the image, the display is scaling the signal horizontally.
Horizontal Lines
The ‘Horizontal Lines’ test pattern should appear as one pixel tall black and white rows. If you see
any irregular pattern(s) in the image, the display is scaling the signal vertically.
STEP 3 - Connecting the Sources to the iScan Duo
Up to 15 video sources can be connected to the iScan Duo.
If your source has multiple video outputs, use HDMI/DVI if available; otherwise use Component
(YPbPr) output. If Component is not available, use S-video. The (composite) video output is the
lowest quality video output and should not be used unless no other video output is available.
Similarly, use HDMI for audio if available; otherwise use Digital Optical or Coaxial. Finally, use
Analog Stereo output.
STEP 4 - Conguring the Input Sources to Get Maximum Performance
The basic rule for getting the best performance from input sources is to congure the sources to
output the native resolution of the content and to let the iScan Duo perform the video processing
necessary to deliver the best image quality to the display.
For example, if the source is a DVD player, congure it to output standard denition (480i or 480p)
and let the iScan Duo perform the up-conversion to deliver the high resolution image to the display.
Similarly, if a set-top-box is receiving 1080i content, it would be best to congure it to output the
same format to the iScan Duo. Some devices that can receive or playback multiple formats have a
‘native’ output mode where the output format is based on the content. Set these devices to ‘native’
when connected to the iScan Duo.
SECTION 4 – MENU OPTIONS
This section describes iScan Duo’s On-Screen Menu which is activated when the user presses
MENU on the remote or front panel.
Input Select
There are fteen video inputs on the iScan Duo:
• VIDEO 1 - Composite Video/Sync
• VIDEO 2 - Composite Video/Sync
• VIDEO 3 - Composite Video/Sync
• S-VIDEO - S-Video or Y/C
• COMPONENT 1 - Component/RGBS 1
• COMPONENT 2 - Component/RGBS 2
• VGA - PC Input
• HDMI 1 - 8
• AUTO - Automatic active input detection and selection
These inputs can also be accessed using the direct access buttons on the remote
Output Select
This menu selects one of the iScan Duo’s two HDMI video outputs
HDMI A/V 1 Selects HDMI video output 1 (default)
HDMI A/V 2 Selects HDMI video output 2
The HDMI video output selection can also be made using the VIDEO button on the Output Select
section of the remote control. This button will toggle between the two HDMI video outputs. If there
is only one display connected to the iScan Duo, it will not switch the video output.
Input Aspect Ratio
This menu controls the aspect ratio settings of the iScan Duo’s inputs.
• Picture (Aspect Ratio)
DVDs today are mostly encoded in 16:9 aspect ratio which is sometimes referred to as
‘anamorphic’ or ‘enhanced for widescreen TV’s’. Some older DVDs are encoded in 4:3 aspect
ratio. Standard denition (SD) broadcasts, and older legacy SD content also have 4:3
picture aspect ratio. High denition (HD) content has 16:9 aspect ratio.

13 14
5:4 Set picture aspect ratio to 5:4
4:3 Set picture aspect ratio to 4:3
16:9 Set picture aspect ratio to 16:9
• Active (Aspect Ratio)
This is aspect ratio of content or movie. For example, typical movie aspect ratios are
1.85:1 or 2.35:1.
4:3 Set active aspect ratio to 16:9
1.55:1 Set active aspect ratio to 1.55:1
1.66:1 Set active aspect ratio to 1.66:1
16:9 Set active aspect ratio to 16:9
1.85:1 Set active aspect ratio to 1.55:1
2.35:1 Set active aspect ratio to 2.35:1
The iScan Duo scales the input image based on picture and active aspect ratio settings.
• Stretch
Stretch gives you independent horizontal and vertical stretch control. The original aspect
ratio is not maintained using this control. The Stretch control works differently from most
other control screens. It uses pand q navigation buttons to stretch vertically and tand u
buttons to stretch horizontally. The ENTER button takes you to the previous screen, or you
can press the EXIT button on your remote to exit menus.
• Shift
Shift allows you to move around on a zoomed or stretched image. As you move around,
you expose parts of the picture that were not visible. Shift works only on a zoomed image.
The controls work like Stretch described on the previous page.
Use the pand q navigation buttons to move the image vertically and tand u buttons
to move the image horizontally. The ENTER button takes you to the previous screen, or you
can press the EXIT button on your remote to exit menus.
• Auto AR
When Auto AR is enabled, the iScan Duo will set the input aspect ratio settings automatically.
HDMI sources communicate this information to the iScan Duo. Certain formats also have
pre-dened aspect ratios. For example, the (picture) aspect ratio of high-denition (HD)
video formats is 16:9 while the (picture) aspect ratio of SXGA PC format is 5:4.
When Auto AR is disabled, use Picture and Active aspect ratio menus to manually select the
correct aspect ratio.
• Zoom
The Zoom control allows you to magnify your picture while maintaining the aspect ratio of
the input image. As the picture magnies, the area around the the iScan Duos becomes
invisible off the sides, top and bottom of your display.
Use the pand q buttons on your remote to zoom up and down.
In addition, the remote control has a ZOOM p and a ZOOM q button to quickly zoom an
image.
• Presets
Presets provides a short-cut to common aspect ratio settings.
16:9 Full Frame
Select this mode when both the picture aspect ratio and the active aspect ratio of the
input image are 16:9. If the active aspect ratio is different, there will be black bars on
the sides or on the top and bottom part of your display.
4:3 Full Frame
Select this mode when both the picture aspect and the active format aspect ratio of the
input image are 4:3. For a 16:9 display there will be black bars on the left and right
side of your display.
4:3 Letterbox
Select this mode when the picture aspect ratio is 4:3 but the active format aspect ratio
of the input image has a 16:9 or larger aspect ratio. Some older DVDs are encoded
in this manner. The iScan Duo will vertically stretch the input image to ll the screen.
Panorama
This mode is a variation of the 4:3 Full Frame mode. The iScan Duo stretches the input
image to remove the black bars on both sides of the display. The middle part of the image
is not stretched. Only the left and right side of the image are stretched.
User Preset
Custom aspect ratio settings including picture and active aspect ratios, zoom, stretch and
shift functions will be saved in User Preset.
Input Adjust
This menu controls the settings on iScan Duo’s inputs.
• PReP
PReP™ is an exclusive VRS processing technology developed by Anchor Bay.
Standard denition (SD) formats such as 480p, 576p were deinterlaced at some point before
reaching iScan Duo. Deinterlacing is a complex processing technology that has a signicant
impact on image quality. The iScan Duo uses Anchor Bay’s high performance VRS Precision
Deinterlacing.
High denition (HD) formats such as 1080p50 and 1080p60 are also frequently created by
deinterlacing 1080i50 and 1080i60.
PReP accepts one of the formats mentioned, and converts it back into an interlaced format.
It can then be deinterlaced again using the VRS technology in iScan Duo, which usually
results in a higher quality picture.
The PReP control allows users to disable this function.
480p/576p Use this menu to enable or disable PReP for 480p/576p formats
1080p 50Hz/60Hz Use this menu to enable or disable PReP for 1080p50/60 formats
• DeInterlacer
The deinterlacer control is relevant when the input is interlaced (480i, 576i, 1080i50 or 1080i60)
or it is a deinterlaced format and PReP is enabled (480p, 576p, 1080p50 or 1080p60).

15 16
There are several deinterlacing modes available on the iScan Duo. This setting is saved on a
“per input per SD and HD format” basis. The functions of these modes are described below:
Auto This (default) mode represents the best balance between detection of lm and
video sources, bad edit detection, and identication of mixed-mode sources.
Film This mode is intended for lm-based content.
Auto — Film-mode detection is automatic but biased towards lm.
Forced 3:2 — This mode is intended to be used with ‘high-quality’ 24 fps
lm sources like Blu-ray discs. This forced cadence mode is useful for watching
a movie from start to nish but less useful for lower quality content with bad
edits or if you’re going to be skipping around a lot between chapters.
Forced 2:2 — This mode is similar with Forced 3:2 but used with 50Hz video
standards
2:2 Even — This mode is similar with Forced 2:2 and should be used when
Forced 2:2 mode does not lock to the 2:2 cadence in the movie. This mode
weaves two adjacent elds together starting with an even eld and combining
it with the following odd eld.
2:2 Odd — This mode weaves two adjacent elds together starting with an odd
eld and combining it with the following even eld. Either 2:2 Even or 2:2 Odd
is correct for any given source. Try both of them and select the one which does
not result in combing artifacts.
Video This mode is intended for interlace video-based content.
• Game Mode
This mode is intended for use with game consoles (like those from Sony, Microsoft and
Nintendo). It minimizes video processing delay through the iScan Duo. The total amount of
delay is about half a frame of delay when the output frame rate is locked to the input frame
rate. Unlocked frame rates may increase this delay.
• Deep Color
Deep Color mode allows the iScan Duo to accept 24-bit, 30-bit or 36-bit inputs from Deep
Color HDMI sources. If Deep Color mode is turned off, the iScan Duo will not accept 30-bit
or 36-bit inputs.
Note: Deep Color increases the bandwidth requirements of your HDMI interface. The HDMI
interface may run as much as 50% faster, depending on the bit depth. For that reason, the Deep
Color feature defaults to “disabled.” You have to enable it through this menu.
If you have a failure, you will have to upgrade your HDMI cables, use shorter cables (in some
cases), or disable the Deep Color feature.
• Video Level
Video Level refers to the dynamic range of the video signal. The video industry evolved
levels that allowed for some guard band in the signal levels to account for overshoot or other
signaling problems. The computer industry evolved levels that allocate the entire dynamic
range possible for the image information.
The iScan Duo must accept signals from video components, such as DVD players, set top
boxes, video recorders, which use video signal levels or PCs and game consoles, which may
use computer signal levels. The Video Level in the Input Adjust menu gives you control
over what signaling levels are used for inputs.
Auto Sets the input signal level based on information provided by the HDMI source
Video Sets the input signal level to video level
Computer Sets the input signal level to computer level
• Hot-Plug Source
When Hot-Plug Source is enabled for an HDMI input, a signal on the HDMI input connector,
called Hot-Plug, is toggled when switching to that input. Toggling Hot-Plug causes the source
device and iScan Duo to perform an HDCP re-authentication. HDCP is a copy protection
technology that is part of the HDMI standard.
Enable Hot-Plug Source if you experience problems switching to a particular source device.
These problems include very slow switching with ashing on the display, or colored noise
over the entire display
The only downside to enabling Hot-Plug Source is that switching could be a little slower due
to the time it takes to re-authenticate.
Hot-Plug Source is grayed out if the selected input is not HDMI.
• Audio Input
If you have a non-HDMI input source device, you must associate (pair) the audio from that
device with the video. The iScan Duo will then treat them as a pair when switching inputs,
so that they switch together. When you choose an audio input on this menu, you are as-
sociating that audio input with the currently selected video input.
If your source device uses DVI for video output, and you are connecting to the iScan Duo
using a DVI to HDMI adapter cable, you will have to connect audio via a separate cable and
use this menu to associate the pair.
Select one of the audio sources below
HDMI – This item is grayed out if the video input is not HDMI
Coax 1
Optical 1
Optical 2
Optical 3
Stereo 1
Stereo 2
• Audio Delay
The iScan Duo automatically delays audio to match the video processing delay to prevent
A/V Lip-sync issues. The user can also manually adjust the audio delay using the navigation
q button to decrease the delay and p button to increase the delay (in msec).
Picture Controls
Picture Controls let you make adjustments to your picture and apply to the currently selected input.
The settings are independently adjustable for every video input. The Brightness, Contrast, Color
Saturation, Hue (Tint), Detail Enhancement and Edge Enhancement controls are in the form of a
slider-bar. Use the p q navigation buttons to increase and decrease values.

17 18
The Picture Controls settings are briey described below:
• Brightness
Adjust the black level of the overall image from the iScan Duo. When you make an adjust-
ment to brightness, all levels of brightness, from black to peak white, are shifted up or down.
The Brightness control is complimentary to the Contrast control which will be described next.
Contrast adjusts the level of white.
• Contrast
Video contrast works by adjusting the level of white. Contrast is complimentary to the
Brightness control. Contrast controls should be used carefully because if overly adjusted,
some details in lighter areas can become less visible.
• Color Saturation
Color Saturation refers to the mix of “color” vs. “brightness” in the picture. Increasing Color
Saturation makes colors look more vivid. Decreasing Color Saturation makes colors look
“washed out.” Changes to either Brightness or Contrast can change your Color Saturation.
You can use this control to balance the mix of color verses brightness.
• Hue (Tint)
The changes made with a Hue control effect what most people would refer to as “color.” Hue
controls cause a shift in color spectra. Sometimes this control is called “Tint”. Hue changes
color without changing Luminance (picture brightness) or color saturation.
• Detail Enhancement
Increase Detail Enhancement to enhance or sharpen the ne details in an image such as
grass or the texture of a plaster wall.
Decrease Detail Enhancement to reduce noise in a noisy image.
• Edge Enhancement
Increase Edge Enhancement to sharpen object edges in an image.
Decrease Edge Enhancement to soften object edges in an image.
• Mosquito NR
The term “noise” in the context of video images refers to unwanted or unnatural looking
elements that nd their way into video signals. “Mosquito Noise” is a particular type of image
noise that is caused by video compression processing. Video compression is common for all
types of transmitted video, including cable, satellite, and over-the-air broadcasts. Compres-
sion is also used with DVD and other prerecorded media. The visibility of Mosquito Noise will
vary. In some cases, it can become objectionable. Mosquito Noise will be more obvious in
standard denition video, although it is sometimes present in high denition video.
The iScan Duo’s Mosquito NR feature removes mosquito noise present in an image. There
are three controls.
Off No noise reduction is applied. This is the normal setting for a good quality image.
On-Low Used when there is a small amount of mosquito noise present in the image.
On-High Used when there is signicant amount of mosquito noise present in the image.
Mosquito NR should only be enabled when there is noise in an image since it will remove
details in a good image.
Output Setup
The Output Setup menu lets you set up the iScan Duo’s many output features. The menus are listed
below.
• Test Patterns
There are 35 test patterns available for advanced users and calibration professionals. These
patterns automatically resize and use the correct colorimetry for the current output format.
Test patterns are useful to calibrate your home theater setup.
The iScan Duo remote has a group of buttons labeled TEST PATTERNS to turn test patterns
on/off and to navigate through the list of available test patterns.
• Video Format
All DVI and HDMI displays have an Extended Display Identication Data (EDID), which con-
tains information about the display’s capability. This information which includes the display’s
“preferred format” can be read by iScan Duo over the HDMI or DVI cable. In Auto Select
mode (iScan Duo’s default mode), the iScan Duo will automatically self-congure its output
to the display’s preferred format. It is possible that the display’s preferred format is not on
the list of standard formats shown on the Video Format menu listed below.
Use the INFO button on the remote or the Information screen in the menu to see the cur-
rent output format.
If you prefer not to use Auto Select, you can choose one of the standard formats from the list
on the Video Format menu
List of formats in the Video Format menu
Auto Select – this is the default setting
VGA 60Hz
480p 60Hz
720p 60Hz
1080i 60Hz
1080p 60Hz
576p 50Hz
720p 50Hz
1080i 50Hz
1080p 50Hz
1080p 24Hz
1080p 25Hz
SVGA 60Hz
XGA 60Hz
SXGA 60Hz
If the output format changes, the iScan Duo tests to insure that your display can accept the
new format. You have about 30 seconds to verify that you see the new format by moving
the highlight bar to “Yes” then “OK.” If you don’t verify the new format, the iScan Duo will
revert to the previous format.
• Underscan
Some displays will overscan the picture, which means that the edges of the picture are
outside the frame of the viewable area. The Underscan slider-bar control lets you shrink the
picture, so that you can see all of it, and adjust for over-scanning.
Underscan is a display control. It is xed regardless of which input is selected.

19 20
• 1:1 Frame Rate
Disabled The output frame rate from the iScan Duo is xed.
Enabled The output frame rate from the iScan Duo tracks the input frame rate.
This avoids performing frame rate conversion, which can result in stuttering
motion in some cases.
The 1:1 Frame Rate feature is useful when you need to display video from both 60Hz and
50Hz sources, as long as your video display can operate at both frame rates. Some video
sources, such as Blu-ray players, can output 24Hz video. If you have a 24Hz source and
your display can also accept 24Hz, enabling 1:1 Frame Rate will allow the 24Hz video to pass
through the iScan Duo from source to display.
• Frame Lock
Auto Lock The output frame rate from the iScan Duo is xed and locks to the input
when possible.
Unlock The output frame rate from the iScan Duo is xed and not locked to the input.
Frame Lock provides more options for handling input and output frame rate and timing variations.
In some cases, this feature may provide smoother operation when switching input sources
or formats.
• Aspect Ratio
Aspect Ratio sets the display aspect ratio. If you have an HDMI display, Auto (default) is
the safe choice.
Auto The iScan Duo outputs the preferred aspect ratio reported by the display.
16:9 Sets the display aspect ratio to 16:9
4:3 Sets the display aspect ratio to 4:3
• Color Space
Color Space provides four choices for output color space. If you are unsure what to use,
Auto (default) is the safe choice.
Auto The iScan Duo outputs the preferred color space reported by the display.
RGB Red, Green, Blue color space standard using 8 bits per color.
YCbCr 4:4:4 Component color space used for video standards; 8 bits per component.
YCbCr 4:2:2 Component color space used for video standards: 10 bits per component.
• Colorimetry
Colorimetry refers to the standards by which RGB is converted to YCbCr. There are two stan-
dards for performing this conversion:
ITU BT .601: This is the colorimetry standard for Standard Denition video formats.
ITU BT .709: This is the colorimetry standard for High Denition video formats.
Auto The iScan Duo outputs the colorimetry standard reported by the display.
ITU BT.601 The iScan Duo outputs BT.601 standard
ITU BT.709 The iScan Duo outputs BT.709 standard
• Video Level
This control is similar to the Video Level control in the Input Adjust menu but applies to the
iScan Duo’s output.
Auto The iScan Duo outputs the video level reported by the display.
Video The iScan Duo outputs ‘video’ signal level to the display.
Computer The iScan Duo outputs ‘computer’ signal level to the display.
• Deep Color
The iScan Duo supports Deep Color displays. These displays support 30-bit or 36-bit inputs.
If the display connected to the iScan Duo supports Deep Color, the iScan Duo’s output can
be congured as follows.
Off The iScan Duo will not output Deep Color format (default mode).
Auto The iScan Duo will output the display’s preferred Deep Color format.
30-bit The Scan Duo will output 30-bit Deep Color format.
36-bit The Scan Duo will output 36-bit Deep Color format.
• Audio Output
The iScan Duo can output audio on one of the following connectors: HDMI Video 1, HDMI
Video 2, HDMI Audio, Optical.
Auto Select The iScan Duo will automatically route audio to an audio output.
The choice of output depends on what components are connected to the outputs
and powered up.
Video HDMI Use this setting if you want to send audio to your video display’s speakers.
Audio HDMI Use this setting if you have an AV Receiver with an HDMI input.
Optical Use this setting if you have an AV Receiver without HDMI inputs.
The table below shows the connector choice for audio when Auto Select is chosen.
Output Connector Conditions
Audio HDMI A/V Receiver with HDMI inputs is connected to the Audio HDMI port.
Video HDMI HDMI Display has audio capability (reported via the EDID).
No A/V Receiver is connected to the Audio HDMI port, or an AV Receiver
is connected but powered off.
Optical Display does not have audio capability (reported via the EDID).
No A/V Receiver is connected to the Audio HDMI port, or it is powered off.
Conguration
This menu provides system level controls of the iScan Duo
• Input Priority
Input Priority selects which input to use when multiple inputs are active at the same time and
Input Select is set to Auto. The selection is based on priority.
To change priority of selection with the remote control:
Use the navigation pand q buttons to move to input you want to change
Press ENTER to select the input
Use the navigation pand q buttons to move the input to the desired priority
Press ENTER again to choose another input

21 22
• Rename Inputs
The Rename Inputs feature lets you customize your setup. The names you enter will appear
in the Select Input menu.
Select the input you want to rename with the remote control ENTER button.
Use the navigation t,p,q,u buttons to move the highlighted character around on the
keyboard.
ENTER puts the selected character in the edit bar.
Cancel exits the window with no changes.
Finish exits the window and applies the new name.
• Auto Wake Up
Auto Wake Up provides more control over the conditions in which the iScan Duo will auto-
matically power on. The Auto Wake Up window gives you 3 options for dening the condi-
tions in which the iScan Duo will power itself on:
Off The iScan Duo will power on using the remote. Use this option if you want the iScan
Duo to remain powered down even if input signals become active.
Mode 1 The iScan Duo will power on automatically only if it powered down automatically.
If an input becomes inactive, the iScan Duo will automatically power itself off. If the
input becomes active again, the iScan Duo will automatically power on. If the iScan Duo
is powered down with the remote, then Auto Wake Up is turned off.
Mode 2 The iScan Duo will always automatically power on whenever an input signal is
present on any input.
• Auto Standby
Auto Standby gives you control over the conditions in which the iScan will power itself down.
Off The iScan Duo never goes into standby mode. This is useful in cases where you may
not have an active video signal, but you may have an active audio signal passing through
the iScan Duo.
On The iScan Duo goes into standby mode after a brief interval when there is no active input.
• Component Inputs
The Component Inputs menu gives you 3 options for controlling Automatic Gain Control on
Analog Component (YPbPr) Inputs:
Single Sync This is the default setting. Most component inputs will have sync only on the
Y signal.
Triple Sync A few devices will add sync to all three component input signals (Y, Pb, Pr).
If you know your device does this, choose this mode.
AGC Disable In some cases, Automatic Gain Control (AGC) will cause brightness
levels to be incorrect due to distortions in the analog input signals. Disabling AGC may
correct this problem.
In general, you should use Single Sync. If your picture does not look correct, experiment
with the other settings.
• Select RGBS
The menu allows you to assign one of the iScan Duo’s two component inputs to RGBS format,
which is available with the SCART connector. The SCART connector is used widely in countries
with PAL/SECAM video standards.
Select Component 1 or Component 2 to select the input
Select Enable to assign the selected input to RGBS format.
Note: When the RGBS mode is selected, the Y Pb Pr connectors are mapped to G B R. The Video
input connector next to the Y Pb Pr connector becomes the ‘S’ input. In other words, when RGBS
mode is selected, one of the Composite Video inputs becomes unavailable.
For example,
Component 1 input – RGBS mode disabled
Component 1 input – RGBS mode enabled
• LED Brightness
This menu controls the brightness of the power LED and Front Panel Display (FPD). There are
4 levels of control. ‘0’ turns off both LED and FPD. ‘3’ gives the maximum brightness off
both LED and FPD.
• Factory Defaults
Factory Defaults is a quick way to “undo” any settings that have been made, and restore the
iScan Duo’s original default settings.
Video Output Restores video format setting to Auto. In Auto mode, the iScan Duo
will automatically communicate with your display and output your
display’s preferred format.
Picture Controls Restores default settings to Picture Controls menu items
Input Names Restores default names for video inputs.
All Defaults Restores all defaults.
• Update Firmware
Update Firmware is used when you want to update the iScan Duo’s rmware.
Steps to update rmware:
— Download the new rmware (‘.zip’ le) from DVDO website.
— Unzip to le to extract the new rmware with a ‘.abt’ extension.
— Note its location on your PC hard-drive.
— Use mini-USB to USB cable supplied with the iScan Duo.
— Plug the smaller connector on the cable to the mini-USB port at the back of the
iScan Duo.
— Plug the larger connector to your PC.
— Select YES to conrm that you want to update rmware.
Y
G
Pb
B
Pr
R
Video 1
Sync

23 24
— An iScan Duo icon should appear on your PC’s desktop. The iScan Duo looks like a mass
storage device to your PC.
— Double click on the iScan Duo icon. You should see a le with a ‘.abt’ extension.
Select that le and delete it.
— Copy the new ‘.abt’ le into the iScan Duo icon.
— After the le has been copied, the iScan Duo will automatically update its rmware
and indicate progress on the Front Panel Display.
IMPORTANT: Make sure the le you are copying to the iScan Duo has a ‘.abt’ extension.
• Serial Port Rate
The serial port is used by automation system controllers to control the iScan Duo. The serial port
baud rate defaults to 19200 bps, but can be changed using the navigation p or q buttons on
the remote control.
The supported baud rates are:
4800 bps (4.8K)
9600 bps (9.6K)
14400 bps (14.4K)
19200 bps (19.2K) - default
38400 bps (38.4K)
115200 bps (115.2K)
Wizard Launch
The iScan Duo features two ‘Wizards’ to guide you through setup of your display, A/V receivers and
input devices.
• Display Wizard
The Display Wizard assists setup of your display and audio.
Using Display Wizard, you can:
1. Name your display.
2. Select an output video format.
3. Select an output connector for audio.
If you don’t want to change anything, press t to Exit the Wizard.
Changing the Display Name:
Press ENTER or u if you want to change the name of your display.
Use this on-screen keyboard to rename your display with the navigation remote buttons.
When you are nished, highlight Finish then press OK to accept the new name. If you
want to exit the keyboard screen with no changes, highlight Cancel, then press OK.
Changing the Output Format:
Press ENTER or u if you want to change the output format.
This takes you to the Output Format menu. Refer to the Output Format section.
Changing the Audio Output:
Press ENTER or u if you want to change the audio output.
This takes you to the Audio Output menu. Refer to the Audio Output section.
Press EXIT to exit the Display Wizard
• Input Wizard
The Input Wizard guides you through the setup of your input components. You can run the
Input Wizard for every input component.
Using the Input Wizard, you may:
1. Rename an input component.
2. Set an Input Priority for the component.
3. Associate an Audio Input with the video input.
Changing the Input Priority:
Press ENTER or u if you want to reassign the priority of the input for Auto input selec-
tion. This takes you to the Input Priority menu. Refer to the Input Priority section.
Changing the Associated Aud(io):
Press ENTER or u if you want to associate an audio input with the video input.
This takes you to the Audio Input menu. Refer to the Audio Input section.
Press EXIT to exit the Input Wizard
Information
The iScan Duo has several ‘Info’ screens which contain important information to assist with trouble-
shooting. The screens are shown below.
Use the navigation q, p buttons to display the pages.
Use EXIT or t button to exit the Information menu.
