Dyson DC15 User manual

The Ball User Guide
Please read this guide carefully before using your DC15

Slide wand down inside hose
until it clicks.
Slot wand into top of machine
and click into place.
Wind cable anti-clockwise and
secure with clip.
Click tools into place.
1Assembling
IMPORTANT
• Ensure hose is straight when
inserting wand.
•Please see back of manual for
optional accessories.
•If you have any questions,
please call the Dyson Helpline,
or log onto www.dyson.com
Brush tool
Crevice tool
Stair tool

Carrying your Dyson
Ensure machine is upright
before carrying.
Use the carry handle at the
top of the cyclone to lift.

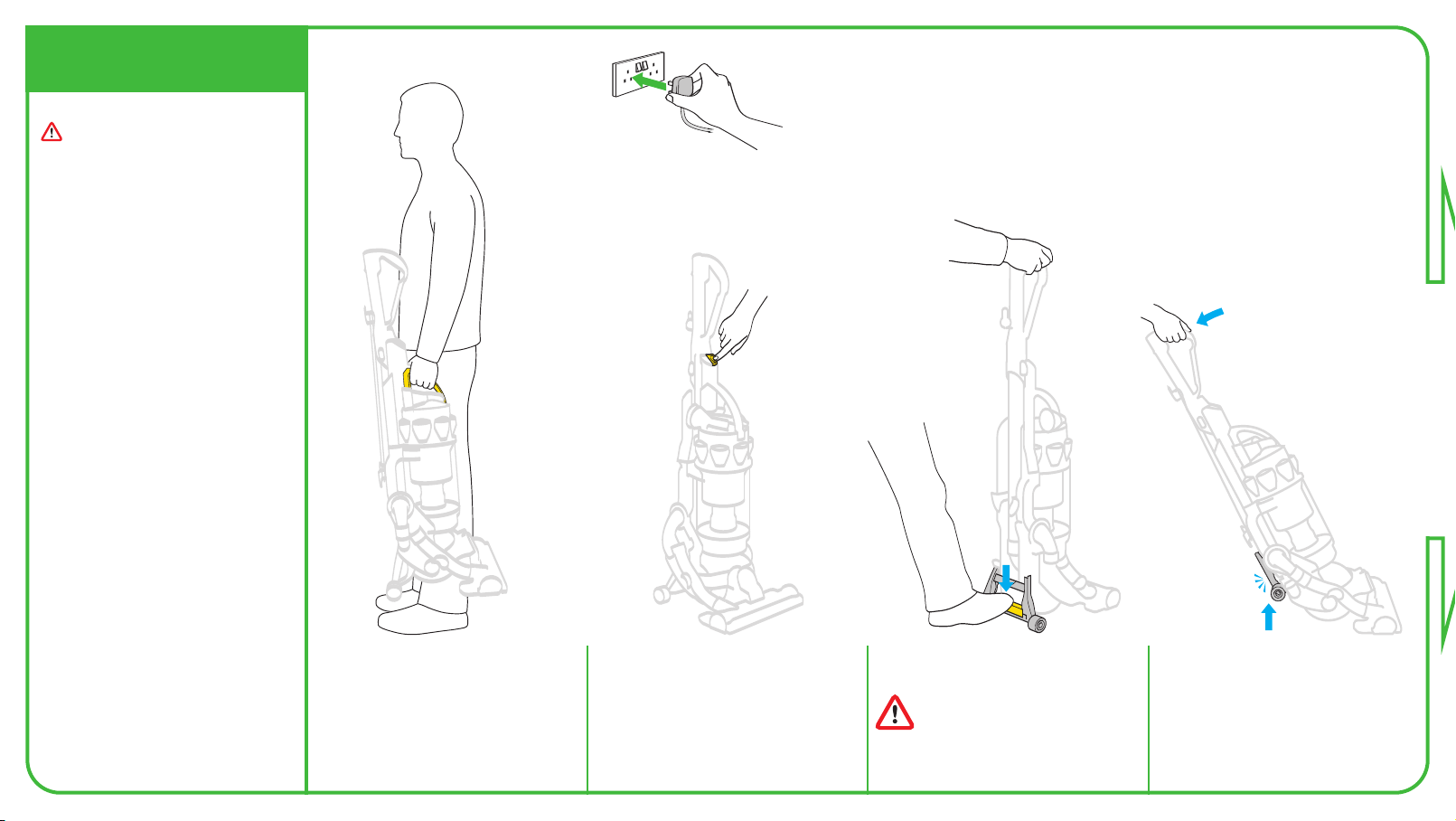

Using your Dyson
Plug in and press ON/OFF
switch.
Press pedal to release cleaner
head and pull handle towards you.
Use pedal only – do not stand
directly on cleaner head.
Ensure stabilising wheels are
fully retracted or brushbar will
not operate.
2Using your Dyson
IMPORTANT
• Please note: this machine is
intended for domestic use only.
Fine dust such as plaster dust or
flour should only be vacuumed
in very small amounts.
• The brushbar will automatically
stop if it becomes obstructed.
• Do not press the cyclone release
button while carrying the
machine or it could fall and
cause injury.
•Ensure the cyclone is secured to
the machine.
•Do not shake the machine while
carrying or it could fall and
cause injury.

Brush control
Press button to turn brushbar
OFF for delicate rugs, looped
carpets and hard floors. Press
again to restart for carpets.
Using DC15
Small movements of the wrist will create a zigzag motion in the
cleaner head, for easier cleaning around furniture.
When finished, push the handle
firmly beyond the upright position
to drop stabilising wheels.
Ensure stabilising wheels are
fully locked in place before
letting go of the cleaner.
3Using your Dyson
IMPORTANT
• The brushbar will be set to the
ON position every time you
start the vacuum.
• If the brushbar stops during
use, please refer to the
blockages section.
• Ensure stabilising wheels are
fully locked in place when
cleaner is upright before letting
go of the cleaner.
• Do not run over the supply
cable.

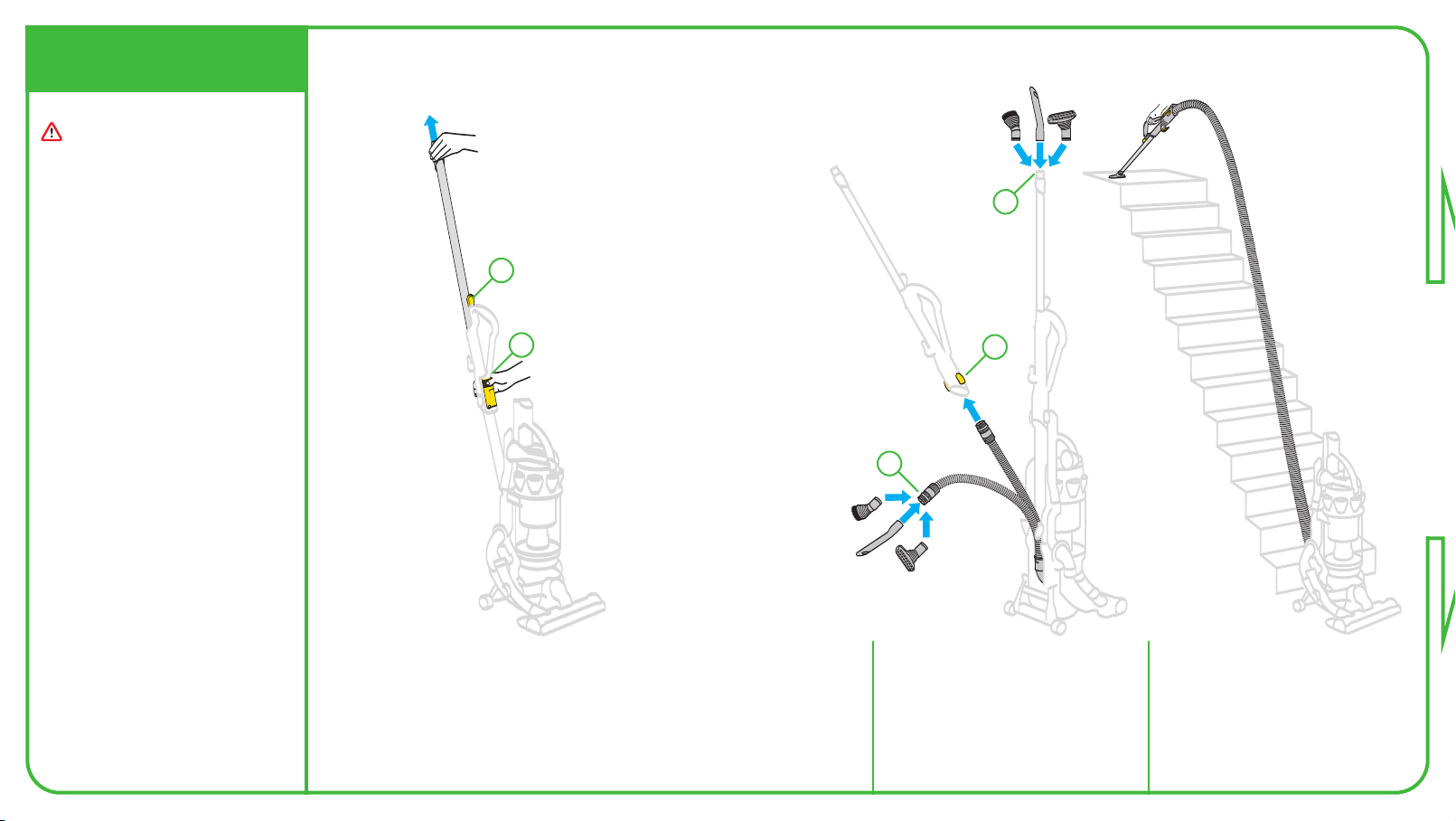

Wand mode
ALift up wand cap and pull metal wand from inside handle until it clicks.
BPress button to release hose and wand handle from machine. To
push wand back inside hose, ensure hose is straight. Press wand
release button and push wand down into hose.
Hose mode
AFirst extend the wand, then
press side buttons to remove
wand handle from hose.
BTools can be fitted directly to
the end of hose or wand.
Stair cleaning
Always work with the machine
at the bottom of the stairs.
4Using the tools
IMPORTANT
• Ensure machine is in upright
position before using tools.
•To protect your floors, the
brushbar will not rotate when
the machine is in an upright
position.
• Ensure hair and loose clothing
are kept clear of wand cap
when machine is switched on.
• Ensure wand cap is closed,
unless using with tools.
• Powerful suction can cause the
hose to ‘pull back’. Please take
care when cleaning stairs.
A
BA
B
B

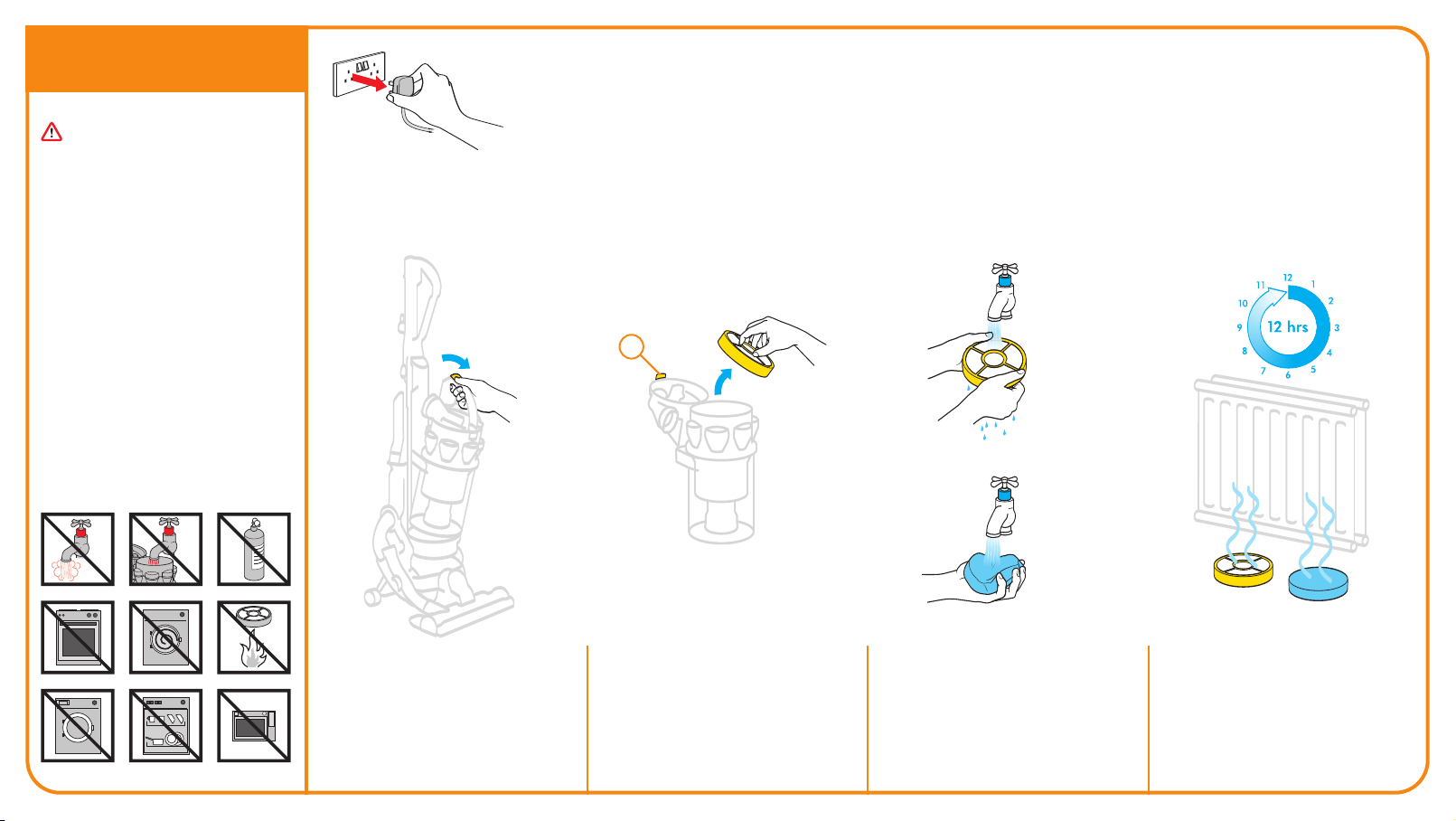

Remove cyclone from machine. Lift filter release catch Aand
remove filter.
Separate blue filter and
yellow case.
Wash filter and case in cold
water only. Repeat until water
runs clear.
Dry for at least 12 hours. Ensure
filter is completely dry before
refitting onto the machine.
5Washing your filter
IMPORTANT
• Check your filter regularly and
wash at least every six months.
• The filter may require more
frequent washing if vacuuming
fine dust.
A

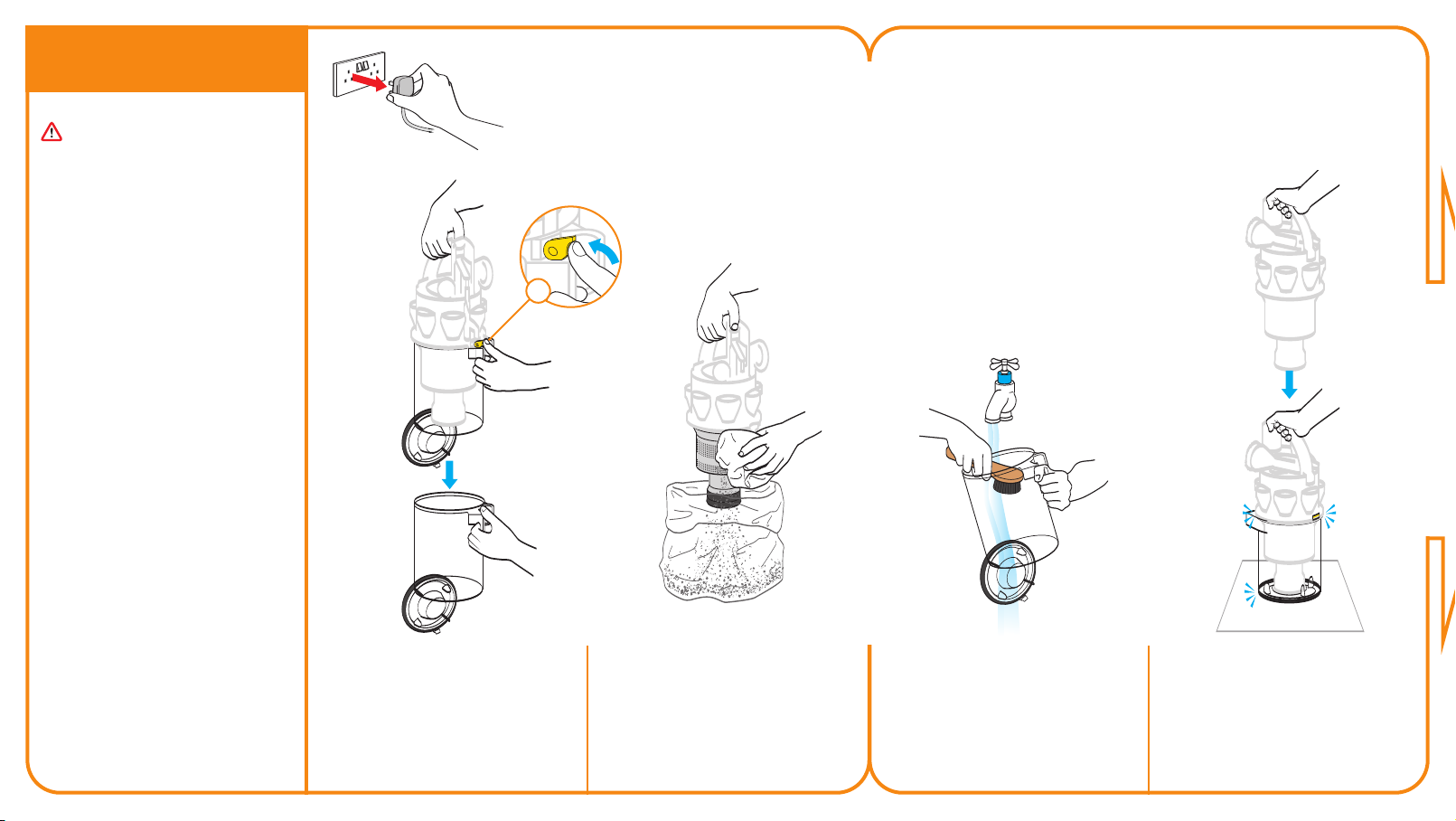

Empty bin as soon as the MAX
mark is reached.
Press catch to release cyclone
and bin from the machine.
Option 1
Push the button as shown to
empty directly into dustbin.
Option 2
Emptying in a bag is recommended
for allergy sufferers.
Place bin in bag and push button.
Let the dust settle and close
bin base securely before
removing from bag and
refitting the bin on the
machine.
6Emptying the Clear binTM Recommended for asthma/allergy sufferers
IMPORTANT
• Do not use the machine
without the clear binTM in place.
The British Allergy Foundation considers
that this product may in proper use reduce
exposure to both House Dust Mite (Der p 1)
and Cat Allergen (Fel d 1). It is strongly
recommended that a sensitive person should
take care when emptying the clear bin. We
recommend the manufacturer’s emptying
instructions should be strictly followed.
The British Allergy Foundation is a UK
national charity (Charity Re. No. 1003726)
founded in 1991 with the aim of
improving awareness, prevention and
treatment of allergies.

Cleaning the shroud (optional)
Ensure bin is empty and bin
base is open.
APress catch to release the
clear binTM from the cyclone.
Clean shroud with a cloth or
dry brush to remove fluff.
Cleaning the Clear binTM (optional)
Ensure bin is empty and bin base
is open.
Rinse with cold water only.
Ensure bin is dry before replacing.
Re-assembling the Clear binTM
Holding carry handle, fit cyclone
inside the clear binTM.
Line up the front and rear guides
and push down to secure.
7Cleaning the Clear binTM
IMPORTANT
• Do not use detergents, polishes
or freshening products.
•Do not immerse the whole
cyclone in water.
• Ensure parts are completely dry
before replacing.
A

Check tools, wand and hose are
clear of blockages.
ATo remove the hose, rotate
base of hose downwards until
it clicks, then twist away from
the machine.
BSqueeze release catches to
remove the airway inspection
and check inside.
CPull the top end of the tube
away from machine and
check inside.
DUndo coloured soleplate
fasteners with a coin.
ERotate endcaps to remove.
FPull out brushbar sections.
GCut out debris avoiding bristles.
8Clearing blockages
IMPORTANT
• If any part of the machine
becomes blocked, it may
overheat and then automatically
shut off. Unplug machine and
leave to cool down.
• For safety, please lay the
machine on its side before
checking for blockages.
• Refit all parts of the machine
securely before using it.
• Beware of sharp objects when
clearing blockages.
A
G
F
D
B
C
A
C
B
Maintaining mini turbine head*
(Supplied with certain models or
available as an accessory).
AUndo fasteners and remove
soleplate.
BRemove brushbars and
debris. When re-assembling,
ensure brushbar arrows
match those on central
support C.
*Selected models only.
E

DYSON LIMITED MALMESBURY SN16 ORP ENGLAND UK
230-240V 50Hz
1200 W
FOR PATENT INFORMATION SEE OPERATING MANUAL 02422-01-04
DC15
D
Note your serial number for future reference:
Hard floor tool
For improved pick-up
on hard floors.
Stubborn dirt brush
With stiff bristles
for dried-in and
stubborn dirt.
Flexi crevice tool
Extends and flexes
into awkward gaps.
Soft dusting brush
Soft bristles to gently
dust around the home.
Mattress tool
Removes dirt and dust
mites from mattresses
and upholstery.
Car turbine head
Cleans pet hair and
fibres from confined
spaces.
Mini turbine head
Picks up pet hair and
dirt from stairs and
upholstery.
Low reach floor tool
For easier cleaning
under low furniture.
Carpet cleaning kit
Keeps new carpets
looking new.
JN.15180 PN.08898-06-01 03.12.07
Take care to ensure objects or
body parts are not inserted into
the cleaner head
1. This appliance is not intended for use
by young children or infirm persons
without supervision. Young children should
be supervised to ensure they do not play
with the appliance or place body parts
near the cleaner head.
2. The plug must be removed from the
socket outlet before cleaning or
maintaining the appliance.
3. Check to ensure your electricity supply
corresponds to that shown on the rating
plate, which can be found behind the
clear binTM.The machine must only be
used as rated.
4. If the supply cable of the cleaner is
damaged, disconnect from the socket
immediately. The cable must be replaced
by Dyson Ltd. or our appointed agent to
avoid a hazard.
5. Do not use the cleaner if the cable or
plug are damaged or if the cleaner has
been damaged, dropped or has come in
to contact with water or any other liquid.
In these cases, contact the Dyson Helpline.
6. When vacuuming,certain carpets may
generate small static charges in the clear
binTM.These are entirely harmless and not
associated with the power supply.
To minimise any effect from this, do not
insert hand or any object into the clear
binTM unless you have first emptied it and
rinsed it with cold water.
7. Do not use the cleaner if any parts
appear to be faulty, missing or damaged.
8. Do not carry out any maintenance work
other than that shown in this manual or
advised by the Dyson Helpline, and do
not put anything into the openings or
moving parts of the machine.
9. Only use parts recommended by
Dyson; failure to do so could invalidate
your guarantee.
10. If you have a query about your Dyson,
call the Dyson Helpline with your serial
number, which can be found behind the
clear binTM.
