Dyson SV12 User manual

3.5 hrs
click click
Wash the filter unit
Wash the filter unit with cold water
at least every month.
Ensure that the filter unit is
completely dry before refitting.
Register
your Dyson
2 year
guarantee
today
Operating manual
Assembly
SV12

2
Dyson customer care
Thank you for choosing to buy a Dyson appliance.
Your Dyson appliance will be covered for parts and labour (excluding replacement
filters where there is no defect) for 2 years from the date of purchase, as detailed in the
terms of the Dyson guarantee in this Dyson Operating Manual.
If you have a query about your Dyson appliance, contact us via the website.
Alternatively, call the Dyson Customer Care Helpline quoting your serial number and
details of where and when you bought the appliance.
Visit our website to register your Dyson full parts and labour guarantee online, and for
online help, support videos, general tips and useful information about Dyson.
AU: www.dyson.com.au/support
NZ: www.dyson.co.nz/support
This illustration is for example purposes only.
DYSON CUSTOMER CARE
Australia
Website: www.dyson.com.au
Email: [e-mail]
Dyson Customer Care: 1800 239 766 (Mon-Fri 8:00am to 6:00pm EST,
Sat-Sun 8:30am to 4:00pm EST).
Address: Dyson Appliances (Aust.) Pty Limited, PO Box 2175, Taren Point,
NSW 2229 Australia.
New Zealand
Website: www.dyson.co.nz
Email: [e-mail]
Dyson Customer Care: 0800 397 667 (Mon-Fri 8:30am to 5:00pm).
Address: Dyson New Zealand Limited, Unit 6, 99 Carbine Road,
Mount Wellington, Auckland, 1060, New Zealand.
IMPORTANT SAFETY
INSTRUCTIONS
BEFORE USING THIS APPLIANCE READ
ALL INSTRUCTIONS AND CAUTIONARY
MARKINGS IN THIS MANUAL AND ON
THE APPLIANCE
When using an electrical appliance, basic
precautions should always be followed,
including the following:
WARNING
These warnings apply to the appliance,
and also where applicable, to all tools,
accessories, chargers or mains adaptors.
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK, OR INJURY:
1. This Dyson appliance is not intended for use
by persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision
or instruction by a responsible person
concerning use of the appliance to ensure
that they can use it safely.
2. Do not allow to be used as a toy. Close
attention is necessary when used by or near
children. Children should be supervised
to ensure that they do not play with
the appliance.
3. Use only as described in the Dyson User
manual. Do not carry out any maintenance
other than that shown in the manual, or
advised by the Dyson Helpline.
4. Suitable for dry locations ONLY. Do not use
outdoors or on wet surfaces.
5. Do not handle any part of the plug or
appliance with wet hands.
6. Do not use with a damaged cable or plug.
If the supply cable is damaged it must be
replaced by Dyson, its service agent or
similarly qualified persons in order to avoid
a hazard.
7. If the appliance is not working as it should,
if it has received a sharp blow, if it has
been dropped, damaged, left outdoors, or
dropped into water, do not use and contact
the Dyson Helpline.
Your serial number can be found on your rating plate which is on the base
of the appliance.
Note your serial number for future reference.
3 EASY WAYS TO REGISTER YOUR DYSON
2 YEAR GUARANTEE
REGISTER
ONLINE
Visit our website to register your
Dyson full parts and labour
guarantee online.
AU: www.dyson.com.au/register
NZ: www.dyson.co.nz/register
REGISTER
BY PHONE
Call our dedicated Helpline.
AU 1800 239 766
NZ 0800 397 667
REGISTER
BY MAIL
Complete and return the form to
Dyson in the envelope supplied.

3
8. Contact the Dyson Helpline when a service
or repair is required. Do not disassemble the
appliance as incorrect reassembly may result
in an electric shock or fire.
9. Do not stretch the cable or place the cable
under strain. Keep the cable away from
heated surfaces. Do not close a door on the
cable, or pull the cable around sharp edges
or corners. Arrange the cable away from
traffic areas and where it will not be stepped
on or tripped over. Do not run the appliance
over the cable.
10. Do not unplug by pulling on the cable.
To unplug, grasp the plug, not the
cable. The use of an extension cable is
not recommended.
11. Do not use to pick up water.
12. Do not use to pick up flammable or
combustible liquids, such as petrol, or use
in areas where they or their vapours may
be present.
13. Do not pick up anything that is burning or
smoking, such as cigarettes, matches, or
hot ashes.
14. Keep hair, loose clothing, fingers, and all
parts of the body away from openings and
moving parts, such as the brush bar. Do not
point the hose, wand or tools at your eyes or
ears or put them in your mouth.
15. Do not put any objects into openings. Do not
use with any openings blocked; keep free
of dust, lint, hair, and anything that may
reduce airflow.
16. Use only Dyson recommended accessories
and replacement parts.
17. Do not use without the clear bin and filter(s)
in place.
18. Unplug the charger when not in use for
extended periods of time.
19. Use extra care when cleaning on stairs.
20. Do not install, charge or use this appliance
outdoors, in a bathroom or within 3 metres
(10 feet) of a pool. Do not use on wet
surfaces and do not expose to moisture, rain
or snow.
21. Use only the Dyson charger Part Number
217160 or 270576 for charging this Dyson
machine. Use only Dyson batteries: other
types of batteries may explode, causing
injury to persons and damage.
22. FIRE WARNING – Do not place this
appliance on or near a cooker or any
other hot surface and do not incinerate this
appliance even if it is severely damaged. The
battery might catch fire or explode.
23. Always turn ‘OFF’ the appliance before
connecting or disconnecting the motorised
brush bar.
24. FIRE WARNING – Do not apply any
fragrance or scented products to the filter(s)
of this appliance. The chemicals in such
products are known to be flammable and
can cause the appliance to catch fire.
READ AND SAVE THESE
INSTRUCTIONS
THIS DYSON APPLIANCE IS INTENDED
FOR HOUSEHOLD USE ONLY
Do not use near
naked flames.
Do not store near
heat sources.
Do not pick up
water or liquids.
Do not pick up
burning objects.
Do not put hands
near the brush bar
when the appliance
is in use.
Do not place on or
near the cooker.

4
3.5 hrs
click
click
click click
click
Power mode
Recharging Recharging on the dock Lights during charging
Charging, low charge
Charging, medium charge
Charging, nearly full
Fully charged
4
Boost suction
Suction mode 1
Suction mode 2

5
3.5 hrs
click
click
click click
click
Lights diagnostics
Lights during use Emptying the clear bin
High level of charge
Battery fault-call Dyson Helpline
Medium level of charge
Main body fault-call Dyson Helpline
Low level of charge
Charger fault-call Dyson Helpline
Empty, needs charging
5
Filter and blockage indicator LEDS
See battery section
Filter unit not fitted correctly
Blockage indicator
Filter unit requires washing

6
click
click
3
2
1
4
1
2

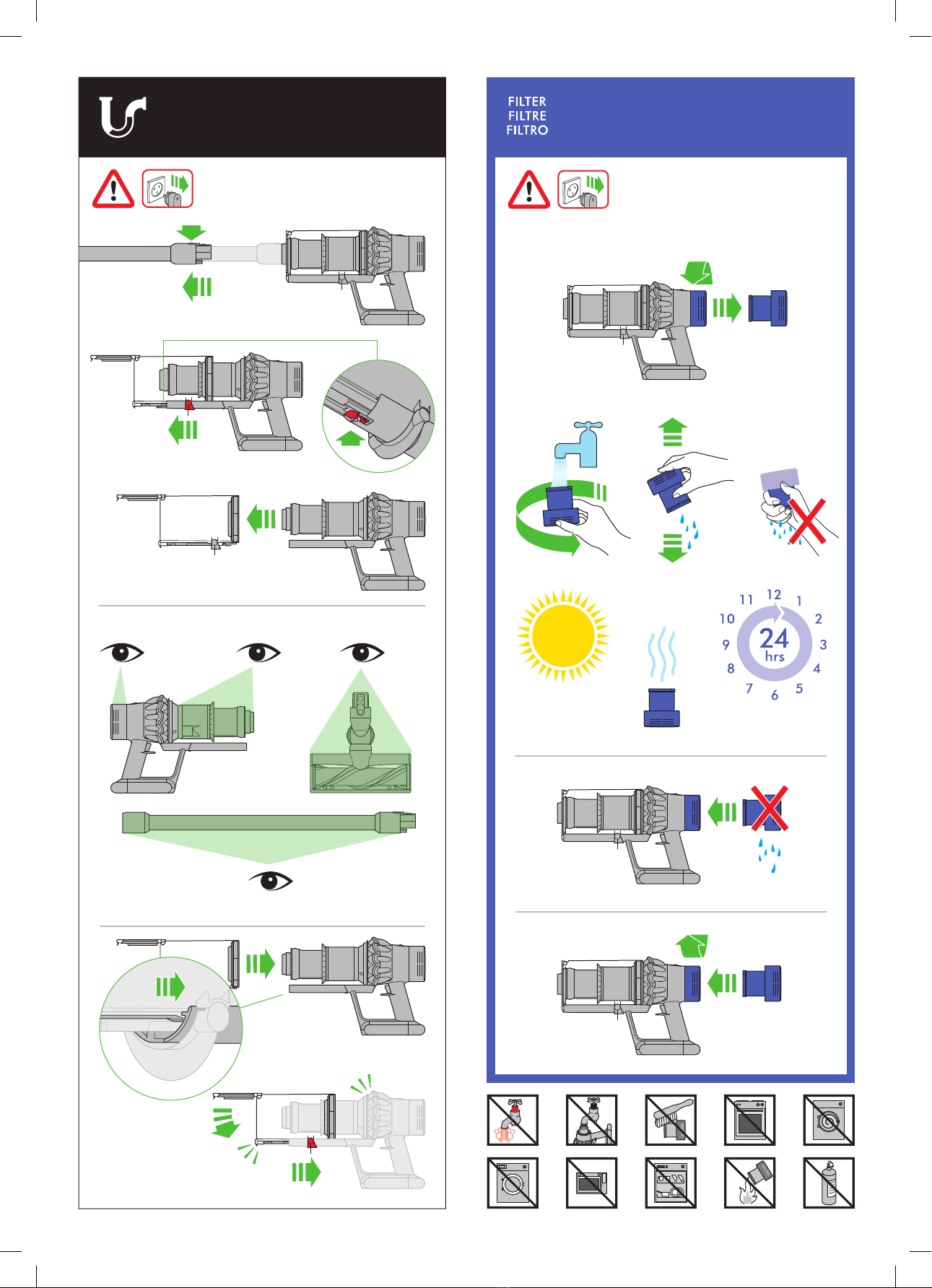

Wash the filter unit
Wash the filter unit with cold water at
least every month.
Ensure that the filter unit is completely
dry before refitting.
Looking for blockages

7
1 2 3
1
2 3
1
3 4 5
2
12 3
45
67
1
2
1
2
1
2
click
1
2
Direct drive cleaner head: Clearing obstructions
Mini motorised tool: Clearing obstructions

8
USING YOUR DYSON MACHINE
PLEASE READ THE ‘IMPORTANT SAFETY INSTRUCTIONS’ IN YOUR DYSON USER
MANUAL BEFORE PROCEEDING.
INSTALLING YOUR DOCKING STATION
• Unpack the docking station, charger and installation leaflet.
• Choose a suitable location for the docking station and make sure there is no
pipework (gas, water or air), electrical cables, wires or ductwork directly behind the
mounting location.
• Follow the instructions on the installation leaflet.
• Click the tools into place on the docking station.
• Place the machine into the docking station.
• Plug the charger into the mains electricity supply. Switch on (if necessary) to charge
the battery.
• It is important to fully charge your machine before using for the first time and after
every use.
The docking station must be mounted in accordance with regulations and
applicable codes/standards (state and local laws may apply).
Dyson recommends the use of protective clothing, eyewear and materials when
installing the docking station.
USING YOUR MACHINE
• Remove the appliance from the docking station.
• Check that the underside of the cleaner head or tool is clean and free from foreign
objects that may cause damage.
Before vacuuming your flooring, rugs and carpets, check the manufacturer's
recommended cleaning instructions.
The brush bar on the appliance can damage certain carpet types and floors. Some
carpets will fuzz if a rotating brush bar is used when vacuuming. If this happens, we
recommend vacuuming without the motorised floor tool and consulting with your
flooring manufacturer.
EMPTYING YOUR CLEAR BIN
• Empty as soon as the dirt reaches the MAX level – don't overfill. Using the machine
when the dirt is above the MAX line may cause the dirt to reach the filter and more
frequent maintenance will be required.
• Ensure that the appliance is disconnected from the charger before emptying the
clear bin. Be careful not to pull the 'ON' trigger.
• The 'ON' trigger cannot be operated while the clear bin is open for emptying.
• Remove the wand by pressing the red wand release button and pulling away from
the bin.
• To release the dirt:
– Hold the appliance with the bin in a downwards position.
– Firmly push the red bin release button.
– The bin will slide down, cleaning the shroud as it goes.
– The bin base will then open.
– The bin base will not open if the red button is not pushed down fully.
To minimise dust/allergen contact when emptying, encase the clear bin tightly in a
dust proof bag and empty. Remove the clear bin carefully from the bag. Seal the
bag tightly, dispose as normal.
CLEANING THE CLEAR BIN (OPTIONAL)
If it is necessary to clean the clear bin:
• Follow the instructions in the ‘Emptying the clear bin’ section.
• Press the red button located on the bin runner to release the bin and slide the bin
off the runner.
• Clean the clear bin with a damp cloth only.
• Ensure that the clear bin and seals are completely dry before replacing.
• To refit the clear bin:
– Insert the spine on to the bin runner.
Close the clear bin by pushing the bin base upwards until the clear bin and bin base
click into place.
The clear bin is not dishwasher safe and the use of detergents, polishes or air
fresheners to clean the clear bin is not recommended as this may damage
your appliance.
FILTER AND BLOCKAGE INDICATOR LEDS
Your appliance has two indicator lights that will help alert you that simple
maintenance steps are needed.
• The filter indicator will flash intermittently when the filter unit is not fitted correctly.
Follow the instructions on how to refit the filter unit in the 'Washing the filter unit'
section.
• The filter indicator will light continuously when the filter unit needs washing. Follow
the instructions on how to wash the filter unit in the 'Washing the filter unit' section.
• The blockage Indicator LED will light if there is a blockage. Follow the instructions
on how to clear blockages in the 'Looking for blockages' section.
WASHABLE PARTS
Your appliance has washable parts, which require regular cleaning. Follow the
instructions below.
WASHING THE FILTER UNIT
The LCD display will alert you when the filter unit needs washing. We recommend
that you wash your filter at least once a month or when your machine alerts you.
• Remove the filter unit by twisting anticlockwise to the open position. Gently pull
away from the appliance.
• Wash the inside of the filter unit first; hold it upright under the cold water tap and
agitate using a rotating motion.
• Wash the outside of the filter unit; fill the unit with cold water, place your hand over
the open end and shake gently.
• Repeat washing the inside and outside of the filter unit until the water runs clear.
• Gently tap the filter unit to remove any excess water and leave to dry with the open
end facing up.
• Leave the filter unit to dry completely for a minimum of 24 hours.
• Check that the filter unit is completely dry.
• To refit, return the filter unit to the open position and twist clockwise until it clicks
into place.
The filter unit may require more frequent washing if vacuuming fine dust or using
mainly Boost mode.
Don't put any part of your machine in a dishwasher, washing machine, tumble
dryer, oven, microwave or near a naked flame.
BLOCKAGES – AUTOMATIC CUT-OUT
• This appliance is fitted with an automatic cut-out.
• If any part becomes blocked, the appliance may automatically cut out.
• This will happen after the motor pulses a number of times (i.e switches on and off in
quick succession) and the blockage indicator LED will illuminate.
• Leave to cool down before looking for blockages.
• Ensure that the appliance is disconnected from the charger before looking for
blockages. Failure to do so could result in personal injury.
• Make sure any blockages are clear and all parts are refitted before using
your machine.
• Refit all parts securely before using.
• Clearing blockages is not covered by your Dyson guarantee.
LOOKING FOR BLOCKAGES
The motor will pulse and the blockage indicator LED will illuminate when there is a
blockage. Please follow the instructions below to locate the blockage:
• Ensure that the appliance is disconnected from the charger before looking for
blockages. Be careful not to pull the ‘ON’ trigger.
• Do not operate while checking for blockages. Failure to do so could result in
personal injury.
• Beware of sharp objects when checking for blockages.
• To check for blockages in the main body of the appliance, remove the clear
bin following the instructions in the 'Cleaning the clear bin' section and remove
the blockage.
• If you cannot clear an obstruction from the cleanerhead, you may need to remove
the brush bar. Use a coin to unlock the fastener, slide the brush bar out of the
cleanerhead and remove the obstruction. Replace the brush bar and secure it by
tightening the fastener. Ensure it is fixed firmly before operating the appliance.
• This machine has carbon fibre brushes. Take care if coming into contact with
them, as they may cause minor skin irritation. Wash your hands after handling
the brushes.
• Refit all parts securely before using.
• Clearing blockages is not covered by your Dyson guarantee.
CHARGING AND STORING
• This appliance will switch ‘OFF’ if the battery temperature is below 3°C
(37.4°F). This is designed to protect the motor and battery. Do not charge the
appliance and then move it to an area with a temperature below 3°C (37.4°F) for
storage purposes.
• To help prolong battery life, avoid recharging immediately after a full discharge.
Allow to cool for a few minutes.
• Avoid using the machine with the battery flush to a surface. This will help it run
cooler and prolong battery run time and life.
BATTERY SAFETY INSTRUCTIONS
• If the battery needs replacing, please contact the Dyson Helpline.
• Use only the Dyson charger Part Number 217160 or 270576 for charging this
Dyson machine.
• The battery is a sealed unit and under normal circumstances poses no safety
concerns. In the unlikely event that liquid leaks from the battery, do not touch the
liquid and observe the following precautions:
– Skin contact – can cause irritation. Wash with soap and water.
– Inhalation – can cause respiratory irritation. Expose to fresh air and seek medical
advice.
– Eye contact – can cause irritation. Immediately flush eyes thoroughly with water for
at least 15minutes. Seek medical attention.
– Disposal – wear gloves to handle the battery and dispose of immediately, following
local ordinances or regulations.
CAUTION
The battery used in this device may present a risk of fire or chemical burn if
mistreated. Do not short contacts, heat above 60°C(140°F), or incinerate. Keep
away from children. Do not disassemble and do not dispose of in fire.
ONLINE SUPPORT
• For online help, general tips, videos and useful information about Dyson.
AU: www.dyson.com.au/support
NZ: www.dyson.co.nz/support
DISPOSAL INFORMATION
Dyson products are made from high-grade recyclable materials. Please dispose of
this product responsibly and recycle where possible.
When your Dyson appliance reaches the end of its life, we can assist with its safe
disposal. You can send your old Dyson appliance back to us (at our cost) and we will
organise for it to be recycled.*
*Please note that not all parts are recyclable. Recycling of parts is subject to the
capabilities of third party suppliers. Available in Australia only.
Simply:
1. Box up your old Dyson appliance.
2. Take the package to your local post office and send it to the address below:

9
Dyson We Recycle
Reply Paid 83215
Dyson Service Centre
8–10 Mangrove Lane
Taren Point, NSW 2229
• The battery should be removed from the machine before disposal.
• Recycle or dispose of the battery in accordance with local ordinances
or regulations.
• Dispose of the exhausted filter unit in accordance with local ordinances
or regulations.
DYSON CUSTOMER CARE
THANK YOU FOR CHOOSING TO BUY A DYSON MACHINE
After registering your 2 year Dyson guarantee, your Dyson machine will be covered
for parts and labour for 2 years from the date of purchase, subject to the terms of
the guarantee. If you have any questions about your Dyson machine, call the Dyson
Helpline with your serial number and details of where and when you bought the
machine. Most questions can be solved over the phone by one of our trained Dyson
Helpline staff.
AUSTRALIAN CONSUMER LAW
In addition to your rights under the Dyson guarantee, we also provide the following
statement as required by the Australian Consumer Law: In Australia, your Dyson
machine comes with statutory guarantees that cannot be excluded under the
Australian Consumer Law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable loss or damage.
You are also entitled to have your Dyson machine repaired or replaced if it fails to
be of acceptable quality and the failure does not amount to a major failure.
NEW ZEALAND CONSUMER LAW
Under the New Zealand Consumer Guarantees Act 1993, if the product is not of
acceptable quality but that defect is not substantial, Dyson may choose whether to
repair or replace the product. If a repair will be difficult, Dyson may instead provide
you with a refund. If a product’s defect is substantial or cannot be fixed, you can
ask for either a refund, replacement product, or compensation for any reduction
in that product’s value. You are also entitled to compensation for any other
reasonably foreseeable loss caused by that substantial defect.
DYSON 2-YEAR GUARANTEE
TERMS AND CONDITIONS OF THE DYSON 2-YEAR GUARANTEE
WHAT IS COVERED
• The repair or replacement of your Dyson machine (at Dyson’s discretion) if it is
found to be defective due to faulty materials, workmanship or function within
two years of purchase or delivery (if any part is no longer available or out of
manufacture, Dyson will replace it with a functional replacement part).
• This Dyson guarantee will only be valid if the machine is used in the country in
which it was sold.
WHAT IS NOT COVERED
Under your Dyson guarantee, Dyson shall not be liable for costs of repair or
replacement of a product incurred as a result of:
• Accidental damage, faults caused by negligent use or care, misuse, neglect,
careless operation or handling of the Dyson machine which is not in accordance
with your Dyson User manual.
• Use of the Dyson machine for anything other than normal domestic purposes in the
country of purchase.
• Use of parts not assembled or installed in accordance with the instructions
of Dyson.
• Use of parts and accessories other than those produced or recommended
by Dyson.
• Repairs or alterations carried out by parties other than Dyson or its
authorised agents.
• Damage from external sources such as transit, weather, electrical outages or
power surges.
• Failures caused by circumstances outside Dyson’s control.
• Blockages – refer to the illustrations and the section ’Looking for blockages‘ in the
Dyson User manual for details on how to look for and clear blockages.
• Normal wear and tear (e.g. fuse, brush bar etc.).
• Use of this machine on rubble, ash, plaster.
• Reduction in battery discharge time due to battery age or use (cordless machines
only).
• Whether or not the Dyson guarantee applies, you may have rights and remedies
available to you under Australian or New Zealand Consumer Law.
OTHER TERMS RELATING TO THE
DYSON GUARANTEE
• The Dyson guarantee becomes effective from the date of purchase.
• All work will be carried out by Dyson Appliances (Aust.) Pty Limited, Dyson New
Zealand Limited (NZ) or their authorised agents.
• Any parts replaced by Dyson or its service agents will become the property of
Dyson Appliances (Aust.) Pty Limited or Dyson New Zealand Limited (NZ).
• You must provide proof of purchase for your Dyson machine in order to make a
claim under the Dyson guarantee.
• Under the Dyson guarantee, the repair, replacement and any associated delivery
charges (both to and from Dyson) will be at no cost to you.
• Whether or not the Dyson guarantee applies, you may have rights and remedies
available to you under Australian or New Zealand Consumer Law.
IMPORTANT DATA PROTECTION INFORMATION
When registering your Dyson machine:
• You will need to provide us with basic contact information to register your machine
and enable us to support your Dyson guarantee.
• When you register, you will have the opportunity to choose whether you would like
to receive communications from us. If you opt-in to communications from Dyson,
we will send you details of special offers and news of our latest innovations.
• We never sell your information to third parties and only use information that you
share with us as defined by our privacy policies which are available on our website
privacy.dyson.com.

www.dyson.comJN.105788 PN.242961-19-05 07.02.20
DYSON CUSTOMER CARE
Your Dyson appliance will be covered for parts and labour for 2 years from
the date of purchase, as detailed in the terms of the Dyson guarantee in this
Dyson Operating Manual.
If you have a query about your Dyson appliance, contact us via the website.
Alternatively, call the Dyson Customer Care Helpline quoting your serial
number and details of where and when you bought the appliance.
Most queries can be solved over the phone by one of our Dyson Customer
Care Helpline staff.
DYSON CUSTOMER CARE
Australia
Website: www.dyson.com.au
Email: [e-mail]
Dyson Customer Care: 1800 239 766
(Mon-Fri 8:00am to 6:00pm EST,
Sat-Sun 8:30am to 4:00pm EST).
Address: Dyson Appliances (Aust.) Pty
Limited, PO Box 2175, Taren Point,
NSW 2229 Australia.
New Zealand
Website: www.dyson.co.nz
Email: [e-mail]
Dyson Customer Care: 0800 397 667
(Mon-Fri 8:30am to 5:00pm).
Address: Dyson New Zealand Limited,
Unit 6, 99 Carbine Road, Mount
Wellington, Auckland, 1060,
New Zealand.
Wash the filter unit
Wash the filter unit with cold water at least every month.
Ensure that the filter unit is completely dry before refitting.
IMPORTANT!

GUARANTEE FORM
Date of purchase // Country of purchase Australia New Zealand
Serial number
Privacy statement
By providing the above information, you consent to Dyson using that information (including disclosing it to third parties such as our business
partners or professional advisers) for the purposes of providing the services you have requested. With your consent, Dyson may also use the
information you provide for future marketing and research purposes (including sending commercial electronic messages). If you consent to this
use, please tick the relevant boxes below.
If you wish to access your personal information please contact us at [email protected].
Title Surname
First name
Telephone
Email
Postcode
Address
Mobile
Store of purchase
By mail Yes No
By phone Yes No
By email Yes No
By text message Yes No
Yes No
As a Dyson appliance owner, you can hear about
Dyson inventions, services and products before anyone
else. If it’s okay to contact you, please let us know how
we may do this.
We sometimes ask other companies (such as market researchers) to
contact owners on our behalf. We do this to get feedback on ideas or
ask you to try new products and services. Would this be okay?
GUARANTEE FORM
REGISTER
BY MAIL
Complete and
return the form
to Dyson in the
envelope supplied.
REGISTER
BY PHONE
Call our dedicated
Helpline.
AU 1800 239 766
NZ 0800 397 667
REGISTER
ONLINE
Visit our website to
register your Dyson full parts
and labour guarantee online.
AU: www.dyson.com.au/register
NZ: www.dyson.co.nz/register
3 EASY WAYS TO REGISTER YOUR DYSON 2 YEAR GUARANTEE
