E-Lins H750 User manual

H750 User Manual
E-Lins Technology Co.,Limited
Tel: [phone] E-mail: [e-mail] www.e-lins.com
Industrial Grade 2G 3G 4G Cellular Router
User Manual
H750 Series
E-Lins Technology Co., Limited
PHONE: [phone]
Email: [e-mail]
WEB: http://www.e-lins.com
ADDRESS: Rm.33, Unit B, Floor 12, U chuanggu, Xinniu Rd,
Minzhi, Longhua, Shenzhen, 518000, China

H750 User Manual
E-Lins Technology Co.,Limited
Tel: [phone] E-mail: [e-mail] www.e-lins.com
Content
1 Preparation job before configuration ······························································································································· 4
1.1 Learn your router version and feature ················································································································· 4
1.2 Prepare SIM Card and working condition ··········································································································· 5
1.3 Highly recommendation for the configuration····································································································· 6
2 Hardware Installation························································································································································· 6
2.1 Overall Dimension ·················································································································································· 7
2.2 The Ports·································································································································································· 8
2.3 Installment································································································································································ 9
2.4 SIM/UIM card installed········································································································································· 10
2.5 The installation of terminal blocks ······················································································································ 10
2.6 Grounding ······························································································································································ 12
2.7 Power Supply ························································································································································ 12
2.8 LED and Check Network Status ························································································································· 12
3 Software configuration····················································································································································· 14
3.1 Overview ································································································································································ 14
3.2 How to log into the Router··································································································································· 14
3.3 How to Config via Router Web ··························································································································· 18
3.3.1 Status overview·················································································································································· 18
3.3.2 Network status ··················································································································································· 18
3.3.3 Firewall status ···················································································································································· 21
3.3.4 Routes································································································································································· 21
3.3.5 System log·························································································································································· 22
3.3.6 Kernel log···························································································································································· 23
3.3.7 Realtime graphs················································································································································· 24
3.3.8 VPN ····································································································································································· 25
3.4 System Configuration··········································································································································· 28
3.4.1 Setup wizard ······················································································································································ 28
3.4.2 System ································································································································································ 29
3.4.3 Password ···························································································································································· 30
3.4.4 NTP······································································································································································ 32
3.4.5 Backup/Restore ················································································································································· 33
3.4.6 Upgrade ······························································································································································ 33
3.4.7 Reset ··································································································································································· 35
3.4.8 Reboot································································································································································· 35
3.5 Services configuration·········································································································································· 36
3.5.1 ICMP check ························································································································································ 36
3.5.2 VRRP ·································································································································································· 37
3.5.3 Failover (link backup)········································································································································ 39
3.5.3.1 Failover basic settings··································································································································· 39
3.5.3.1 Failover Advanced settings··························································································································· 40
3.5.4 DTU ····································································································································································· 40
3.5.5 SNMP ·································································································································································· 43

H750 User Manual
E-Lins Technology Co.,Limited
Tel: [phone] E-mail: [e-mail] www.e-lins.com
3.5.6 GPS ····································································································································································· 45
3.5.7 SMS····································································································································································· 46
3.5.8 VPN ····································································································································································· 57
3.5.8.1 IPSEC ······························································································································································ 57
3.5.8.2 PPTP································································································································································ 60
3.5.8.3 L2TP································································································································································· 63
3.5.8.4 OpenVPN ························································································································································ 66
3.5.8.5 GRE tunnel······················································································································································ 67
3.5.9 DDNS ·································································································································································· 69
3.5.10 Connect Radio Module··································································································································· 73
3.6 Network Configuration ········································································································································· 74
3.6.1 Operation Mode ················································································································································· 75
3.6.1.1 Gets Three LAN Ethernet Port for H750····································································································· 75
3.6.2 Mobile configuration·········································································································································· 76
3.6.3 Cell mobile data limitation ································································································································ 82
3.6.4 LAN settings······················································································································································· 83
3.6.5 wired-WAN·························································································································································· 86
3.6.6 WiFi Settings ······················································································································································ 88
3.6.6.1 Wifi General configuration ···························································································································· 89
3.6.6.2 WiFi Advanced Configuration······················································································································· 89
3.6.6.3 WiFi Interface Configuration ························································································································· 90
3.6.6.4 WiFi AP client·················································································································································· 92
3.6.7 Interfaces Overview ·········································································································································· 94
3.6.8 Firewall································································································································································ 95
3.6.8.1 General Settings············································································································································· 95
3.6.8.2 Port Forwards ················································································································································· 95
3.6.8.3 traffic rules······················································································································································· 96
3.6.8.4 DMZ································································································································································ 100
3.6.8.5 Security·························································································································································· 101
3.6.9 Static Routes ···················································································································································· 102
3.6.10 Switch······························································································································································ 103
3.6.11 DHCP and DNS ············································································································································· 104
3.6.12 Diagnostics····················································································································································· 106
3.6.13 Loopback Interface ······································································································································· 107
3.6.14 Dynamic Routing ··········································································································································· 107
3.6.15 QoS ································································································································································· 109
3.6.16 Guest LAN(Guest WiFi)································································································································ 111

H750 User Manual
E-Lins Technology Co.,Limited
Tel: [phone] E-mail: [e-mail] www.e-lins.com
Chapter 1
1 Preparation job before configuration
1.1 Learn your router version and feature
1) H750 series contains different version and option feature. Please learn it before using it.
H750 series defines the model as follows,
Notes: please be informed the following features are option. Please indicate with

H750 User Manual
E-Lins Technology Co.,Limited
Tel: [phone] E-mail: [e-mail] www.e-lins.com
your orders.
1) WiFi Feature
2) GPS / GNSS feature
3) Serial to cellular feature, RS232 or RS485 can choose one
4) Voice/SMS control
5) DC5V~60V
6) BGP, OSPF, RIP, etc.
7) DIO (digital input and output feature)
8) RMS (Remote Management System)
2) Find the modem type info at the back cover of the router. This will be used while do
configuration.
For example: the following label indicates the version, type and inside module modem.
The module modem name is “MC7304”, remember this and will select this module name while do
configuration.
1.2 Prepare SIM Card and working condition
1. H750 router has different version. Study your router version before installation.
2. For GSM/GPRS/EDGE/HSDPA/HSUPA/HSPA/HSPA+/4G LTE version, please get a SIM
card with data business.
3. For CDMA2000 EVDO/CDMA1x version, please get a UIM card with data business or
inform us before order if the network uses non-ruim (nam-flashing).
4. Make sure the sim card or uim card is with enough data business and balance.
5. Make sure the signal is good enough where you test or install the router. Weak signal will
make the router no work. If you find your signal strength is not good, please contact us for
high gain antenna.
6. Different countries and carriers use different network band and frequency. E-Lins packs

H750 User Manual
E-Lins Technology Co.,Limited
Tel: [phone] E-mail: [e-mail] www.e-lins.com
units with free world-wide-use antenna. It can work, but the data speed or signal may not be
good at your sites. Please buy dedicated high gain antenna from your local suppliers or
contact E-Lins to OEM/ODM the antenna.
1.3 Highly recommendation for the configuration
The wireless cellular is unstable sometimes with some uncertain issue. In order to keep the
router working in the best condition, it is highly recommended that the Cell ICMP Check
feature is activated. Please refer to chapter 3.5.1 to configure.
Chapter 2
2 Hardware Installation
This chapter mainly describes the appearance, model and function of H750 series and how to
install and set the configurations.
1. Overall Dimension
2. Accessories Description
3. Installment

H750 User Manual
E-Lins Technology Co.,Limited
Tel: [phone] E-mail: [e-mail] www.e-lins.com
2.1 Overall Dimension

H750 User Manual
E-Lins Technology Co.,Limited
Tel: [phone] E-mail: [e-mail] www.e-lins.com

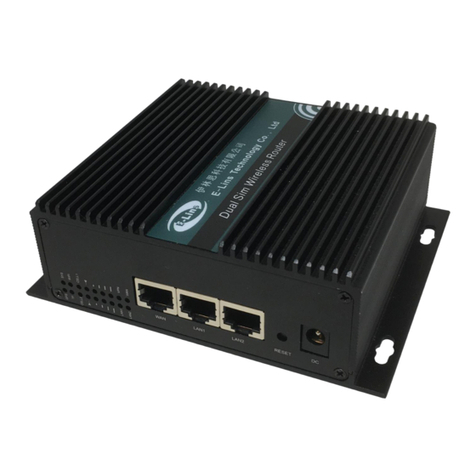

2.2 The Ports
Pictures:
LAN1-LAN2: LAN RJ45 Ethernet ports.
WAN: WAN RJ45 Ethernet ports.
RESET: system reset button
DC: DC power socket. DC5~40V, DC5~60V option depends on the router version.

H750 User Manual
E-Lins Technology Co.,Limited
Tel: [phone] E-mail: [e-mail] www.e-lins.com
10 Pins Terminal
VCC: DC wire positive pole. DC5~40V, DC5~60V option depends on the router version
GND: DC wire ground
GND: Serial ground
RX: serial receiving
TX: serial transmission
RST: reset router
DIO0: digit I/O port 0
DIO1: digit I/O port 1
DIO2: digit I/O port 2
DIO3: digit I/O port3
4 Pins Terminal
VCC: Console port voltage input
GND: Console port voltage ground
TX: Console port tx (transmission)
RX: Console port rx (receiving)
Antenna Connection Table
Antenna Connector
Marks
Cell1
for cell1 main antenna
Aux1
for cell1 auxiliary antenna
Cell2
for cell2 main antenna
Aux2
for cell2 auxiliary antenna
WiFi1/WiFi2
for 2.4GHz WiFi antenna
GPS for GPS antenna
2.3 Installment
H750 series should be installed and configured properly before putting in service. The
installation and configuration should be done or supervise by qualified engineer.
Notes:
Do not install H750 series or connect/disconnect its cable when it is power on.

H750 User Manual
E-Lins Technology Co.,Limited
Tel: [phone] E-mail: [e-mail] www.e-lins.com
2.4 SIM/UIM card installed
If your router has SIM/UIM card protector, please remove it, insert the sim card correctly,
and fix the protector.
If your router has no SIM/UIM card protector, please insert the sim card correctly.
Notes:
SIM/UIM card does not reach the designated position, the equipment can not find a card,
can't work normally, therefore inserted a try to check again for a SIM Card is stuck fast.
2.5 The installation of terminal blocks
The following is for version with terminal blocks only:
H750 uses pluggable terminals to connect the user’s data and the power supply. Spacing:
3.81mm, 10 Pin; User data and power supply suggestion: 14~24AWG. Please refer to the
table 2-4 for the interface definition of the power cable and connection sequence. Specific
interface definition of the power cable and connection sequence you can read on the labels of
H750 products. Using 14~24AWG cable and referring to H750 products labels or the bellowed
interface definition and connection sequence, you need to use the oblate screw driver to fix the
cable to the connecting jacks of the pluggable terminal. After successfully connection, you
need to insert the terminal into the corresponding position in the bottom of the H750 products.
Notes: Connection sequence should be accurate。 Cable’s insulating striping length is
about 7mm. (For safety, insulating striping length should be too long). Please refer to the
picture.

H750 User Manual
E-Lins Technology Co.,Limited
Tel: [phone] E-mail: [e-mail] www.e-lins.com
Attention:
1.The power cable should be connected correctly. We suggestion double check
before switch it on. Wrong connections may destroy the equipment.
2.Power terminals: Pin 1 and Pin 2;
3.Here: Pin 2 is “GND”, PIN 1 is power input “Vin”(DC5~40V, or DV5~60V).
PIN
Signal
Description
Note
1 VCC +5-
40V DC Input,
+5~60V option
Current: 12V/1A
2
GND
Ground
3
GND
Serial Ground
4
RX
Receive Data
5 TX Transmit Data
6 RST Reset
Reset Pin has the same
function with reset
button. In the usage, it
needs to be short
connected to the GND.
After giving the device a
1 sec low level, it will
reboot.3 seconds, the
device will restore
factory settings
7
DIO0
General Purpose I/O
8
DIO1
General Purpose I/O
9
DIO2
General Purpose I/O
10
DIO3
General Purpose I/O

H750 User Manual
E-Lins Technology Co.,Limited
Tel: [phone] E-mail: [e-mail] www.e-lins.com
I/O Terminal on router Serial port (RS485 or RS232)
Port 3 (GND)
Pin 5
Port 4 (RX)
Pin 2
Port 5 (TX)
Pin 3
If not through, can switch Port4 and Port5.
2.6 Grounding
To ensure a safe, stable and reliable H750 series operation, Router cabinet should be
grounded properly.
2.7 Power Supply
H750 series can be applied to complicated external environment and usually the power
range is very large. So in order to fit the complicated application environment and improve
the stability of the system, H750 series is designed with advanced power management
technology. The DC power supply electronic to the device via the pluggable terminal PIN
2(GND) and PIN 1(Vin). Please refer to the above table for the detail definition of the
terminal.
Normally, H750 series input powers supply is +5～+40V (if your H750 support 50V, the
option is +5~+50V). In most cases, the standard configuration is 12V/1A.
Attention:
The H750 supports POE (Power over Ethernet). It supports 5-40VDC default, it the POE
voltage is 48V, please order 5-60VDC version, otherwise it will defeat the hardware of H750.
2.8 LED and Check Network Status
Please connect the antenna after you successfully connect to the cable. And then insert the
valid SIM/UIM card and provide the power to the H750 series via the cable. After provide the

H750 User Manual
E-Lins Technology Co.,Limited
Tel: [phone] E-mail: [e-mail] www.e-lins.com
power to H750, if the SYS LED starts to blink in a few seconds, that means the system start-up
is normal; if the CELL LED works, that means the network is online; if the VPN light works, that
means VPN tunnel has been set up. Please refer to the below table for the situation of the
indication lights.
LED Indication Light Description
SYS On for 25 seconds On for 25 seconds after power supply
blink System set-up normally
Off or still on after 25
seconds
System set-up failure
GPS On GPS is online
TF On External TF card (MicroSD Card) is connected
WiFi On WiFi is Enabled
Off WiFi is Disabled
CELL1
CELL2
On Online to the Internet/Private Networks
Off Not online
Signal On 1 LED on is 1 bar.
2 LEDs on is 2 bar.
3 LEDs on is 3 bar.
4 LEDs on is 4 bar.
Off No signal, or signal checking is not ready
LAN 1-2 blink Data transmission in Ethernet
Off Ethernet connection abnormal
On Ethernet is connected
VPN On IPSec VPN tunnel set-up
Off IPsec VPN tunnel set-up failure or inactivated
WAN blink Data transmission in Ethernet
Off Ethernet connection abnormal
On Ethernet is connected
Chapter 3

H750 User Manual
E-Lins Technology Co.,Limited
Tel: [phone] E-mail: [e-mail] www.e-lins.com
3 Software configuration
1. Overview
2. How to log into the Router
3. How to config web
3.1 Overview
H750 series routers with built-in WEB interface configuration, management and debugging
tools, user should configuration the parameters first; and it could be altered the parameters
flexibility and software upgrades and simple testing. User can set up and manage the
parameters of the router on its interface, detail step are bellow:
3.2 How to log into the Router
3.2.1 Network Configuration of the Computer.
The router default parameters as follow
Default IP: 192.168.1.1, sub mask: 255.255.255.0.
There are two ways to set the PC’s IP address.
Way 1) Manual setting
Set the PC IP as 192.168.1.xxx (xxx = 2~254), subnet mask: 255.255.255.0, default
gateway: 192.168.1.1, primary DNS: 192.168.1.1.

H750 User Manual
E-Lins Technology Co.,Limited
Tel: [phone] E-mail: [e-mail] www.e-lins.com
Way 2) DHCP
Choose “Obtain an IP address automatically” and “Obtain DNS server address
automatically”.

H750 User Manual
E-Lins Technology Co.,Limited
Tel: [phone] E-mail: [e-mail] www.e-lins.com
After IP setting, check it by ping. Click Windows start menu, run, execute “cmd” command.
Input “ping 192.168.1.1” in the DOS window.
This information means the connection is work.
This information means the connection is failure. If so, please check the network cable
connection and IP address setting, and can refer to Chapter 4.9.
3.2.2 Log into Router

H750 User Manual
E-Lins Technology Co.,Limited
Tel: [phone] E-mail: [e-mail] www.e-lins.com
Open the Web Browser, and type http://192.168.1.1 into the address field and press
Enter bottom in your computer keyboard.
Type User Name “admin” and Password “admin” in the Login page, and then press the
“Login” button.
If you type into the correct User Name and Password, you will get the access into the
Router’s status overview page.

H750 User Manual
E-Lins Technology Co.,Limited
Tel: [phone] E-mail: [e-mail] www.e-lins.com
3.3 How to Config via Router Web
3.3.1 Status overview
Click “Status” in the navigation bar, and then click “Overview”.
3.3.2 Network status
Network status pages show detail information of cell mobile interface, WAN and LAN.
Cell mobile interface page:

H750 User Manual
E-Lins Technology Co.,Limited
Tel: [phone] E-mail: [e-mail] www.e-lins.com
WAN status page:

H750 User Manual
E-Lins Technology Co.,Limited
Tel: [phone] E-mail: [e-mail] www.e-lins.com
LAN status page:
