E2S IS-L101L User manual

_______________________________________________________________________________________________________________________________
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH sale[email protected] Tel: [phone]
www.e2s.com Fax: [phone]
Document No. IS 4601 Issue G 13-01-20 Sheet 1 of 6
INSTRUCTION MANUAL
IS-L101L
Intrinsically Safe LED Beacon
1. INTRODUCTION
The IS-L101L is an ATEX and IECEx certified intrinsically
safe beacon which will produce a visual warning in a
hazardous area. Red, Amber, Green and Blue output models
are available.
The beacon has been designed and certified to work alone or
in conjunction with a European Safety Systems IS-A105N
intrinsically safe sounder. The beacon may be powered from
the same intrinsically safe circuit as the IS-A105N intrinsically
safe sounder, allowing a combined audible and visual alarm
to be constructed. The IS-L101L beacon also contains an
alarm accept facility which allows an operator to silence the
sounder for a predetermined time while leaving the beacon
flashing or the sounder can be silenced after a predetermined
time period has elapsed.
When using the IS-L101L beacon with an IS-A105N
sounder, the Special Conditions for Safe Use in the
sounder certificate, Sira 04ATEX2301X must also be met.
2. DESCRIPTION
Fig 1 shows a simplified block diagram of a IS-L101L beacon.
The device will start to flash when power is applied to
terminals + and -. Terminals S+ and S- are for the connection
of an optional IS-A105N sounder which will operate
immediately power is applied to the beacon. The sounder
may be silenced for a predetermined time by momentarily
connecting the Ac.Sw terminals together. The silence time is
set by DIP switches 1 to 4 for time periods between 5
seconds and 2 hours. By setting DIP switch 5 to ON the
sounder will silence after a preset time, but sound will
not be restored until the power to the beacon has been
removed and restored. Setting DIP switch 6 to ON will
provide a 1 second reminder beep tone sound while the
sounder is silenced. The interval between the 1 second
reminder beep is dependent on the timing setting for the
silence period, (switches 1 to 4) see page 5. When the
beacon is operated alone, without a sounder connected,
all of the DIP switches should be set to the OFF position.
When used alone, i.e. without a sounder connected, two flash
frequencies may be selected. With the Ac.Sw terminals
disconnected the beacon will produce two flashes in quick
succession once per second. The flash frequency can be
doubled by permanently connecting the Ac.Sw terminals
together.
When used with a sounder, the beacon produces two flashes
in quick succession once per second. When the sounder is
silenced the flash frequency is automatically doubled.
3. SUPPLY VOLTAGE
The IS-L101L beacon has been designed to operate in a
hazardous area via 28V 660mA 1.2W ATEX and IECEx
certified Zener Barriers or Galvanic Isolators. The beacon
may be tested or used in safe areas without a Zener Barrier
or Galvanic Isolator, but at supply voltages above 16V the
internal current limit will function and the brightness may be
reduced. The beacon should not be continuously operated
without a barrier or isolator with a supply voltage greater than
16V.
Current Limit
Sounder Silence and
Timing Circuits
Connection to
Optional IS-A105N
Sounder
S+
S-
+
-
Power
Supply
16V
LED's
Accept
Switch
Fig 1 Simplified block diagram
4. INTRINSIC SAFETY CERTIFICATION
4.1 ATEX certificate
The IS-L101L beacon complies with the following standards:-
EN IEC 60079-0:2018
EN60079-11:2012
The EC-Type Examination Certificate SIRA 04ATEX2302X
has been issued by the Notified Body Sira. This confirms
compliance with the European ATEX Directive 94/9/EC for
Group II, Category 1G equipment. The beacon carries the
Community Mark and subject to local codes of practice, may
be installed in any of the EEA member countries. This
instruction sheet describes installations which conform to
EN60079:Part14:2008 Electrical Installation in Hazardous
The IS-L101 beacon is CE marked for
compliance with the European Explosive
Atmospheres Directive 94/9/EC and the
Euro
p
ean EMC Directive 89/336/EEC
II 1G Ex ia IIC T4 Ga (-40ºC <= Ta <= +60ºC)

_______________________________________________________________________________________________________________________________
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH [email protected] Tel: [phone]
www.e2s.com Fax: [phone]
Document No. IS 4601 Issue G 13-01-20 Sheet 2 of 6
Areas. When designing systems for installation outside the
UK, the local Code of Practice should be consulted.
1) The certification marking is as follows:
e
2S
european safety systems ltd.
London W3 7QH UK
www.e2s.com
WARNING: TO AVOID A POSSIBLE ELECTROSTATIC
CHARGE ONLY CLEAN WITH A DAMP CLOTH
IS-L101L Beacon
II 1G
2813
SIRA 04ATEX2302X
Year / Serial No. 09 / 1000001
IECEx SIR 04.0039X
Ui = 28V Ii = 660mA Pi = 1.2W
Ci = 0 Li = 0
Ex ia IIC T4 Ga (-40ºC <=Ta<= +60°C)
2) The equipment may be used in zones 0, 1 and 2
with flammable gases and vapours with apparatus
groups IIA, IIB & IIC and with temperature classes
T1, T2, T3 and T4.
3) The equipment is only certified for use in ambient
temperatures in the range -40oC to +60oC and
should not be used outside this range.
4) The certificate number has an ‘X’ suffix, which
indicates that the certificate contains one of more
special conditions for safe use. Those installing or
inspecting the equipment should refer to this section
of the certificate.
5) The equipment has not been assessed as a safety-
related device (as referred to by Directive 94/9/EC
Annex II, clause 1.5).
6) Installation of this equipment shall be carried out by
suitably-trained personnel in accordance with the
applicable code of practice.
7) Repair of this equipment shall only be carried out by
the manufacturer or in accordance with the
applicable code of practice.
8) The certification of this equipment relies on the
following materials used in its construction:
Enclosure: ABS Plastic
Lens: Polycarbonate
If the equipment is likely to come into contact with
aggressive substances, then it is the responsibility of
the user to take suitable precautions that prevent it
from being adversely affected, thus ensuring that the
type of protection is not compromised.
“Aggressive substances” - e.g. acidic liquids or
gases that may attack metals, or solvents that may
affect polymeric materials.
“Suitable precautions” - e.g. regular checks as part
of routine inspections or establishing from the
material’s data sheet that it is resistant to specific
chemicals.
SPECIAL CONDITIONS FOR SAFE USE (as stated on the
IS-L101L EC Type Examination Certificate SIRA
04ATEX2302X)
The enclosure is non-conducting and may generate an
ignition-capable level of electrosatic charges under certain
extreme conditions. The user should ensure that the
equipment is not installed in a location where it may be
subjected to external conditions that might cause a build-
up of electrostatic charges on non-conducting surfaces,
additionally, cleaning of the equipment should be done
only with a damp cloth.
The equipment has an ingress protection rating of IP 66.
However, if it has been supplied without cable entry devices,
then the user shall ensure that the devices that are fitted will
provide an ingress protection that is appropriate to the
environment in which it is installed i.e. IP20 or better. If only
one of the two cable entries are used, then the unused entry
shall be fitted with a blanking device that ensures ingress
protection appropriate to the environment in which it is
installed i.e. IP20 or better.
SPECIAL CONDITIONS FOR SAFE USE (as stated on the
IS-A105N sounder EC Type Examination Certificate SIRA
04ATEX2301X)
The equipment shall only be supplied via Terminals + w.r.t.
Terminals - from a barrier having a maximum open circuit
voltage Uo that is < 28 V and a maximum short circuit current
Io that is < 93 mA, where Io is resistively limited. The barrier
shall be ATEX certified by a notified body.
The total capacitance connected to terminals + wrt – (i.e. the
capacitance of the cable plus any other capacitance) shall
not exceed 83nF.
4.2 Zones, Gas Groups and T Rating
The IS-L101L beacon has been certified Ex ia IIC T4 Ga.
When connected to an approved system it may be installed
in:
Zone 0 explosive gas air mixture
continuously present.
Zone 1 explosive gas air mixture likely to occur in
normal operation.
Zone 2 explosive gas air mixture not likely to occur,
and if it does, it will only exist for a short time.
Be used with gases in groups:
Group A propane
Group B ethylene
Group C hydrogen
Having a temperature classification of:
T1 450ºC
T2 300ºC
T3 200ºC
T4 135ºC
4.3 Terminals + and - power supply
Power is supplied to the beacon via terminals + and - which
have maximum input safety parameters of:
Ui = 28V
Ii = 660mA
Pi = 1.2W
Ci = 0 Li = 0
IS-L101L beacons may be powered from ATEX certified
Zener barriers or galvanic isolators certified by an EC
Approved Body with output parameter equal to or less than
28V and 1.2W.
Up to three IS-L101L-IS beacons can be connected in
parallel and be powered from a common barrier or isolator.
Parallel connection of beacons will significantly reduce the

_______________________________________________________________________________________________________________________________
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH [email protected] Tel: [phone]
www.e2s.com Fax: [phone]
Document No. IS 4601 Issue G 13-01-20 Sheet 3 of 6
brightness of each device. Sounders must not be powered
from beacons connected in parallel.
The equivalent capacitance and inductance between
terminals + and - of the IS-L101Lbeacon and between
terminals + and - of the IS-A105N sounder are zero.
The maximum permitted cable parameters defined by the
barrier or isolator certificate must not be exceeded.
4.4 Terminals S+ and S- connection for optional sounder
These terminals have the same maximum output safety
parameters as the Zener barrier or isolator powering the
beacon, i.e. they are equal to or less than:
Uo = 28V
Io = 660mA
Po = 1.2W
Ci = 0 Li = 0
However if an IS-A105N sounder was used in conjunction
with the beacon a barrier with output parameters 28V 93mA
and 660mW where Io is resistively limited must be used (see
sounder certificate) so then the S+ and S- terminal safety
parameters are equal to or less than:
Uo = 28V
Io = 93mA
Po = 660mW
Ci = 0 Li = 0
If the beacon and sounder are mounted apart, for intrinsic
safety assessment the capacitance and inductance of the
interconnecting cable should be added to that of the cable
connecting the barrier or isolator to the beacon. See section
4.3.
4.5 Terminals Ac.Sw - accept switch
The output safety parameters of these terminals are:
Uo = 16.8V
Io = 3.61mA
Po = 15.2mW
They may be connected to any mechanically operated switch
in the same hazardous area as the beacon providing the
switch has an IP protection suitable for the environmental
conditions to which it is subjected and can withstand a 500V
rms insulation test to earth for 1 minute.
5. INSTALLATION
In addition to the certification requirements shown in section
4.2 the environmental conditions must be within the limits
shown on the product specification. The beacon enclosure
provides IP66 protection and is suitable for installation in an
exterior location if an appropriate sealed cable entry is used.
5.1 Mounting
The IS-L101L beacon may be secured to any flat surface
using the two 6mm diameter fixing holes. The lens should
be aimed towards the area where maximum visibility is
required.
5.2 Installation procedure
a. Remove the beacon lens by unscrewing the two
captive screws and pull the lens away from the back
box.
b. Fit a suitable cable gland or conduit entry device that
will maintain the enclosure ingress protection in the
environmental conditions to which the unit is
subjected, into one of the holes in the enclosure.
Secure the back box to a vertical surface using the
6mm diameter holes in the two fixing lugs.
Alternatively, the IS-L101L beacon may be mounted
directly onto a IS-A105N sounder enclosure and
secured using a joining kit which is available from
European Safety Systems Ltd.
c. Finally connect the field wiring to the removable
terminals, replace the lens and tighten the two captive
screws.
+ - S+ S- Ac.Sw
1 2 3 4 5 6
ON
PS TS T4 T3 T2 T1
Fig 2 Location of field terminals and controls.
6. ELECTRICAL SYSTEM DESIGN FOR INSTALLATION IN
HAZARDOUS AREAS USING ZENER BARRIERS
6.1 Stand alone operation
If the beacon is controlled by a switch in the positive supply,
or the power supply is being turned on and off, only a single
channel Zener barrier is required as shown in Fig 3. This
circuit may also be used if the beacon is being controlled by a
mechanically activated switch on the hazardous area side of
the barrier. The power supply voltage should be between 20V
and the maximum working voltage of the barrier. The circuit
will continue to work at lower voltages, but the beacon
brilliance will be reduced.
Note when the beacon is operated on its own, without a
sounder connected, all of the DIP switches should be set
to OFF position.
Safe Area
Hazardous Area
Ac.Sw +
-
IS-L101L
Beacon
0V
+
Power
Supply
Barrier
On/Off
28V 1.2W
Positive

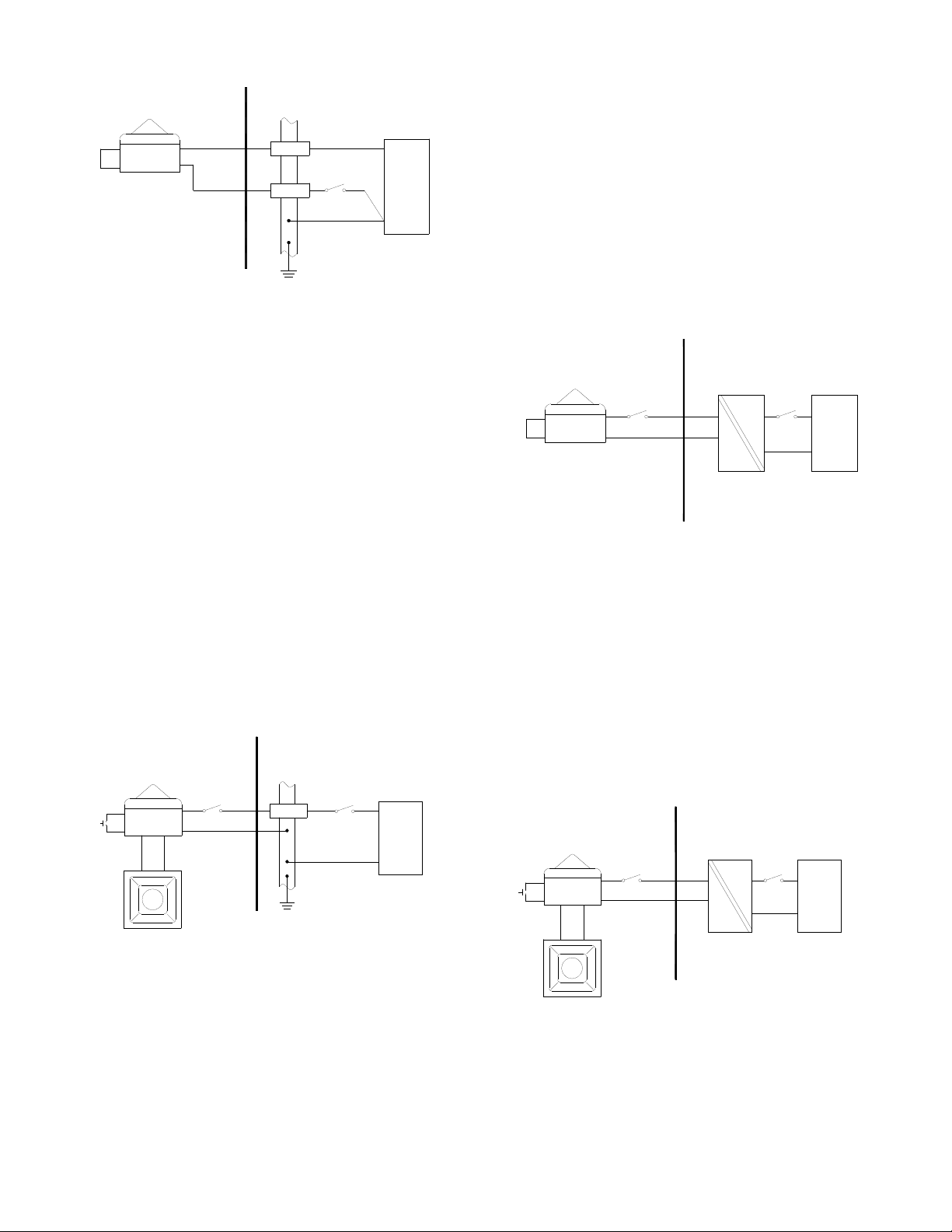

Fig 3 Using a single channel barrier.
If the beacon control switch is in the negative wire and the
power supply 0V is earthed, the circuit shown in Fig 4 may be
used. For simplicity the two barriers may be combined into
one package. The power supply voltage should be between
21V and the maximum working voltage of the 28V barrier.

_______________________________________________________________________________________________________________________________
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH [email protected] Tel: [phone]
www.e2s.com Fax: [phone]
Document No. IS 4601 Issue G 13-01-20 Sheet 4 of 6
Safe Area
Hazardous Area
-
IS-L101L
Beacon
+
0V
+
Power
Supply
Diode Return
Barrier
Barrier
On/Off
28V 1.2W
Positive
Ac.Sw
Fig 4 Single stage alarm using two channel barrier.
The circuit will continue to work at lower voltages, but the
beacon brilliance will be reduced.
6.2 Use with a IS-A105N intrinsically safe sounder
When using the IS-L101L beacon with an IS-A105N
sounder, the Special Conditions for Safe Use in the
sounder certificate, Sira 04ATEX2301X must also be met.
The very low current consumption of the IS-L101L beacon
allows it and a IS-A105N intrinsically safe sounder to be
powered from a common Zener barrier as shown in Fig 5.
This reduces the sounder output by about 2dB.
The IS-L101L beacon contains a circuit that will silence the
sounder for a pre-set time, but leave the beacon flashing at
twice its normal frequency. The sounder silence time is set by
internal DIP switches. An operator may therefore silence the
audible alarm but be continuously reminded of the alarm
condition by the beacon. If the alarm is not cleared within the
silence time, the sounder will be reactivated. If the alarm is
cleared during the silence time the beacon will stop flashing,
but the beacon and the sounder will both be re-activated if
the alarm reoccurs. See table 1 on page 5 of these
instructions for full DIP switch settings.
Note when the beacon is operated on its own, without a
sounder connected, all of the DIP switches should be set
to OFF the position.
Safe Area
Hazardous Area
IS-A105N
Sounder
Accept
Switch +
S+ S-
-
IS-L101L
Beacon 28V 93mA (see sounder certificate)
Positive
0V
+
Power
Supply
Barrier
On/Off
Fig 5 Combined beacon and sounder with alarm accept
switch
The silence accept push-button may be any mechanically
operated switch, providing it has an IP protection suitable for
the environmental conditions to which it is subjected, located
within the same hazardous area as the beacon, see section
4.5.
In order that the beacon continues to produce a reasonable
light output level when used in conjunction with an IS-A105N
sounder, the power supply voltage to the barrier should be
maintained at a minimum of 18V.
7. ELECTRICAL SYSTEM DESIGN FOR INSTALLATION IN
HAZARDOUS AREAS USING GALVANIC ISOLATORS.
Although more expensive than Zener barriers, galvanic
isolators are easier to install as they do not require a high
integrity earth connection. Any certified device with output
safety parameters below the maximum input safety
parameters of the IS-L101L beacon may be used – See
section 4.3.
7.1 Stand alone operation
Fig 6 shows the basic circuit that is used for all stand alone
applications.
Safe Area
Hazardous Area
+
Ac.Sw
-
IS-L101L
Beacon
+
-
On / Off
Galvanic 28V 1.2W
Isolator
+
0V
Power
Supply
Fig 6 Basic circuit for use with a galvanic isolator.
The control arrangement will vary depending upon the
isolator chosen. The galvanic isolator must be able to supply
an output of 30mA at about 16V. This circuit may also be
used if the beacon is controlled by a mechanically activated
switch on the hazardous area side of the isolator.
7.2 Use with a IS-A105N intrinsically safe sounder
When using the IS-L101L beacon with a IS-A105N
sounder, the Special Conditions for Safe Use in the
sounder certificate, Sira 04ATEX2301X must also be met.
The very low current consumption of the IS-L101L beacon
allows it and a IS-A105N intrinsically safe sounder to be
powered from a common galvanic isolator as shown in Fig 7.
This reduces the sounder output by about 2dBA.
Safe Area
Hazardous Area
IS-A105N
Sounder
Accept
Switch +
S+ S-
-
IS-L101L
Beacon Galvanic 28V 93mA (see sounder certificate)
Isolator
0V
+
Power
Supply
+
-
On / Off
Fig 7 Combined beacon and sounder with alarm accept
switch
The IS-L101L beacon contains a circuit that will silence the
sounder for a pre-set time, but leave the beacon flashing at
twice its normal frequency. The sounder silence time is set by
internal DIP switches. An operator may therefore silence the
NOTE: If sounder silence is not required, cut the
link across the Ac.Sw connector.
NOTE If sounder silence is not required, cut the
link across the Ac.Sw connector.

_______________________________________________________________________________________________________________________________
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH [email protected] Tel: [phone]
www.e2s.com Fax: [phone]
Document No. IS 4601 Issue G 13-01-20 Sheet 5 of 6
audible alarm but be continuously reminded of the alarm
condition by the beacon. If the alarm is not cleared within
the silence time, the sounder will be reactivated. If the alarm
is cleared during the silence time the beacon will stop
flashing, but the beacon and the sounder will both be re-
activated if the alarm reoccurs. See table 1 on page 5 of
these instructions for full DIP switch settings.
The silence accept push-button may be any mechanically
operated switch, providing it has an IP protection suitable for
the environmental conditions to which it is subjected, within
the hazardous area, see section 4.5.
9. ACCESSORIES
9.1 Beacon to sounder joining kit
Comprises an M20 plastic conduit coupler and gasket
enabling the beacon to be mounted onto a IS-A105N
sounder. This kit is supplied free of charge when a beacon
and sounder are purchased at the same time.
Switch settings for operation with
IS-A105N Sounder
Note when the beacon is operated on its own,
without a sounder connected, all of the DIP
switches should be set to OFF position.
10. MAINTENANCE
The beacon should be regularly inspected to ensure that it
has not been damaged. Frequency of inspection depends
upon environmental conditions, but initially we recommend
that this should be done annually.
No attempt should be made to repair a faulty IS-L101L
beacon. Suspect beacons must be returned to European
Safety Systems Ltd. or to your local agent for repair.
11. GUARANTEE
Beacons which fail within the guarantee period should be
returned to European Safety Systems Ltd. or our local agent.
It is helpful if a brief description of the fault symptoms is
provided.
12. CUSTOMER COMMENTS
European Safety Systems Ltd. are always pleased to receive
comments from customers about our products and services.
All communications are acknowledged and whenever
possible, suggestions are implemented.
SW6
PS
SW5
OS
SW4
T4
SW3
T3
SW2
T2
SW1
T1
Timer Periodic sound interval when silenced,
when SW6 is ON for (1 second every)
OFF OFF OFF OFF forever 10 secs
OFF OFF OFF ON 5 secs 5 secs
OFF OFF ON OFF 10 secs 5 secs
OFF OFF ON ON 20 secs 5 secs
OFF ON OFF OFF 30 secs 5 secs
OFF ON OFF ON 45 secs 10 secs
OFF ON ON OFF 1 min 10 secs
OFF ON ON ON 2 mins 10 secs
ON OFF OFF OFF 3 mins 30 secs
ON OFF OFF ON 5 mins 30 secs
ON OFF ON OFF 10 mins 1 min
ON OFF ON ON 20 mins 1 min
ON ON OFF OFF 30 mins 1 min
ON ON OFF ON 45 mins 5 mins
ON ON ON OFF 1 hour 5 mins
ON ON ON ON 2 hours 5 mins
OFF Hold off mode – Accept Switch silences sounder for selected time.
ON One-shot mode — Sounder silences after either selected time,
or Accept Switch is pressed, whichever occurs first.
The sounder is then only restored after the input power supply
is removed and restored.
OFF No periodic sound while silenced
ON Sound periodically while silenced

_______________________________________________________________________________________________________________________________
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH [email protected] Tel: [phone]
www.e2s.com Fax: [phone]
Document No. IS 4601 Issue G 13-01-20 Sheet 6 of 6
The IS-L101L Beacon has also been approved to the IECEx
scheme.
The installation requirements for IS-L101L beacons approved
to the IECEx scheme are the same as the installation
requirements for IS-L101L beacons approved to the ATEX
directive.
Certificate No. IECEx SIR 04.0039X
Marking: Ex ia IIC T4 Ga (Ta = -40ºC to +60ºC)
Standards: IEC 60079-0:2017
IEC 60079-11:2011
CONDITIONS OF CERTIFICATION (as stated on the IS-L101L
Beacon IECEx Certificate of Conformity IECEx SIR 04.0039X)
 The equipment has an ingress protection rating of IP66;
however, if it has been supplied without a cable entry
device, then the user shall ensure that the device that is
fitted will provide an ingress protection that is appropriate
to the environment in which it is installed i.e. IP20 or
better. If only one of the two cable entries are used, then
the unused entry shall be fitted with a blanking device
that ensures ingress protection appropriate to the
environment in which it is installed i.e. IP20 or better.
 The enclosure is non-conducting and may generate an
ignition-capable level of electrosatic charges under
certain extreme conditions. The user should ensure that
the equipment is not installed in a location where it may
be subjected to external conditions that might cause a
build-up of electrostatic charges on non-conducting
surfaces, additionally, cleaning of the equipment should
be done only with a damp cloth.
The IS-L101L beacons are marked with the certification
requirements for the ATEX and IECEx approvals.
e
2S
european safety systems ltd.
London W3 7QH UK
www.e2s.com
WARNING: TO AVOID A POSSIBLE ELECTROSTATIC
CHARGE ONLY CLEAN WITH A DAMP CLOTH
IS-L101L Beacon
II 1G
2813
SIRA 04ATEX2302X
Year / Serial No. 09 / 1000001
IECEx SIR 04.0039X
Ui = 28V Ii = 660mA Pi = 1.2W
Ci = 0 Li = 0
Ex ia IIC T4 Ga (-40ºC <=Ta<= +60°C)
If the IS-L101L beacon is used in conjunction with an IS-
A105N sounder then the following certification conditions
apply:-
CONDITIONS OF CERTIFICATION (as stated on the IS-A105N
Sounder IECEx Certificate of Conformity IECEx SIR 04.0038X)
 The equipment shall only be supplied via Terminals +
w.r.t. Terminals - from a certified barrier having a
maximum open circuit voltage Uo that is less than or
equal to 28 V and a maximum short circuit current Io that
is less than or equal to 93 mA, where Io is resistively
limited.
 The total capacitance connected to terminals + wrt – (i.e.
the capacitance of the cable plus any other capacitance)
shall not exceed 83nF.
The IS-L101L Beacon has also been FM Listed.
Marking: IS Class I, Zone 0, AEx ia IIC T4
IS Class I, Division 1, Groups A, B, C, D
See the Control Drawings D 4627 Sheets 1 to 4 for
installation details and entity parameters.
The IS-L101L beacons are marked with the certification
requirements for the FM approval.
WARNINGS:
IS-L101L Beacon
To prevent ignition of flammable or combustible
atmospheres, disconnect power before servicing
Substitution of components may impair safety
FM
APPROVED
IS Class l, Division 1, Groups A, B, C, D
IS Class I, Zone 0, AEx ia IIC T4 (-40ºC <=Ta<= +60°C)
e2S european safety systems ltd. London W3 7QH UK
Control Drawing D 4627
www.e2s.com
Year / Serial No. 09 / 1R000001
TO AVOID A POSSIBLE ELECTROSTATIC
CHARGE ONLY CLEAN WITH A DAMP CLOTH
IECEx Certification
FM Approval

Date:
Drawn:
Issue: Appd. Date:
European Safety Systems Ltd. Impress House Mansell Road
Acton
London W3 7QH
20-10-05
GU
17-02-06MRSA
2S
warning signals
Hazardous (Classified) Location
Class I, Division 1, Groups A, B, C, D
Class I, Zone 0, Groups IIA, IIB, IIC
Unclassified Location
Associated Apparatus - Shunt Zener Diode
Barrier with Entity Parameters: Uo≤28V
Io ≤660mA
Po≤1.2W
Co≥Ccable
Lo≥Lcable
1. No revision to drawing without prior FM approval.
2. The associated apparatus must be FM approved.
3. The associated apparatus manufacturer's installation drawing must
be followed when installing this equipment.
4. Installation should be in accordance with ANSI/ISA RP12.06.01
"Installation of Intrinsically Safe Systems for Hazardous (Classified)
Locations" and the National Electrical Code (ANSI/NFPA 70).
5. The resistance between the intrinsically safe ground and the earth
ground must be less the 1 ohm.
6. The Shunt Zener Diode Barrier must be a FM approved, resistively
limited, single channel barrier having parameters less than, or equal
to, those quoted, and for which the output is non-ignition capable for the Class, Division or Zone and Group of use.
7. The IS-L101L Beacon enclosure has an ingress protection rating of
IP 66. If supplied without cable entry devices then metallic or plastic
cable glands, or conduit hubs, shall be fitted that provide the required environmental protection. 8. To prevent ignition of flammable or combustible atmospheres, disconnect power before servicing. 9. Substitution of components may impair safety.
Note:
CAUTION - Bonding between conduit connections is not automatic and must be provided as part of this installation.
IS-L101L Beacon IS Class I, Zone 0 AEx ia IIC T4
(−40°C ≤Ta≤+60°C)
Entity Parameters:
Terminals +w.r.t. −
Ui= 28V Ii = 660mA Pi= 1.2W
Ci= 0
Li= 0
Terminals Ac.Sw
+
-
S-S+

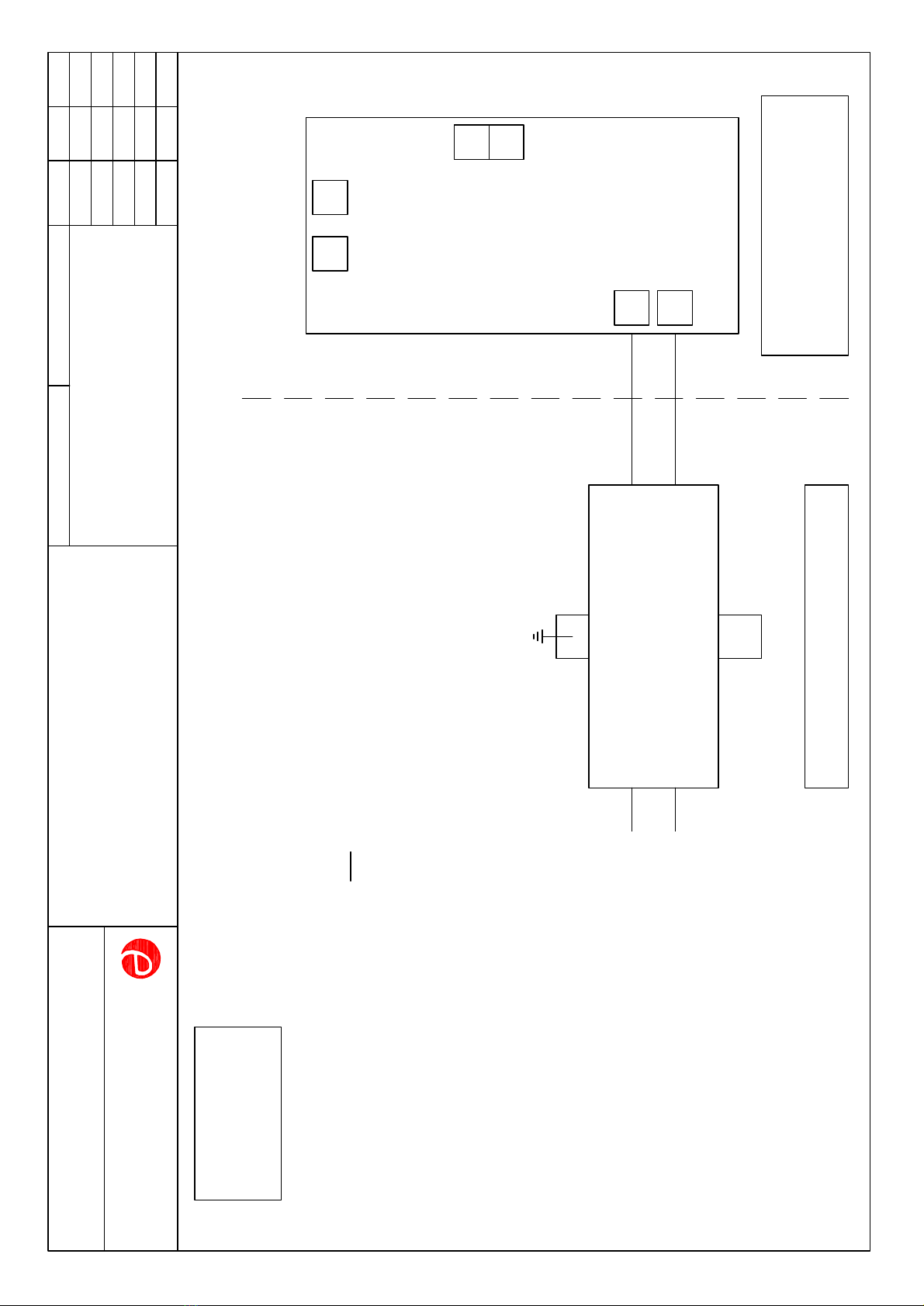

D 4627 Sheet 1 of 4
D 4627a.dwg
Drawing No. Computer Ref.
IS-L101L Beacon
Control Drawing for shunt zener
diode barrier.
Title
Terminals S+ w.r.t S-
Uo = Uo of the supply at + w.r.t. -, or 16.8V whicher is the lesser. Io = Io of the supply at + w.r.t. - Po = Po of the supply at + w.r.t. -
SCHEDULE DRAWING
No modification permitted
without reference to the
"Notified Body"

Date:
Drawn:
Issue: Appd. Date:
European Safety Systems Ltd. Impress House Mansell Road
Acton
London W3 7QH
20-10-05
GU
17-02-06MRSA
2S
warning signals
Hazardous (Classified) Location
Class I, Division 1, Groups A, B, C, D
Class I, Zone 0, Groups IIA, IIB, IIC
Unclassified Location
Associated Apparatus - Galvanically Isolated
Supply with Entity Parameters:
Uo≤28V
Ii ≤660mA
Po≤1.2W
Co≥Ccable
Lo≥Lcable
1. No revision to drawing without prior FM approval.
2. The associated apparatus must be FM approved.
3. The associated apparatus manufacturer's installation drawing must
be followed when installing this equipment.
4. Installation should be in accordance with ANSI/ISA RP12.06.01
"Installation of Intrinsically Safe Systems for Hazardous (Classified)
Locations" and the National Electrical Code (ANSI/NFPA 70).
5. The Galvanically Isolated Supply must be a FM approved,
resistively limited, single channel supply having parameters less than,
or equal to, those quoted, and for which the output is non-ignition capable for the Class, Division or Zone and Group of use. 6. The IS-L101L Beacon enclosure has an ingress protection rating of
IP 66. If supplied without cable entry devices then metallic or plastic
cable glands, or conduit hubs, shall be fitted that provide the required environmental protection. 7. To prevent ignition of flammable or combustible atmospheres, disconnect power before servicing. 8. Substitution of components may impair safety.
Note:
CAUTION - Bonding between conduit connections is not automatic and must be provided as part of this installation.
+
-
S-S+
D 4627 Sheet 2 of 4
D 4627b.dwg
Drawing No. Computer Ref.
IS-L101L Beacon
Control Drawing for galvanically
isolated supply.
Title
Terminals S+ w.r.t S- Uo = Uo of the supply at + w.r.t. -, or 16.8V whicher is the lesser. Io = Io of the supply at + w.r.t. - Po = Po of the supply at + w.r.t. -
IS-L101L Beacon IS Class I, Zone 0 AEx ia IIC T4
(−40°C ≤Ta≤+60°C)
Entity Parameters:
Terminals +w.r.t. −
Ui= 28V Ii = 660mA Pi= 1.2W
Ci= 0 Li= 0
Terminals Ac.Sw
SCHEDULE DRAWING
No modification permitted
without reference to the
"Notified Body"

Date:
Drawn:
Issue: Appd. Date:
European Safety Systems Ltd. Impress House Mansell Road
Acton
London W3 7QH
20-10-05
GU
17-02-06MRSA
2S
warning signals
Hazardous (Classified) Location
Class I, Division 1, Groups A, B, C, D
Class I, Zone 0, Groups IIA, IIB, IIC
Unclassified Location
1. No revision to drawing without prior FM approval.
2. The associated apparatus must be FM approved.
3. The associated apparatus manufacturer's installation drawing must
be followed when installing this equipment.
4. Installation should be in accordance with ANSI/ISA RP12.06.01
"Installation of Intrinsically Safe Systems for Hazardous (Classified)
Locations" and the National Electrical Code (ANSI/NFPA 70).
5. The resistance between the intrinsically safe ground and the earth
ground must be less the 1 ohm.
6. The Shunt Zener Diode Barrier must be a FM approved, resistively
limited, single channel barrier having parameters less than, or equal
to, those quoted, and for which the output is non-ignition capable for the Class, Division or Zone and Group of use.
7. The IS-L101L Beacon enclosure has an ingress protection rating of
IP 66. If supplied without cable entry devices then metallic or plastic
cable glands, or conduit hubs, shall be fitted that provide the required environmental protection. 8. To prevent ignition of flammable or combustible atmospheres, disconnect power before servicing. 9. Substitution of components may impair safety.
10. Ccable = capacitance of cable connecting the shunt zener diode
barrier to the beacon + capacitance of the cable connecting the
sounder to the beacon.
11. The total capacitance connected to terminals +/- of the beacon
plus the total capacitance connected to terminals +/- of the sounder, i.e. Ccable plus any other capacitance, shall not exceed 83nF.
12. Lcable = loop inductance of cable connecting the shunt zener diode
barrier to the beacon + loop inductance of cable connecting the
sounder to the beacon.
Note:
CAUTION - Bonding between conduit connections is not automatic and must be provided as part of this installation.
Terminals Ac.Sw
Uo= 16.8V
Io= 3.61mA
Po= 15.2mW
Associated Apparatus - Shunt Zener Diode Barrier
with Entity Parameters:
Uo≤28V
Io≤93mA
Po≤660mW
Co≥Ccable (see Notes 10 and 11)
Lo≥Lcable (see Note 12)
+
-
S-S+
Accept
Switch
IS-A105N Sounder
Refer to Control Drawing D 4528 Sheet 1
for full wiring information and Entity
Parameters for the IS-A105N sounder.
D 4627 Sheet 3 of 4
D 4627c.dwg
Drawing No. Computer Ref.
IS-L101L Beacon (used with IS-A105N sounder)
Control Drawing for shunt zener
diode barrier.
Title
Simple Apparatus in
Accordance with Article
504 of the National
Electrical Code
Terminals S+ w.r.t S-
Uo = Uo of the supply at + w.r.t. -, or 16.8V whicher is the lesser. Io = Io of the supply at + w.r.t. - Po = Po of the supply at + w.r.t. -
IS-L101L Beacon IS Class I, Zone 0 AEx ia IIC T4
(−40°C ≤Ta≤+60°C)
Entity Parameters:
Terminals +w.r.t. −
Ui= 28V Ii = 660mA Pi= 1.2W
Ci= 0
Li= 0
-+
SCHEDULE DRAWING
No modification permitted
without reference to the
"Notified Body"

Date:
Drawn:
Issue: Appd. Date:
European Safety Systems Ltd. Impress House Mansell Road
Acton
London W3 7QH
20-10-05
GU
17-02-06MRS
A
2S
warning signals
Unclassified Location 1. No revision to drawing without prior FM approval.
2. The associated apparatus must be FM approved. 3. The associated apparatus manufacturer's installation drawing must
be followed when installing this equipment.
4. Installation should be in accordance with ANSI/ISA RP12.06.01
"Installation of Intrinsically Safe Systems for Hazardous (Classified)
Locations" and the National Electrical Code (ANSI/NFPA 70).
5. The Galvanically Isolated Supply must be a FM approved,
resistively limited, single channel supply having parameters less than,
or equal to, those quoted, and for which the output is non-ignition capable for the Class, Division or Zone and Group of use. 6. The IS-L101L Beacon enclosure has an ingress protection rating of
IP 66. If supplied without cable entry devices then metallic or plastic
cable glands, or conduit hubs, shall be fitted that provide the required environmental protection. 7. To prevent ignition of flammable or combustible atmospheres, disconnect power before servicing. 8. Substitution of components may impair safety. 9. Ccable = capacitance of cable connecting the galvanically isolated supply to the beacon + capacitance of the cable connecting the sounder to the beacon.
10. The total capacitance connected to terminals +/- of the beacon
plus the total capacitance connected to terminals +/- of the sounder, i.e. Ccable plus any other capacitance, shall not exceed 83nF.
11. Lcable = loop inductance of cable connecting the galvanically
isolated supply to the beacon + loop inductance of cable connecting
the sounder to the beacon.
Note:
CAUTION - Bonding between conduit connections is not automatic and must be provided as part of this installation.
Associated Apparatus - Galvanically Isolated
Supply with Entity Parameters:
Uo≤28V
Io≤93mA
Po≤660mW
Co≥Ccable (see Notes 9 and 10)
Lo≥Lcable (see Note 11)
D 4627 Sheet 4 of 4
D 4627d.dwg
Drawing No. Computer Ref.
Title
IS-L101L Beacon (used with IS-A105N sounder)
Control Drawing for galvanically isolated supply.
+
-
Hazardous (Classified) Location
Class I, Division 1, Groups A, B, C, D
Class I, Zone 0, Groups IIA, IIB, IIC
Terminals Ac.Sw
Uo= 16.8V
Io= 3.61mA
Po= 15.2mW
S-S+
Accept
Switch
IS-A105N Sounder
Refer to Control Drawing D 4528 Sheet 2
for full wiring information and Entity
Parameters for the IS-A105N sounder.
Simple Apparatus in
Accordance with Article
504 of the National
Electrical Code
Terminals S+ w.r.t S-
Uo = Uo of the supply at + w.r.t. -, or 16.8V whicher is the lesser. Io = Io of the supply at + w.r.t. - Po = Po of the supply at + w.r.t. -
IS-L101L Beacon IS Class I, Zone 0 AEx ia IIC T4
(−40°C ≤Ta≤+60°C)
Entity Parameters:
Terminals +w.r.t. −
Ui= 28V Ii = 660mA Pi= 1.2W
Ci= 0
Li= 0
-+
SCHEDULE DRAWING
No modification permitted
without reference to the
"Notified Body"
