EAGO DZ959F8 User manual

1. Please read and follow these instructions carefully
2 Power supply should be in accordance with local standard of
ground-fault protection (GFCI) Please test Ground-fault before using product.
3. Ground wire of product should be connected to permanently fixed ground
4. Do not use Extension Cords to connect to power supply, and Place Junction
box 60” from the floor.
5. all electrical connections of unit installations should be made by a qualified Electrician
6. Do not use if under the influence of Drugs or Alcohol.
7. Children should only use if under Adult supervision
8. Warning: The Water Temperature should never Exceed 60 C when using this product
9. Do not USE strong caustic or abrasive chemical cleaners to clean product, Ingredients
such as sulphuric acid, lye, etc.
10. The steam generators provided are 3kw or 6kw. Please ensure to use the proper wire size
and breaker. All showers use 220V two wire only with NO Neutral wire
11. Warning, Do not Unscrew steam cleaning port when steamer is on to avoid being hurt by
the steam.
°
Radio Volume
Configuration
Parameter
Rated Voltage
Rated Voltage
Rated Power
Rated Power
Rated Power
Exhaust
Fan
Drain Valve
Exhaust Fan

1. 1/2” Elbow
5. Color LED Light
13. Body Massage Jet
17. Wood Floor Inlay
14. Steamer Cleaning port
7. Stainless Steel Bracket
15. Steam Port
4. Ventilator Fan
8. Shower Head
12. Thermostatic Faucet
20. Plastic Flex Drain
22. Panel Left Fixed Door Hinge

25. Door Handles
30. Speaker
29. White LED Light
32. Hand Shower Pole
Stainless Steel Bracket:5pcs
4x50mm Screw with Washer:4pcs
2.5mm Allen Wrench:1pc 3mm Allen Wrench:1pc
4mm Allen Wrench:1pc

Electrical Junction Box

Level
Install the shower base:
1. Take the shower base out of the carton and put it on
the floor carefully.
2. Put the Level on the shower base to check whether the base is
level. If not, use a wrench to adjust the adjusting legs
(illustrated in Drawing A.) to make sure the base is level and that
there is no rock in base.
3. recheck base level in both directions
Install the back Panels:
1. Move the base away from the walls to allow room to get behind
the shower to fasten the walls and make connections.
2. Take the No.1 Panel out of the carton and put it on the shower base
carefully. Please be sure to have one person hold the panel safely.
3. Take the No.2 Panel out and insert it into profile of the No.1 panel.
4. Use a Philips screwdriver to fasten the panels together with 4x10mm
screws. Illustrated in Drawing B.

Fixed Door
Hinge Panel

Fasten all the front clear panels and back panels:
1. Fit the 2 pieces of Aluminum profile moulding No.5 onto the No.3 fixed clear panels and No.4 side clear panel. Then use a philips screwdriver
to fasten the 2 pieces of aluminum profile moulding to the No.1 side panel and No.2 back panel with 4x50mm self- locking screws.
As illustrated in Drawing C1 and C2.
2. Use the plastic 90 degree bracket to join the 2 pieces of aluminum profile moulding together. Then use a screwdriver to fasten them
to the No.3 and No.4 clear panels with4x50mm screws. As illustrated in drawing E.
3. Use a philips screwdriver to fasten the aluminum profile of No.6 clear panel to the skirt of the shower base with 4x10mm screws.
Illustrated in Drawing A.
4. Fasten the No.1 and No.2 panels to the shower base with 4x16mm screws. Illustrated in drawing B.
Fixed front clear Panel
Fixed clear End panel

allen wrench
allen wrench
Fixed door
hinge panel
Fixed door panel
Install the moveable Door:
1. Put the top cover on the shower, and fasten the top cover to the No.1 and No.2 Panels with 4x10mm Screws and stainless steel brackets.
Illustrated in Drawing A. Then fasten the top cover to the top frame No.3, No.4 and No.5 with 4x10mm screws and stainless steel brackets
Illustrated in Drawing A2.
2. Put the moveable door on the shower base and have one person hold it while the other person attaches the door hinges to the No.3 panel.
Illustrated in Drawing B.
Note: in Case the door does not close properly, use the allen wrench to loosen the screws on the hinges while adjusting the door until the door
closes properly. Note: illustration B.
3. Use an allen wrench to install the door handles to the door. Illustrated in Drawing C.
Stainless Steel bracket

Install Accessories:
1. Install the rubber top door seal (picture A) to the top of the Door.
2. Install the side Rubber seal (picture B) to the left side of the moveable door.
3. Install the bottom rubber seal (picture C) to the bottom of the door.
4. Install the 2 Pcs magnetic strips to the right side of the door and the left side of the No.4 fixed clear panel.
5. Install the hand shower pole: First Use an allen wrench to remove the socket from the pole and mount the bracket to the back panel with 4x16mm
screws, 4mm plastic washer, 6mm plastic washer and 4mm nuts. Illustrated in Drawing E. Then mount the pole to the brackets once installed to glass
panel.
6. Connect the hand shower hose to the hand shower wand. Illustrated in Drawing F.
7. Install the glass shelf: Use a philips screwdriver to fasten the metal bracket to the back panel with 4x16mm Screws, 4mm Plastic washers,6mm
plastic washer and 4mm nuts, Illustrated in drawing G. Then put the glass shelf onto the metal arms and use a philips screwdriver to fasten them
securely.
hand shower
Hose
Wall connector for
hand shower
4mm rubber washer
Hand Shower
Pole
4mm rubber washer
Clear Side
fixed panel

Rain Shower head Hose LED Light Wire
Connect Wires:
1. Caulk the 2 pc of top aluminum profiles and glass. Illustrated in Drawing A.
2. Put the wood floor in the steam shower along with stool.
3. Match the Ventilator Fan Sign, Lamp sign and speaker sign on the wiring harness to the relative wire connectors on the roof
as illustrated.
Silicone Caulking

Exhaust Fan
Ceiling Shower
head
Ceiling Shower
head
Massage Jets
Massage Jets
Hand Shower
Water Volume
Adjustment
Water Volume
Adjustment
Install all hoses and steam tubes, drain tube, and hot and cold water lines.
Check all fittings are tight and all electrical connections are correct before applying water or power to the unit.
Note: Disregard white wires coming from back of Keypad,
They are utilized for testing purposes at the factory only

۸Fﺄﺛ$¹¼¼°°%؟

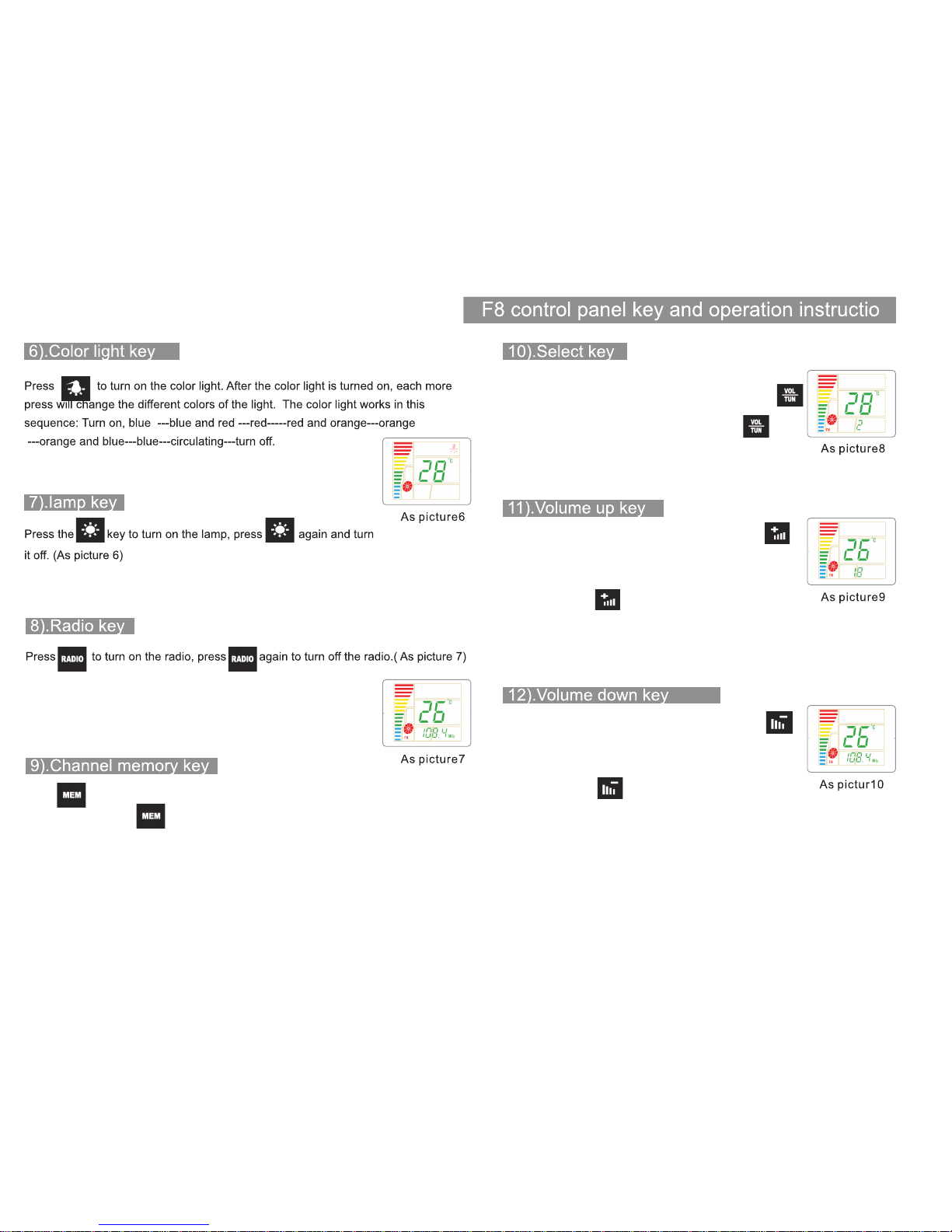

Press to switch on the steam room, press
again to switch it off . The steam room will shut
down in 60 minutes automatically. As picture1（ ）

Press and release within 1 Second, the frequency of current channel will
be changed; Press and hold it more than 1 second, the frequency of
current channel will be saved. It can hold a total memory of 8 channels
This Key has 2 functions. When the radio is turned on,
This key shows the frequency function. Press the
key again and it will switch from the frequency
function to the volume function. Press the key,
and the display will show like (pic 10) for
frequency mode or (Pic 9) for volume mode.
After the radio is turned on(As Pic 9), Pressing
will increase the volume. If you hold the key for more
than 1 second the volume will keep increasing until
the key is released. When in frequency mode as in
(Pic 10) pressing will increase the frequency.
Hold the key for more than 1 second and the frequency
will keep increasing until the key is released.
After the radio is turned on(As Pic 9), Pressing
will decrease the volume. If you hold the key for more
than 1 second the volume will keep decreasing until
the key is released. When in frequency mode as in
(Pic 10) pressing will decrease the frequency.
Hold the key for more than 1 second and the frequency
will keep decreasing until the key is released.

（ ）As picture1
（ ）As picture2
（ ）As picture3
（ ）As picture4
（ ）As picture5
（ ）As picture6
Instructions For Cleaning The Steam Generator
Warning:
1. Do not Use the
cleaning function while
any other function is on.
2. Do not Use an Alkaline
Cleaning agent to clean
steam generator.
3. Do not Use any powder
cleaning agent to clean
steam generator, Doing
so may plug system.
We Recommend that you
use Citric Acid or Vinegar
to clean steam generator!
Procedure: Turn off power to the shower, Then open the cap on the Cleaning port on the wall of the shower.
Put approx ½ cup of Vinegar in the cleaning port and put the cap back on the cleaning port and let vinegar sit
for 10-15min in steamer. Turn the shower on and start the steam function for 5min. Turn off Steamer and sediment
in steamer flushes out when steamer drains automatically.
For Safety, DO NOT OPEN cap on cleaning port when steamer is in operation to reduce risk of scalding from steam.
Please shut down all functions before using steam generator cleaning function (As pic 1)
After making sure all functions are turned off. Remove the cap from the Cleaning port on wall (As pic 2)
Remove the lid by turning in a counter clockwise direction and remove carefully.
After adding the cleaning agent to the steamer, replace the cap on the port and turn it in a clockwise direction
to tighten. (As Pic 4)
After replacing the cap, Press to turn on the steam generator function and the system will begin to clean
the steam generator automatically. (As Pic 5)
After 5-10 Minutes, press the button to turn off the steam generator.
Then press the the waste water and sediment will automatically drain from steamer (As Pic 6)
Pour approx ½ cup of vinegar or liquid citric acid into the cleaning port. Use only Liquid cleaning agents
Do not use solid cleaning agents or any other Acid, or Alkaline compounds. Pour into cleaning port
(As pic 3)

Model Number
Purchase
Date
Purchase
Location
1. Reconnect Fan properly
2. When the fan is on turn the blades
slowly by hand
3. Replace Fan
1. The Temperature overloads
have tripped or the steam generator
is broken
1. Reset the Temperature overload pins
2. Replace steam generator
1. Replace Diverter Valve
1. Check the inlet water Pressure
2. Clean the filter at water inlet
1. Low inlet water pressure
2. Blockage in water inlet
Water Diverter
Valve can’t divert
Water
1. There is no power to the unit
or the wires are not connected properly
2. The power is not switched on
3. The Connection wire for the control
panel is loose.
1. Turn on the power, Connect power wires
properly.
2. Switch on the power
3.Remove the wires and install again
ensuring proper connection.
1. Check Connections
2. Replace Light
No Display on
the Control
Panel?
There is Steam
Display on the
Control Panel
but not steam
comes out
Fan Does not
Work
1. The connecting wire is damaged
or loose.
2. Light is broken or damaged
