EAGO DZ972-1F8 User manual

1. Please read and follow these instructions carefully
2 Power supply should be in accordance with local standard of
ground-fault protection (GFCI) Please test Ground-fault before using product.
3. Ground wire of product should be connected to permanently fixed ground
4. Do not use Extension Cords to connect to power supply, and Place Junction
box 60” from the floor.
5. all electrical connections of unit installations should be made by a qualified Electrician
6. Do not use if under the influence of Drugs or Alcohol.
7. Children should only use if under Adult supervision
8. Warning: The Water Temperature should never Exceed 60 C when using this product
9. Do not USE strong caustic or abrasive chemical cleaners to clean product, Ingredients
such as sulphuric acid, lye, etc.
10. The steam generators provided are 3kw or 6kw. Please ensure to use the proper wire size
and breaker. All showers use 220V two wire only with NO Neutral wire
11. Warning, Do not Unscrew steam cleaning port when steamer is on to avoid being hurt by
the steam.
°
Radio Volume
Configuration
Parameter
Rated Voltage
Rated Voltage
Rated Power
Rated Power
Rated Power
Exhaust
Fan
Drain Valve
Exhaust Fan

6. Hand Shower
9. Steam Outlet Port
5. Hand Shower Pole
2. Exhaust Fan
12. Body Spray Jet
15. Wood Duck Boards
3. Rain Showerhead
8. Steamer Cleaning Port
21. Shelf 22. Faucet and Diverter

29. Door Handle
32. Acrylic Base
31. Magnetic Door Seals
27. Rubber Seals for Door
26. Door Hinge
30. Glass Door
4x20mm Screws 16pcs
4x25mm Screws 36pcs
Plastic Screw inserts 36pcs Caulking (Black) 1pc
4x20mm Screws 16pcs
Roof Bracket clamps 10pc

Junction box

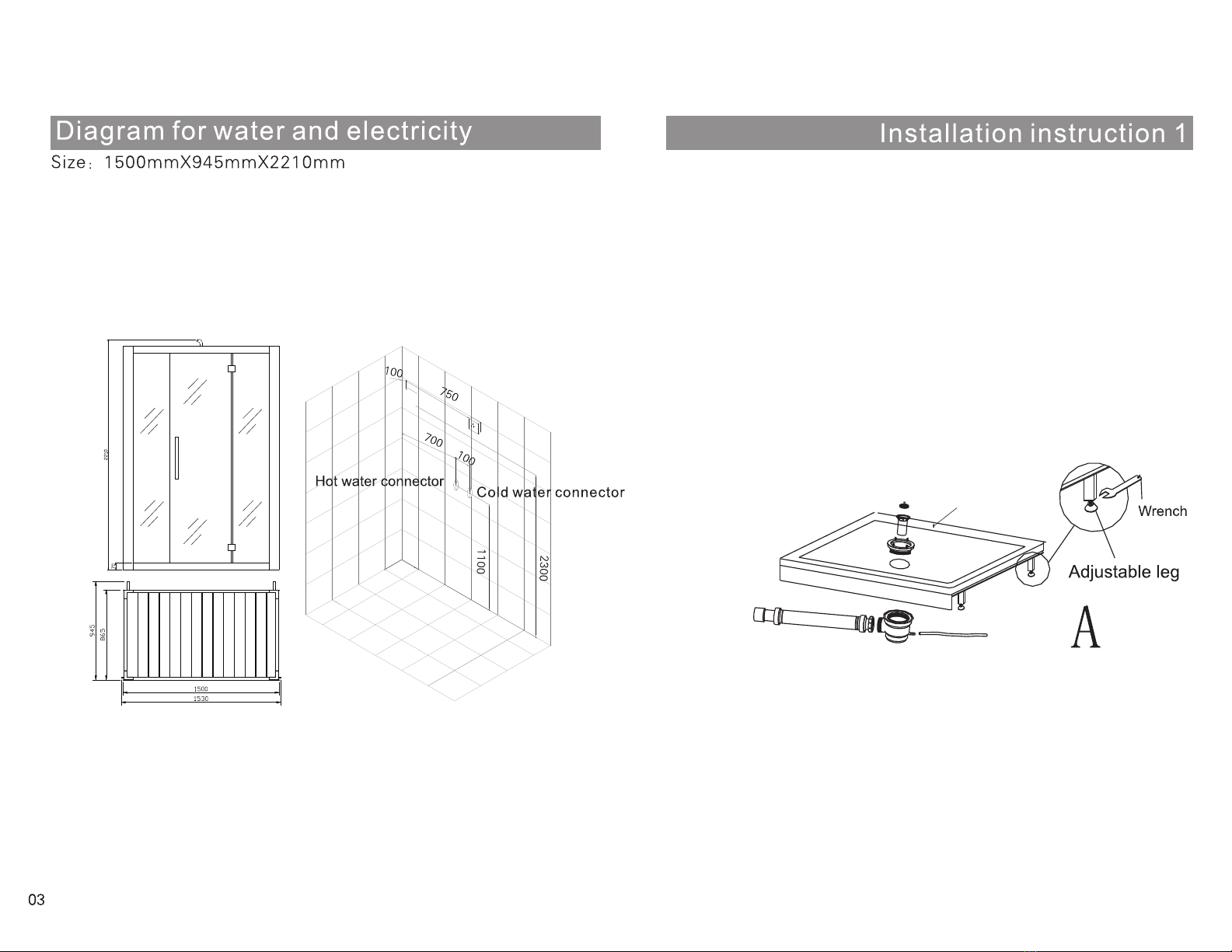

1. Put shower tray in place and adjust legs on tray until tray is level in
both directions
-Method: Put spirit level on the flat surface on edge of shower tray to
check if the shower tray is horizontal or not. If it is not horizontal, please
adjust the height of adjustable leg. After adjusting the level position
check that all of the adjustable legs are touching the floor and that the
locking nuts on each leg are fastened.
2. After tray is leveled check for any rock in the tray and re-level tray
if necessary. Refer to Picture A.
3. Connect the drain on the bottom of shower tray and connect small
10mm silicone hose to the drain and to the underside of the fitting in the
tray. On the top side of fitting on the tray is where the hose from the
drain solenoid from the steam generator will attach. Ensure that metal
fitting in tray is tight so as to eliminate potential leaking.
Tray drain fitting

Back of Steam Room
Front of Steam Room
Stand off Legs
4x20mm screws

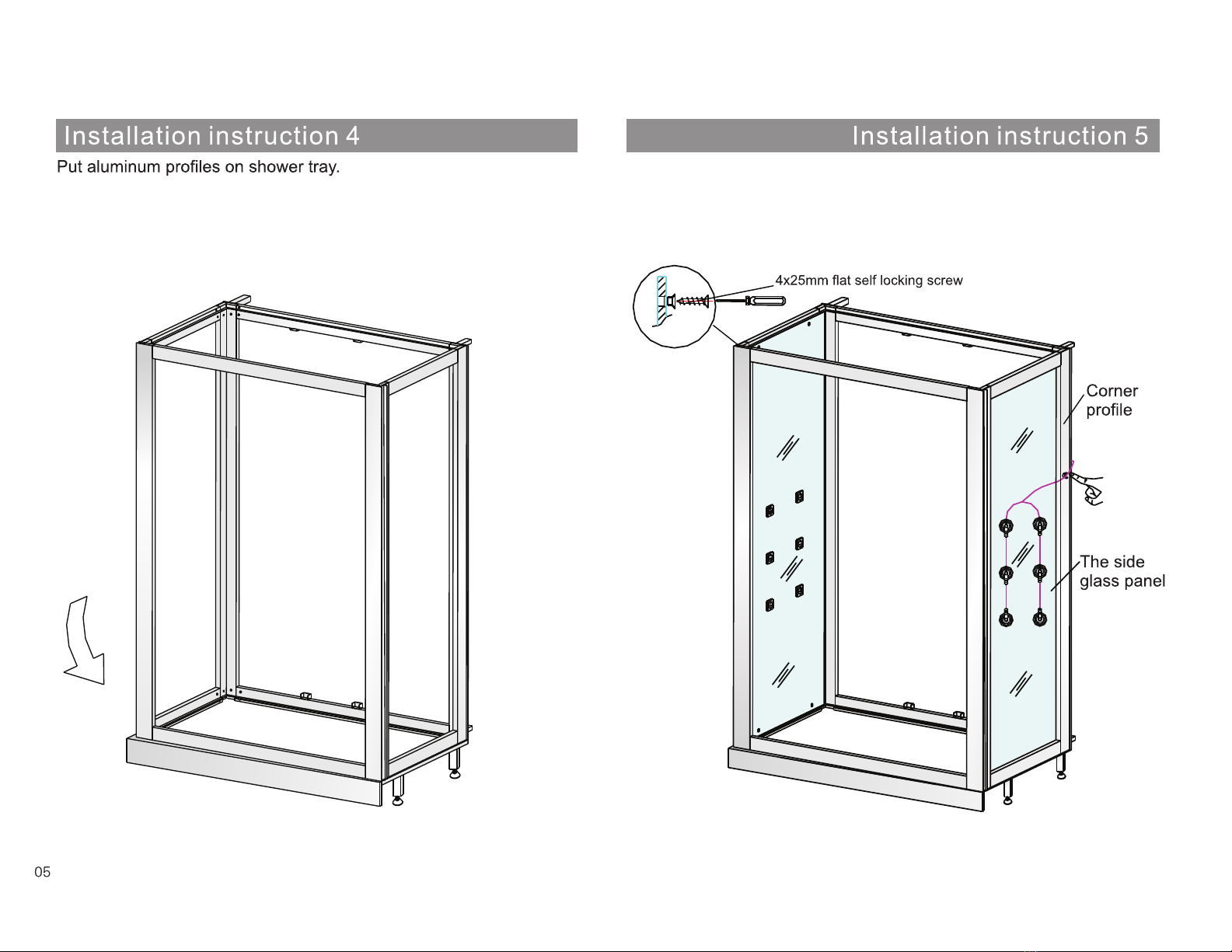

Follow illustrations A and B to screw all 8 corners tightly with 4x20mm flat self
locking screws. Check to make sure that the gap between the mating
aluminum pieces is less than .5mm as in Illustration C

A
Put the side glass panels between side corner profiles. Insert plastic plugs
into the holes with 4x25mm flat self locking screws and fasten securely as
in illustration A to fasten the side glass panels in place. After panels are
secured, use fingers to push water feed hoses from side massage jets into
white plastic brackets on back frame.
Water feed lines

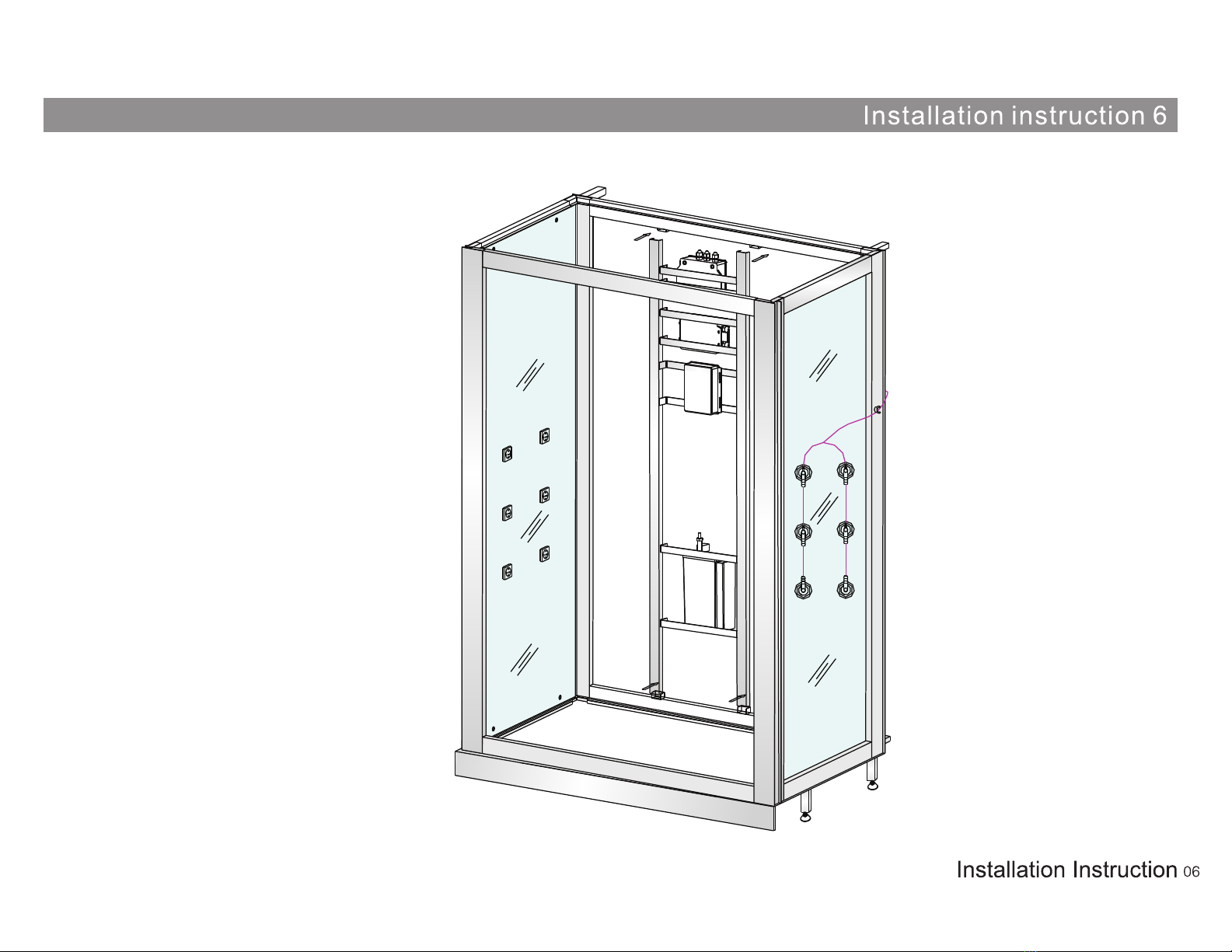

Insert aluminum Frame with Computer controls and Steam generator into the corresponding locking brackets on the shower frame. Make sure that the
insert frame has a gap of no more than 1mm when fully seated into the locking brackets.

6x30mm bolt
6mm Lock washer
12mm Flat washer
Rubber Grommet
6mm Washer
6mm Nut
Metal Bracket
Acrylic Tray
Fasten metal frame of shower to base using metal brackets and 6x30mm Bolts.
See Illustration for Details
Frame Securing Illustration
7
.1

Hand Shower hose
Hand shower wall
connector
Hand shower
Pole
Shampoo rack
bracket
Hexagon Allen Wrench
Shampoo rack wall
mounting bracket

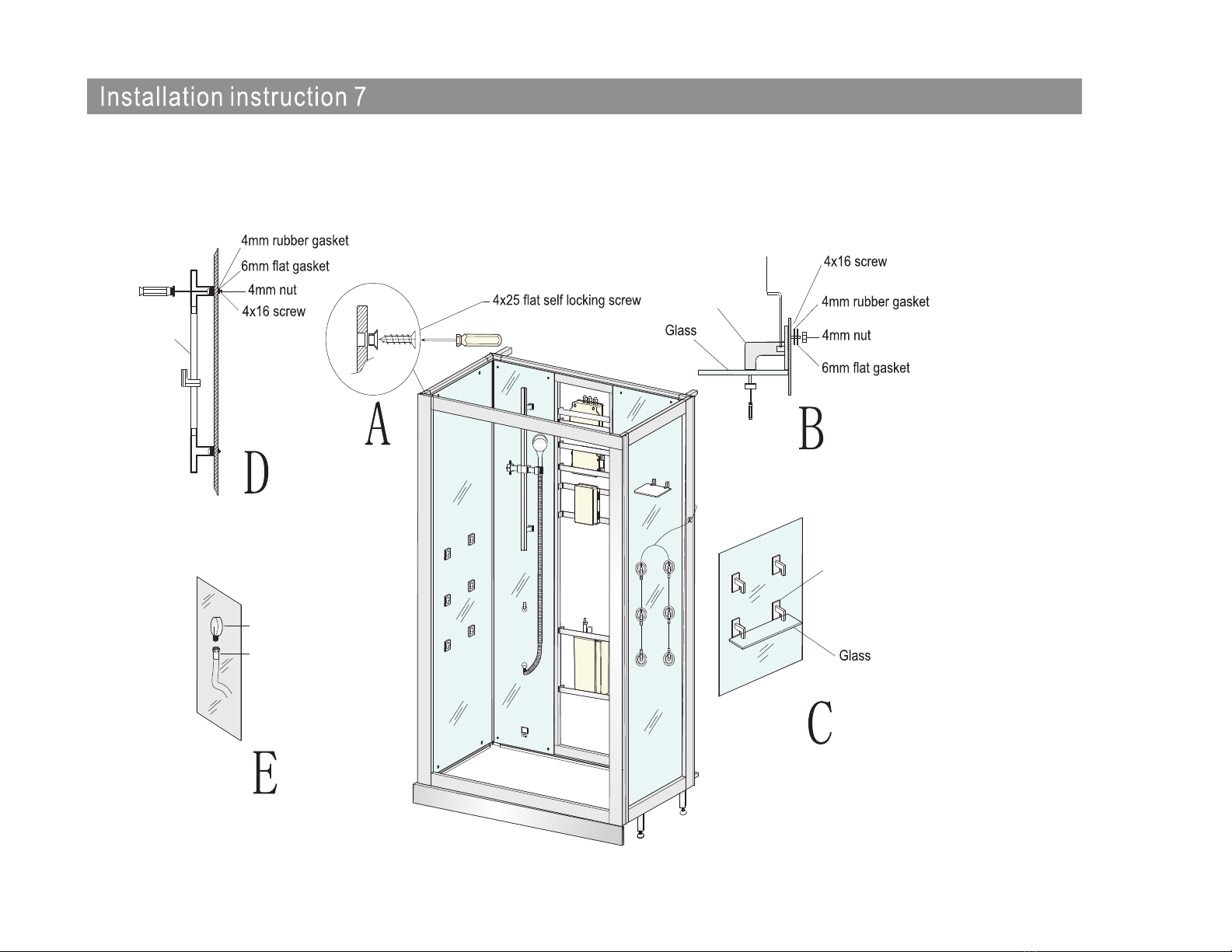

1. Put left Side and center back panels in place and secure with 4x25mm screws as in illustration A.
2. Install glass shelves On Right side panel and hand shower pole on Left side panel as in illustration B, C and D.
3 Connect Hand shower hose to the wall connecter as in illustration E.
8

1. Put the roof on the top as in illustration A
2. Connect the fan, lights, and speakers with corresponding plugs from wiring harness on back of computer. Match plug connectors and check with
Illustration on each wire for correct match.
3. Disregard short white wire coming from back of
computer box as this is for factory testing
purposes only.

Install front clear glass panels using the same method as used to secure other panels: See illustration A
NOTE: that one of the solid glass panels has holes for the door hinges

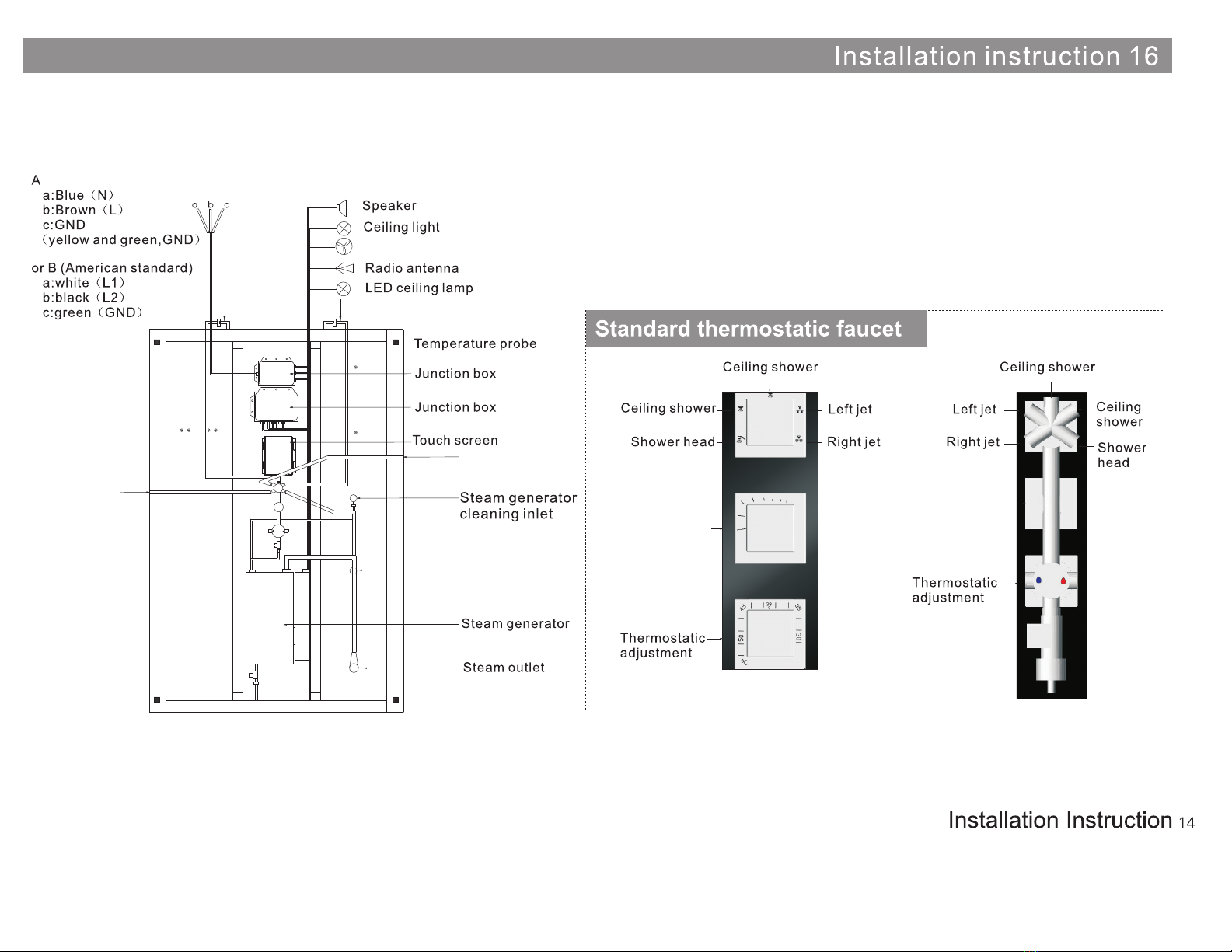

1. Connect all hoses to the diverter valve located behind the center panel and check connections to showerheads on the roof
2. Double check all water and electrical connections to check for water leaks or electrical problems.
3. If possible apply power and water to unit to test before continuing

Assemble floor wood duck boards as in Illustration A.
Details as in Illustration B.

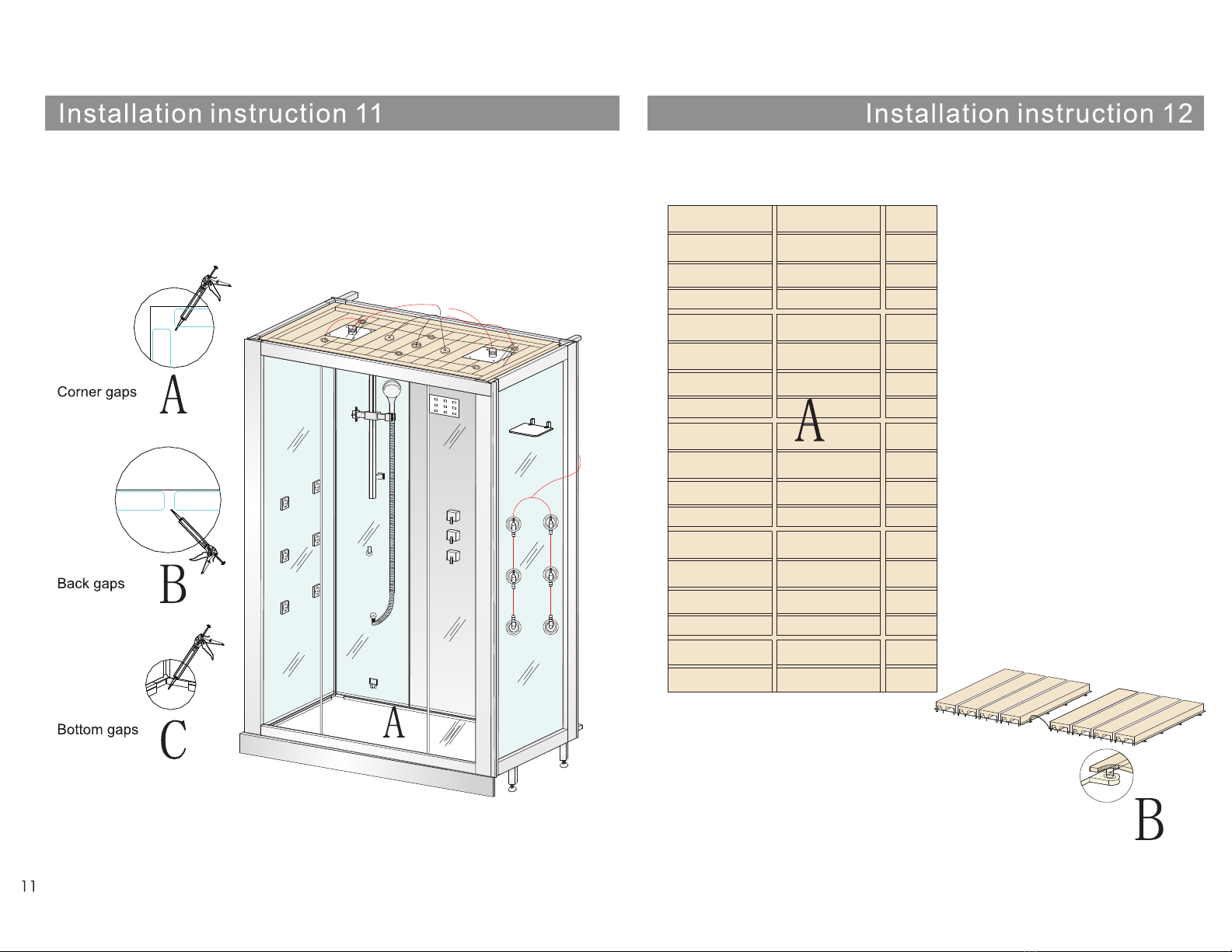

Apply caulking to all joints of glass panels and around base of shower frame
to the acrylic tray. Let caulking cure for 24hrs before using shower.

Put wood floor in corresponding position as illustration A.
1. Assemble moveable door A and Fixed panel with hinge. (If Door can not
close properly then adjust the door as in illustration B. by loosening screws
on hinge and lifting or tilting door to the proper alignment and re-tighten
screws on hinge.
2. Install door handles as in illustration C.
3. Install Waterproof seal D on the top of Door.
4. Install Waterproof seal E on the edge of door.
5. Install Waterproof seal F on the bottom of door.
6. Install magnetic strip G on door and on mating wall panel.
Fixed wall panel
Moveable Door
Hinge
Hinge

Exhaust Fan
Ceiling Shower
head
Ceiling Shower
head
Massage Jets
Massage Jets
Hand Shower
Water Volume
Adjustment
Water Volume
Adjustment
Install all hoses and steam tubes, drain tube, and hot and cold water lines.
Check all fittings are tight and all electrical connections are correct before applying water or power to the unit.

۸Fﺄﺛ$¹¼¼°°%؟

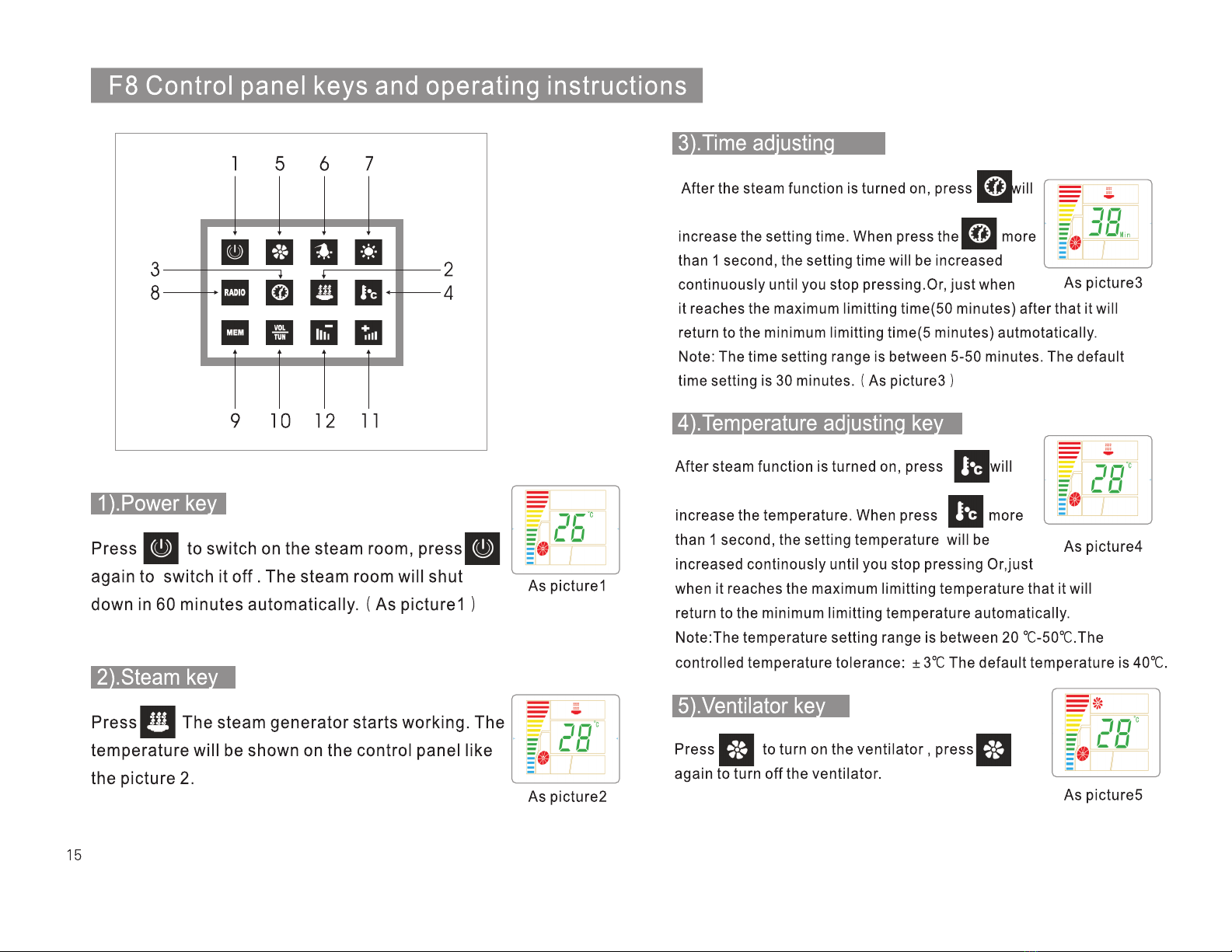

Press to switch on the steam room, press
again to switch it off . The steam room will shut
down in 60 minutes automatically. As picture1（ ）

Press and release within 1 Second, the frequency of current channel will
be changed; Press and hold it more than 1 second, the frequency of
current channel will be saved. It can hold a total memory of 8 channels
This Key has 2 functions. When the radio is turned on,
This key shows the frequency function. Press the
key again and it will switch from the frequency
function to the volume function. Press the key,
and the display will show like (pic 10) for
frequency mode or (Pic 9) for volume mode.
After the radio is turned on(As Pic 9), Pressing
will increase the volume. If you hold the key for more
than 1 second the volume will keep increasing until
the key is released. When in frequency mode as in
(Pic 10) pressing will increase the frequency.
Hold the key for more than 1 second and the frequency
will keep increasing until the key is released.
After the radio is turned on(As Pic 9), Pressing
will decrease the volume. If you hold the key for more
than 1 second the volume will keep decreasing until
the key is released. When in frequency mode as in
(Pic 10) pressing will decrease the frequency.
Hold the key for more than 1 second and the frequency
will keep decreasing until the key is released.

（ ）As picture1
（ ）As picture2
（ ）As picture3
（ ）As picture4
（ ）As picture5
（ ）As picture6
Instructions For Cleaning The Steam Generator
Warning:
1. Do not Use the
cleaning function while
any other function is on.
2. Do not Use an Alkaline
Cleaning agent to clean
steam generator.
3. Do not Use any powder
cleaning agent to clean
steam generator, Doing
so may plug system.
We Recommend that you
use Citric Acid or Vinegar
to clean steam generator!

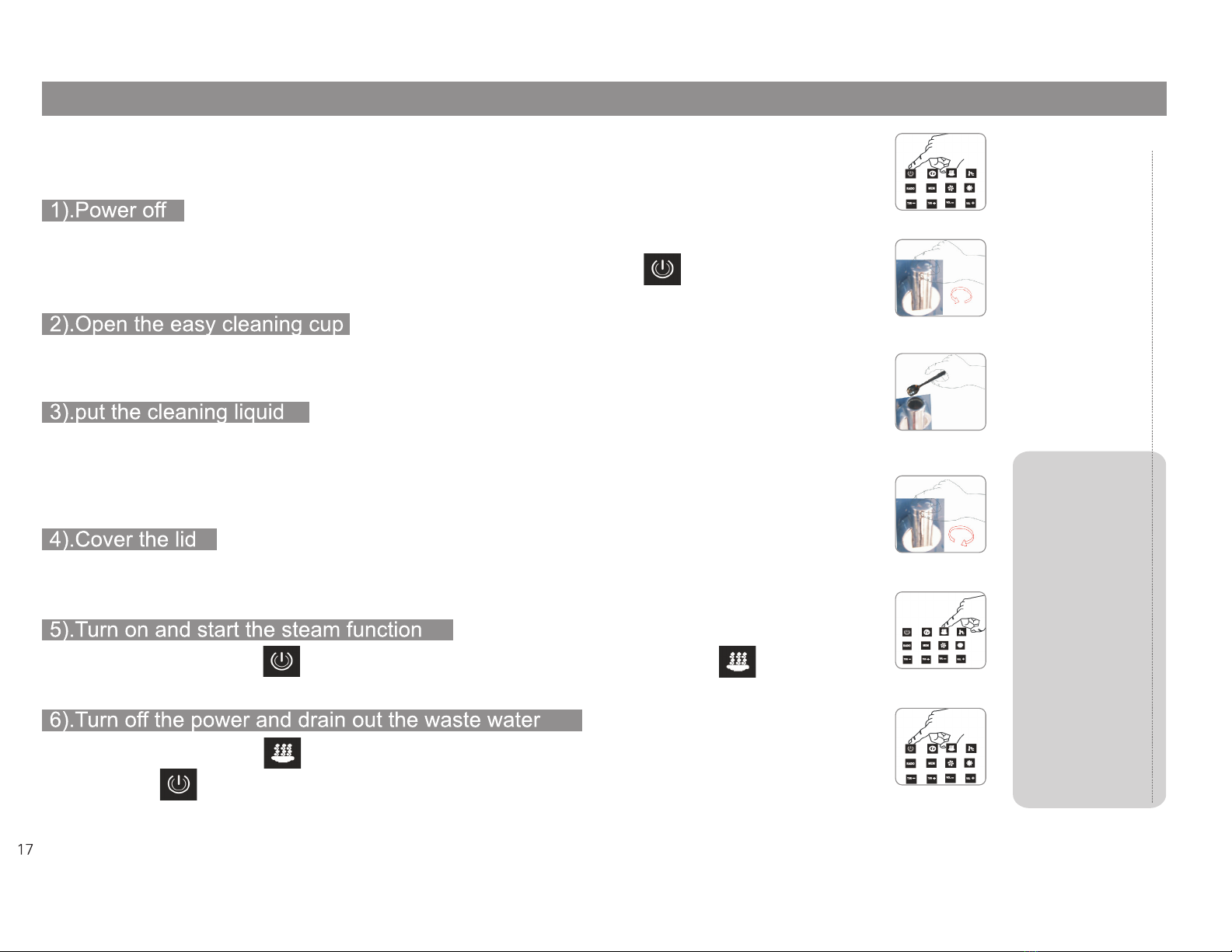

Procedure: Turn off power to the shower, Then open the cap on the Cleaning port on the wall of the shower.
Put approx ½ cup of Vinegar in the cleaning port and put the cap back on the cleaning port and let vinegar sit
for 10-15min in steamer. Turn the shower on and start the steam function for 5min. Turn off Steamer and sediment
in steamer flushes out when steamer drains automatically.
For Safety, DO NOT OPEN cap on cleaning port when steamer is in operation to reduce risk of scalding from steam.
Please shut down all functions before using steam generator cleaning function (As pic 1)
After making sure all functions are turned off. Remove the cap from the Cleaning port on wall (As pic 2)
Remove the lid by turning in a counter clockwise direction and remove carefully.
After adding the cleaning agent to the steamer, replace the cap on the port and turn it in a clockwise direction
to tighten. (As Pic 4)
After replacing the cap, Press to turn on the steam generator function and the system will begin to clean
the steam generator automatically. (As Pic 5)
After 5-10 Minutes, press the button to turn off the steam generator.
Then press the the waste water and sediment will automatically drain from steamer (As Pic 6)
Pour approx ½ cup of vinegar or liquid citric acid into the cleaning port. Use only Liquid cleaning agents
Do not use solid cleaning agents or any other Acid, or Alkaline compounds. Pour into cleaning port
(As pic 3)
