Earth Way C22HD User manual

C22HD & C22HDS Broadcast spreader
ASSEMBLY and OPERATING INSTRUCTIONS Rev 3.10
31104
Qty 4 36200
Qty 8
36205
Qty 3
36300
Qty 17
36207
Qty 2
36305
Qty 2
33117
Qty 1
36105
Qty 1
36104
Qty 1
36103
Qty 1
36404
Qty 18
vvvvvvvv
vvvvvvvv
Upper Handle
Gauge & Lever
Handle
Shaft
Frame
Brace
Cross
Brace
Lower
Handles
Impeller
Frame
Gearbox
Pivot
Control
Rod
Pivot
Rod
(Qty 4) #31104
#14 X 1-1/2”
Flat Head Screw
2. Position hopper on side. Install
frame using (4) #14 x 1-1/2” Flat
Head Phillips screws. TIGHTEN
THESE NOW.
ROCK SALT IS NOT
RECOMMENDED FOR USE IN
THIS SPREADER.
REMOVE AGITATOR
WHEN USING ICE MELT.
1. Remove and identify all of the loose parts from carton.
Pt# 52153 PAGE 1
Gauge Overlay is snapped over the
metal gauge. Replace the stop bolt
assembly to secure overlay on the
gauge.
WARNING
Do not use air tools to assemble. to prevent
seizing, spray all nuts & bolts with oil, furniture
polish or wax, or other lubricant.
EarthWay
EarthWay
EV-N-SPRED
EV-N-SPRED
®
®
GT
GT
PLEASE CALL IF YOU ARE MISSING ANY PARTS, HAVE ANY DIFFICULTY IN ASSEMBLY, OR HAVE ANY QUESTIONS
REGARDING THE SAFE OPERATION OF THIS SPREADER. THIS MODEL INCLUDES LIFETIME TECHNICAL SUPPORT
SUPPORT HOT LINE: 574-848-7491 or 800-294-0671, email: [e-mail]
HELPFUL HINTS:
;If your spreader does not spread evenly, be sure the FRONT on the gear box points to the front of the spreader. The impeller must
turn clockwise. Reversing the gearbox will cause the impeller to turn counter clockwise. Clean the impeller after each use as some
fertilizer may become stuck on the impeller blades and will cause uneven spreading.
;Your spreader is designed to be pushed at three miles per hour, which is a brisk walking speed. Slower or faster speeds will change
the spread patterns. Wet fertilizer will also change the spread pattern and ow rate. Clean and dry your spreader thoroughly after each
use. To prevent rust, please coat all metal surfaces, also inside tubes where possible, with a light oil or WD-40. Wash between the shut
off plate and bottom of the hopper.
;Gears are permanently lubricated at the factory. Do not open the gearbox or dirt may enter.
;If you must use Rock Salt remove the agitator to prevent damage to the gearbox and remove salt from the hopper daily. Rock Salt
will reconstitute back into a solid block over night with humidity and will damage your spreader.

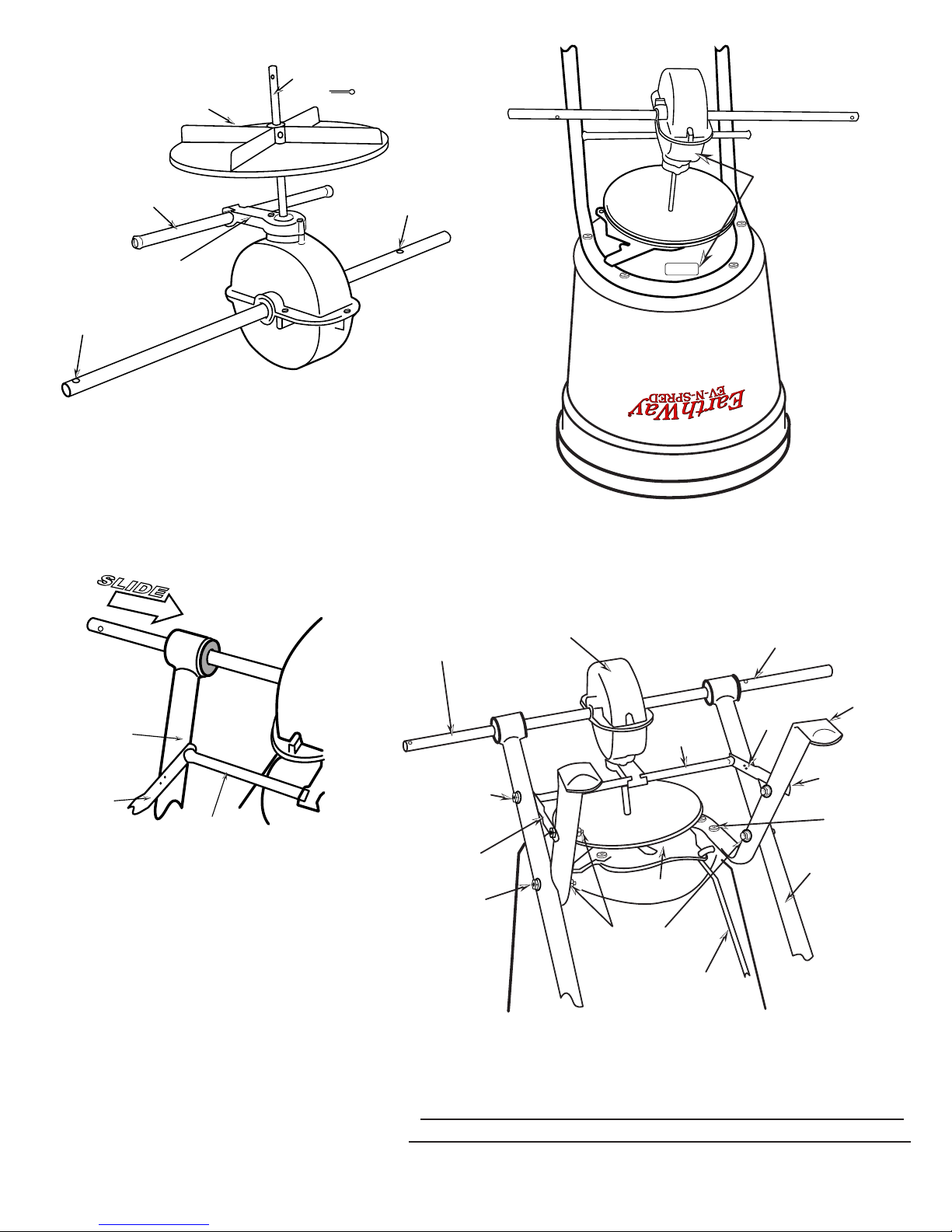

3. Install impeller onto pinion shaft. Insert 1/8” x 1-1/4” cotter pin
through impeller then through pinion shaft. Use hole nearest gear box.
Spread cotter pin to prevent from falling out. Next, install the Cross
Brace through the Gearbox Brace Support as shown above.
F
R
O
NT
Pinion
Shaft
1/8 x 1-1/4”
Cotter Pin (#36105)
DRIVE WHEEL
HOLE
COAST WHEEL
HOLE
Impeller
Cross Brace
Gearbox & Axle Assembly
Gearbox Brace
Gearbox
FRONT
F
R
O
NT
FRONT
4. Install Gearbox by inserting the pinion shaft into hole in center of
hoppers bottom. The word “FRONT” on the gearbox must point to
FRONT of the hopper.
S
L
I
D
E
Gearbox
Axles Assembly
Lower Handle
Frame Brace
Cross Brace
Gearbox & Axle Assembly DRIVE WHEEL SIDE
COAST WHEEL SIDE
Frame brace
1/4-20 x 1-1/2”
Hex Head Bolt
and cupped washer
Step 5B
Step 5C
1/4-20 x 2-1/4”
Hex Head Bolt
and cupped washer
Step 5A
1/4-20 Locknut
and cupped washer
Impeller
Cross Brace
Dimples
Frame
Lower Handle
Pivot Rod
Shut-Off
#14 x 1-1/2”
Flat Head Screw
1/4-20 x 1-1/2”
Hex Head Bolt
5. Install Lower Handles onto Axle to both sides as
shown above.
A. Now insert 2-1/4” bolt through second hole in lower
handle and through rst hole in frame and secure with
locknut.
DO NOT TIGHTEN YET.
B. Now insert 1-1/2” bolt through rst hole in lower
handle, then through frame brace, and nally into the
threaded connector in the Cross Brace. [NOTE: Dimples
on frame braces must be facing toward gearbox as
shown.]
C. Next insert 1-1/2” bolt through other end of frame
brace and through second hole in frame install locknut.
DO NOT TIGHTEN YET.
PAGE 2
NOW GO BACK AND TIGHTEN ALL NUTS AND BOLTS
STARTING WITH FIRST STEP. DO NOT OVER TIGHTEN.
~~Notice cupped washer locatioNs~~

6. Install drive wheel to axle using pin hole nearest to lower
handles as shown. Insert 2” cotter pin through wheel and
through axle. Bend with pliers to prevent pin from falling
out.
NEXT
Install coast wheel to axle, and then using outside pin
hole on the axle (as shown on the left), insert 1” cotter pin
through axle [NOTE: not thru the wheel]. Bend with pliers
to prevent pin from falling out.
TURN SPREADER UPRIGHT ON TO WHEELS
2” Cotter Pin
1” Cotter Pin
If you have any questions
please call 574-848-7491
1/4-20
Lock Nut
and
cupped washer
1/4-20 x 2-3/4”
Hex Head Bolt
1/4-20 x 2-1/4”
Hex Head Bolt
and cupped washer
3 Position Handle
Lower Position
Upper Position
Middle Position
7. NOTE: BEFORE INSTALLING THE GAUGE & LEVER ASSEMBLY AND UPPER HANDLE TO
THE HANDLE SHAFT, SELECT THE BEST POSITION FOR THE OPERATOR’S COMFORT. You
can select lower, middle, or upper positions for best t to the operator’s height. Insert 2-¾” bolt through the
Gauge, then upper handle and nally through handle shaft. See example to the right.
DO NOT TIGHTEN LOCKNUT YET.
8. Insert pivot rod into shut off plate as shown above. [TIP: Insert rod end from the top, then push down &
turn to lock in place.]
9. Insert other end of pivot rod into pivot and bracket assembly as shown. [TIP: Insert rod end from the side
that has the angle attached to the bracket, then turn to lock in place as shown at the right and above. The
correct positioning of the Pivot Bracket has the Angle and Attaching Arm facing away from the gearbox.]
PAGE 3
Angle
Attaching
Arm
Insert Pivot Rod
into Shut-Off
and rotate to secure

5
1
0
1
5
3
0
Insert Control Rod
into
Pivot Bracket
Attach 1/4-20 Regular
Hex Nuts
at these points.
Notice the position
of the double bend point.
1/4-20 X 1-1/2”
Hex Head Bolt
and cupped washer
1/4-20
Lock Nut
and cupped
washer
30
CALIBRATION POINT
10. Install handle shaft to lower handles and pivot & bracket assembly as shown. Using
(4) 1 ½” bolts with cupped washers and (4) locknuts (2) cupped washers. [TIP: Attach
right side rst with cupped washers on both nuts and bolts, then attach left (Pivot
Bracket) side with washers only on the bolt side]
TIGHTEN BOLTS AND NUTS NOW.
5
1
0
1
5
3
0
Gauge & Lever
Control Rod
Tabbed Hole
Control Rod
Lever Tensioning Nut
12. Next push lever forward to setting “0”. Align control rod with hole in pivot
bracket, pull lever backward to insert control rod through hole in pivot bracket.
[TIP: If the lever does not move easily, loosen slightly to make this step
easier] Now install 1/4-20 regular nut on to Control rod.
DO NOT TIGHTEN NUTS YET.
13. Pull lever back to setting “30” as shown. Next push pivot & bracket for-
ward so that the shut off plate in the hopper is in the full open position. [NOTE:
THE SETTING OF “30” ON THE GAUGE & LEVER ASSEMBLY MUST
OPEN THE SHUT-OFF COMPLETELY FOR PROPER CALIBRATION.]
Now tighten the nuts against the pivot bracket to prevent change in calibration.
Test by opening and closing the Gauge & Lever a few times to ensure an accurate
calibration.
14. Tension on the ow control lever may be adjusted by tightening or loosening
the tension nut as shown on the right.
11. Install attened end of control rod in to lever on gauge
into Control Rod Tabbed hole as shown. Turn to lock in place.
NEXT: Install (1) 1/4-20 Regular Nut [not a locknut] on to
Control Rod and thread halfway as shown to the left.
15. Insert Agitator to pinion shaft on inside of hopper.
NOTE: Position of at side of agitator. This pin should
be installed as shown below.
PAGE 4

16. For normal operation both doors should be fully opened. To reduce ow to the left side, partially or completely close the door over the rear
(LARGE) hole. To reduce ow to the right side, partially or completely close the door over the front (SMALL) hole. Close both doors for a
narrow center spread pattern.
WARNING: If the optional side deector is being used in the down position, the plate over the rear (LARGE) hole MUST BE CLOSED or
an over application of material will occur.
PAGE 5
The settings furnished on the Setting Matrix are intended as a guide only. Variations in physical characteristics of material applied, walking
speed, and roughness of ground surface may require slightly different spreader settings. Due to these conditions, EPI makes no warranty as
to the uniformity of coverage actually obtained from the settings listed.
S
p
r
e
a
d
P
a
t
t
e
r
n
Infinitely Variable
Throwing Port Openings
One port closed
Both ports closed
Both ports open
Constant Spread Width
OPERATING INSTRUCTIONS
Before lling hopper, become familiar with the operation of this spreader.
5Obtain proper setting for material to be used from the enclosed SETTING MATRIX included with this spreader, or from our web site
under the MANUALS SECTION.
5Move stop bolt on rate gauge assembly to the proper setting.
5While pushing spreader forward, pull control lever back to stop bolt.
5To stop, push lever forward to close ow holes before you stop moving.
5When nished, empty any remaining material from hopper.
5Thoroughly wash spreader and allow to dry before storing. A coating of light oil will help prevent corrosion.
5If you must use Rock Salt, Remove agitator when using Rock Salt to prevent damage to the gearbox.
You now can Register your product online at
www.earthway.com/support.
Please keep the original purchase receipt because it
will be needed if you need warranty coverage.
HOW TO ORDER SPARE PARTS
All spare parts listed may be ordered direct from
EarthWay Products, Inc.
Be sure to give the following information when ordering.
Model Number
Part Number
Part Description
Call [phone], 800-294-0671,
or email: [e-mail] for current prices.
Full Rate Path Half Rate Path
Start
Finish
Start
Finish
5-YEAR LIMITED WARRANTY
EarthWay Products, Inc. warrants this product free of defects in original workmanship and materials for a period of 5-Years to the end
user with the original purchase receipt. If a manufacturing non-conformance is found, EarthWay Products, Inc. at its discretion will
repair or replace the part(s) or product at no charge provided the failure is not the result of incorrect installation, mishandling, misuse,
tampering, or normal wear and tear as determined by EarthWay . EarthWay at its discretion may require that the part(s) or product be
returned along with the original purchase receipt at owners’ expense for examination and compliance with the terms of this warranty. (Do
not return any product without rst receiving authorization from EarthWay Products, Inc.). To seek remedy under this warranty, contact
EarthWay Products, Inc. at 574-848-7491, [e-mail] or write to ( EarthWay Products, Inc. P.O. Box 547 Bristol,
Indiana 46507) and describe the nature of the manufacturing defect. SPECIFIC LIMITATIONS: This warranty covers only the part(s)
or product; any labor charges associated with repair or replacement of non-conformances are specically excluded. Due to the corrosive
nature of most fertilizers and ice melt products, EarthWay Products, Inc. makes no warranty against and specically excludes part(s)
or product degradation or failure due to corrosion or its effects. Clean and dry your spreader thoroughly after each use, as a preventative
measure, coat all metal parts with a light oil or silicon spray.

vvvvvvvv
vvvvvvvv
7
4
33
30
5
26
20
11
11
14
32
9
11
28
11
22
34
31
25
13
2
27
16
3
1
8
21
5
29
23
5
9
22
11
5
24
22
24
12 15
12
11
18
19
18
17
10
6
6
66
6
6
6
6
77001
OPTIONAL
Heavy-Duty
Rain Cover
60043R
OPTIONAL
Heavy-Duty
Rain Cover
&
Side Deflector Kit
C22HD & C22HDS professioNal Broadcast spreader
Key # Part # Description Key # Part # Description Key # Part # Description
1 40002 ROUND SCREEN 14 24100 FRAME STAINLESS SS 26 42256 CONTROL ROD
2 60152 HOPPER ASSEMBLY 14 25102 FRAME PAINTED 27 60298 GAUGE & LEVER ASSEMBLY
3 33117 AGITATOR 15 12109 IMPELLER (9" DIA) 28 36207 1/4-20 X 2 3/4" HHCS SS
4 31104 #14 X 1 1/2 TYPE 25 FHPS ZINC 16 36105 1/8" X 1 1/4" COTTER PIN SS 29 12273 GRIP (C- Series) 9.75" LONG
5 36300 1/4-20 NYLON INSERT LOCKNUT SS 17 60334 GEAR BOX & AXLE ASS'Y 30 60069 UPPER HANDLE ASSEMBLY W/GRIPS PAINTED
6 36404 1/4" CUPPED WASHERS - SS 18 12352 BEARING - C SERIES 30 60070 UPPER HANDLE ASSEMBLY W/GRIPS SS
7 12220 HOPPER BUSHING 19 36103 3/16 X 2" COTTER PIN SS 31 36208 #6 X 3/8" TYPE 25 PHPS SS
8 12278 SHUT OFF PLATE ASS'Y - COMMERCIAL 20 19117 13" PNEUMATIC WHEEL 32 11927 SHUTOFF SUPPORT- LARGE
9 24202 LOWER HANDLE STAINLESS STEEL 21 36104 3/16 X 1" COTTER PIN SS 33 11926 SHUTOFF SUPPORT- SMALL
9 25202 LOWER HANDLE PAINTED 22 36205 1/4-20 X 2 1/4" HHCS SS 34 31138 #8 X 3/8" PMT #8 HD COARSE BLACK
10 60299 PIVOT & BRACKET ASSEMBLY 23 24301 HANDLE SHAFTS SS OPTIONAL 77001 HEAVY DUTY RAIN COVER 13”
11 36200 1/4-20 X 1 1/2" HHCS S.S. 23 25301 HANDLE SHAFT PAINTED OPTIONAL 60043R SIDE DEFLECTOR AND RAIN COVER
12 42237 FRAME BRACE 24 36305 1/4-20 HEX NUT SS 12196 GAUGE OVERLAY- EARTHWAY
13 24704 CROSS BRACE (11.25") 25 44251 PIVOT ROD OPTIONAL 12195 GAUGE OVERLAY- LESCO
3
0
2
0
1
0
0
L
e
s
c
o
S
e
t
t
i
n
g
s
Standard Settings Gauge Overlay #12196 and
OPTIONAL Lesco Settings Gauge Overlay #12195
3
0
2
0
1
0
0
E
a
r
t
h
W
a
y
S
e
t
t
i
n
g
s
EarthWay Products, Inc.
P.O. Box 547
Bristol, Indiana 46507
[phone]
