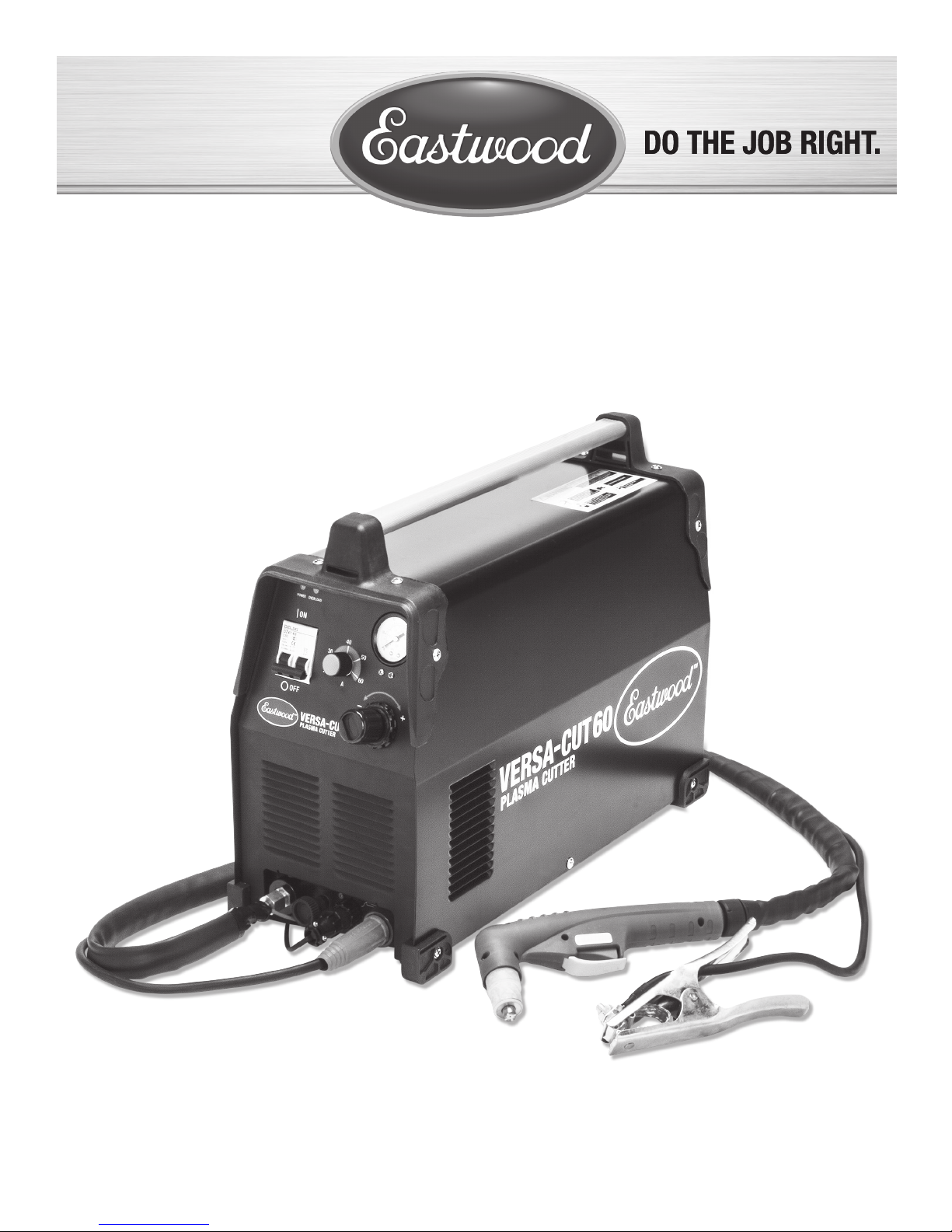

Eastwood VERSA-CUT 60 Quick reference guide

VERSA-CUT 60 PLASMA CUTTER
ASSEMBLY & OPERATING INSTRucTIONS
(PDF version available at eastwood.com/14099manual)
Part #14099

2Eastwood Technical Assistance: 800.544.5118 >> [e-mail]
SPEcIFIcATIONS
Our Eastwood-designed Versa-Cut 60 Plasma Cutter is your smartest choice for making clean, fast cuts through steel, stainless
or aluminum as thin as 24-gauge, or as thick as 7/8”. Compared to mechanical cutting, our Versa-Cut 60 Plasma Cutter works
significantly faster, and makes curved and intricate cuts more easily and precisely. A built in pilot arc system allows for instant arc
striking and ease of use when cutting rusty material and expanded metal. The internal moisture separator helps to ensure clean dry air
gets to the torch to give you consistent results.
STATEMENT OF LIMITED WARRANTY
The Eastwood Company (hereinafter “Eastwood”) warrants to the end user (purchaser) of all new welding and cutting equipment (collectively called the “products”) that it will
be free of defects in workmanship and material. This warranty is void if the equipment has been subjected to improper installation, improper care or abnormal operations.
WARRANTY PERIOD:
All warranty periods begin on the date of purchase from Eastwood. Warranty Periods are listed below, along with the products covered during those warranty periods:
3 Year Warranty on Material, Workmanship, and Defects:
• Eastwood Versa-Cut 60 Plasma Cutter
Items not covered under this warranty: Electrodes, nozzles, diffuser, and external nozzle.
All other components are covered by the warranty and will be repaired or replaced at the discretion of Eastwood.
2 Years:
• All Welding Helmets.
CONDITIONS OF WARRANTY TO OBTAIN WARRANTY COVERAGE:
Purchaser must first contact Eastwood at 1-800-345-1178 for an RMA# before Eastwood will accept any welder returns.
Final determination of warranty on welding and cutting equipment will be made by Eastwood.
WARRANTY REPAIR:
If Eastwood confirms the existence of a defect covered under this warranty plan, Eastwood will determine whether repair or replacement is the most suitable option
to rectify the defect. At Eastwood’s request, the purchaser must return, to Eastwood, any products claimed defective under Eastwood’s warranty.
FREIGHT COSTS:
The purchaser is responsible for shipment to and from Eastwood.
WARRANTY LIMITATIONS:
EASTWOOD WILL NOT ACCEPT RESPONSIBILITY OR LIABILITY FOR REPAIRS UNLESS MADE BY EASTWOOD. EASTWOOD’S LIABILITY UNDER THIS WARRANTY SHALL NOT
EXCEED THE COST OF CORRECTING THE DEFECT OF THE EASTWOOD PRODUCT. EASTWOOD WILL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES (SUCH
AS LOSS OF BUSINESS, ETC.) CAUSED BY THE DEFECT OR THE TIME INVOLVED TO CORRECT THE DEFECT. THIS WRITTEN WARRANTY IS THE ONLY EXPRESS WARRANTY
PROVIDED BY EASTWOOD WITH RESPECT TO ITS PRODUCTS. WARRANTIES IMPLIED BY LAW SUCH AS THE WARRANTY OF MERCHANTABILITY
ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY FOR THE EQUIPMENT INVOLVED. THIS WARRANTY GIVES THE PURCHASER SPECIFIC LEGAL RIGHTS.
THE PURCHASER MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
Amperage
Output Range
20-60 Amps
Output
Voltage
104 V
Weight
42 Lbs.
Duty
Cycle
60%
@ 60 A
OVERALL
DIMENSIONS
17.7”
(450 mm) x
7.5”
(190 mm) x
13.6”
(345 mm)
Electrical
Input
50-60Hz
220 VAC
Air
Requirements
5-7 CFM @
20-60 PSI
DuTY cYcLE
The rated Duty Cycle refers to the amount of welding that can be done within an amount of time. The Eastwood Versa-Cut 60 Plasma Cutter
has a duty cycle of 60% at 60 Amps. It is easiest to look at your cutting time in blocks of 10 Minutes and the Duty Cycle being a percentage
of that 10 Minutes. If cutting at 60 Amps with a 60% Duty Cycle, within a 10 Minute block of time you can cut for 6 Minutes with 4 Minutes
of cooling for the cutter. To increase the duty cycle you can turn down the Amperage Output control.

To order parts and supplies: 800.345.1178 >> eastwood.com 3
SAFETY INFORMATION
FLAMMABILITY HAZARD
• Before beginning, make sure the work surface is cleaned of any oils, coatings or other materials which can ignite
and or emit dangerous fumes or vapors.
• Molten metal is ejected away from the cutting area with significant force and speed. Make sure the entire work area
is clear from flammable or easily damaged materials or objects.
HIGH VOLTAGE DANGER
• The unit contains no user serviceable parts! Contact with the torch when the button is depressed will result in a
serious shock and severe burns!
• This device also produces High-Frequency Emissions which can damage sensitive electronic equipment in the area. Keep all cell-
phones, cameras, watches and other electronic equipment at least 6 feet away from the Power Unit and Torch.
• Important Note: If you have a medical condition or pacemaker check with your doctor before using as the RF emissions
may cause interference.
ELEcTRIcAL SAFETY TIPS
ELECTRICAL SAFETY DO’S
• Make sure you, your work area, and your equipment are dry.
• If you are using an extension cord, make sure it is a grounded cord in sound condition with no damage or frays,
and of the correct wire gauge (minimum 8 Gauge @ 25’ maximum length).
• Ensure that proper sized circuit breakers and wiring are in place prior to use: 50 Amp for 240 volt operation.
ELECTRICAL SAFETY DON’TS
• Never bypass the ground plug. Grounding is necessary for proper operation of the unit and reduces shock hazard.
• Do not touch the torch tip until after the activation switch is off and the unit is UNPLUGGED.
• Do not use the unit if any component should become damaged or show signs of excessive wear.
DANGER WARNINGS!
READ AND UNDERSTAND ALL INSTRUCTIONS AND PRECAUTIONS BEFORE PROCEEDING.
This unit emits a powerful high voltage and extremely high temperature plasma arc of superheated air which can cause
severe burns, dismemberment, electrical shock and death. Eastwood shall not be held liable for consequences due to
deliberate or unintentional misuse of this product.

4Eastwood Technical Assistance: 800.544.5118 >> [e-mail]
REquIRED ITEMS
Before you begin using the Eastwood Versa-Cut 60 Plasma Cutter make sure you have the following:
• A clean, dry air supply source for the torch. An air compressor capable of delivering 5-7 CFM @ 60 PSI is required.
You can even use a portable air tank with regulator. The air supply must be dry and the use of a moisture trap
is strongly recommended.
• Eastwood recommends at a minimum a properly grounded 220-240 VAC 50/60Hz., 50 Amp circuit.
NOTE: Unit must be grounded to work properly and safely!
• A clean, safe, well-lit, dry, and well-ventilated work area.
• A non-flammable, long sleeve shirt or jacket.
• Heavy-Duty Welding Gloves (Eastwood #12590 or equivalent)
• Plasma Cutting Glasses (Eastwood #13948) or Welding Helmet (Eastwood #13203 or 13212) to provide eye
protection during cutting operations.
POWER REquIREMENTS
The Eastwood Versa-Cut Plasma Cutter is supplied with the popular NEMA 6-50P plug, requiring a NEMA 6-50R recepticle.
BEFORE YOu BEGIN
Remove all items from the box. Compare with list below to make sure unit is complete.
• Versa-Cut 60 Plasma Cutter
• Torch and 20’ Supply Line
• 10’ Ground Lead and clamp
• Instruction Booklet
• Face Shield
• Extra Electrode and Nozzle

Ground
Torch
Switch
Connector
To order parts and supplies: 800.345.1178 >> eastwood.com 5

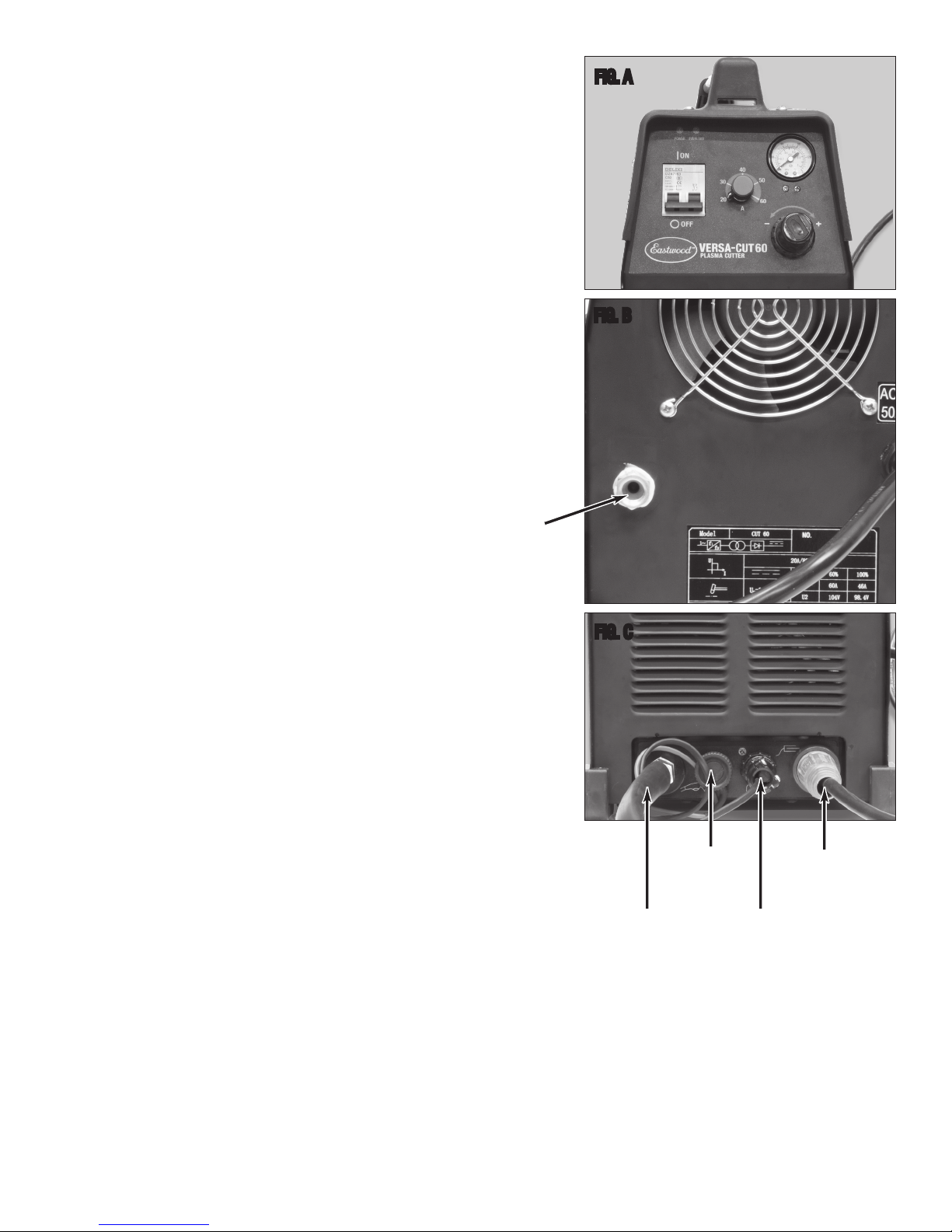

SET-uP
• After the desired current source is determined, be sure the proper plug
is used and the appropriate circuitry and breakers are in place.
• Do not plug unit in at this time and make sure the Power Switch on the
left side of The Front Panel is in the OFF position. (Fig. A)
• Install an air fitting compatible with your air line into the 1/4” NPT fitting
on the rear of the plasma cutter. (Fig. B)
• Attach the Torch Air Supply Line to the lower left of the front panel
and tighten. (Fig. C)
• Attach the Torch Switch Connector Cable to the Multi-Pin Connector
located on the third from left of the lower front panel. (Fig. C)
• Remove the black threaded knob (2nd from left) and place the terminal
of the red lead over the post, then replace the knob and tighten. (Fig. C)
• Attach the Ground Lead Connector to the terminal located at the lower
right of the front panel. (Fig. C)
FIG. B
FIG. C
FIG. A
Pilot Arc
Ignitor
Torch Air
Supply Line
✑✒✓✔
✑✒✓✔
✑✒✓✔
✑✒✓✔
Compressed
Air Inlet
✑✒✓✔

Ground
Torch
Switch
Connector
To order parts and supplies: 800.345.1178 >> eastwood.com 5
SET-uP
• After the desired current source is determined, be sure the proper plug
is used and the appropriate circuitry and breakers are in place.
• Do not plug unit in at this time and make sure the Power Switch on the
left side of The Front Panel is in the OFF position. (Fig. A)
• Install an air fitting compatible with your air line into the 1/4” NPT fitting
on the rear of the plasma cutter. (Fig. B)
• Attach the Torch Air Supply Line to the lower left of the front panel
and tighten. (Fig. C)
• Attach the Torch Switch Connector Cable to the Multi-Pin Connector
located on the third from left of the lower front panel. (Fig. C)
• Remove the black threaded knob (2nd from left) and place the terminal
of the red lead over the post, then replace the knob and tighten. (Fig. C)
• Attach the Ground Lead Connector to the terminal located at the lower
right of the front panel. (Fig. C)
FIG. B
FIG. C
FIG. A
Pilot Arc
Ignitor
Torch Air
Supply Line
✑✒✓✔
✑✒✓✔
✑✒✓✔
✑✒✓✔
Compressed
Air Inlet
✑✒✓✔

To order parts and supplies: 800.345.1178 >> eastwood.com 7
cARE AND MAINTENANcE
• It is extremely important that the air supply be clean
and dry. A separate moisture trap, water/oil separator
or desiccant system should be used. The Versa-Cut 60
Plasma Cutter has a built-in “last-chance” moisture
separator which requires draining each time you have
completed work with the unit. This feature is located
on the underside rear corner and is drained by keeping
the unit level and gently pulling down on the drain
fitting. (Fig. E)
• Constantly inspect the torch nozzle for excessive erosion,
molten metal accumulation or burning. If damaged, it
must be replaced.
• Before each use, inspect ALL electrical connections,
cables, supply line, torch, air supply, housing and controls
for damage. If any damage or wear is noted, DO NOT USE
THE UNIT.
• Always store the unit in a safe, clean and dry
environment.
TORch MAINTENANcE
The Eastwood Versa-Cut 60 Plasma Cutter has a number of
consumable parts that will need to be replaced over time. If
wear or slag build up is noticed on any of the torch components,
replace them immediately to avoid damage to the torch. Worn
components will also contribute to poor cutting and difficult arc
starting. See the torch components (Fig. F) exploded view for a
reference of all of the components and the assembly order.
FIG. E
✑✒✓✔
FIG. F
Electrode
Air
Diffuser
Nozzle
External
Nozzle
✑✒✓✔
✑✒✓✔
✑✒✓✔
✑✒✓✔

© Copyright 2012 Easthill Group, Inc. Instruction part #14099Q Rev. 9/12
If you have any questions about the use of this product, please contact
The Eastwood Technical Assistance Service Department: 800.544.5118 >> email: [e-mail]
PDF version of this manual is available online >> eastwood.com/14099manual
The Eastwood Company 263 Shoemaker Road, Pottstown, PA 19464, USA
US and Canada: 800.345.1178 Outside US: 610.718.8335
Fax: [phone] eastwood.com
TROuBLEShOOTING
• The entire unit shuts off during use, switch is in the “on” position:
- The unit has overheated from exceeding the duty cycle and the internal thermal protection circuitry has been activated. Turn
the main power switch off, wait several minutes to allow cooling then turn power switch back on. The unit is ready for service.
• The power switch is on, the indicator light is illuminated, the fan is running however when the Torch activation button is depressed,
there is no sound from the Pilot Arc Igniter and there is no air flow:
- Check all connections. A loose connection will prevent Torch activation.
- Check for damaged lines, Torch or Torch Tip.
- Make sure there is sufficient air flow & pressure. (30 to 60 PSI)
• The power switch is on, the indicator light is illuminated, the fan is running however when the Torch activation button is
depressed, there is airflow through the torch but no sound from the Pilot Arc Igniter:
- Check all connections. A loose connection will prevent Torch activation.
- Check for damaged lines, Torch or Torch Tip.
- Inspect the Torch Tip for damage, excessive molten material build-up or excessive burning. Replace if necessary.
- Lower Air Pressure to 60 PSI or below
• The power switch is on, the indicator light is illuminated, the fan is running and when the Torch activation button is depressed,
there is airflow through the torch, the Pilot Arc Igniter is activating however a plasma arc cannot be started:
- Check all connections. A loose connection will prevent Torch activation.
- Check for damaged lines, Torch or Torch Tip.
- Inspect the Torch Tip for damage, excessive molten material build-up or excessive burning. Replace if necessary.
- Input voltage is too low or too high (below 110V or above 240V).
- Air pressure is too low or too high. (below 30 PSI or above 60 PSI), Adjust to proper pressure.
• The Pilot Arc is sputtering:
- Lower air pressure to 60 PSI or below.
- Replace the nozzle and electrode in the torch.
REPLAcEMENT ITEMS:
• #14285 – Plasma Cutter Torch Assembly
• #14286 – Electrode 10-Pack
• #12814 – Nozzle 10-Pack
• #13787 – External Nozzle
• #13788 – Air Diffuser
AccESSORIES:
• #13689 – Plasma Cutting Guide
• #13948 – Plasma Cutting Glasses
• #12590 – Welding Gloves - Large
