EasyGates ASO Safety Contact Edge GE F Series User manual

Plug‘N‘Sense Assembly Instructions
Safety-contact-edges may only be manufactured and installed by authorised persons.
Pre-assembled ASO delivered end cap with contact plug includes:
End cap
Contact plug
Clip
Lock cap
Butyl seal
Contact plug with cable Contact plug with resistor
1. Cutting the safety-contact-edge
The safety-contact-edge is cut 20 mm shorter than the nal length
dimension to allow for the length of the end caps on each end. Make
sure that the safety-contact-edge is cut clean and straight, using the
approved LOWE cutting tool ONLY.
b) Connection cable
The connection cable exits the bottom of
the end cap.
2. Preparing end caps
a) Notch for the weather-sealing lip
When assembling safety-contact-edges with
weather-sealing lips, the end caps have to
be notched where indicated to allow for the
weather-sealing lip(s).
c) Water drain plugs
For installations in contact with water, it
is necessary to remove water drain plugs.
If the edge is to be mounted horizontally,
remove drain plugs from both ends. If the
edge is mounted vertically, just remove the
lower drain plug.
Markers
(inside)
Cable exit
sidewards
downwards
backwards
Water drain plugs
2a2b2c
Final lengthdimension
cuttinglength = final length -20mm
Safety Contact Edge GE F Series
Technical Document Ver 1.0
As of 01.03.2016
Web: www.easygatesdirect.co.uk Phone: [phone]
E-Mail: [e-mail] Address: Easygates Ltd, Unit 16 James Scott Rd B63 2QT Continued over leaf ➲

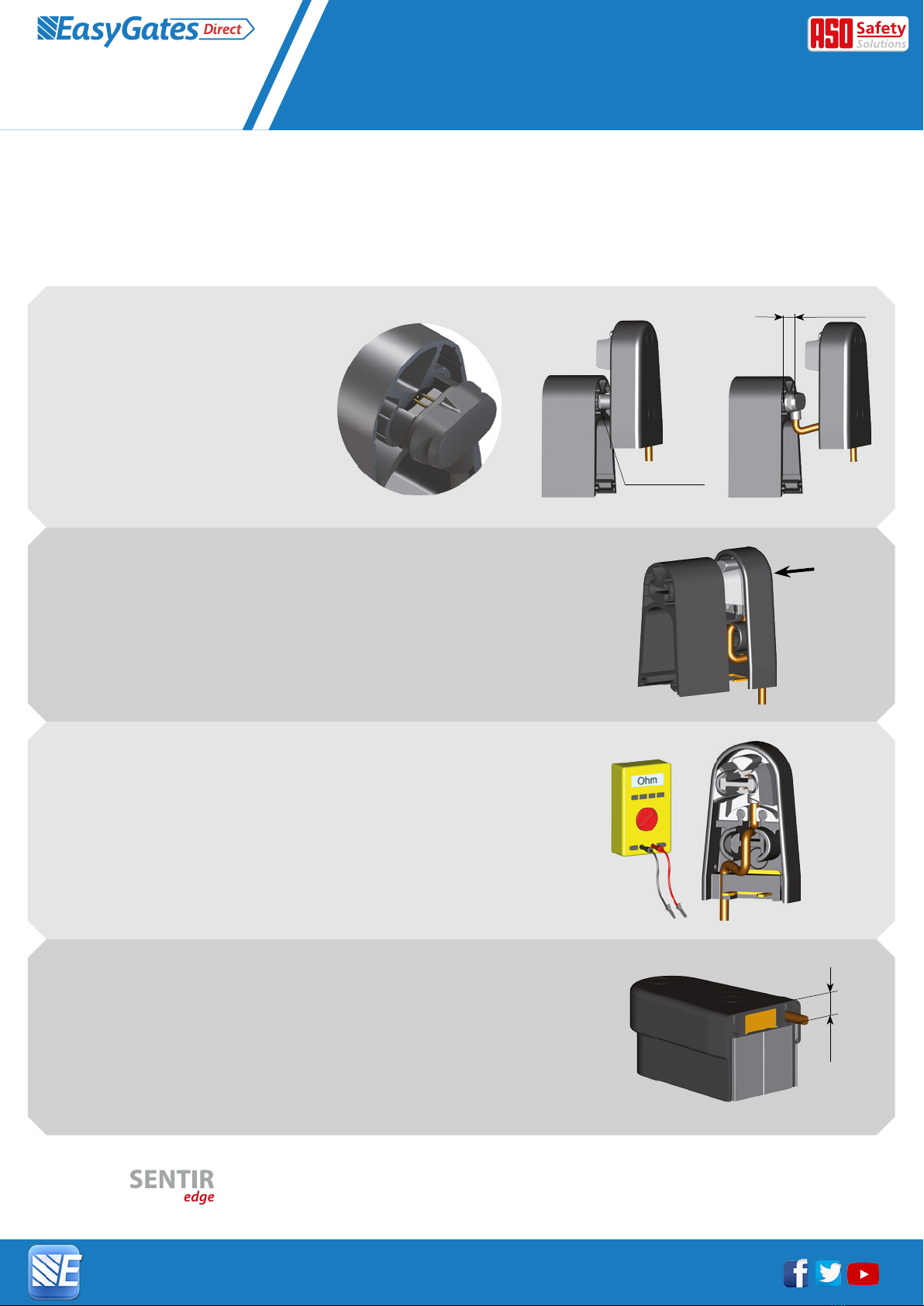

Safety Contact Edge GE F Series
3. Insert the contact plug
- Insert the plug, which is xed to the end
cap, into the electrical switching chamber of
the safety-contact-edge.
- Please ensure that the plug is inserted
parallel to the chamber so that both pins
penetrate the conductive material blocks.
- The elastic butyl seal has to be pressed on
tight to the edge (Max. 6,5 mm from plug
base to prole)
! NOTE: ! The ambient temperature during assembly should be between 10° and 30°C and the relative humidity between 40%
and 70%. It is not recommended to attempt assembly in atmospheric conditions outside of these values, any attempt to do so
may invalidate the product warranty. The prole should be stored in dry conditions and checked thoroughly before the cutting
& assembly process for the presence of any moisture or damage.
chamber
electrical switching
max. 6,5 mm
4) Put on end caps
Release the contact plug from end cap and then snap in the contact lock
cap on the contact plug until it clicks into place. Apply pressure to ensure
the end cap plug is fully inserted into the contact edge.
5) Electrical testing of the contact edge
Measure the contact edge with a multi meter. In rest position, the
resistance value has to be 8,2 kΩ ± 500 Ω (7,7 - 8,7 kΩ).
When edge is activated, the resistance should not exceed 500 Ω.
6) Cutting mounting rail
The mounting rail has to be 20 mm shorter than the nal dimension of the
contact edge.
10 mm
ASO GmbH & EasyGates exclude all liability for damage caused by incorrect installation of contact edges!
