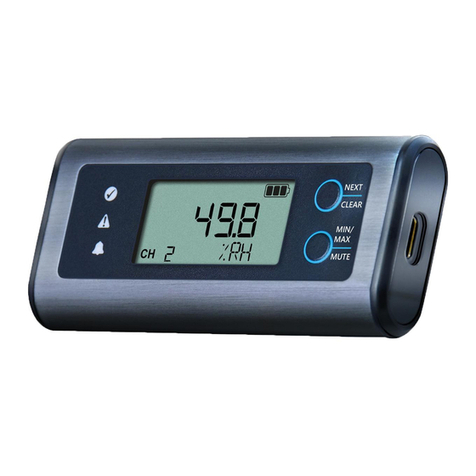

EasyLog EL-SIE User manual

Screen Buon Press Funcon Event Recorded
USB n/a n/a n/a n/a
Push to Start Any Long Start logging n/a
Triggered Start n/a n/a n/a n/a
Delayed Start n/a n/a n/a n/a
Channel –
Current reading
Top Short Move to next channel or STOP LOG n/a
Long Clear alarm hold for all channels Clear Held Alarms
Boom Short Show Min reading for this channel n/a
Long Mute alarm sounder Mute Alarm
Channel –
Min reading
Top Short Show Min reading for next channel or STOP LOG n/a
Long Reset Max/Min reading for all channels Clear Max/Min
Boom Short Show Max reading for this channel n/a
Long Mute alarm sounder Mute Alarm
Channel –
Max reading
Top Short Show Max reading for next channel or STOP LOG n/a
Long Reset Max/Min reading for all channels Clear Max/Min
Boom Short Show current reading for this channel n/a
Long Mute alarm sounder Mute Alarm
STOP LOG? Top Short Move to Channel 1 (or Warning Screen), also
generates an Audit Mark when cycling back
through to Channel 1
Audit Mark
Boom Long Stop logging, returns to Push to Start n/a
Warning Screen Any Short Move to next warning or Channel 1 n/a
LEDs Sounder Status
Acve Alarm / Memory Full /
Calibraon Expired
O Baery Low
LEDs Sounder Status
O Logger in operaon, no
alarms or warnings
O
Logger primed but not
yet logging / Pre-alarm
/ Memory 90% Full /
Calibraon Pending
(check display for
specic warning)
Display Logger Status Explanaon
USB Connected The logger is connected
via the USB cable
Push to Start The logger is set up for
Push to Start logging, a
long press of either
buon will start logging
Delayed Start The logger is set up for
Delayed Start logging and
will automacally start
logging at the specied
me
Triggered Start The logger is set up for
Triggered Start logging
and will start logging as
soon as the specied
limit (either temperature,
humidity or pressure) is
reached
Low Baery
Warning
The baeries are low and
should be changed when
possible
Memory Full
Warning
The memory is full and
logging has stopped
Memory 90%
Warning
The memory is 90% full,
and data should be
downloaded when
possible
Calibraon Pending
Warning
The calibraon will expire
in < 30 days on the date
shown (can be DD/MM/
YYYY or MM/DD/YYYY)
Calibraon Expired
Warning
The calibraon has
expired on the date
shown (can be DD/MM/
YYYY or MM/DD/YYYY)
Display Logger Status Explanaon
Logger Running The logger is sll logging
but can be stopped by a
long press of the boom
buon
Alarm Triggered An alarm is currently
acve on the logger
Cumulave Alarm A cumulave alarm is
acve on the channel
currently being displayed
High Alarm A high alarm is acve on
the channel currently
being displayed
Low Alarm A low alarm is acve on
the channel currently
being displayed
Held High Alarm A high alarm is being held
on the channel currently
being displayed
Held Low Alarm A low alarm is being held
on the channel currently
being displayed
High Pre-alarm A high pre-alarm is acve
on the channel currently
being displayed
Low Pre-alarm A low pre-alarm is acve
on the channel currently
being displayed
