INM MTL 130-0175 Rev 4 1
1 INTRODUCTION
NOTE
“Normal” as used to describe the process and instrument throughout this manual and on
instrument data labels, assumes the following conditions: Oxygen concentration in the
sample is within the range of the instrument; Catalyst Temperature is within the appropriate
limits; Oxygen Sensor Temperature is at its correct operational level.
1.1 Applications
This range of analysers is designed to monitor the oxygen content of the products of
combustion of a pre-mixed air/gas mixture.
1.2 General Description
The system comprises an electronic unit and a separate catalytic reactor/oxygen sensor unit.
Both the catalytic reactor and the oxygen sensor operate at elevated temperature.
The air/gas mixture is passed into the heated catalytic chamber where it combusts; the products
of combustion then pass across a zirconia oxygen sensor. The oxygen sensor produces a signal
proportional to the oxygen content of the gas, which is processed by the microprocessor control
unit. The control unit also provides a digital display and a programmable analogue output (typically
4 to 20mA) linear with oxygen concentration; the default setting is 0 to 5%.
The catalytic reactor and the oxygen sensor are heated by separate control circuits also housed
in the control unit. Their temperatures are controlled and monitored by two independent
controllers mounted on the front panel of the instrument. A volt-free, relay contact is provided
which opens when the sensor temperature or the catalyst temperature is in error.
The flow of gas through the catalytic chamber is indicated and controlled by a flow-meter with a
built-in manual control valve.
1.3 Manual symbols
The following methods are used in this manual to alert the user to important information:-
WARNING
Warnings are provided to ensure operator safety and MUST be followed.
CAUTION
A Caution is provided to prevent damage to the instrument.
NOTE
These are used to give general information to ensure correct operation

2INM MTL 130-0175 Rev 4
1.4 Information
Waste Electrical and Electronic Equipment directive (WEEE) 2002/96/EC
(RoHS) directive 2002/95/EC
WARNING
This equipment must only be used in accordance with the manufacturer’s
specification, instructions for installation, use and maintenance to ensure
that the protection of the operator is not impaired. It is the responsibility
of the installer to ensure the safety and EMC compliance of any particular
installation.
2 SPECIFICATION
2.1 Materials
Sample pipe work from flowmeter:- Stainless steel
Electronic enclosure:- Stove enamelled steel for enclosed version.
2.2 Ambient Temperature
Sensor unit: 70°C Max
Electronics: 50°C Max.
2.3 Display
Multi-digit LCD- character height 12.7mm
2.4 Display ranges
Display range resolution: 0.1% from 10.0% to 100%; 0.01% from 0.01% to 9.99%
2.5 Analogue outputs - isolated
0 to 5 volts – minimum load 10k ohms. or
4 to 20mA – maximum load 300 ohms
Bottom scale is fixed at 0%, span is user programmable over the range of 5% to 100%
2.6 Alarm outputs
One volt-free normally closed relay contact to indicate correct sensor and
catalyst temperature.
2.7 Accuracy
For newly calibrated instruments ±2% of reading. Stability better than 2% of reading per
month. Repeatability better than 2% of reading.
2.8 Speed of Response
Typical T90 for combustion gas application is 5 seconds.
2.9 Power Requirements
110 or 240V ac 50/60 Hz at up to 200 VA.– voltage selector switch located on front
panel of electronics unit.
2.10 Dimensions
See diagrams

INM MTL 130-0175 Rev 4 3
3 INSTALLATION
3.1 Unpacking and Visual checking
Take all normal precautions when opening the packages. In particular, avoid the use of long
bladed cutters. Check that all pipe connections have compression nuts and olives intact.
Search packing if any are missing. Check for any sign of damage. Carefully remove any internal
packing material.
THE SENSOR UNIT IN PARTICULAR SHOULD BE HANDLED WITH GREAT CARE SINCE
THE MEASURING SENSOR IS MADE FROM FRAGILE CERAMIC MATERIAL.
3.2 Siting
3.2.1 Electronics
A site should be chosen that is not subjected to ambient temperature greater than 50°C.
Care should be taken to mount the unit where it is not likely to receive heavy knocks or jolts.
Diagram 1 below gives details of mounting dimensions. The enclosure should be mounted
vertically, taking the standard precautions when installing equipment of this size and weight.
Diagram 1: Mounting dimension details
3.2.2 Catalytic Reactor and Sensor unit
Chose a site where the ambient temperature will not exceed 70°C. To enable the flowmeter to
operate correctly the unit must be mounted vertically ±2°.
Refer to the drawing on the following page for installation and dimensional details and observe
the followings points.
WARNING
Parts of the assembly behind the heat shield run at elevated temperatures. Care
must be taken to ensure that they cannot be easily touched in normal operation.
CAUTION
All wiring from the catalytic reactor and the sensor unit must routed so as to avoid touching
any of the sensor unit’s surfaces.
WARNING
Under normal conditions the gases emerging from the sample outlet are
asphyxiating, and under fuel-rich conditions could contain poisonous carbon
monoxide. These gases will also be hot, normally in excess of 100°C, and
any extension tubing must be able to withstand this temperature and be of a
diameter and length that will not to cause a significant back pressure.
FU S E
EditEdit
Alarm 1 Alarm 2
EditEdit CalCal
Z1920C MkII MTL Oxygen analyser
Ensurethisiscorrect
BEFOREconnecting
VoltageSelector
Sensor Temperature
Catalyst Temperature
Fuse Type‘T ’1.6A
20mm x 5mmØ
120-0644/1
+ -
TemperatureError
(Closed=OK)
13 14 15 16
SensorHeater
SensorSignal
Analogue
O/P
A.C. + NC
+-
1 2 3 4 5 6 7 8 9 10 11 12
SensorT/C
UseTypeKCompcable
-
Concentration
Alarm1
Concentration
Alarm2
NOC NC NOC NC
Fixing bracket slots
suitable for M8 (5/16”)
bolts and dotted outline
shows alternative bracket
positions
Enclosure is 200mm (8”)
deep
Cable gland holes on
underside face are 20mm
(0.79”)Ø
255 (10”)
390 (15.4”)
390
(15.4”) 255
(10.0”)

4INM MTL 130-0175 Rev 4

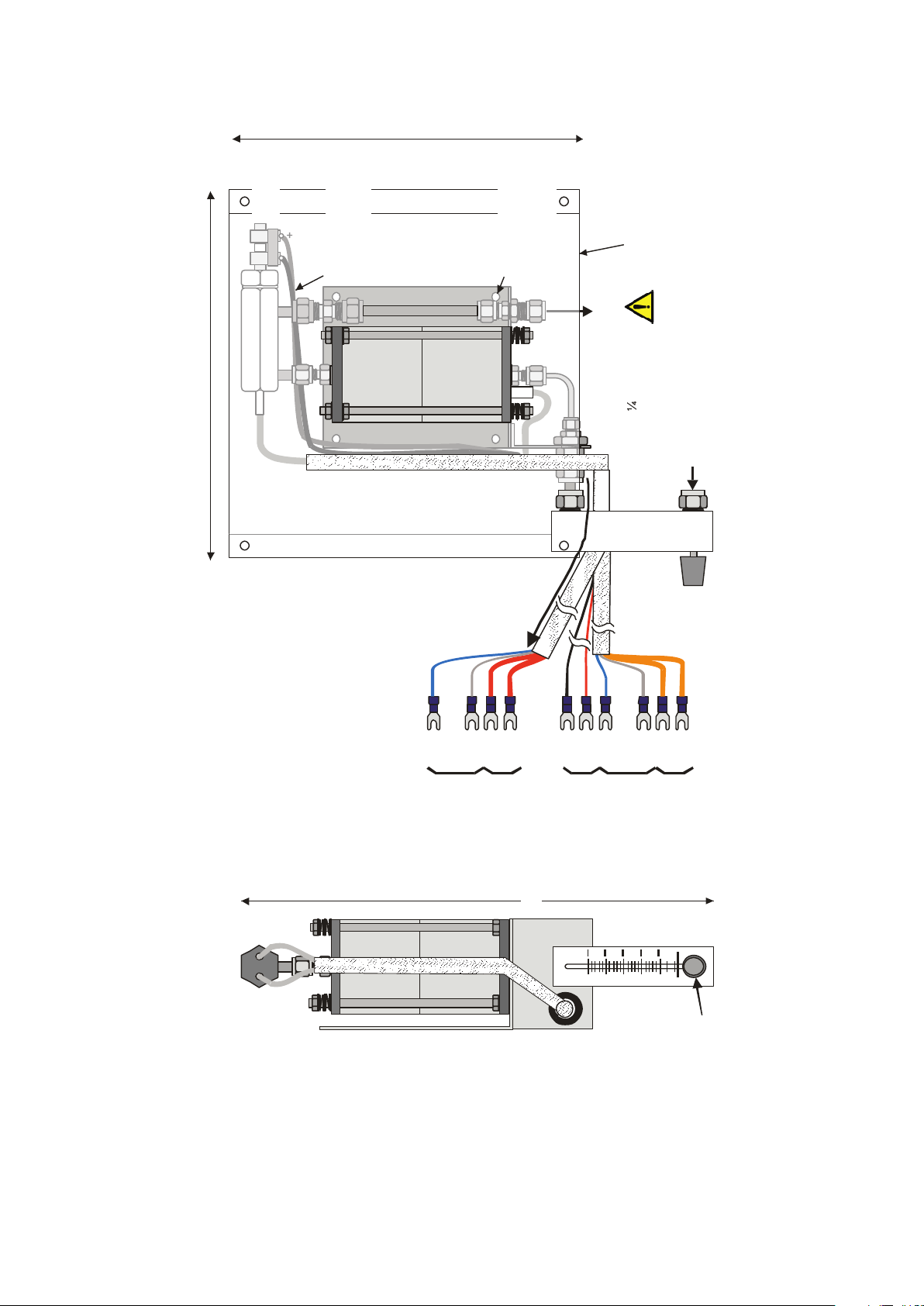

Diagram 2: Mounting details of catalytic reactor/sensor heater and heat shield
233
R eacted
S ample Out R efer to text
S ample inlet coupling
is suitable for ”
diameter tubing, and the outlet coupling for
3/8” diameter tubing
Air/G as
Mixture In
S ample F low A djust
Heats hield 80 deep F our M5 clearance mounting holes
horizonta l centres - 218
ve r t ica l cent res - 200
+
1 2 3 4 5 6 7 12 13 14 15 16
C a ta ly s t Temp. T /C
-
- -
+
+
20 v
A .C.
20 v A .C.
+
O x yge n S ens or
Temp. T/C O x yge n S ens or S igna l O x yge n S ens or
H ea te r P owe r
C a ta ly s t
He ater P ower
Not Used
Not U sed
S ens or
As s embly
S ens or Heater
Ass embly
-
Connectingcables
approximately1M
C ata lytic
R ea ctor
Four M5 clearance mounting holes horizonta l centres - 90
vertical centres - 100
Wires 3& 14 ca n be white or gree n
Wires 5& 16 ca n be blue or white
Always us e number tags as connection
indicators and not the colours .
220
Avoid these wires
touching the sensor
heater and catalytic
re actor
300 approx.

INM MTL 130-0175 Rev 4 5
3.3 Electronic unit connections
The following points should be observed for the wiring between the sensor/reactor unit and the
control/display electronics.
• The cables should avoid as much as possible tracking other high current cables.
• The signal outputs may be connected using standard instruments cable (e.g. 7/0.2). All
signal outputs are short/open circuit proof.
• If the cables are extended only use wire of similar type and current carrying capacity.
The thermocouple wire pairs 3&5 and 14&16 must use Type K thermocouple extension
or compensating cable.
WARNING
It is strongly recommended that the Temperature Error volt-free contacts
(terminals 10 and 11) are used to activate a sample cut-off in the event that
excessive sample flow (greater than 250ml/min) causes the catalyst to over
heat. Typically the contacts would be used as a logic input to the overall
burner controller. The controller would apply a delay to the burner shut-off
command so as to avoid shutting the burner down in a transient temperature
error situation.
120-0645/1
A.C. + -
13 14 15 16
A.C. + + NC+ - - -
1 2 3 4 5 6 7 8 9 10 11 12
Fuse Type ‘T’ 1.6A
20mm x 5mmØ
F US E
230
Set A.C. supply voltage
here
before
applying power to
(Re-wirable plug
supplied)
AC
Mains Connector
Via cable glands in enclosure
Sensor Heater
Sensor T/C
Use Type K Comp cable
Sensor Signal
Analogue O/P
Temperature Error
(Closed = OK)
Catalyst Heater
Catalyst T/C
Use Type K
Comp cable
Voltage Selector
Ensure this is correct
BEFORE powering

6INM MTL 130-0175 Rev 4
4 OPERATION
4.1 First Checks
With the sensor and electronic unit connected up to each other and electrical supplies, the
instrument is ready for use. Ensure that all the connections are correct and that the actual
supply voltage is the same as that set at the voltage selector. Check all piping connections for
tightness.
4.2 Start-up
With all the initial checks completed and found to be satisfactory, apply power to
the instrument.
When power is applied the concentration read-out will display briefly its start-up messages and
then, as the sensor heater warms up, the sensor temperature controller’s display will alternate
between indicating the rising sensor temperature and ‘ALARM’. Once the temperature
has reached its normal level, the controller display goes to a constant display of sensor
temperature. During the warm up period the concentration meter read-out and signal output
will be seen to go up and down the scale once or twice; this is quite normal.
CAUTION
Under no circumstaces pass a combustible sample until both the catalyst and sensor
are at their normal operating temperatures.
The instrument is calibrated prior to dispatch and is ready for immediate use, once warmed up.
User quality assurance procedures may require that a calibration check is made before use. If
this is the case then proceed to section 4.3, otherwise go to section 4.4.
4.3 Calibration check
The procedure requires two gases; one a standard gas with a known oxygen content of
between 0.5% and 2% of oxygen in nitrogen, and air. It is important that these gases contain
no combustible gas. The oxygen in nitrogen mixture may be obtained in cylinders from a
number of gas suppliers. The cylinder will need to be fitted with a regulator. The calibration
gases are introduced through the normal sample inlet. Either the sample will need to
disconnected, or a suitable manifold of valves will need to be arranged. Any source of the
normal sample should be removed when performing a calibration check.
Firstly connect the air and adjust the flow to between 150 and 250 ml/min. Allow the system
to stabilise for at least 60 seconds.
When the reading is stable, press and hold the Calibrate button for approximately 8 seconds.
The display will go blank for a moment and then show “H xxxx”; where H indicates that the
high calibration point is selected. Use the up/down arrow buttons to set the reading to 20.9%,
and then press the Edit button momentarily to reset the calibration. The display will now
show “H 20.9”. Press and hold the Calibrate button for a further 8 seconds. The display will
now show “Lxxxx” where “ L” indicates that the low calibration point is selected and “XXXX”
is the measured value of the gas passing across the sensor.
Now apply the 0.5 to 2% standard calibration gas and adjust the flow as before. Allow the
reading to stabilise and use the up/down arrow buttons to set the reading to the correct
concentration. Press the Edit button momentarily to reset the calibration and return to normal
measurement mode.
4.4 Commissioning
If a calibration check has been conducted ensure the standard calibration gas connection is
removed. The air gas mixture stream may now be applied. The flow control valve should be
turned fully clockwise (closed) prior to applying the mixture to the analyser. This is to avoid
passing high flow rates through the system.

INM MTL 130-0175 Rev 4 7
Slowly open the flow valve beneath the flow meter until a flow of between 150 and 250 ml/min
is flowing.
WARNING
To avoid serious and dangerous damage to the catalyst and sensor the sample
flow must not exceed 250ml/min (0.5cuft/hr).
The instrument will respond within a few seconds to show the oxygen concentration.
NOTE: Combustion of the sample generates heat and it is possible, when the sample is first
applied, that the catalyst temperature may go higher than its normal control point before
the controller is able to react. This will cause the controller to show error condition and the
relay contacts to go a fault condition. Whether this occurs or not will depend on the sample
composition and its flow rate. The results during this transient state are valid. It is suggested
that any external equipment (PLC’s etc) used to monitor the analyser are programmed so as to
ignore this situation for approximately 60 seconds after the sample has been applied.
Before switching the analyser off following its use on combustible samples ALWAYS pass air
through the analyser for a few minutes to purge out the moisture etc. formed when combusting
the sample.
4.5 Programming
The user programmable features are accessed by pressing and holding the Edit button for
approximately 8 seconds when the instrument is in normal measurement mode.
Each subsequent momentary press of the Edit button scrolls the display through a sequence of
adjustable parameters. The order of the sequence is as follows:
Alarm 1 Set point Alarm 1 Mode Alarm 1 Hysteresis Alarm 2 Set point Alarm 2 Mode
Alarm 2 Hysteresis Analogue Output top scale value Return to measurement mode.
NOTE
Only the LED indicators are available for the concentration alarms. No relay output is
provided on this model.
ALARM 1 - Set point
This is the first parameter to be displayed when the Edit button is pressed and held for eight
seconds. The display will show “E xxxx”, and the Alarm 1 LED will flash. “xxxx” is the value
of the alarm set point and the flashing LED indicates that it is the set point of alarm 1. To the
right of the display a % or ppm symbol is displayed to indicate the units of the value displayed.
To change the value of the set point, press the up/down arrows until the display shows the
required value. Observe the “%” and “ppm” symbols to ensure the correct setting. When
the buttons are first pressed the value changes slowly and the least significant number can
be changed by giving the buttons a short “click”. If the button is kept depressed the rate
accelerates rapidly to enable large changes in value to be achieved quickly. Once the required
value is displayed, press the Edit button once to store the value in the analyser’s memory.
Simultaneously the display will change to show “E x” and the Alarm 1 LED will continue to
flash.

8INM MTL 130-0175 Rev 4
ALARM 1 - Mode
The symbol displayed in the “x” position indicates the mode of the alarm as follows;
0- Alarm off; H- High; L- Low. Press the arrow buttons to change the mode and press the
Edit button once to store the setting. The display will change to show “EH xx” and the Alarm
1 LED will continue to flash.
ALARM 1 - Hysteresis
The number displayed In the “xx” position indicates the value of the hysteresis for alarm 1.
The value is given in percentage of the set-point or alarm level and is variable from zero to 10%.
Press the arrow buttons to set the required value and then Edit button to store the value. The
display will then change to repeat the above sequence for alarm 2; indicated by the alarm 2
LED flashing.
ANALOGUE OUTPUT - Top scale value
NOTE: This is factory set to 0 to 5% as the default for the Z1920C. It may be changed as
required. When the EDIT button is pressed following alarm 2 hysteresis entry, the display will
show “EPxxxx”, where “xxxx” is the oxygen concentration at which the analogue output ( 0 to
5v or 4 to 20mA) is at top scale. Press the up/down arrow keys to scroll the display to show the
required setting. See Specification section for the limits of this value. When the required value
is displayed, press the Edit button to store the value and return to measurement mode.

INM MTL 130-0175 Rev 4 9
5 MAINTENANCE
NOTE
The internals of the sensor unit operate at elevated temperatures. Take great care when
working on an analyser that has power applied or has only recently been turned off.
5.1 General
5.1.1 Electronics
The electronics unit is virtually maintenance free. Faults in modern electronics equipment
normally show up in the first six months of continuous operation. Tests show that following this
period, the life is virtually infinite, (10 years or more) assuming that the instrument has not been
subjected to use beyond its specification.
All the electronic modules require specialist test equipment and any adjustments, other than
those available on the front panel should be avoided.
5.1.2 Sensor Unit
Following commissioning it is advisable to check the calibration as described in section 4.3
after one week of continuous operation. Following this check, monthly checks should be
adequate. When carrying out the calibration check, it is useful to observe the response rate
of the SENSOR. With the air off or the sample valve shut the response to the calibration gas,
assuming the line is purged up to the inlet connector, should be virtually instantaneous. The
reading of sample oxygen should be fully stabilised in 5 to 10 seconds.
If it is suspected that the SENSOR is faulty a check on its electrical resistance is a good
indication of failure. See section 6.1
5.1.3 Catalytic Combustion Unit
Provided that no samples containing significant levels of sulphur, phosphorus, heavy metals,
silicon or halogen compounds, have been through the analyser, the catalyst should last
indefinitely. Running the system for long periods with fuel rich mixtures should also be avoided.

10 INM MTL 130-0175 Rev 4
6 FAULT FINDING AND SERVICING
WARNING
The internals of the sensor unit operate at elevated temperatures. Take great
care when working on an analyser that has power applied or has only recently
been turned off.
NOTE
For those instruments supplied as separate electronics and sensor units, to be inter-wired
on site, always check the interconnecting wiring first. Tests are mostly described as being
performed from the electronics end. If an open circuit condition is found, it is advisable to
repeat the tests at the sensor head before drawing a firm conclusion.
NOTE
Some tests described assume that the repairer is familiar and comfortable with electrical
apparatus and simple test equipment. Apart from standard small tools, other items required
to perform the tests described are a) digital multi meter - hand held 3½ digit type capable
of resolving 0.1mv dc, 0.1ma dc and up to 30v ac. b) potentiometer trim tool. The most
convenient way of repairing the instrument is to carry a full set of spares and substituting
known good modules for those identified as faulty using the tests described here.
6.1 Error ‘HELP’ Messages
If a data error is detected by the microprocessor it is reported by displaying ‘HELP’ followed by
a number. The meaning of these messages is as follows.
HELP 1 - After finding user calibration data corrupt the backup was found to be corrupt too.
Return to factory.
HELP 2 - Will not be seen. Factory calibration data is corrupt. If the backup is OK it will be
silently restored.
HELP 3 - After finding factory setup data corrupt the backup was found to be corrupt too.
Return to factory.
HELP 4 - User calibration and/or setup data is corrupt. Press the UP (↑) key to recover.
Factory default values are loaded for alarms, output range, cell calibration etc.
After a few seconds the instrument will automatically go into the EDIT menu.
After working through the edit screens (alarm settings and output range) in the
normal way, the instrument goes automatically into the CALIBRATE mode. After
calibrating at the high and low points, the instrument reverts to normal operation.
6.2 Oxygen Sensor Resistance Checking
The sensor temperature must be at normal operating temperature when this test is carried out.
Note also that the full working temperature of the sensor is not reached until the instrument
has been on for about 10 minutes. Pass air across the sensor via the calibration connection or
the sample inlet and check the resistance of the sensor across terminals 6 and 7 using a digital
multi-meter set to read at least 1000 ohms. If the resistance of the sensor is more than 1000
ohms and its response is sluggish, it is likely that it is faulty.

INM MTL 130-0175 Rev 4 11
6.3 Checking the Temperature Controller and Heater Circuit
of the Oxygen Sensor
Switch the analyser off and allow the sensor to cool down. Using a multi-meter set to read
resistance check that the resistance across terminals 3 and 5 (the thermocouple) is between 1
and 6 . Next check the heater resistance as follows. Remove the heater power connection
from terminal 1 to disconnect it from the power transformer, and use the multi-meter to
measure the resistance across heater wires 1 and 2. This should be 4 ± 10%. If either test
produces abnormal readings then the sensor heater/thermocouple assembly will need to be
replaced-proceed to section 6.4 for instructions on how to remove the module.
6.4 Checking the Temperature Controller and Heater Circuit of the Catalytic
Reactor
Switch the analyser off and allow the sensor to cool down. Using a multi-meter set to read
resistance check that the resistance across terminals 14 and 16 (the thermocouple) is between
1 and 6 . Next check the heater resistance as follows. Remove the heater power connection
from terminal 12 to disconnect it from the power transformer, and use the multi-meter to
measure the resistance across heater wires 12 and 13. This should be 4 ± 10%. If either
test produces abnormal readings then the catalytic reactor assembly will need to be replaced
-proceed to section 6.5 for instructions on how to remove the catalytic reactor.
6.5 Sensor Removal and Replacement
CAUTION
Remove power from the analyser and allow the reactor/sensor assembly to cool to ambient
temperature before proceeding. Also take great care when working with the fragile ceramic
of the sensor.
Remove the sensor signal connector and lead by carefully unclipping it from the ceramic
sensor. Unscrew the sensor and withdraw it from the heater body. Replacement is the
reversal of removal.
ENSURE THAT THE ELECTRICAL LEADS ARE SEPARATED FROM ALL HOT SURFACES BY AT
LEAST 12mm AND NOT PLACED VERTICALLY ABOVE THEM.
6.6 Catalytic Reactor/Sensor Heater
The sensor heater and catalytic reactor are supplied as two separate assemblies.
Replacement is by substitution of either assembly.
ENSURE THAT THE ELECTRICAL LEADS ARE SEPARATED FROM ALL HOT SURFACES BY AT
LEAST 12mm AND NOT PLACED VERTICALLY ABOVE THEM.
After replacement the analyser must be recalibrated as described in section 4.3
6.7 Spares & Service
Contact your local MTL Gas sales office for all spares and service.
WHENEVER SPARE PARTS ARE ORDERED IT IS IMPORTANT TO PROVIDE THE INSTRUMENT
SERIAL NUMBER.
For electronic cards, specify full input and output requirements if different from original
equipment.

DRAFT- 27 November 2014
AUSTRALIA
MTL Instruments Pty Ltd,
10 Kent Road, Mascot, New South Wales, 2020, Australia
Tel: [phone] Fax: [phone]
E-mail: [email protected]
BeNeLux
MTL Instruments BV
Ambacht 6, 5301 KW Zaltbommel
The Netherlands
Tel: [phone] Fax: [phone]
E-mail: [email protected]
CHINA
Cooper Electric (Shanghai) Co. Ltd
955 Shengli Road, Heqing Industrial Park
Pudong New Area, Shanghai 201201
Tel: [phone] Fax: [phone]
E-mail: [email protected]
FRANCE
MTL Instruments sarl,
7 rue des Rosiéristes, 69410 Champagne au Mont d’Or
France
Tel: [phone] Fax: [phone]
E-mail: [email protected]
GERMANY
MTL Instruments GmbH,
Heinrich-Hertz-Str. 12, 50170 Kerpen, Germany
Tel: [phone] Fax: [phone]
E-mail: [email protected]
INDIA
MTL India,
No.36, Nehru Street, Off Old Mahabalipuram Road
Sholinganallur, Chennai- 600 119, India
Tel: [phone] Fax: [phone]
E-mail: [email protected]
ITALY
MTL Italia srl,
Via San Bovio, 3, 20090 Segrate, Milano, Italy
Tel: [phone] Fax: [phone]
E-mail: [email protected]
JAPAN
Cooper Crouse-Hinds Japan KK,
MT Building 3F, 2-7-5 Shiba Daimon, Minato-ku,
Tokyo, Japan 105-0012
Tel: [phone] Fax: [phone]
E-mail: [email protected]
NORWAY
Norex AS
Fekjan 7c, Postboks 147,
N-1378 Nesbru, Norway
Tel: [phone] Fax: [phone]
E-mail: [email protected]
RUSSIA
Cooper Industries Russia LLC
Elektrozavodskaya Str 33
Building 4
Moscow 107076, Russia
Tel: [phone] Fax: [phone]
E-mail: [email protected]
SINGAPORE
Cooper Crouse-Hinds Pte Ltd
No 2 Serangoon North Avenue 5, #06-01 Fu Yu Building
Singapore 554911
Tel: [phone] Fax: [phone]
E-mail: [email protected]
SOUTH KOREA
Cooper Crouse-Hinds Korea
7F. Parkland Building 237-11 Nonhyun-dong Gangnam-gu,
Seoul 135-546, South Korea.
Tel: [phone] Fax: [phone]
E-mail: [email protected]
UNITED ARAB EMIRATES
Cooper Industries/Eaton Corporation
Office 205/206, 2nd Floor SJ Towers, off. Old Airport Road,
Abu Dhabi, United Arab Emirates
Tel: [phone] Fax: [phone]
E-mail: [email protected]
UNITED KINGDOM
Eaton Electric Limited,
Great Marlings, Butterfield, Luton
Beds LU2 8DL
Tel: [phone] Fax: [phone]
E-mail: [email protected]
AMERICAS
Cooper Crouse-Hinds MTL Inc.
3413 N. Sam Houston Parkway W.
Suite 200, Houston TX 77086, USA
Tel: [phone] Fax: [phone]
E-mail: [email protected]
The given data is only intended as a product
description and should not be regarded as a legal
warranty of properties or guarantee. In the interest
of further technical developments, we reserve the
right to make design changes.
EUROPE (EMEA):
[phone]
[email protected]
THE AMERICAS:
[phone]
[email protected]
ASIA-PACIFIC:
[phone] / 9865
[email protected]
Eaton Electric Limited,
Great Marlings, Butterfield, Luton
Beds, LU2 8DL, UK.
Tel: + 44 (0)1582 723633 Fax: + 44 (0)1582 422283
E-mail: [email protected]
www.mtl-inst.com
© 2017 Eaton
All Rights Reserved
Publication No. INM MTL 130-0175 Rev 4 140217
February 2017
