User manual
LASER DISTANCE METER
44
EN
XP4 Pro CONDTROL
Congratulations on your purchase of laser distance meter CONDTROL XP4 Pro.
Safety instructions can be found in the end of this user manual and should be
carefully read before you use the product for the first time.
INTENDED USE
Laser distance meter XP4 Pro is intended to measure distance, to stake out a line,
to calculate area and volume of measured objects as well as perform calculations
by tilt sensor and Pythagoras’ Theorem and able to transmit measuring results
via Bluetooth. The product is suitable for use at both indoor and outdoor building
areas.
SET
1. Laser distance meter– 1pc.
2. Carry pouch with a strap - 1 pc.
3. User manual – 1 pc.
4. Batteries (AAA) – 3 pcs.
5. USB charger– 1 pc.
TECHNICAL SPECIFICATIONS
Working range* 0,05– 150 m
Measuring accuracy ** ± 1,5 mm
Smallest unit displayed 1 mm
Automatic shutdown
- Laser
- Instrument
Adjustable in menu
Display backlight +
Reference point setting +
Continuous measurement (tracking) +
Max./min. value +
Addition/subtraction +
Area/volume/triangle area/trapezium area +
Calculations by tilt sensor +
Calculations by Pythagoras’ Theorem +

55
User manual
LASER DISTANCE METER
EN
XP4 Pro CONDTROL
Stake-out function +
Digital viewfinder +
Bluetooth +
Digital vial +
Timer +
Memory up to 50 values
Laser type Class II, 635 nm, power <1 mW
Working temperature –10 °С ... +50 °С
Storage temperature –20 °С ... +60 °С
Dust and water protection IP54
Dimensions 136х59х28 mm
Weight 170 g
Power supply 3 х battery AAA 800 mAh
1.2V Ni-MH
* Use a reflector to increase the measurement range during daylight or if the
target has poor reflection properties.
** Accuracy can decrease in unfavorable conditions, such as intense sunshine or
when measurements are made against glossy or transparent surfaces, moving
objects, objects with rough surface.
In unfavourable conditions or when measured distance is over 100 m the
maximum permissible accuracy is calculated in the following way:
± (Y + 0,25хDх10-3) mm, where
D (mm) - measured distance
Y (mm) - permissible accuracy according to technical data.

User manual
LASER DISTANCE METER
66
EN
XP4 Pro CONDTROL
1
2
3
4
8
10
5
7
9
16
14
1315 6
11 12
1. Display
2. Keyboard
3. Turn on the product/turn
on laser beam/single distance
measurement/continuous
measurement
4. Addition/up/increase the value/
flip through measuring results in
memory (forward)
5. Subtraction/down/decrease
the value/flip through measuring
results in memory (backwards)
6. Menu/choose menu option/
activate setting of menu function/
scroll measuring results down
7. Area/volume/triangle area/
trapezium area
8. Calculations by tilt sensor and
Pythagoras’ Theorem
9. Timer/reference point setting
10. Memory/digital vial
11. Bluetooth/stake-out function
12. Digital viewfinder
13. Turn off the product / clear/
exit menu/exit mode
14. Strap location
15. End-piece
16. Mini-USB connector for
charging
PRODUCT DESCRIPTION

77
User manual
LASER DISTANCE METER
EN
XP4 Pro CONDTROL
Display
1. Main line
2. Additional lines
3. Mode indicator
4. Charge level indicator
5. Unit of measurement
6. Laser beam indicator
7. Reference point
2
7
6
4
5
1
3
OPERATION
Install/charge batteries
Insert batteries observing correct polarity. Use nickel metal-hydride batteries.
Charge level is shown on display. Charge batteries when symbol appears on
the display. Use USB charger delivered in the set.
Don’t use the product while charging.
It takes approximately 4 hours to fully charge the batteries.
Turn on/off
Turn on: press .
Turn off: press and hold for 1 second.
Turn on: press .

User manual
LASER DISTANCE METER
88
EN
XP4 Pro CONDTROL

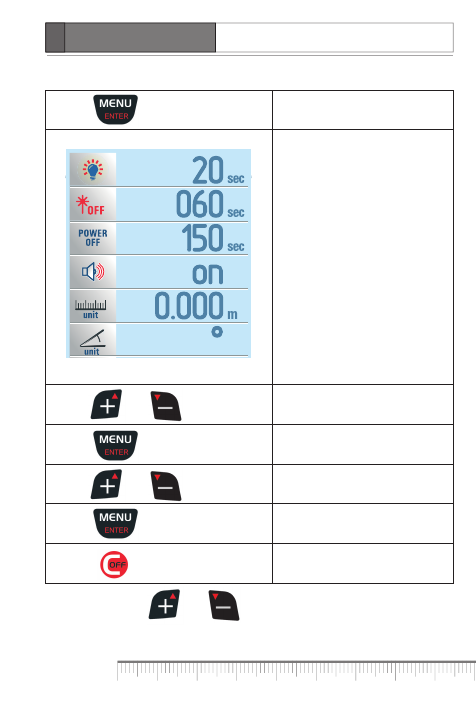

Menu navigation
Press Enter menu
Display backlight timer
Automatic shutdown of laser
beam
Automatic shutdown of the
product
Turn on/off sound signal
Measuring unit
Measuring unit of angle
Press or Choose menu option
Press Confirm the choice
Press or Menu option setting*
Press Confirm the setting
Press Exit menu
* If press and hold or the speed is increased.

99
User manual
LASER DISTANCE METER
EN
XP4 Pro CONDTROL
Reference point setting
Press and hold
for 1 sec.
Change reference point
Appropriate image appears on the
display.
Front
Tripod
Rear
End-piece
MEASUREMENTS
Single distance measurement
Press Turn on the product.
Press Turn on laser beam. Aim the product at measured
object.

User manual
LASER DISTANCE METER
1010
EN
XP4 Pro CONDTROL
Press Take measurement.
– measuring result
Press Delete the last measuring result.
Continuous measurement (tracking)
Press and hold
for 1 sec.
Activate continuous measurement (tracking)
function. Laser beam turns on simultaneously.
The product will take measurements one after
another, showing the last measured value. Besides it
will show maximal and minimal measured values.
– maximal value
– minimal value
– difference between maximal and minimal values
– current value
Press or Stop taking measurements. The last measured values
are shown on the display .
Press or

1111
User manual
LASER DISTANCE METER
EN
XP4 Pro CONDTROL
Stake out
Press and hold
during 2 seconds
Activate stake out function. Symbol
appears on the display.
Press or Set the value of distance А*.
Press Confirm the value of distance A.
Press or Set the value of distance В*.
Press Confirm the value of distance B.
Press Start taking measurements. Laser beam is blinking. Move the product slowly along the stake-out line.
Arrows and shown on the display indicate
in what direction it is required to move the product
in order to reach stake-out point. If sound signal is
on, when approaching the stake-out point to ±0,1
m the product emits sound signal. When reaching
the stake-out point to ±0,001 m symbol
appears on the display and sound signal tonality is
changed.
distance between the object and stake-out
point of last measured distance. This value will
increase after each next measurement by the
value of last taken measurement
– value of distance A
– value of distance В
– current distance to the next stake-out point
–

User manual
LASER DISTANCE METER
1212
EN
XP4 Pro CONDTROL
Mark point А and go on moving the product along
stake-out line until you reach point B. If it is necessary
to transfer several equal distances, repeat the last
operation required number of times.
Press Stop the measurement.
* If press and hold or the speed is increased.
Digital viewfinder
Press Activate function of digital viewfinder.
Aim the product at measured object.*
Press Take measurement.
- measuring result
Press or Exit the mode.
*At distance less than 20 m laser dot can be out of the cross hair on the display. It
is calibrated to distances over 20m and will be exactly in the center in the range of
20m-150m, so, it helps to aim at the object

1313
User manual
LASER DISTANCE METER
EN
XP4 Pro CONDTROL

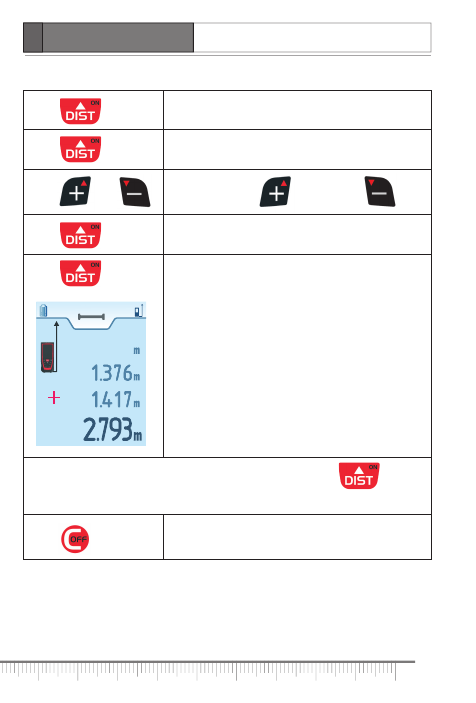

Addition/Subtraction
Press Turn on laser beam.
Aim the product at measured object.
Press Take first measurement.
Measuring result appears in the main line.
Press or Activate addition / subtraction .
Press Turn on laser beam. First measuring result moves to
the line 2 on the display.
Press Take the second measurement.
– first measurement
– second measurement
– result of addition/subtraction of 2
measurements
To do addition/subtraction of more than 2 measurements press
and perform the above mentioned operations required number of times.
Press Exit the mode.

User manual
LASER DISTANCE METER
1414
EN
XP4 Pro CONDTROL

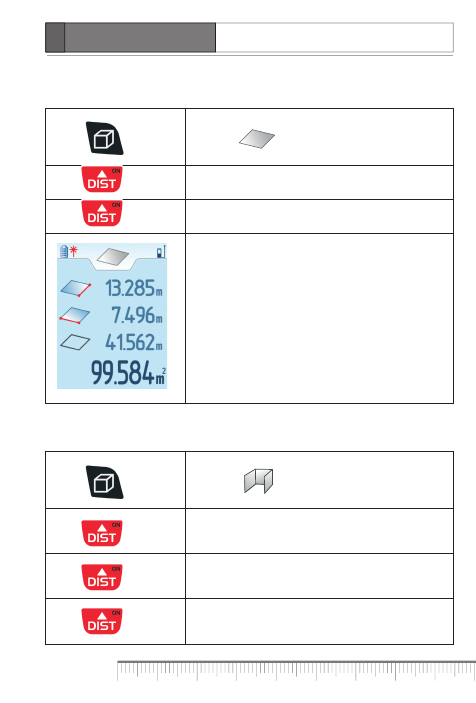

CALCULATIONS
Area
Press
Activate function of area calculation.
Symbol appears on the display.
Laser beam is on.
Press Take first measurement (length).
Press Take second measurement (width).
– length
– width
– perimeter
– area
Wall surface
Press
2 times
Activate wall surface area calculation.
Symbol will appear on the display.
Laser beam is on.
Press First measurement (height).
Press Second measurement (length 1).
Press Third measurement (length 2).

1515
User manual
LASER DISTANCE METER
EN
XP4 Pro CONDTROL
– height
– height 1
– height 2
– wall surface
3rd, 4th, 5th etc. measurements can be done unlimited number of times. Each
new wall surface is added to previously calculated wall area result.
If there is a window, door opening etc. in the room, it is possible to exclude
them from wall surface area, or add area of another object to wall surface.
Short
press or
Activate addition or subtraction.
Symbol +or -will appear on the display.
Press
2 times Make 2 measurements to get calculation #2 (area of object).
– wall surface area
– area of object
– result of addition/subtraction of wall surface
area and area of object.
To make one more addition/subtraction, short press button and
repeat the procedure.
Short press Exit the mode.

User manual
LASER DISTANCE METER
1616
EN
XP4 Pro CONDTROL
Volume
Press 2 times
Activate function of volume calculation.
Symbol appears on the display.
Laser beam is on.
Press Take first measurement (length).
Press Take second measurement (width).
Press Take third measurement (height).
– length
– width
– height
– volume
Press Scroll down to view additional information:
- volume
- area
- wall area
- perimeter

1717
User manual
LASER DISTANCE METER
EN
XP4 Pro CONDTROL
Area of triangle
Press 3 times
Activate function of triangle area calculation.
Symbol appears on the display. Laser beam
is on.
Press Take first measurement (first side of triangle).
Press Take second measurement (second side of triangle).
Press Take third measurement (third side of triangle).
– first side of triangle
– second side of triangle
– third side of triangle
– area of triangle
Press Scroll down to view additional information:
- area of triangle
- angle between sides of triangle
- perimeter of triangle

User manual
LASER DISTANCE METER
1818
EN
XP4 Pro CONDTROL
Area of trapezium
Press 4 times
Activate function of trapezium area calculation.
Symbol appears on the display. Laser beam
is on.
Press Take first measurement (smaller side of trapezium).
Value of tilt angle appears in line 3.
Press Take second measurement (diagonal of trapezium).
– smaller side of trapezium
– diagonal of trapezium
– tilt angle of trapezium diagonal
– area of trapezium
Press Scroll down to view additional information:
- area of trapezium
- bigger side of trapezium
- bottom side of trapezium
- tilt angle of top side of trapezium

1919
User manual
LASER DISTANCE METER
EN
XP4 Pro CONDTROL
Addition/subtraction of areas/volumes
Short press
1 time
(for area of square),
3 times
(for volume of the cube),
4 times (for triangle area),
5 times
(for area of trapezium)
Activate area or volume.
Corresponding symbol of the mode will appear
on LCD.
Laser beam is on.
Short press
2-3 times
Make required number of measurements to get
calculation #1.
For example, in volume calculation the results will be displayed in the following way:
– length 1
– length 2
– length 3
– calculation #1
Short
press or
Activate addition or subtraction.
Symbol +or -will appear on the display.
Short press
2-3 times
Make required number of measurements to get
calculation #2.

User manual
LASER DISTANCE METER
2020
EN
XP4 Pro CONDTROL
Calculation of horizontal distance by tilt sensor
Press
Activate function of horizontal distance calculation by
tilt sensor. Laser beam is on. Symbol
appears on the display. Line 1 – tilt angle.
Press Take first measurement (hypotenuse).
Press
– tilt angle (measured)
– hypotenuse (measured)
– vertical distance (calculated)
– horizontal distance (calculated)
– calculation #1
– calculation #2
– result of addition/subtraction of calculations
#1 and #2
To make one more addition/subtraction, short press button or
and repeat the procedure.
