4. BASIC SETTING
1. Shortly Press the key to open the machine, the laser will start at the same time, and the instrument will
enter to test mode.
2. Shortly press the key to switch the front/back measurement reference, and long press to switch the
measurement unit.
3. Shortly press the key to switch plus / minus measurement
4. Shortly press the key to switch area / volume measurement. For voice type, long press to turn off the
voice function.
5. Shortly press the key to clear data, long press it to turn off the instrument.
6. ‘Short press’ means to release the button once, while long press’ refers to holding down the key for
2 seconds.
Measurement function
1. Shortly press the key to turn on the machine and start the laser, after the laser is projected to the
measuring position, the distance between the instrument and the laser point can be obtained by short
pressing the measurement key .

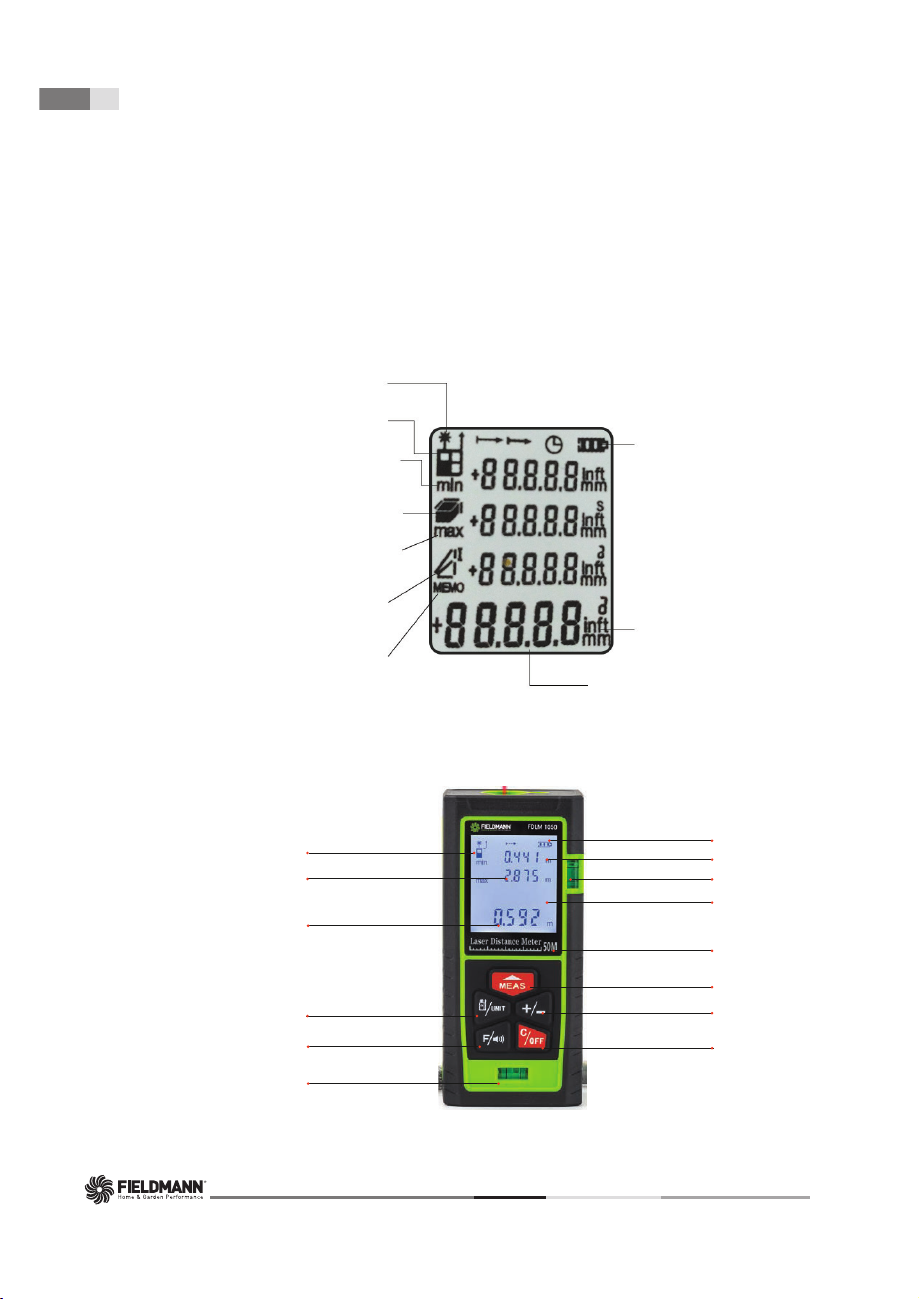

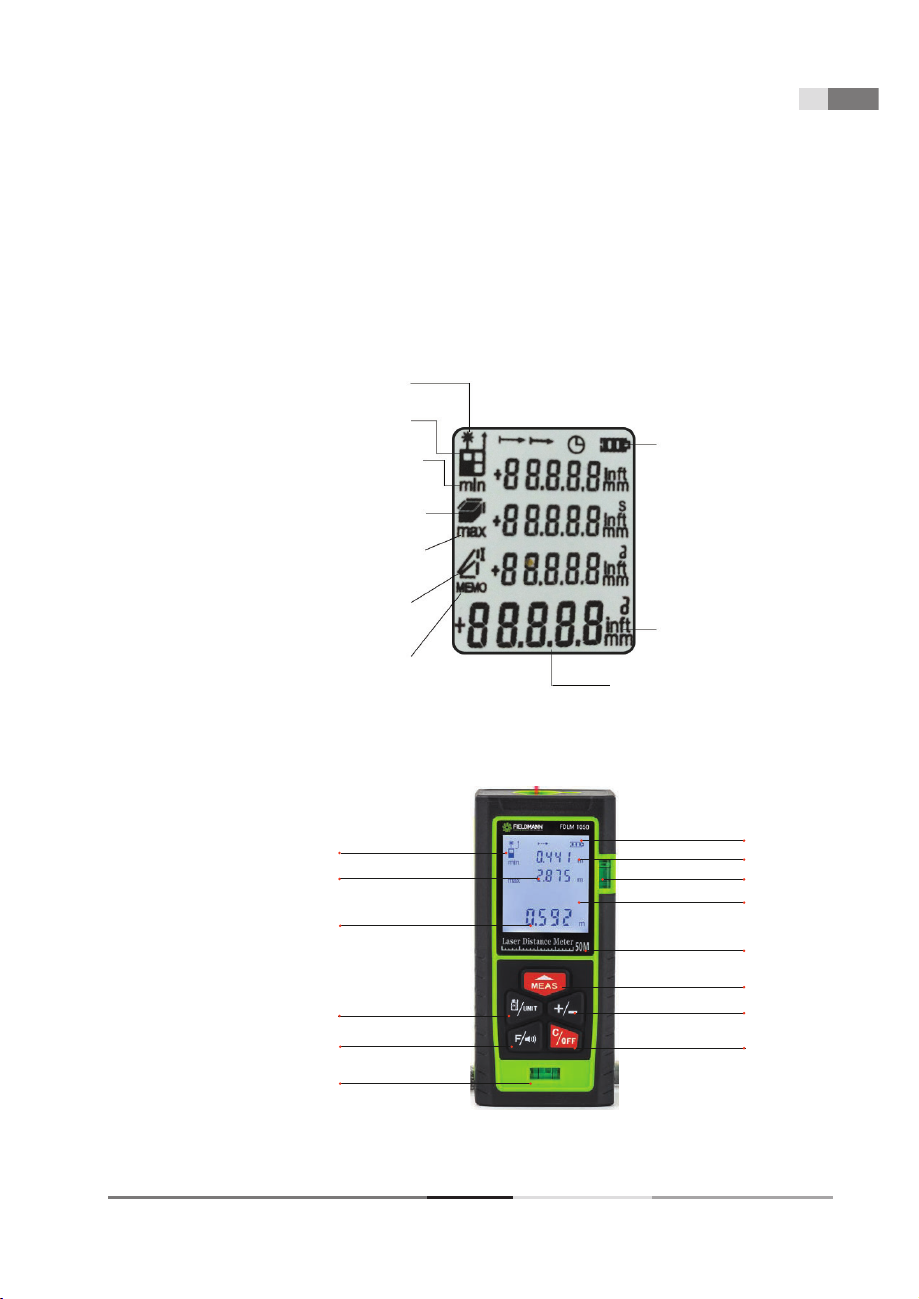

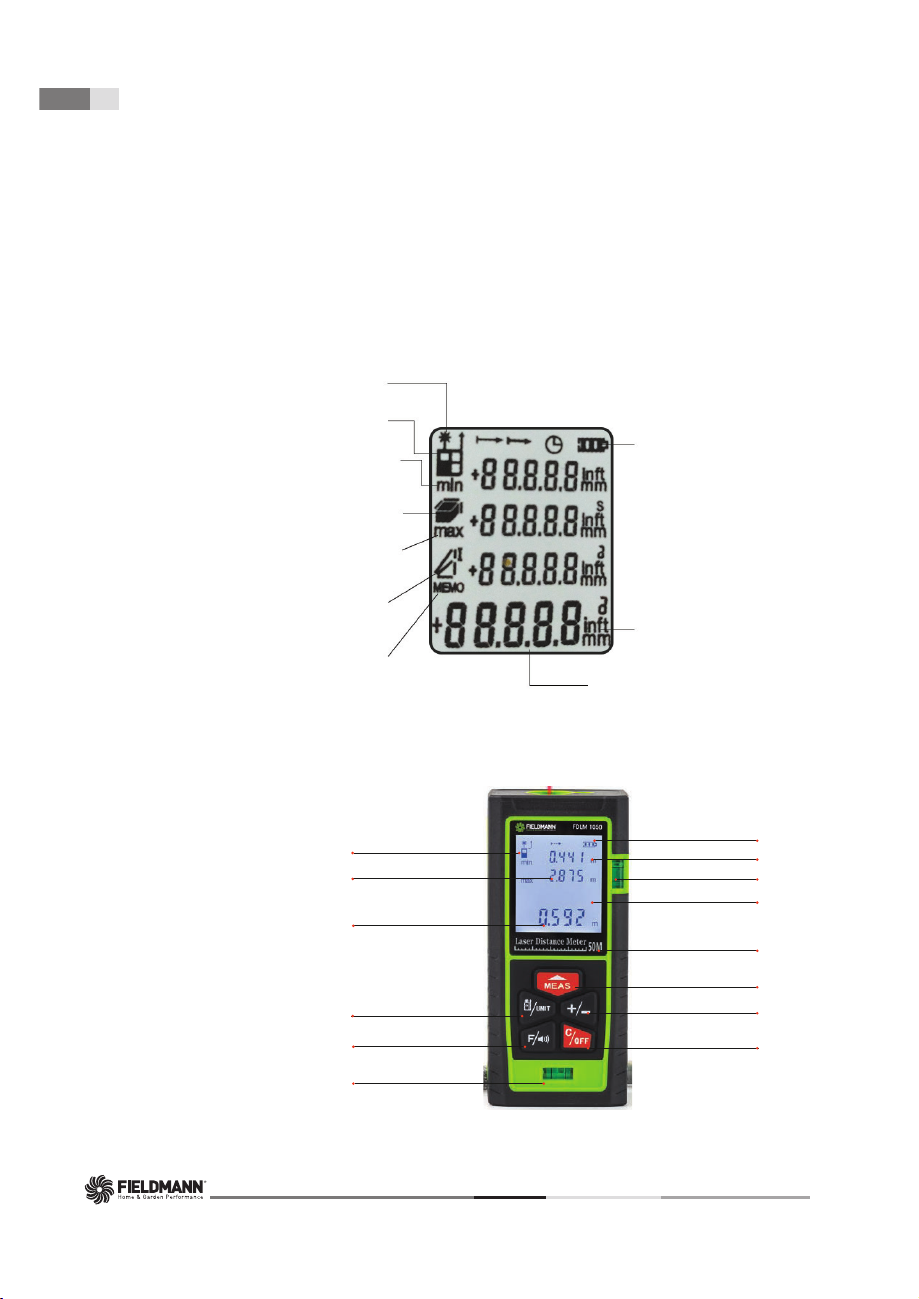

The measurement result is displayed in the main measurement display area. Please pay attention to the front
/ back reference when measuring. The instrument calculates the distance from the bottom by default.
2. Long press the key to enter the continuous measurement mode, and the screen will display the
maximum and minimum values tracked. Short press the key to exit the continuous measurement mode.
ᆁ In the process of area, volume and Pythagorean measurement, continuous measurement is helpful for users
to obtain the longest and shortest edge accurately.
Addition and subtraction measurement function
Single segment distance measurement can be accumulated adding/ subtracting. Press the key , „+“ appears
in the display area of screen, it’s enter into cumulative additive measurement mode, press the measurement key
again, it will add the measurement results of this time and last time, so that it can be carried out successively.
Press the key ,“-“ appears in the display area of screen, it’s enter into cumulative subtraction measurement
mode, press the measurement key again, it will subtract the measurement results of this time and last time, so
that it can be carried out successively.
Area/Volume Measurement Method
1. Press the key once and the screen will display the icon .
At this time, the first edge flickers, press the measurement key to obtain the first edge distance; and then the
second edge flashes press the measurement key to obtain the second edge distance. The area value will be
automatically calculated in the main display area.
2. Press the key once and the screen will display the icon .
At this time, the first edge flickers, press the measurement key to obtain the first edge distance; and then
the second edge flashes, press the measurement key to obtain the second edge distance; and then the
third edge flashes, press the measurement key to obtain the third edge distance, the volume value will be
automatically calculated in the main display area.
