Eaton Durant Courier Series User manual

POWERInternal Battery: 3V, Lithium.
Life expectancy: 5 years +.
Replacement Part: 36367-202.
BACKLIGHT
10-30 VDC @ 30 mA max.
(Derate operating temperature 1°C/Volt above 17VDC.)
Reverse polarity protected.
PHYSICAL
Operating Temperature: -20° to 70°C.
Storage Temperature: -20° to 70°C.
Operating Humidity: 60% Non-condensing.
Weight: 2.2 oz. net.
Display Size: .43" high.
Front Panel Rating: NEMA 4X when mounted with gasket
provided.
Case Material: Cycolac X-17.
TOTALIZER
Type: UP counting.
Digits: 8
COUNTACCURACY
100% when operated within specifications.
DC COMMON (Terminal 1)
COUNTINPUTS
Input B (Terminal 2) Low speed input designed for contact
closures to DC common.
Speed: 0 to 20 Hz.
Min Low Time: 10 milliseconds.
MinHigh Time:40 milliseconds.
Impedance: 101K ohm.
Voltage Thresholds: Low 0 to 0.4 VDC.
High 2.0 to 28 VDC.
Max High 28 VDC.
Input A (Terminal 3) High speed input requiring a voltage
source such as a current sourcing sensor or a current
sinking sensor used with the provided pull up resistors.
Speed: 0 to 10 kHz.
Min Low Time: 80 microseconds.
Min High Time: 20 microseconds.
(The above times are with a 0 to 5.0 V swing.)
Input Impedance: 2ký above 5 VDC.
Voltage Thresholds: Low 0 to 1.2 VDC.
High 2.0 to 28 VDC.
Max High 28 VDC.
RESET INPUT (Terminal 4) designed for contact closures to
DC common.
Min. Low: 0.25 to 1 sec. (reset is maintained).
The required pulse width varies with count speed, scale
factor and number of digits displayed.
Voltage Thresholds: Low 0 to 0.4 VDC.
High 2.0 to 28 VDC.
FRONT PANEL RESET ENABLE (Terminal 5)
Operation: Level sensitive (maintained).
Courier Models: 53300-400 Totalizer
53300-401 Totalizer, Extended Temperature Range
53302-400 Totalizer with Backlight
Durant INSTALLATION AND OPERATION
MANUAL NUMBER 53300-900-08





















































Recommended
Panel Cutout
2.95" (74.93mm)
1.57"
(39.87mm)
1.25"
(31.75mm)
2.677" (68mm)
1.299"
(33mm)
RESETDurant®
®
Durant

INTRODUCTION
Your 5330X-400 is an UP counting totalizer with a high-
contrast eight-digit LCD display. The front-panel reset key
can be disabled. A remote-reset terminal is provided.
APPLICATIONS
This totalizer is intended for simple totalizing applications.
One count input pulse per item is necessary. The only
decisions to be made are:
1. Do you use the high or low speed input?
2. Do you want the front panel reset button active?
OPERATION
The totalizer display has lead-zero blanking. No decimal
point is available.
CountInputs
Separate contact and solid state count inputs are provided.
The solid state input (terminal 3) requires a current-sourc-
ing sensor and can count up to 10 kHz. Inputs into this
terminal are counted on the positive-going edge.
8-digit LCD
Display
FRONT VIEW
Reset
button
Plastic
front panel
sealed to
meet
NEMA 4X
REAR VIEW
Solid State input
Contact input
Reset
Ground








Durant ®
Front Panel
Reset Key
Enable 5 Enable/R
5 Enable/R
RST 4
IN A 3
IN B 2
GND 1
6 DC Common
7 +10-30VDC
Count occurs on this edge of the pulse
(Voltage applied to terminal)
Terminal 3 is pulled down to common. When a sensor
output supplies voltage to this terminal, one count is regis-
tered on the display. The sourcing signal must supply at
least +1.0VDC but no more than +28VDC.
Note: When a sourcing signal is applied to terminal 3, a
power assist feature of the Courier extends the life of the
battery.
Terminal 2 is the low-speed, current-sinking count input
designed to be used with a contact closure to ground. It has
a maximum count speed of 20 Hz. Inputs into this terminal
are counted on the negative-going edge.
Input realize
d
on this edge
of the pulse
Contact Close
s
Contact Opens
Terminal 2 is pulled up to +3VDC. When a contact closes,
pulling the voltage down to .4 VDC or less, one count is
registered.
RUNMODE
Screens
The totalizer screen is the only screen available on this
model.
FrontPanel ResetEnable
The front-panel reset button comes disabled from the
factory. To enable the button, install a jumper wire from
terminal 5 to ground, terminal 1.
Note: Theresetterminalontherearpanelisstill activewhen
the front reset button is disabled.
PROGRAMMODE
There is no program mode for this model.
2
MOUNTING














Durant
Install mounting clip
Gasket Installed?













Durant ®
2.677"(68mm)
1.299"
(33mm)
Recommended
Panel Cutout
5 Enable/R
5 Enable/R
RST 4
IN A 3
IN B 2
GND 1
6 DC Common
7 +10-30VDC

SOLID STATE COUNT INPUT
CURRENT SOURCING SENSOR
5 Enable/R
5 Enable/R
RST 4
IN A 3
IN B 2
GND 1
6 DC Common
7 +10-30VDC
BATTERYSAFETY
The lithium battery that powers your device contains inflam-
mable materials such as lithium organic solvent, and other
chemical ingredients. Explosion or fire may result if the
battery is not handled correctly. To avoid an accident follow
these guidelines:
* Do not stack or jumble up batteries.
* Do not heat batteries above 95°C.
* Do not disassemble batteries.
* Do not recharge lithium batteries.
* Do not apply pressure to, or deform batteries.
* Do not solder to batteries.
* Do not dispose of batteries in fire.
* Insert battery with correct polarity.
Terminal
1
2
3
4
5
6
7
Function
Ground
Input B
Count Input
Input A
Count Input
Reset
Reset Key
Enable
Backlight
Common
Backlight
Power
Operation
Use with Contact Closure to Ground
Maximum 20 Hz Count Speed
Use with Current Sourcing Sensor
Maximum 10 kHz Count Speed
Connect to Ground to Reset
Totalizer. This is a maintained or
Level Sensitive Reset
Connect to Ground to Enable
Reset Key
Connect to Power to Light Display
3

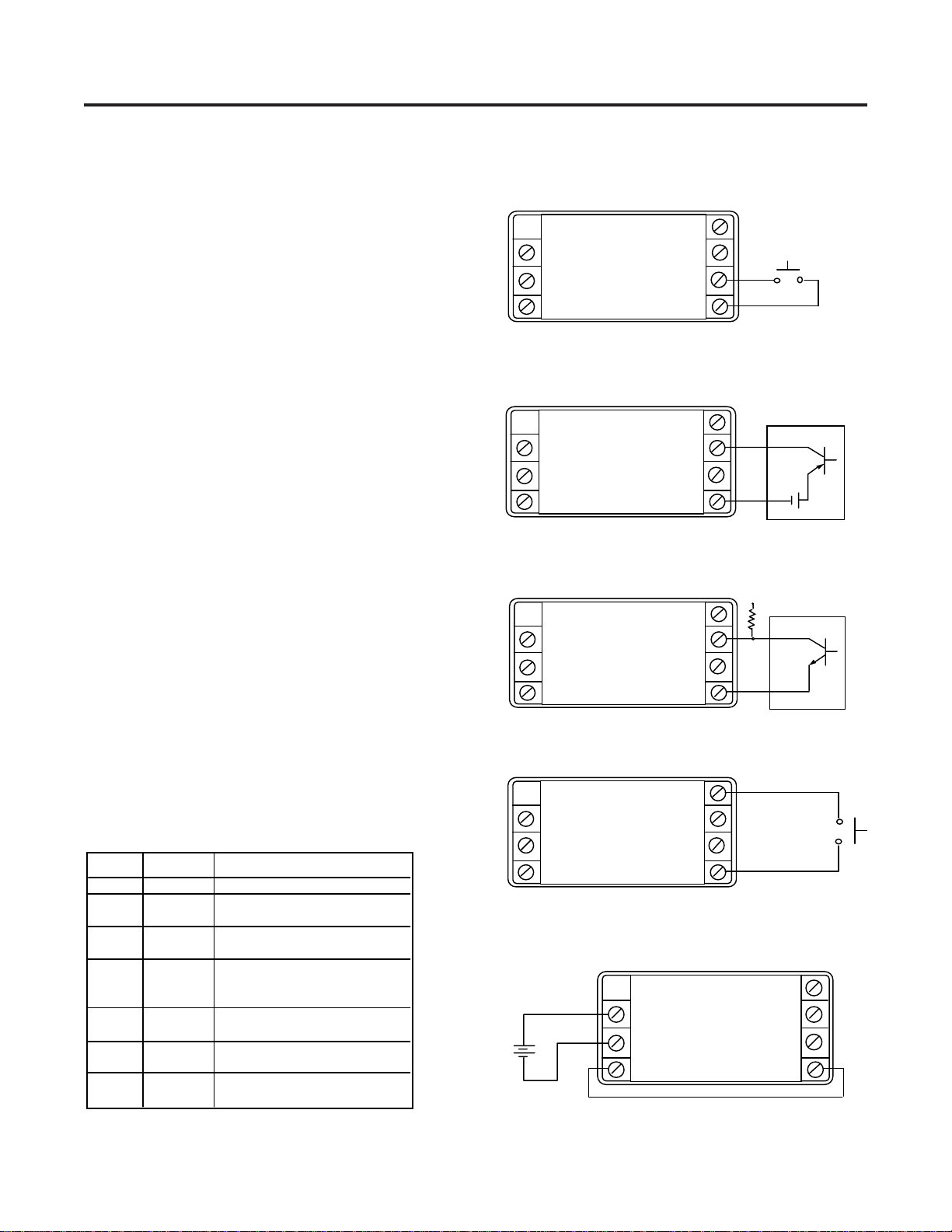

WIRINGDIAGRAMS
CONTACTCLOSURECOUNTINPUT
FRONTPANELRESETENABLE&BACKLIGHTWIRING
5 Enable/R
5 Enable/R
RST 4
IN A 3
IN B 2
GND 1
6 DC Common
7 +10-30VDC
+
REMOTERESET
5 Enable/R
5 Enable/R
RST 4
IN A 3
IN B 2
GND 1
6 DC Common
7 +10-30VDC
Current
Sinking
Sensor
+6 to +28 VDC
1.5ký
SOLID STATE INPUT
CURRENT SINKING SENSOR
5 Enable/R
5 Enable/R
RST 4
IN A 3
IN B 2
GND 1
6 DC Common
7 +10-30VDC
WIRINGRECOMMENDATIONS
Following these suggestions will increase noise immunity
and extend the life of the product.
Cable: The connection between the count source and the
totalizer should be made with a two-conductor shielded
cable. The shield should be connected to earth ground at
one end only. The connecting cable should not be run in
conduits with cables switching high inductive loads.
RelayCoilSuppression: Ifarelaycontactisusedasacount
source, the relay coil should be suppressed. This can be
accomplished with an RC network for AC coils or a diode for
DC coils. The Durant RC suppressor (38091-400) may be
used.
Mounting: The totalizer should not be mounted near a
solenoid or other inductive devices. Enough ventilation
should be supplied to keep the totalizer operating within the
temperature specifications. 5 Enable/R
5 Enable/R
RST 4
IN A 3
IN B 2
GND 1 +-
6 DC Common
7 +10-30VDC

REPLACEMENTPARTS
36367-202 Battery
46066-210 Gasket
53300-241 Mounting Clip
28772-200 Mounting Screw
COURIERSERIESACCESSORIES
ES9513-RS Rotary Contactor
49750-400 Power Supply (+15VDC)
38091-400 Count Source RC Suppressor
Devices requiring external power for correct operation
48770-401, -402 Inductive Proximity Sensor (8mm,
12mm, 18mm)
48771-400 Diffuse-Reflective Photoelectric Sensor
48771-401 Retro-Reflective Photoelectric Sensor
48771-402 Thru-Beam Photoelectric Sensor
Emitter
48771-404 Thru-Beam Photoelectric Sensor
Receiver
(Thru-beam emitter and receiver must
be used together)
38150-XXX Standard Duty, Single Channel Shaft
Encoder (XXX denotes pulses per
revolution. Example: 38150-060 for 60
pulses/rev)
48370-XXX Heavy Duty, Single Channel Shaft
Encoder (XXX denotes pulses per
revolution. Example: 48370-060 for 60
pulses/rev)
OTHERCOURIERSERIESPRODUCTS
53300-401 Add/Subtract Totalizer
(Solid State Inputs)
53300-402 Add/Subtract Totalizer
(Contact Inputs)
53300-403 Quadrature Indicator/Totalizer
53300-404 Ratemeter
53300-405 Ratemeter/Totalizer
53302-401 Add/Subtract Totalizer w/Backlight
(Solid State Inputs)
53302-402 Add/Subtract Totalizer w/Backlight
(Contact Inputs)
53302-403 Quadrature Indicator/Totalizer
w/Backlight
53302-404 Ratemeter w/Backlight
53302-405 Totalizer/Ratemeter w/Backlight
WARRANTY: Eaton warrants all products against defects in material and
workmanship for a period of one (1) year from the date of shipment to Buyer.
Thisisalimitedwarrantylimitedtoitsterms. Thiswarrantyisvoidiftheproduct
has been altered, misused, taken apart or otherwise abused. ALL OTHER
WARRANTIES,EXPRESSORIMPLIED,AREEXCLUDED,INCLUDINGBUT
NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR PURPOSE.
BUYERS'REMEDIES: Eaton's obligationsandliabilities under theforegoing
warranty are limited to repair or replacement of the product without charge.
To receive the required Return Goods Authorization number (RGA), contact
your local Durant distributor or call 1-800-540-9242 to get a list of distributors
inyourarea.Achargeismadeforrepairingaftertheexpirationofthewarranty.
IN NO EVENT SHALL EATON BE LIABLE FOR CLAIMS BASED UPON
BREACH OF EXPRESS OR IMPLIED WARRANTY OR NEGLIGENCE OR
ANYOTHERDAMAGESWHETHERDIRECT,IMMEDIATE,FORESEEABLE,
CONSEQUENTIALORSPECIAL ORFORANYEXPENSESINCURRED BY
REASON OF THE USE OR MISUSE, SALE OR FABRICATION OF PROD-
UCTS WHICH DO OR DO NOT CONFORM TO THE TERMS AND CONDI-
TIONS OF THIS CONTRACT.
INDEMNIFICATION: BuyeragreestoholdEatonharmlessfrom,defend,and
indemnify Eaton against damages, claims and expenses arising out of
subsequent sales of Durant products or products containing components
manufactured by Eaton and based upon personal injuries, deaths, property
damage,lostprofits,andothermattersforwhichBuyer,itsemployeesorsub-
contractors are or may be to any extent liable, including without limitation
penalties imposed by the Consumer Product Safety Act (P.L.92-573) and
liability imposed upon any person pursuant to the Magnuson-Moss Warranty
Act (P.L.93.637), as now in effect or as amended hereafter. The warranties
andremediesprovidedfor hereinareavailabletoBuyerandshall notextend
to any other person.
COMPLIANCE WITH OSHA: Eaton offers no warranty and makes no
representation that its products comply with the provisions or standards of
the Occupational Safety and Health Act of 1970, or any regulations issued
thereunder. In no event shall Eaton be liable for any loss, damages, fines,
penalty or expense arising under said ACT.
This manual constitutes proprietary information of Eaton Corp., and is
furnished for the customers' use in operating the Courier. Reproduction of
this material for purposes other than the support of the Ambassador Series
Control or related products is prohibited without the prior written consent of
Eaton Corp., Watertown, WI.
In the construction of the Control described herein, the full intent of the
specifications will be met. Eaton Corp., however reserves the right to make,
fromtimetotime and withoutproperwrittennotice,suchdeparturesfromthe
detailspecificationsasmayberequiredtopermitimprovementsinthedesign
of the product.
The information included herein is believed to be accurate and reliable,
however no responsibility is assumed by Eaton Corp., for its use; nor for
any infringements of patents or other rights of third parties which may result
from its use.
This equipment is capable of generating radio frequency energy. If not
installedandusedinaccordancewiththeinstructions,thisunit may interfere
with radio communications.
Durant
901 South 12th Street
Watertown, WI 53094
800-540-9242 • 920-261-4070
FAX [phone]
