Eaton Crouse-hinds series Setup guide

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
IF 1767
ACE-DG1 Variable Frequency Drive System
Installation & Maintenance Information
IF 1767 • 09/15 Copyright© 2015, Eaton’s Crouse-Hinds Division Page 1
TABLE OF CONTENTS
1. Safety Instructions
1.1 Application Page 2
1.2 Electrical Safety Page 2
1.3 Blower Safety Page 2
1.4 Hot Surfaces Page 2
1.5 Enclosure Safety Page 2, 3
2. Mechanical Installation
2.1 Airflow Provisions Page 3
2.2 Weights Page 3
2.3 Lifting Page 3
2.4 Dimensional Drawings Page 4
2.5 Mounting Page 5
2.6 Shroud Installation Page 5
2.7 Pre-filter Installation Page 5
3. Electrical Installation
3.1 Enclosure Grounding - Internal/External Page 5,
3.2 Line Feed Page 5, 6
3.3 Load Feed and Shield Grounding to Drive Page 5, 6
3.4 Control Wire Routing Page 5, 6
3.5 Factory Wiring Schematic Page 7
3.6 Communication and I/O modules Page 7
4. General Operation
4.1 Control Pad Viewing Window Page 7
4.2 Disconnect and Lockout/Tagout Page 8
4.3 Drive Controls and Status Indication Page 8
4.4 PT (Potentiometer) and LR (Local/Remote) Page 8
5. Maintenance
5.1 Drive Maintenance Page 8
5.2 Cooling System Maintenance Page 8
5.3 Torque Verification Page 9
5.4 Explosive event required maintenance Page 9
6. Technical Data
6.1 Technical Data Chart Page 9
6.2 Power Loss (Heat Dissipation) Page 10
6.3 De-rating Factors and Curves Page 10
7. Crouse-Hinds Drive Parameters
7.1 Parameter Table Page 10
8. Replacement Parts
8.1 Pre-filter Kit Page 11
8.1.1 Pre-filter Installation Instructions Page 11
8.2 Sintered Filter Kit Page 11
8.2.1 Sintered Filter Installation Instructions Page 11
8.3 Blower Kit Page 11
8.3.1 Blower Installation Instructions Page 11
8.4 Window Kit (ACE KIT 7, ACE KIT 8) Page 12
8.4.1 Window Kit Installation Instructions Page 12
8.5 Cast Filter Shroud Replacement Kit (ACE KIT 9) Page 12
8.5.1 Filter Shroud Installation Instructions Page 12
Pre-filters
Shroud
Warning
Nameplate
Product
Nameplate
with Critical
Markings
Control Pad
Viewing
Window
Disconnect
Operating
Handle
Start/Stop/
Reset
Warning Plate
Potentiometer
and Local/Remote
Switch (not shown)
Explosionproof
Filter (pre-filters
removed for clarity)
Blower Cooling
Intake
Manifold
Data Nameplate,
including Torque
Information
Blower
Disconnect
Switch
Internal
Ground
External
Ground

IF 1767 • 09/15 Copyright© 2015, Eaton’s Crouse-Hinds Division Page 2
1. SAFETY INSTRUCTIONS
The ACE Explosionproof VFD should be installed, inspected and
maitained by qualified and competent personnel.
1.1 APPLICATION
The ACE Explosionproof VFD is rated Class I, Divisions 1 and 2 for
use in hazardous environments, and is designed to match the strict
requirements of pumps, compressors, fans, separators and mixers in
such process industries as:
• Oil and gas / refineries
• OEM skid builders
• Petrochemical
• Water / wastewater
• Pharmaceutical
• Food and beverage manufacturing
1.2 ELECTRICAL SAFETY
1.3 BLOWER SAFETY
These blowers comply with EN 61800-5-1 safety standards.
The blower is non-serviceable. Refer to ACE KIT 3, Section 8.3, for
replacement instructions.
1.4 HOT SURFACES
1.5 ENCLOSURE SAFETY
All pipe threaded connections into the enclosure require a minimum of
five (5) full threads of engagement. All straight threaded connections into
the enclosure require a minimum of eight (8) full threads of engagement.
Personnel injury or equipment damage can result from threaded joints
containing less than the minimum thread engagement required.
All unused conduit openings must be plugged. UL Listed plug must
engage a minimum of five (5) full threads and be a minimum of 1/8”
thick.
Conduit sealing fittings MUST be installed in each attached conduit run
(within eighteen (18) inches of the enclosure) to comply with the latest
edition of the National Electrical Code® (NEC) plus any other applicable
code.
The cover must be properly fastened to the body with all cover bolts
torqued to 40-45 ft.-lbs. (19.2-21.5 N-m). Personnel injury or equipment
damage can result if the flat joint flame path is not properly fastened.
WARNING
To avoid cooling system malfunction, cooling system failure and
personnel injury, close and seal the enclosure before energizing.
WARNING
To avoid cooling system malfunction, cooling system failure and
personnel injury, remove all loose debris and deposits before
energizing.
Blower Intake
Filter Shrouds
WARNING: HIGH SPEED
To avoid personnel injury, DO NOT handle the blower or service the
enclosure while energized.
WARNING: BURN HAZARD
To avoid personnel injury, use appropriate personnel protective
equipment before handling and operating the device.
CAUTION
To ensure safety and VFD performance, grounding provisions for the
enclosure, blower and VFD must be made before operating.
WARNING: HIGH VOLTAGE
Electrical power must be OFF before and during inspection or
service. Ensure electrical supply to the enclosure is disconnected,
locked out and tagged out. Personnel injury or damage to equipment
can occur if all power upstream from the enclosure is not fully
disconnected prior to opening.
Before commissioning the drive and putting it into service, make
sure that the motor and all driven equipment are suitable for
operation throughout the speed range provided by the drive. The
drive can be adjusted to operate the motor at speeds above and
below the speed provided by connecting the motor directly to the
line power.
WARNING
To avoid personnel injury and property damage, clean dirt and debris
from flat ground joint surfaces before the cover is closed. NEVER
energize this equipment if the flat ground joint has been scratched or
damaged.

IF 1767 • 09/15 Copyright© 2015, Eaton’s Crouse-Hinds Division Page 3
2. MECHANICAL INSTALLATION
2.1 AIRFLOW PROVISIONS - INSTALLATION
DRAWING
It is imperative that the enclosure be well ventilated to ensure reliable
performance. Adequate space around the intake and exhaust of the
enclosure MUST be accommodated. Eaton’s Crouse-Hinds Division
recommends ‘x’ be a minimum of 12 inches (0.3 meters).
2.2 WEIGHTS
2.3 LIFTING
1. Remove top and sides from shipping crate.
2. Remove lag bolts from enclosure mounting feet
3. Use the dedicated lifting eye to mount enclosure on suitable
mounting surface. Select a mounting location that will provide
suitable strength and rigidity for supporting the enclosure and all
components.
Figure 1
Enclosure Weight (Approx.)
Size 1 (1-5 HP) 350
Size 2 (7-30 HP) 550
Size 3 (40-100 HP) 1200
CAUTION: UNBALANCED LOAD
To avoid personnel injury, utilize the dedicated lifting eye and handle
appropriately to ensure safe installation.
WARNING
To avoid cooling system malfunction and personnel injury, be sure
to torque the first eight (8) cover screws sequentially per Figure 1
before torquing the remaining screws.
WARNING
To avoid personnel injury and property damage, DO NOT remove or
modify the control pad viewing window.
CAUTION
Do not attach shrouds or pre-filters until after enclosure is mounted.

IF 1767 • 09/15 Copyright© 2015, Eaton’s Crouse-Hinds Division Page 4
2.4 DIMENSIONAL DRAWINGS
ACE Size 1
ACE Size 2
ACE Size 3

2.5 MOUNTING
1. Select a mounting location that will provide suitable strength, rigidity
and space (per Section 2.1) for supporting the ACE Series system
and all contained wiring.
2. Refer to Section 2.2 for approximate weights and Section 2.4 for
dimensions.
3. For enclosure sizes 1 & 2, install two (2) 5/8” on the left side. For
enclosure size 3, install four (4) 7/8” bolts through mounting rails,
then proceed to Step 8.
4. Tap each of the four (4) mounting feet with a mallet to ensure tight
assembly.
5. Align enclosure with the two (2) left side mounting feet engaged
with the mounting bolts on selected mounting surface.
6. Tighten two (2) bolts on left side.
7. Install two (2) 7/8” bolts on right side and tighten.
8. After enclosure is positioned and secured in its permanent location,
pull wires into the ACE Series system, making sure that they are
long enough to make the required connections.
2.6 SHROUD INSTALLATION
1. Remove rubber caps from explosionproof filters.
2. Insert threaded rods into the explosionproof filters. Leave 3-5/8 of
threaded rod exposed.
3. Place shroud over explosionproof filters and threaded rod, with
shroud opening facing back of enclosure. See Figure 2.
4. Insert washer and nuts onto end of threaded rod and tighten
securely until shroud is firmly contacting the top wall of the
enclosure. See Figure 3.
2.7 PRE-FILTER INSTALLATION
1. Remove rubber caps from explosionproof filters.
2. Install wire guard using the bracket, screw and lock washer provided
to the bottom filter(s).
3. Align guard with notches within the bracket as shown.
4. Tighten screw.
5. Slip pre-filter mesh over guard.
6. Be sure to stretch pre-filter elastic band completely around the
explosionproof filter and seat the elastic band on the filter’s threads.
This will ensure all air flow to the bottom filters passes through the
pre-filters.
3. ELECTRICAL INSTALLATION
3.1 ENCLOSURE GROUNDING - INTERNAL/
EXTERNAL
Grounding and bonding of the conduit and equipment is required by the
National Electrical Code®. A grounding conductor must be connected to
the grounding lugs furnished.
Determine the type of distribution systems to be used that will comply
with NEC requirements and ensure grounding continuity.
All conductive equipment that enclose the electrical conductors or
attached equipment or forming part of such equipment must be
grounded. A permanent connection must be made between all
such equipment and the earth. Refer to Section 5.3 for the torque
requirements of all terminations within this device.
CAUTION
To avoid cooling system malfunction, cooling system failure and
personnel injury, be sure to mount the enclosure as depicted in
Section 2.1.
CAUTION
To avoid cooling system malfunction, cooling system failure and
personnel injury, be sure to mount the enclosure in a shaded area to
avoid direct sunlight.
IF 1767 • 09/15 Copyright© 2015, Eaton’s Crouse-Hinds Division Page 5
ACORN NUT
LOCKING NUT
WASHER
Figure 3
THREADED STUD
Figure 2
Detail View
Notch
Bracket
Guard
Explosionproof
Filter

IF 1767 • 09/15 Copyright© 2015, Eaton’s Crouse-Hinds Division Page 6
3.2 LINE FEED
This equipment is designed for line connection directly to the integral
disconnect switch. Factory wiring transmits power to the variable
frequency drive.
1. Size line wiring according to drive manufacturer’s specifications.
2. Attach line conductors with phase A on the left, B center and C to
the right (see torque table in Section 5.3).
3.3 LOAD FEED AND SHIELD GROUNDING TO
DRIVE
This equipment is designed for load connection directly from the variable
frequency drive, although, in the case of an oversized VFD for the given
motor, use the VFD and motor manufacturer’s recommendations for
proper motor overload protection. In certain cases, it is required to
include additional motor overload protection between the VFD and the
motor for proper motor overload protection. Always be sure to shield
load wiring from line and control wiring to reduce noise. Refer to the
drive manufacturer’s manual for further details.
1. Attach load conductors with phase A to U, B to V, and C to W (see
torque table in Section 5.3).
2. Attach motor cable shielding to VFD ground (see recommendations
by drive manufacturer).
3. Refer to the drive manufacturer’s manual for further information
regarding drive installation.
3.4 CONTROL WIRE ROUTING
To avoid the transmission of noise to/from the blower, control system
and/or the variable frequency drive load conductors, be sure to bundle all
field control wiring and shield as necessary.
Disconnect
Terminals
CAUTION
Failure to add additional motor overload protection between the VFD
and motor when required can cause motor failure and equipment
damage.

IF 1767 • 09/15 Copyright© 2015, Eaton’s Crouse-Hinds Division Page 7
3.5 FACTORY WIRING SCHEMATIC
3.6 COMMUNICATION AND I/O MODULES
All communication and I/O modules are shipped uninstalled in the drive.
It is the installers responsibility to install and configure the module and
associated field wiring (refer to drive manufacturers installation manual).
4. GENERAL OPERATION
4.1 CONTROL PAD VIEWING WINDOW
The control pad viewing window shows the control pad display
containing such information as drive status and operating data. Refer to
the drive manufacturer’s manual for information regarding the control pad
display.
Catalog Number Suffix Description
CC CANOpen
CD DeviceNet
CL LonWorks
CP Profibus
CS SmartWire
DI 240 VAC Input
DIO 3x DI, 3x DO, 24 VDC
RO Relay Output
10
1
6
2 3
4
5 8 7
9
FAULT
A
RESET
RUN
G
START
R
STOP
BLK
WHT
WHT
BLK
BLK
WHT
RED
BRN
REDRED
YELBLU
STOP
RED
WHT
WHT
WHT
RED
BRN
BLU
BLK
YEL
RELAY 3 NORM. OPEN
RELAY 2 NORM. OPEN
RELAY 3 COMMON
RELAY 2 NORM. CLOSED
RELAY 2 COMMON
RELAY 1 COMMON
RELAY 1 NORM. OPEN
RELAY 1 NORM. CLOSED
DIGITAL INPUT 1
RS-485 SIGNAL A
RS-485 SIGNAL B
DI1 - DI4 COMMON
DIGITAL INPUT 4
DIGITAL INPUT 3
DIGITAL INPUT 2
ANALOG OUTPUT 1
ANALOG OUTPUT 2
+24 VDC INPUT
DIGITAL OUTPUT 1
+24 VDC OUTPUT
I/0 SIGNAL GROUND
I/O SIGNAL GROUND
DIGITAL INPUT 8
+24 VDC OUTPUT
DI5 - DI8 COMMON
I/0 SIGNAL GROUND
DIGITAL INPUT 5
DIGITAL INPUT 6
DIGITAL INPUT 7
ANALOG INPUT 1 GND
ANALOG INPUT 2
ANALOG INPUT 2 GND
SIGNAL NAME
ANALOG INPUT 1
REF. OUTPUT VOLTAGE
R3NO
R2NO
R2NC
R2CM
R3CM
R1CM
R1NO
R1NC
DIN1
B
CMA
A
DIN3
DIN4
DIN2
24Vi
AO1+
AO2+
24Vo
GND
DO1
DIN8
GND
24Vo
CMB
DIN6
DIN7
DIN5
AI1-
AI2-
GND
AI2+
+10V
AI1+
SIGTRM
27
34
32
33
31
29
30
28
20
26
24
25
22
23
21
19
17
18
15
16
14
13
12
10
11
9
8
7
6
5
4
3
2
1
UVW
RED
SAFE TORQUE OFF
STO-
STO+
POTENTIOMETER OPTION
(SUFFIX PT)
BLK
BLK
(12) (28) (13) (21) (30) (23) (34) (20)
(12)
TERMINAL BLOCK 1
ON COVER
10 POS
(20)
(21)
(23)
(30)
(28)
(34)
FUSED DISCONNECT
SWITCH
FIELD LINE WIRING
L3
L2
L1
T3
T1
T2
RED
(27)
(31) RED
L1 L2 L3
FUSE BLOCK
15A
L3 15A
L1
L2
15A
T3
T1
T2
YEL W/ GRN STRIPE
RED
RED
L1
L3
L2
GND
BLOWER
5
2
GRN
MOTOR/LOAD
(1)
(2)
(3)
2
3
1
(3)
(2)
(1)
VARIABLE FREQUENCY DRIVE
/CONTROL MODULE
TOP SIDE OF SWITCHBOTTOM SIDE OF SWITCH
RED
BLU
YEL
YEL
BLU
(9)
(10)
LOCAL/REMOTE SWITCH OPTION
(SUFFIX LR)
LOCREM
(10)
(9)
WHT
L
R
(13)
(13)
RED
BLOWER AND FUSE BLOCK
(ENCLOSURE SIZES 2 AND 3 ONLY )
RED
( )()()

IF 1767 • 09/15 Copyright© 2015, Eaton’s Crouse-Hinds Division Page 8

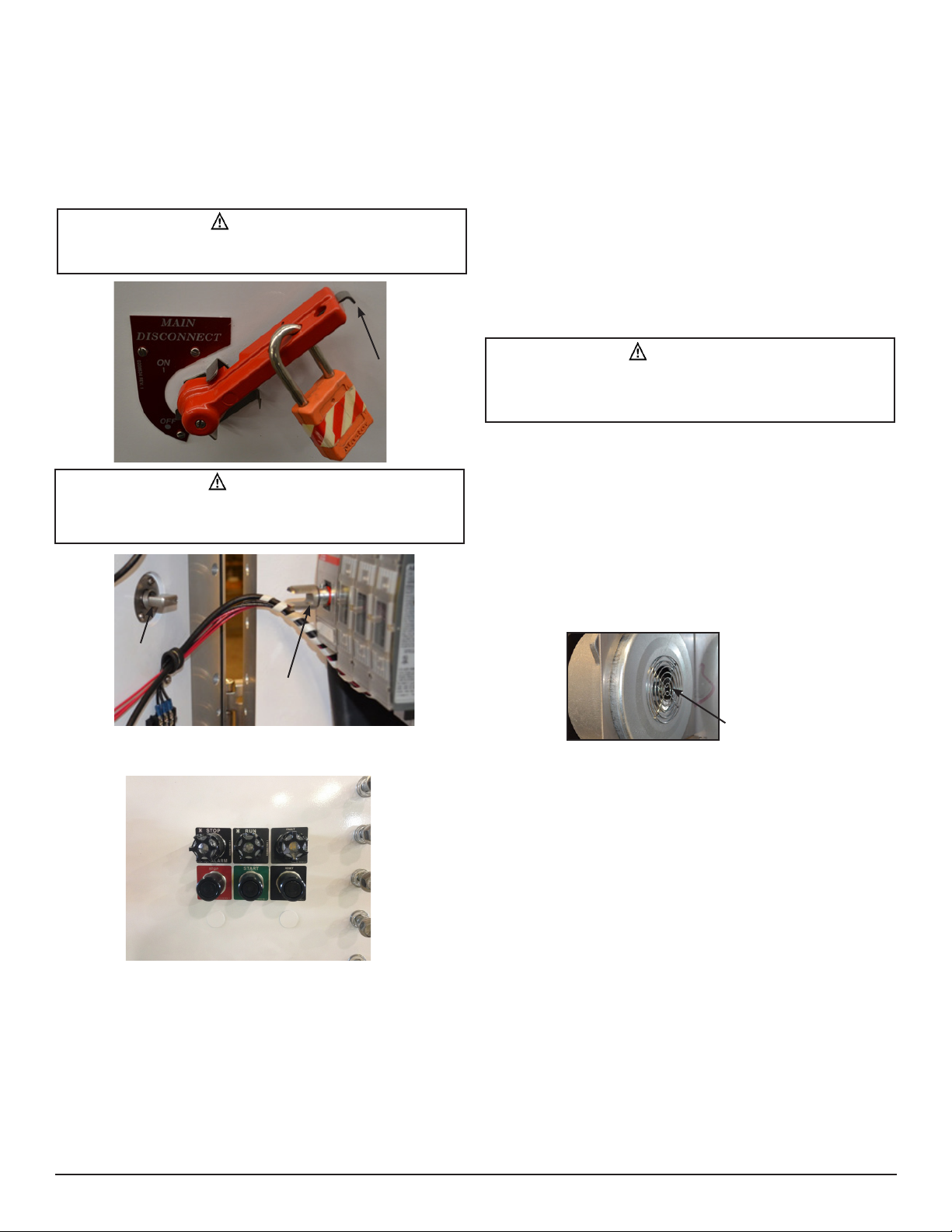

4.2 DISCONNECT AND LOCKOUT/TAGOUT
The disconnect handle is furnished with three (3) holes for lockout/tagout
purposes.
1. Turn handle to the ‘off’ position.
2. Depress lockout tab at the end of the handle.
3. Install OSHA approved lock or tag.
4. Release lockout tab.
4.3 DRIVE CONTROLS AND STATUS INDICATION
Three (3) momentary pushbutton operators control the START, STOP and
[fault] RESET of the drive. They are wired to the drives digital inputs and
are configured to be the “local control place.”
Three (3) LED pilot lights indicate the drives status – Red = Stopped,
Green = Running, Amber = Drive Fault. These are wired to the drive’s
relay outputs.
Note: As standard, speed control must either be programmed from the
drive’s keypad, by remote analog signal (customer supplied) or by using
the on board or option card communications capabilities.
4.4 PT (POTENTIOMETER) AND LR (LOCAL/
REMOTE)
• Suffix options PT and/or LR, when ordered, are wired to the drives
I/O for additional user control.
• For suffix PT, a 10K-ohm potentiometer is connected to AI1, and is
configured to be the local (primary) speed reference source.
• For suffix LR, a 2-position selector switch is connected to DI7 & 8,
and is configured to switch between local and remote operation.
• Parameters for these options, shown in section 7.1, are set up
at the factory. Refer to drive manufacturers manual for further
information.
5. MAINTENANCE
5.1 DRIVE MAINTENANCE
Periodic cleaning of the drive fan and heat sink is recommended.
Removal of the drive from the enclosure is recommended to ensure
debris does not obstruct the cooling system. Refer to the drive
manufacturer’s manual for additional maintenance recommendations and
specific instructions.
5.2 COOLING SYSTEM MAINTENANCE
1. Clean pre-filter periodically. Remove pre-filter and rinse with water
as needed.
2. Clean sintered filter as needed. Use of abrasives on the
explosionproof filters may compromise the integrity of the cooling
system.
3. Clean/inspect blower intake.
4. Perform visual, electrical and mechanical checks on all components
on a regular maintenance schedule. NFPA 70B recommends
maintenance intervals not exceeding 2 months.
5. Visually check for any damage to the filter assemblies, flat joints,
threaded joints, journal joints and window.
6. Visually check for evidence of excessive heating within the
enclosure.
7. Mechanically check that all parts are properly assembled and
operating mechanisms are in proper working condition.
8. Verify airflow provisions are maintained per Section 2.1.
WARNING
To avoid ignition of explosive atmospheres, all circuits must be
de-energized before opening cover.
CAUTION
To avoid damage to the integral disconnect operating mechanism,
be sure the disconnect coupling is in the off position before closing
cover.
CAUTION
To avoid cooling system malfunction and cooling system failure, be
sure to vacuum debris from the enclosure before energizing. NEVER
use forced air for the removal of debris from this enclosure.
Blower
Intake
Lockout Tab
Disconnect
Coupling
‘OFF’
Position
Disconnect
Shaft

IF 1767 • 09/15 Copyright© 2015, Eaton’s Crouse-Hinds Division Page 9
5.3 TORQUE VERIFICATION
5.4 EXPLOSIVE EVENT REQUIRED
MAINTENANCE
In the event of an explosion within the enclosure, the filter assemblies
and pre-filters must be replaced. Personnel injury or equipment damage
may result from failure to replace the filters with new filters after an
explosion occurs within the enclosure. Inspect all other components
and verify that they are in proper operating condition. Consult Eaton’s
Crouse-Hinds Division for replacement parts as needed.
6. TECHNICAL DATA
6.1 TECHNICAL DATA CHART
Data shown is for standard catalog, 460VAC drives in CT/IH (Constant
Torque with High Overload). Refer to drive manufacturers manual for all
other voltage and performance specifications.
WIRING
DRIVE LINE/LOAD TERMS. DRIVE GROUND I/O TERMINALS DISCONNECT TERMS.
BASIC CATALOG NO. WIRE SIZE TORQUE WIRE SIZE TORQUE WIRE SIZE TORQUE WIRE SIZE TORQUE
ACE-DG1-1 … ACE-DG1-5 26-10 AWG 5.3 IN-LBS 18-10 AWG 10 IN-LBS
24-12
AWG
4.5
IN-LBS
14-6 AWG 31 IN-LBS
ACE-DG1-7 … ACE-DG1-15 20-6 AWG 15.6 IN-LBS 12-6 AWG 10 IN-LBS 14-6 AWG 31 IN-LBS
ACE-DG1-20 … ACE-DG1-25 6-2 AWG 40 IN-LBS 14-4 AWG 10 IN-LBS 14-6 AWG 31 IN-LBS
ACE-DG1-30 6-2 AWG 40 IN-LBS 14-4 AWG 10 IN-LBS 12-1 AWG 35.4 IN-LBS
ACE-DG1-40 6-1/0 AWG 95 IN-LBS 10-1/0 AWG 14 IN-LBS 12-1 AWG 35.4 IN-LBS
ACE-DG1-50 … ACE-DG1-60 6-1/0 AWG 95 IN-LBS 10-1/0 AWG 14 IN-LBS 6-300 KCM 200 IN-LBS
ACE-DG1-75 … ACE-DG1-100 1/0-350 KCM 354 IN-LBS 8-250 KCM 35 IN-LBS 6-300 KCM 200 IN-LBS
HARDWARE GROUND LUGS
COVER BOLTS MANIFOLT BKT STUDS HOSE CLAMPS WIRE SIZE TORQUE
ACE-DG1-1 … ACE-DG1-5 3/4" HEX 40-45
FT-LBS
N/A N/A N/A N/A
14-2/0 AWG 120
IN-LBS
ACE-DG1-7 … ACE-DG1-30 3/4” HEX 9/16” HEX 20 IN-LBS 5/16” HEX
/SLOTTED 20 IN-LBS
ACE-DG1-40 … ACE-DG1-100 7/8” HEX
Horsepower Rating
Base part
number
Nominal HP
(KW)
Max. disconnect
rating (Amps)
Disconnect
fuse rating
Enclosure
size
460V input
ratings (Amps)
Max. output
rating (Amps)
Power loss
(Watts)
Temperature
rating
ACE-DG1-1 1.0 (.75) 30 10 12.0 2.2 48 T6
ACE-DG1-2 2.0 (1.5) 30 10 1 3.2 4.3 71 T6
ACE-DG1-3 3.0 (2.2) 30 10 14.5 5.6 82 T6
ACE-DG1-5 5.0 (3.0) 30 15 1 7.1 7.6 99 T6
ACE-DG1-7 7.5 (5.5) 30 20 210.2 12.0 483 T4A
ACE-DG1-10 10.0 (7.5) 30 30 213.0 16.0 539 T4A
ACE-DG1-15 15.0 (11.0) 60 35 219.5 23.0 598 T4A
ACE-DG1-20 20.0 (15.0) 60 50 225.1 31.0 719 T4A
ACE-DG1-25 25.0 (18.5) 60 60 2 31.6 38.0 764 T4A
ACE-DG1-30 30.0 (22.0) 100 80 2 37.2 46.0 821 T4A
ACE-DG1-40 40.0 (30.0) 100 100 348.3 61.0 909 T4A
ACE-DG1-50 50.0 (37.0) 200 110 360.4 72.0 1076 T4A
ACE-DG1-60 60.0 (45.0) 200 125 3 71.6 87.0 1222 T4A
ACE-DG1-75 75.0 (55.0) 200 175 389.2 105.0 1271 T4A
ACE-DG1-100 100.0 (75.0) 200 175 3115.3 140.0 1482 T4A
WARNING: BURN HAZARD
To avoid personnel injury, allow sufficient time for the enclosure to
cool prior to servicing.

IF 1767 • 09/15 Copyright© 2015, Eaton’s Crouse-Hinds Division Page 10
6.2 POWER LOSS (HEAT DISSIPATION)
When the ACE Series enclosure is not installed in a well ventilated area,
provisions must be made to account for heat generation and ensure
proper operation of the device.
6.3 DE-RATING FACTORS
The final drive output rating is a multiplication of all applicable de-rating
factors.
Factors are given as a percentage of rated output current.
6.3.1 AMBIENT TEMPERATURE DE-RATING
As standard, each drive is rated for its full output current in
CT/IH (Constant Torque with High Overload) at 50°C ambient
temperature*.
For ambient temperatures above 50°C and not exceeding 60°C, the
de-rating is 5% per °C. *100HP is rated for full output current at 40°C.
6.3.2 ALTITUDE DE-RATING
At altitudes from 1,000m to 3,000m (3280ft to 9840ft) above sea level,
the de-rating is 1% per 100m (328ft).
NOTE: If the installation site is higher than 2,000m (6,560ft) above sea
level, connection of the drive to an ungrounded (IT) or corner-grounded
delta network is not allowed.
6.3.2 SWITCHING FREQUENCY DE-RATING
To reduce motor noise, a higher switching frequency may be desired.
Note that this will increase heat output from the drive.
For switching frequencies above the factory default, the de-rating is 6%
per 1kHz.
PARAMETER NUMBER PARAMETER DESCRIPTION VALUE VALUE DESCRIPTION
BASIC PARAMETERS – P1
P1.10 LOCAL/REMOTE SELECT 1LOCAL CONTROL
P1.11 REMOTE 1 CONTROL PLACE 0 I/O TERMINAL
P1.12 LOCAL CONTROL PLACE 1I/O TERMINAL
P1.13 LOCAL REFERENCE 6KEYPAD
DIGITAL INPUT – P3
P3.1 START/STOP LOGIC 3START PULSE-STOP PULSE
P3.2 START SIGNAL 1 2DigIN:1
P3.3 START SIGNAL 2 3DigIN:2
P3.8 FAULT RESET 5 DigIN:4
DIGITAL OUTPUT – P5
P5.2 RO1 FUNCTION 2RUN
P5.3 RO2 FUNCTION 3FAULT
P5.4 RO3 FUNCTION 41 TEMP LIMIT SUPERV
P5.15 TEMP LIMIT SUPV 2HIGH LIMIT
P5.16 TEMP LIMIT SUPV VAL 40.0 DEG C
P5.35 RO3 OFF DELAY 30 SEC
MOTOR CONTROL – P8
P8.10 SWITCHING FREQUENCY 4.0 (3.6 on 100HP model) kHz
PROTECTIONS – P9
P9.39 COLD WEATHER MODE 1YES
POTENTIOMETER OPTION (SUFFIX PT) ONLY
P1.13 LOCAL REFERENCE 0 AI1
P2.1 AI1 MODE 10-10V
P2.2 AI1 SIGNAL RANGE 0 0-100%
LOCAL/REMOTE SWITCH OPTION (SUFFIX LR) ONLY
P3.21 REMOTE CONTROL 9 DigIN:8
P3.22 LOCAL CONTROL 8 DigIN:7
P3.42 EMERGENCY STOP 6DigIN:5
7.1 CROUSE-HINDS DRIVE PARAMETERS
Parameters are set at the factory and must be maintained to ensure
proper operation of cooling system and controls. Refer to drive
manufacturer’s manual for additional parameter information.

IF 1767 • 09/15 Copyright© 2015, Eaton’s Crouse-Hinds Division Page 11
8. REPLACEMENT PARTS
ACE Series systems are designed to provide years of reliable service.
However, should the need for replacement parts arise, they are avail-
able through your Eaton’s Crouse-Hinds Division Distributor. Assistance
may also be obtained through your Sales Representative or the Eaton’s
Crouse-Hinds Division Customer Service Department.
8.1 PRE-FILTER KIT
ACE KIT1: Pre-Filter and Hardware (1 pc.)
8.1.1 PRE-FILTER INSTALLATION INSTRUCTIONS
1. Remove rubber caps from explosionproof filters.
2. Install wire guard using the bracket, screw and lock washer provided
to the bottom filter(s).
3. Align guard with notches within the bracket as shown.
4. Tighten screw.
5. Slip pre-filter mesh over guard.
6. Be sure to stretch pre-filter elastic band completely around the
explosionproof filter and seat the elastic band on the filter’s threads.
This will ensure all air flow to the bottom filters passes through the
pre-filters.
8.2 SINTERED FILTER KIT
ACE KIT2: Filter Assembly (1 pc.)
8.2.1 SINTERED FILTER INSTALLATION
INSTRUCTIONS
1. Remove shroud and pre-filters and place all parts in a secure area.
2. Using a 1” socket wrench, remove all filters from the enclosure (top
and bottom).
3. Remove rubber caps from explosionproof filters.
4. Apply thread grease to threads of explosionproof filters.
5. Install new filters (top and bottom) and torque each to 133 ft.-lbs.
(180 N-m).
6. Install pre-filters and shrouds; refer to Sections 2.6 and 2.7.
8.3 BLOWER KIT
ACE KIT3: Blower, Manifold and Hardware (1 pc.)
8.3.1 BLOWER INSTALLATION INSTRUCTIONS
1. Disconnect blower power, ground and control leads from fuse
blocks (refer to wiring diagrams in Section 3.5).
2. Loosen five (5) nuts holding blower bracket and baffle to mounting
plate. DO NOT remove.
3. Loosen and remove manifold clamp bracket nuts and lock washers.
DO NOT remove jam nuts positioned behind the manifold clamp
bracket.
4. Remove blower and brackets.
5. Remove manifold and manifold clamp bracket.
6. Remove blower cooling intake and hose clamp from old blower
assembly and hold for re-assembly.
7. Loosen and remove three (3) screws and washers holding the baffle
to the blower bracket. Remove baffle and hold for re-assembly.
8. Attach baffle to new blower bracket using the same three (3)
screws and washers.
9. Align new manifold to enclosure wall.
10. Align new manifold clamp bracket to threaded studs. Be sure the
manifold clamp bracket flanges point toward the interior of the
enclosure.
11. Install four (4) lock washers and nuts on threaded studs hand tight
before applying required torque. Tighten to 20 in.-lbs. DO NOT
overtighten.
Explosionproof
Filter
Filter
Shrouds
Manifold Clamp
Bracket
Loosen and DO NOT
remove nut during
replacement
Detail View
Notch
Bracket
Guard

12. Slide new blower/bracket assembly into place until fully seated,
aligning to the threaded studs and the manifold.
13. Tighten nuts wrench tight.
14. Tighten manifold hose clamp, while compressing the manifold to
the blower, to 20 in.-lbs.
15. Re-attach blower cooling intake and tighten hose clamp to 20
in-lbs. Be sure to align bottom of blower cooling intake to the
explosionproof filter at the bottom of the enclosure.
16. Terminate the blower power wires to the appropriate fuse block
connections (refer to wiring diagrams in Section 3.5).
17. Perform a continuity check between each blower power terminal
and each phase of the integral disconnect switch.
18. Terminate the blower control wires to the appropriate terminal block
connections (refer to wiring diagrams in Section 3.5).
19. Perform a continuity check between each blower control terminal
and the RO3 relay terminals on the drive (refer to wiring diagrams in
Section 3.5).
20. Terminate the blower ground wire to the appropriate nearest ¼-20
stud and secure connection (refer to wiring diagrams in Section 3.5).
21. Perform a continuity check between the ground terminal and the
ground lug adjacent to the integral disconnect switch.
8.4 WINDOW KIT
• ACE KIT7 (ENCLOSURE SIZES 1 AND 2): 3/8” Window, Bracket,
Hardware, and IF1706 (1 pc.)
• ACE KIT8 (ENCLOSURE SIZE 3): 5/8” Window, Bracket, Hardware,
and IF1706 (1 pc.)
8.4.1 WINDOW KIT INSTALLATION
INSTRUCTIONS
1. Wipe down glass window with cleaner.
2. Place glass over milled pocket of cover as shown in image 1 and
exploded view drawing below.
3. Place bracket over glass and attach with 4 x #10-24 screws and 4 x
#10 lock washers as shown in image 2 and exploded view drawing
below.
4. Hand tighten screws first in pattern shown on image 3 below, then
torque screws to 23 in.lbs. in approximately 5 in.lb. increments
following the same sequence.
5. Shim Gage window with .0015 Shim Stock to check that it is sealed.
8.5 CAST FILTER SHROUD REPLACEMENT KIT
ACE KIT 9: Cast shroud and hardware (1 pc.)
8.5.1 FILTER SHROUD INSTALLATION
INSTRUCTIONS
1. Remove rubber caps from explosionproof filters.
2. Insert threaded rods into the explosionproof filters. Leave 3-5⁄8 of
threaded rod exposed.
3. Place shroud over explosionproof filters and threaded rod, with
shroud opening facing back of enclosure. See Figure 2.
4. Insert washer and nuts onto end of threaded rod and tighten
securely until shroud is firmly contacting the top wall of the
enclosure. See Figure 3.
CAUTION
To avoid system malfunction and electrical shock, be sure that all
wires are aligned in the baffle’s wire pass through.
Blower
Cooling
Intake
Image 1 Image 2
Image 3
1
2
3
4
ACORN NUT
LOCKING NUT
WASHER
Figure 3
THREADED STUD
Figure 2
All statements, technical information and recommendations contained herein are based on information and tests we believe to be reliable. The accuracy or
completeness thereof are not guaranteed. In accordance with Eaton’s Crouse-Hinds Division’s “Terms and Conditions of Sale,” and since conditions of use are
outside our control, the purchaser should determine the suitability of the product for his intended use and assumes all risk and liability whatsoever in connection
therewith.
Eaton’s Crouse-Hinds Division IF 1767
1201 Wolf Street, Syracuse, New York 13208 • U.S.A. Revision 1
Copyright© 2015 Revised 09/15
