HVAC Application
H-Max HVAC Drives MN04008004E—September 2011 www.eaton.com 1
HVAC Application
The Eaton HVAC drive contains a preloaded application for
instant use.
The parameters of this application are listed in the
complete Application Manual. The Application Manual
can be found at http://www.eaton.com/Electrical/
USA/ProductsandServices/AutomationandControl/
AdjustableFrequencyDrives/H-Max/index.htm.
Specific Functions of Eaton HVAC Application
The Eaton HVAC application is an easy-to-use application for
not only basic pump and fan applications where only one
motor and one drive is needed, but also offers extensive
possibilities for PID control.
Features
●
Startup Wizard for extremely fast setup for basic pump or
fan applications
●
Mini-Wizards to ease the setup of applications
●
Hand/Off/Auto button for easy change between Hand
(keypad), OFF, and Auto (Remote control) place. The auto
control place is selectable by parameter (I/O or Fieldbus)
●
Control page for easy operation and monitoring of the
most essential values
●
Run interlock input (damper interlock). Drive will not start
before this input is activated
●
Different pre-heat modes used to avoid condensation
problems
●
Maximum output frequency 320 Hz
●
Real-time clock and timer functions available (optional
battery required). Possible to program three time channels
to achieve different functions on the drive (for example,
Start/Stop and Preset frequencies)
●
External PID-controller available. Can be used to control a
valve using the drive’s I/O, for example
●
Sleep mode function which automatically enables and
disables drive running with user defined levels to save
energy
●
Two-zone PID-controller (two different feedback signals;
minimum and maximum control)
●
Two setpoint sources for the PID-control. Selectable with
digital input
●
PID setpoint boost function
●
Feed forward function to improve the response to the
process changes
●
Process value supervision
●
Multi-pump control
●
Pressure loss compensation for compensating pressure
losses in the pipework, for example, when sensor is
incorrectly placed near the pump or fan

HVAC Application
2 H-Max HVAC Drives MN04008004E—September 2011 www.eaton.com
Example of Control Connections
Control Connections
Slot A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
A
+10V
AI–1+
Vin
AI–2+
AI–2–
24Vout
GND
DIN1
DIN2
DIN3
24Vout
GND
DIN4
DIN5
DIN6
AO–1+
AO–1–
DATA–
Reference Output
Analog Input Voltage (Range 0–10 Vdc)
(can be programmed to current 4–20 mA)
Analog Output Common (Ground)
Analog Input Common
PI Setpoint or Feedback
Control Voltage Output (0.1A max.)
I/O Ground
START/STOP (Contact closed = start)
External Fault (Closed = fault)
Run Interlock Permissive IP Interlock
(Closed = OK)
DIN1–DIN6 Common
Control Voltage Output (0.1A max.)
I/O Ground
Fire Mode (Contact closed = fire mode)
Force Bypass (Contact closed = bypass)
DIN1–DIN6 Common
Output Frequency (0–20 mA)
Analog Output Common (Ground)
RS-485 DATA–
Speed Select 0–100% (Preset speed)
U (T1)
V (T2)
W (T3)
R+
R–
L1
L2
L3
Three-Phase Input
Input
(Single-Phase not available)
Three-Phase
Output
DB
Chopper
Terminal Factory Default Signal
Resistor
Analog Input Current (Range 4–20 mA)
(can be programmed to voltage 0–10 Vdc)
PI Setpoint or Feedback
BDATA+
RO1 Bypass Run
RO2 Drive Run
RO3 Fault
24 Vdc/8A
250 Vac/8A
125 Vdc/0.4A
Relay Board 1
Default Signal
21
22
23
24
25
26
32
33
Slot B
Analog
RS-485 DATA+
Factory
Jumper
COM
CMB
30 24 Vdcin Auxiliary Input Voltage
Circuit
Breaker
Optional
Motor
RJ-45 BACnet/IP Ethernet Industrial Protocol
Modbus/TCP Transmission Control Protocol (Ethernet Based)
5% DC Link
Reactor
Programmable BACnet,
Modbus, FLN, N2
ON
CURRENT
CURRENT
CURRENT
RS485
AO1
AI2
AI1
OFF
VOLTAGE
VOLTAGE
VOLTAGE
Tes t

Keypad of the Drive
H-Max HVAC Drives MN04008004E—September 2011 www.eaton.com 3

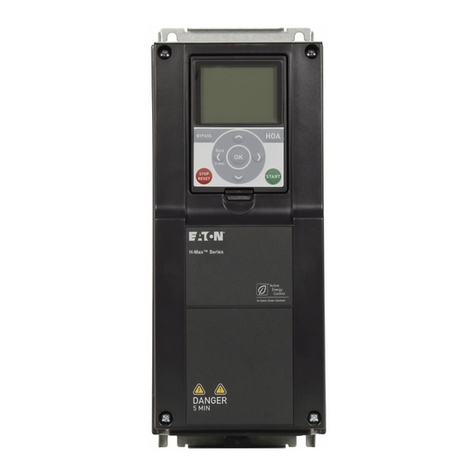

Keypad of the Drive
The control keypad is the interface between the Eaton
H-MAX frequency converter and the user. With the control
keypad it is possible to control the speed of a motor, to
supervise the state of the equipment and to set the
frequency converter’s parameters.
There are two different keypads used with the H-MAX drive.
The North American Keypad is slightly different than the
EMEA Keypad. Functionality is quite similar. The EMEA
keypad does not support the bypass functionality commonly
used in the United States.
US Keypad Buttons
EMEA Keypad Buttons
Switching Between
Drive and Bypass
Move Cursor Left
Back when Pressed
for two Seconds
Stop Button/Fault Reset Start Button
Change Control Place
Between Hand-Off-Auto
Move Cursor Right
Increase Value
Scroll Menu Up
Decrease Value
Scroll Menu Down
Enter Menu
Confirm Selection
Back Fault Reset
Move Cursor Left
Stop Button Start Button
Change Control Place
Between Hand-Off-Auto
Move Cursor Right
Increase Value
Scroll Menu Up
Decrease Value
Scroll Menu Down
Enter Menu
Confirm Selection

Keypad of the Drive
4 H-Max HVAC Drives MN04008004E—September 2011 www.eaton.com
Keypad Display
The keypad display indicates the status of the motor and the drive and any irregularities in
motor or drive functions. On the display, the user sees information about his present location
in the menu structure and the item displayed.
Main Menu
The data on the control keypad are arranged in menus and submenus. Use the up and down
arrows to move between the menus. Enter the group/item by pressing the OK button and
return to the former level by pressing the Back/Reset button.
The Location field indicates your current location. The Status field gives information about the
present status of the drive. See “Control Connections” on Page 2 .
Main Menu
Using the Graphical Keypad
Editing Values
Change value of a parameter following the procedure below:
1. Locate the parameter.
2. Enter the Edit mode.
3. Set new value with the up/down arrow buttons. You can also move from digit to digit
with the arrow buttons left/right if the value is numerical and then change the value with
the up/down arrow buttons.
4. Confirm change with OK button or ignore change by returning to previous level with
Back/Reset button.
Status Field
STOP/RUN
STOP E-Energy Hand I/O
Direction Run Mode
Hand/Off/Auto
Control Place
PC/IO/KEYPAD/FIELDBUS
Location Field
(Parameter ID number and
current menu location)
Activated Group/Item
Press OK to Enter

Keypad of the Drive
H-Max HVAC Drives MN04008004E—September 2011 www.eaton.com 5
Editing Values on Graphical Keypad
HOA Control Button
The HOA (Hand-Off-Auto) button is used for two functions:
to quickly access the Control page and to easily change
between the Hand (Keypad), Off, and Auto (Remote) control
places.
Control Place
The control place is the source of control where the drive can
be started and stopped. Every control place has its own
parameter for selecting the frequency reference source. In
the HVAC drive, the Hand control place is always the keypad.
The Auto control place is determined by parameter P2.1.1
(Keypad, I/O Terminal, I/O three-wire, or Fieldbus CTRL). The
selected control place can be seen on the status bar of the
keypad.
Local Control
The keypad is always used as control place while in hand
control. Hand control has higher priority than auto control.
Therefore, if, for example, bypassed by parameter P2.1.17
through digital input while in Remote , the control place will
still switch to Keypad if Hand is selected. Switching between
Hand, Off, and Auto Control can be done by pressing the
HOA button on the keypad.
Changing Control Place
Change of control place from Hand to Auto (keypad).
1. Anywhere in the menu structure, push the HOA button.
2. Push the arrow up or the arrow down button to select
Hand/Off/Auto and confirm with the OK button.
3. On the next display, select Hand , Off , or Auto and again
confirm with the OK button.
4. The display will return to the same location as it was
when the HOA button was pushed. However, if the
Remote control place was changed to Hand (Keypad)
you will be prompted for keypad reference.
STOP READY I/O
STOP READY I/O
STOP READY I/O
OK OK OK
STOP READY I/O
STOP READY I/O
OR:
BACK
RESET

Keypad of the Drive
6 H-Max HVAC Drives MN04008004E—September 2011 www.eaton.com
Accessing the Control Page
The Control page is meant for easy operation and monitoring of the most essential values.
1. Anywhere in the menu structure, push the HOA button.
2. Push the arrow up or the arrow down button to select Control page and confirm with the
OK button.
3. The control page appears. If keypad control place and keypad reference are selected to
be used, you can set the Keypad reference after having pressed the OK button. If other
control places or reference values are used, the display will show Frequency reference
which is not editable. The other values on the page are Multimonitoring values. You can
choose which values appear here for monitoring (for this procedure, see Application
Manual).
Accessing Control Page
Help Texts
The graphical keypad features instant help and information displays for various items.
All parameters offer an instant help display. Select Help and press the OK button.
Text information is also available for faults, alarms and the Startup Wizard.
Help Text Example
HOA
STOP READY Keypad
Edit
OK
OK
STOP READY Keypad
0.00 Hz
STOP READY Keypad
0.00 Hz
OK
STOP READY I/O
STOP READY I/O STOP READY I/O
OK OK
STOP READY I/O

Eaton H-Max—Startup
H-Max HVAC Drives MN04008004E—September 2011 www.eaton.com 7
Eaton H-Max—Startup
Startup Wizard
In the Startup Wizard , you will be prompted for essential
information needed by the drive so that it can start
controlling your process. In the Wizard, you will need the
following keypad buttons:
Left/Right arrows. Use these to easily move
between digits and decimals.
Up/Down arrows. Use these to move between
options in menu and to change value.
OK button. Confirm selection with this button.
Back/Reset button. Pressing this button, you can
return to the previous question in the Wizard. If
pressed at the first question, the Startup Wizard will
be cancelled.
Once you have connected power to your Eaton H-Max
frequency converter, follow these instructions to easily set
up your drive.
Note

These questions appear if battery is installed.
Now the Startup Wizard is done.
The Startup Wizard can be re-initiated by pressing and
holding the back/reset button for two seconds. The Startup
Wizard will appear upon next power up.
1
Run Startup Wizard Yes
No
2
Language Select Depends on language package
3
Daylight Saving

Russia
US
EU
OFF
4
Time

hh:mm:ss
5
Day

dd.mm.
6
Year

yyyy
OK
BACK
RESET
7
Application H-Max Standard
PID
Multi-Pump
8
Bypass Enabled
Disabled
9
Motor Nominal Current Min: 0.26A
Max: Drive Dependent
10
Motor Nominal Voltage Min: 180.0V
Max: 690.0V
11
Motor Nominal Frequency Min: 8 Hz
Max: 320 Hz
12
Motor Nominal Speed Min: 24 RPM
Max: 19200 RPM
13
Min Frequency Min: 0 Hz
Max: 60 Hz
14
Max Frequency Min: 12 Hz
Max: 320 Hz
15
Accel Time 1 Min: 0.1s
Max: 3000s
16
Decel Time 1 Min: 0.1s
Max: 3000s
17
StartSourceHand Keypad
FieldbusCTRL
I/O Three-Wire
I/O Terminal
18
StartSourceAuto I/O Terminal
Keypad
FieldbusCTRL
I/O Three-Wire
19
SpeedSetptHand Keypad Ref
P1D1 Activated
AI1 + AI2
AI2
AI1
Fieldbus
20
SpeedSetptAuto PID1 Activated
AI1 + AI2
AI2
AI1
Fieldbus
Keypad Ref

Eaton H-Max—Startup
8 H-Max HVAC Drives MN04008004E—September 2011 www.eaton.com
PID Mini-Wizard
The PID Mini-Wizard is activated in the Quick Setup menu.
This Wizard presupposes that you are going to use the PID
controller in the “one feedback/one setpoint” mode. The
control place will be I/O A and the default process unit “%”.
The PID Mini-Wizard asks for the following values to be set:
Multi-Pump
If Multi-Pump is the selected application, parameter group
2.16 will be visible in the menu structure. Default values may
need to be adjusted to meet your application needs.
1
FeedBack1 Srce AI2
AI1
Not Used
ProceDataIn8
ProceDataIn7
ProceDataIn6
ProceDataIn5
ProceDataIn4
ProceDataIn3
ProceDataIn2
ProceDataIn1
AI6
AI5
AI4
AI3
2
Process Unit Selection (Several Selections)
3
Process Unit Min —
4
Process Unit Max —
5
P-Gain Min: 0%
Max: 200%
6Integration Time Min: 0.00s
Max: 600.00s
7SetPT1 Source Keypad SP1
Not Used
ProceDataIn8
ProceDataIn7
ProceDataIn6
ProceDataIn5
ProceDataIn4
ProceDataIn3
ProceDataIn2
ProceDataIn1
AI6
AI5
AI4
AI3
AI2
AI1
Parameter
Group Name
Parameter
Number
Parameter
Name
Parameter Group 2.16:
Multi-Pump
P2.16.1 Number of motors
P2.16.2 Interlock function
P2.16.3 Include FC
P2.16.4 Autochange
P2.16.5 Autochange interval
P2.16.6 Autochange frequency limit
P2.16.7 Autochange motor limit
P2.16.8 Bandwidth
P2.16.9 Bandwidth delay

Menu Structure
H-Max HVAC Drives MN04008004E—September 2011 www.eaton.com 9
Menu Structure
For more information, the complete Application Manual can be referenced at:
http://www.eaton.com/Electrical/USA/ProductsandServices/AutomationandControl/
AdjustableFrequencyDrives/H-Max/index.htm.
Keypad Menus
Monitor Basic Diagnostics Active Faults
Timer Functions Reset Faults
Multimonitor Fault History
Parameters Basic Parameters Total Counters
Analog Inputs Trip Counters
Digital Inputs Software Info
Analog Outputs I/O & Hardware Basic I/O
Digital Outputs Slot D
Drive Control Slot E
Motor Control Real Time Clock
Protections Power Unit Settings
Fixed Frequencies Keypad
Fire Mode RS485
Multi-Pump
Braking Ethernet
Fieldbus User Settings —
Second Parameter Set Favorites —
Timer Functions

Parameter List
10 H-Max HVAC Drives MN04008004E—September 2011 www.eaton.com
Parameter List
Parameter Group Name Parameter Number Parameter Name ID
Parameter Group 2.1—Basic Parameters
Basic P2.1.1 Application 213
P2.1.2 ByPass 214
P2.1.3 HOA Control Stc 1359
P2.1.4 Start Srce Hand 1300
P2.1.5 Speed Setpt Hand 1301
P2.1.6 Start Srce Auto 1302
P2.1.7 Speed Setpt Auto 1303
P2.1.8 Min Frequency 101
P2.1.9 Max Frequency 102
P2.1.10 Accel Time 1 103
P2.1.11 Decel Time 1 104
P2.1.12 Motor Nom Currnt 113
P2.1.13 Motor Nom Voltg 110
P2.1.14 Motor Nom Freq 111
P2.1.15 Motor Nom Speed 112
P2.1.16 MotorPowerFactor 120
P2.1.17 Current Limit 107
P2.1.18 Service Factor 1357
Parameter Group 2.2—Analog Inputs
Analog Input 1 P2.2.1.1 AI1 Signal selection 377
P2.2.1.2 AI1 Signal Inv 387
P2.2.1.3 AI1 Signal Range 379
P2.2.1.4 AI1 Custom Min 380
P2.2.1.5 AI1 Custom Max 381
P2.2.1.6 AI1 Filter Time 378
Analog Input 2 P2.2.2.1 AI2 Signal selection 388
P2.2.2.2 AI2 Signal Inv 398
P2.2.2.3 AI2 Signal Range 390
P2.2.2.4 AI2 Custom Min 391
P2.2.2.5 AI2 Custom Max 392
P2.2.2.6 AI2 Filter Time 389
Analog Input 3 P2.2.3.1 AI3 Signal selection 141
P2.2.3.2 AI3 Signal Inv 151
P2.2.3.3 AI3 Signal Range 143
P2.2.3.4 AI3 Custom Min 144
P2.2.3.5 AI3 Custom Max 145
P2.2.3.6 AI3 Filter Time 142

Parameter List
H-Max HVAC Drives MN04008004E—September 2011 www.eaton.com 11
Parameter Group 2.2—Analog Inputs, continued
Analog Input 4 P2.2.4.1 AI4 Signal selection 152
P2.2.4.2 AI4 Signal Inv 162
P2.2.4.3 AI4 Signal Range 154
P2.2.4.4 AI4 Custom Min 155
P2.2.4.5 AI4 Custom Max 156
P2.2.4.6 AI4 Filter Time 153
Analog Input 5 P2.2.5.1 AI5 Signal selection 188
P2.2.5.2 AI5 Signal Inv 198
P2.2.5.3 AI5 Signal Range 190
P2.2.5.4 AI5 Custom Min 191
P2.2.5.5 AI5 Custom Max 192
P2.2.5.6 AI5 Filter Time 189
Analog Input 6 P2.2.6.1 AI6 Signal selection 199
P2.2.6.2 AI6 Signal Inv 209
P2.2.6.3 AI6 Signal Range 201
P2.2.6.4 AI6 Custom Min 202
P2.2.6.5 AI6 Custom Max 203
P2.2.6.6 AI6 Filter Time 200
Parameter Group 2.2—Basic Parameters
Basic P2.2.7.1 Ref Scale Min. 1307
P2.2.7.2 Ref Scale Max. 1308
Parameter Group 2.3—Digital Inputs
Digital Input 1 P2.3.1.1 DI1 Open Invert Not accessible
P2.3.1.2 DI1 Function Not accessible
Digital Input 2 P2.3.2.1 DIN 2 Invert 1419
P2.3.2.2 DIN2 Function 1320
Digital Input 3 P2.3.3.1 DIN 3 Invert 1420
P2.3.3.2 DIN3 Function 1321
Digital Input 4 P2.3.4.1 DIN 4 Invert 1421
P2.3.4.2 DIN4 Function 1322
Digital Input 5 P2.3.5.1 DIN 5 Invert 1422
P2.3.5.2 DIN5 Function 1323
Digital Input 6 P2.3.6.1 DIN 6 Invert 1423
P2.3.6.2 DIN6 Function 1324
Digital Input Ext 1 P2.3.7.1 Ext-D1 Terminal 1325
P2.3.7.2 Ext-D1 Function 1326
Digital Input Ext 2 P2.3.8.1 Ext-D2 Terminal 1327
P2.3.8.2 Ext-D2 Function 1328
Parameter Group Name Parameter Number Parameter Name ID

Parameter List
12 H-Max HVAC Drives MN04008004E—September 2011 www.eaton.com
Parameter Group 2.3—Basic Parameters
Basic P2.3.9.1 Start logic 1304
P2.3.9.2 INTLK Timeout 1305
P2.3.9.3 Delay Time 1306
P2.3.9.4 Intrlk Stop Mode 1356
P2.3.9.5 Interlock 1 Text 1315
P2.3.9.6 Interlock 2 Text 1316
P2.3.9.7 Interlock 3 Text 1317
Parameter Group 2.4—Analog Outputs
Analog Output 1 P2.4.1.1 AO1 Function 10050
P2.4.1.2 AO1 Filter Time 10051
P2.4.1.3 AO1 Min Signal 10052
P2.4.1.4 AO1 MinScale 10053
P2.4.1.5 AO1 MaxScale 10054
P2.4.1.6 AO1 Invert 10060
Parameter Group 2.5—Digital Outputs
Digital Output 1 P2.5.1.1 RO1 function 11001
P2.5.1.2 RO1 Invert 11020
P2.5.1.3 RO1 ON delay 11002
P2.5.1.4 RO1 OFF delay 11003
Digital Output 2 P2.5.2.1 RO2 function 11004
P2.5.2.2 RO2 Invert 11021
P2.5.2.3 RO2 ON delay 11005
P2.5.2.4 RO2 OFF delay 11006
Digital Output 3 P2.5.3.1 RO3 function 11007
Supervision P2.5.9.1 Superv1 Item 1622
P2.5.9.2 Supervision #1 mode 1623
P2.5.9.3 Supervision #1 limit 1624
P2.5.9.4 Supervision #1 limit hysteresis 1625
P2.5.9.5 Superv2 Item 1626
P2.5.9.6 Supervision #2 mode 1627
P2.5.9.7 Supervision #2 limit 1628
P2.5.9.8 Supervision #2 limit hysteresis 1629
Parameter Group Name Parameter Number Parameter Name ID

Parameter List
H-Max HVAC Drives MN04008004E—September 2011 www.eaton.com 13
Parameter Group 2.6—Drive Control
Basic P2.6.1.1 Start Function 505
P2.6.1.2 Stop Function 506
P2.6.1.3 InhibitDirection 1336
P2.6.1.4 Reference Unit 1362
P2.6.1.5 Keypad Reference 184
P2.6.1.6 Keypad Direction 123
P2.6.1.7 Keypad Reference copy 181
P2.6.1.8 Keypad Stop Button 114
P2.6.1.9 Accel Time 2 502
P2.6.1.10 Decel Time 2 503
P2.6.1.11 RampselectMode 1333
P2.6.1.12 Accel2Threshold 526
P2.6.1.13 Decel2Threshold 1334
P2.6.1.14 S-Ramp 1 Shape 500
P2.6.1.15 S-Ramp 2 Shape 501
Skip Frequencies P2.6.2.1 Range 1 Low Lim 509
P2.6.2.2 Range 1 High Lim 510
P2.6.2.3 Range 2 Low Lim 511
P2.6.2.4 Range 2 High Lim 512
P2.6.2.5 Range 3 Low Lim 513
P2.6.2.6 Range 3 High Lim 514
P2.6.2.7 Range 4 Low Lim 1337
P2.6.2.8 Range 4 High Lim 1338
P2.6.2.9 Range 5 Low Lim 1339
P2.6.2.10 Range 5 High Lim 1340
P2.6.2.11 Range 6 Low Lim 1341
P2.6.2.12 Range 6 High Lim 1342
P2.6.2.13 RampTimeFactor 518
Parameter Group 2.7—Motor Control
Motor Control P2.7.1 V/Hz RatioSelect 108
P2.7.2 Field WeakngPnt 602
P2.7.3 Voltage at FWP 603
P2.7.4 V/Hz Mid Freq 604
P2.7.5 V/Hz Mid Voltage 605
P2.7.6 Zero Freq Voltg 606
P2.7.7 Switching Freq 601
Parameter Group Name Parameter Number Parameter Name ID

Parameter List
14 H-Max HVAC Drives MN04008004E—September 2011 www.eaton.com
Parameter Group 2.8—Faults
Faults P2.8.1.1 AI Low Fault 700
P2.8.1.2 Undervoltage Flt 727
P2.8.1.3 OutputPhase Flt 702
P2.8.1.4 Motor Duty Cycle 708
P2.8.1.5 Underload Flt 713
P2.8.1.6 Motor Therm Prot 704
P2.8.1.7 MotAmbient Temp 705
P2.8.1.8 ZeroSpeedCooling 706
P2.8.1.9 ThermTimeConst 707
P2.8.1.10 Thermistor Fault 732
P2.8.1.11 External Fault 701
P2.8.1.12 FieldbusComm Flt 733
P2.8.1.13 InputPhaseFault 730
P2.8.1.14 MotorStall Flt 709
P2.8.1.15 PID1 Supervision 749
P2.8.1.16 PID2 Supervision 757
P2.8.1.17 SlotCommFlt 734
P2.8.1.18 Preset Alarm Freq 183
Automatic Reset P2.8.2.1 Automatic Reset 731
P2.8.2.2 Restart function 719
P2.8.2.3 Wait Time 717
P2.8.2.4 Trial Time 718
P2.8.2.5 Number of trials 759
P2.8.2.6 Undervoltage Flt 720
P2.8.2.7 Overvoltage Flt 721
P2.8.2.8 Overcurrent Flt 722
P2.8.2.9 AI Low Fault 723
P2.8.2.10 UnitOverTemp Flt 724
P2.8.2.11 MotorOverTempFlt 725
P2.8.2.12 External Fault 726
P2.8.2.13 IGBT temp 1358
Parameter Group Name Parameter Number Parameter Name ID

Parameter List
H-Max HVAC Drives MN04008004E—September 2011 www.eaton.com 15
Parameter Group 2.9—PID Controller
PID Controller 1, Basic Settings P2.9.1.1.1 Gain, PID Controller 1 118
P2.9.1.1.2 Integration Time, PID Controller 1 119
P2.9.1.1.3 Derivation Time, PID Controller 1 132
P2.9.1.1.4 ProcessUnitSel, PID Controller 1 1036
P2.9.1.1.5 ProcessUnitMin, PID Controller 1 1033
P2.9.1.1.6 ProcessUnitMax, PID Controller 1 1034
P2.9.1.1.7 ProcessUnitDecimals, PID Controller 1 1035
P2.9.1.1.8 Error Inversion, PID Controller 1 340
P2.9.1.1.9 Dead Band, PID Controller 1 1056
P2.9.1.1.10 Dead band delay, PID Controller 1 1057
PID Controller 1, Setpoints P2.9.1.2.1 Keypad SP 1, PID Controller 1 167
P2.9.1.2.2 Keypad SP 2, PID Controller 1 168
P2.9.1.2.3 Ramp Time, PID Controller 1 1068
P2.9.1.2.4 SetPt 1 Source, PID Controller 1 332
P2.9.1.2.5 SetPt 1 min, PID Controller 1 1069
P2.9.1.2.6 SP 1 maximum, PID Controller 1 1070
P2.9.1.2.7 SP 1 Sleep Freq, PID Controller 1 1016
P2.9.1.2.8 SP 1 Sleep delay, PID Controller 1 1017
P2.9.1.2.9 SP 1 WakeUpLevel, PID Controller 1 1018
P2.9.1.2.10 SP 1 boost, PID Controller 1 1071
P2.9.1.2.11 SP 2 Source, PID Controller 1 431
P2.9.1.2.12 SP 2 minimum, PID Controller 1 1073
P2.9.1.2.13 SP 2 maximum, PID Controller 1 1074
P2.9.1.2.14 SP 2 Sleep Freq, PID Controller 1 1075
P2.9.1.2.15 SP 2 Sleep delay, PID Controller 1 1076
P2.9.1.2.16 SP 2 WakeUpLevel, PID Controller 1 1077
P2.9.1.2.17 SP 2 boost, PID Controller 1 1078
PID Controller 1, Feedbacks P2.9.1.3.1 Function, PID Controller 1 333
P2.9.1.3.2 Gain, PID Controller 1 1058
P2.9.1.3.3 FeedBack 1 Srce, PID Controller 1 334
P2.9.1.3.4 FB 1 Minimum, PID Controller 1 336
P2.9.1.3.5 FB 1 Maximum, PID Controller 1 337
P2.9.1.3.6 FB 2 Source, PID Controller 1 335
P2.9.1.3.7 FB 2 Minimum, PID Controller 1 338
P2.9.1.3.8 FB 2 Maximum, PID Controller 1 339
PID Controller 1, Feedforward P2.9.1.4.1 Function, PID Controller 1 1059
P2.9.1.4.2 Gain, PID Controller 1 1060
P2.9.1.4.3 FF 1 Source, PID Controller 1 1061
P2.9.1.4.4 FF1 Minimum, PID Controller 1 1062
P2.9.1.4.5 FF1 Maximum, PID Controller 1 1063
P2.9.1.4.6 FF 2 Source, PID Controller 1 1064
P2.9.1.4.7 FF2 Minimum, PID Controller 1 1065
P2.9.1.4.8 FF2 Maximum, PID Controller 1 1066
Parameter Group Name Parameter Number Parameter Name ID

Parameter List
16 H-Max HVAC Drives MN04008004E—September 2011 www.eaton.com
Parameter Group 2.9—PID Controller, continued
PID Controller 1, Process Supervision P2.9.1.5.1 Enable Superv, PID Controller 1 735
P2.9.1.5.2 Upper limit, PID Controller 1 736
P2.9.1.5.3 Lower limit, PID Controller 1 758
P2.9.1.5.4 Delay, PID Controller 1 737
PID Controller 1, Pressure Loss Compensation P2.9.1.6.1 Enable SP 1, PID Controller 1 1529
P2.9.1.6.2 SP 1 Max Comp., PID Controller 1 1530
P2.9.1.6.3 Enable SP 2, PID Controller 1 1531
P2.9.1.6.4 SP 2 Max Comp., PID Controller 1 1532
PID Controller 2, Basic Settings P2.9.2.1.1 Gain, PID Controller 2 1631
P2.9.2.1.2 Integration Time, PID Controller 2 1632
P2.9.2.1.3 Derivation Time, PID Controller 2 1633
P2.9.2.1.4 ProcessUnitSel, PID Controller 2 1635
P2.9.2.1.5 ProcessUnitMin, PID Controller 2 1664
P2.9.2.1.6 ProcessUnitMax, PID Controller 2 1665
P2.9.2.1.7 ProcessUnitDecimals, PID Controller 2 1666
P2.9.2.1.8 Error Inversion, PID Controller 2 1636
P2.9.2.1.9 Dead Band, PID Controller 2 1637
P2.9.2.1.10 Dead band delay, PID Controller 2 1638
PID Controller 2, Setpoints P2.9.2.2.1 Keypad SP 1, PID Controller 2 1640
P2.9.2.2.2 Keypad SP 2, PID Controller 2 1641
P2.9.2.2.3 Ramp Time, PID Controller 2 1642
P2.9.2.2.4 SetPt 1 Source, PID Controller 2 1643
P2.9.2.2.5 SetPt 1 min, PID Controller 2 1644
P2.9.2.2.6 SP 1 maximum, PID Controller 2 1645
P2.9.2.2.7 SP 2 Source, PID Controller 2 1646
P2.9.2.2.8 SP 2 minimum, PID Controller 2 1647
P2.9.2.2.9 SP 2 maximum, PID Controller 2 1648
PID Controller 2, Feedbacks P2.9.2.3.1 Function, PID Controller 2 1650
P2.9.2.3.2 Gain, PID Controller 2 1651
P2.9.2.3.3 FeedBack 1 Srce, PID Controller 2 1652
P2.9.2.3.4 FB 1 Minimum, PID Controller 2 1653
P2.9.2.3.5 FB 1 Maximum, PID Controller 2 1654
P2.9.2.3.6 FB 2 Source, PID Controller 2 1655
P2.9.2.3.7 FB 2 Minimum, PID Controller 2 1656
P2.9.2.3.8 FB 2 Maximum, PID Controller 2 1657
PID Controller 2, Process Supervision P2.9.2.4.1 Enable Superv, PID Controller 2 1659
P2.9.2.4.2 Upper limit, PID Controller 2 1660
P2.9.2.4.3 Lower limit, PID Controller 2 1661
P2.9.2.4.4 Delay, PID Controller 2 1662
Parameter Group Name Parameter Number Parameter Name ID
