Eaton PowerXL User manual

Manual
PowerXL™
Titel
DC1-S…20…, DC1-S…OE1
Variable Frequency Drives for single-phase AC motors
Installation and Parameter Manual
05/21 MN040058EN

All proprietary names and product designations are brand names or trademarks
registered to the relevant title holders.
Service
Please call your local representative:
Kontaktdaten: Eaton.com/contacts
Service-Seite: Eaton.com/aftersales
For customers in US/Canada contact:
EatonCare Customer Support Center
Call the EatonCare Support Center if you need assistance with placing an order,
stock availability or proof of shipment, expediting an existing order, emergency
shipments, product price information, returns other than warranty returns, and
information on local distributors or sales offices.
Voice: 877-ETN-CARE (386-2273) (8:00 a.m. – 6:00 p.m. EST)
After-Hours Emergency: 800-543-7038 (6:00 p.m. – 8:00 a.m. EST)
Drives Technical Resource Center
Voice: 877-ETN-CARE (386-2273) option 2, option 6
(8:00 a.m. – 5:00 p.m. Central Time U.S. [UTC-6])
email: [email protected]
www.eaton.com/drives
Original operating manual
The German-language edition of this document is the original operating manual.
Translation of the original operating manual
All editions of this document other than those in German language are translations of
the original operating manual.
1. Edition 2021, publication date 05/21
© 2021 by Eaton Industries GmbH, 53105 Bonn
Authors: Jörg Randermann, Heribert Joachim
Redaction: René Wiegand
All rights reserved, also for the translation.
No part of this manual may be reproduced, stored in a retrieval system, or
transmitted in any form or by any means, electronic, mechanical, photocopying,
micro-filming, recording or otherwise, without the prior written permission of
Eaton Industries GmbH, Bonn.
Subject to alteration.

Before commencing the installation
• Disconnect the power supply of the device.
• Ensure that devices cannot be accidentally retriggered.
• Verify isolation from the supply.
• Ground and short-circuit.
• Cover or enclose neighbouring units that are live.
• Follow the engineering instructions (IL) of the device
concerned.
• Only suitably qualified personnel in accordance with
EN 50110-1/-2 (VDE 0105 Part 100) may work on this device/
system.
• Before installation and before touching the device ensure
that you are free of electrostatic charge.
• The functional earth (FE) must be connected to the
protective earth (PE) or to the potential equalizing.
The system installer is responsible for implementing this
connection.
• Connecting cables and signal lines should be installed so
that inductive or capacitive interference do not impair the
automation functions.
• Install automation devices and related operating elements
in such a way that they are well protected against uninten-
tional operation.
• Suitable safety hardware and software measures should
be implemented for the I/O connection so that a cable or
wire breakage on the signal side does not result in
undefined states in the automation device.
• Ensure a reliable electrical isolation of the low voltage for
the 24 V supply. Only use power supply units complying
with IEC 60364-4-41 or HD 384.4.41 S2 (VDE 0100 part 410).
• Deviations of the mains voltage from the nominal value
must not exceed the tolerance limits given in the technical
data, otherwise this may cause malfunction and
dangerous operation.
• Emergency-Stop devices complying with IEC/EN 60204-1
must be effective in all operating modes of the automation
devices. Unlatching the emergency switching off devices
must not cause restart.
• Built-in devices for enclosures or cabinets must only be
run and operated in an installed state, desk-top devices or
portable devices only when the housing is closed.
• Measures should be taken to ensure the proper restart of
programs interrupted after a voltage dip or failure. This
should not cause dangerous operating states even for a
short time. If necessary, emergency switching off devices
should be implemented.
• Wherever faults in the automation system may cause
damage to persons or property, external measures must
be implemented to ensure a safe operating state in the
event of a fault or malfunction (for example, by means of
separate limit switches, mechanical interlocks, etc.).
• During operation, and depending on their degree of
protection, variable frequency drives may have live,
uninsulated, moving, and/or rotating parts, as well as hot
surfaces.
• The impermissible removal of the required cover,
improper installation or incorrect operation of the motor or
variable frequency drive can cause the failure of the
device and serious injury and/or material damage.
• Comply with all applicable national accident prevention
regulations (e.g. BGV A3) when working with energized
variable frequency drives.
• The electrical installation must be carried out in
accordance with the relevant regulations (e.g. with regard
to cable cross sections, fuses, PE).
• All transport, installation, commissioning and mainte-
nance work must only be carried out by trained personnel
(observe IEC 60364, HD 384 or DIN VDE 0100 and national
accident prevention regulations).
• If applicable, systems in which variable frequency drives
are installed must be equipped with additional monitoring
and protective devices in accordance with the applicable
safety regulations, e.g., the German Equipment and
Product Safety Act, accident prevention regulations, etc.
Making changes to the variable frequency drives by using
the operating software is allowed.
• Keep all covers and doors closed during operation.
• When designing the machine, the user must incorporate
mechanisms and measures that limit the consequences of
a drive controller malfunction or failure (an increase in
motor speed or the motor?9s sudden stop) so as to prevent
hazards to people and property, e.g.:
– Additional stand-alone devices for monitoring parame-
ters that are relevant to safety (speed, travel, end
positions, etc.)
– Electrical and non-electrical safety devices (interlocks
or mechanical locks) for mechanisms that protect the
entire system
– Due to the possibility of there being capacitors that are
still holding a charge, do not touch live device parts or
terminals immediately after disconnecting the variable
frequency drives from the supply voltage. Heed the
corresponding labels on the variable frequency drives
Eaton Industries GmbH Safety instructions
Danger!
Dangerous electrical voltage!

DC1-S…20…, DC1-S…OE1 Variable Frequency Drives 05/21 MN040058EN www.eaton.com 1
Table of contents
0 About this manual ..................................................................... 5
0.1 Target group................................................................................. 5
0.2 List of revisions ............................................................................ 5
0.2.1 Writing conventions ..................................................................... 6
0.2.2 Hazard warnings of material damages ......................................... 6
0.2.3 Hazard warnings of personal injury .............................................. 6
0.2.4 Tips............................................................................................... 6
0.3 Documents with additional information ....................................... 7
0.4 Abbreviations ............................................................................... 7
0.5 Mains supply voltages.................................................................. 8
0.6 Units of measurement ................................................................. 8
1 Device series DC1-S…................................................................ 9
1.1 Introduction .................................................................................. 9
1.2 System overview ......................................................................... 10

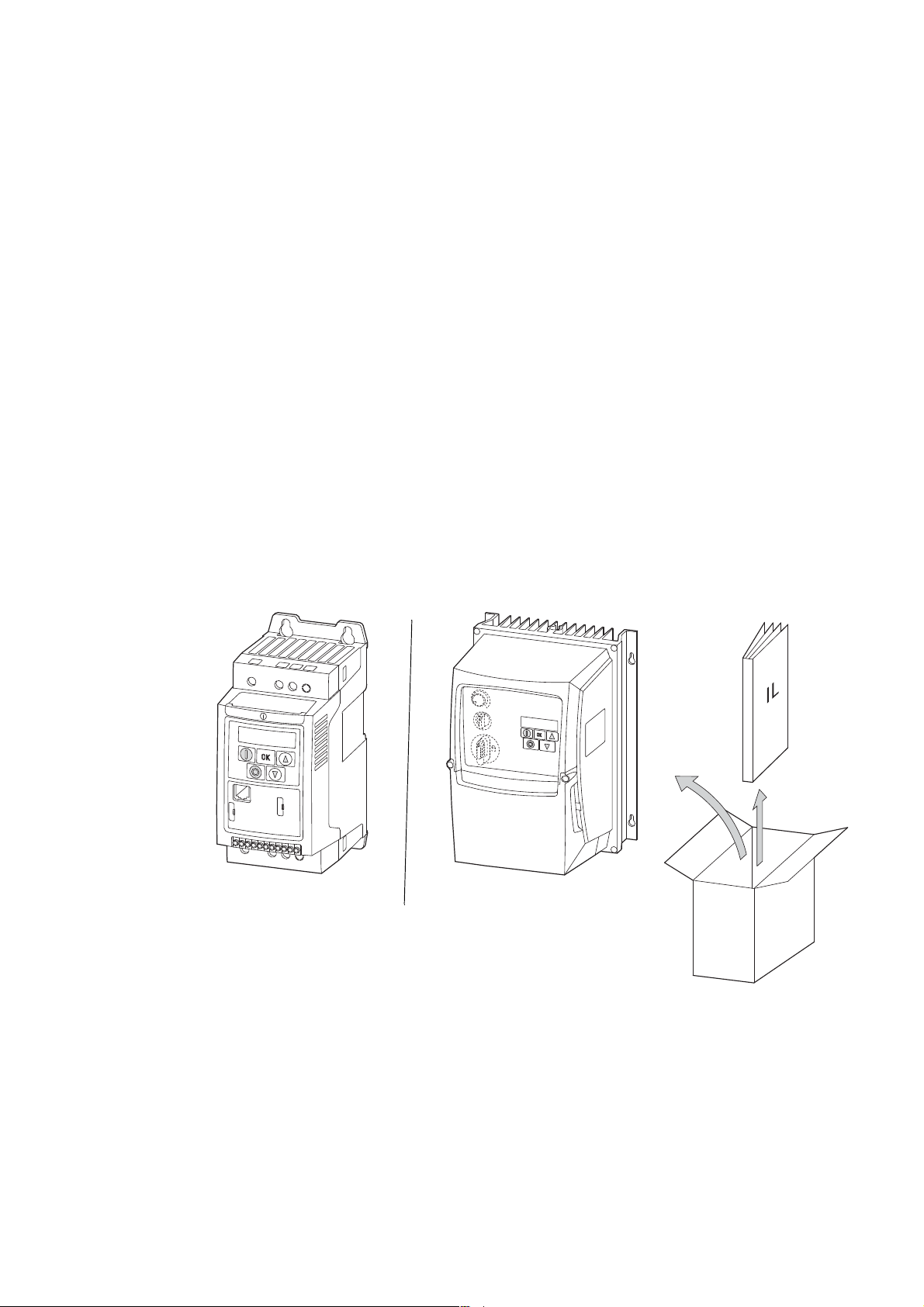

1.3 Checking the Delivery .................................................................. 11
1.4 Rated operational data ................................................................. 12
1.4.1 Rated operational data on the nameplate .................................... 12
1.4.2 Key to part numbers..................................................................... 14
1.4.3 Features ....................................................................................... 15
1.5 Description ................................................................................... 17
1.5.1 IP20 degree of protection ............................................................ 17
1.5.2 IP66 degree of protection ............................................................ 18
1.6 Voltage categories........................................................................ 19
1.7 Selection Criteria .......................................................................... 20
1.8 Output reduction (derating) .......................................................... 21
1.9 Proper use.................................................................................... 23
1.10 Maintenance and inspection ........................................................ 24
1.11 Storage......................................................................................... 24
1.12 Charging the internal DC link capacitors ...................................... 25
1.13 Service and warranty.................................................................... 25
2 Engineering................................................................................. 27
2.1 Introduction .................................................................................. 27
2.2 Electrical power network ............................................................. 29
2.2.1 Mains terminal and configuration................................................. 29
2.2.2 Mains voltage and frequency ....................................................... 30
2.2.3 Reactive power compensation devices ....................................... 30
2.3 Cable cross-sections .................................................................... 30

2DC1-S…20…, DC1-S…OE1 Variable Frequency Drives 05/21 MN040058EN www.eaton.com
2.4 Safety and switching.................................................................... 31
2.4.1 Disconnecting device................................................................... 31
2.4.2 Fuses ........................................................................................... 32
2.4.3 Residual current circuit-breaker (RCD)......................................... 32
2.4.4 Mains contactors ......................................................................... 33
2.5 Mains chokes............................................................................... 34
2.6 Radio interference suppression filter........................................... 35
2.7 Braking resistances...................................................................... 36
2.8 Switching to the output side........................................................ 38
2.8.1 Contactors.................................................................................... 38
2.8.2 switch-disconnectors ................................................................... 38
2.9 Single-phase AC motors .............................................................. 39
2.9.1 Split pole motor............................................................................ 40
2.9.2 Split-phase motors ....................................................................... 41
2.9.3 Capacitor-start/induction-run motors............................................ 42
2.9.4 Capacitor motor (PSC-Motor)....................................................... 42
2.9.5 Capacitor-start/capacitor-run motors............................................ 43
2.9.6 Three-phase motors run from a single-phase supply
(Steinmetz connection) ................................................................ 44
2.9.7 Motor Selection ........................................................................... 45
2.9.8 Connecting EX motors................................................................. 45
3 Installation.................................................................................. 47
3.1 Introduction.................................................................................. 47
3.2 Mounting position........................................................................ 47
3.3 Mounting ..................................................................................... 48
3.3.1 Mounting position........................................................................ 49
3.3.2 Cooling measures ........................................................................ 49
3.3.3 Fixing ........................................................................................... 51
3.4 IP66 / NEMA4X degree of protection .......................................... 54
3.5 EMC installation........................................................................... 55
3.5.1 EMC measures in the control panel............................................. 55
3.5.2 Grounding .................................................................................... 57
3.5.3 Internal filters (EMC and VAR screws)......................................... 58
3.5.4 Screen earth kit............................................................................ 60
3.5.5 EMC cable brackets ..................................................................... 61
3.5.6 General installation diagram......................................................... 63
3.6 Electrical Installation .................................................................... 64
3.6.1 Connection to power section....................................................... 65
3.6.2 Connection on control section ..................................................... 74
3.6.3 Thermistor connection................................................................. 83
3.7 Block diagrams............................................................................. 84
3.7.1 DC1-S1…, DC1-S2… ................................................................... 85
3.7.2 DC1-S1…-A66…, DC1-S2…-A66… ............................................. 86
3.7.3 DC1-S1…-A6S…, DC1-S2…-A6S…............................................. 87

DC1-S…20…, DC1-S…OE1 Variable Frequency Drives 05/21 MN040058EN www.eaton.com 3
4 Accessories ................................................................................. 89
4.1 Cable cross-sections .................................................................... 89
4.2 Fuses............................................................................................ 90
4.3 Mains contactors.......................................................................... 91
4.4 Mains chokes ............................................................................... 92
4.5 Radio interference suppression filter ........................................... 93
4.6 Braking resistances ...................................................................... 94
4.7 Device-specific accessories for devices with an IP20
degree of protection..................................................................... 96
4.7.1 DXC-EXT-IO… coupling module................................................... 97
4.7.2 DXC-EXT-2RO output expansion.................................................. 100
4.7.3 DXC-EXT-2RO1AO output expansion........................................... 102
4.7.4 DXC-EXT-LOCSIM simulator ........................................................ 105
4.8 General accessories (List) ............................................................ 106
5 Operation .................................................................................... 107
5.1 Insulation testing.......................................................................... 107
5.2 Protection against electric shock ................................................. 108
5.3 Checklist for commissioning ........................................................ 109
5.4 Operational hazard warnings........................................................ 110
5.5 Commissioning with control signal terminals (default settings)... 112
5.5.1 Starting single-phase motors ....................................................... 113
5.5.2 Start-Up ........................................................................................ 114
5.6 Commissioning with local controls .............................................. 116
5.7 Handling the keypad..................................................................... 118
5.7.1 Operating unit elements .............................................................. 118
6 Parameter structure................................................................... 121
6.1 Adjust parameters........................................................................ 121
6.2 Resetting Parameters (RESET) .................................................... 122
6.3 Extended parameter set............................................................... 122
6.4 Control signal terminals................................................................ 123
6.4.1 Correspondence between inputs/outputs and terminals ............. 123
6.4.2 Configuration of the control signal terminals ............................... 127
6.5 Messages..................................................................................... 139
6.5.1 List of messages.......................................................................... 139
6.5.2 Messages after a data transfer with a DX-COM-STICK2 ............. 141
6.5.3 Operating status indicators .......................................................... 141
6.6 Parameter..................................................................................... 142
6.6.1 “Monitor” parameter group ......................................................... 142
6.6.2 “Basic” parameter group ............................................................. 145
6.6.3 “Extended” parameter group ...................................................... 148

4DC1-S…20…, DC1-S…OE1 Variable Frequency Drives 05/21 MN040058EN www.eaton.com
6.7 Fault messages............................................................................ 155
6.7.1 Introduction.................................................................................. 155
6.7.2 Fault History................................................................................. 155
6.7.3 Acknowledge error message (RESET)......................................... 155
6.7.4 Fault log ....................................................................................... 155
7 Technical Data............................................................................ 157
7.1 General rated operational data..................................................... 157
7.2 Specific rated operational data..................................................... 161
7.2.1 DC1-S1… device series ............................................................... 162
7.2.2 DC1-S2…device series ................................................................ 163
7.3 Dimensions.................................................................................. 164
7.3.1 Degree of protection IP20............................................................ 164
7.3.2 Degree of protection IP66............................................................ 165
Alphabetical index ..................................................................... 167

0 About this manual
0.1 Target group
DC1-S…20…, DC1-S…OE1 Variable Frequency Drives 05/21 MN040058EN www.eaton.com 5
0 About this manual
This manual (MN040058EN) contains specific information designed to enable
you to select a variable frequency drive from the DC1-S… series and connect
it to single-phase AC motors. It covers all the frame sizes in the DC1-S…
series.
Any differences between and special characteristics of the various models
will be noted accordingly. Accessories that can be used to modify the
DC1-S… variable frequency drive according to your specific needs will be
listed where applicable.
0.1 Target group
This manual (MN040058EN) is intended for engineers and electricians.
Electrical engineering and physics-related knowledge and skills will be
required in order to be able to commission the corresponding devices.
We assume that you have a good knowledge of engineering basics and that
you are familiar with handling electrical systems and machines, as well as
with reading technical drawings.
0.2 List of revisions
This manual version is the first version to be released.
Publication
date
Page Keyword new modified deleted
05/21 Initial issue

0 About this manual
0.2 List of revisions
6DC1-S…20…, DC1-S…OE1 Variable Frequency Drives 05/21 MN040058EN www.eaton.com
0.2.1 Writing conventions
Symbols with the following meaning are used in this manual:
▶Indicates instructions to be followed.
0.2.2 Hazard warnings of material damages
0.2.3 Hazard warnings of personal injury
0.2.4 Tips
NOTICE
Warns about the possibility of material damage.
CAUTION
Warns of the possibility of hazardous situations that may
possibly cause slight injury.
WARNING
Warns of the possibility of hazardous situations that could result
in serious injury or even death.
DANGER
Warns of hazardous situations that result in serious injury or
death.
￫Indicates useful tips.
￫In order to make it easier to understand some of the figures
included in this manual, the variable frequency drive housing, as
well as other safety-relevant parts, has been left out. However,
it is important to note that the variable frequency drive must
always be operated with its housing in its proper place, as well
as with all required safety-relevant parts.
￫All the specifications in this manual refer to the hardware and
software versions documented in it.

0 About this manual
0.3 Documents with additional information
DC1-S…20…, DC1-S…OE1 Variable Frequency Drives 05/21 MN040058EN www.eaton.com 7
0.3 Documents with additional information
0.4 Abbreviations
The following abbreviations are used in this manual:
￫More information on the devices described here can be found
on the Internet under:
www.eaton.eu/powerxl
as well as in EATON Download Center:
http://www.eaton.de/EN/EatonDE/ProdukteundLoesungen/Electrical/
Kundensupport/DownloadCenter/index.htm
dec Decimal (base-10 numeral system)
DS Default settings
EMC Electromagnetic compatibility
FE Functional earth
FS Frame Size
FWD Forward run (clockwise rotating field)
GND Ground (0-V-potential)
hex Hexadecimal (base-16 numeral system)
ID Identifier (unique ID)
IGBT Insulated gate bipolar transistor
LED Light Emitting Diode (LED)
OLED Organic Light Emitting Diode
PC Personal Computer
PDS Power Drive System (magnet system)
PE Protective earth
PES EMC connection to PE for screened lines
ro Read Only (read access only)
rw Read/Write (read/write access)
SCCR Short Circuit Current Rating
UL Underwriters Laboratories

0 About this manual
0.5 Mains supply voltages
8DC1-S…20…, DC1-S…OE1 Variable Frequency Drives 05/21 MN040058EN www.eaton.com
0.5 Mains supply voltages
The rated operating voltages stated in the following table are based on the
standard values for networks with a grounded star point.
In ring networks (as found in Europe) the rated operating voltage at the
transfer point of the power supply companies is the same as the value in the
consumer networks (e.g. 230 V).
In star networks (as found in North America), the rated operating voltage at
the transfer point of the utility companies is higher than in the consumer
network.
Example: 115 V →110 V, 240 V →230 V, 480 V →460 V.
The DC1-S… variable frequency drive’s wide tolerance range takes into
account a permissible voltage drop of 10 % (i.e. ULN -10%).
The rated mains voltage operational data is always based on mains
frequencies of 50/60 Hz within a range of 48 to 62 Hz.
0.6 Units of measurement
Every physical dimension included in this manual uses international metric
system units, otherwise known as SI (Système International d’Unités) units.
For the purpose of the equipment’s UL certification, some of these
dimensions are accompanied by their equivalents in imperial units.
Table 1: Unit conversion examples
￫The permissible power supply for the DC1-S… series can be
found in ￫section 1.4.3, “Features”, page 15.
Designation US-American
designation
US-American value SI value Conversion value
Length inch 1 in (’’) 25.4 mm 0.0394
Performance horsepower 1HP=1.014PS 0.7457 kW 1.341
Torque pound-force inches 1 lbf in 0.113 Nm 8.851
temperature Fahrenheit 1°F(T
F)-17.222 °C (TC) TF=T C×9/5+32
Rotational speed Revolutions per minute 1rpm 1min
-1 1
Weight pound 1lb 0.4536 kg 2.205
Flow rate cubic feed per minute 1 cfm 1.698 m3/min 0.5889

1 Device series DC1-S…
1.1 Introduction
DC1-S…20…, DC1-S…OE1 Variable Frequency Drives 05/21 MN040058EN www.eaton.com 9
1 Device series DC1-S…
1.1 Introduction
PowerXL™DC1-S… variable frequency drives are a special-purpose version
of the DC1 series that is specifically designed for controlling single-phase AC
motors (capacitor-start/capacitor-run motors, shaded-pole motors). Their
ease of use and reliability make them ideal for use in general applications
(pumps, fans, belt conveyors).
For installations in control panels, devices with an output range of 0.37
(with 115 V) to 1.1 kW (with 230 V) are available in a compact and sturdy
design in frame sizes FS1 and FS2 with a degree of protection of IP20.
For distributed local installations, there are two frame sizes covering an
output range of 0.37 (with 115 V) to 1.1 kW (with 230 V) and featuring a
degree of protection of IP66. These models come in two versions: with and
without local controls. These local controls include a setpoint potentiometer,
an operating mode selector switch for switching operating directions, and a
lockable main switch on the mains side.
The computer-based drivesConnect parameter configuration program
ensures data integrity and reduces the time required for commissioning and
maintenance.
In addition, the comprehensive accessories available increase the inverters’
flexibility in all scopes of application.
IP20 degree of
protection
IP66 degree of protection IP66 degree of protection, with local
controls
Figure 1: Models and enclosure versions
L1/L L2/N L3
DC-
U
DC+ BR VW
123456789
10
11


PWR OFF
ON
REV FWD
0

1 Device series DC1-S…
1.2 System overview
10 DC1-S…20…, DC1-S…OE1 Variable Frequency Drives 05/21 MN040058EN www.eaton.com
1.2 System overview
Figure 2: System overview (example: size FS1, degree of protection IP20)
aDC1-S… variable frequency drive
bExtern radio interference suppression filter DX-EMC12…
cMain choke DX-LN1…
dDX-BR… braking resistance
eDXC-EXT-… expansion module
fDX-NET-SWD3 SmartWire-DT interface
gDX-COM-STICK communication module and accessories (e. g. DX-CBL-… connection cable)
hDE-KEY-… keypad (external)
Ready
IO
A

L1/L L2/N L3

UVW
123456789
10
11
①
⑥
⑤
⑦
③
②
④
⑧

1 Device series DC1-S…
1.3 Checking the Delivery
DC1-S…20…, DC1-S…OE1 Variable Frequency Drives 05/21 MN040058EN www.eaton.com 11
1.3 Checking the Delivery
The DC1-S… series variable frequency drives are carefully packaged and
prepared for delivery. The devices should be shipped only in their original
packaging with suitable transportation materials. Please take note of the
labels and instructions on the packaging, as well as of those meant for the
unpacked device.
Open the packaging with adequate tools and inspect the contents
immediately after receipt in order to ensure that they are complete and
undamaged.
The packaging must contain the following parts:
•DC1-S… series variable frequency drive,
•an instruction leaflet
•IL04020014Z for devices with an IP20 degree of protection
•IL040001ZU for devices with an IP66 degree of protection,
Figure 3: Equipment supplied
(example: devices with IP20 / IP66 degree of protection with instruction leaflet)
￫Before opening the package, please check the nameplate on it
to make sure that you received the correct variable frequency
drive.

L1/L L2/N L3

UVW
123456789
10
11

1 Device series DC1-S…
1.4 Rated operational data
12 DC1-S…20…, DC1-S…OE1 Variable Frequency Drives 05/21 MN040058EN www.eaton.com
1.4 Rated operational data
1.4.1 Rated operational data on the nameplate
The device-specific rated operational data of the DC1-S… variable frequency
drive is listed on the nameplate of the device.
Figure 4: Nameplate location
The nameplate on top (nameplate ②) is a simplified version that can be
used to clearly identify the device if the main nameplate (nameplate ①)
is blocked by other devices.

L1/L L2/N L3

UVW
123456789
10
11
②
①②
①②

1 Device series DC1-S…
1.4 Rated operational data
DC1-S…20…, DC1-S…OE1 Variable Frequency Drives 05/21 MN040058EN www.eaton.com 13
Nameplate inscription
The inscription of the nameplate has the following meaning (example):
Inscription Meaning
DC1-S27D0FN-A20CE1 Part no.:
DC1 = DC1 series variable frequency drive
S = Single-phase mains connection/single-phase motor connection
2 = 230 V mains voltage category
7D0 = 7 A Rated operational current (7-decimal-0, output current)
F = Integrated radio interference suppression filter
N = No braking chopper
A = LED display (7-segment text display)
20 = IP20 degree of protection
C = Coated boards
E1 = Expansion, version 1
Input Rated operational data of mains connection
Single-phase AC voltage (Ue1~ AC)
Voltage: 110 - 150 V, Frequency: 50/60 Hz, Input phase current: (9.3 A)
Output Load side (motor) rated operational data:
Single-phase AC voltage: (0 - Ue), Output phase current: (7 A),
Output frequency: (0 - 500 Hz)
Assigned motor output:
0.75 kW with 230 V/1 HP with 230 V for an internally cooled or surface-cooled
single-phase AC motor (50 Hz/60 Hz)
Serial No.: Serial number
IP20 Degree of protection of the housing: IP 20, UL (cUL) Open Type
Software Software version (2.0)
05102016 Manufacturing date: 10/05/2016
Max amb. 50 °C Maximum permissible ambient air temperature (50 °C)
Variable frequency drive is an electrical apparatus.
Read the manual (in this case MN040058EN) before making any electrical
connections and commissioning.
￫

1 Device series DC1-S…
1.4 Rated operational data
14 DC1-S…20…, DC1-S…OE1 Variable Frequency Drives 05/21 MN040058EN www.eaton.com
1.4.2 Key to part numbers
The catalog no. or part no. for the DC1 series of variable frequency drives is
made up of four sections.
Series – Power section – Model – Version
The following figure shows it in greater detail:
Figure 5: Key to part numbers
DC1-S27D0FN-A20CE
1 Description
Type
E1 = Extended functionality (enhancement), version 1
C = Additional PCB protection (coated board)
Degree of protection
20 = IP20 / NEMA 0
66 = IP66 / NEMA 4X
6S = IP66 with switch / NEMA 4X, switched
Display unit (display)
A = LED display
Brake Chopper
N = No internal brake chopper
B = Brake chopper
EMC (radio interference suppression filter)
N = No internal RFI filter
F = Internal RFI filter
Rated operational current (examples)
4D3 = 4.3 A
7D0 = 7 A
011 = 11 A
Mains voltage category
1 = 115 V (110 - 115 V ±10 %)
2 = 230 V (200 - 240 V ±10 %)
Connection in power section
S = Single-phase mains connection / single-phase motor
Device series
DC1 = variable frequency drive, compact, Series 1
(D = Drives, C = Compact, 1 = Series)

1 Device series DC1-S…
1.4 Rated operational data
DC1-S…20…, DC1-S…OE1 Variable Frequency Drives 05/21 MN040058EN www.eaton.com 15
1.4.3 Features
1.4.3.1 DC1-S1…device series
Mains voltage: 1 AC 110 - 115 V (±10 %), 50/60 Hz
Output voltage: 1 AC 110 - 115 V, 50/60 Hz
Type
Rated operational current Assigned Instance Motor Power Display (operating unit) Local controls Radio interference suppression filter Degree of protection Construction size Brake chopper
IeP
1)
(115 V,
50 Hz)
P
2)
(110-115
V, 60 Hz)
A kW HP
DC1-S17D0NN-A20CE1 70.37 0.5 LED – – IP20 FS1 –
DC1-S17D0NN-A66CE1 70.37 0.5 LED – – IP66 FS1 –
DC1-S17D0NN-A6SCE1 70.37 0.5 LED ✓–IP66 FS1 –
DC1-S1011NB-A20CE1 10.5 0.55 0.75 LED – – IP20 FS2 ✓
DC1-S1011NB-A66CE1 10.5 0.55 0.75 LED – – IP66 FS2 ✓
DC1-S1011NB-A6SCE1 10.5 0.55 0.75 LED ✓–IP66 FS2 ✓
1) As per IEC standards
2) As per UL 61800-5-1, Table DVE.1, March 6, 2015

1 Device series DC1-S…
1.4 Rated operational data
16 DC1-S…20…, DC1-S…OE1 Variable Frequency Drives 05/21 MN040058EN www.eaton.com
1.4.3.2 DC1-S2…device series
Mains voltage: 1 AC 220 - 240 V (±10 %), 50/60 Hz
Output voltage: 1 AC 220 - 240 V, 50/60 Hz
Type
Rated operational current Assigned Instance Motor Power Display (operating unit) Local controls Radio interference suppression filter Degree of protection Construction size Brake chopper
IeP
1)
(230 V,
50 Hz)
P
2)
(220 - 240 V,
60 Hz)
A kW HP
DC1-S24D3NN-A20CE1 4.3 0.37 0.5 LED – – IP20 FS1 –
DC1-S24D3FN-A20CE1 4.3 0.37 0.5 LED –✓IP20 FS1 –
DC1-S24D3NN-A66CE1 4.3
3) 0.37 0.5 LED – – IP66 FS1 –
DC1-S24D3FN-A66CE1 4.3
3) 0.37 0.5 LED –✓IP66 FS1 –
DC1-S24D3NN-A6SCE1 4.3
3) 0.37 0.5 LED ✓–IP66 FS1 –
DC1-S24D3FN-A6SCE1 4.3
3) 0.37 0.5 LED ✓ ✓ IP66 FS1 –
DC1-S27D0NN-A20CE1 70.75 1LED – – IP20 FS1 –
DC1-S27D0FN-A20CE1 70.75 1LED –✓IP20 FS1 –
DC1-S27D0NN-A66CE1 7
3) 0.75 1LED – – IP66 FS1 –
DC1-S27D0FN-A66CE1 7
3) 0.75 1LED –✓IP66 FS1 –
DC1-S27D0NN-A6SCE1 7
3) 0.75 1LED ✓–IP66 FS1 –
DC1-S27D0FN-A6SCE1 7
3) 0.75 1LED ✓ ✓ IP66 FS1 –
DC1-S2011NB-A20CE1 10.5 1.1 1.5 LED – – IP20 FS2 ✓
DC1-S2011FB-A20CE1 10.5 1.1 1.5 LED –✓IP20 FS2 ✓
DC1-S2011NB-A66CE1 10.53) 1.1 1.5 LED – – IP66 FS2 ✓
DC1-S2011FB-A66CE1 10.53) 1.1 1.5 LED –✓IP66 FS2 ✓
DC1-S2011NB-A6SCE1 10.53) 1.1 1.5 LED ✓–IP66 FS2 ✓
DC1-S2011FB-A6SCE1 10.53) 1.1 1.5 LED ✓ ✓ IP66 FS2 ✓
1) As per IEC standards
2) As per UL 61800-5-1, Table DVE.1, March 6, 2015
3) Rated operational current at switching frequencies of up to 8 kHz and ambient temperatures of up to +40 °C
