Eaton Powerware 3105 UPS User manual

Powerware 3105 UPS
User’s manual

©2005 Eaton Corporation
All Rights Reserved
The contents of this manual are the copyright
of the publisher and may not be reproduced (even extracts)
unless permission granted.
Every care has been taken to ensure the accuracy of
the information contained in this manual, but no liability
can be accepted for any errors or omission. The right
to make design modifi cations is reserved.

Powerware 3105 UPS
U
ser
’
s manua
l
1023921 Revision A
Contents
Introduction
.................................................................................................
4
Features
....................................................................................................................
4
Unit inspection
.........................................................................................................
4
Requesting a Declaration of Conformity
...............................................................
4
Safety Instructions
......................................................................................
5
Battery connection required before use!
.....................................................
6
Connecting the Battery:
...........................................................................................
6
Installation and Operation:
..........................................................................
6
Typical applications
.................................................................................................
7
Indicators
....................................................................................................
7
Battery replacement procedure:
..................................................................
8
Status Indicators
......................................................................................................
9
LED and Alarm Status Table
..................................................................................
10
Specifi cation
...........................................................................................................
10
Troubleshooting
......................................................................................................
11
Service and Support
..................................................................................
1
1

User’s manual
350 - 700 VA
4
1023921
Revision A
Introduction
The Powerware 3105 uninterruptible power system (UPS) fi lters the input line from
line disturbances and protects your sensitive electronic equipment from fi ve common
power problems such as power failures, power sags and power surges.
Features:
Eight outlets
- Four with surge and battery backup protection
- Four with surge protection only
Data Line (Internet fax–modem–DSL) or telephone line surge protection jacks
Cold Start capability
Proprietary LanSafe Power management software
User-replaceable batteries
Built-in USB communication port
Compact design fi ts on/under your desk; can also be mounted to a wall
Unit inspection
Once you have received the Powerware 3105 UPS product, you should remove and
inspect the product for shipping damage. If any damage is found, please notify the
carrier and your dealer. Please keep the shipping carton and the packing foam in the
event the product must be returned to the factory for service.
Requesting for CE-declaration
Can be downloaded from
http://www.powerware.com/Service_support/EMEA_certifi cates.asp
Eaton Power Quality Oy
Koskelontie 13, FIN-02920 Espoo Finland
Phone: [phone]
Fax: [phone]
•
•
•
•
•
•
•
•
•

User’s manual
350 - 700 VA
5
1023921
Revision A
Safety Instructions
ATTENTION
Maintenance, other than battery replacement must be performed by a
qualifi ed technician. Failure to do so could result in an electrical shock.
Although the unit may be unplugged from utility power, hazardous
voltage still may be present through the battery.”
1. Place the Powerware 3105 UPS indoors in an area that has adequate airfl ow and
is free of excessive dust. Do NOT allow the UPS to be exposed to moisture, rain,
excessive heat, or direct sunlight.
2. Use of the Powerware 3105 UPS product in life support applications, where failure
of this equipment can reasonably be expected to cause failure of life support
equipment or to signifi cantly affect its safety or effectiveness is NOT recommended.
3. Shut off the UPS and disconnect the input power cord from the wall outlet before
replacing the battery.
4. When replacing the battery, use the same number and type of battery
5. Do NOT dispose of battery in a fi re. The battery may explode.
6. Do NOT open or mutilate the battery. They contain an electrolyte that is toxic and
harmful to the skin and eyes.
7. Proper disposal of the battery is required. Please refer to your local laws/
regulations regarding battery disposal.
8. Use tools with insulated handles to replace the battery to avoid personal injury.
Due to energy hazard, please remove wristwatches and jewelry such as rings when
replacing battery.

User’s manual
350 - 700 VA
6
1023921
Revision A

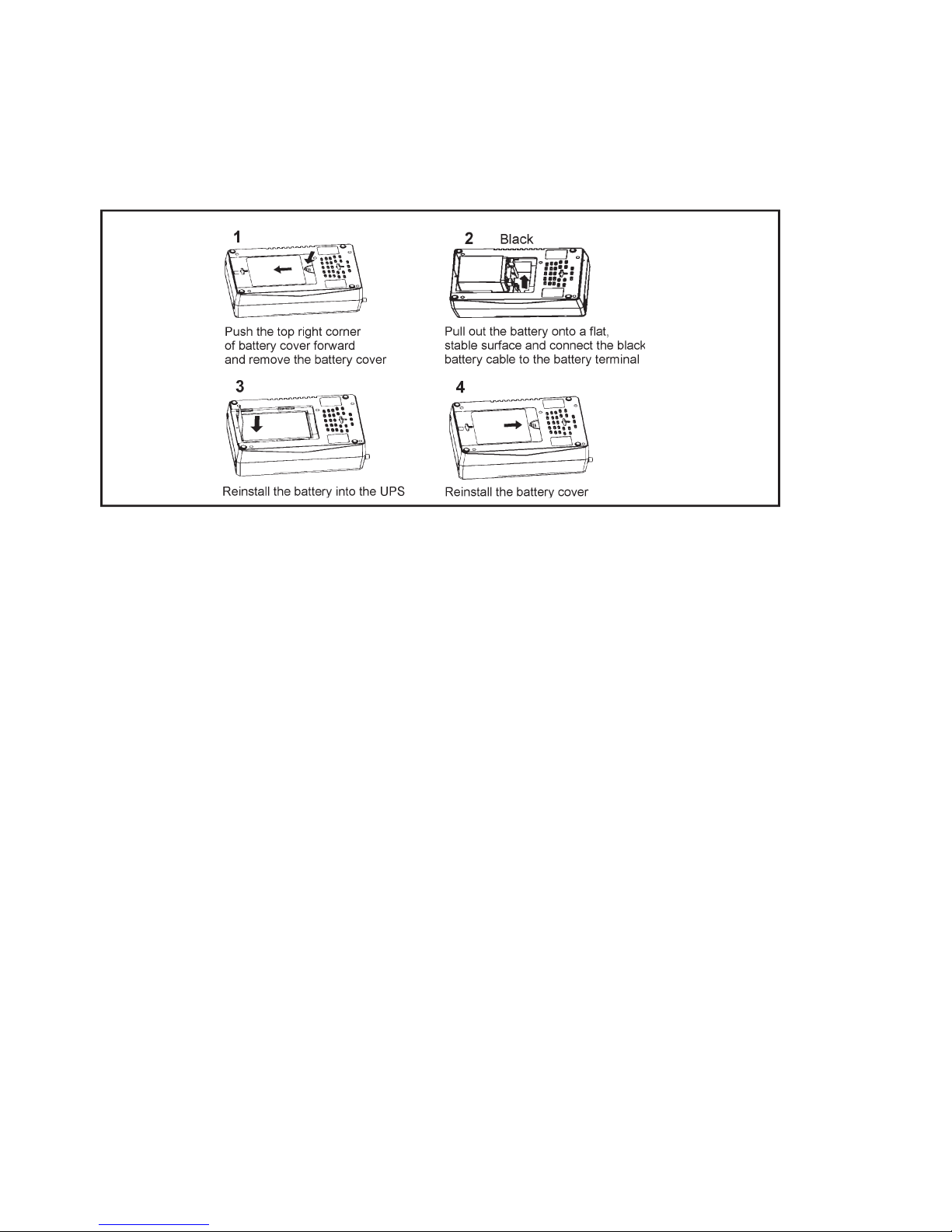

Battery connection required before use!
Connecting the Battery:
Principal shown below for detailed information how to connect please refer to battery
replacement section.
Installation and Operation:
Following steps explain how to connect and operate the Powerware 3105 UPS.
1. Connect the UPS to a grounded power outlet.
Note
It is recommended that the battery should be charged for minimum 8 hours
to ensure full charge before placing the UPS in service.
2. Plug your computer, monitor or load to be protected into the “Battery Backup &
Surge Protection” outlets. (These outlets will provide emergency battery backup
power during power outages as well as protection from surges and spikes.)
Do NOT plug LASER PRINTERS into the “Battery Backup” outlets.
Do NOT plug ACCESSORY SURGE strips into the “Battery Backup” outlets.
3. Plug your peripheral equipment or non-critical loads (printer, scanner, fax, speaker,
etc.) into the “Surge Protection” outlets. (These outlets provide surge and spike
protection only, they will NOT provide battery backup power during a utility power
failure).
4. Connect your computer to the UPS using USB cable provided.
5. With your equipment turned off, switch on the UPS.
6. When the “On/Off” LED light is illuminated, turn on the connected equipment.
7. Install Power management software provided with the UPS

User’s manual
350 - 700 VA
7
1023921
Revision A

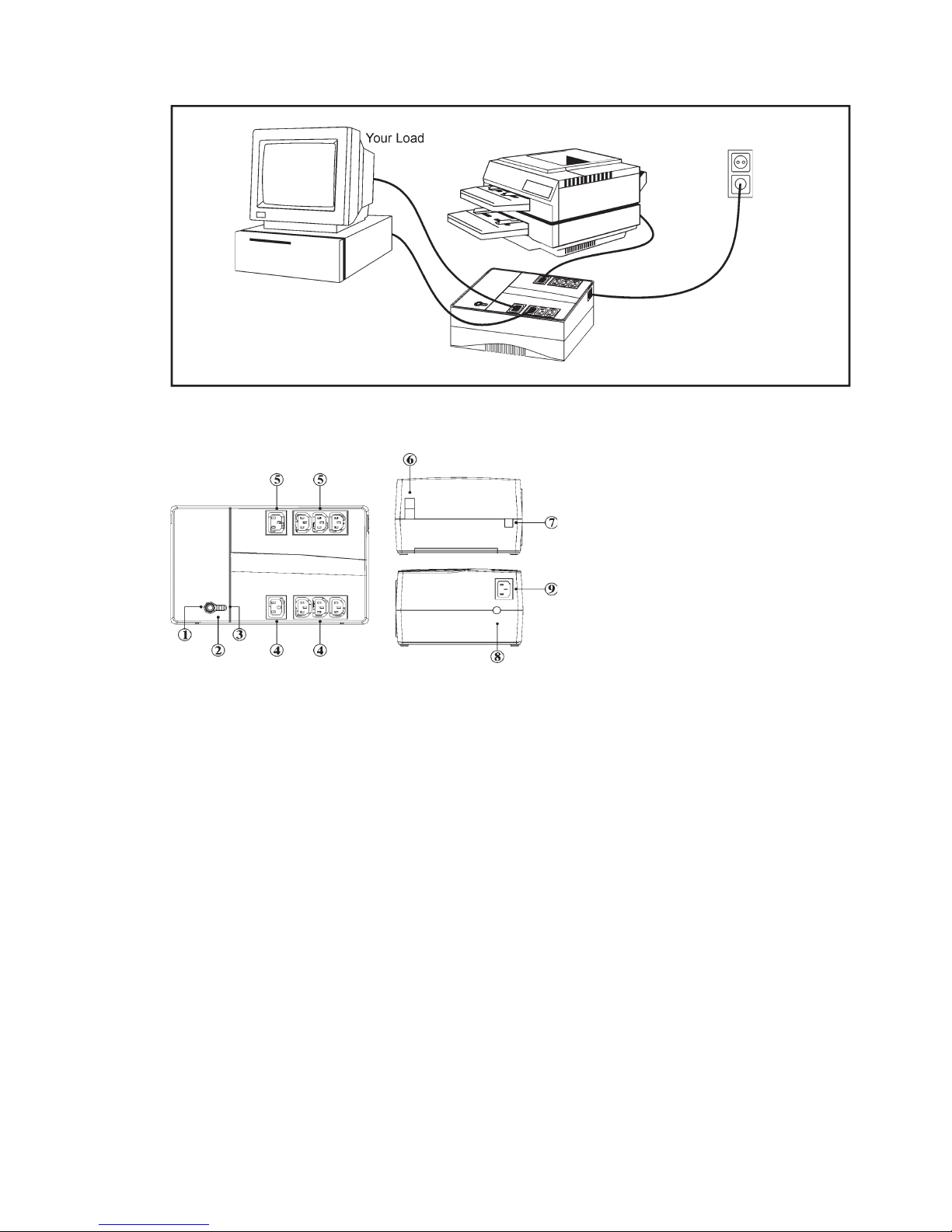

Typical applications
Indicators
1. On/Off Push Button/Test Switch
One switch controls the power to your equipment. Upon power turn on, unit performs
a self-test to detect overload or undercharged conditions.
Turn on the UPS
Press and hold the push button switch depressed for more than one second. Release
the switch after the audible beep is sounded.
Turn off the UPS
Press and hold the push button switch for more than one second and release the
switch after the audible beep is sounded. The UPS will shut down.
Self-Test
The UPS performs a self-test for about 3 seconds when the UPS is turned on.

User’s manual
350 - 700 VA
8
1023921
Revision A
2. On/Off Battery LED
Indicates the UPS is on and is powering your equipment.
A constantly illuminated LED indicates normal utility power operation.
A blinking LED indicates that the UPS is providing power from its battery.
3. Fault/Warning LED
Indicates a fault or warning condition is present.
A constantly illuminated LED indicates a LOW battery condition.
A blinking LED indicates the UPS is overloaded.
4. Battery Backup & Surge Protection Outlets
(4) IEC C13 output receptacles that provide both battery backup and surge protection.
5. Surge Protection Outlets
(4) IEC C13 output receptacles that provide surge and spike protection.
6.
RJ11
data /Phone/Fax Protection Connectors
7. USB Communication Port
The provided LanSafe monitoring and shutdown software can be automatically
confi gured to save your fi les and shut down your computer in the event of a prolonged
power outage.
Your personal computer can receive the status as utility power line, utility power
failure, on battery and low battery by contact closure signals that are sent through the
USB port.
8. Circuit Breaker (resetable)
The button protrudes out when an overload condition occurs. If the button protrudes
out, then disconnect some non-essential equipment and reset the circuit breaker by
pushing the button inward.
9. Power connector
IEC C13 connector. Use you computer power cable to power the UPS
Battery replacement procedure:
1. Disconnect UPS system from power source.
2. Open battery door.
3. Disconnect used battery. Connect new battery. (It is important that connectors be
fi rmly attached to new batteries.)
4. Close battery door
5. Properly recycle used battery.

User’s manual
350 - 700 VA
9
1023921
Revision A
350VA and 500VA models (12V-4.5Ah,or 5Ah battery)
700VA model (12V- 7Ah battery)
Status Indicators
The UPS provides both visual and audible status indicators. Visual indicators consist of
three LEDs to represent the following conditions:
On utility power operation
On battery power operation
UPS fault/alarm
•
•
•

User’s manual
350 - 700 VA
10
1023921
Revision A
LED & Alarm Status Table
UPS status
Green LED
Red LED
Buzzer
Self test
Blink 1 (by turns)
B1
AC (Utility mode
Charging
ON
OFF
OFF
Charge off
ON
OFF
OFF
Low battery
ON
Blink 2
B5
Over load
ON
Blink 2
B4
DC (Battery
Mode)
Normal
Blink 2
OFF
B1
Over load
Blink 2
OFF
B1
Low battery
Blink 2
Blink 2
B3
Short/Fault/DC Over-Bat
OFF
ON
ON
AC Over-Bat/Bat Fault
OFF
Blink 2
B5
Notes:
Blink 1:
ON 0.5 seconds / OFF 0.5 seconds
Blink 2:
ON 0.25 seconds / OFF 0.25 seconds
B1:
1 beep / 5 seconds ON 0.25 seconds / OFF 4.75 seconds
B3:
2 beeps / 5 seconds ON, 0.25 seconds / OFF 0.25 seconds 2 times 4 seconds OFF
B4:
ON 0.5 seconds / OFF 0.5 seconds
B5:
3 beeps / 5 seconds ON 0.25 seconds / OFF 0.25 seconds 3 times 3.5 seconds OFF
Specifi cation*:
Model numbers
3105 350i
3105 500i
3105 700i
Capacity
350 VA / 210 W
500 VA / 300 W
700 VA / 420 W
Input voltage range
184 to 256 V, ±3% Vac
Frequency
50 / 60 Hz auto sensing
Total 8 outlets
4 battery backup & surge protection
4 surge protection only
Lightning / surge protection
476 joules
Transfer time to battery / AC
6 ms typical
Battery type
Maintenance free, sealed and leak proof lead-acid battery
Battery specifi cation
350 VA: 12 V 4,5 Ah
500 VA: 12 V 5 Ah
700 VA: 12 V 7Ah
Typical backup time
3 min minimum at full rated load
Internet / phone / fax protection
RJ11
Short circuit protection
Circuit breaker
Communication port
USB
Operating temperatur
0°C to 40°C
Operating relative humidity
0 to 95% non-condensing
Storage temperature
-15°C to 50°C
Net weight
6 kg
Dimensions (W x D x H)
280 x 178 x 115
*Due to continuing product improvement programs, specifi cations subject to change without notice

User’s manual
350 - 700 VA
11
1023921
Revision A
Troubleshooting
Symptom
Possible Cause
Action to Take
UPS will not turn on.
The battery is disconnected
and utility power is not
available at the wall outlet.
Connect the battery (see Connect Battery)
and ensure power is available at the wall
outlet.
Input Circuit Breaker has
tripped.
Reduce the amount of equipment plugged into
the outlets of the UPS. Next, reset the circuit
breaker by pushing the plunger back in.
UPS is making a
continuous sound
and the “Overload”
indicator is lighted.
The “Battery Backup &
Surge Protection” outlets are
overloaded.
Turn off the UPS and reduce the amount
of equipment connected to these outlets.
UPS does not provide
expected runtime.
The battery is not fully charged.
Removed all connected equipments from the
UPS and charge the battery at least 8 hours.
During this charging period, turn off the UPS
to prevent unnecessary discharging.
Battery is getting older.
Call for service or you can replace the
battery by ordering one from your dealer.
battery by ordering one from your dealer.
Connected equipment
loses power while
connected to the UPS
The UPS is overloaded.
Reduce the amount of equipment plugged
into the outlets of the UPS. Try reducing
the load by removing one piece of
equipment at a time to determine if the
problem continues.
The UPS has exhausted its
available run time.
The UPS will turn off when the battery has
been depleted during an extended power
outage. Allow the UPS to re-charge the
battery, before continuing on battery
operation.
Equipment is connected to the
“surge Protection” outlets.
Ensure the equipment that is to be
protected from a power outage is plugged
into the “Battery Backup & Surge
Protection” outlets.
The UPS may require service.
Contact Powerware Technical Support
Service and Support
For questions and/or problems, please call your local distributor or the help desk at
one of the following telephone numbers and ask for a UPS technical representative.
United States: 1.800.356.5737, Europe, Middle East, Africa: Local Powerware
representative. Asia: +852.2830.3030, Australia: +61.3.9706.5022
Please have the following information ready
Model number and Serial number
Symptoms of failure or problem
Customer contact information
For additional information please visit us online:
www.powerware.com
www.powerware.com
•
•
•
