TECHNICAL SPECIFICATIONS UB82
DESCRIPTION
A 2-way passive full range system in a compact vented rect-
angular enclosure. Includes 2x 8-in woofer and a 1-in exit
compression driver on a 90 x 70 constant directivity horn.
APPLICATIONS
The UB82 provides very high output and wideband response
in distributed applications. Powerful enough to supplement
touring concert rigs in stage lip areas. Comprehensive mount-
ing/suspension points. Six year warranty.
Applications include:
Ballroom Events
MultiMedia
Boardrooms
Small HOW’s
Large Retail Spaces (distributed)
DESCRIPTIVE DATA
Part Number 999044
Product Group I
LF Subsystem & Loading 2x 8-in Cone, Vented
HF Subsystem & Loading 1x 1-in Compression Driver on
Constant Directivity Horn
System Configuration 2-way, Full Range
Powering Configuration(s) Passive LF/HF Crossover
Recommended High-Pass
Frequency (24 dB/Octave) 40Hz
Cabinet Type (shape) Rectangular
Enclosure Materials Baltic Birch Plywood
Finish Black Catalyzed Polyurethane
Connectors 2x Neutrik NL4 Speakon
2-pin Terminal Strip
Suspension Hardware (10) 3/8”-16 Threaded Mounting/
Suspension Points (2 each top and
bottom, 3 per side)
Grill Vinyl Coated Perforated Steel
Wall Mount 980011
NOMINAL DATA
Frequency Response (Hz)
±3 db 62Hz to 20kHz
-10 dB 42Hz
Axial Sensitivity (dB SPL/1 Watt/1m)
95
Impedance (Ohms)
4
Power Handling (Watts)
AES Standard 400
Calculated Maximum Output (dB SPL, @ 1m)
Peak 127.0
Long Term 121.0
Nominal Coverage Angle / -6 dB points (degrees)
Horizontal 90
Vertical 70
Dimensions inches millimeters
Height 10.75 273
Width 30.13 765
Depth 11.75 298
Weights pounds kilograms
Net Weight 47 21.4
Shipping Weight 53 24.1

Acoustic Performance Partnership Eastern Acoustic Works UB82
One Main Street, Whitinsville MA, 01588 USA • Phone [phone] • Toll Free 800/992-5013 • Fax [phone] • Web http://www.eaw.com • email [e-mail]
A
C
O
U
S
T
I
C
A
L
P
E
R
F
O
R
M
A
N
C
E
P
A
R
T
N
E
R
S
H
I
P
TECHNICAL SPECIFICATIONS UB82

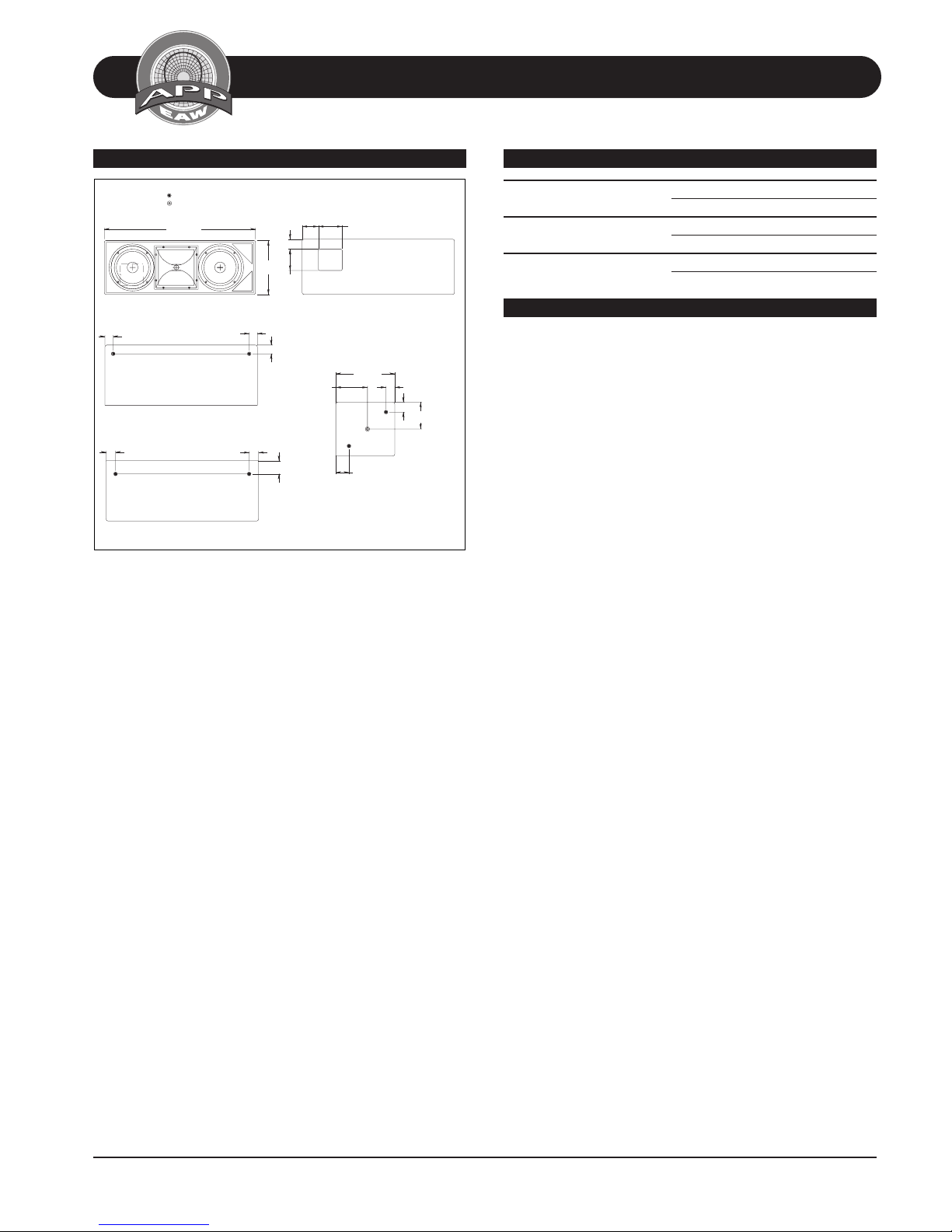

DIMENSIONAL DRAWINGS
DIMENSIONAL DRAWING SERVICE ITEMS
LF: Complete Cone Dirver
EAW Part No. (2)804016
HF: Complete Compression Driver/Tweeter
EAW Part No. 803005
Filter/Crossover Network: Complete Assembly
EAW Part No. 225047
ARCHITECTURAL SPECIFICATIONS
The two-way full range loudspeaker systems shall incorpo-
rate 2x 8-in LF transducers and a 1-in exit compression driver
HF transducer.
The LF drivers shall be mounted in a vented enclosure tuned
for optimum low frequency response.The HF driver shall be
loaded on a constant directivity horn with a nominal cover-
age pattern of 90°(h) x 70°(v). An internal passive filter
network shall provide fourth order acoustical crossover and
system equalization.
System frequency response shall vary no more than ±3 dB
from 62 Hz to 20 kHz measured on axis. The loudspeaker
shall produce a Sound Pressure Level (SPL) of 95 dB SPL on
axis at 1 meter with a power input of 1 Watt, and shall be
capable of producing a peak output of 127 SPL on axis at 1
meter. The loudspeaker shall handle 400 Watts of amplifier
power (AES Standard) and shall have a nominal impedance
of 4 Ohms.
The loudspeaker enclosure shall be rectangular in shape. It
shall be constructed of 15mm thickness void-free cross-grain-
laminated Baltic birch plywood and shall employ extensive
internal bracing. It shall be finished in black catalyzed poly-
urethane. Input connectors shall be 2-terminal barrier strip
and dual Neutrik NL4 Speakon. A total of ten 3/8"-16 threaded
mounting/suspension points (2 each top and bottom, 3 per
side) shall be provided. The front of the loudspeaker shall be
covered with a vinyl coated perforated steel grill.
The two-way full range loudspeaker shall be the EAW model
UB82.
11.75
2.63
5.38
1.75
2.00
FRONT
TOP
6.31
1.62
1.63
30.14
1.88
BACK
BOTTOM
1.75
10.75
2.63
3.25
4.75
2.00
1.88
4.25
UB82 MOUNTING POINTS 3/8"-16 FEMALE THREADS.
3/8" T-NUT
510170
exp 4/24/96 shb
SIDES
