SWIVEL AND TILTING LED TV WALL MOUNT
INSTRUCTION MANUAL
UCHYLNY OBROTOWY UCHWYT NA
TELEWIZOR LED
INSTRUKCJA OBSŁUGI
NEIGUNGSVARIABLE DREHHALTERUNG
FÜR LED TV
BEDIENUNGSANLEITUNG
SUPORT DE PERETE PENTRU TELEVIZOR
CU LED CU ROTIRE ȘI ÎNCLINARE
INSTRUCȚIUNI DE UTILIZARE
NAKLÁPĚCÍ OTOČNÝ DRŽÁK LED TV
NÁVOD KOBSLUZE NAKLÁPACÍ OTOČNÝ DRŽIAK LED TV NÁVOD NA OBSLUHU
LED-TELERI PÖÖRATAV JA KALLUTATAV
SEINAKINNITUS
KASUTUSJUHEND
ZLOŽLJIV VRTEČ TV LED NOSILEC
NAVODILA
OKRETNI SAGIBLJIVI DRŽAČ ZA LED
TELEVIZOR
UPUTE ZA UPORABU
OKRETNI SAGIBLJIVI DRŽAČ ZA LED
TELEVIZOR
UPUTSTVO ZA UPOTREBU
GROZĀMS UN NOLIECAMS LED TV SIENAS
KRONŠTEINS
ROKASGRĀMATA
ΒΑΣΗ ΤΟΙΧΟΥ ΓΙΑ ΤΗΛΕΟΡΑΣΗ LED ΜΕ
ΔΥΝΑΤΟΤΗΤΑ ΠΕΡΙΣΤΡΟΦΗΣ ΚΑΙ ΚΛΙΣΗΣ
ΕΓΧΕΙΡΙΔΙΟ ΟΔΗΓΙΩΝ
SUKINĖJAMAS IR PAKREIPIAMAS TV
SIENINIO MONTAVIMO ĮTAISAS
INSTRUKCIJŲ VADOVAS
НАСТІННЕ КРІПЛЕННЯ ДЛЯ LED ТЕЛЕВІЗОРА
З ШАРНІРАМИ ТА МОЖЛИВІСТЮ НАХИЛУ
ІНСТРУКЦІЯ З ЕКСПЛУАТАЦІЇ
DÖNTHETŐ ÉS ELFORGATHATÓ LED TV
TARTÓ
HASZNÁLATI ÚTMUTATÓ

English English
3
SWIVEL AND TILTING LED TV WALL MOUNT
SAFETY INSTRUCTIONS
Read carefully and save for future use!
Please refer to a qualied professional to install the wall mount properly.
Prior to the wall mount installation, check the contents of the assembly
set and inform your vendor in case you discover any components are
missing or are defective. Do not use defective components!! Use the
wall mount solely for the purpose intended by the manufacturer. Make
sure the wall is capable of supporting (especially in terms of weight) the
wall mount prior to installing. Also make sure no power, water, gas or
other lines are located behind the wall in the installation area. Keep the
specied distance between the TV and wall (depends on the TV model).
Install the wall mount to a safe location, which does not present a risk to
anyone. Once the wall mount and at screen TV are mounted, ensure that
the stability and safety are sucient. This inspection shall be repeated on
a regular basis, every 2 months.
The equipment is intended to be installed on wooden crossbars or solid
concrete walls. Prior to the installation, make sure the assembly surface
has he necessary loading capacity to carry the total weight of the TV and
mount. Never exceed the maximum capacity of the holder 25 kg including
cables.
This product is designed for household use only. Using the product
outdoors can result in product failure or injury.
The manufacturer is not liable for damages to the equipment and health
caused by improper installation of the wall mount.
1. Read all instructions and make sure you understand them prior to
the installation. If you are not sure about any part of the installation
process, contact a professional technician for support.
2. The wall or surface on which the mount will be anchored to shall
be capable of carrying the entire weight of the wall mount and TV.
Reinforcement will be required otherwise.
3. The installation requires the cooperation of at least two people and the
use of a mechanical security mechanism and suitable tools. Otherwise
it could result in damage to property or serious injury or fatal injury.
SWIVEL AND TILTING LED TV WALL MOUNT
English

English English
4
4. Follow all instructions and recommendations concerning adequate
ventilation and selecting a suitable location for anchoring the TV. See
the your TV user's manual for more information.
5. The product contains smaller pieces, which upon being inhaled or
swallowed can lead to choking. Keep these pieces away from children!

English English
5

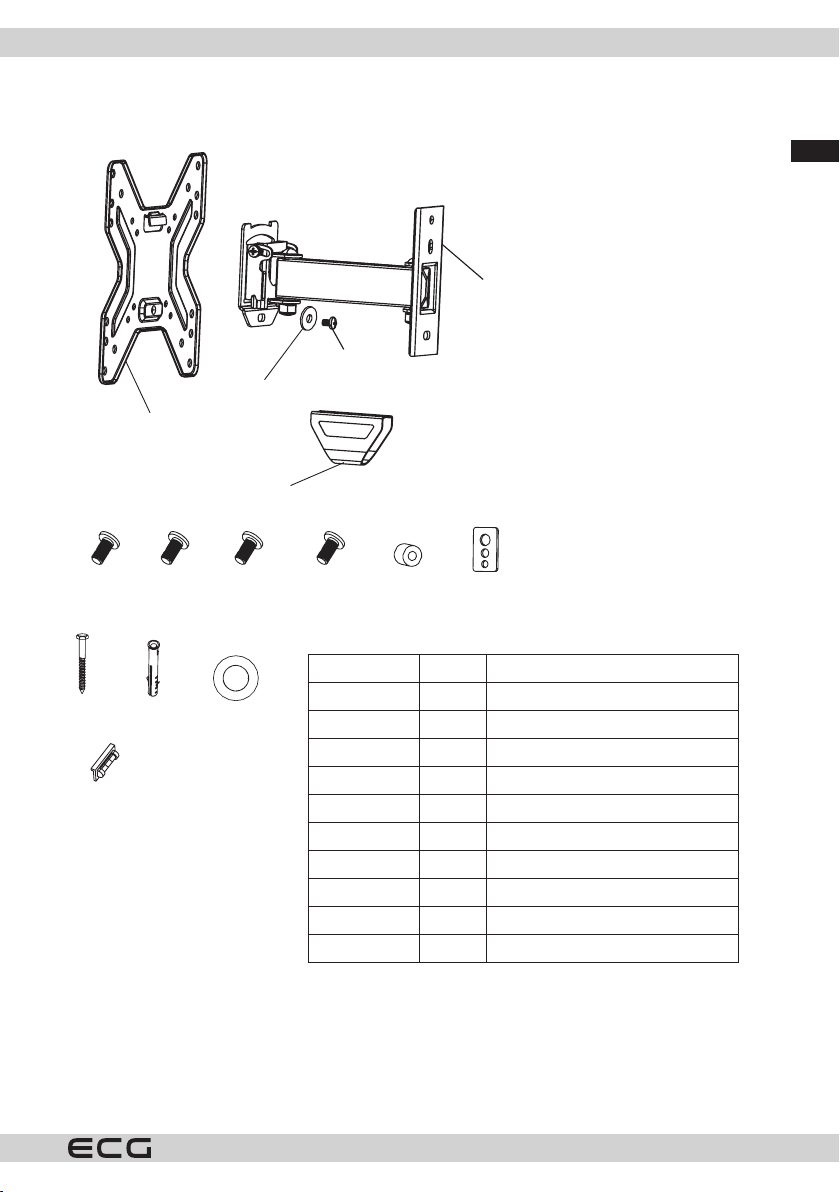

DESCRIPTION
Assembly set
Wall board
Cable organizer
Washer for short bolt
Bolt M6 × 8 mm
TV adapter panel
A1 A2 A3 A4 A5 A6
B1 B2 B3
C1
Identication Unit(s) Description
A1 4 Bolt M4 × 20 mm
A2 4 Bolt M5 × 20 mm
A3 4 Bolt M6 × 20 mm
A4 4 Bolt M8 × 20 mm
A5 4 Spacer
A6 4 Washer for bolts
B1 3 Long bolt
B2 3 Dowel
B3 3 Washer for long bolt
C1 1 Magnetic level

English English
6
ASSEMBLY

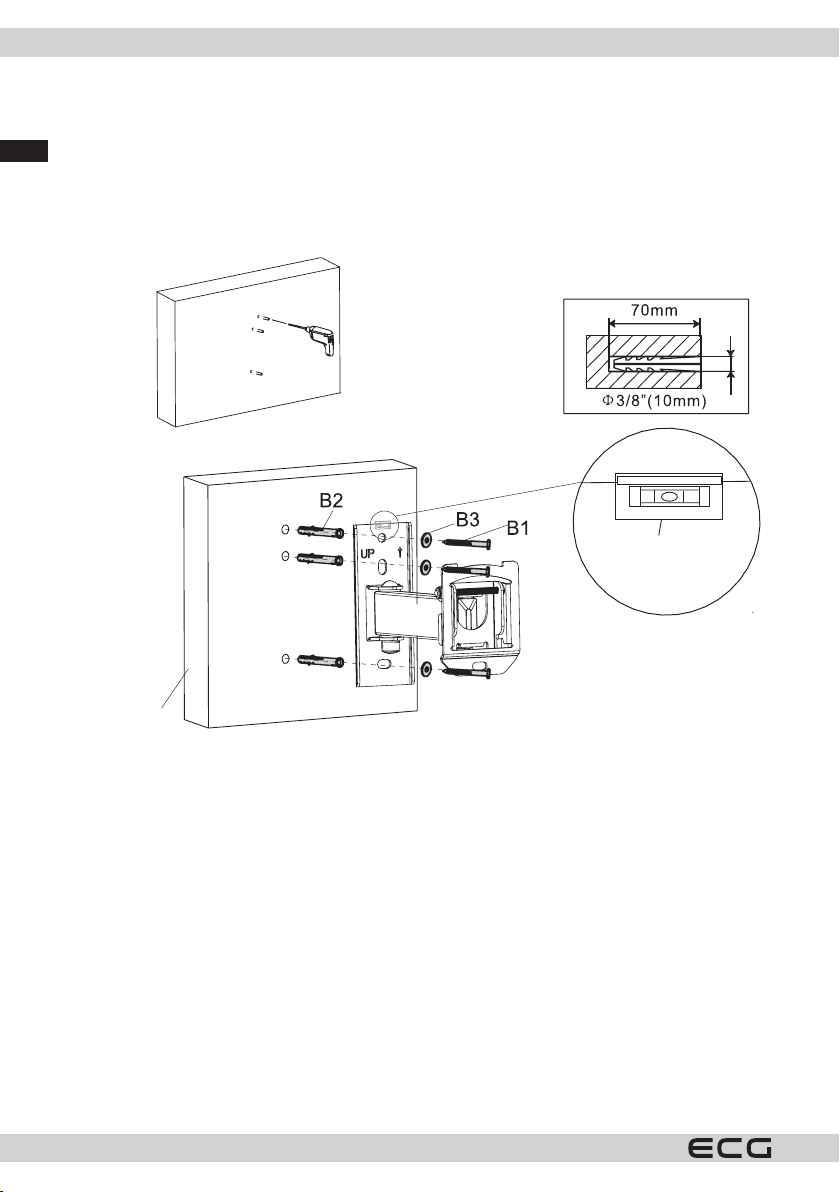

1A – Concrete wall assembly
Apply the wall board to the wall, align into a level position and use it as a template to mark three holes. Drill
three holes 10 mm in diameter and 70 mm deep. Insert three dowels (B2) into the holes and xate the wall
board to the wall using long screws (B1) and washers (B3). Tighten the bolts rmly, but not too much.
Concrete wall
Level (included)

English English
7

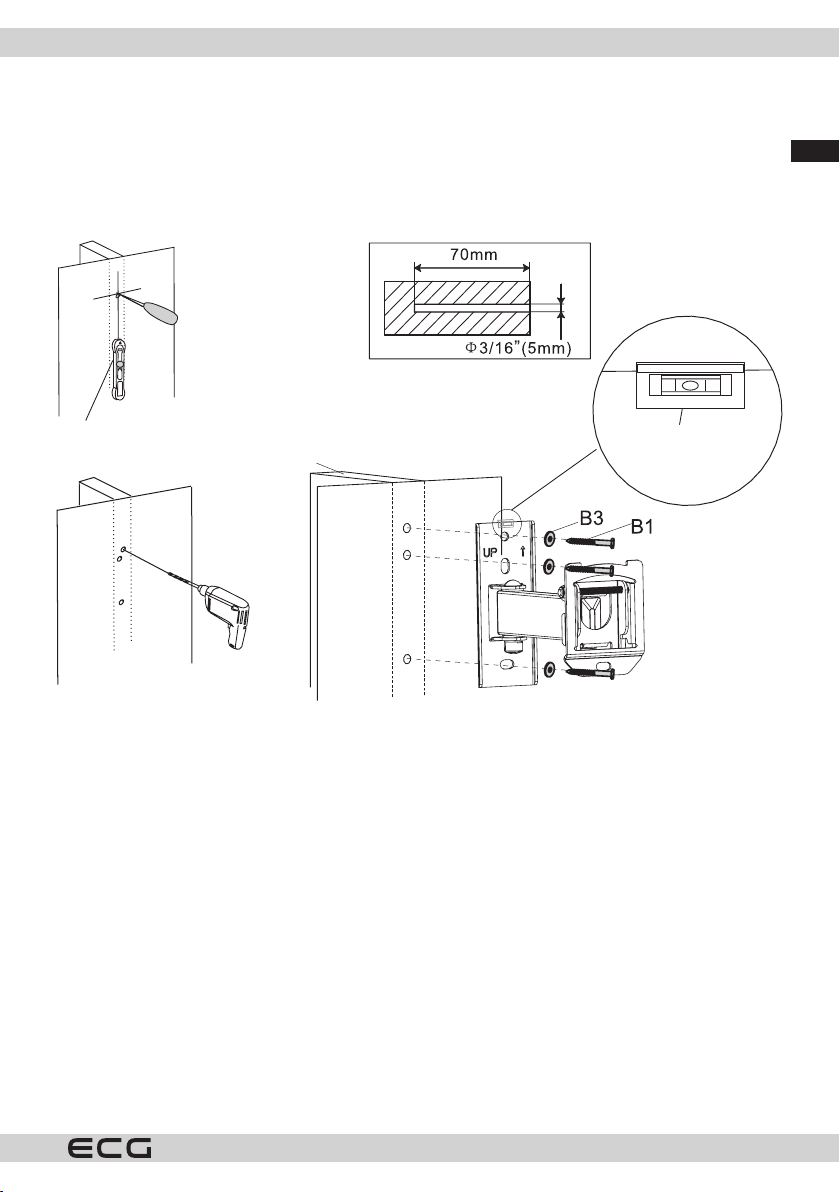

1B – Wooden crossbar assembly
Use the wall board as a template. Make sure that it is level, mark three mounting holes into the wooden post.
Drill three holes 5 mm in diameter and 70 mm deep. Apply the wall board horizontally and xate to the wall
using three long bolts (B1) and washers (B3). Tighten the bolts rmly, but not too much.
Wooden post
Wooden beam detector
(not supplied)
Level (included)

English English
8

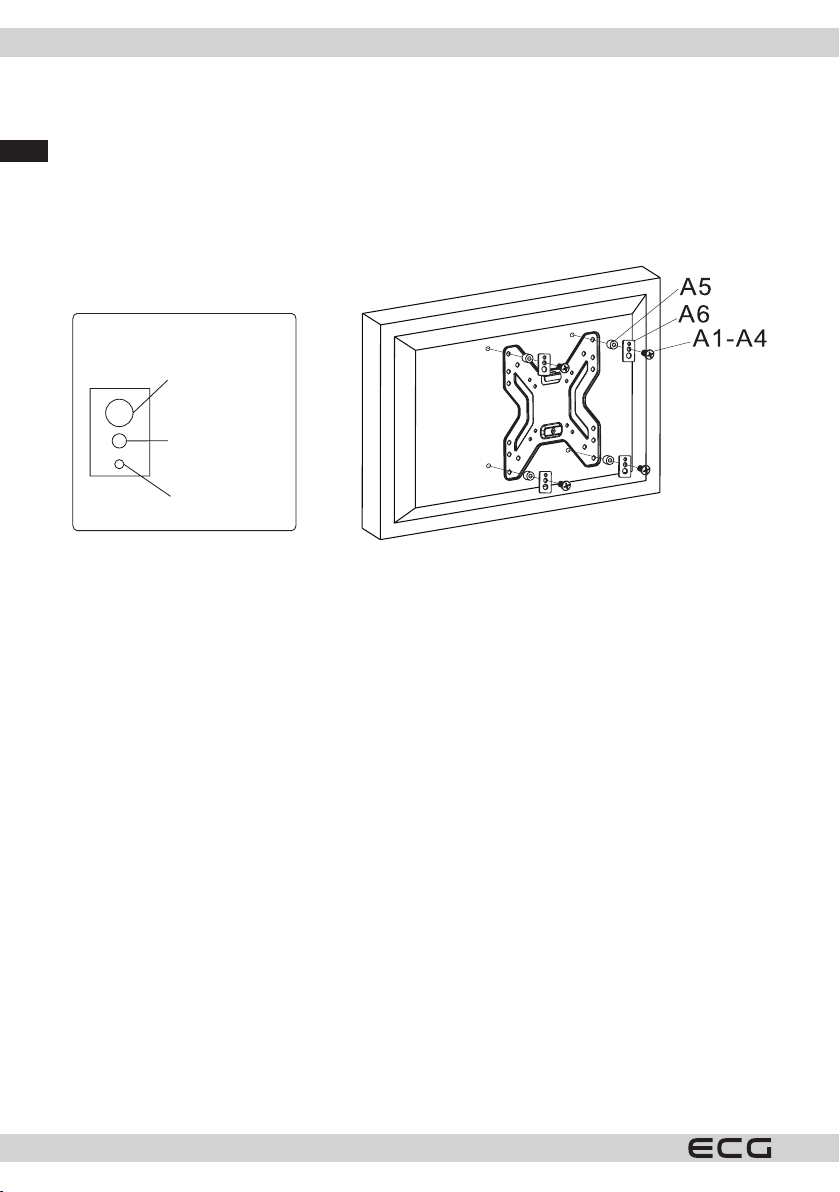

2A – Mounting the TV adapter panel to the TV with at back
Check to see how the mounting holes are arranged on the back side of your television set. Select the proper
bolts for your TV. Remove the TV adapter plate from the wall plate and attach it to the TV with the four screws
(A1–A4), spacer (A5) and washer (A6). Tighten the bolts rmly, but not too much.
Selecting a suitable washer
hole (A6) according to the screw
size
Diameter M8 (A4)
M5 and M6 diameter
(A2 + A3)
Diameter M4 (A1)
Warning: If the holes on the back of your TV are too shallow and none of the included screws t into them, use
the appropriate screws of your choice.

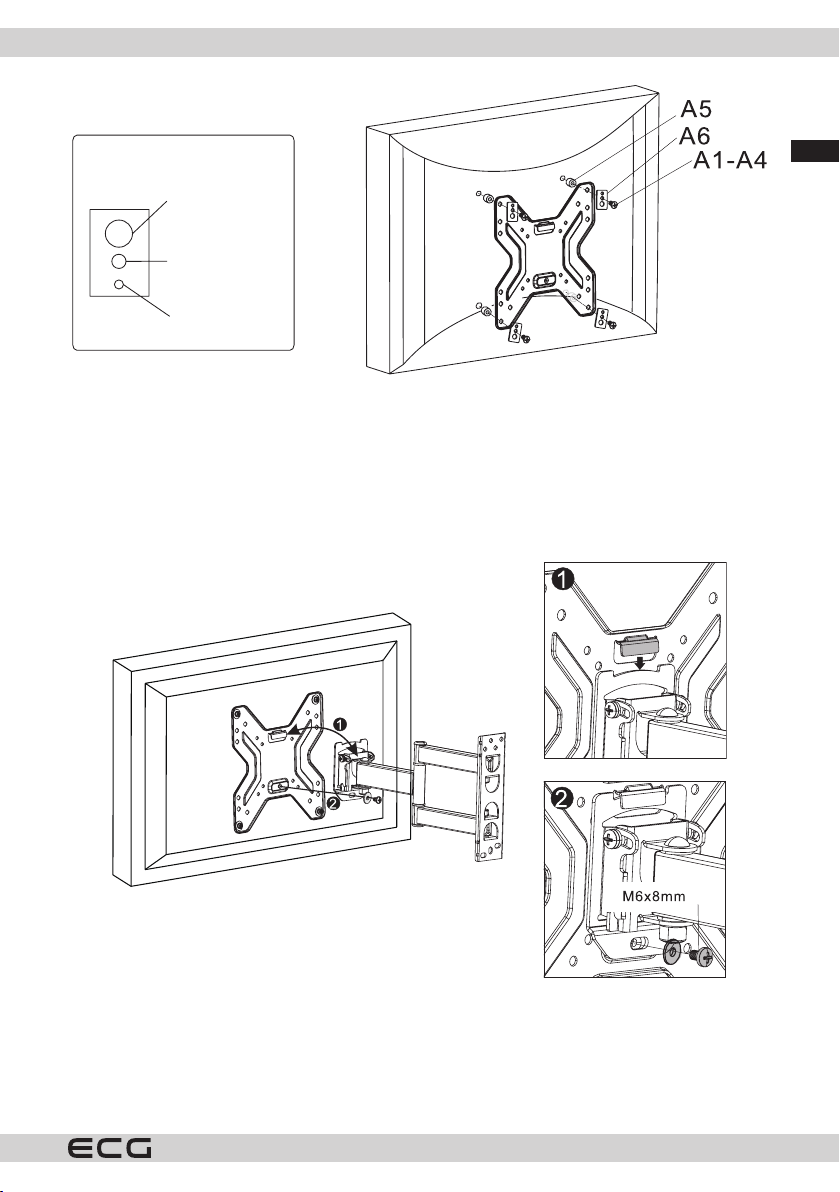

2B – Mounting the TV adapter panel to the TV with rounded back
Check to see how the mounting holes are arranged on the back side of your television set. Select the proper
bolts for your TV. Remove the TV adapter plate from the wall plate and attach it to the TV with the four screws
(A1–A4), spacer (A5) and washer (A6). Tighten the bolts rmly, but not too much.
Selecting a suitable washer
hole (A6) according to the screw
size
Diameter M8 (A4)
M5 and M6 diameter
(A2 + A3)
Diameter M4 (A1)
Warning: If the holes on the back of your TV are too shallow and none of the included screws t into them, use
the appropriate screws of your choice.

English English
9
3 – Installing the adapter panel to the wall board
Mount the adapter panel to the wall arm so that the adapter ange is placed on the wall board rails. Tighten
the M6 bolt on the wall board rails. Tighten the bolt rmly, but not too much.
4 – Cable xing, tilt angle adjustment and tightening
You can insert the wiring through the cable hole on the wall arm of the bracket. After pulling the cables
through the hole, t the enclosed cable organizer.
Loosen the screws on the wall arm plate to adjust the tilt angle of the TV as shown below. Loosen and tighten
the screws using a Phillips screwdriver and wrench. After adjusting the desired angle, tighten the screws rmly
again, but not with excessive force.

English English
10
TECHNICAL SPECIFICATIONS
Panel size: 17" to 42"
Maximum TV weight: 25 kg
Compatibility: VESA 200×200
forward/back tilt: -2° to +15°
Vertical axis rotation: 2 levels, ±90° and ±90°
Distance from the wall: 56–194 mm
USE AND DISPOSAL OF WASTE
Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic
recycling containers.
DISPOSAL OF PRODUCTS AT THE END OF LIFETIME
The represented symbol on the product or package means the product shall not be treated as domestic waste.
Hand over the product to the specied location for recycling. Prevent negative impacts on human health and
the environment by properly recycling your product. Recycling contributes to preserving natural resources.
For more information on the recycling of this product, refer to your local authority, domestic waste processing
organization or store, where you purchased the product.
The operating manual is available on internet at www.ecg-electro.eu.
Changes of text and technical parameters are reserved.
